deploying an image

[shockwave]

HI,



I've captured a win7x32 computer with SCCM 2012.

I've used this as guideline:

http://www.windows-noob.com/forums/index.php?/topic/5070-how-can-i-capture-an-image-using-capture-media-in-configmgr-2012/

http://prajwaldesai.com/capture-windows-7-using-sccm-2012-r2/



and then I tried a deploy it:

http://prajwaldesai.com/deploying-windows-7-using-sccm-2012-r2/



I filled in the mac-address of the VM and configured the bios to boot from network.



But I always get this error.

<a href="http://nl.tinypic.com?ref=za6tt" target="_blank"><img src="http://i58.tinypic.com/za6tt.png" border="0" alt="Image and video hosting by TinyPic"></a>

strange that there appears x64 because it's a x32 vm and an x32 capture



I've installed cmtrace and this is what is in SMSPXE.log

Client lookup reply: <ClientIDReply><Identification Unknown="0" ItemKey="16777225" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification></ClientIDReply>

SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

00:50:56:26:8E:7B, 60C54D56-AD9E-578D-2BCC-3A5620F88C11: device is in the database. SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

Client boot action reply: <ClientIDReply><Identification Unknown="0" ItemKey="16777225" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification><PXEBootAction LastPXEAdvertisementID="" LastPXEAdvertisementTime="" OfferID="" OfferIDTime="" PkgID="" PackageVersion="" PackagePath="" BootImageID="" Mandatory=""/></ClientIDReply>

SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

00:50:56:26:8E:7B, 60C54D56-AD9E-578D-2BCC-3A5620F88C11: no advertisements found SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

00:50:56:26:8E:7B, 60C54D56-AD9E-578D-2BCC-3A5620F88C11: No boot action. Aborted. SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

00:50:56:26:8E:7B, 60C54D56-AD9E-578D-2BCC-3A5620F88C11: Not serviced. SMSPXE 7/04/2014 16:04:13 2680 (0x0A78)

Client boot action reply: <ClientIDReply><Identification Unknown="0" ItemKey="16777225" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification><PXEBootAction LastPXEAdvertisementID="" LastPXEAdvertisementTime="" OfferID="" OfferIDTime="" PkgID="" PackageVersion="" PackagePath="" BootImageID="" Mandatory=""/></ClientIDReply>

SMSPXE 7/04/2014 16:04:15 2680 (0x0A78)

00:50:56:26:8E:7B, 60C54D56-AD9E-578D-2BCC-3A5620F88C11: no advertisements found SMSPXE 7/04/2014 16:04:15 2680 (0x0A78)

my specs:

SCCM2012R

Anyone have

win2008r2 server for sccm

sql server 2008

forest functional level 2008r2

capture is of win7x32

any advice?

[Peter van der Woude]

Looks like the device is not in the collection that the task sequence is deployed to.

[shockwave]

yes, there is nothing in the collection.

The device is a new VM with no windows installed yet. I imported the computer (mac-address) in devices and added it to the collection. When I open the collection it is empty!?

[anyweb]

check the collection properties and verify that the computer you imported is added as a query or direct membership query, if not, add it yourself,

perhaps the collection hasn't updated yet, try to manually update membership.



here;s a quick guide to importing devices into configuration Manager

[Edenost]

As anyweb says, you may need to manually add it. I have had it a few times where if SCCM is busy doing other things, it just seems to ignore the fact I'm asking it to move a PC into another collection lol. I have to do it a couple of times some of the time, and wait a little bit each time, then manually do the update memberships.

[shockwave]

I added it to the collection like in anywebs example. That worked. I got to boot from network with f12.



There appears: loading files ...

and then an a blank sccm screen



and then it reboots.



This happens agan and again.



Is there something i missed? Did my capturing somehow fail?



I think it may load a wrong wim file. During the loading a path of some wim-file appears, and it wasn't the one I made from the capture

[Edenost]

You may need to add the network card drivers to the Boot Image. Or any other drivers it may not have?

[shockwave]

I don't really understand what you mean. Can you elaborate?

All the computers are VM's.

[Peter van der Woude]

Hyper-V or VMware? If it is VMware you probably need to add network drivers to the boot image.

[Edenost]

I don't really understand what you mean. Can you elaborate?

All the computers are VM's.



If you have a look at this, get the VMWare NIC drivers (or what ever VM system you are using...even Virtual Box??), and install them to the boot image



http://www.windows-noob.com/forums/index.php?/topic/9720-cannot-load-generic-boot-images/

[shockwave]

It's VMWare I'm using

I'm gonna check this out

[shockwave]

I'm having difficulties finding my VMWare NIC drivers? Anyone have an idea?

[MarshMan0331]

Install VMware Tools on Windows 2008 and copy the entire contents of the C:\Program Files\Common Files\VMware\Drivers\vmxnet, pvscsi and vmxnet3 folders to your CAS and import these drivers and then add them to your boot image.

[shockwave]

I tried like in the link. I uploaded the drivers succesfully.



when I started the deploy VM, I got this error:



error code 0xc000035a

problems with vmci.





I first used the windows 2008 vmware drivers, and then tried the win7x32 drivers. I got the same result.

my deployment vm is supposed to be a win7x32.



windows 7 doesn't have the vmxnet driver folder, just vmxnet3 and pvscsi

[shockwave]

anyone an idea?

[shockwave]

I've redistributed my boot images

when I boot the VM I get the loading screen and a grey SCCM screen for a while until my computer reboots

I don't get the 0cx000... error anymore

[Edenost]

Where it says press f12 for network boot, you need to do that within a few seconds when it appears otherwise you end up with the screen you have now

[shockwave]

yeah I did, and I got loading files ... and then I got an empty grey SCCM screen for a while and then the VM rebooted

[anyweb]

press f8 at the 'empty grey sccm screen'

then do



cmtrace X:\Windows\Temp\SMSTSLOG\smsts.log



and tell us what errors are reported in that log.

[shockwave]

is this enough or do you need more? I'm can't copy the text from my VM to outside the VM.

[anyweb]

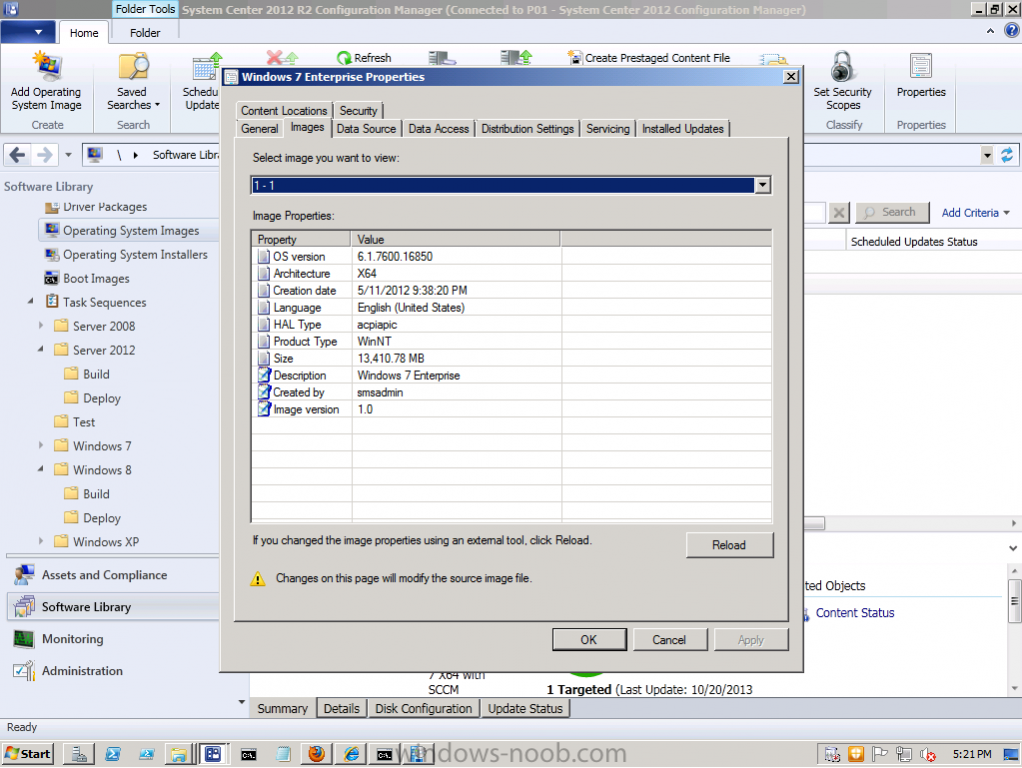

does this post help you ?

[shockwave]

doesn't seem like it's the same problem



I've made a PDF with all the things I did.

If anyone can take a look?

http://speedy.sh/sbb2S/deploy-OS-failed.pdf

[anyweb]

sorry but with the current zero day reported and linked to Adobe products I won't be clicking on the pdf, can you post your screenshots instead here

[shockwave]

There are to many screenshots. Would you accept it as a word document (.docx)?

[anyweb]

sure
