NEO-BAHAMUT- Posted July 9, 2014 Report post Posted July 9, 2014 Good evening all, At my company I have been asked to take the rains of SCCM as our SCCM consultant has suddenly decided to leave. I'm 'ok' with SCCM but far from being great. On a 1 to 10 scale I'm probably a 3 rating. Anyway I decided that the best thing for me to do is set up SCCM in a lab at home and learn it. I'm currently working through my book and I've got stuck at the 'Client Push Installation' section. I have set everything up correctly as far as I am aware however I am now trying to roll out Config Manager to a member server I have on my domain. So I right click the server and hit the 'Install Client' button. Then log on to my member server. I can see the on the root of the C: I now have a folder called SMS_SERVERNAME.domain.local. This folder is 12mb in size. I am also looking in task manager and I can see that the 'ccmsetup.exe (32 bit)' background process has started. I believe that this should eventually change to ccmexec.exe? at some point. Anyway minutes later and ccmsetup.exe disappears and nothing after checking config manager has now installed the client. Can anyone help Quote Share this post Link to post Share on other sites More sharing options...
Edenost Posted July 9, 2014 Report post Posted July 9, 2014 Is there a folder on the destination server called CCM? Or CCMSetup? It should be in the %windir% folder (I think!! lol). If so, there should be some logs in there explaining it (hopefully the setup folder). Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 Thanks for your reply. Please find attached the ccmsetup log that I acquired from the target client. I have looked myself and can see a few errors on it etc. Perhaps you could shed some light on them. Hopefully they are not too difficult to fix. ccmsetup.log Quote Share this post Link to post Share on other sites More sharing options...
Edenost Posted July 10, 2014 Report post Posted July 10, 2014 Hey, Can you just check that the "BITS" service is running (both on the client and sccm server). You seem to be having error: "0x800b0110" And a little bit of searching came across this There doesn't seem to be much info on this error code (from what I can find anyway), so hopefully it's as simple as that. With the client in question being a server, you may need to add it as a role/feature (bits). Can't remember which it is lol. Thanks, good luck! Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 10, 2014 Report post Posted July 10, 2014 looks like your client can't find the distribution point...how is your DP configured? Quote Share this post Link to post Share on other sites More sharing options...

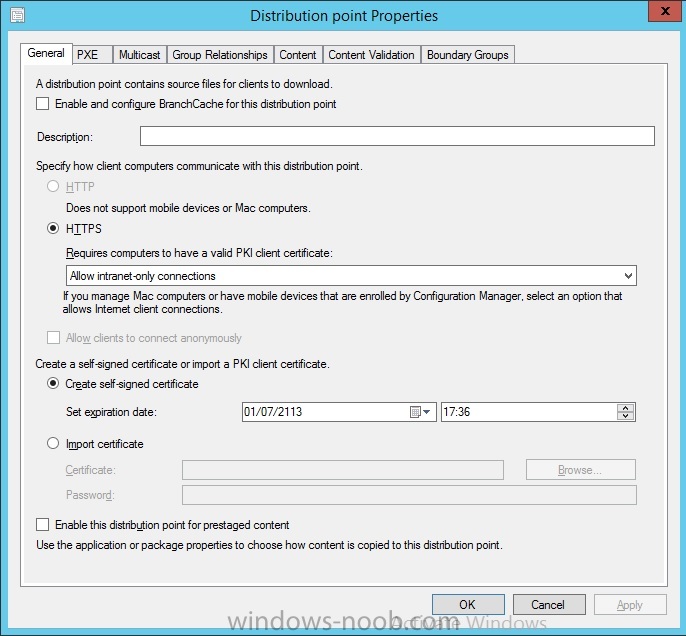

NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 Edenost - Ok I installed BITS on my client server and this has not fixed the issue. I.hn.yang - How do you mean how is my DP configured? Is there a certain page I should be looking at. When looking at Administration > Servers and Site System Roles my SCCM server is the distribution point I haven't changed any settings in here and they are setup as default. See screen shot for General settings. Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 10, 2014 Report post Posted July 10, 2014 Specify how client computers communicate with this distribution point: HTTPS requires computers to have a valid PKI Client Cert....in my DPs i have it set to HTTP. May be worth looking into since it seems like the PC can't reach the distribution point. Not 100% sure though Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 How can I set it to http? I did see this and wondered if this could be the issue. However it seems to be greyed out for me and I'm unable to change it? Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 10, 2014 Report post Posted July 10, 2014 Administration > Site Configuration > Sites > Right Click on your Site name and choose properties. Click: Client Computer Communication and select "HTTPS or HTTP" , click OK. Go back to your distribution point setting and the option should no longer be greyed I'll bet when you installed SCCM initially you had selected HTTPS at the setup installation. Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 Ok, I've made that change now. Just tried to push install the client again and still it fails. CCMSetup.log is attached. help would be great. Do you think I should completely re-install SCCM and select http instead. I followed the guides on CBT nuggets for installation for this. ccmsetup.log Quote Share this post Link to post Share on other sites More sharing options...
Edenost Posted July 10, 2014 Report post Posted July 10, 2014 This guy had similar issues from the looks of things, but not EXACTLY the same... Maybe try the hotfix if you're running SP1 http://www.windows-noob.com/forums/index.php?/topic/7417-installing-sccm2012-sp1-client-on-server-2012-fails-with-0x80004005/ Or this: http://prakaash2109.blogspot.co.uk/2013/10/failed-to-get-client-version-for.html Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 10, 2014 Report post Posted July 10, 2014 what does your ccm.log on your site server say? Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 Log attached. I'm guessing this is something to do with the WMI query? not entirely sure though. ccm.log Quote Share this post Link to post Share on other sites More sharing options...
Edenost Posted July 10, 2014 Report post Posted July 10, 2014 Try running WinRM /quickconfig from Admin CMD on the server Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 10, 2014 Report post Posted July 10, 2014 Looks like it is already setup.... WinRM service is already running on this machine.WinRM is already set up for remote management on this computer. Quote Share this post Link to post Share on other sites More sharing options...
Edenost Posted July 10, 2014 Report post Posted July 10, 2014 Quite likely, but it has kicked things in to action in the past. Have you checked the two links I provided? Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 10, 2014 Report post Posted July 10, 2014 i still think it's something to do with your distribution point configurations, even though you've made the change to allow http connections (non pki) - How does the C:\windows\ccmsetup folder look on your Client PC? Is it empty? also, check your management point properties...is it set to https or http? Quote Share this post Link to post Share on other sites More sharing options...
Sameul Posted July 11, 2014 Report post Posted July 11, 2014 Hey guy, through above thread you have set it to “HTTP” and then --> In lab environment, there is a simple and valuable method to try:Turn off the firewall of your SCCM server and client. This just to check where the issue occur at the DP or server configuration and JUST IN THE LAB. hope help~~ Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 11, 2014 Report post Posted July 11, 2014 Ok guys, So I got that tired of trying to trouble shoot my server I decided to rebuild it from scratch and re-install SCCM as HTTP . Again I go through all the correct methods and now when I am using Push Installation I am now getting the following errors. I have tried to troubleshoot this myself and found various articles but none are successful methods. I don't have a firewall enabled at the moment either. thanks Edit - I've seen there was an issue here too on this forum with the same errors I'm facing but not sure what the fix was. Quote Share this post Link to post Share on other sites More sharing options...
Sameul Posted July 12, 2014 Report post Posted July 12, 2014 Rebuilding is a huge work,there is a very useful guide from anyweb in this forum you can refer to. however,for further use,it's worth to record your steps in the setup progress. good luck and hope feedback. Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 12, 2014 Report post Posted July 12, 2014 It wasn't a big deal. I have it all setup within Hyper-V on my domain. I was able to revert to the last checkpoint which was easy. Just had to rebuild the SQL database. What I can't understand is I have got all the roles for sccm installed on my one and only SCCM server. However even if I push the client out to the SCCM server I still get the same issues. Quote Share this post Link to post Share on other sites More sharing options...

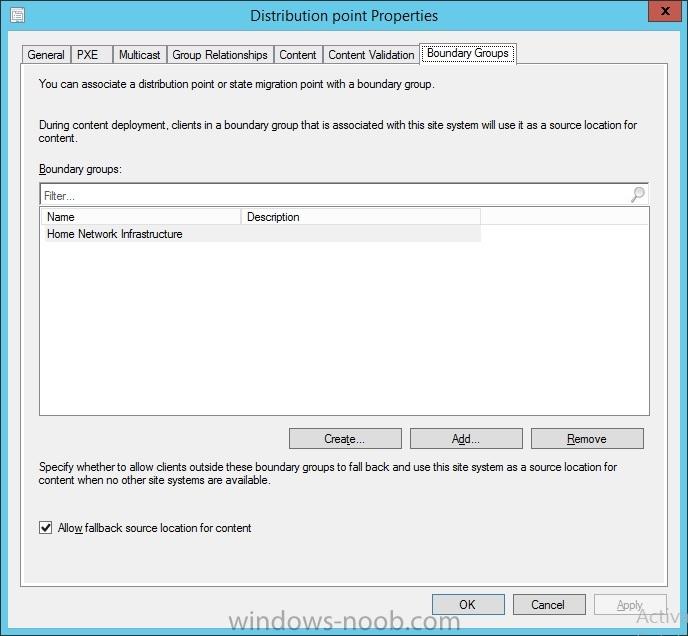

l.hv.yang Posted July 12, 2014 Report post Posted July 12, 2014 what happens if you don't use client push and you just install the client manually by copying ccmsetup files locally to ur cliebt pc and run ccmsetup.exe? also, is your distribution point assigned to your boundary groups? Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 12, 2014 Report post Posted July 12, 2014 Ok so I've copied the Client folder to my server that I want to install config manager on. Ran it and checked the ccmsetup log. There has to be a simple solution as to why this is happening. Quote Share this post Link to post Share on other sites More sharing options...
l.hv.yang Posted July 12, 2014 Report post Posted July 12, 2014 what does the client.msi log reveal? (c:\windows\ccmsetup) Quote Share this post Link to post Share on other sites More sharing options...
NEO-BAHAMUT- Posted July 12, 2014 Report post Posted July 12, 2014 I don't have a client.msi log im afraid the only log I have at C:\windows\ccmsetup is the log I've provided above. Quote Share this post Link to post Share on other sites More sharing options...
