Task Sequence failing to Join the Domain.

Recommended Posts

I have Current Branch running as the lab.

Trying to run a win10 TS. It build the OS, but fails to join the domain and fails to install the application.

I have a lot of:

Policy Evaluation failed, hr=0x87d00269


Install application action failed: 'VMware Tools'. Error Code 0x87d00269


The site is missing from site code and i am not able to tyep one in.


I am attaching smsts.log file.

Please let me know if i can provide any more information>?


Thank you.


Can i attach an image here? When i click on the image i am prompted for URL? Is there a way to attach an image from the local drive?


Share this post

Link to post
Share on other sites

These two errors can be related, depending on your boundary criteria. check out the C:\Windows\debug\NetSetup.log to see why it failed joining the domain.


Extra for the application actions:

Do you have SMSMP=<fqdn of site server> in the 'Setup Windows and Configuration Manager' task? Example: http://ccmexec.com/2013/09/tips-when-building-images-with-configmgr-2012/

I assume the client where the TS is deploy is a VM? Otherwise check similar app errors: https://www.windows-noob.com/forums/topic/10746-error-0x87d00269-when-installing-application/

Selected the Current Branch default only HTTPS install? https://www.windows-noob.com/forums/topic/9269-applications-fail-to-install-during-task-sequence/


BTW Images can be attached as well.

Share this post

Link to post
Share on other sites

This is the only errors i see in the NetSetup.log:

12/10/2016 11:49:09:415 unicodePwd = <SomePassword>
12/10/2016 11:49:09:415 NetpMapGetLdapExtendedError: Parsed [0x5] from server extended error string: 00000005: SecErr: DSID-031A11E5, problem 4003 (INSUFF_ACCESS_RIGHTS), data 0
12/10/2016 11:49:09:415 NetpModifyComputerObjectInDs: ldap_modify_s failed: 0x32 0x5
12/10/2016 11:49:09:415 NetpCreateComputerObjectInDs: NetpModifyComputerObjectInDs failed: 0x5
12/10/2016 11:49:09:415 NetpProvisionComputerAccount: LDAP creation failed: 0x5
12/10/2016 11:49:09:415 NetpProvisionComputerAccount: Retrying downlevel per options
12/10/2016 11:49:09:415 NetpManageMachineAccountWithSid: NetUserAdd on 'AD1.sccmlab.com' for 'WIN10CL001$' failed: 0x8b0
12/10/2016 11:49:09:415 SamOpenUser on 1103 failed with 0xc0000022
Is this related to not able to create a computer account?
Thanks for the help.

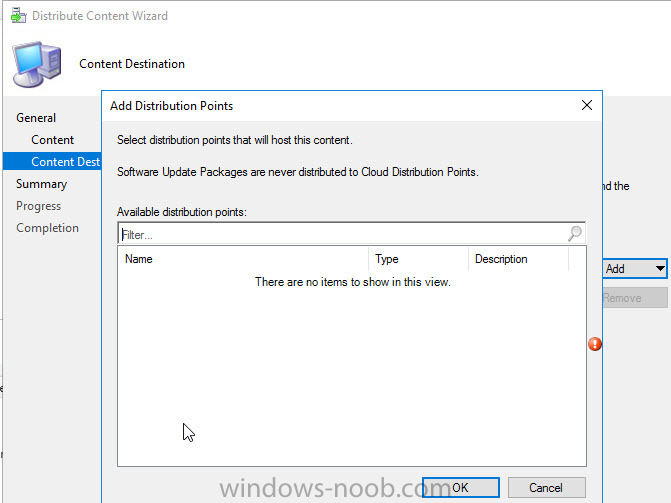

I updated the TS to change OU, but now i am missing DP from the "add distribution points" window.
Is this because: If the content is already on the DP, then that DP won't show up in the list.??
Thank you.
