Error 0x87d00215 when Deploying

[Dmwaigi]

Hi guys. Been told this is the best forum for SCCM, so here goes:



I have just installed SCCM 2012 on VM running Server 2012.

I am trying to deploy it on this local machine and keep getting this error (snippet)

<![LOG[Received reply body '<ContentLocationReply SchemaVersion=1.00"><ContentInfo PackageFlags=""><ContentHashValues/></ContentInfo><Sites><Site><MPSite SiteCode="ARV" MasterSiteCode="ARV" SiteLocality="LOCAL" IISPreferedPort="" IISSSLPreferedPort=""/><LocationRecords/></Site></Sites><ClientPackage FullPackageID="ARV00003" FullPackageVersion="1" FullPackageHash="BFC11E099E8F451107B43E0DBEFD93B01DB2D6453DA74F8A2CB94B73D676C1CD" MinimumClientVersion="5.00.7958.1000" RandomizeMaxDays="7" ProgramEnabled="false" LastModifiedTime="30574508;958709632" SiteVersionMatch="true" SiteVersion="5.00.7958.1000" EnablePeerCache="true"/><RelatedContentIDs/></ContentLocationReply&gt]LOG]!><time="09:07:37.416-180" date="02-21-2017" component="ccmsetup" context="" type="0" thread="2656" file="siteinfo.cpp:221">
<![LOG[Failed to get DP locations as the expected version from MP 'ARV-VM01.MRM_ARV.MRM.DOM'. Error 0x87d00215]LOG]!><time="09:07:37.416-180" date="02-21-2017" component="ccmsetup" context="" type="2" thread="2656" file="ccmsetup.cpp:11261">
<![LOG[MP 'ARV-VM01.MRM_ARV.MRM.DOM' didn't return DP locations for client package with the expected version. Retrying in 30 minutes.]LOG]!><time="09:07:37.416-180" date="02-21-2017" component="ccmsetup" context="" type="2" thread="2656" file="ccmsetup.cpp:11087">
<![LOG[Next retry in 30 minute(s)...]LOG]!><time="09:07:37.416-180" date="02-21-2017" component="ccmsetup" context="" type="0" thread="2656" file="ccmsetup.cpp:8835">

I checked my MP setup and it looks fine:

<02/17/17 06:50:03> ====================================================================
<02/17/17 06:50:03> SMSMP Setup Started....
<02/17/17 06:50:03> Parameters: C:\Program Files\Microsoft Configuration Manager\bin\x64\rolesetup.exe /install /siteserver:ARV-VM01 SMSMP 0
<02/17/17 06:50:03> Installing Pre Reqs for SMSMP
<02/17/17 06:50:03> ======== Installing Pre Reqs for Role SMSMP ========
<02/17/17 06:50:03> Found 2 Pre Reqs for Role SMSMP
<02/17/17 06:50:03> Pre Req MSXML60 found.
<02/17/17 06:50:03> No versions of MSXML60 are installed. Would install new MSXML60.
<02/17/17 06:50:03> Enabling MSI logging. msxml6_x64.msi will log to C:\Program Files\Microsoft Configuration Manager\logs\msxml6_x64MSI.log
<02/17/17 06:50:03> Installing C:\Program Files\Microsoft Configuration Manager\bin\x64\00000409\msxml6_x64.msi
<02/17/17 06:50:03> msxml6_x64.msi exited with return code: 0
<02/17/17 06:50:03> msxml6_x64.msi Installation was successful.
<02/17/17 06:50:03> Pre Req SqlNativeClient found.
<02/17/17 06:50:03> SqlNativeClient already installed (Product Code: {49D665A2-4C2A-476E-9AB8-FCC425F526FC}). Would not install again.
<02/17/17 06:50:03> Pre Req SqlNativeClient is already installed. Skipping it.
<02/17/17 06:50:03> ======== Completed Installation of Pre Reqs for Role SMSMP ========
<02/17/17 06:50:03> Installing the SMSMP
<02/17/17 06:50:03> Passed OS version check.
<02/17/17 06:50:03> IIS Service is installed.
<02/17/17 06:50:03> SMSMP already installed (Product Code: {F33B71BE-4C5F-4D30-82F2-96686638F622}). Upgrading/Reinstalling SMSMP
<02/17/17 06:50:03> New SMSMP is the same product code. This is a minor upgrade.
<02/17/17 06:50:03> Enabling MSI logging. mp.msi will log to C:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log
<02/17/17 06:50:03> Installing C:\Program Files\Microsoft Configuration Manager\bin\x64\mp.msi REINSTALL=ALL REINSTALLMODE=vmaus CCMINSTALLDIR="C:\Program Files\SMS_CCM" CCMSERVERDATAROOT="C:\Program Files\Microsoft Configuration Manager" USESMSPORTS=TRUE SMSPORTS=80 USESMSSSLPORTS=TRUE SMSSSLPORTS=443 USESMSSSL=TRUE SMSSSLSTATE=0 CCMENABLELOGGING=TRUE CCMLOGLEVEL=1 CCMLOGMAXSIZE=1000000 CCMLOGMAXHISTORY=1
<02/17/17 06:51:33> mp.msi exited with return code: 0
<02/17/17 06:51:33> Installation was successful.
<02/17/17 06:51:33> ~RoleSetup().

I have tried removing Distribution Point and putting it back, same error.

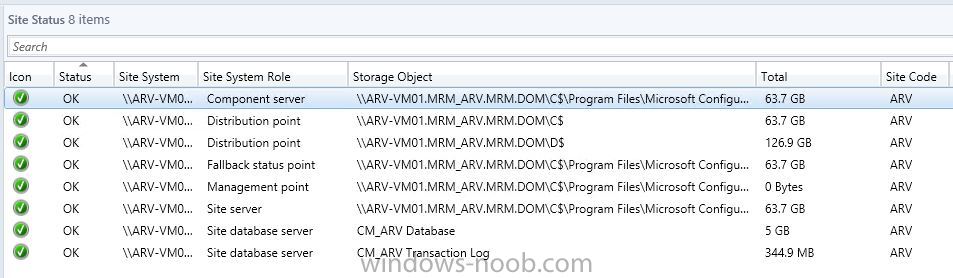

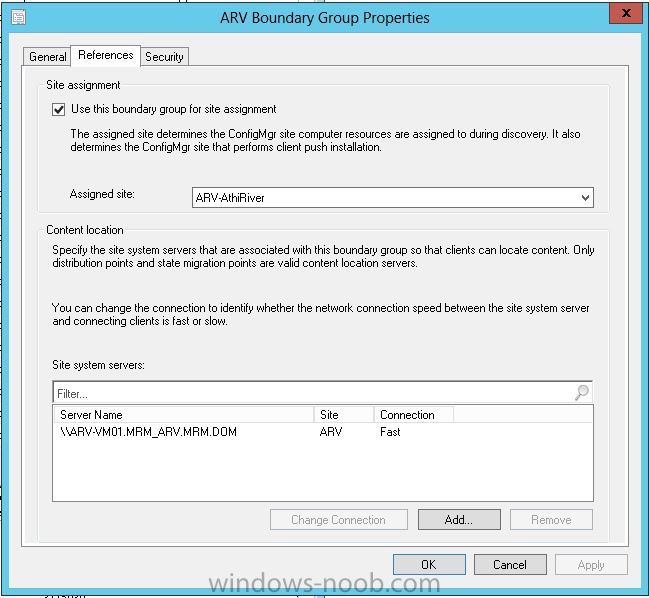

Attached are some screen shots:

Please point me in the right direction.
