Unable to push client from any site

[Muhammad Abdullah]

Hello,

I have  a CAS and 4 primary sites under,

Site1,Site2,Site3,Site4

when i implemented site 1 i was able to push agent to the clients through the CM consle without any issue and still do ,

then i implemented the other 3 primary site,

- each site is a MP and DP configured.

- AD Schema is extended

- Client push account is configured

- the 3 sites has permissions on  Management system container

-the 3 sites has permission on the site 1  and the CAS

- MP and DP is healthy as it shown on the components

- Boundaries is configured

now, i cant reassign site code for any client from the console or even from the client config manager in the control panel

when i try to push a client from any site [ Site2,3,4] i face a bunch of errors below

site server ccm.log

Received request: "16778835" for machine name: "GIZA_TEST" on queue: "Incoming".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:31 PM    7468 (0x1D2C)
Stored request "16778835", machine name "GIZA_TEST", in queue "Processing".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:31 PM    7468 (0x1D2C)
Execute query exec [sp_CP_SetPushRequestMachineStatus] 16778835, 1    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:31 PM    7468 (0x1D2C)
----- Started a new CCR processing thread. Thread ID is 0x8314. There are now 1 processing threads    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    7468 (0x1D2C)
Submitted request successfully    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    7468 (0x1D2C)
Getting a new request from queue "Incoming" after 100 millisecond delay.    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    7468 (0x1D2C)
Waiting for change in directory "C:\Program Files\Microsoft Configuration Manager\inboxes\ccr.box" for queue "Incoming", (30 minute backup timeout).    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    7468 (0x1D2C)
======>Begin Processing request: "16778835", machine name: "GIZA_TEST"    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
Execute query exec [sp_IsMPAvailable] N'GWH'    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Trying each entry in the SMS Client Remote Installation account list    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Attempting to connect to administrative share '\\Giza_Test.kazyon.com\admin$' using account 'KAZYON\SCCM'    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiEncodeStringsAsAuthIdentity succeeded!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiExcludePackage succeeded!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiMarshalAuthIdentity succeeded!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> NetUseAdd succeeded!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Connected to administrative share on machine Giza_Test.kazyon.com using account 'KAZYON\SCCM'    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Trying the 'best-shot' account which worked for previous CCRs (index = 0xFFFF)    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Attempting to make IPC connection to share <\\Giza_Test.kazyon.com\IPC$> with Kerberos authentication    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiEncodeStringsAsAuthIdentity succeeded for IPC$ authentication!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiExcludePackage succeeded for IPC$ authentication!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> SspiMarshalAuthIdentity succeeded for IPC$ authentication!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> NetUseAdd succeeded for IPC$ authentication!    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> Searching for SMSClientInstall.* under '\\Giza_Test.kazyon.com\admin$\'    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:33 PM    33556 (0x8314)
---> System OS version string "10.0.18362" converted to 10.00    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:34 PM    33556 (0x8314)
---> Mobile client on the target machine has the same version, and 'forced' flag is turned on.    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:34 PM    33556 (0x8314)
---> Creating \ VerifyingCopying existence of destination directory \\Giza_Test.kazyon.com\admin$\ccmsetup.    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:34 PM    33556 (0x8314)
---> Copying client files to \\Giza_Test.kazyon.com\admin$\ccmsetup.    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:34 PM    33556 (0x8314)
---> Copying file "C:\Program Files\Microsoft Configuration Manager\bin\I386\MobileClient.tcf" to "MobileClient.tcf"    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:34 PM    33556 (0x8314)
---> Copying file "C:\Program Files\Microsoft Configuration Manager\bin\I386\ccmsetup.exe" to "ccmsetup.exe"    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:36 PM    33556 (0x8314)
---> ForceReinstall flag is set to true    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:36 PM    33556 (0x8314)
---> Updated service "ccmsetup" on machine "Giza_Test.kazyon.com".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:36 PM    33556 (0x8314)
---> Started service "ccmsetup" on machine "Giza_Test.kazyon.com".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
---> Deleting SMS Client Install Lock File '\\Giza_Test.kazyon.com\admin$\SMSClientInstall.GWH'    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
Execute query exec [sp_CP_SetLastErrorCode] 16778835, 0    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
---> Completed request "16778835", machine name "GIZA_TEST".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
Deleted request "16778835", machine name "GIZA_TEST"    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
Execute query exec [sp_CP_SetPushRequestMachineStatus] 16778835, 4    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
Execute query exec [sp_CP_SetLatest] 16778835, N'11/23/2020 11:20:37', 89    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)
<======End request: "16778835", machine name: "GIZA_TEST".    SMS_CLIENT_CONFIG_MANAGER    23/11/2020 1:20:37 PM    33556 (0x8314)



client ccmsetup.log

==========[ ccmsetup started in process 784 ]==========    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Running on platform X64    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Detected client installed with version '5.00.8790.1007'    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Updated security on object C:\Windows\ccmsetup\cache\.    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Launch from folder C:\Windows\ccmsetup\    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
CcmSetup version: 5.0.8790.1008    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Folder 'Microsoft\Microsoft\Configuration Manager' not found. Task does not exist.    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
Folder 'Microsoft\Microsoft\Configuration Manager' not found. Task does not exist.    ccmsetup    11/23/2020 1:20:37 PM    3972 (0x0F84)
In ServiceMain    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Folder 'Microsoft\Microsoft\Configuration Manager' not found. Task does not exist.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Folder 'Microsoft\Microsoft\Configuration Manager' not found. Task does not exist.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Updating MDM_ConfigSetting.ClientDeploymentErrorCode with value 0    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
[GIZA_TEST] Running on 'Microsoft Windows 10 Pro Education N' (10.0.18362). Service Pack (0.0). SuiteMask = 272. Product Type = 18    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Ccmsetup command line: "C:\Windows\ccmsetup\ccmsetup.exe" /runservice /ForceInstall /ignoreskipupgrade /config:MobileClient.tcf    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Command line parameters for ccmsetup have been specified.  No registry lookup for command line parameters is required.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Command line: "C:\Windows\ccmsetup\ccmsetup.exe" /runservice /ForceInstall /ignoreskipupgrade /config:MobileClient.tcf    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
SslState value: 224    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMHTTPPORT:    80    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMHTTPSPORT:    443    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMHTTPSSTATE:    224    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMHTTPSCERTNAME:        ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
FSP:        ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMCERTSTORE:    MY    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMFIRSTCERT:    1    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMPKICERTOPTIONS:    1    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
MANAGEDINSTALLER:    0    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Client is set to use HTTPS when available. The current state is 224.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
CCMCERTID:    SMS;38E37AC75F3E0DA1857A4AD9A70739B9D4437CD4    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Begin searching client certificates based on Certificate Issuers    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Completed searching client certificates based on Certificate Issuers    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Begin to select client certificate    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
The 'Certificate Selection Criteria' was not specified, counting number of certificates present in 'MY' store of 'Local Computer'.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
There are no certificates in the 'MY' store.    ccmsetup    11/23/2020 1:20:37 PM    3644 (0x0E3C)
Performing AD query: '(&(ObjectCategory=mSSMSManagementPoint)(mSSMSDefaultMP=TRUE)(mSSMSSiteCode=GWH))'    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
OperationalXml '<ClientOperationalSettings><Version>5.00.8790.1000</Version><SecurityConfiguration><SecurityModeMask>0</SecurityModeMask><SecurityModeMaskEx>224</SecurityModeMaskEx><HTTPPort>80</HTTPPort><HTTPSPort>443</HTTPSPort><CertificateStoreName></CertificateStoreName><CertificateIssuers></CertificateIssuers><CertificateSelectionCriteria></CertificateSelectionCriteria><CertificateSelectFirstFlag>1</CertificateSelectFirstFlag><PKICertOptions>1</PKICertOptions><SiteSigningCert>308202F3308201DBA003020102021034552D770844239D40715EBECECFE34E300D06092A864886F70D01010B05003016311430120603550403130B53697465205365727665723020170D3230313131363137343831385A180F32313230313032343137343831385A3016311430120603550403130B536974652053657276657230820122300D06092A864886F70D01010105000382010F003082010A0282010100CF3772E46F1D24DF73824E6E3AA7C7C361703FEA308D31D1EB307463B7D88CAA8CE608F9EE5DEC2C54D851777C59C48BD87F73C588A3C349B50F3474FF42C6FC58EB43E8B8EA1131397BF4233AF9187B7AE94F3860613F58FC4A012EB848A5E5A9E24543C4E85C26B3D87A2E78F60934C744848997099EF191E266ABC95782CAFA021843D39BE7DD06E3E8A50FCCB68406AC5953B77A05AB19F71D92039E2C21758CA47162CDEAD4E5957BCAFDD7ED392BBA664EF417C4BE9068B52A6406E57D037A667BA815E62D9EC82B5B7B069063945B36CC1809495F9E9A5A5D0F662845FEFF329F9B11FEF9B173F62982AF46898D4631E3C35584A779374B8714C0E9110203010001A33B303930210603551D11041A3018821647697A612D5343434D30312E6B617A796F6E2E636F6D30140603551D25040D300B06092B060104018237650B300D06092A864886F70D01010B05000382010100394AE5115594042F99EBA4E7B6FD4CC97000ECB3ECE69E660FEF4A57B598E2F2C81EE18F2C763B6FC962AA488936C21A48913B8BDA0202C3573C6E9A6F03D70789F1F93DADE201C6091E69C32BEC18D76C330E19E34ADCC3A6D2CFD9C4678E899DCD6C76E3E002866ACEDF464379B96BB915A252D237E61BA61BD5102E83DD3D655EB393EA21B8289053590631D147FCAFDB3FAD7EEAE5601A2A976F5678FF3763D9ABA8AD986F511C2D66000E5AC4B3DB7898B6F9833ED03447A8A99050BD835294CED1EA21B8E99F72370AC6C5A1C56BB37477C62223EACF24BF758388CBD6CDD2C2EC4D37C1E9F5C8A77632F2234D8322FC01A4A25188F14AAA9B08297232</SiteSigningCert></SecurityConfiguration><RootSiteCode>CAS</RootSiteCode><CCM> <CommandLine>MP=Giza-sccm01.kazyon.com SMSSITECODE=GWH</CommandLine> </CCM><FSP> <FSPServer></FSPServer> </FSP><Capabilities SchemaVersion ="1.0"><Property Name="SSLState" Value="0" /></Capabilities><Domain Value="kazyon.com" /><Forest Value="kazyon.com" /><AADConfig Version="1.0"><Tenants></Tenants></AADConfig></ClientOperationalSettings>'    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
The MP name retrieved is 'Giza-SCCM01.kazyon.com' with version '8790' and capabilities '<Capabilities SchemaVersion="1.0"><Property Name="SSLState" Value="0"/></Capabilities>'    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MP 'Giza-SCCM01.kazyon.com' is compatible    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Retrieved 1 MP records from AD for site 'GWH'    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
No AAD tenants information found.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Persisted AAD on-boarding info.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
FromAD: command line = MP=Giza-sccm01.kazyon.com SMSSITECODE=GWH    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Local Machine is joined to an AD domain    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Current AD forest name is kazyon.com, domain name is kazyon.com    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Domain joined client is in Intranet    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
CMPInfoFromADCache requests are throttled for 01:07:08    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Found MP http://Giza-SCCM01.kazyon.com from AD    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Successfully refresh bootstrap information from AD.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Begin searching client certificates based on Certificate Issuers    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Completed searching client certificates based on Certificate Issuers    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Begin to select client certificate    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
The 'Certificate Selection Criteria' was not specified, counting number of certificates present in 'MY' store of 'Local Computer'.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
There are no certificates in the 'MY' store.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Config file:      C:\Windows\ccmsetup\MobileClientUnicode.tcf    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Retry time:       10 minute(s)    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MSI log file:     C:\Windows\ccmsetup\Logs\client.msi.log    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MSI properties:    CCMCERTID="SMS;38E37AC75F3E0DA1857A4AD9A70739B9D4437CD4" CCMCERTSTORE="MY" CCMFIRSTCERT="1" CCMHTTPPORT="80" CCMHTTPSPORT="443" CCMHTTPSSTATE="224" CCMPKICERTOPTIONS="1" INSTALL="ALL" MANAGEDINSTALLER="0" MP="Giza-sccm01.kazyon.com" SMSSITECODE="GWH" smsmplist="Giza-SCCM01.kazyon.com"    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Source List:    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
                  \\Giza-SCCM01.kazyon.com\SMSClient    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
                  \\GIZA-SCCM01.KAZYON.COM\SMSClient    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MPs:    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
                  Giza-SCCM01.kazyon.com    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
                  http://Giza-SCCM01.kazyon.com    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MapNLMCostDataToCCMCost() returning Cost 0x1    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Detected client version 5.00.8790.1007 from WMI.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Task 'Configuration Manager Client Retry Task' does not exist    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Updated security on object C:\Windows\ccmsetup\.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Updating MDM_ConfigSetting.ClientDeploymentErrorCode with value 0    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
[5.00.8790.1007] Params to send '5.0.8790.1008 Deployment Error: 0x0, '    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
<ClientDeploymentMessage ErrorCode="0"><Client Baseline="1" BaselineCookie="" Platform="2" Langs=""/></ClientDeploymentMessage>    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Raised pending client deployment state message.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Detected 25715 MB free disk space on system drive.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Client OS Version 6.2 Service Pack 0.0    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Running as user "SYSTEM"    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Checking Write Filter Status.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
This is not a supported write filter device. We are not in a write filter maintenance mode.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
SiteCode:         GWH    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
SiteVersion:      5.00.8790.1000    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Searching for a valid online MP...    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Checking the URL 'http://Giza-SCCM01.kazyon.com/CCM_Client/ccmsetup.cab'    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
MapNLMCostDataToCCMCost() returning Cost 0x1    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Client is not on internet    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Client is set to use webproxy if available.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
ccmsetup: Host=Giza-SCCM01.kazyon.com, Path=/CCM_Client, Port=80, Protocol=http, CcmTokenAuth=0, Flags=0x4101, Options=0xe0    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Created connection on port 80    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Trying without proxy.    ccmsetup    11/23/2020 1:20:38 PM    3644 (0x0E3C)
Raising event:
instance of CCM_CcmHttp_Status
{
    ClientID = "GUID:1834F673-DDE5-424B-9A97-2C470D2B95B8";
    DateTime = "20201123112039.127000+000";
    HostName = "Giza-SCCM01.kazyon.com";
    HRESULT = "0x00000000";
    ProcessID = 784;
    StatusCode = 0;
    ThreadID = 3644;
};
    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Failed to submit event to the Status Agent. Attempting to create pending event.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Raising pending event:
instance of CCM_CcmHttp_Status
{
    ClientID = "GUID:1834F673-DDE5-424B-9A97-2C470D2B95B8";
    DateTime = "20201123112039.127000+000";
    HostName = "Giza-SCCM01.kazyon.com";
    HRESULT = "0x00000000";
    ProcessID = 784;
    StatusCode = 0;
    ThreadID = 3644;
};
    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Successfully submitted pending event to WMI.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Found a valid online MP 'http://Giza-SCCM01.kazyon.com'.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Searching for DP locations from MP(s)...    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
CCMSETUP bootstrap from Internet: 0     ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Current AD site of machine is GizaWH    LocationServices    11/23/2020 1:20:39 PM    3644 (0x0E3C)
DhcpGetOriginalSubnetMask entry point is supported.    LocationServices    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Begin checking Alternate Network Configuration    LocationServices    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Finished checking Alternate Network Configuration    LocationServices    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Adapter {E859C6F2-31D4-4137-8EB4-ACB6B581D0CA} is DHCP enabled. Checking quarantine status.    LocationServices    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Sending message body '<ContentLocationRequest SchemaVersion="1.00"  BGRVersion="1">
  <AssignedSite SiteCode="GWH"/>
  <ClientPackage RequestForLatest="0" DeploymentFlags="4098"/>
  <ClientLocationInfo LocationType="SMSPACKAGE" DistributeOnDemand="0" UseProtected="0" AllowCaching="0" BranchDPFlags="0" AllowHTTP="1" AllowSMB="0" AllowMulticast="0" UseAzure="1" DPTokenAuth="1" UseInternetDP="0">
    <ADSite Name="GizaWH"/>
    <Forest Name="kazyon.com"/>
    <Domain Name="kazyon.com"/>
    <IPAddresses>
<IPAddress SubnetAddress="10.101.104.0" Address="10.101.104.50"/>
    </IPAddresses>
  </ClientLocationInfo>
</ContentLocationRequest>
'    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Sending location request to 'Giza-SCCM01.kazyon.com' with payload '<ContentLocationRequest SchemaVersion="1.00"  BGRVersion="1">
  <AssignedSite SiteCode="GWH"/>
  <ClientPackage RequestForLatest="0" DeploymentFlags="4098"/>
  <ClientLocationInfo LocationType="SMSPACKAGE" DistributeOnDemand="0" UseProtected="0" AllowCaching="0" BranchDPFlags="0" AllowHTTP="1" AllowSMB="0" AllowMulticast="0" UseAzure="1" DPTokenAuth="1" UseInternetDP="0">
    <ADSite Name="GizaWH"/>
    <Forest Name="kazyon.com"/>
    <Domain Name="kazyon.com"/>
    <IPAddresses>
<IPAddress SubnetAddress="10.101.104.0" Address="10.101.104.50"/>
    </IPAddresses>
  </ClientLocationInfo>
</ContentLocationRequest>
'    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
MapNLMCostDataToCCMCost() returning Cost 0x1    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Client is not on internet    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Client is set to use webproxy if available.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
ccmsetup: Host=Giza-SCCM01.kazyon.com, Path=/ccm_system/request, Port=80, Protocol=http, CcmTokenAuth=0, Flags=0x14101, Options=0xe0    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Created connection on port 80    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Trying without proxy.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Raising event:
instance of CCM_CcmHttp_Status
{
    ClientID = "GUID:1834F673-DDE5-424B-9A97-2C470D2B95B8";
    DateTime = "20201123112039.424000+000";
    HostName = "Giza-SCCM01.kazyon.com";
    HRESULT = "0x00000001";
    ProcessID = 784;
    StatusCode = 0;
    ThreadID = 3644;
};
    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Failed to submit event to the Status Agent. Attempting to create pending event.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Raising pending event:
instance of CCM_CcmHttp_Status
{
    ClientID = "GUID:1834F673-DDE5-424B-9A97-2C470D2B95B8";
    DateTime = "20201123112039.424000+000";
    HostName = "Giza-SCCM01.kazyon.com";
    HRESULT = "0x00000001";
    ProcessID = 784;
    StatusCode = 0;
    ThreadID = 3644;
};
    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Successfully submitted pending event to WMI.    ccmsetup    11/23/2020 1:20:39 PM    3644 (0x0E3C)
Received message '<ContentLocationReply SchemaVersion="1.00" BGRVersion="1"><BoundaryGroups BoundaryGroupListRetrieveTime="2020-11-23T11:20:39.360"><BoundaryGroup GroupID="67108865" GroupGUID="45dd48df-4213-4101-856a-29fb77650b1b" GroupFlag="0"/></BoundaryGroups><ContentInfo/><Sites><Site><MPSite SiteCode="GWH" MasterSiteCode="GWH" SiteLocality="FALLBACK"/><LocationRecords/></Site></Sites><ClientPackage IsStagingPackage="false" BaselineCookie="2020-07-08T18:20:18.053" FullPackageID="RDC00003" ExpectedPackageVersion="1" FullPackageVersion="1" FullPackageHash="5F184099858EE67D0450B96AC62F9EE

Could you please enlighten me how to fix this issue.



thanks in advance.

[GarthMJ]

First off you only need a CAS if you have over 150000 computers. having one otherwise will cause you lots of problems As such, take the time to move the cas if you don't ahve 150,000 computers.

Secondly the CM client installed correctly, you can see that from the ccm.log.

Lastly ccmsetup.log does seem like it has finished yet.



[Muhammad Abdullah]

well,

first of all, thank you so much for the response, i appreciate it.

secondly,

the client is installed already from site1 which causes no problems,

but when i try to uninstall the client and install it from another site "its resident site " it fails with errors' invalid namespace, unable to find wmi Root/ccm, cant find DP location from MP

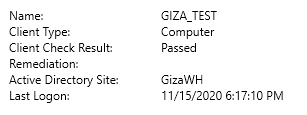

as u can see in the below screenshots the AD site for this  client is GizaWH this site has a site code which is GWH when i try to install the client from the site i face the above issues no installtion happens.

but when i installed from RDC site it worked fine no issues, how i can fix the other sites client push ?



Edited November 23, 2020 by Muhammad Abdullah

[GarthMJ]

Let start with do you have over 150,000 computers? aka why have a CAS at all? This is begging for trouble.

[Muhammad Abdullah]

i have near to 2000 computers, and i use CAS for reporting purposes and as single administration point.

how the CAS server would affect the hirarecy below 150k client ?

[GarthMJ]

1 hour ago, Muhammad Abdullah said:

i have near to 2000 computers, and i use CAS for reporting purposes and as single administration point.

how the CAS server would affect the hirarecy below 150k client ?

For 2000 computers, you only require a single primary site. Having multiple primary in no way helps with reporting.

Having 4 primary with a CAS is a HUGE overhead and will have LOTS of problems and require a big team to manage.



[Muhammad Abdullah]

i have 4 sites thats why i need 4 primary for each site



[GarthMJ]

6 hours ago, Muhammad Abdullah said:

i have 4 sites thats why i need 4 primary for each site



You don't need four primaries just because you have four sites. You might need remote DPs, but definitely not site.
