SCCM v2103 Enhanced HTTP with BitLocker Management

[coolslim54]

Does anyone have a clear answer on weather or not v2103 fully supports Enhanced HTTP w/BitLocker? Is an HTTPS Management Point still required, or is Enhanced HTTP enough?

[pej1025]

"The BitLocker recovery service requires HTTPS to encrypt the recovery keys across the network from the Configuration Manager client to the management point. Use one of the following options:

Enable the site for enhanced HTTP. This option applies to version 2103 or later.
HTTPS-enable the IIS website on the management point that hosts the recovery service. This option applies to version 2002 or later.
Configure the management point for HTTPS. This option applies to all supported Configuration Manager versions."

https://docs.microsoft.com/en-us/mem/configmgr/protect/plan-design/bitlocker-management#prerequisites

[coolslim54]

I'm guessing the best option is to enable the MP with https. I have an enhanced http enabled site running v2013 and my test clients cannot locate the MP when applying MBAM the policy.

[rph1]

Hi

i was wondering if its possible to enable e-http(tick the checkbox) via powershell (sccm module?) and if this could be added to the Unattended install ini file too?

thanks



[coolslim54]

I'm not having much luck with enabling BitLocker with SCCM v2103, running in enhanced HTTP mode. I'm able to successfully create and deploy the Bitlocker policy to a few test machines. The MDOP MBAM agent does show up in the control panel, but for some reason, the machines remain non-complaint when the SCCM client runs the evaluation. Some of the MBAM registry keys appear to be present on the machines, but the MDOPBitLockerManagement sub registry key is not present. Under the Event Viewer\Applications and Services\Microsoft\Windows\MBAM\Admin section is giving the same warning message all the way down: Unable to connect to the MBAM Recovery and Hardware service. Error code: -2147028409.

Lastly, I've gone thru the BitlockerManagementHandler.log file just about line-by-line and I saw nothing that indicates the machine was able to detect my enhanced http Management. I did come across the following error messages in the log file:

Error executing method ProtectKeyWithNumericalPassword. 0x8031005b

Error adding numerical password to OS volume

Unable to initialize volume state. Bitlocker enactment cancelled

Error escrowing keys. 0x8031005b

Am I missing something with my enhanced http setup? It's a pretty straight forward process. Any help would be greatly appreciated!

[anyweb]

have you enabled the client management tab settings at all when you configured BitLocker Management ?

[anyweb]

also the 0x8031005b translates to "

The Group Policy settings for BitLocker startup options are in conflict and cannot be applied. Contact your system administrator for more information.

Source: Windows
-----



"

[coolslim54]

The client management settings are definitely enabled. My AD guys weren't aware of any active BitLocker GPOs inplace. I ran an RSOP on the machine and did find BitLocker GPOs. I'll provide an update once they've been disabled.

[blop]

On 6/13/2021 at 12:56 PM, coolslim54 said:

The client management settings are definitely enabled. My AD guys weren't aware of any active BitLocker GPOs inplace. I ran an RSOP on the machine and did find BitLocker GPOs. I'll provide an update once they've been disabled.

Did you manage to make it work? I'm in the same configuration than you (I'm on 2103 with http enhanced) except that I have registry keys that appears correctly but on my side, the MBAM client never shows up so clients never get notified of encryption policy even tough I putted non compliance grace period to 0 days. Even when I try to launch manually the MBAMclientUI.exe, it doesn't appear.

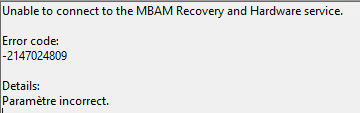

I get an error in the event viewer/MBAM/admin:

Which on Microsoft website means:

But when I trigger the encryption manually with manage-bde c : on, the client start encrypting with the good encryption method and the recovery key appear in the database correctly.

If any of you have an idea?

Thanks in advance.



Edited August 27, 2021 by blop

[anyweb]

are your clients updated with the latest configmgr client agent ?

[blop]

Thanks for the answer.

The clients are on the 5.00.9049.1010 version which is pretty recent if I'm correct

[anyweb]

i mean, do the client versions correspond to the site version, if yes then let's figure out if the client is getting the policy or not,

did you check on the configmgr client agent to see if the bitlocker policy you configured is listed ?

[blop]

Yes, they match. The client version is corresponding to the 2103 sccm version. I see it appearing in the configurations tab on the CCM client. It appears as non compliant until I trigger the encryption manually. I tried to reboot several times but the MBAMclientUI.exe never appears.

I tried to do a cmd ->

bdehdcfg -driveinfo

and it tells me that everything is ok. When I do a get-tpm with Powershell, everyting is on True and seems fine even when I launch the tpm.msc everyting is good.

I also tried to reset the TPM just in case, still no luck.

[anyweb]

ok if the mbam client is not getting installed then there's something wrong with your policy settings, are you sure you've configured Client Management and set it to Enabled ?

[blop]

In fact the MBAM client is installed but it doesn't show the wizard asking the user to encrypt its device neither force him too. The only way to encrypt the device is to open a cmd with administrator rights and type manage-bde -on c : or do it trough the control panel.

Thanks.

[anyweb]

show me screenshots of your configured settings, something is not right

[blop]

Hello,

On the first tab:

Nothing else is configured under.

Second tab:

Third tab:

Nothing else is configured on the two last tabs.

I tried to do exactly the same configuration on a lab with https on the management point and it works as intended. I'm starting to believe that it does not play well with http enhanced.

Thanks!

Edited August 31, 2021 by blop

[anyweb]

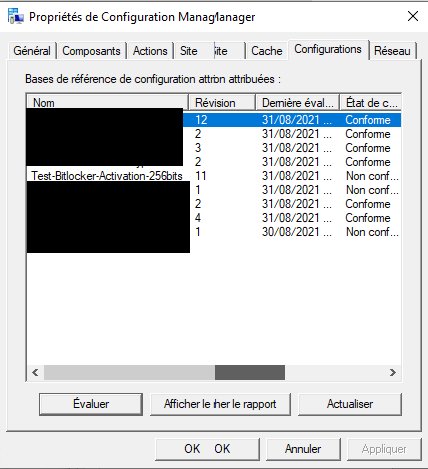

good info, can you show me your Configurations tab in the configmgr client agent...

[blop]

There you go :

[anyweb]

and what does it report when you evaluate the compliance of that configuration ?

[blop]

Sorry about the delay, there it is.

Thanks!

[SCCMentor]

The eHTTP MP should be sufficient for this to work.

Has the SMS Role SSL Cert automatically bound to the IIS or been changed at all?



Are you able to share the BitLockerManagementHandler log at all?

Cheers

Paul

[blop]

Hi,

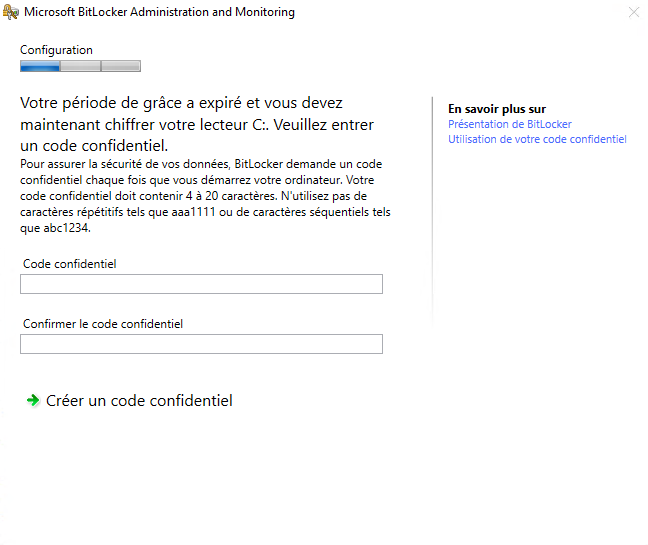

Well guess what, it finally appeared after 5 days, I did not change anything since and this morning that appeared on the computer:

Thanks to both of you for you answers and help!

Have a nice day!
