OSD with SCCM 2007

Featured Replies

Hi Anyweb,



I am trying to install Windows 7 using pxe boot but unfortunately it doesn’t happen. I have tried every website and experts-exchange support as well but no luck and as a last resort before calling Microsoft I am writing this email to you as you look interested in Windows 7 deployments using SCCM and I am very much interested in your blogs.

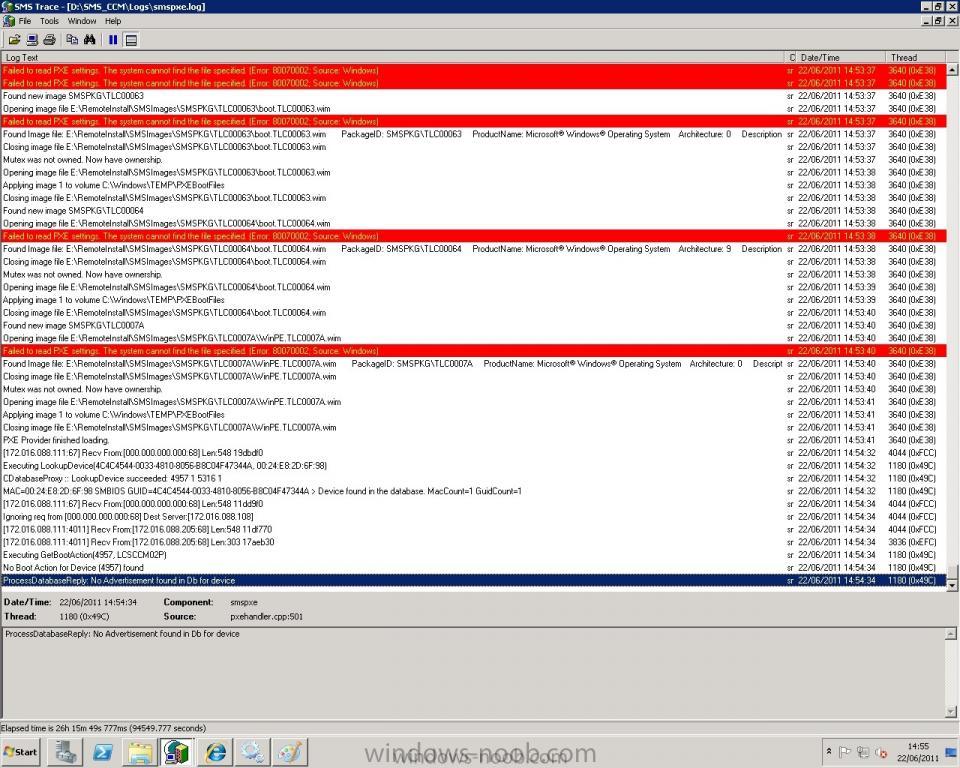

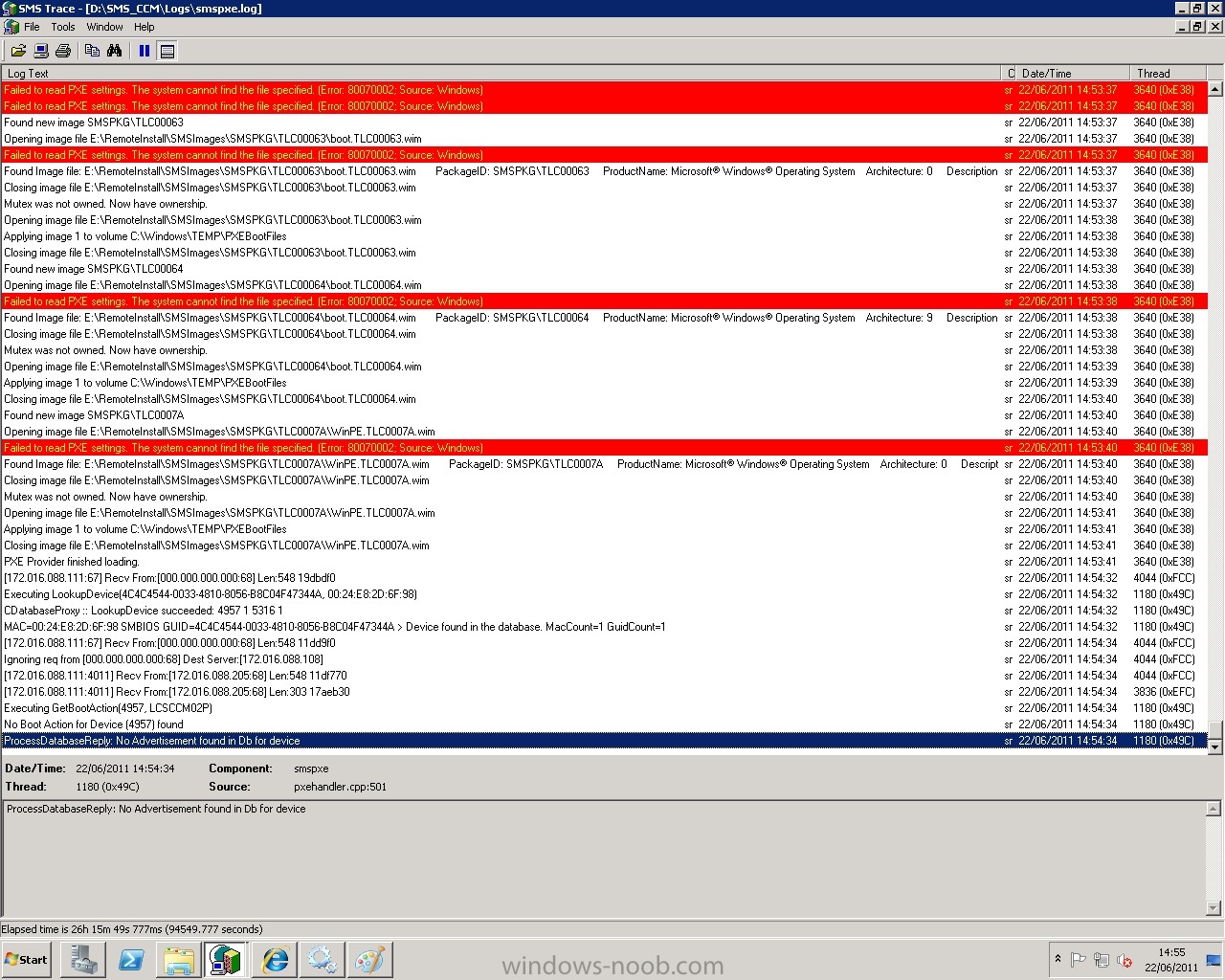

SMSPXE log file info:

NO boot action defined

No advertisement found in database



However I have attached smspxe.log for your reference



Client side error:



TFTP download :smsboot\x64\abortpxe.com.

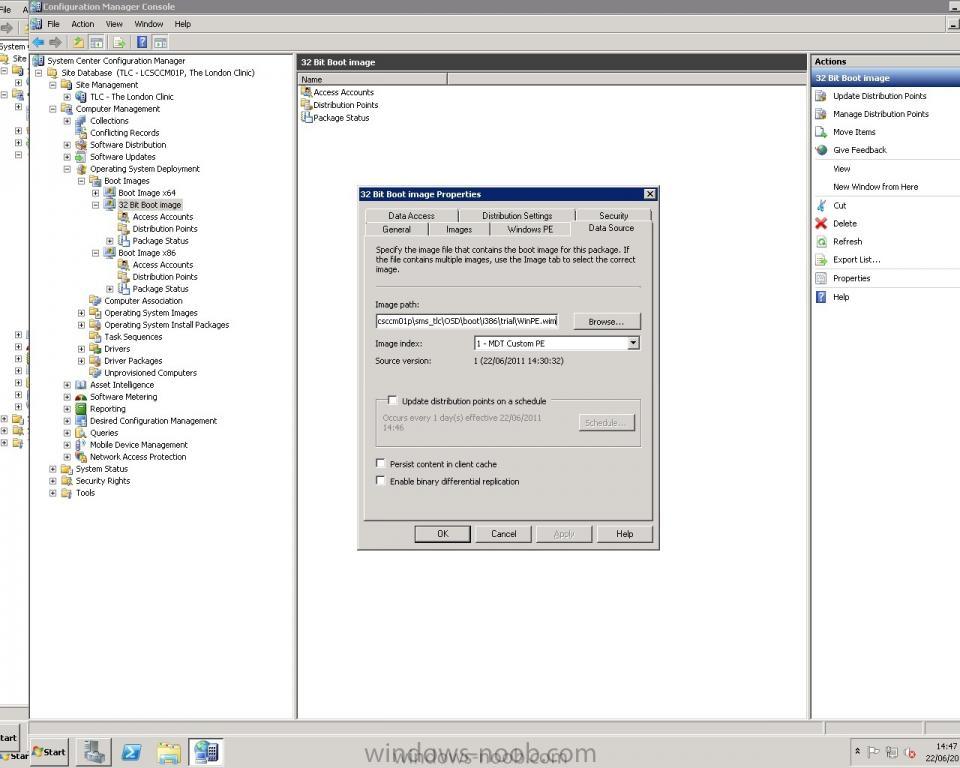

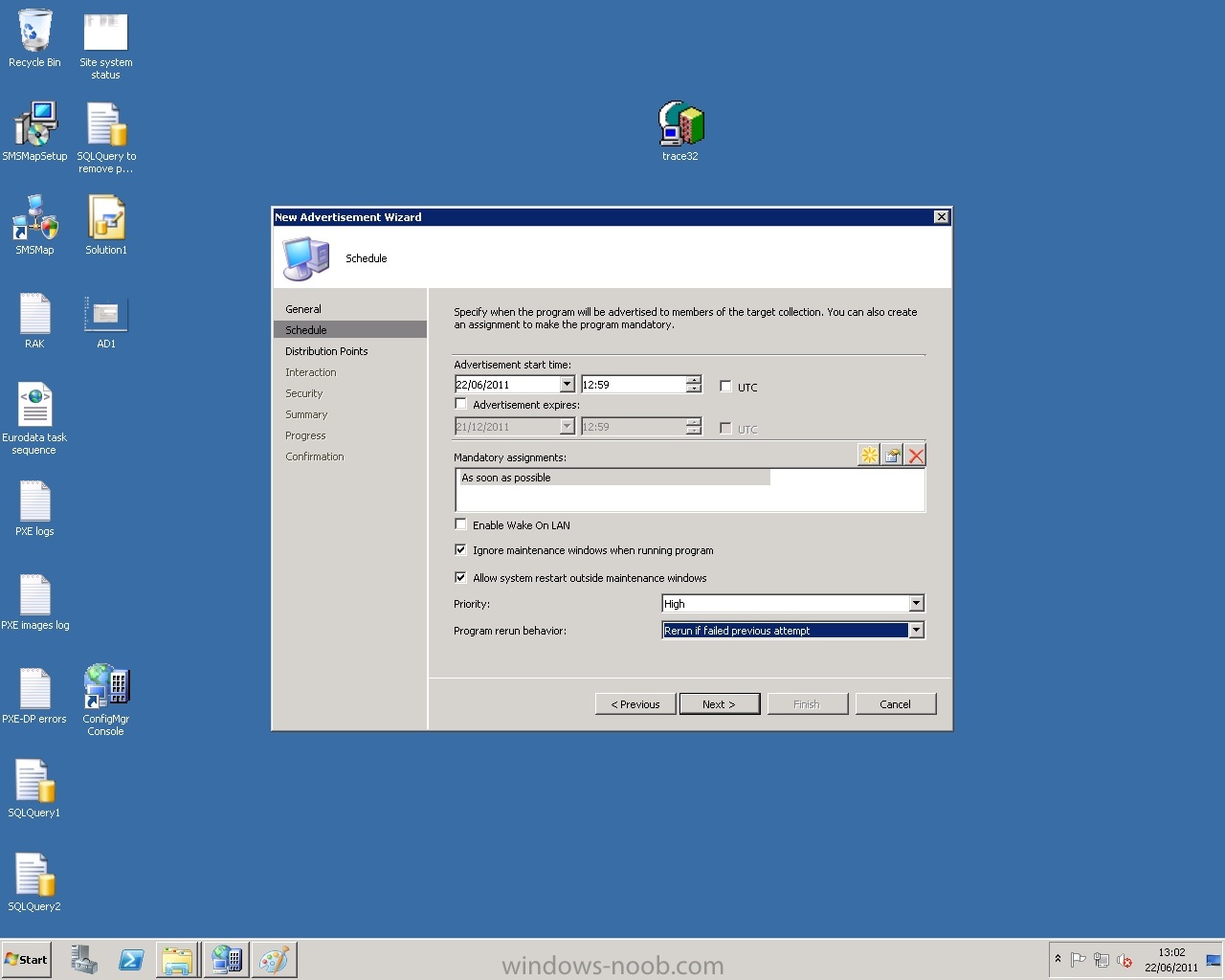

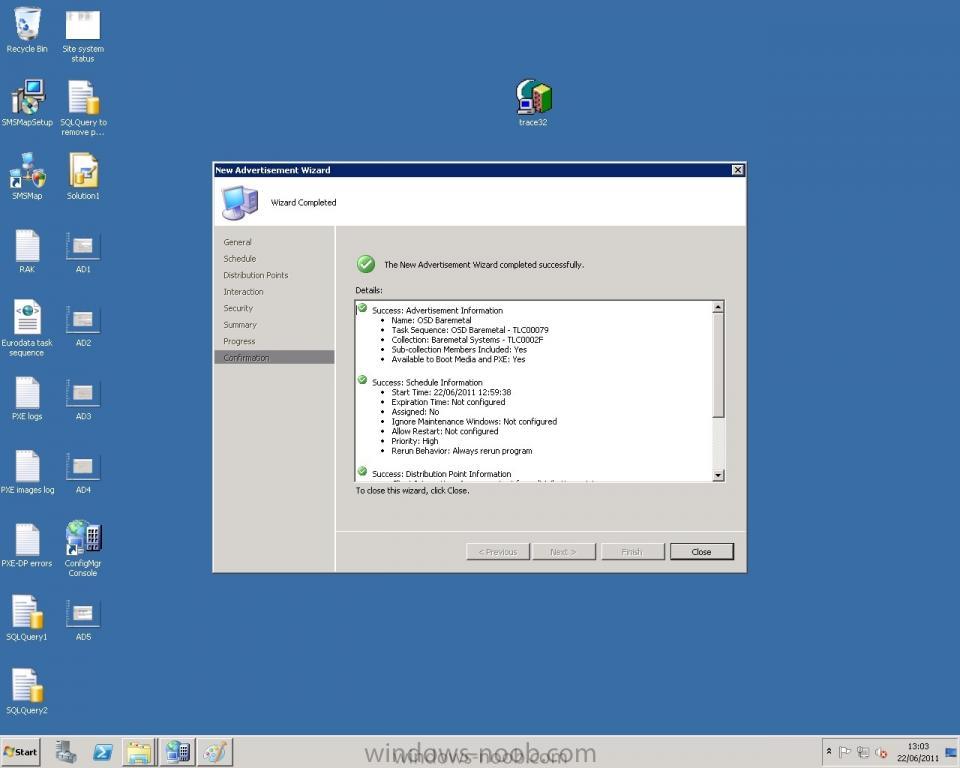

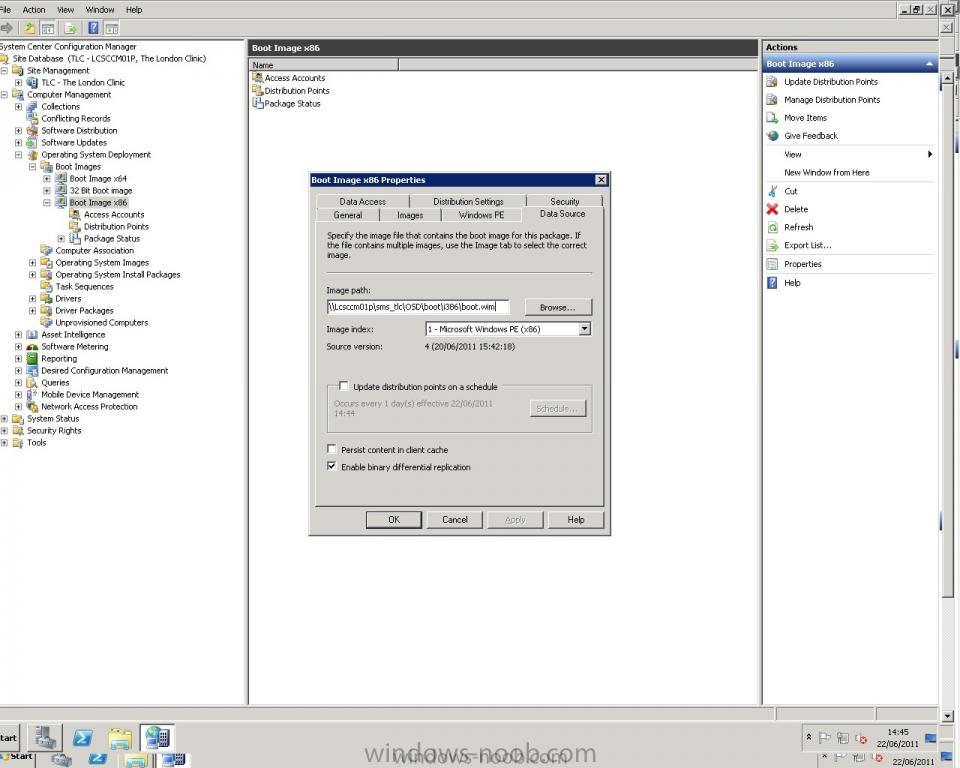

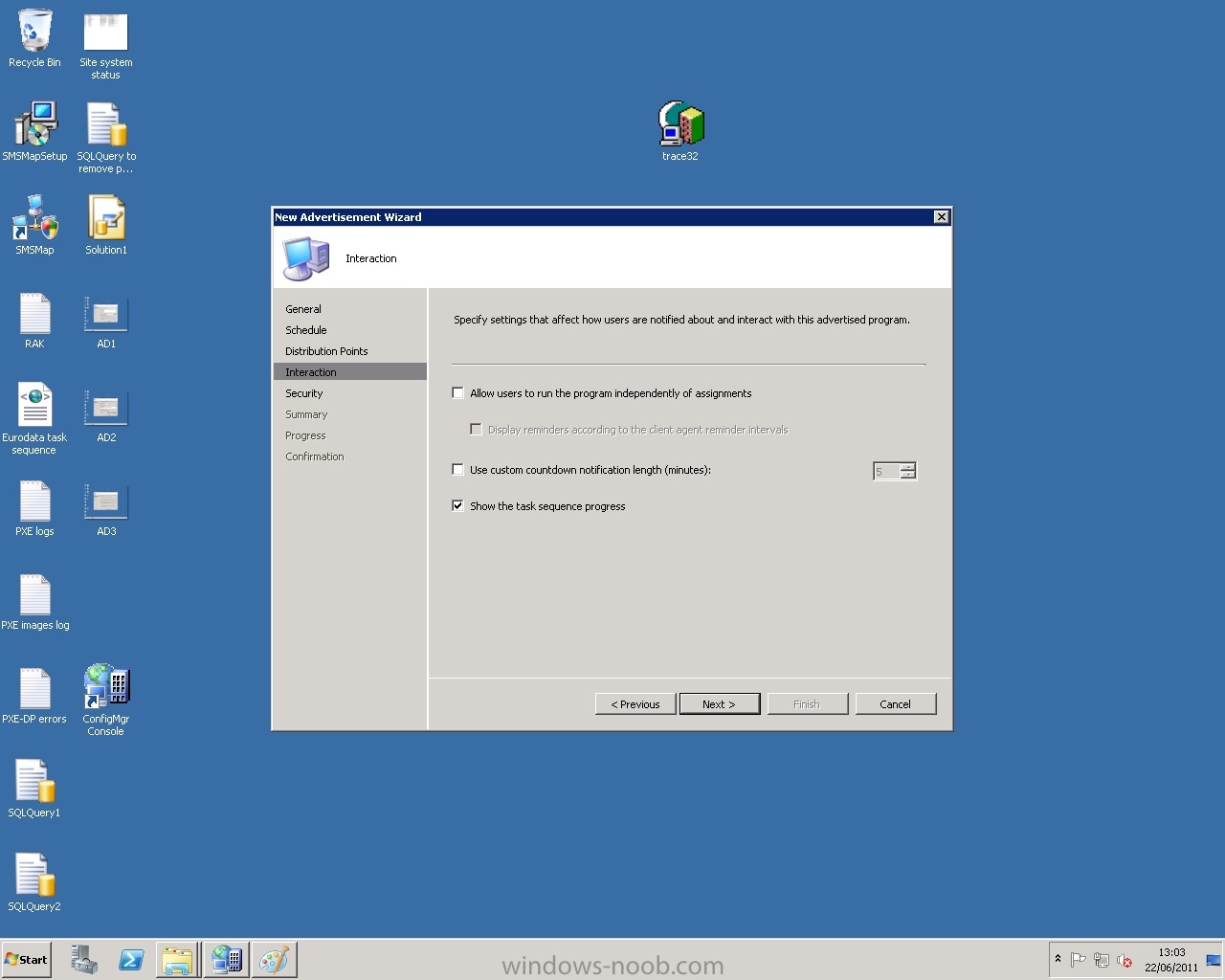

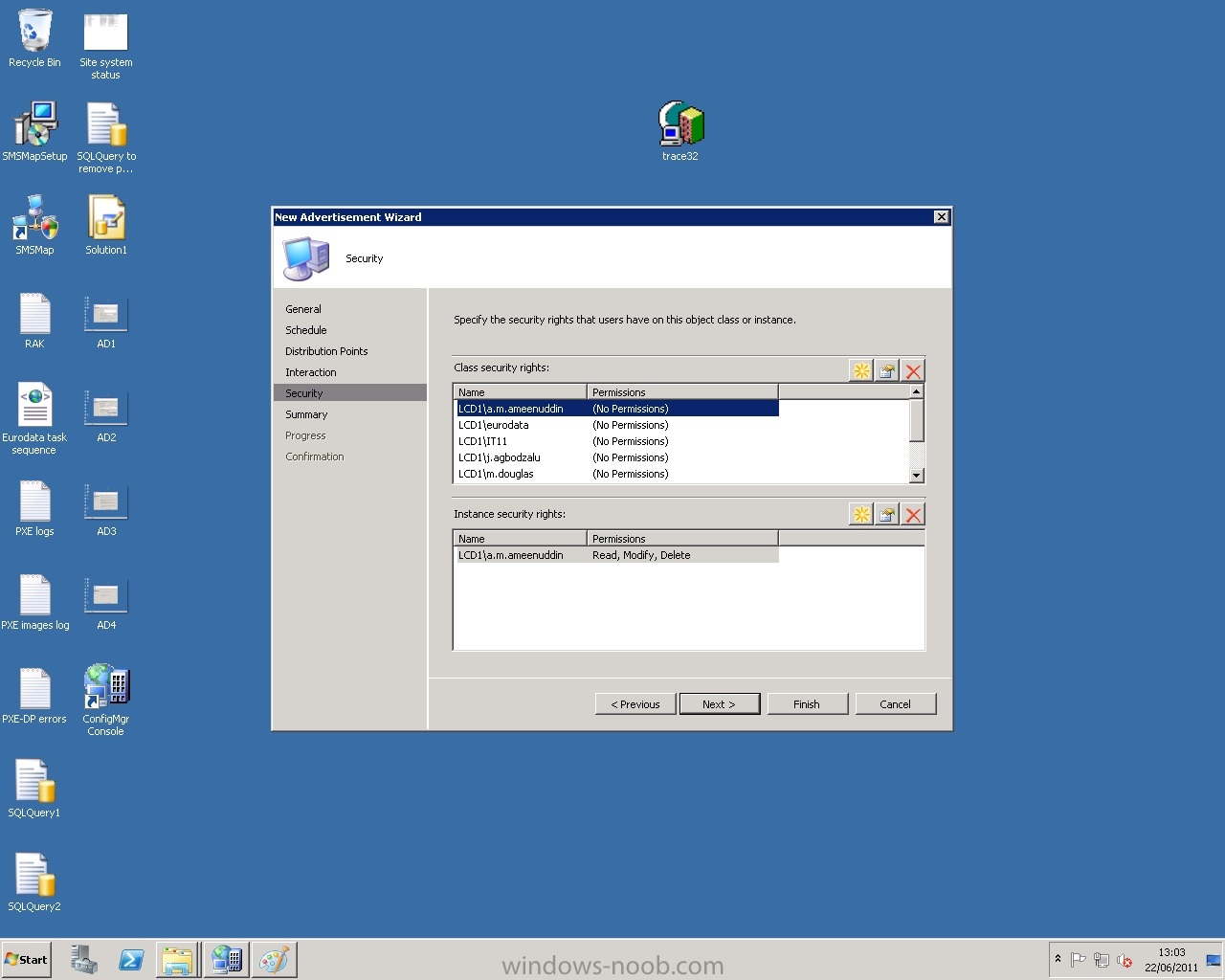

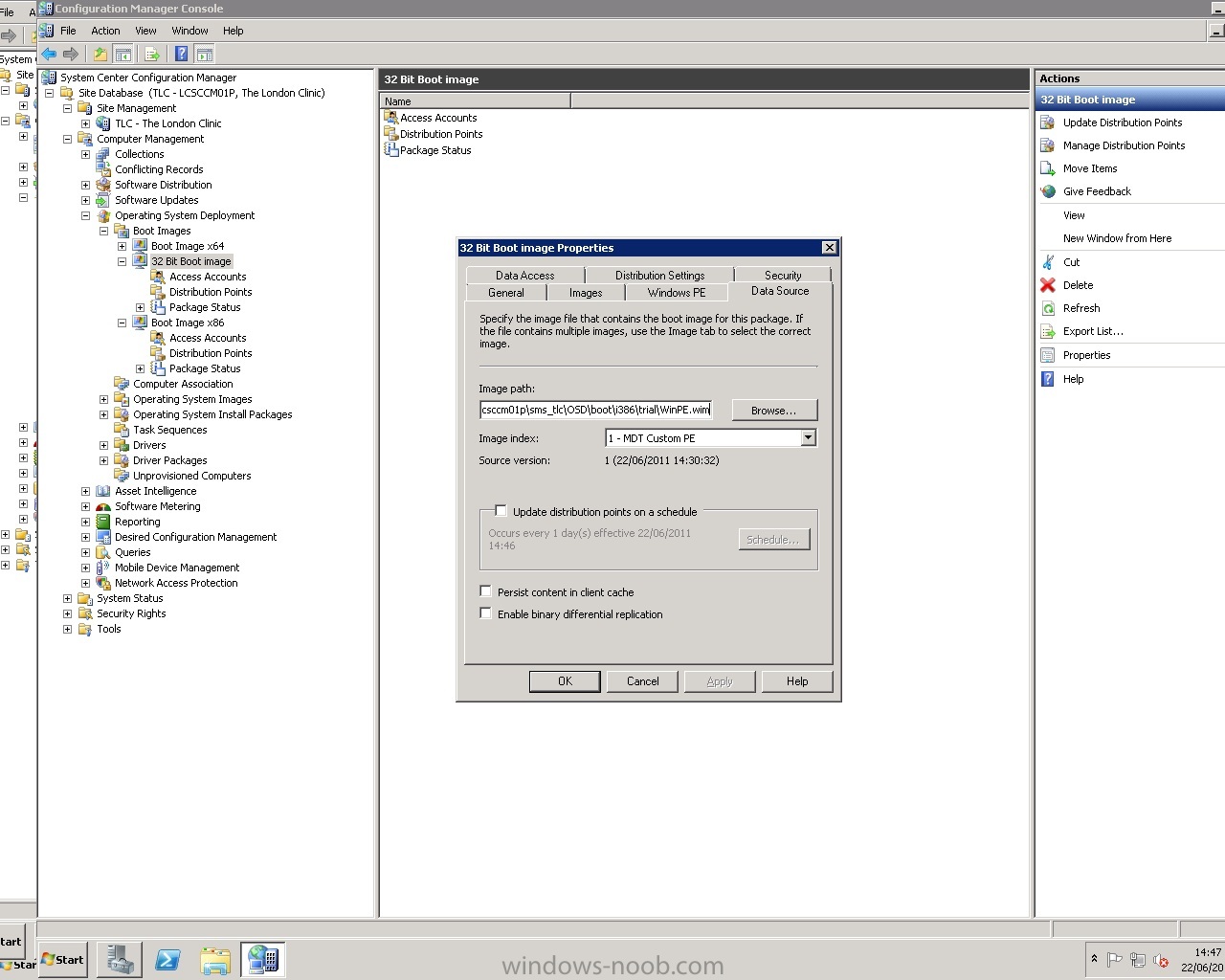

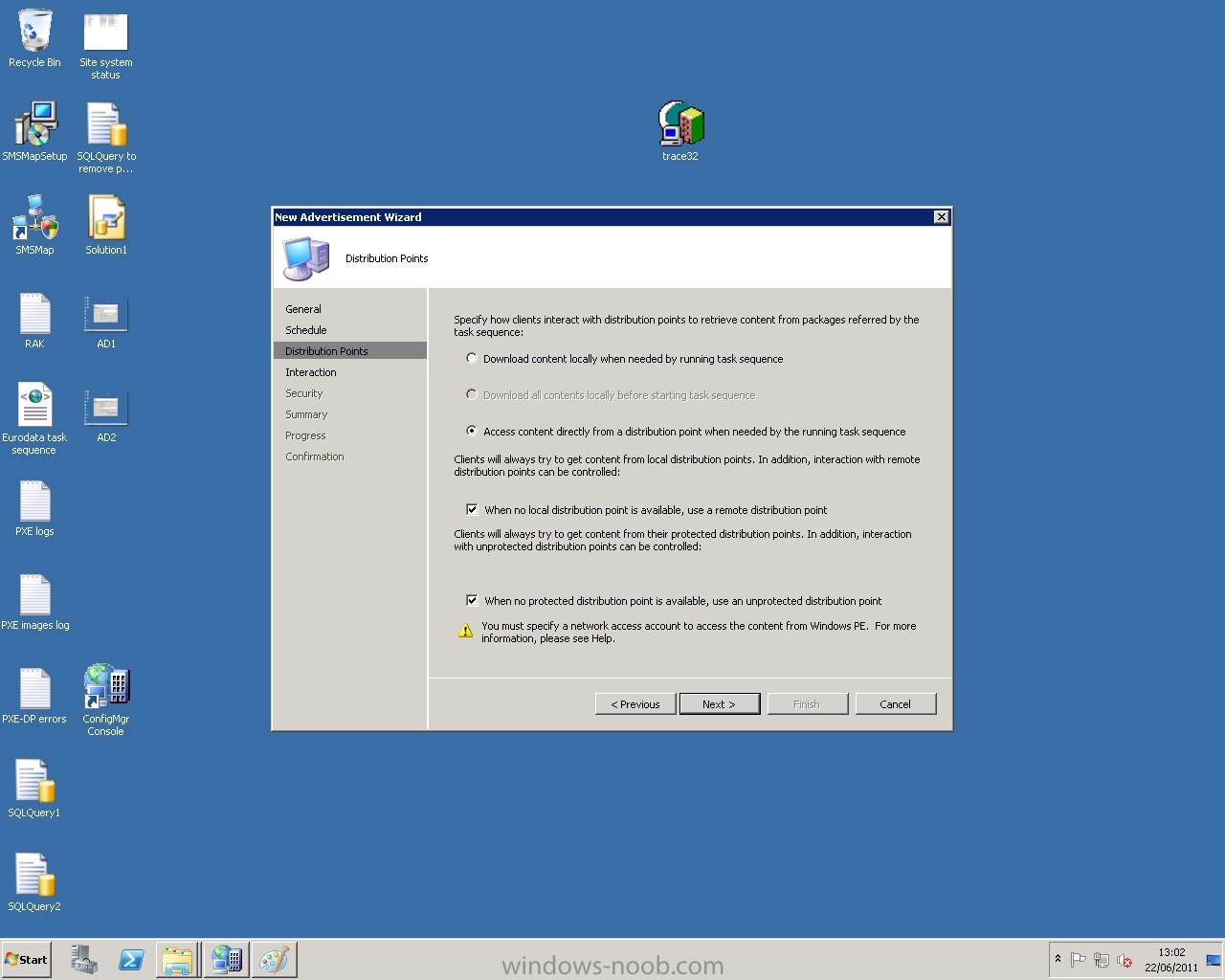

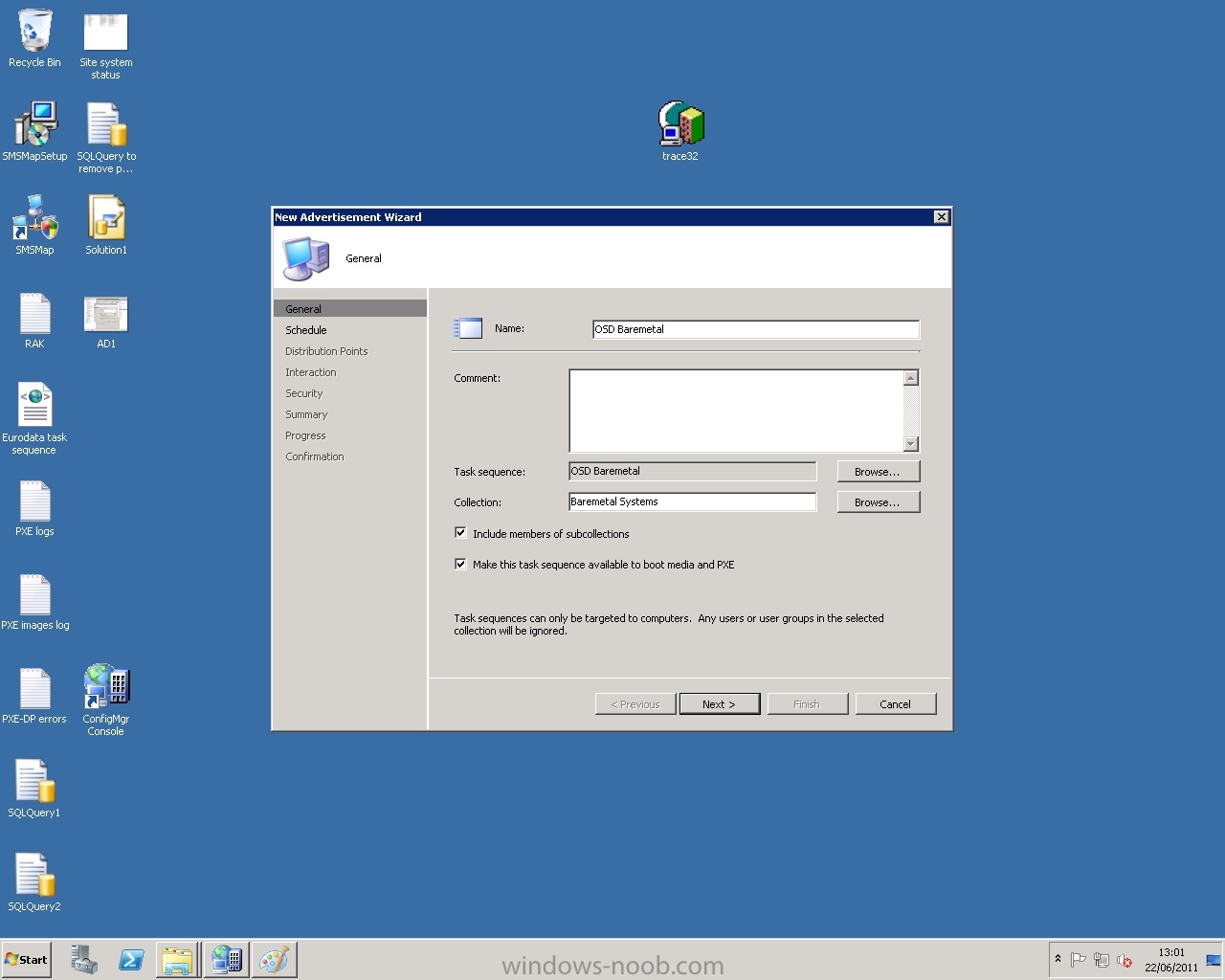

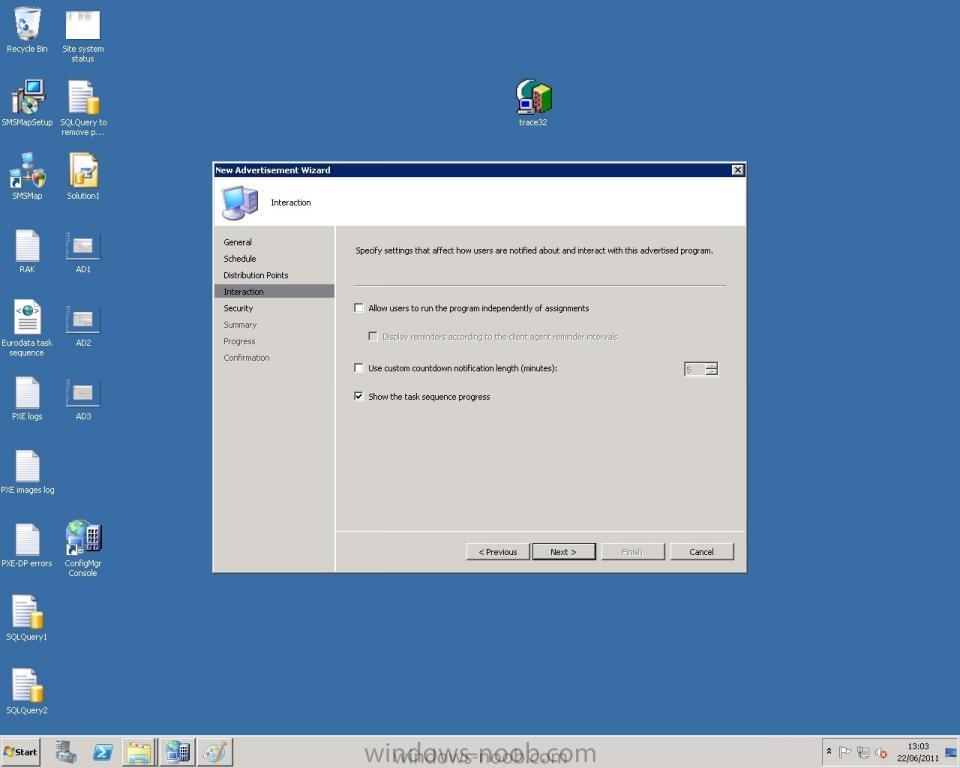

Also please find the latest logs and screenshots I have taken to say that I did advertise TS in a way it should be.







Can you please put your graceful comments how can I fix it to roll out O/S to clieint.



I am using SCCM 2007 sp r3.



Many thanks,

Ameen.










smspxe.log

pxecontrol.log

  • Author

Hi Anyweb,



There is good news and bad news in improvement.



Good news is machine gets booted into PE after running below query and bad news is after windows PE boot when it restarts again goes to smsboot\x64\pxeabort.com



I did run this query in sccm console and deleted object from collection where this machine was acting as client before to SCCM.



Please find the query I got from google



select SMS_R_SYSTEM.ResourceID,SMS_R_SYSTEM.ResourceType,SMS_R_SYSTEM.Name,SMS_R_SYSTEM.SMSUniqueIdentifier,SMS_R_SYSTEM.ResourceDomainORWorkgroup,SMS_R_SYSTEM.Client from SMS_R_System inner join SMS_G_System_NETWORK_ADAPTER on SMS_G_System_NETWORK_ADAPTER.ResourceID = SMS_R_System.ResourceId where SMS_G_System_NETWORK_ADAPTER.MACAddress = "xx:xx:xx:xx:xx:xx"





"xx:xx:xx:xx:xx:xx" = Should be replaced with MAC address of client machine

Now the question is

How can I make this OS image working after PE boot..?



Please find attached SMSPXE for comments.



Many thanks,

Ameen.



I am trying to install Windows 7 using pxe boot but unfortunately it doesn’t happen. I have tried every website and experts-exchange support as well but no luck and as a last resort before calling Microsoft I am writing this email to you as you look interested in Windows 7 deployments using SCCM and I am very much interested in your blogs.



SMSPXE log file info:

NO boot action defined

No advertisement found in database



However I have attached smspxe.log for your reference



Client side error:



TFTP download :smsboot\x64\abortpxe.com.





Also please find the latest logs and screenshots I have taken to say that I did advertise TS in a way it should be.







Can you please put your graceful comments how can I fix it to roll out O/S to clieint.



I am using SCCM 2007 sp r3.



Many thanks,

Ameen.

smspxe.log

is R2 or R3 installed ? if so enabled Unknown Computer support and then advertise the same task sequence to the unknown computers collection,



if not, you can use deploy collections and import the computer into the respective collection,



is the computer getting an IP address in winpe ? check ipconfig and see what it says
