how can I setup Application Virtualization 4.5 CU1

Recommended Posts

Post in progress - while this line appears the post is not yet complete!!



This guide is based upon content available from Microsoft and others. This guide is designed to get you up and running quickly with Application Virtualization in a Lab Environment. For Production scenarios please refer to Technet for best practise recommendations. For news about updates to App V please consult their blog.



In this guide we will use a Windows 2008 32 bit server for our Application Virtualization installation. We will be installing both the Application Virtualization Management Server and Application Virtualization Streaming Server on this server. The server will be a member of a Windows Server 2008 domain with Microsoft DNS. The guide assumes that you have an SQL 2005 sp3 or newer server installed within the Domain.







Step 1. Create new Active Directory Security Groups



Perform the following on the Windows Server 2008 domain controller:

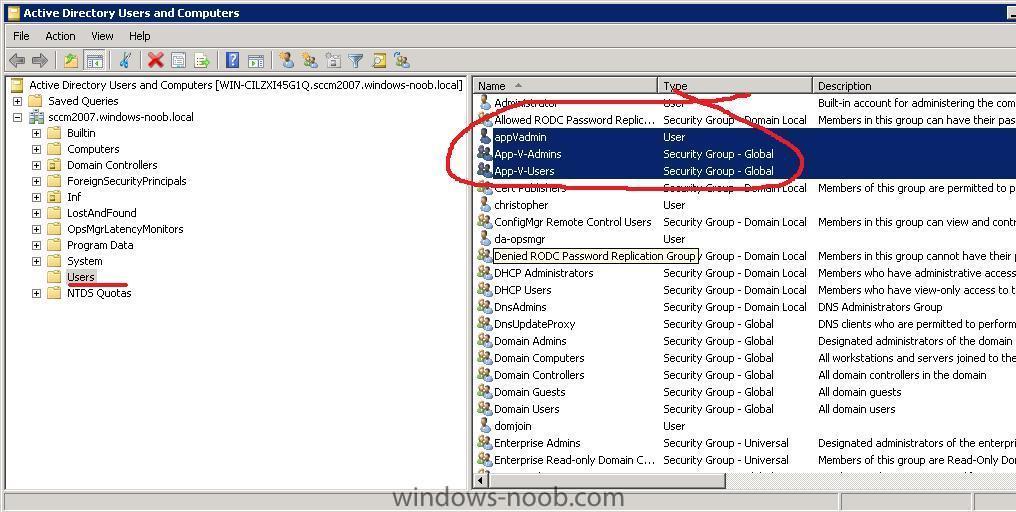

In Active directory Users and Groups, create two new Global Security Groups called

App-V-Admins

App-V-Users



In addition create a user called appVadmin and make that user a member of App-V-Admins



app-v admins.jpg







Step 2. Create the AppV database in SQL and assign a user as the DB owner



Perform the following on the SQL Server:

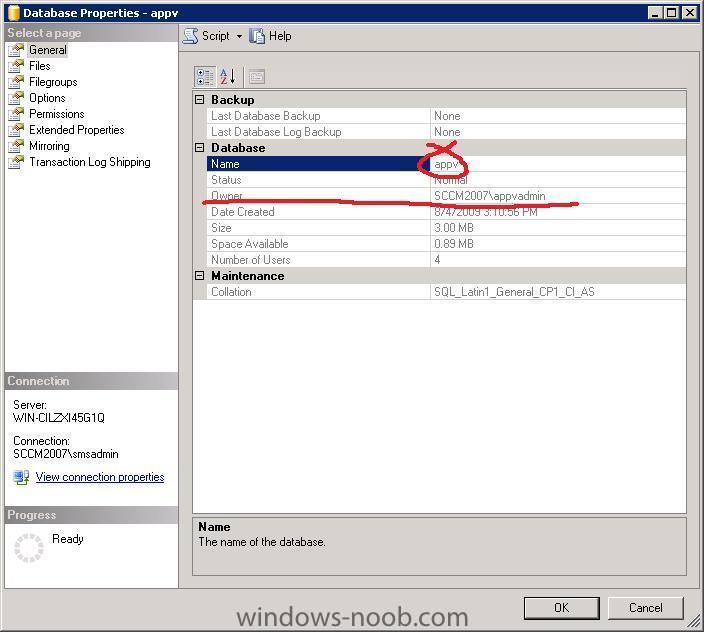

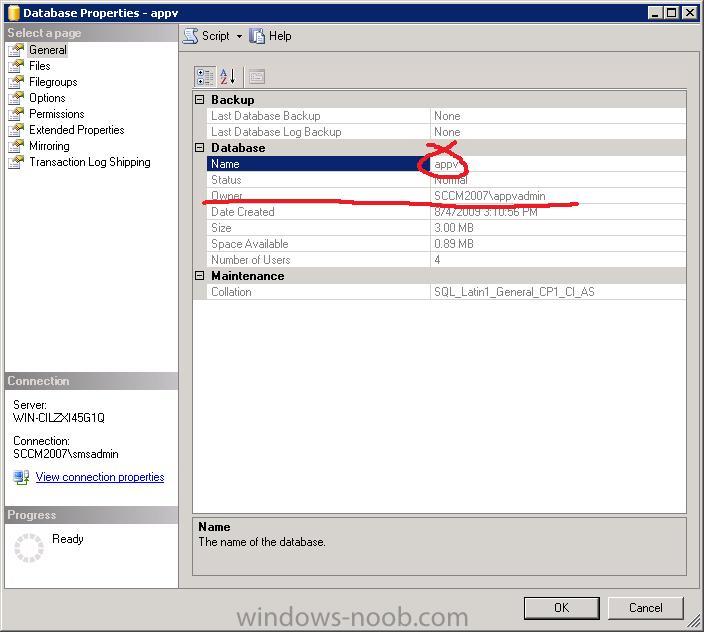

On the server that is hosting your SQL databases, create a new DB called appv and assign appVadmin as the db owner. If you cannot assign appVadmin as the db owner then add it to Logins within the Security section of SQL properties and then try again.




  • Like 1

Share this post


Link to post
Share on other sites


Step 3. Make App-V-Admins a member of Local Administrators



Perform the following on the APPv Server:



Note: At this point your Appv server must be joined to the Domain.



Log on to your Appv server as a Domain Administrator or as a user with Local Administrative permissions on that server and start Server Manager, expand Configuration, Local Users and Groups and click on Groups



Double Click on the Administrators group and click Add



type in App-V-Admins and if prompted enter the user/pass of a user with permission on the Domain



At this point you should now see your Domain Security Group App-V-Admins added to the local Administrators group on the appv server.






Logoff and then logon as the domain\appVadmin user (which we added as a member of App-V-Admins earlier.)

Share this post


Link to post
Share on other sites

Step 4. Add IIS and other pre-requisites



Perform the following on the APPv Server:



Logon to the Appv server as the domain\appVadmin user. Start server manager and click on Add Roles

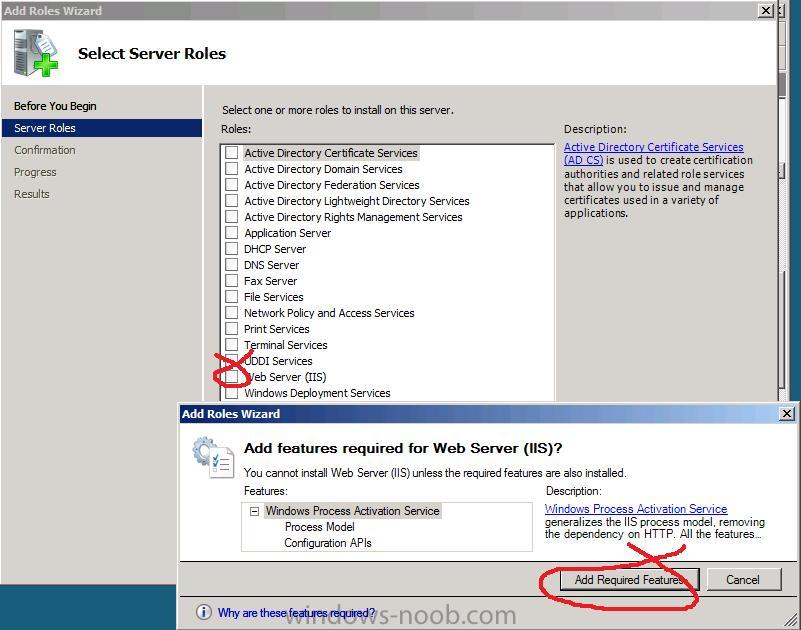

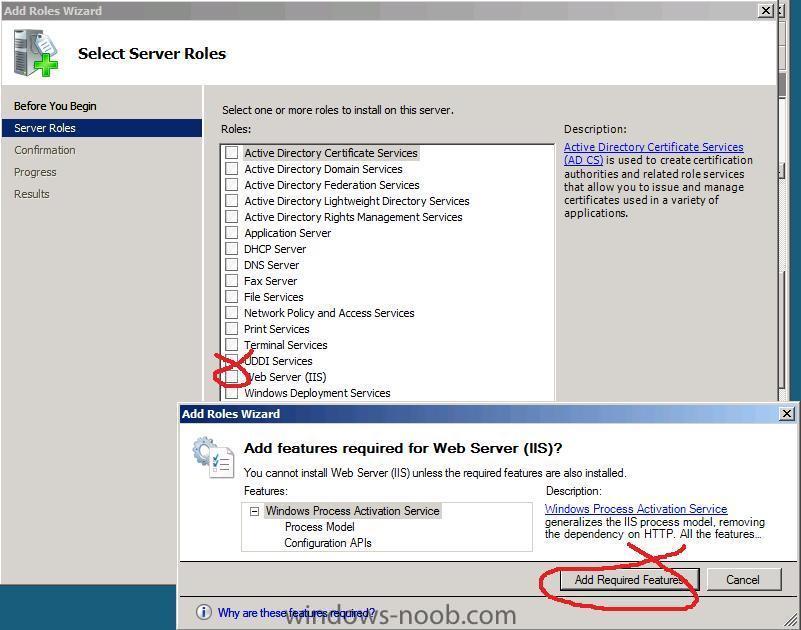

Place a checkmark in the Web Server IIS box, and accept the Add Features required for Web Server IIS prompt.



add required features.jpg

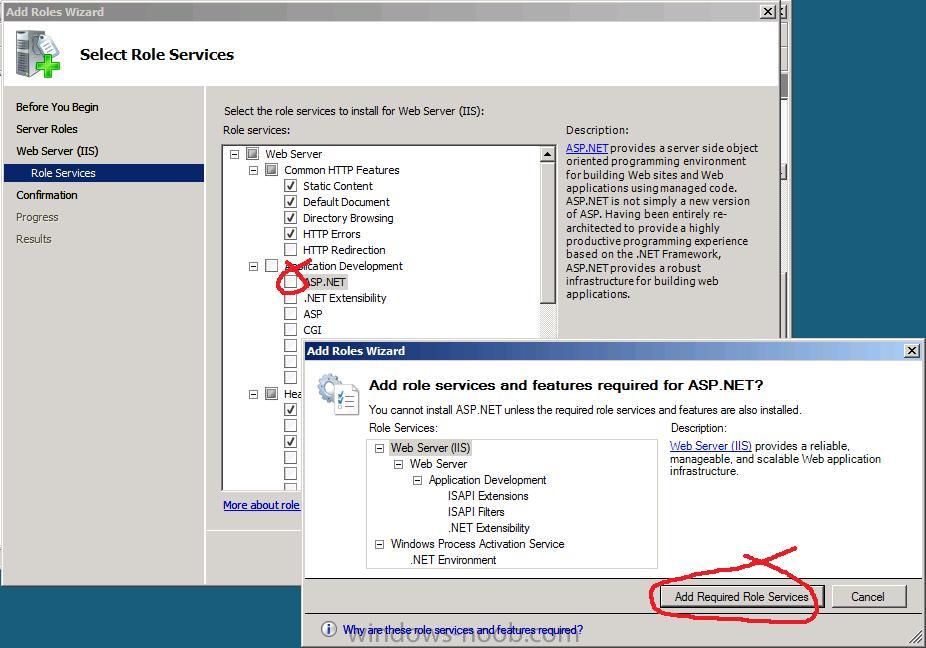

click next and then Select ASP.NET from the choices and accept the Add Features required for ASP.NET






click next and then click Install. Reboot when done.



After the reboot, go back into Server Manager and click on go To Roles, once done, click on Add Role Services to the right of Web Server (IIS)





add role services.jpg

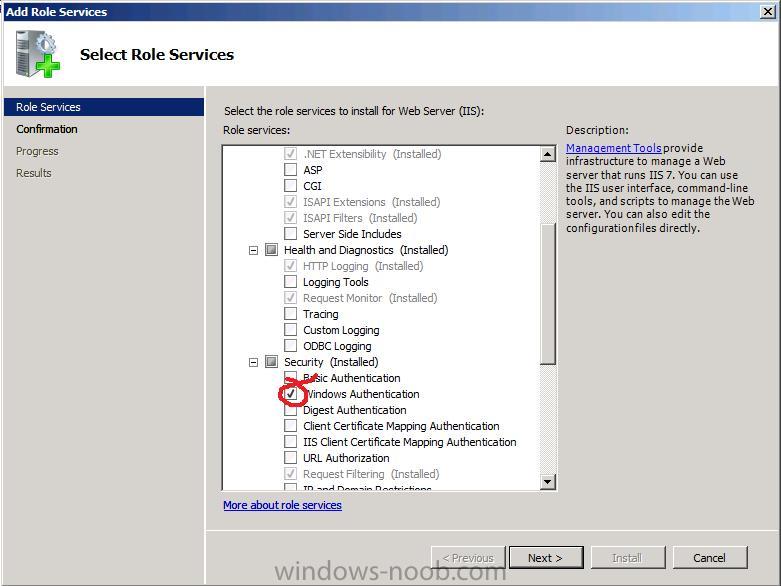

Scroll down to Security and place a checkmark in Windows Authentication



windows authentication.jpg

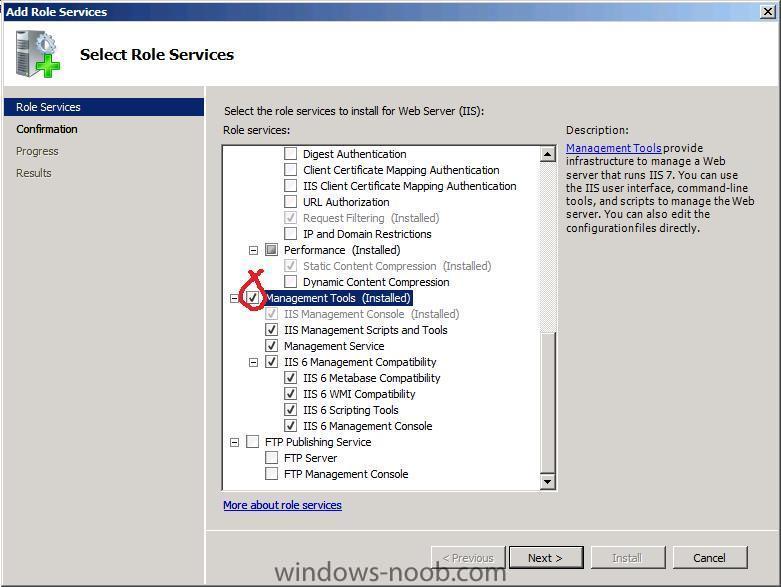

scroll down and place a checkmark in Management Tools



management tools.jpg



click next and click Install







Once complete, click close, go back into Server Manager and click on Add Features,

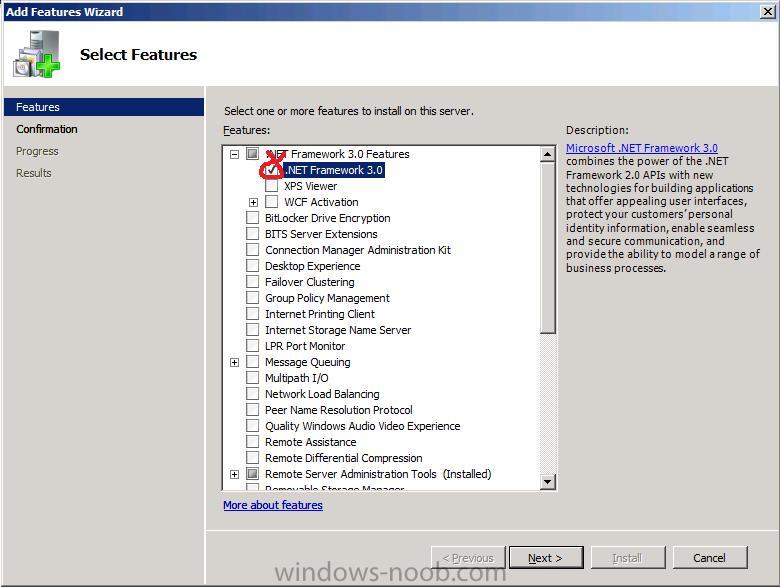

Select the .NET Framework 3.0 option and click Next.



net framework3.jpg

Share this post


Link to post
Share on other sites

Step 5. Install the Application Virtualization Management Server



Perform the following on the APPv Server:

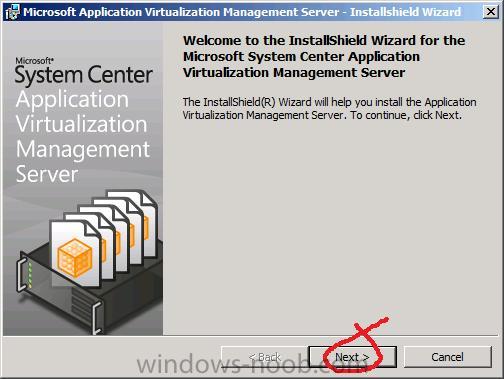

Browse the APP 4.5 CU1 cd to INSTALLERS\SERVER\MANAGEMENT and right click on Setup.exe and choose Run As Administrator to start the System Center Application Virtualization Management Server wizard, click next



ssvms wizard.jpg

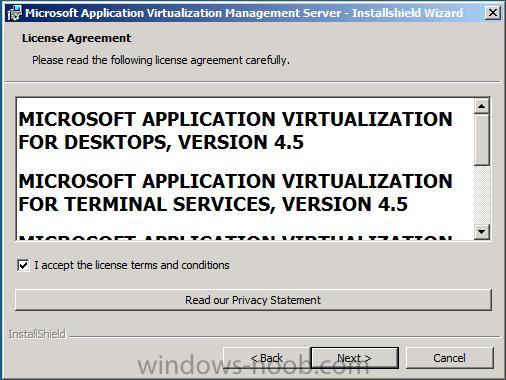

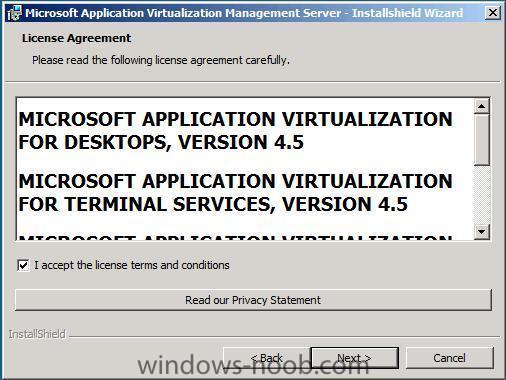

Accept the License Agreement

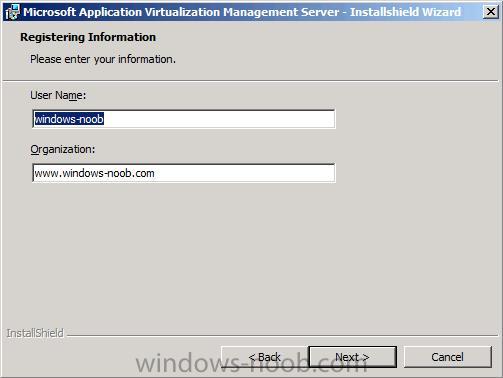

review the Registration Information

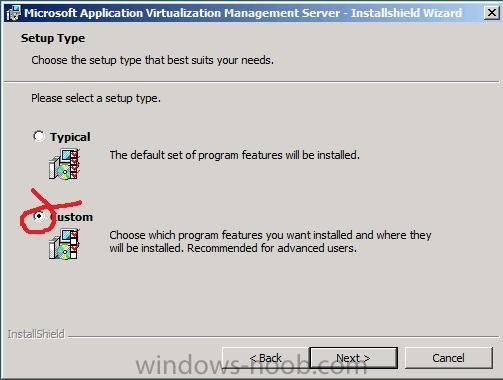

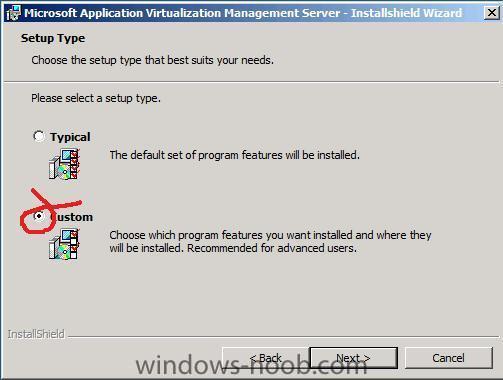

choose Custom as the type of installation

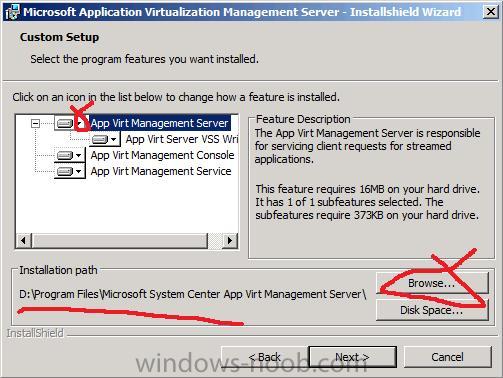

Select the drive and install path you wish to use and verify that This Feature, and all subfeatures, will be installed on local hard drive is selected for each option and click next

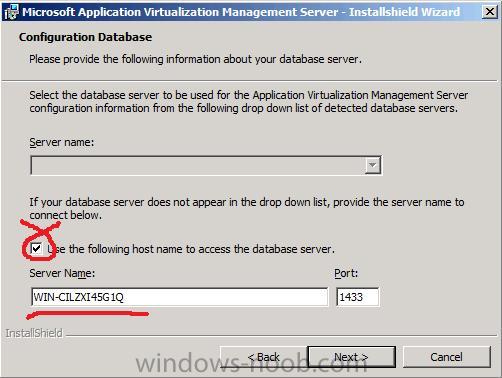

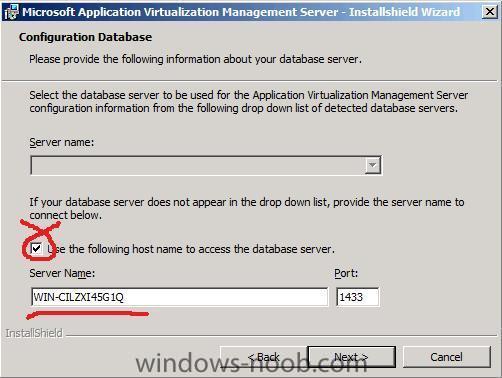

enter the SQL server name and click next



sql server name.jpg

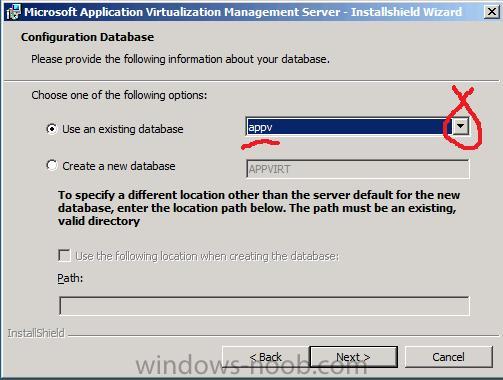

the appv Database should automatically be selected,



select appv db.jpg

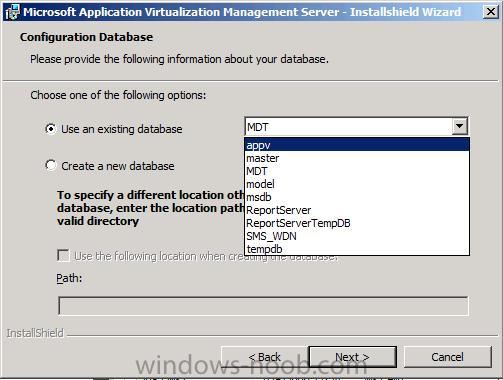

if not select it from the drop down list



db dropdown list.jpg

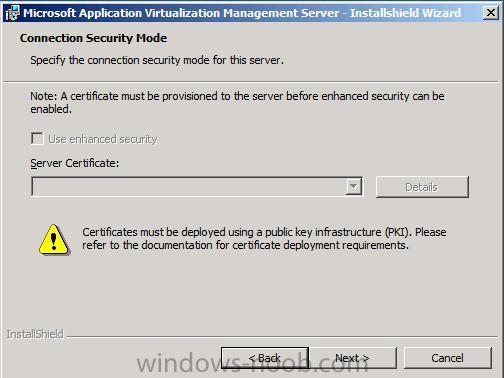

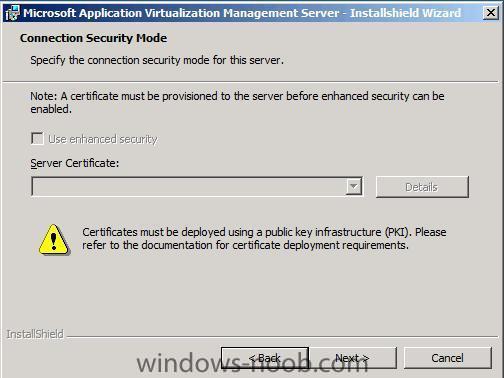

We will not be using Secure mode for this Appv server so just click next at the connection security mode screen



connection security mode.jpg

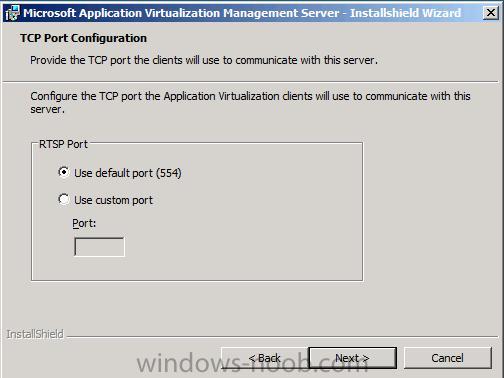

leave the default port



default port.jpg

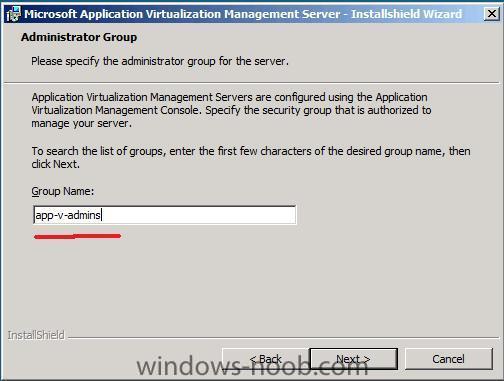

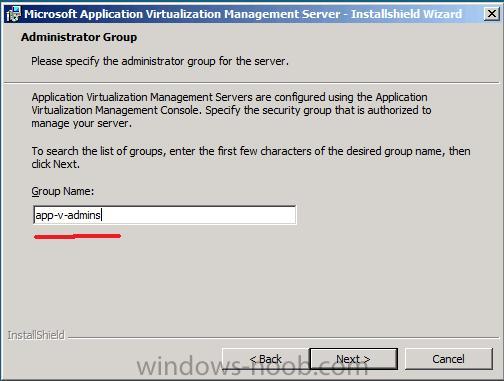

type app-v-admins as the Active Directory Security Group name for administrators of the appV server(or just type app-v and click next, then select app-v-admins from the choices available)



group authorized to manage the server.jpg

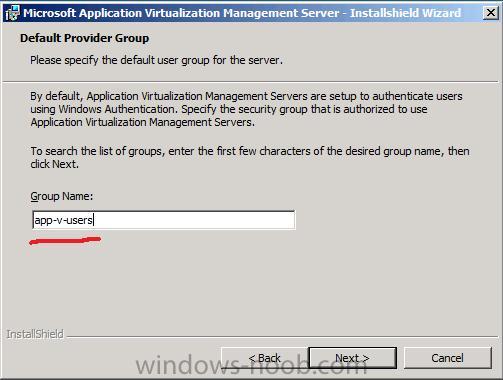

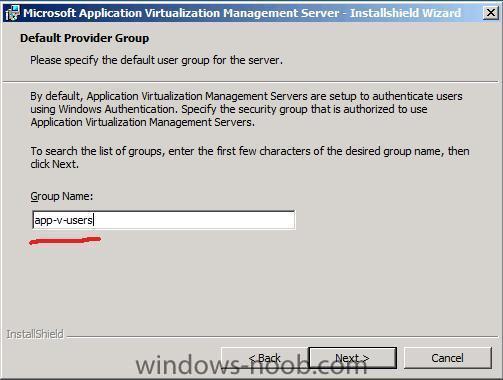

and enter app-v-users as the Active Directory Security group name for users of the appV server



Note: This is the group to which all users must belong for access to Microsoft Application Virtualization-enabled applications.

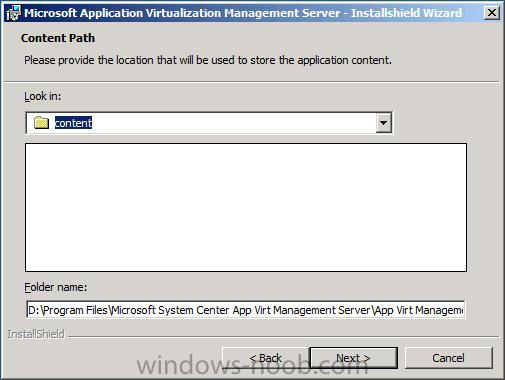

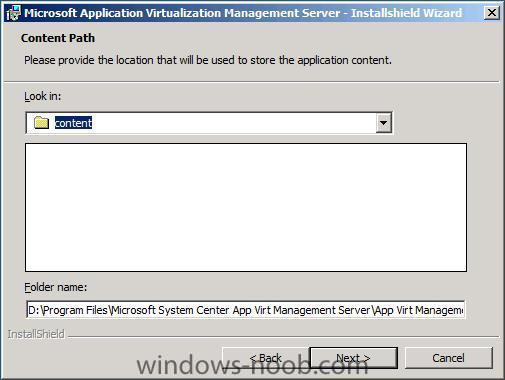

Accept the default content folder and click next

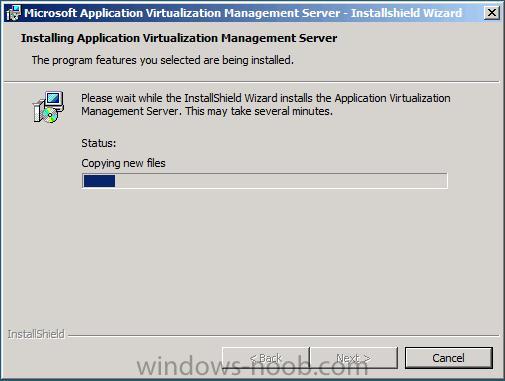

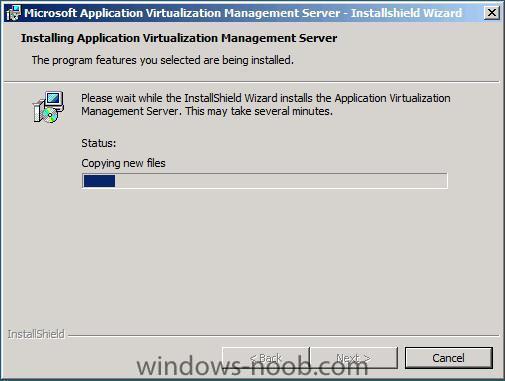

and then click install to start installing the application virtualization Management Server

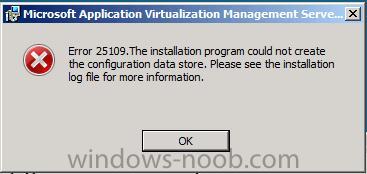

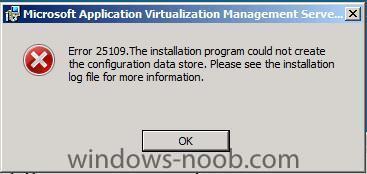

if you get Error 25019,



error 25109.jpg

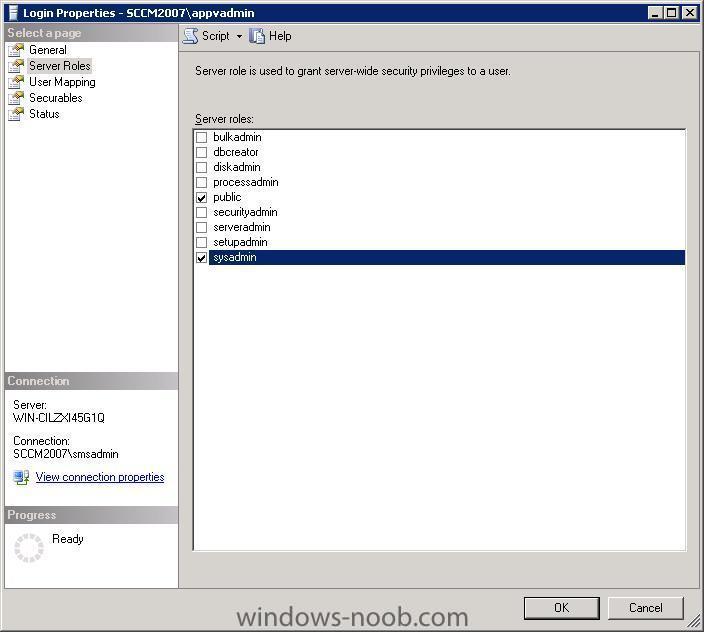

go back into SQL management studio and make your appVadmin user a SysAdmin and try again



error 25109 sysadmin .jpg

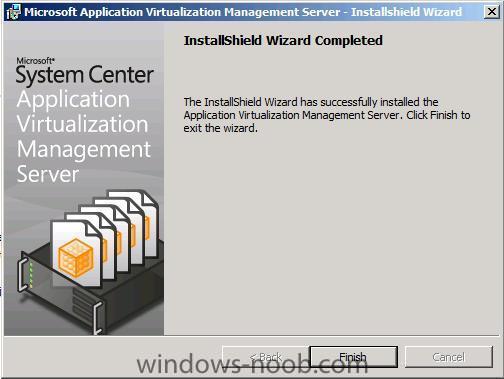

Once setup completes, click Finish

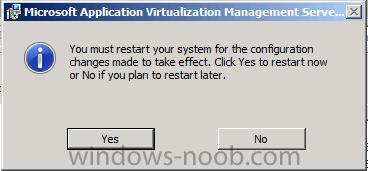

and restart the server as requested



restart server.jpg

Share this post


Link to post
Share on other sites

Please keep the good work coming. also, if you have more step by step articles let me know so I can check them out and get help.
