Imaging over USB issue

[simps100]

Hi all

Usually image over PXE but have a need to image over USB but over USB am facing an issue 0x80070057 -  the parameter is incorrect. I have looked as the SMSTS log and attached some screen shots from there and the task sequence - i have a feeling its when finding the drive to apply the OS but not certain - what is it im missing here?



Thanks!

[anyweb]

did you confirm that the partition step is actually taking place and succeeding, can you attach your smsts.log ?

[simps100]

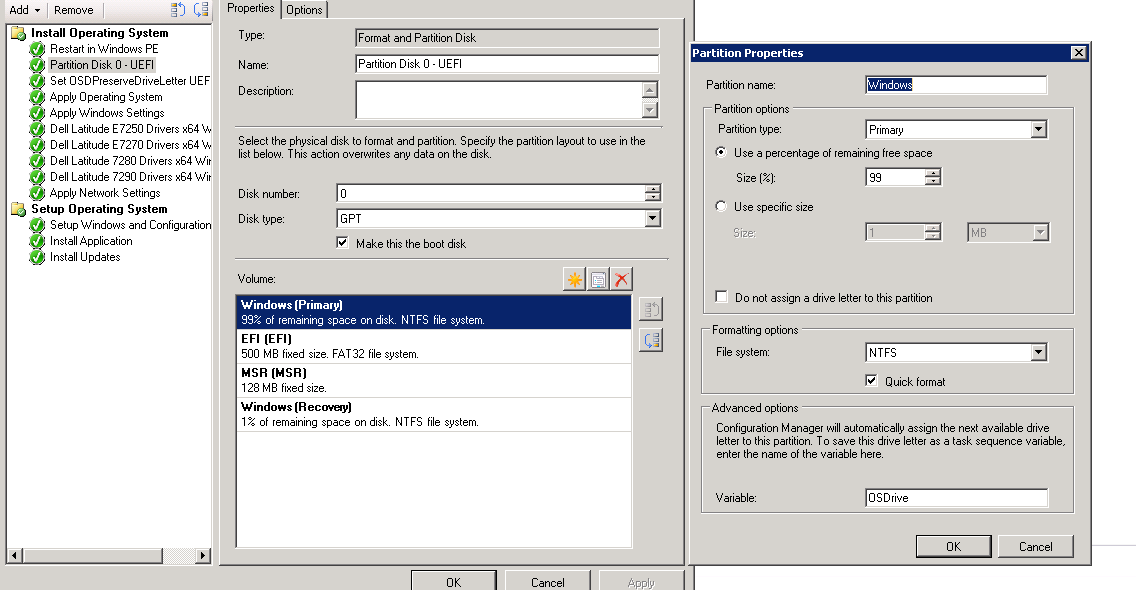

Attached the log and the steps of partition - strangely this only seems to happen when imaging over USB



smsts.log







[anyweb]

<![LOG[The action (Partition Disk 0 - UEFI) has been skipped because the condition is evaluated to be false]LOG]!><time="14:50:41.848+480" date="11-02-2018" component="TSManager" context="" type="1" thread="1420" file="instruction.cxx:688">

so check your options on that step.

specifically this,..,



Expand a string: _SMSTSMediaType]LOG]!><time="14:50:41.848+480" date="11-02-2018" component="TSManager" context="" type="0" thread="1420" file="utility.cpp:805">
<![LOG[Expand a string: OEMMedia]
