PXE Boot on current branch 2010

Featured Replies

I have stood up SCCM-CB 2010
I have enabled PXE boot on the DP
I have setup all boundaries
I am able to deploy software and push data to my DP
I have added the ADK including WinPE portion
I have read that starting in 1806 you no longer need WDS to make PXE work
I PXE a laptop and it dies brining me to the menu

press F1 key to retry boot
Press F2 key to reboot into setup
Press F5 key to run onboard diagnostics

I checked the time when I started the F12 / PXE on my laptop
I see nothing written to SMSPXE.LOG on my primary site server at the time I ran the F12 / PXE process.



Not sure what I'm missing.  Thanks.



  • Author

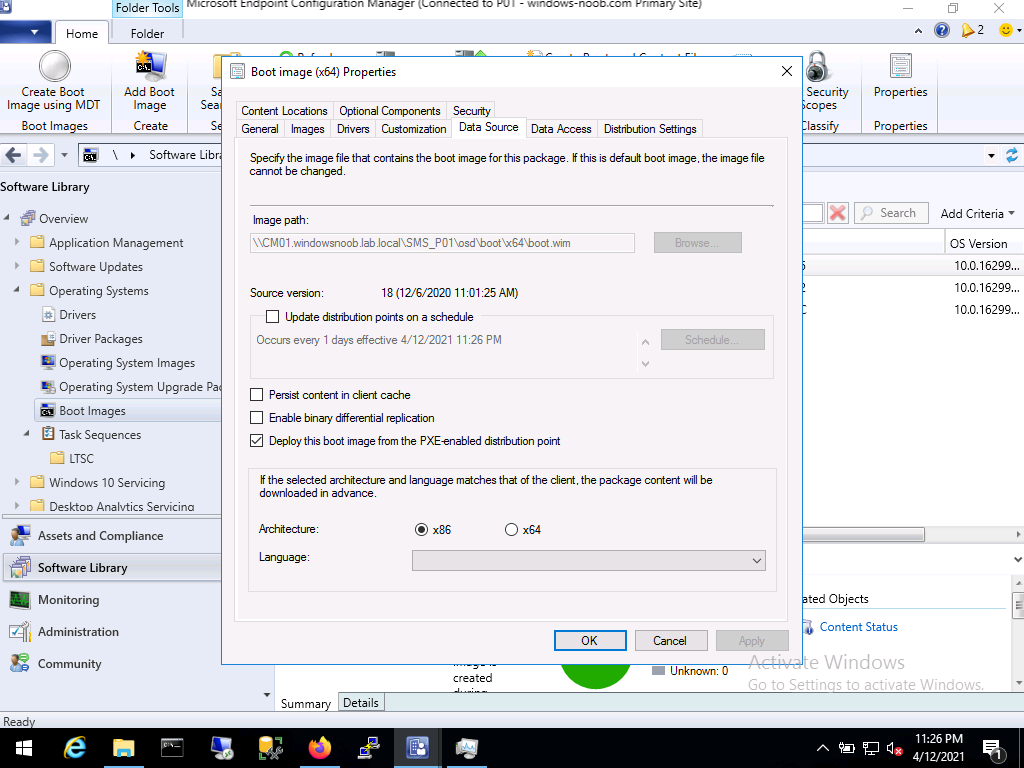

Hello.  Yes, I have that setting enabled on my boot image.     In my BIOS on my target laptop I have enabled secure boot, UEFI, PXE.   I have tried with RAID and with ACHI.

in the SCCM everything seems to work.  system discovery, user discovery.  I can deploy both packages and applications.  on my target laptops Software Center works and I can pull applications from there.   So content distribution is working.  Which should mean boundaries are working.

on my DP\PXE role I have:

Enable PXE, Allow this DP to respond to incoming PXE requests, Enable unknown computer support, Respond to PXE requests on all network interfaces, specify the PXE server response delay = 3 seconds.

I even tried adding the WDM role.  That did not work.  So I removed the WDM.

I have also injected the NET, SCSI and HDC drivers into the boot.wim.

any other suggestions would be greatly appreciated.

Edited by Quinten
update

  • Author

yes, I have distributed the boot image.   here is something I don't get.   I removed WDS.   Since I am in a lab I removed the DP role.   I then re-added the DP role and it Reinstalled the WDS Role and it recreated the C:\RemoteInstall folder.    It populates the folder with my boot images etc...    I read that starting in CB 1806 WDS is no longer needed?  Why did adding the DP role reinstall WDS?



my distman log says this:



WDSServer is STARTED SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:29 AM 9784 (0x2638)
Running: WDSUTIL.exe /Initialize-Server /REMINST:"C:\RemoteInstall" SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:29 AM 9784 (0x2638)
Waiting for the completion of: WDSUTIL.exe /Initialize-Server /REMINST:"C:\RemoteInstall" SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:30 AM 9784 (0x2638)
Failed to run: WDSUTIL.exe /Initialize-Server /REMINST:"C:\RemoteInstall". Program returned c1030105 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Machine is running Windows Server. (NTVersion=0X602, ServicePack=0) SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
No need to configure the firewall SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Processing LAB00002 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Library path mismatch: \\?\C:\SCCMContentLib, C:\SCCMContentLib SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Expanding C:\SCCMContentLib\FileLib\BD88\BD88B94A0A4DE3BE6CCCA83D5572627F6650FD2D7E9BE8A18F1C2A6208A24498 from package LAB00002 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Finding Wimgapi.Dll ... SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Found wimgapi.dll in system folder, wimgapi path: C:\Windows\system32\wimgapi.dll SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
SetNamedSecurityInfo() failed. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
SetObjectOwner() failed. 0x80070003. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
SetFileSecurity() failed. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Expanding LAB00002 to C:\RemoteInstall\SMSImages SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:31 AM 9784 (0x2638)
Processing LAB00005 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
Library path mismatch: \\?\C:\SCCMContentLib, C:\SCCMContentLib SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
Expanding C:\SCCMContentLib\FileLib\88D5\88D543CD7DE2EF4F189DAED5B54D6D32B6CEB13262E7CFE407CE3014F8F32D32 from package LAB00005 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
Finding Wimgapi.Dll ... SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
Found wimgapi.dll in system folder, wimgapi path: C:\Windows\system32\wimgapi.dll SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
SetNamedSecurityInfo() failed. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
SetObjectOwner() failed. 0x80070002. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
SetFileSecurity() failed. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
Expanding LAB00005 to C:\RemoteInstall\SMSImages SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:32 AM 9784 (0x2638)
CcmInstallPXE: Deleting the DP mutex key for WDS. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Finished ConfigurePXE - SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Updating DP setting from SCF to DP machine, configure branchcache, LEDBAT, DOINC - SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
DP monitoring task is disabed on server SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
No need to initialize monitoring task on SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
DP settings have been updated to SCCM.TEST.NET [sccm.test.net]. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Initialize usage gathering task on SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
IIS Version 10 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Successfully saved iis settings. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Log Location C:\inetpub\logs\LogFiles\W3SVC1 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
Successfully enabled usage gathering on the local distribution point. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
1998-01-01T00:00:00 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
DP settings have been updated to SCCM.TEST.NET [sccm.test.net]. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
OS information for the server - 10.0.17763, ProductType=2 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
OS information for the server - 10.0.17763, ProductType=2 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:33 AM 9784 (0x2638)
OS information for the server - 10.0.17763, ProductType=2 SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:34 AM 9784 (0x2638)
Finished updating DP setting from SCF to DP machine, configured BranchCache, LEDBAT, MCC - SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:34 AM 9784 (0x2638)
DP configuration thread done for distribution point SCCM.TEST.NET [sccm.test.net] SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:34 AM 9784 (0x2638)
DP config change processing thread: thread completion event. SMS_DISTRIBUTION_MANAGER 4/13/2021 9:30:34 AM 8052 (0x1F74)

  • Author

very odd.....it started working.   I guess removing the DP and adding it back worked.  But I still would like to know why, if starting in 1806 WDS is not need it gets added when you add the DP role?

thank you for your help!
