gokhan76

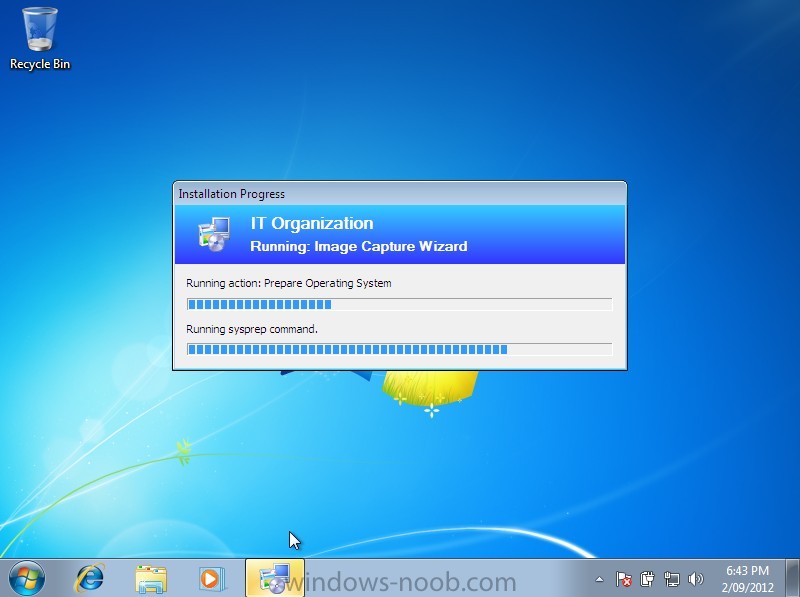

Hi I created a Capture Media Iso image for the reference PC. I than mount the CD on the image I newly installed and somehow TSMBAUTORUN.exe didn't work. I found some solution from Technet regards to the path of files which fixed this problem I was able to run the TSMBAURORUN through command prompt only. When TSMBAUTORUN was run It came up with the wizard I put the image location to the SCCM server under reminst\image saved the image than started doing the sysprep task which was saying prepare operating system. It stayed there about 2 minutes and just popped up with dialog with interactive services detection message. I than disable this service thinking it was causing a problem. Started task again, prepare operating system sysprep procedure run again and it did not pass this screen at all.. What is the problem here anyone can give me an idea please? Regards,

My DHCP Server located on another server not on the same server. Thanks for the Tip you saved my day once I changed my task to required than it passed automatically without asking F12.

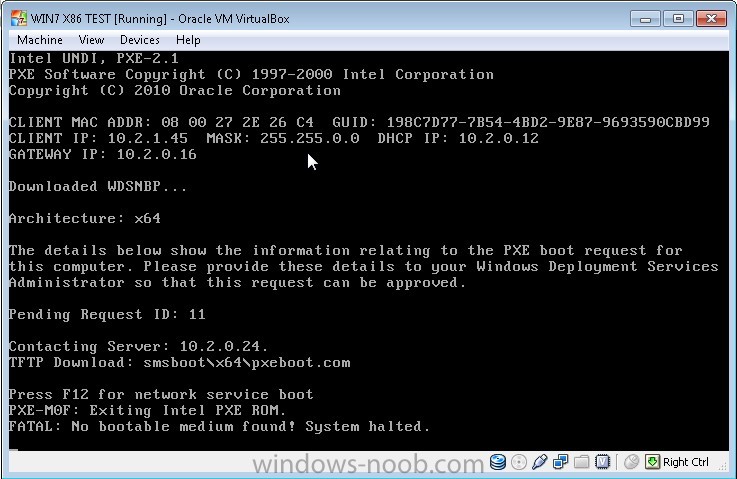

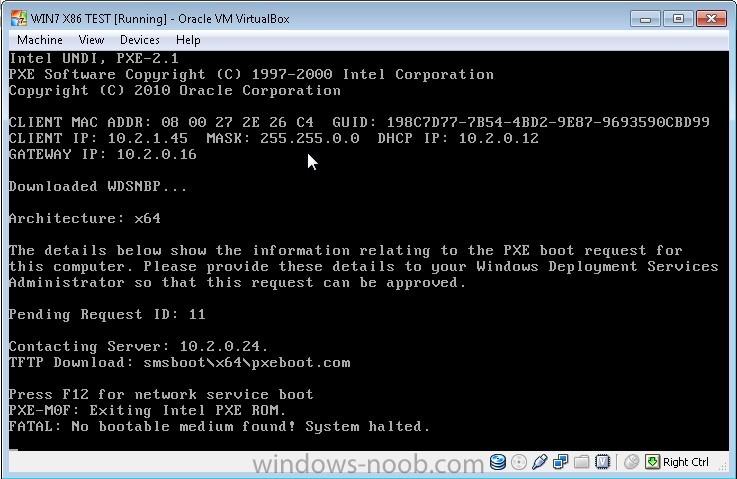

And also even though I am deploying X86 boot image it comes up like this X64 So If I press F12 it boots normal but I want zero touch sort of deployment. Regards,

I now understand the procedure Thanks for your help. I have another small problem, I am trying to build and capture new OS. I created new collection with one imported PC on that collection and deployed OS build and capture task for this device. I set the DHCP scope 66 and 67 which is 66 for my scccm ip and 67 SMSBoot\x86\wdsnbp.com. The client when it boots to pxe it still requires F12 intervention If I want to get rid of this requirement how can I do this? Regards,

First of all thanks for replying... Now I have reference Lenovo Desktop which has installed all the necessary tools and applications and I would like to take an image of this pc as a reference PC. But when I boot the client through PXEBoot it comes up with the abortpxe message. When you say my wims, When I go to boot images I check my data source tab and saw my x86 and x64 wims has been advertised to pxe service point if this what u mean? What else I should check? Regards,

Hi Guys, I am just testing the SCCM 2012 in our envrionment, I was trying to boot one of the VM's and another physical machine to capture reference image. I got stuck at abortpxe.com section. I attached my PXE logs. How can I check my SCCM 2012 setup correctly in terms of distribution point. Please I need some help I would like to solve this mystery. Document.txt
