Unified Device Management with Configuration Manager 2012 R2 - Part 7. Deploying Windows Store apps

Recommended Posts

In Part 1 of this mini series we integrated Windows Intune with System Center 2012 R2 Configuration Manager. In Part 2 we added Support for iOS devices (Iphone, iPad). In Part 3 we learned the difference between App Package for iOS (*.ipa file) and applications from the Apple App Store. We learned how to deploy them to iOS devices and configured the deployment type so that the applications were made available to the user based on the iPhone or Ipad operating system version, in addition we also checked device Ownership information and deployed the application based on those requirements.



In Part 4 we learned how to use and configure compliance settings in order to enable or disable certain configurable features on iOS devices. We enforced a Password requirement and enforced a minimum password length as this is a common requirement for organizations. In Part 5 we enabled support for Windows 8.1 devices (both Windows RT 8.1 and Windows 8.1 Enterprise) so that they could be managed via System Center 2012 R2 Configuration Manager integrated with Windows Intune. In Part 6 we deployed Windows 8.1 apps (appx) to Windows 8.1 devices. Now we will look at how to make Windows 8.1 store apps available in the Company Portal and how to make them featured apps with their own categories.



Step 1. Enable Windows Remote Management on a device

In order to add links to Windows 8.1 Store apps we need to be able to browse a Windows 8.1 device from the console using Windows Remote Management (WinRM) and that device should have the source Windows store app installed that you want to make a link available for in the Company Portal. The easiest way you can achieve this is by using a domain joined Windows 8.1 device and then enabling the Windows Remote Management service on that device by opening an Administrative command prompt and typing the following command:-

WinRM quickconfig

Answer yes to the questions provided as in the screenshot below.



winrm quickconfig.png

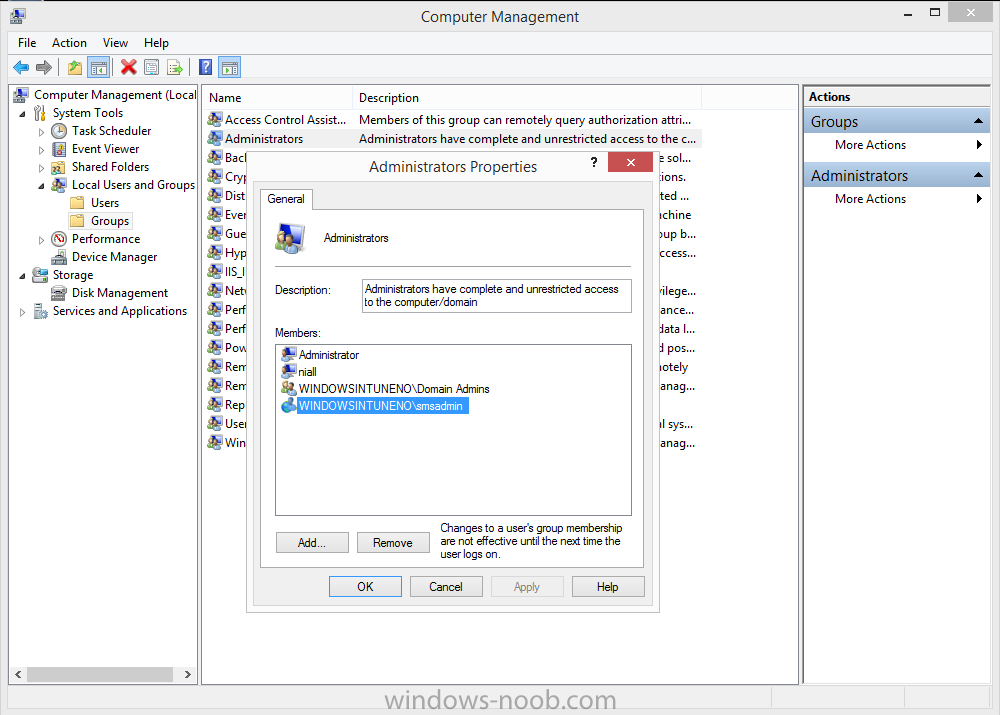

Next, add the user (for example, SMSadmin) you are running the CM12 console with to the administrators group on the remote machine like in the screenshot below



local administrator.png



Finally test the connection from your CM12 server to the remote machine by typing the following in a command prompt

winrm id -remote:w81

the output should look like below, if it doesn't make sure you've run the steps above.



winrm id.png



Step 2. Add a link to a Windows Store app

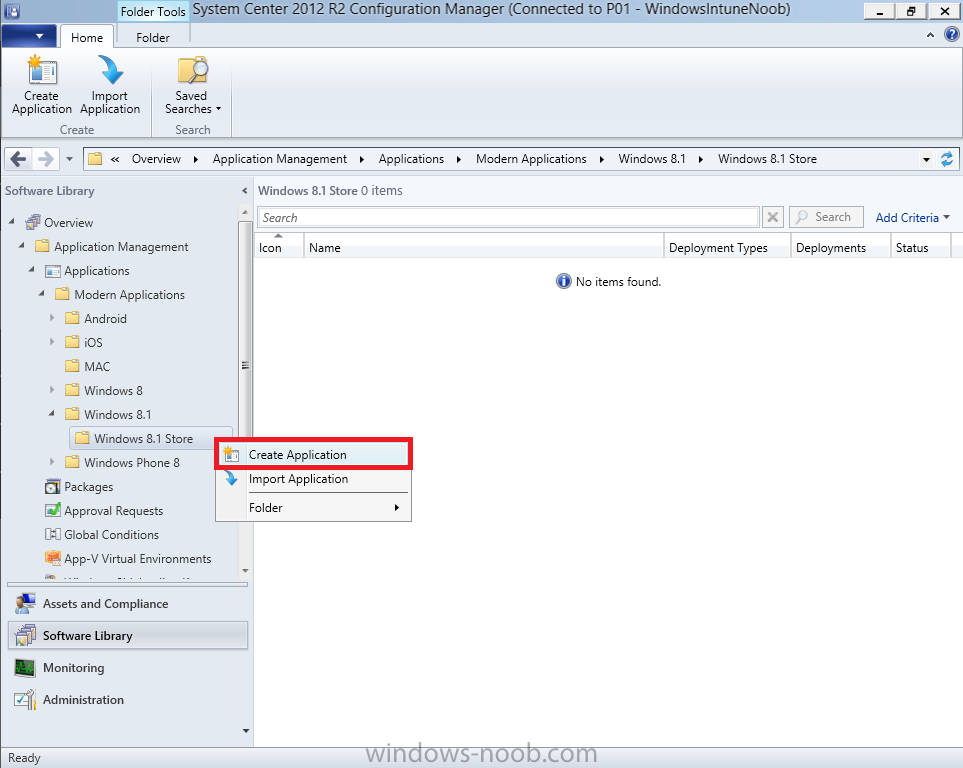

In the Configuration Manager 2012 R2 console, select Software Library, Application Management, Applications and expand our previously created folder structure, expand to Windows 8.1 Store and right click, choose Create Application



create application.png

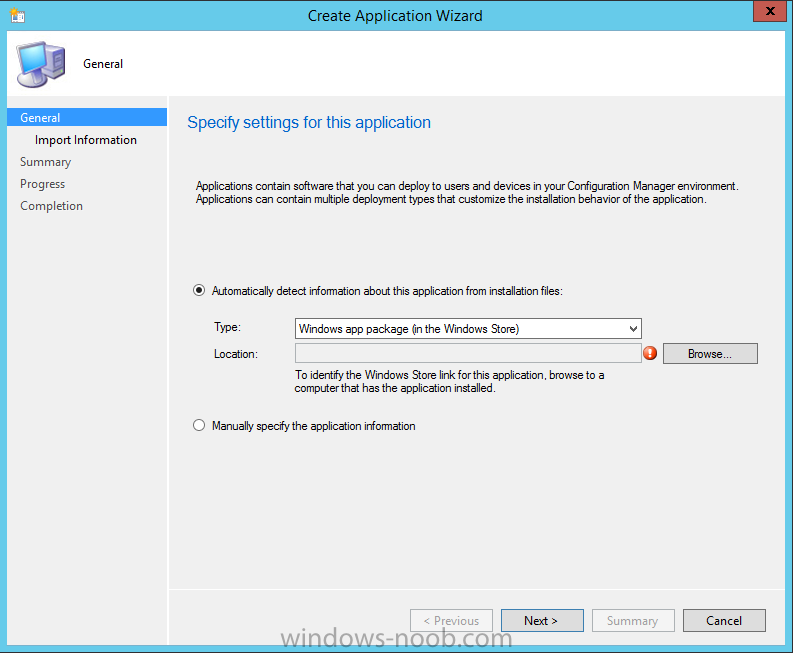

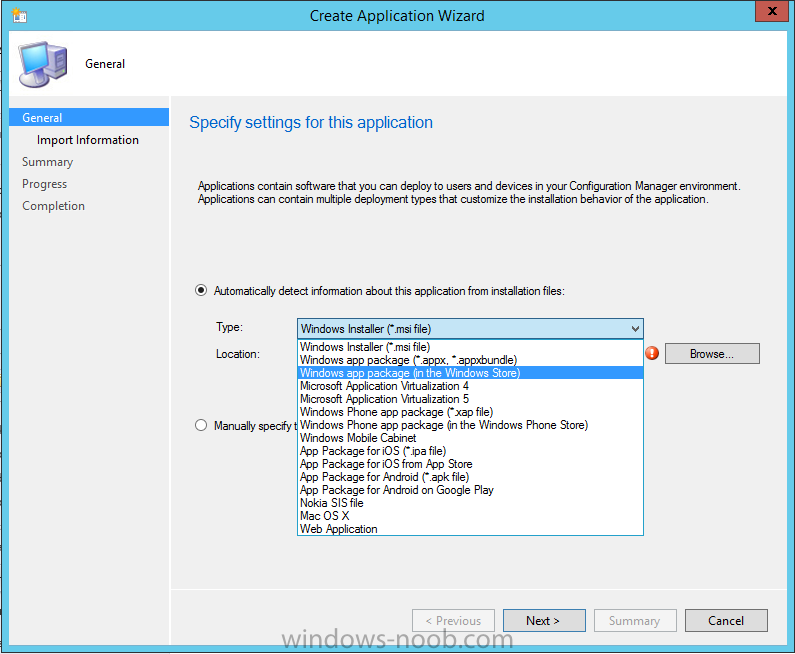

in the Specify settings for this application screen choose Windows App Package (in the Windows Store) as per the screenshot below



windows app package in the windows store.png



for Location click on Browse






In the Browse Windows App Packages screen, enter the computer name of the computer you used in Step 1 above and click on Connect






After some moments you should see a screen filled with the Windows App Packages installed on that remote computer , select the Application you want to make available in the Company Portal as a link to the Windows store and click Ok. In the example below I have selected an App called FastBall, it's a free Windows store game with excellent music.



select app and click ok.png

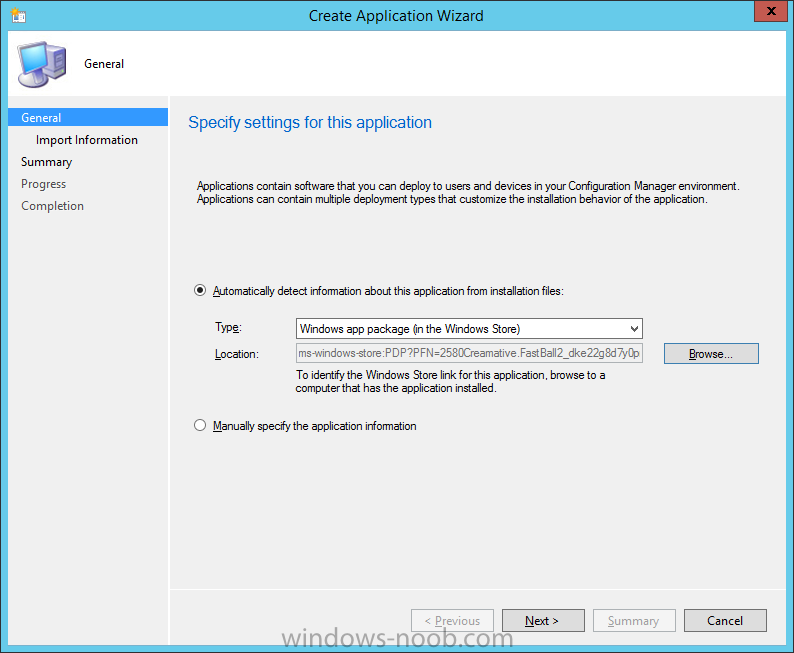

The select app appears in the location field, notice that it is greyed out and that ms-windows-store is the prefix to the app.

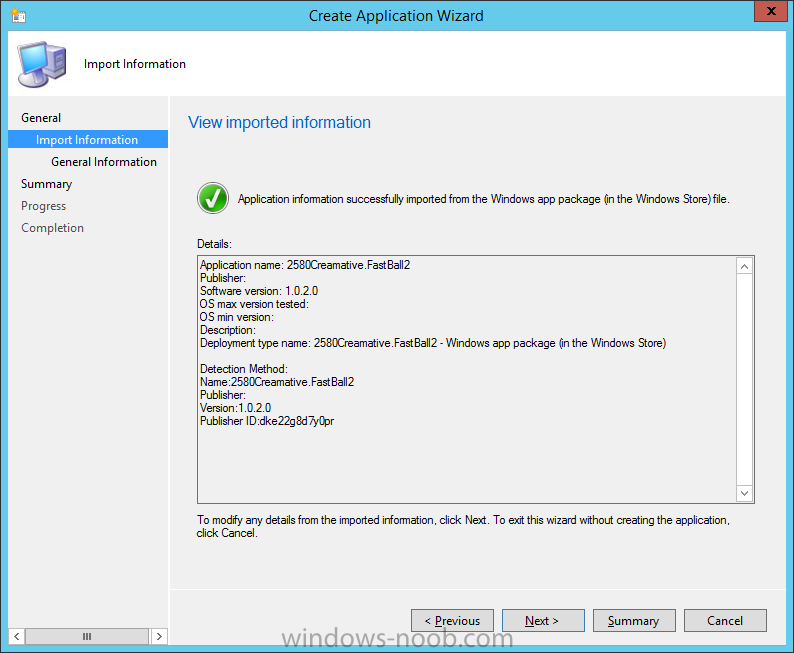

click next to view the imported information



view imported information.png



now you can enter details to your liking or continue through the wizard by pressing next, next. Interestingly you can see that the detection method, requirement rules, and content options are automatically filled in by the wizard



requirement rules.png

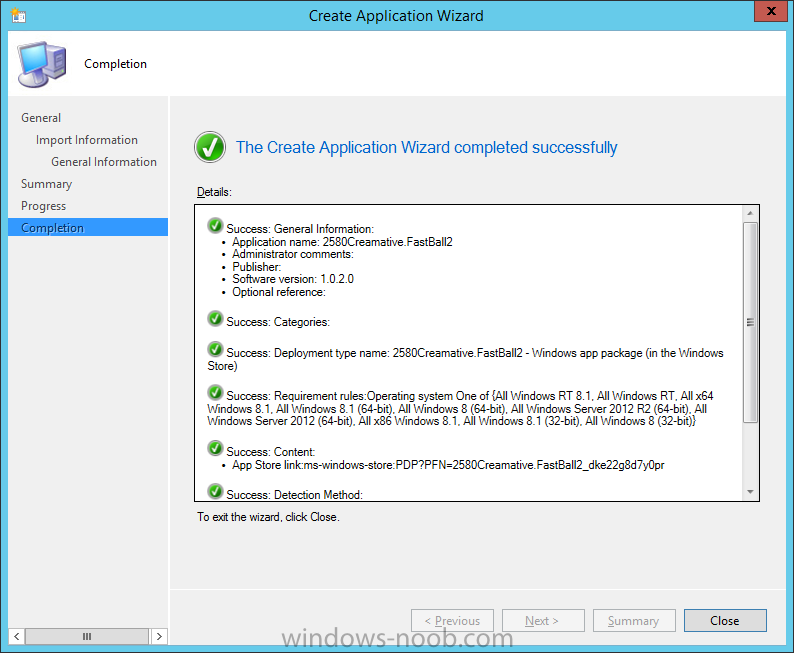

close the wizard



Step 3. Make the Application a Featured App and categorize it

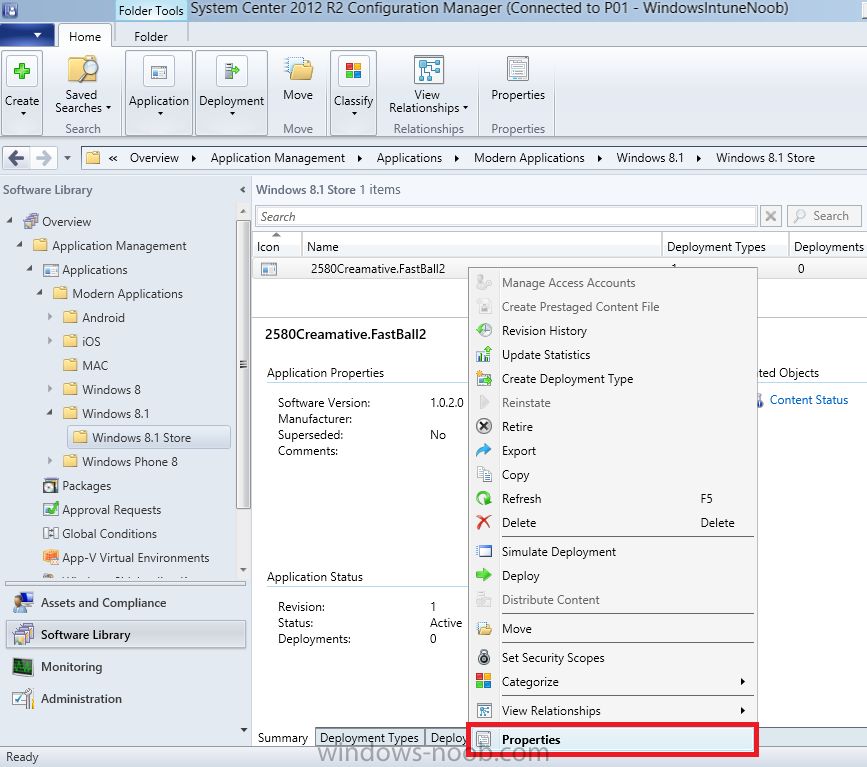

Featured apps can be highlighted in the Company Portal to hopefully catch the attention of your users. In this guide, we will make this Windows Store App a featured app. To do so, right click on the application and choose Properties






select the Application Catalog tab and place a checkmark in the checkbox beside Display this as a featured app and highlight it in the Company Portal



featured app.png

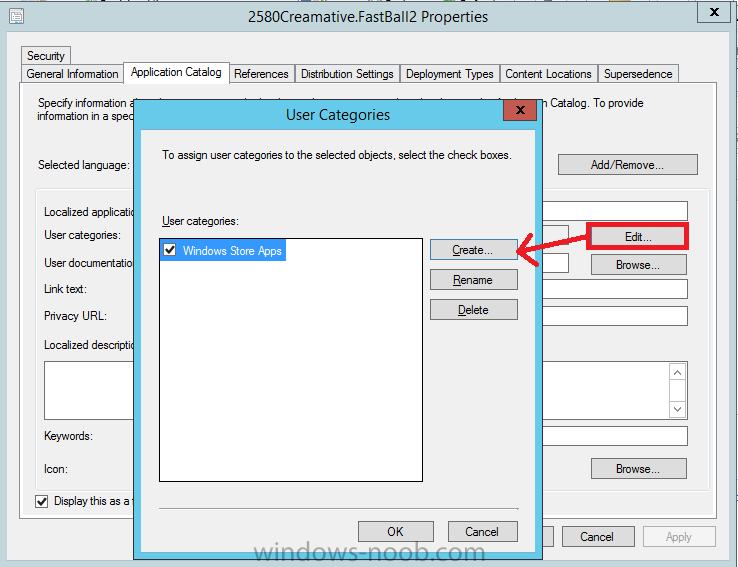

In addition to making our app Featured, you might want to apply a category to it such as Windows Store Apps. To create a category, click on User Categories, then select Edit, then choose create to create a category



Create a Category.png



click on Ok and Apply and Ok.





Step 4. Deploy the App

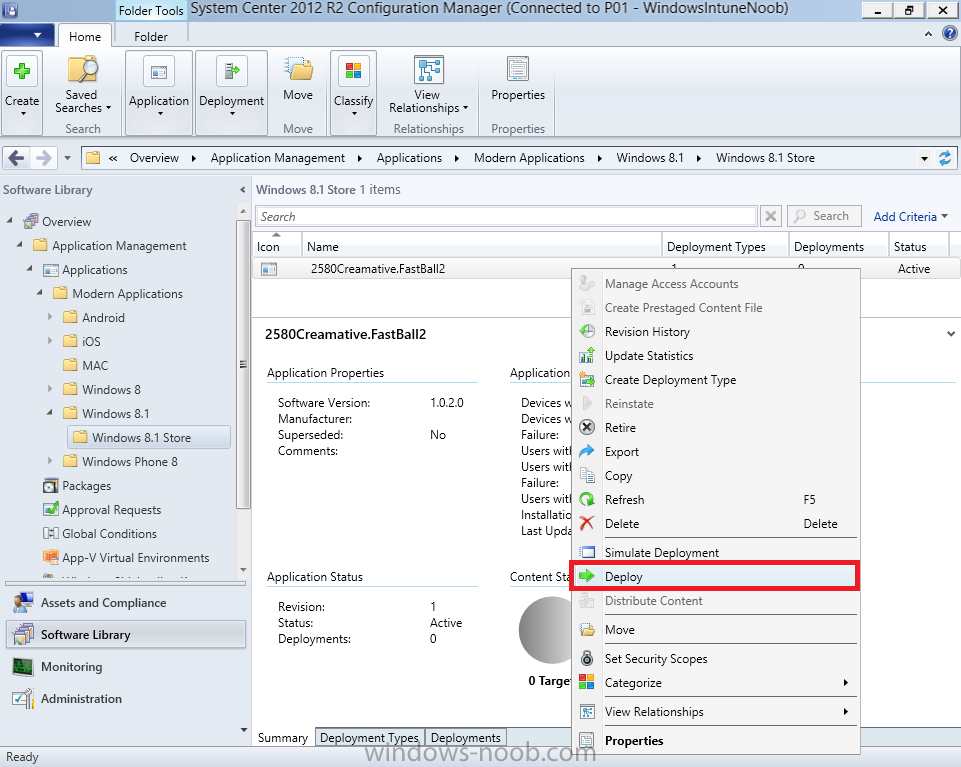

In order for your Windows Intune users to get the app via the Company Portal it needs to be deployed to a collection that they are in. Right click on the app and choose Deploy






select a suitable collection such as Windows Intune Users



Windows Intune Users.png

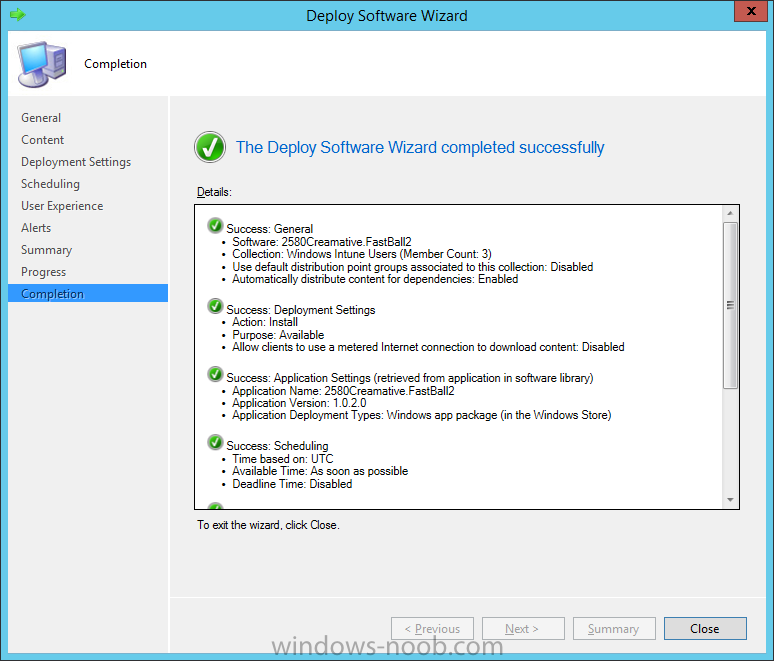

As this is only a link to an app (for example like this -ms-windows-store:PDP?PFN=2580Creamative.FastBall2_dke22g8d7y0pr) there is no content to distribute, therefore the Content options are greyed out, continue through the rest of the wizard to completion.



content options greyed out.png



Step 5. Sign in to the Company Portal

On a Windows 8.1 device that has been enrolled, login to the Company Portal by signing in.



sign in to the company portal.png

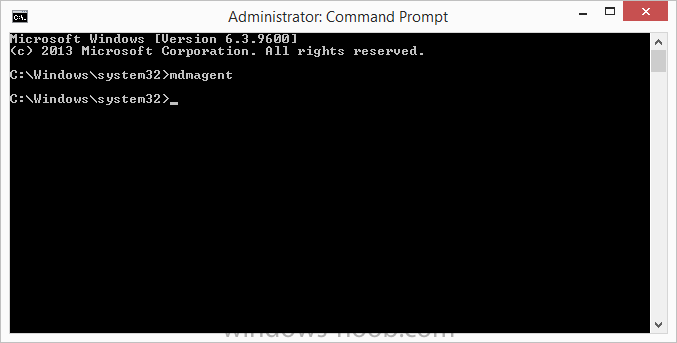

the Company Portal appears, if your featured app doesn't show up, try running mdmagent via a command prompt to speed up policy retrieval

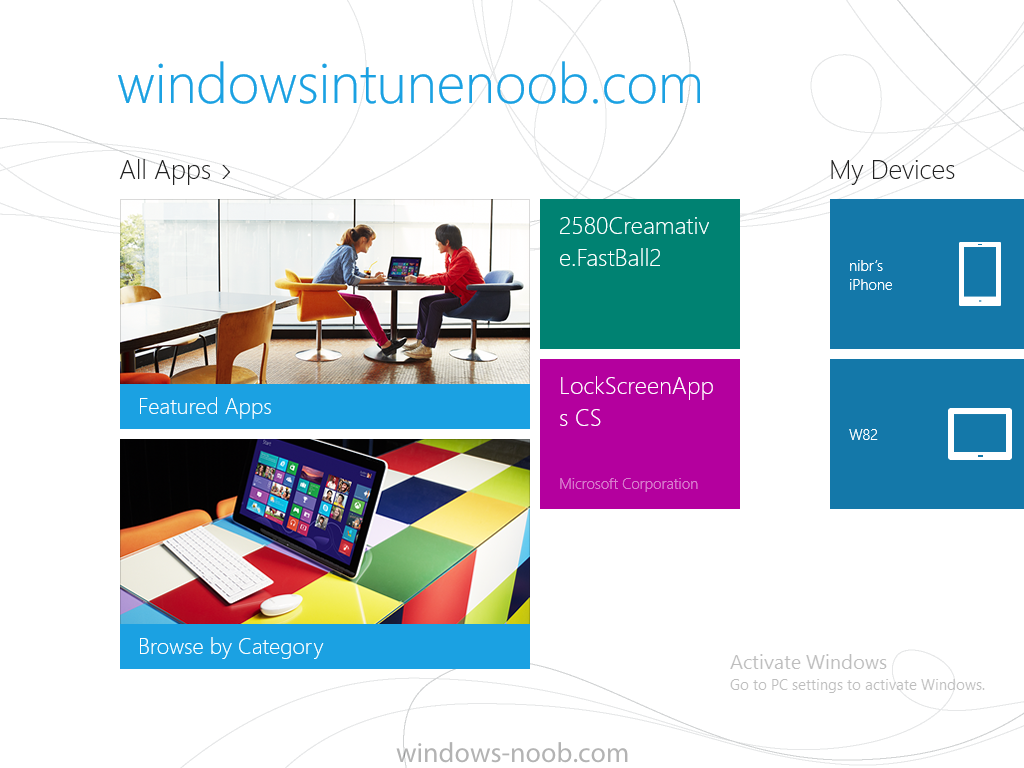

or you could wait a day or so for your Windows 8.1 device to refresh policy by itself, once it has the new policy it should look something like this



featured apps.png

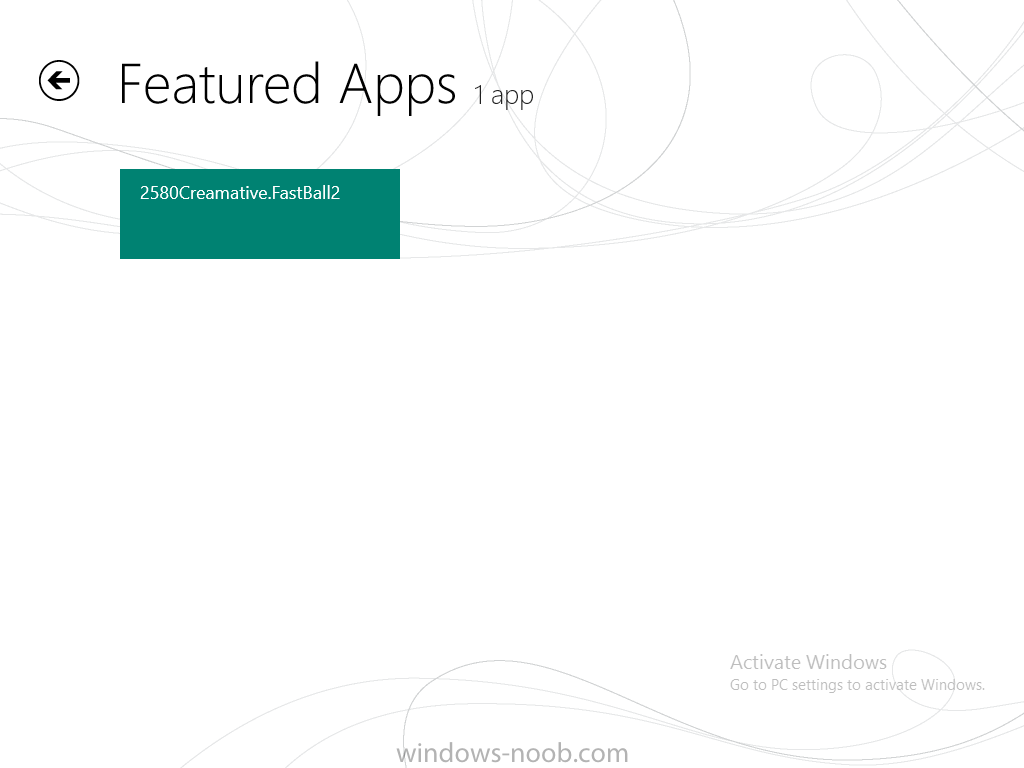

click on Featured Apps to see what that looks like



our featured app.png

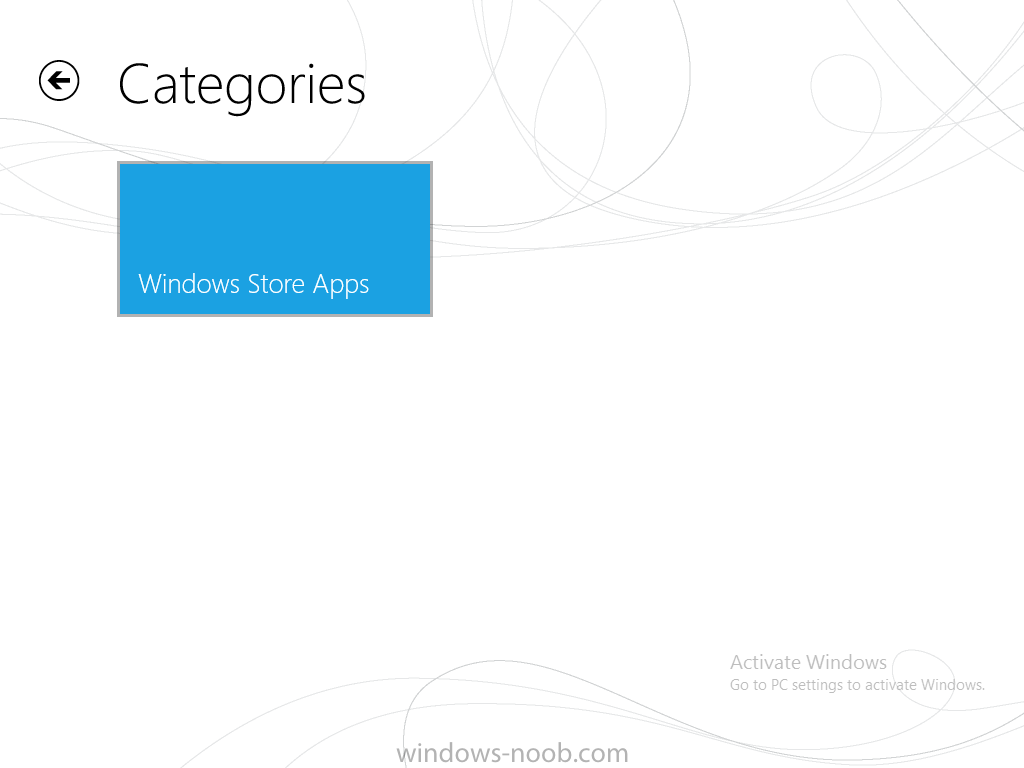

Click back and then click on Browse by Category to see how it was categorized, and you should see your Windows Store Apps category as per the screenshot below






Step 6. Install the Windows Store App

Start the installation process by clicking on the app itself



view in windows store.png



notice the text View in Windows Store in the top left, click on that, that will open up a split screen, Company Portal on the Left, Windows Store on the right, and our Featured Windows Store app is listed, click on Install



Install FastBall 2.png

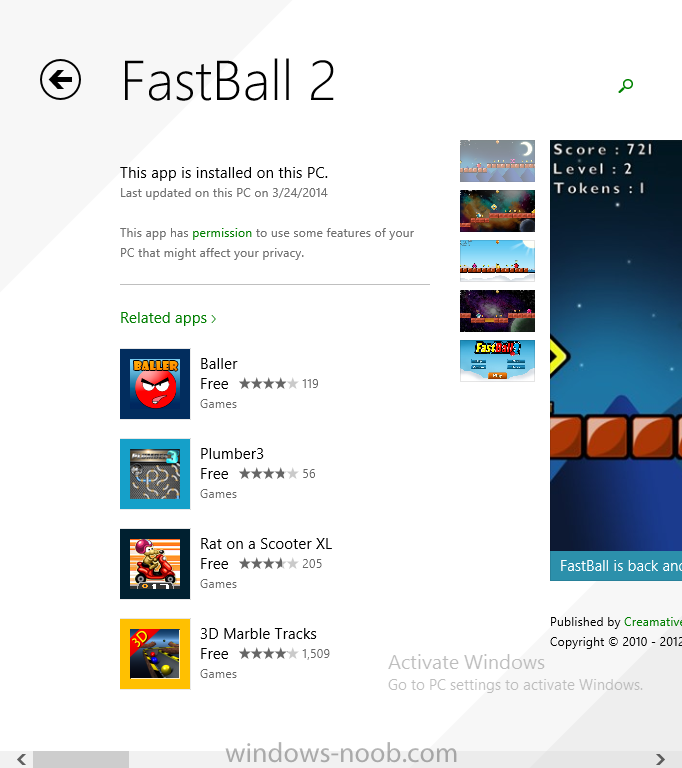

and it installs



this app is installed on this pc.png

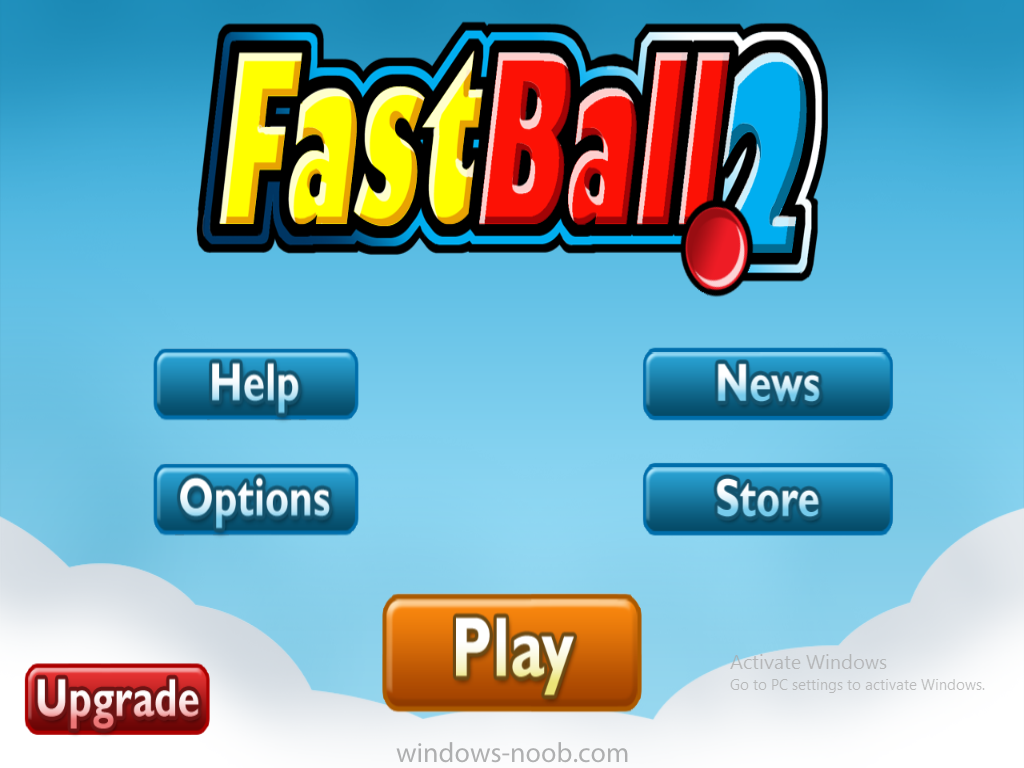

You'll probably want to verify that the app installed successfully by testing it,



test your Windows Store App.png



job done !, well nearly done, click on Play and tell me what you think of the music, cool isn't it ?



Recommended Reading

Planning to Deploy Windows 8 Apps in Configuration Manager - http://technet.microsoft.com/en-us/library/jj822984.aspx

WinRM (Windows Remote Management) Troubleshooting - http://blogs.technet.com/b/jonjor/archive/2009/01/09/winrm-windows-remote-management-troubleshooting.aspx

WinRM in mixed environments - http://www.thecodeking.co.uk/2011/02/winrm-with-mixed-domain-environments.html#.Uy9PhIUZNaQ

Installation and Configuration for Windows Remote Management - http://msdn.microsoft.com/en-us/library/aa384372%28v=vs.85%29.aspx





Summary

In this guide we've learned how to deploy links to Windows Store apps to our modern mobile Windows 8.1 devices using Windows Intune Integration in Configuration Manager 2012 R2. In addition, we've learned how to make the app a featured app and how to categorize apps to make them easier to find.




Downloads

For Offline reading you can download a Microsoft Word copy of this guide below.



How can I manage modern devices using System Center 2012 R2 Configuration Manager Part 7.zip



Continue on to Part 8.
