Introduction

I've seen a lot of questions about how you can increase the log file size for PXE based Operating System Deployments using System Center 2012 R2 Configuration Manager so hopefully the 2 different methods below will clear things up.



Note: The two methods below make changes which only impact logging during the WinPE Phase of OSD (which is usually where most problems occur). If you want to increase the log file size within the rest of the task sequence, i.e. the Windows portion, then depending on the installation type use the following methods. For a new computer scenario, to increase the log file size of all logs, add CCMLOGMAXSIZE=5242880 CCMLOGLEVEL=0 CCMLOGMAXHISTORY=3 to your Setup Windows and ConfigMgr step, whereas for a refresh (reinstallation) computer scenario, add the registry keys below. For more details see the What about the logs in Windows ? section at the end of this guide.



Problem
When PXE booting (network boot) the default log file size in WinPE is a rather pathetic 1MB or so as seen by the text highlighted in red from the SMSTS.log file below.



default size boot wim.png



As a direct result of this default size, the log file for OSD (primarily the SMSTS.log) will get overwritten if you have any large policy to download or if for example you have MDT integrated (because of all the files downloaded in the MDT Toolkit and associated steps), or if for example you are downloading several files in one or more packages.



The knock on effect of rolling over the log file is you will most likely miss seeing errors in the log file as they are overwritten by default. In other words, the log file is too small.



To cut a long story short, if you want to increase the size of your log file during Operating System Deployment then a file called SMSTS.INI must be present in the Windows directory of the boot image you are booting from and it should contain options to specify the new size of logfile you desire. You cannot set the logfile size using a prestart command as that process happens after the logfile size options are set.



Method #1. Inject SMSTS.ini into the boot wim file via dism.



Step 1. Download or create a SMSTS.INI file



Note: This guide assumes you have not yet added the SMSTS.ini file to your boot wim and that you want to add the file to the x86 boot wim. Making the change to the source boot wim file of one architecture (x86 or x64 boot wim) will make the change for all boot images based on that source boot wim however these changes will not come into effect until they have been re-distributed to their distribution points.



You can create a new text file called SMSTS.ini in notepad with the following text, make sure it is not saved as SMSTS.ini.txt, if it is, rename it to SMSTS.INI. The settings below are what I use, you might want to change those values to suit your environment.

[Logging]
LOGLEVEL=0
LOGMAXSIZE=5242880
LOGMAXHISTORY=3
DEBUGLOGGING=1
ENABLELOGGING=True

or use the sample below.



smsts.ini



Save this file somewhere useful.



Step 2. Identify your current boot image

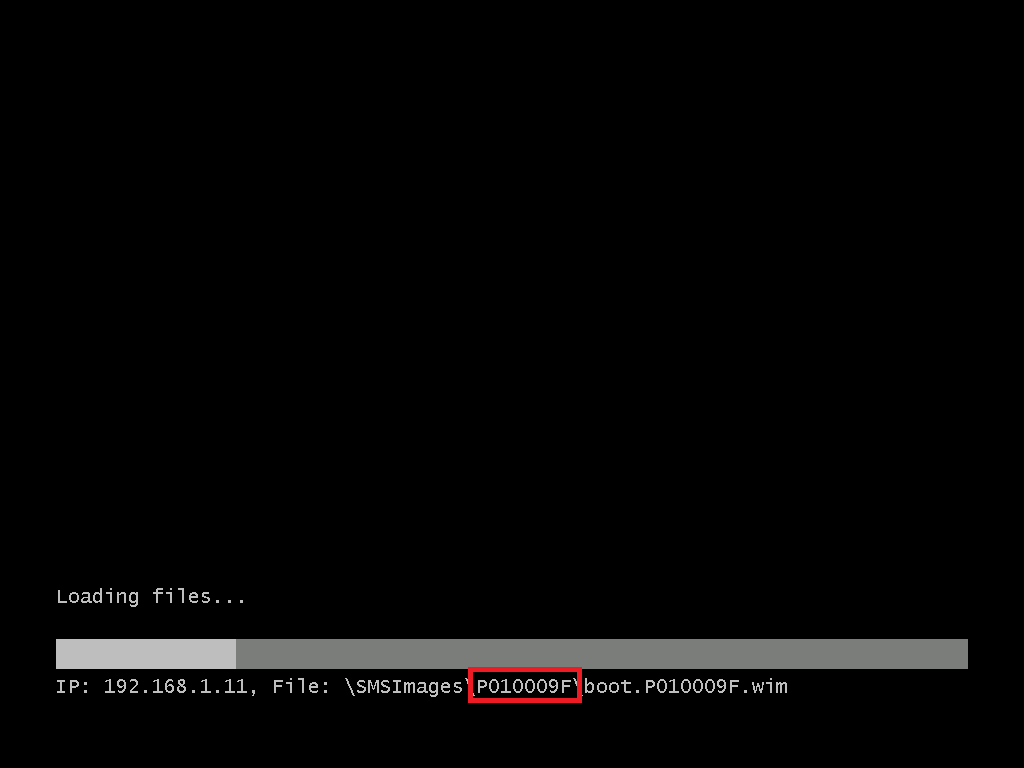

You can do this in a variety of ways, the easiest is to simply see which boot wim is used during PXE boot as long as another one is not staged after selecting your task sequence. To identify the boot wim look at the Package ID shown in the screenshot below



identify boot wim in use.png

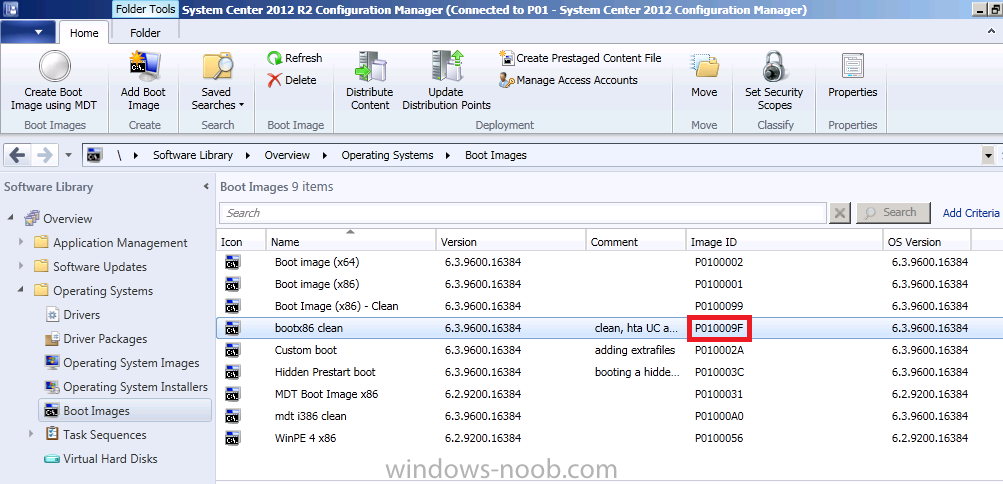

Now that you've got the package ID of your boot image, locate it in the console, note that the Package ID is actually under the ImageID column in the Configuration Manager console under boot images.



boot wim identified by packageID.png



Step 3. Locate the boot wim file



Right click on the boot image and choose properties, select the Data Source tab to identify where the boot image source file wim is located, this is listed in the Image Path. Using Windows Explorer, browse to the data source listed in the properties and you’ll probably see a few wim files listed in there,however the file we are interested in is called boot.wim.



boot wim source.png



Every time your boot image is updated (for example by adding drivers or optional components), this file (boot.wim) is used as the source for all changes, so making changes to this file will insure that your boot image has that changed locked in place going forward.

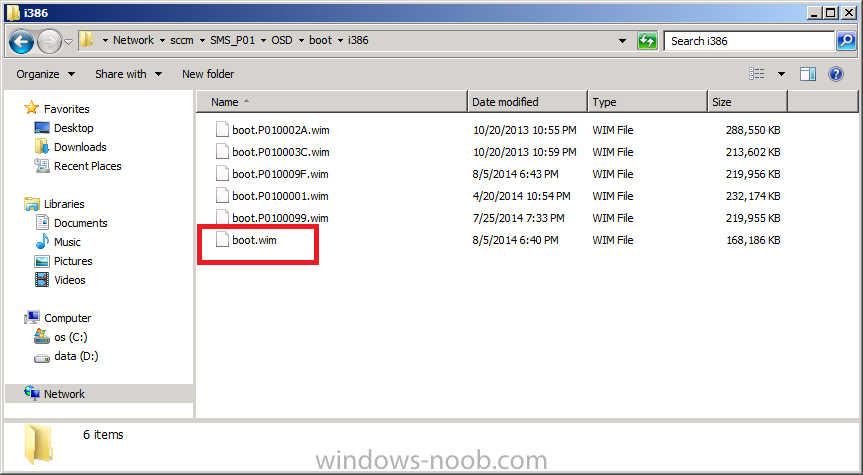

We need to locate the local copy of the file shown above. By default this file will be present locally on our Configuration Manager primary server in the following path D:\Program Files\Microsoft Configuration Manager\OSD\boot\i386\boot.wim assuming Configuration Manager is installed on D:\ and assuming you are using an x86 boot image.



Note: Make a backup copy of the file before making any changes to it. Give the backup file a name that is useful like boot.wim.bak.



backup boot wim.png



Step 4. Create some temp storage for mounting

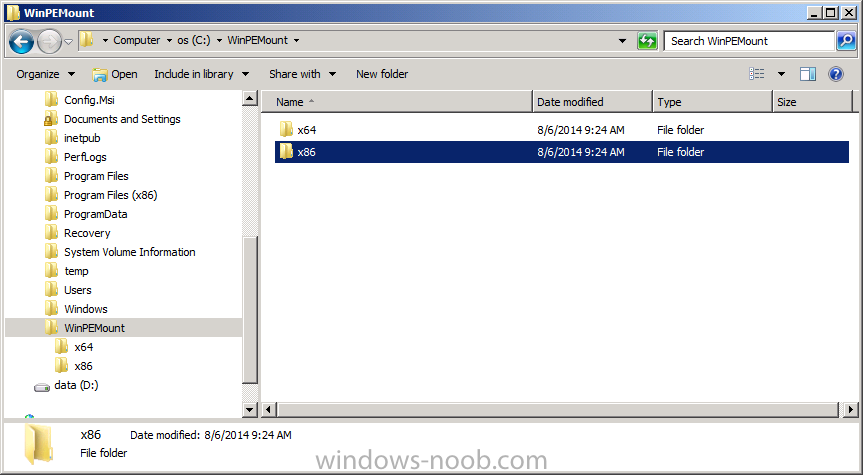

To mount the boot wim we need some temporary storage so create some folders on C:\ like so



C:\WinPEMount

C:\WinPEMount\X86

C:\WinPEMount\X64



as shown in the screenshot below



WinPEMount folders.png



Step 5. Mount the boot wim



We will modify the boot wim file in the local path. To inject files we first need to mount the file with DISM. Use the version of DISM that comes with System Center 2012 R2 Configuration Manager, the correct version is included in ADK 8.1 and the correct version of DISM is 6.3.9600.16384. To start the correct version of DISM locate it in your start menu and right click on the Deployment Imaging Tools and Environment cmd prompt, choose Run as Administrator as shown below



run as administrator.png



and change directory to the directory that has your boot wim file. You can check the contents of the directory to verify that the boot wim file is present by issuing a DIR command.



dism boot wim.png



Use the following command to mount your boot wim file (you may need to adjust the path to match your boot wim architecture and source path).

dism.exe /mount-wim /wimfile:"D:\Program Files\Microsoft Configuration Manager\OSD\boot\i386\boot.wim" /index:1 /mountdir:c:\WinPEMount\X86

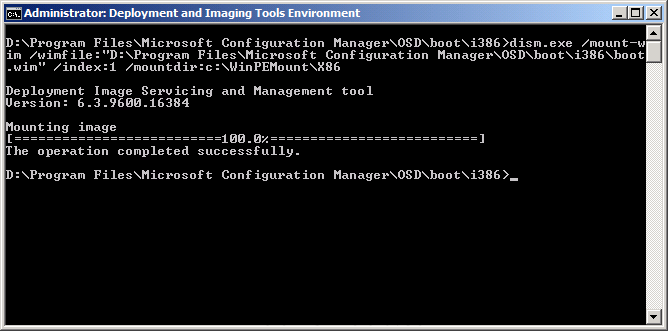

It should mount the boot wim successfully as shown below



boot wim mounted ok.png



Step 6. Copy the SMSTS.INI file to the Windows directory



Copy the SMSTS.INI file created above to the Windows folder in your temporary storage mount directory as shown below

copy smsts.ini c:\WinPEMount\x86\Windows

and here's the copy taking place in our DISM cmd prompt



copy smsts ini file.png



Step 7. Commit the changes



Now that the file is in place, we need to instruct DISM to commit our changes (save the changes) to the boot wim file.

dism.exe /unmount-wim /mountdir:c:\WinPEMount\x86 /commit

as shown in the screenshot below



commit changes.png



Step 8.Update Distribution Points



right click on your boot image in the Configuration Manager console, and choose Update Distribution Points



update distribution points.png



continue through that wizard until completion.



update dp wizsard complete.png



Tip: All boot images that use this boot wim file as the source can now make use of this change in logging ability, however that will not be present until they are also updated to their respective distribution points.



Step 9. Test the updated boot image



Boot a computer using PXE. Assuming that the task sequence containing this boot image was deployed as the last task sequence to a collection that our computer is a member of, then even before the PXE password box is used you can check for the presence of the smsts.ini file, by pressing F8. If the SMSTS.ini file is present in the Windows directory then the new log file size ability should be in affect for that boot image.



smsts ini is present in the boot wim.png

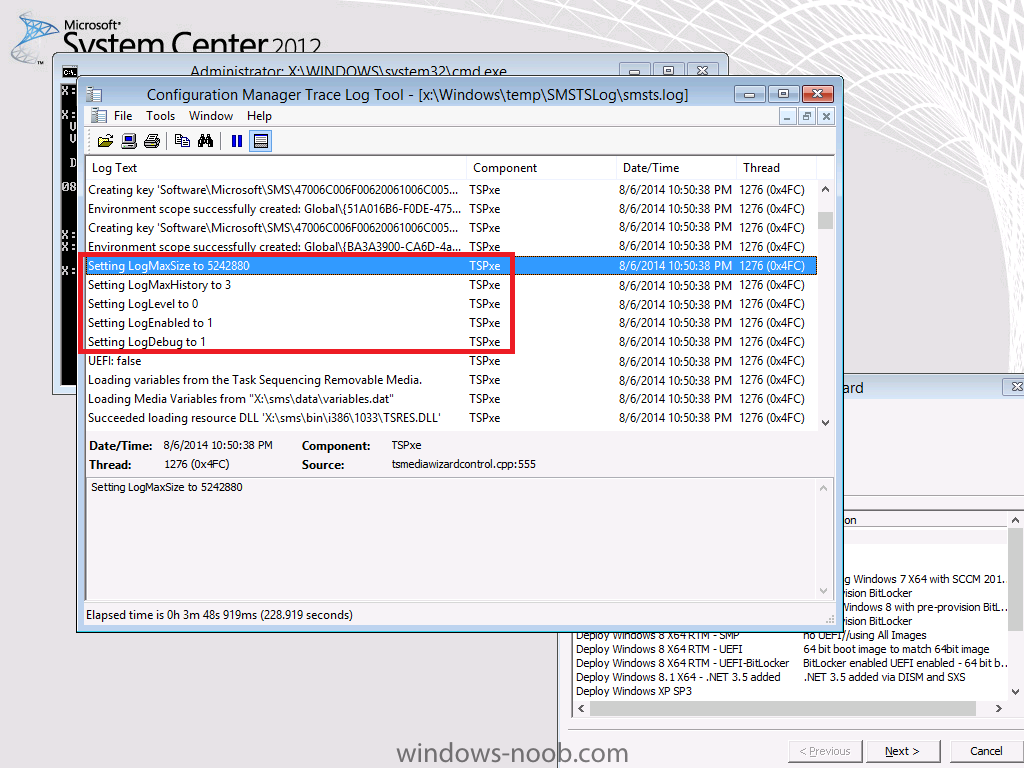

After entering the PXE password and before selecting a task sequence, the increased log file size is registered in the SMSTS.log file as shown below:



Increased Log Size Registered.png





Success !



Method #2. Copy SMSTS.ini into MDT boot images using Extrafiles.



Note: in Method #1 above, we've already modified the boot.wim source for i386 architecture. As a result it already contains the smsts.ini file, so for the purpose of this guide I'll revert that boot wim to it's backed up state (no smsts.ini file injected) before completing this guide.



If you are using MDT boot images you can avail of the ExtraFiles ability to do the same thing. Here's how it's done.



Step 1. Create an Extrafiles folder



On your Configuration Manager sources structure (eg: \\sccm\sources\), create a folder called Extrafiles



Next, within the Extrafiles folder, create another folder called Windows, and copy the SMSTS.ini file from above into the Windows folder so that it looks like so



Extrafiles Windows.png





Step 2. Create a MDT boot image



In a MDT Integrated Configuration Manager console, right click on boot images and choose Create boot image using MDT as shown below:



Create Boot Image using MDT.png

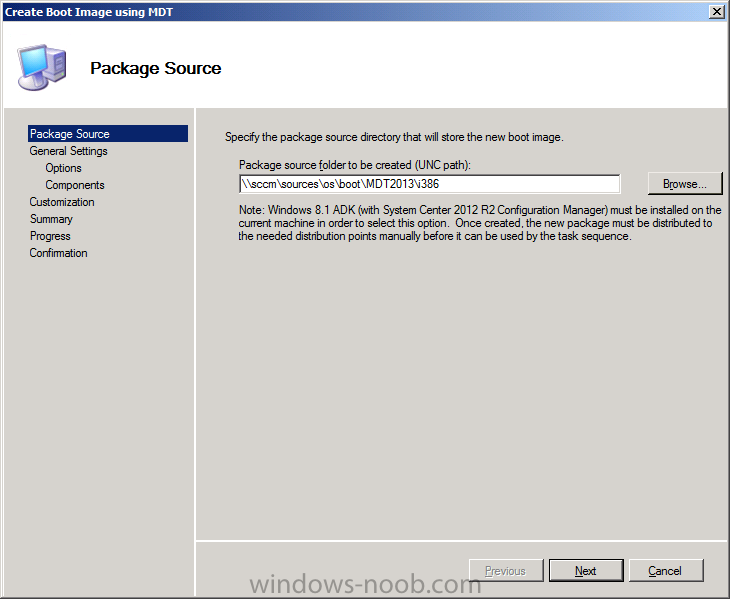

enter the package source path (create the necessary empty folder structure before clicking next, eg: create \\sccm\sources\os\boot\mdt2013\i386)



Pacakage source path.png

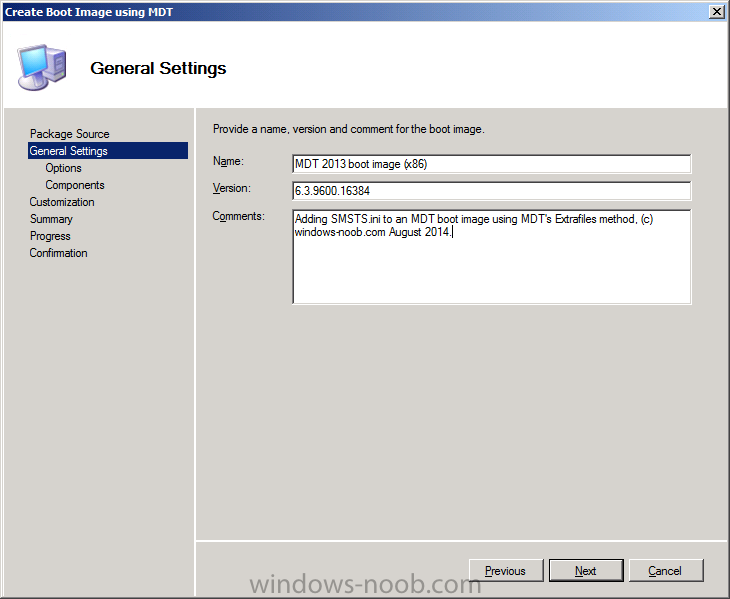

fill in some useful info about the boot image



MDT boot image.png



select the appropriate options (x86 versus x64) and scratch space...



x86 platform.png



select any additional Optional Components



optional components.png

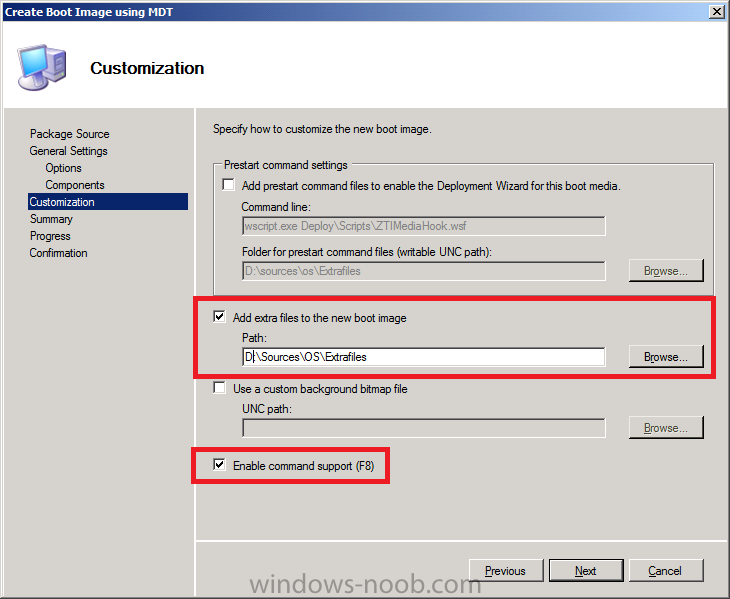

enter the path to the Extrafiles folder and also make sure F8 support is enabled as shown below



path to extrafiles and enable F8.png



continue through that wizard until completion. The AppData temp folder it refers to is where it does the ExtraFiles copying (amongst other things).



mdt boot image created.png



Step 3. Enable the new MDT boot image for PXE

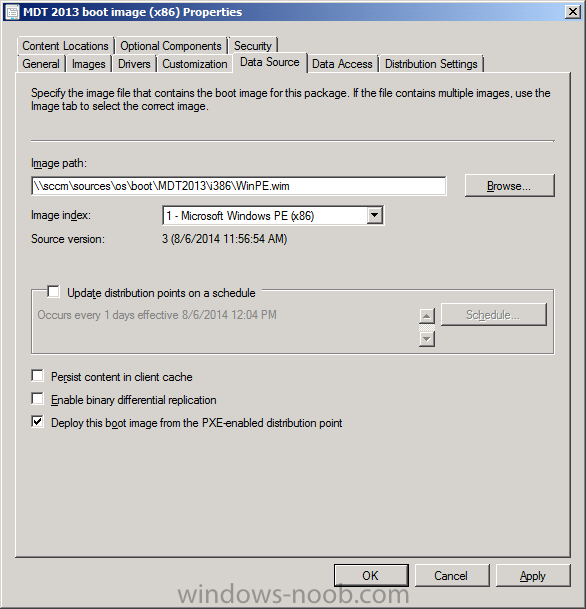

Right click your newly created MDT boot image, make sure it's enabled for PXE as shown below



by enabling the deploy this boot image from the PXE enabled distribution point option on the Data Source tab





deploy this boot image from the PXE enabled distribution point.png



Step 4. Distribute the MDT boot image



Right click the MDT boot image and choose Distribute content.



distribute content.png



Select whatever distribution points you want it distributed to, continue through that wizard.



distributed mdt boot image.png



Step 5. Update Distribution Points for the boot image



Nearly done, right click the MDT boot image again, and choose Update Distribution points, continue through that wizard.





update distribution points mdt.png



Step 6. PXE boot and test the new MDT boot image



Now that you've made the changes you'll want to see the results, make sure the new MDT boot image is attached to a live task sequence that is deployed to a collection your computer is a member of.



Notice that the package id of the MDT boot wim while PXE booting is different to the boot wim used in Method 1 above.



PXE boot with a different Package id for the MDT boot wim.png

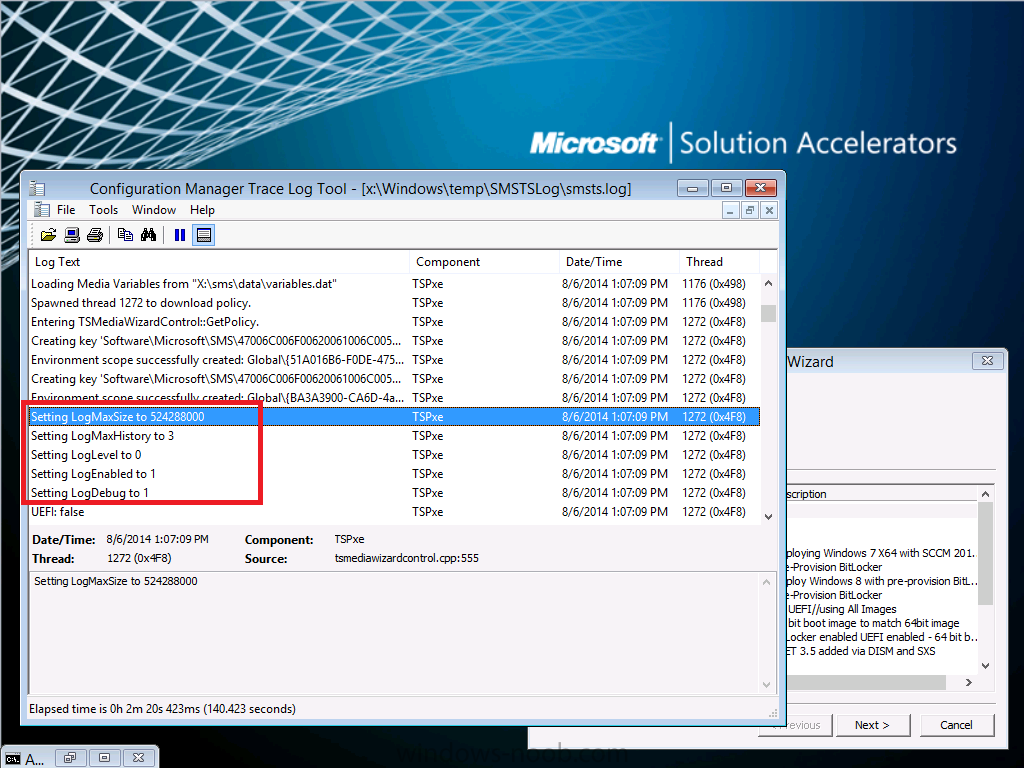

Once WinPE has loaded, enter the PXE password and then check the SMSTS.log file, as you can see the change is logged here also



log file size changed.png



Success !



What about the logs in Windows ?



Finally, you have bigger log files while in WinPE but what about the rest of the task sequence (i.e. while in Windows). Well to increase the log files in Windows you first need to identify if you are doing a New Computer installation or a Refresh (a reinstallation). Once you know which you are doing follow the advice below.



  • New Computer Scenario



For the New computer scenario, you need to edit the Setup Windows and ConfigMgr step as shown below

CCMLOGMAXSIZE=5242880 CCMLOGLEVEL=0 CCMLOGMAXHISTORY=3

This will affect more than your SMSTS.log file however, but more detail is always good especially for troubleshooting, and you can adjust the values above to suit your needs.



Installation Properties.png



  • Refresh Computer Scenario



For the Refresh Computer Scenario, apply the following registry keys via a REG.exe command line.



Global CCM logging options CM12.reg.txt



The registry keys are shown below and attached here. Download the file and remove the .txt extension before use.



registry keys for refresh.png



To set these registry keys, create a run command line step in the refresh part of the task sequence, which includes the following statement

cmd /c REG.exe ADD "HKLM\SOFTWARE\Microsoft\CCM\Logging\@GLOBAL" /v LogLevel /t REG_DWORD /d 0 /f & cmd /c REG.exe ADD "HKLM\SOFTWARE\Microsoft\CCM\Logging\@GLOBAL" /v LogMaxHistory /t REG_DWORD /d 3 /f & cmd /c REG.exe ADD "HKLM\SOFTWARE\Microsoft\CCM\Logging\@GLOBAL" /v LogMaxSize /t REG_DWORD /d 5242880 /f

as shown below



cm12 logging options refresh.png





Summary

Changing the size of the smsts.log file for PXE based OSD deployments isn't exactly straightforward but hopefully this guide brings some clarity to the process.



Related Reading



Downloads

You can download a Microsoft Word copy of this guide here. How can I increase the size of the SMSTS log file in PXE based OSD deployments using System Center 2012 R2 Configuration Manager.zip

Share this post


Link to post
Share on other sites


nice guide thanks!

do you know which method take precedence if the smsts.ini is specified in the wim and in the extrafiles?

And can you check or change the extrafiles folder after the boot image has been created? (is it the same as the source directory for the prestart command?Or could you add those values from the prestart command, like registry in WinPE?)

(IE: i'm not sure if I did add this extra file folder during the creation of the boot image, and I'd like to avoid creating a new one...)



Thanks a lot
