Updated Powershell script with November drivers for deploying the Surface Pro 3 with MDT 2013





  • Please log in to reply
No replies to this topic

#1 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,251 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 21 November 2014 - 01:36 PM

Yesterday Microsoft released updated drivers for the Surface Pro 3 on their website, I blogged about it here.






I've updated the PowerShell script from this post to pull the new drivers and an additional MSU update which was added this month (even though it's listed from August 2014).



importing drivers.png



In addition it creates the deployment share with a new name (MDTDeploy) instead of the default, you can always configure it as you wish.



For those of you that don't know, this script is totally automated and builds a complete MDT deployment solution for deploying the Surface Pro 3 with all drivers included from Microsoft right up to November 2014, all you have to provide is Windows 8.1 x64 Update source files and optionally Office 365.



Here's the new updated script.



Attached File  Setup MDT 2013 for Microsoft Surface Pro 3 - November 2014.zip   6.22KB   429 downloads



Save it somewhere useful, configure the variables and run it, if all is good it'll look like below after running.

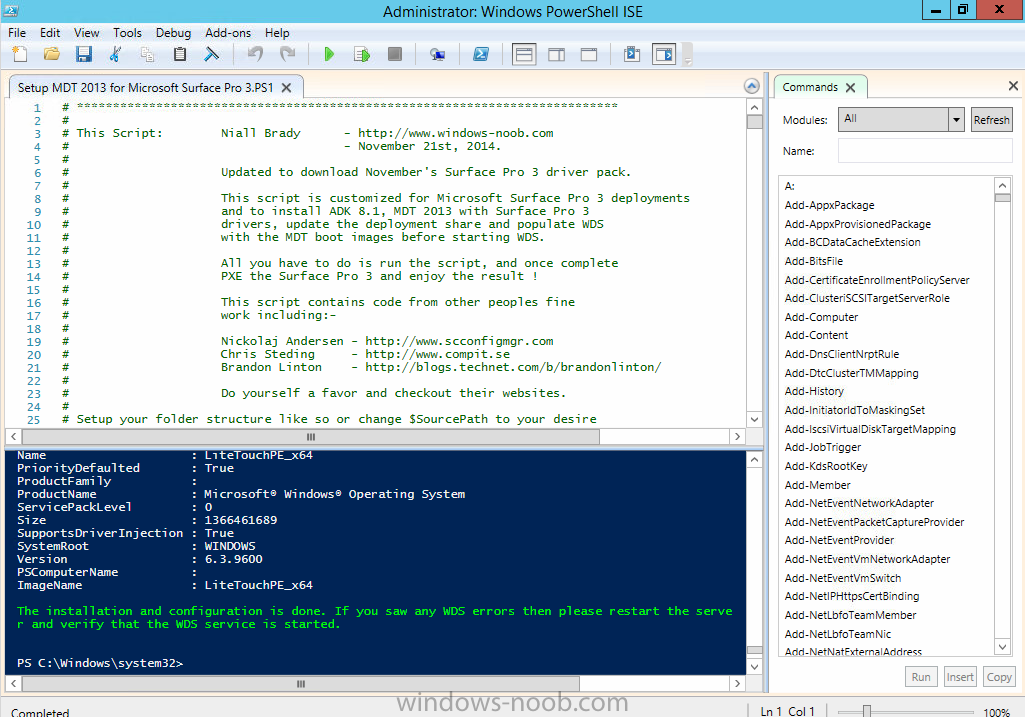

november surface pro 3 script.png



Below you can see the patches (Windows Updates) it adds to MDT namely

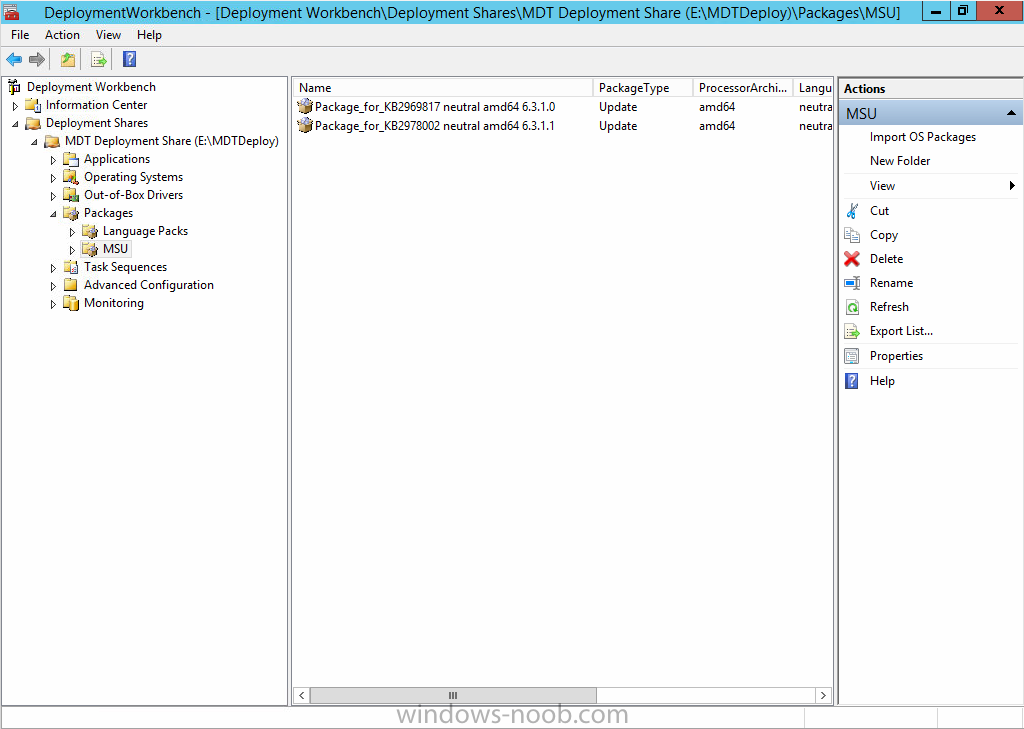

msu updates.png



along with some of the updated drivers (for example, updated UEFI)

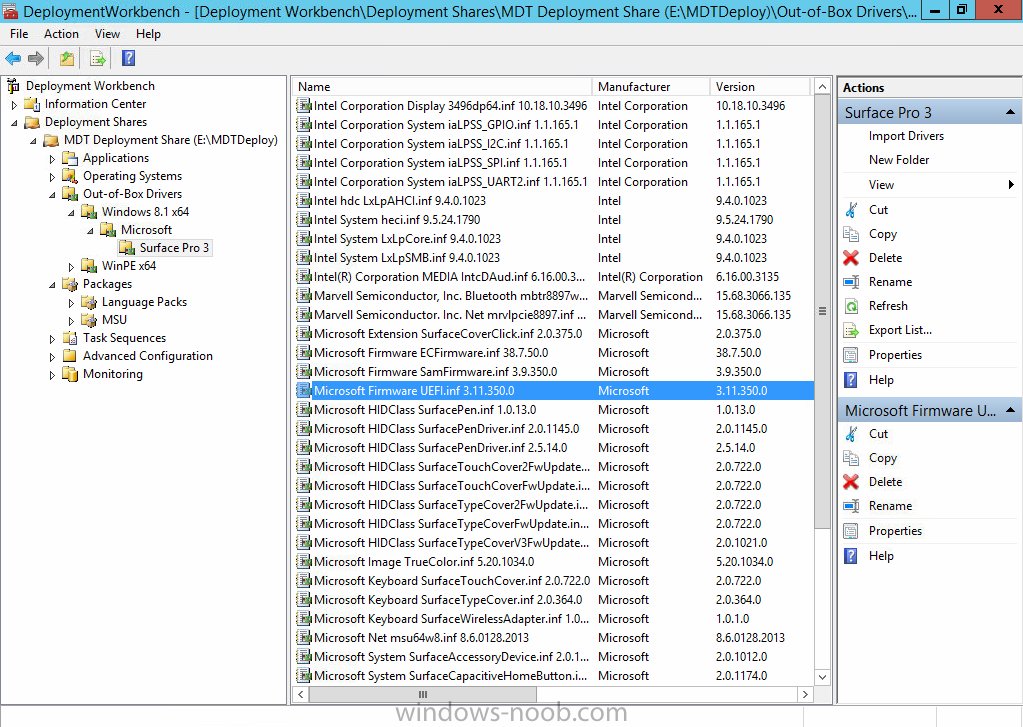

UEFI update.png



and the Release notes for the November 2014 drivers are listed below







        ==================README.txt==================


This README describes the versions of the components found in the Surface Pro 3 cumulative firmware and driver update package, released in November 18th, 2014.
====================================================================================



************************
Device: Surface Pro 3
************************


******************************************************
System Requirements: Windows 8.1 Pro and Enterprise
******************************************************


*****************************
Not Supported: Windows 8.0
*****************************


************************************
Source: Microsoft Download Center
************************************


******************************************
Windows Update Release Date: 11/18/2014
******************************************


*****************************************
Changed Firmware and Drivers Versions:
*****************************************
    Surface Pro UEFI    v3.11.350.0
    Marvell AVASTAR Wireless-AC Network Controller    v15.68.3066.135
    Marvell AVASTAR Bluetooth Radio Adapter    v15.68.3066.135
    Surface Home Button    v2.0.1174.0
    Surface Pen Driver    v2.5.14.0


******************************************
Complete Firmware and Driver Versions:
******************************************
    Surface Pro UEFI    v3.11.350.0
    Surface Pro System Aggregator Firmware    v3.9.350.0
    Surface Pro Embedded Controller Firmware    v38.7.50.0
    Surface Pro Touch Controller Firmware    v426.27.66.0
    Intel® Serial IO I2C Host Controller - 9C61    v1.1.165.1
    Intel® Serial IO I2C Host Controller - 9C62    v1.1.165.1
    Intel® Serial IO GPIO Host Controller    v1.1.165.1
    Intel® Management Engine Interface    v9.5.24.1790
    Intel® Display Audio    v6.16.00.3135
    Intel® HD Graphics Family    v10.18.10.3496
    Intel® 8 Series SATA AHCI Controller - 9C03    v9.4.0.1023
    Intel® 8 Series LPC Controller (Premium SKU) - 9C43    v9.4.0.1023
    Intel® 8 Series PCI Express Root Port #3 - 9C14    v2.0.1151.0
    Intel® 8 Series SMBus Controller - 9C22    v9.4.0.1023
    Marvell AVASTAR Wireless-AC Network Controller    v15.68.3066.135
    Marvell AVASTAR Bluetooth Radio Adapter    v15.68.3066.135
    Realtek High Definition Audio    v6.0.1.7198
    Realtek USB 3.0 Card Reader    v6.2.9200.30164
    Surface Accessory Device    v2.0.1012.0
    Surface Cover Audio    v2.0.722.0
    Surface Cover Click    v2.0.375.0
    Surface Type Cover    v2.0.364.0
    Surface Touch Cover    v2.0.722.0
    Surface Type Cover Fw Update    v2.0.722.0
    Surface Touch Cover FW Update    v2.0.722.0
    Surface Type Cover 2 Fw Update    v2.0.722.0
    Surface Touch Cover2 FW Update    v2.0.722.0
    Surface Type Cover 3 Firmware Update    v2.0.1021.0
    Surface Display Calibration    v2.0.1002.0
    Surface Intergration    v2.0.1168.0
    Surface Home Button    v2.0.1174.0
    Microsoft LifeCam Front    v5.20.1034.0
    Surface Cover Telemetry    v2.0.722.0
    Surface Pen    v1.0.13.0
    Surface Pen Driver    v2.5.14.0
    Surface Ethernet Adapter    v8.14.0704.2014
