Updated Powershell script with June 2015 drivers for deploying the Surface Pro 3 with MDT 2013





  • Please log in to reply
3 replies to this topic

#1 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,251 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 29 June 2015 - 07:26 PM

On June 25th, Microsoft released another driver update for the Surface Pro 3 here. As usual, i've updated my PowerShell script to allow you to deploy this awesome device using minimal effort via a MDT 2013 solution all built with PowerShell.



running the powershell script.png



I've updated the script somewhat to include a few more variables to allow for easily changing the source drivers going forward, to change them simply input the correct values for the following variables:



new vars.png



You don't need to change this script now however, just download it, and run it on a Windows Server 2012 R2 in Windows PowerShell ISE as administrator, the script will do the rest.



script running.png



If you want to know how the script works then please see this post for more details. When the script is finished running it should look like this.



all complete.png



you can review the installation of MDT 2013 which it has created for you complete with all the June 2015 drivers for the Surface Pro 3 by opening up the Deployment Workbench and seeing for yourself.



MDT deployment workbench.png

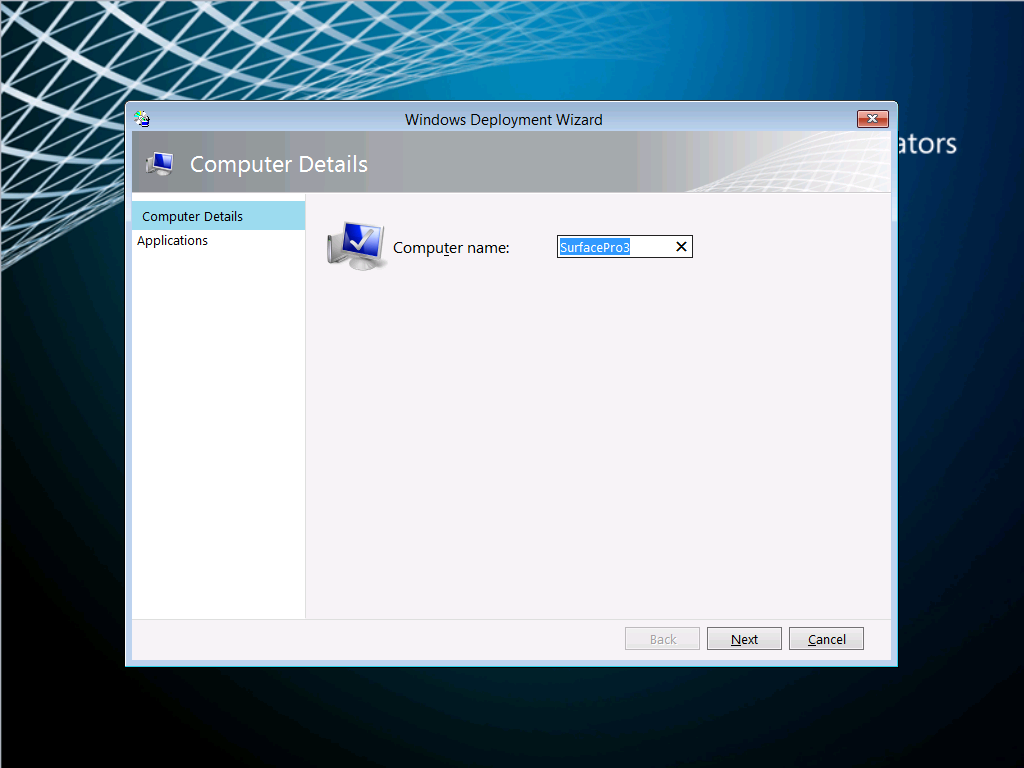

which means you can PXE boot a Surface Pro 3 straight away and start imaging it



deploying it with mdt.png



The actual driver updates are listed below

FIRMWARE:

EC       38.7.50.0   ECFirmware.inf
SAM      3.9.350.0   SamFirmware.inf
TOUCH    426.27.66.0 TouchFirmware.inf
UEFI     3.11.950.0  UEFI.inf

DRIVERS:

Accessory SurfaceAccessoryDevice        2.0.1012.0     SurfaceAccessoryDevice.inf
Accessory SurfaceCoverAudio             2.0.722.0      SurfaceCoverAudio.inf
Accessory SurfaceCoverClick             2.0.375.0      SurfaceCoverClick.inf
Accessory SurfaceCoverTelemetry         2.0.722.0      SurfaceCoverTelemetry.inf
Accessory SurfaceTouchCover             2.0.722.0      SurfaceTouchCover.inf
Accessory SurfaceTouchCover2FwUpdate    2.0.722.0      SurfaceTouchCover2FwUpdate.inf
Accessory SurfaceTouchCoverFwUpdate     2.0.722.0      SurfaceTouchCoverFwUpdate.inf
Accessory SurfaceTypeCover              2.0.1193.0     SurfaceTypeCover.inf
Accessory SurfaceTypeCover2FwUpdate     2.0.722.0      SurfaceTypeCover2FwUpdate.inf
Accessory SurfaceTypeCoverFwUpdate      2.0.722.0      SurfaceTypeCoverFwUpdate.inf
Accessory SurfaceTypeCoverV3FwUpdate    2.0.1021.0     SurfaceTypeCoverV3FwUpdate.inf
Accessory SurfaceWirelessAdapter        1.0.1.0        SurfaceWirelessAdapter.inf
Audio     DockingStationAudioDevice     1.31.35.7      msdokub.inf
Audio     HdAudio                       6.0.1.7198     HDXMSSDS1.inf
Camera    LifeCam                       5.20.1034.0    TrueColor.inf
Display   DisplayAudio                  6.16.00.3172   IntcDAud.inf
Display   Graphics                      10.18.14.4170  64dp4170.inf
Display   SurfaceDisplayCalibration     2.0.1002.0     SurfaceDisplayCalibration.inf
Network   Bluetooth                     15.68.3091.193 mbtr8897w81x64.inf
Network   SurfaceEthernetAdapter        8.10.0830.2013 msu64w8.inf
Network   SurfaceGigabitEthernetAdapter 8.14.0704.2014 msu30x64w8.inf
Network   WiFi                          15.68.3091.193 mrvlpcie8897.inf
Pen       SurfacePen                    1.0.13.0       SurfacePen.inf
Pen       SurfacePenSettingsDriver      4.0.112.1      SurfacePenDriver.inf
System    CapacitiveHomeButton          2.0.1179.0     SurfaceCapacitiveHomeButton.inf
System    CardReader                    6.2.9200.30164 RtsUStor.inf
System    GPIO                          1.1.165.1      iaLPSS_GPIO.inf
System    I2C                           1.1.165.1      iaLPSS_I2C.inf
System    LowPinCount                   9.4.0.1023     LxLpCore.inf
System    ManagementEngine              9.5.24.1790    heci.inf
System    SATA_AHCI                     9.4.0.1023     LxLpAHCI.inf
System    SMBus                         9.4.0.1023     LxLpSMB.inf
System    SurfaceIntegrationDriver      2.0.1182.0     SurfaceIntegrationDriver.inf
System    SurfacePciController          2.0.1151.0     SurfacePciController.inf



Download the script



Here's the script, download it, unzip, run it in Windows PowerShell ISE.



Attached File  Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015.zip   6.4KB   223 downloads



enjoy !

cheers

niall











Microsoft MVP > Enterprise Client Management
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog



#2 SysIT

SysIT

    Newbie

  • New Members
  • Pip
  • 2 posts

Posted 07 April 2016 - 05:27 PM

Hello,



I am so happy i came across these scripts.

I am trying this one, however upon entering in the new  Driver release date 160128 , i get a 404 it can not find the file.. also 404 errors for the pen drivers..



I edited the file (all my stuff is on C:\ in a test lab right now)



$DriverReleaseDate = "160128"

$DriverReleaseURL = "http://download.microsoft.com/download/2/0/7/2073C22F-2F31-4F4A-8059-E54C91C564A9/SurfacePro3_150623.zip"
$SourcePath = "C:\Source"

using that version based on the MS site.






Downloading Surface Pro 3 160128 drivers..Exception calling "DownloadFile" with "2" argument(s): "The remote server returned an error: (404) Not Found."

At C:\Source\Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015-org.ps1:115 char:3
+         $clnt.DownloadFile($url,$file3)
+         ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: ( :) [], MethodInvocationException
    + FullyQualifiedErrorId : WebException

done!
unzipping C:\Source\SurfacePro3_160128.zip You cannot call a method on a null-valued expression.
At C:\Source\Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015-org.ps1:125 char:9
+         $destination.Copyhere($zip_file.items(), 0x14)
+         ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : InvalidOperation: ( :) [], RuntimeException
    + FullyQualifiedErrorId : InvokeMethodOnNull

done!
Downloading Surface Pro 3 pen drivers..Exception calling "DownloadFile" with "2" argument(s): "The remote server returned an error: (404) Not Found."
At C:\Source\Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015-org.ps1:136 char:3
+         $clnt.DownloadFile($url,$file4)
+         ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: ( :) [], MethodInvocationException
    + FullyQualifiedErrorId : WebException

done!
unzipping C:\Source\SurfacePro3PenDriverOct62014.zip You cannot call a method on a null-valued expression.
At C:\Source\Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015-org.ps1:146 char:9
+         $destination.Copyhere($zip_file.items(), 0x14)
+         ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : InvalidOperation: ( :) [], RuntimeException
    + FullyQualifiedErrorId : InvokeMethodOnNull

Edited by SysIT, 07 April 2016 - 05:29 PM.


#3 SysIT

SysIT

    Newbie

  • New Members
  • Pip
  • 2 posts

Posted 07 April 2016 - 06:31 PM

I will start this with I am no power shell pro, only going by what I see in errors.



I managed to get the files missing, i also adjusted the script manually, in this one you do have the SurfacePro2 URL hard coded:

$DriverReleaseDate = "160128"
$DriverReleaseURL = "http://download.microsoft.com/download/2/0/7/2073C22F-2F31-4F4A-8059-E54C91C564A9/SurfacePro3_150623.zip"
$SourcePath = "C:\Source"



So even editing the $DriverReleaseDate it looks for the 150623 instead. So i edited

 $file3 = $SourcePath+"\SurfacePro3_Win8x_160128_0.zip"

and hardcoded the file name





So now i got past that first part, things run and then i get a bunch more errors - does the script not create the folders it needs I think you had noted?

ERBOSE: Import processing finished.
import-mdtdriver : Path 'C:\Source\Drivers\Microsoft\Surface Pro 3\SurfacePro3 - March 2015\Drivers\Network\SurfaceGigabitEthernetAdapter' does not exist.
At C:\Source\Setup MDT 2013 for Microsoft Surface Pro 3 - June 2015-org.ps1:344 char:1
+ import-mdtdriver -path "DS001:\Out-of-Box Drivers\WinPE x64" -SourcePath "$Sourc ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : ObjectNotFound: (C:\Source\Drive...EthernetAdapter:String) [Import-MDTDriver], DeploymentPointException
    + FullyQualifiedErrorId : PathNotFound,Microsoft.BDD.PSSnapIn.ImportDriver

WARNING: Import terminated because one or more invalid paths specified


#4 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,251 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 19 April 2016 - 08:39 AM

if you use teamviewer i'm happy to remote in and help out, let me know
