In Part 1. of this series we Installed vNext, now we will configure it.





If you have used Configuration Manager 2007 before you'll know that we need to use Boundaries. You need boundaries or the clients will not find the nearest Distribution Point when they make a Client Location Request. The boundaries help them find the content at the nearest Distribution Point. Before we can configure the boundary in vNext we will create a new Active Directory Site based on our Ip subnet.



Step 1. Add new Active Directory Site



We will begin our Configuration by adding an Active Directory Site.



Perform the following on the Active Directory Domain Controller as a Domain Administrator

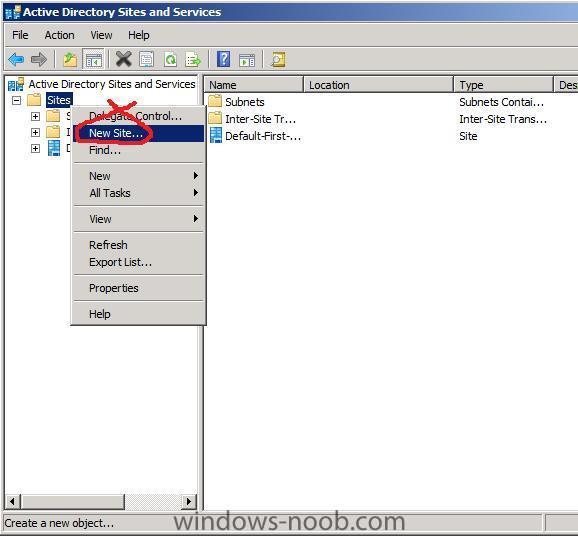

Open Active Directory Sites and Services, Click on Sites, New site.



new site.jpg

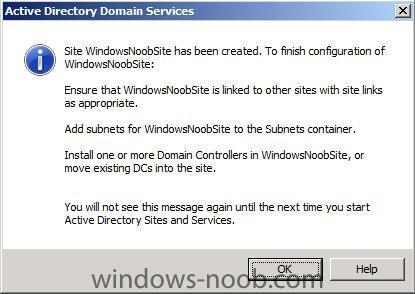

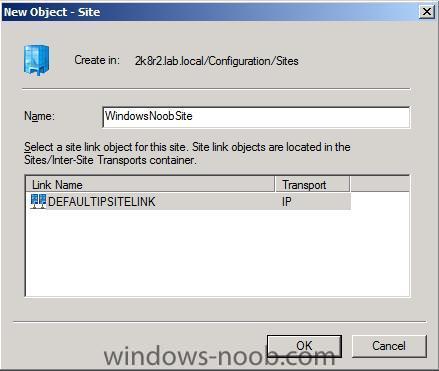

Give your new site a name like WindowsNoobSite and click the DEFAULTIPSITELINK and click ok.






adds mess.jpg



click Ok again

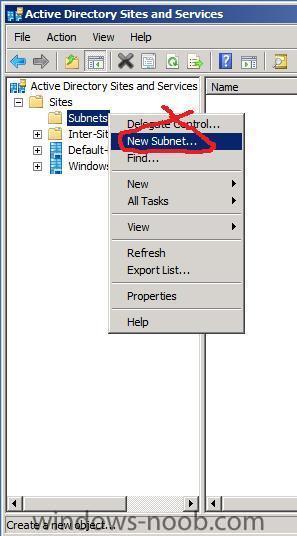

Now right click on Subnets, and choose New Subnet



new subnet.jpg

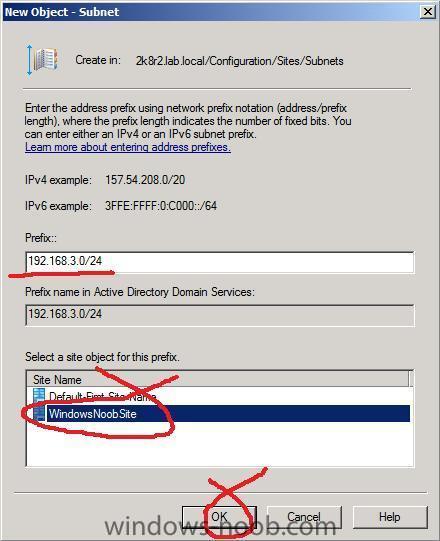

Enter your Prefix in the box provided (I'm using 192.168.3.x so I entered 192.168.3.0/24) and select the WindowsNoobSite then click ok.



new prefix.jpg

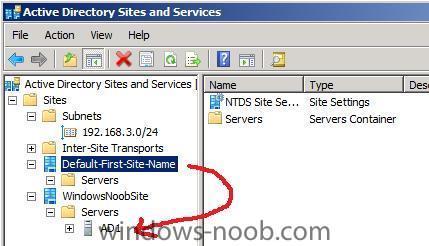

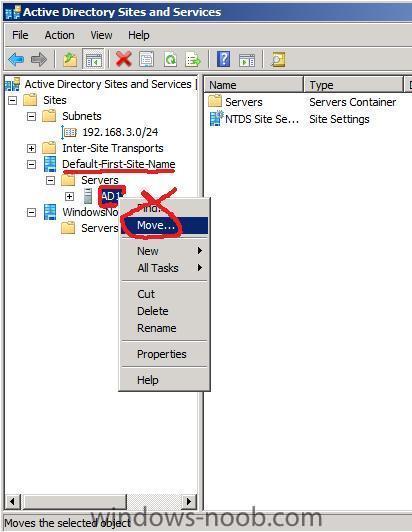

Now we are going to Move our Active Directory server (AD1) from the Default-First-Site-Name to our new site, WindowsNoobSite, so expand it as below and right click on AD1 and choose Move.



ove ad1.jpg

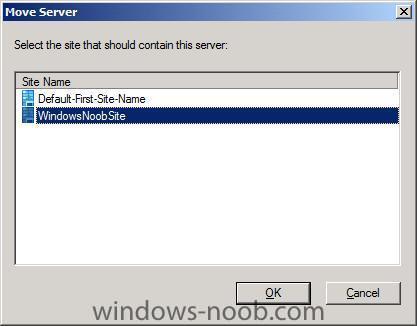

Select our WindowsNoobSite and click ok.



win noob site.jpg



The AD1 server is moved to our new site !




Share this post


Link to post
Share on other sites

Step 2. Configure vNext to use the New AD Site as a boundary.





Perform the following on the vNext server as SMSadmin



By now you'll know that the Admin Console has changed in vNext (it looks similar to SCOM 2007) and these changes are not just graphical. The following is taken from the Microsoft vNext Server InfraStructure Document supplied with the download of the beta.



Changes to the Administrator Console

The Configuration Manager 2007 console is based on the Microsoft Management Console 3.0 framework. In Configuration Manager v.Next, the Configuration Manager console is based on the System Center framework, which automatically refreshes the console data and provides a consistent console experience with other System Center products.

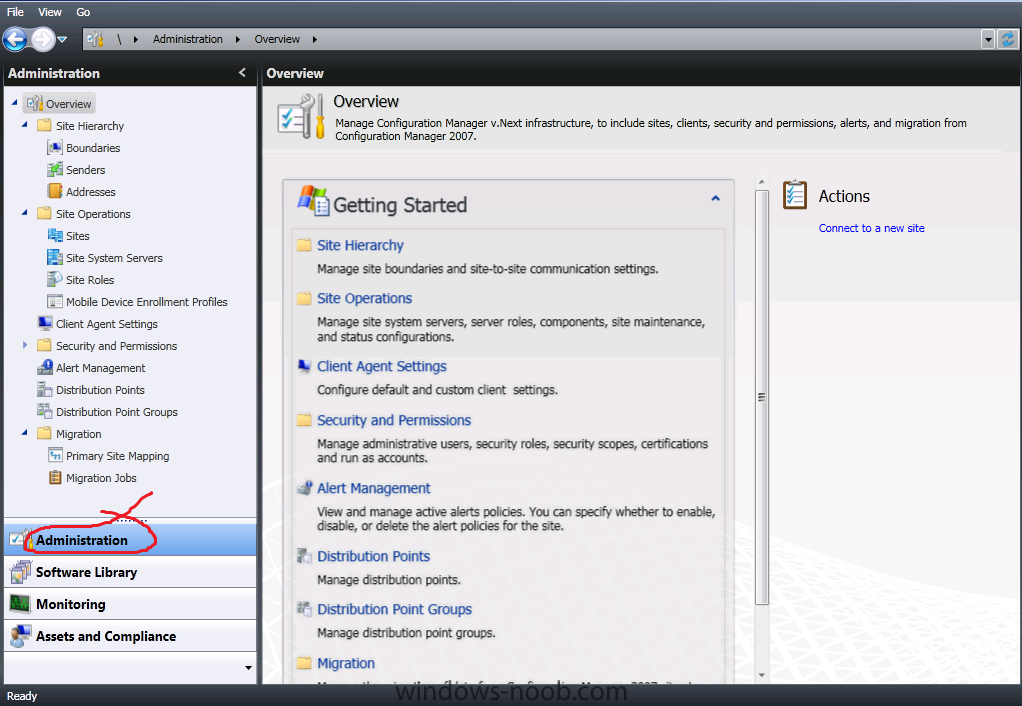

Ok great, let's start configuring it. Open the console and in the left lower pane select Administration.

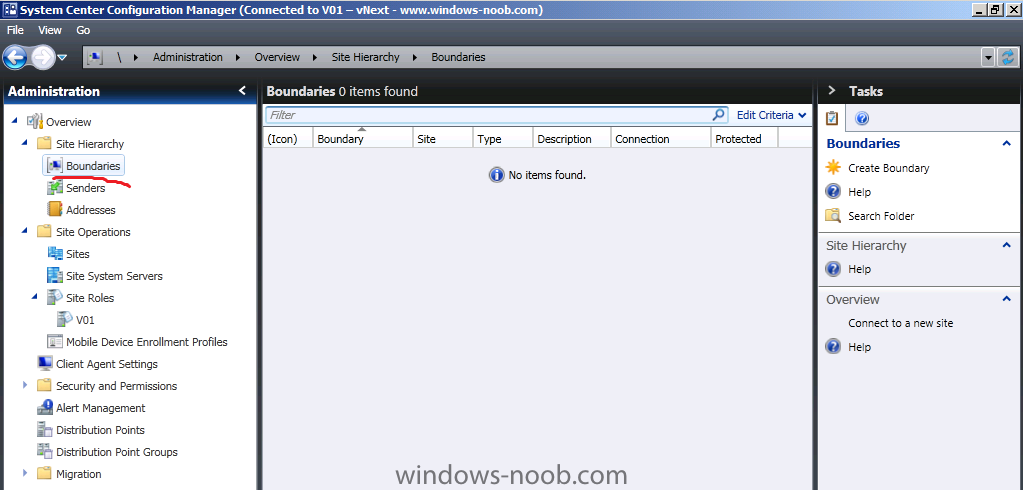

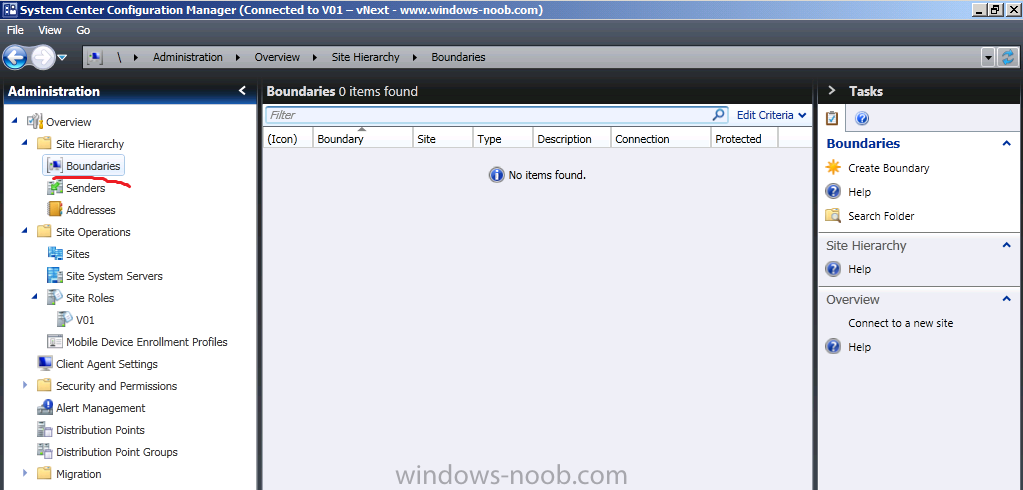

Expand Site Hierarchy and then click on Boundaries. As we havn't added any yet, it will appear blank.

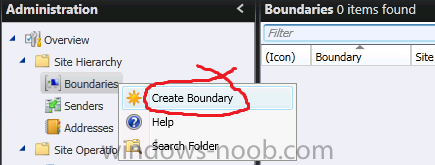

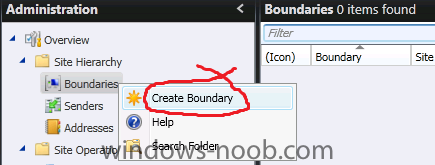

So let's add one by right-clicking and choose Create Boundary



create boundary.png

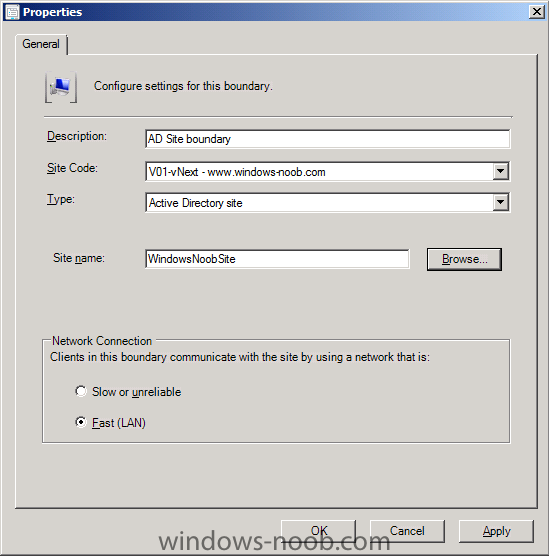

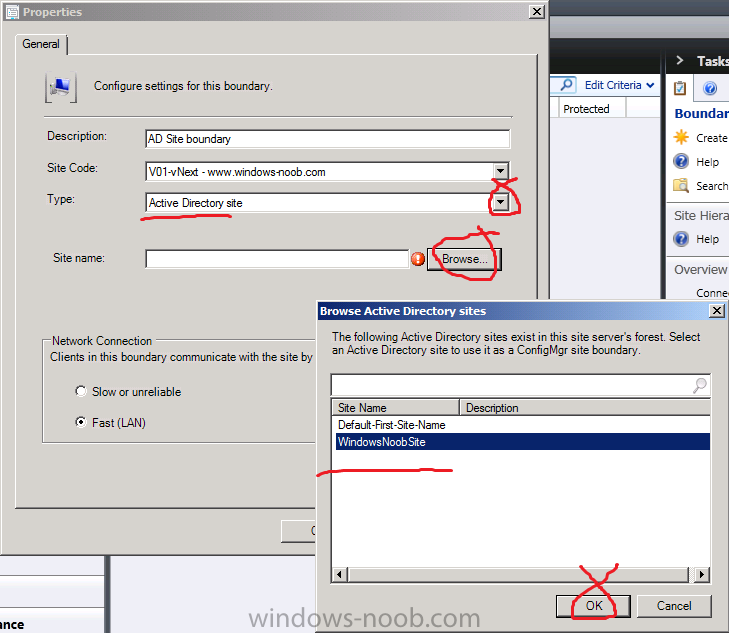

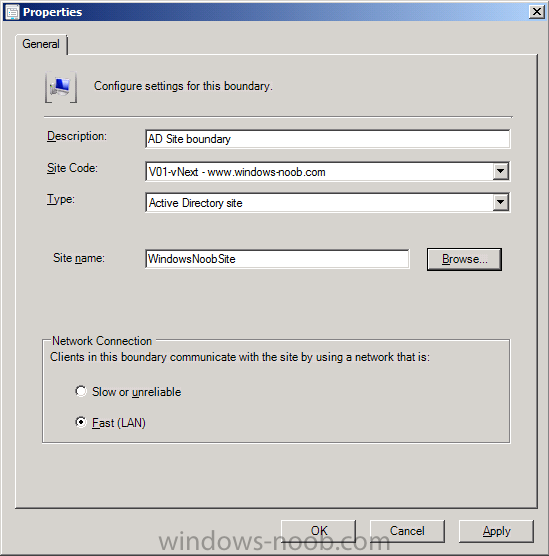

In the description pane, enter AD Site Boundary, for Type, click on the drop down menu and choose Active Directory Site, then click on Browse and select our WindowsNoobSite that we created above.



active directory site.png



For Network Connection select Fast (Lan) and click Apply.



fast lan.png

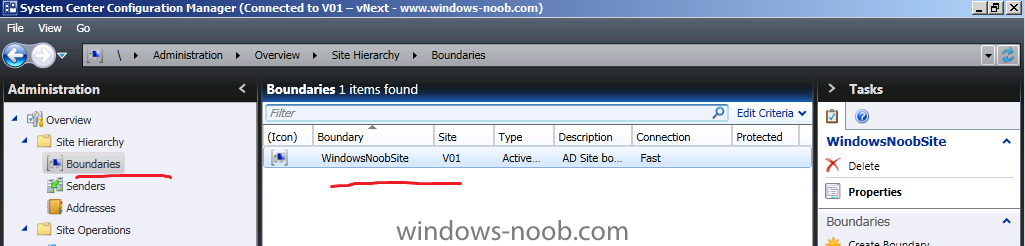

Press F5 to refresh the console and you should see your new Boundary listed.



new boundary listed.png

Share this post


Link to post
Share on other sites

Step 3. Configuring Discovery Methods in vNext

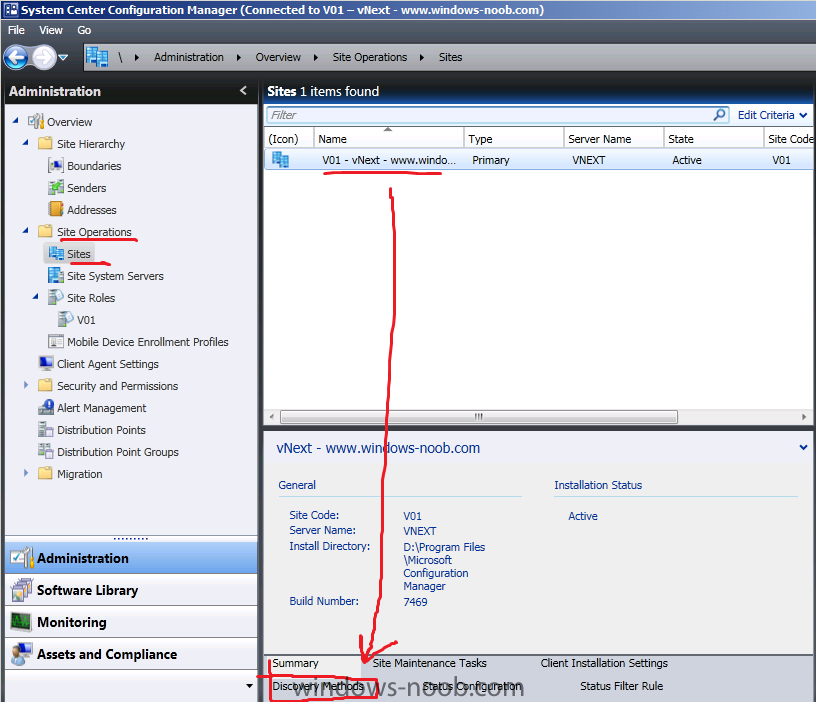

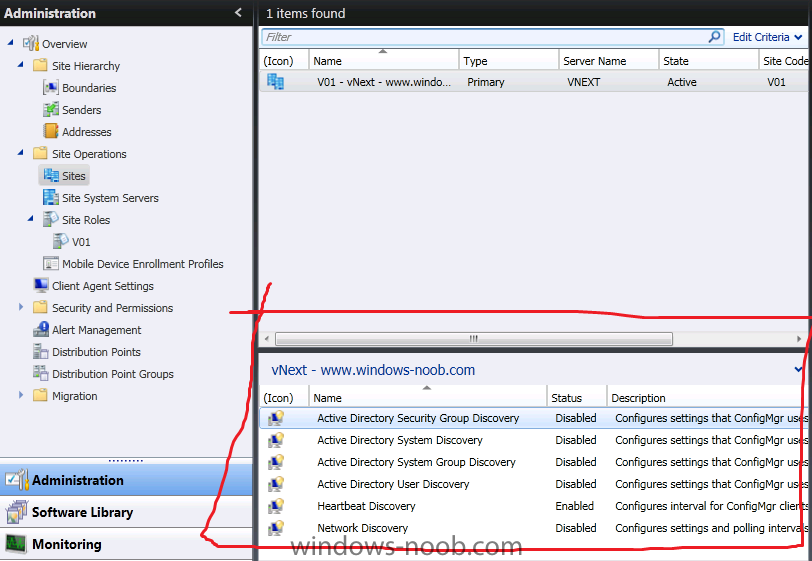

Now that we've configured our Boundary, we need to configure Discovery methods. In the Administration node, expand Site Operations, and sites, select our Windows Noob site and at the bottom of the screen you'll see Discovery Methods.



discovery methods.png



Click on Discovery Methods to see what discovery methods are configured, by default, only Heartbeat Discovery is configured (enabled).

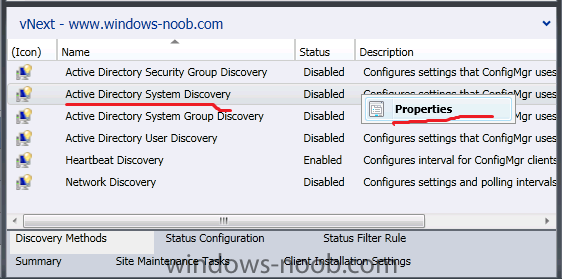

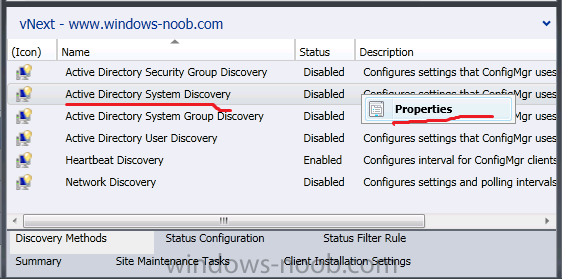

Right click on Active Directory System Discovery and choose Properties.



active directory system discovery.png

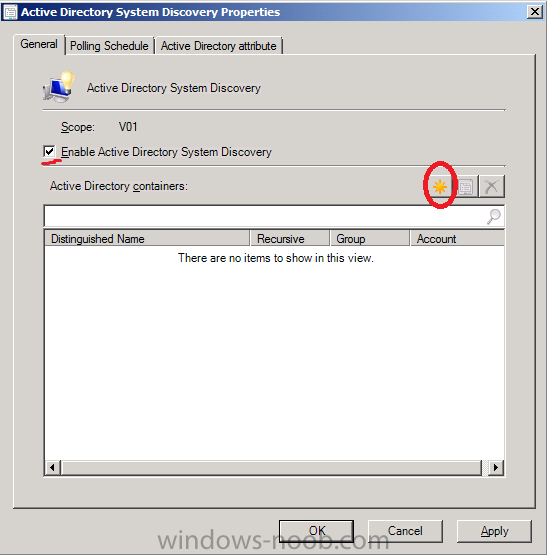

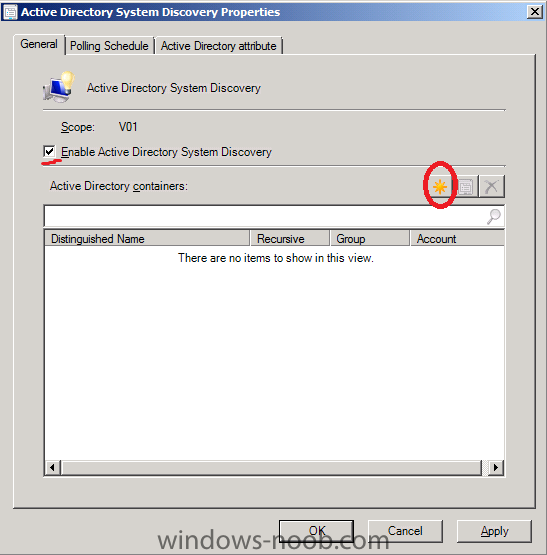

Place a checkmark in Enable Active Directory System Discovery and then click on the yellow star



enable and new.png

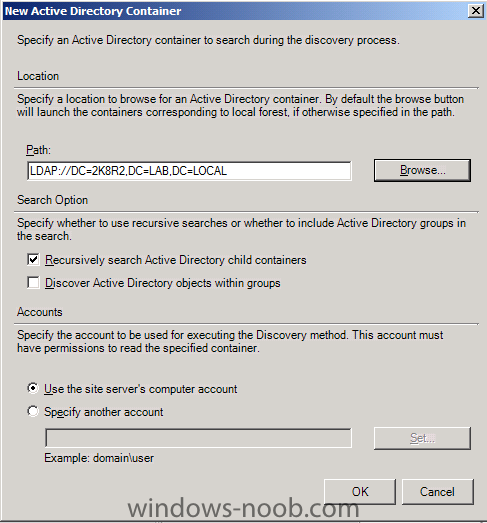

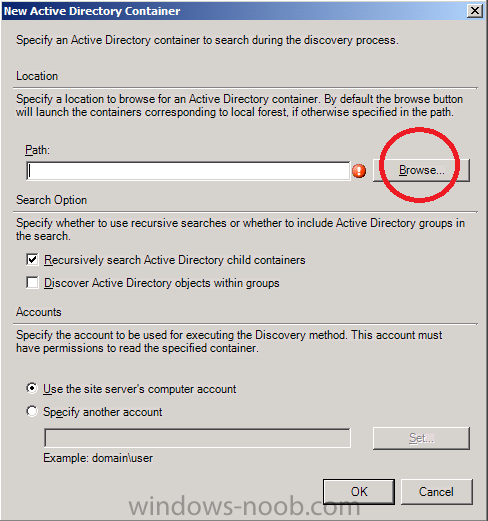

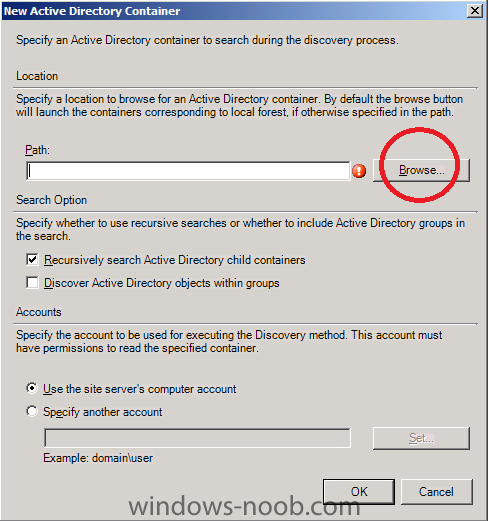

When the New Active Directory Container window appears, click on Browse






and for the purpose of this lab it's ok to leave the root of the domain as selected, click ok.






review the selections made and click ok, if required you can change your polling schedule by clicking on that tab, but for now let's leave it as it is



path of discovery.png

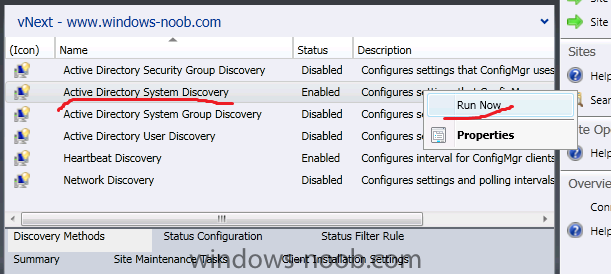

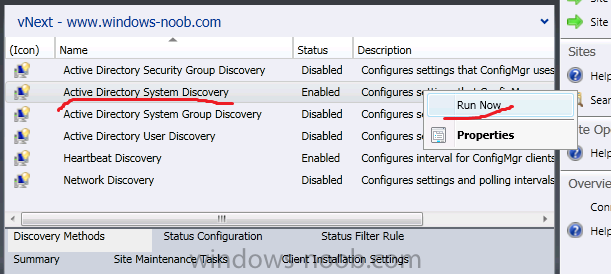

then right click on Active Directory System Discovery and choose Run Now



run now disc.png

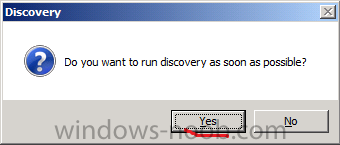

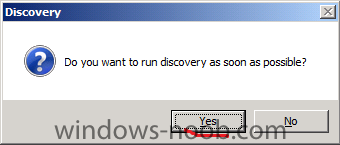

Answer Yes to the discovery question



es to disc.png

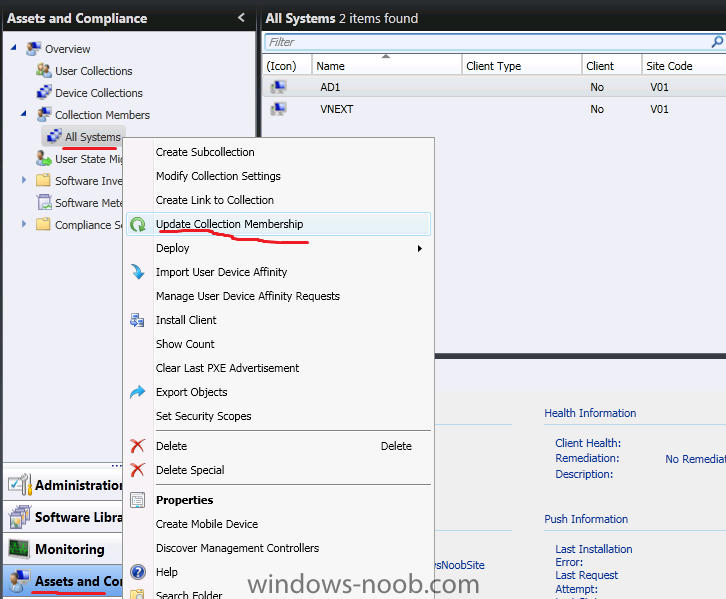

After a few minutes have passed you can verify that the discovery has run by looking at the All Systems collection (in the WunderBar, click on Assets and Compliance, then select the All Systems Collection, then right click and select Update Collection Membership)




Share this post


Link to post
Share on other sites

Step 4. Enable Active Directory User Discovery

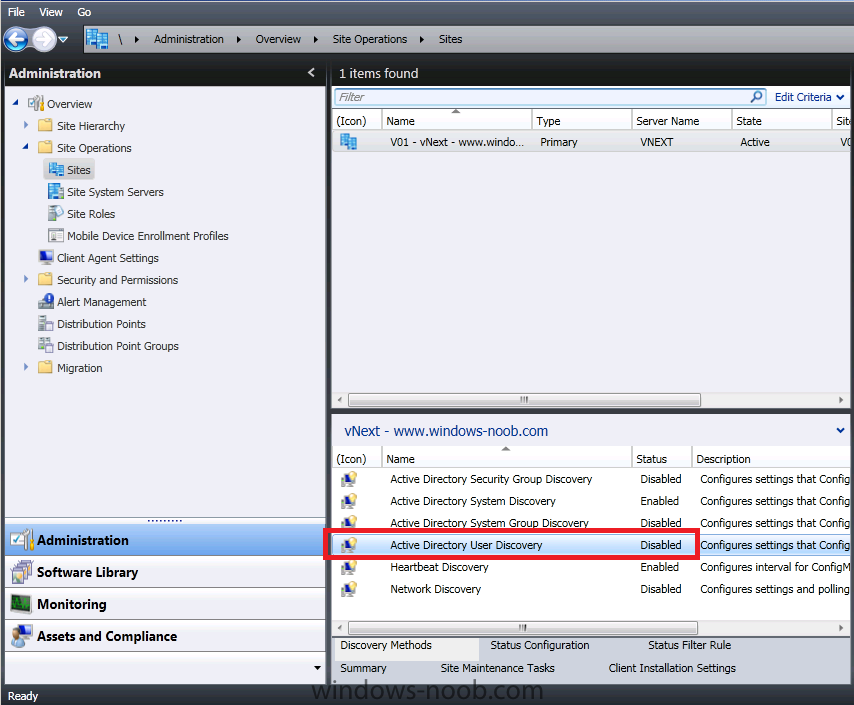

In Discovery Methods, select Active Directory User Discovery and double click on it



active directory user discovery.png

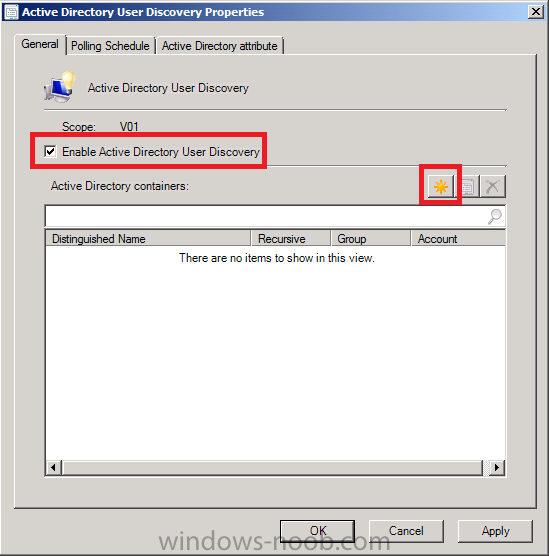

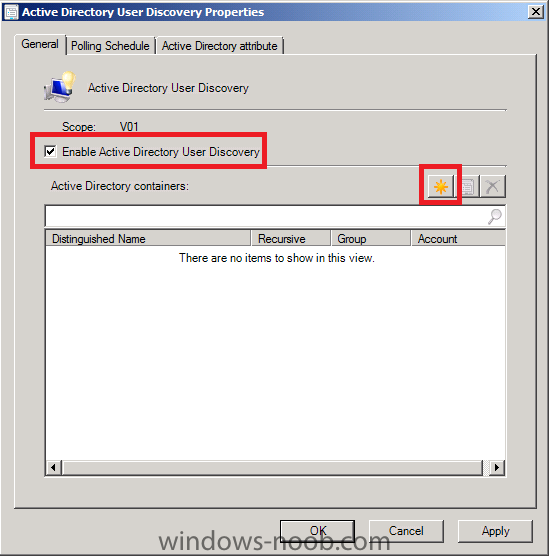

place a checkmark in Enable Active Directory User Discovery and then click on the yellow starburst icon.



enable adud.png

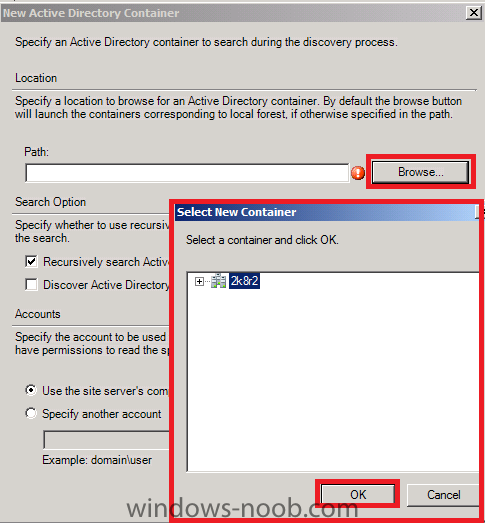

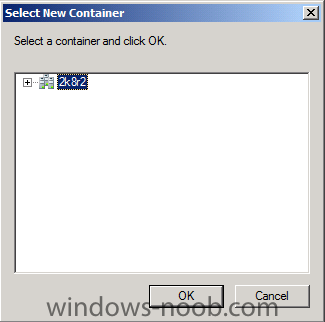

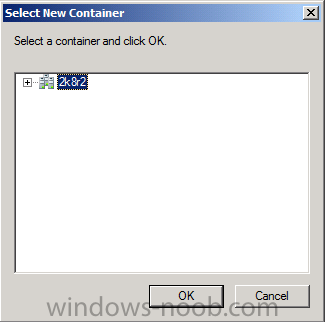

the New Active Directory container window appears, click on browse and select the default container listed in the Select New Container window



select new container.png

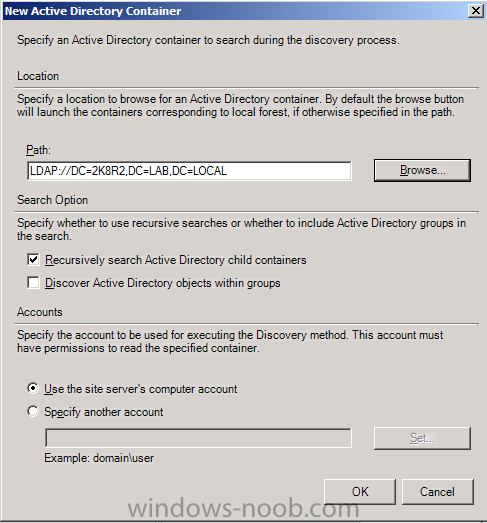

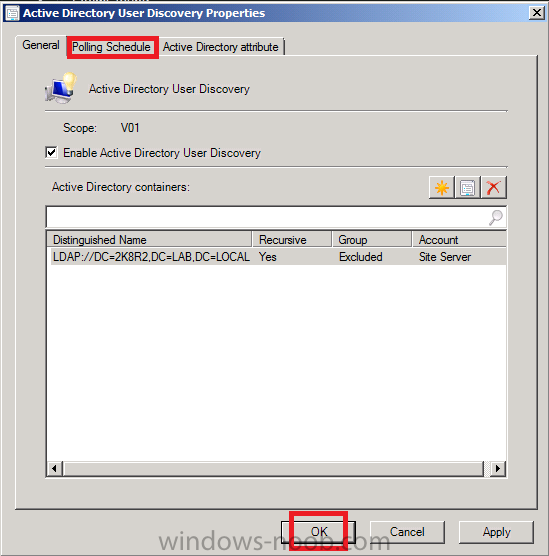

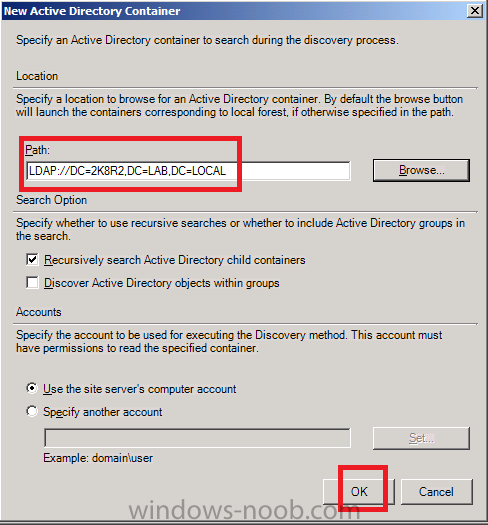

click ok and now you'll see the LDAP path is listed



path filled.png



click ok again and if you want, adjust the polling schedule (by default it's every 7 days with a 5 minute delta discovery interval) or just leave it as is.

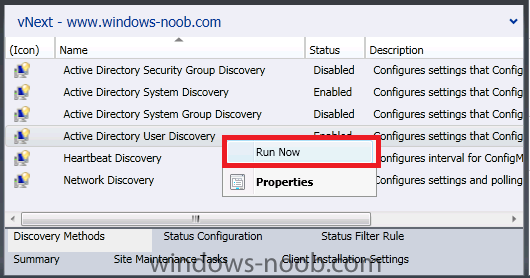

Click Ok to close, and then right click on Active Directory User Discovery and choose Run Now to run the Active Directory User discovery now, answer Yes when prompted.



run now.png

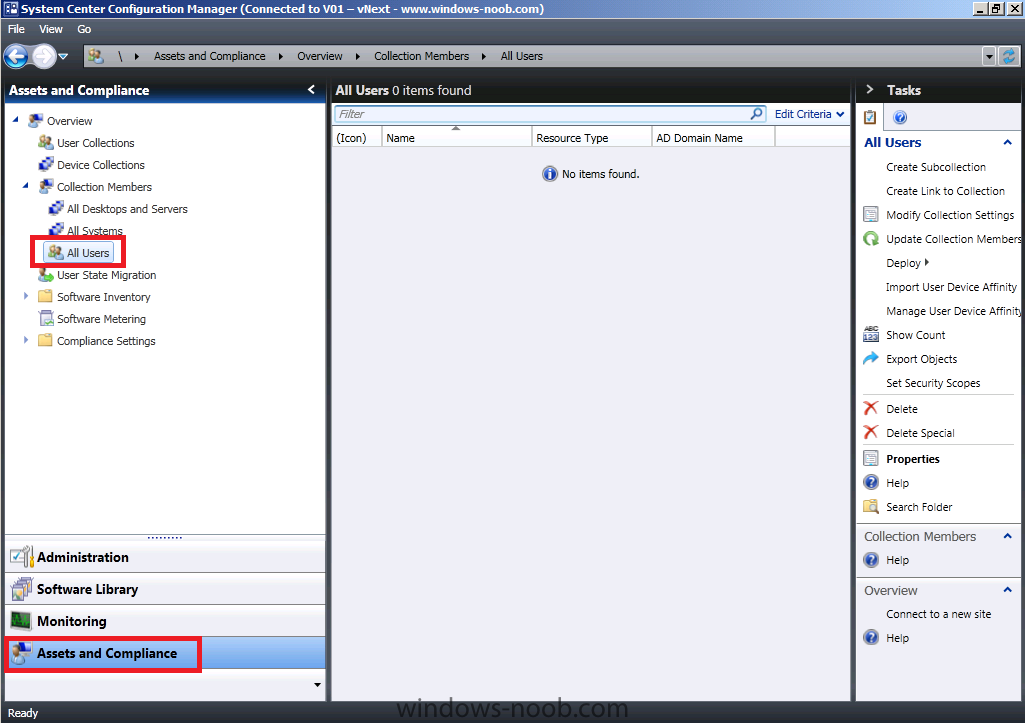

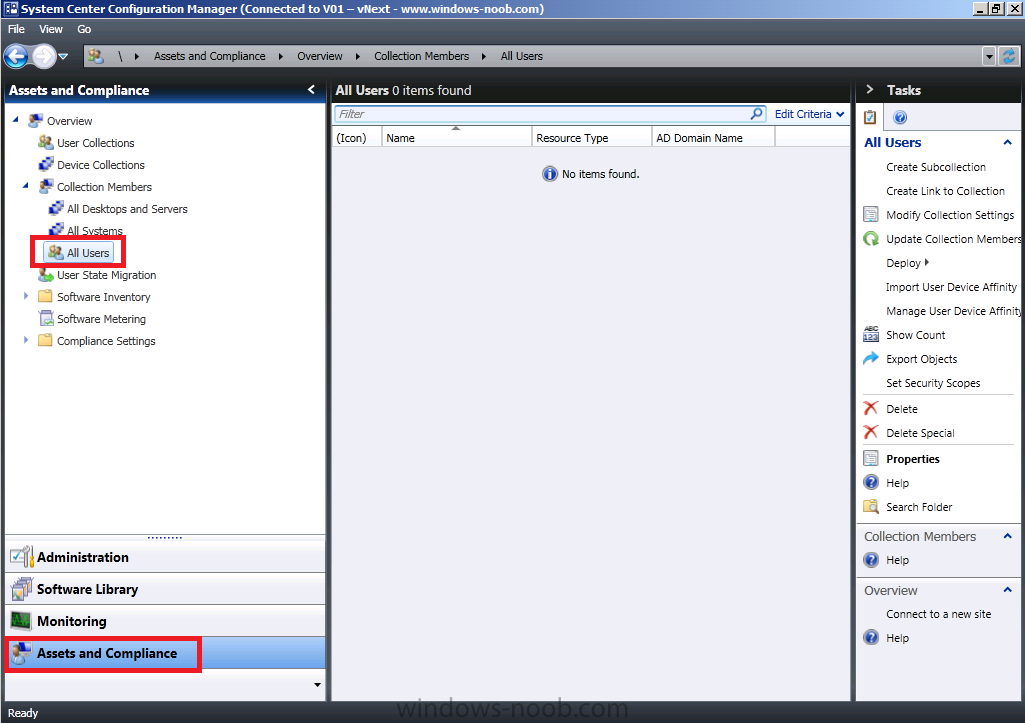

In the Wunderbar, click on Assets and Compliance, select Collection Members, All Users in the navigation pane, as the discovery is probably not done yet it may say no items found.



no items found.png

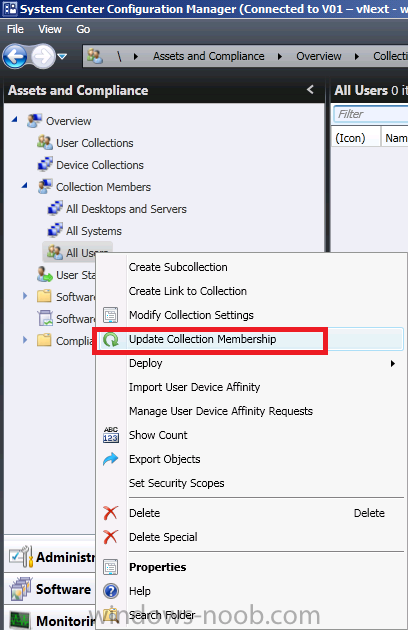

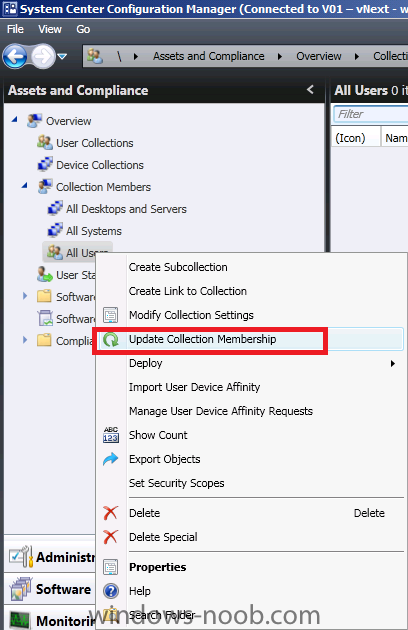

right click on All Users and select Update Collection Membership,



update collection membership.png

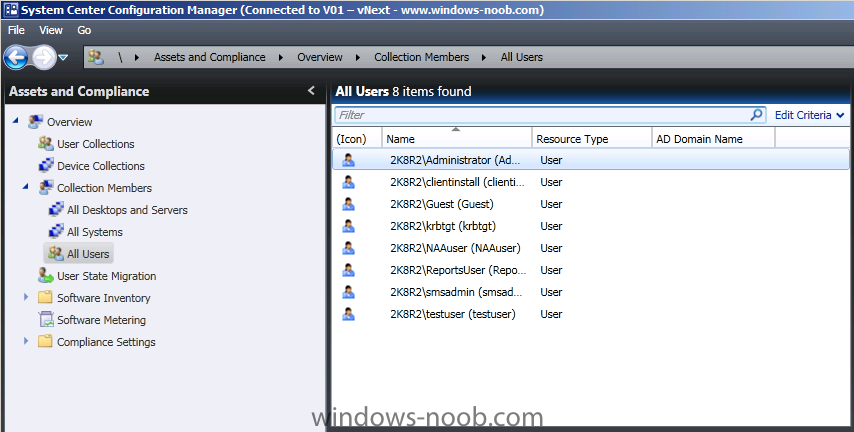

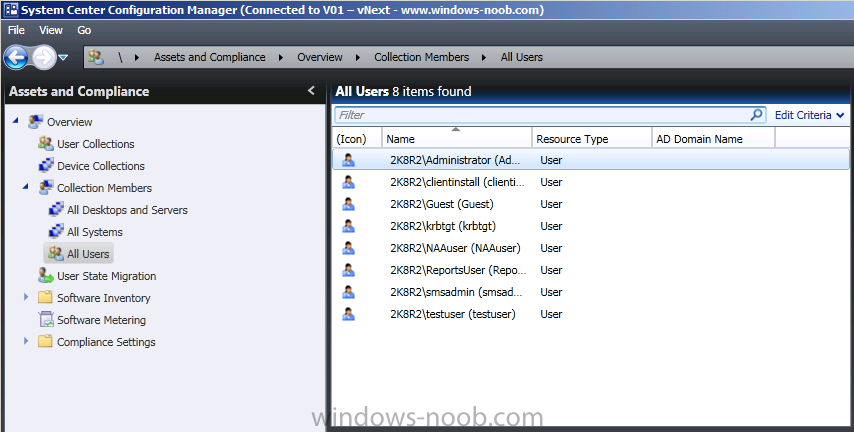

when done press F5 to refresh and you should see it populated with Active Directory users



8 items found.png





Next Steps > Now that we have configured Discovery, we are ready for Additional Configuration in Part 3
