using vNext in a LAB - Part 6. Deploying Windows 7 Enterprise

Recommended Posts

In Part 1. of this series we Installed vNext.

In Part 2., we then Configured vNext to use the New AD Site as a boundary and Configured Discovery Methods in vNext.

In Part 3, we installed the Reporting Point Role along with some additional roles and configured them.

In Part 4 we configured the client Agents and deployed the vNext Client.

In Part 5 we deployed an Application to All Users.


Now we will learn how to Deploy Windows 7 Enterprise using vNext. As we will be using PXE boot, we need to get our server ready to support this, so we will add the Windows Deployment Service which is required.




Step 1. Add and configure Windows Deployment Services


Perform the following on the vNext server as SMSadmin

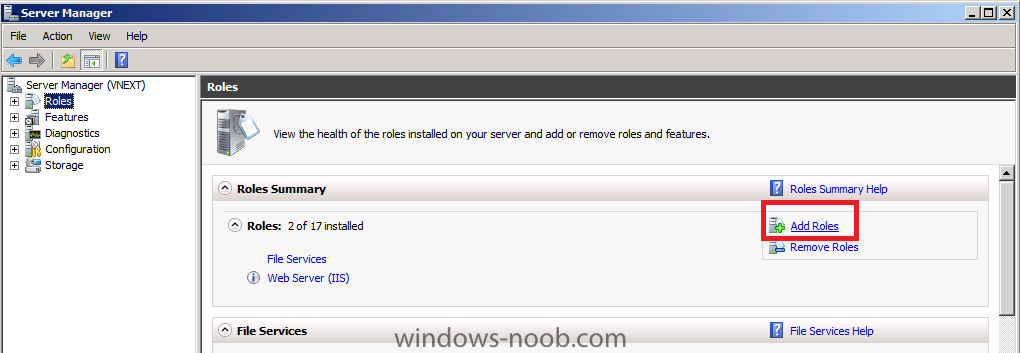

Start Server Manager and click on Add Roles


add roles.png

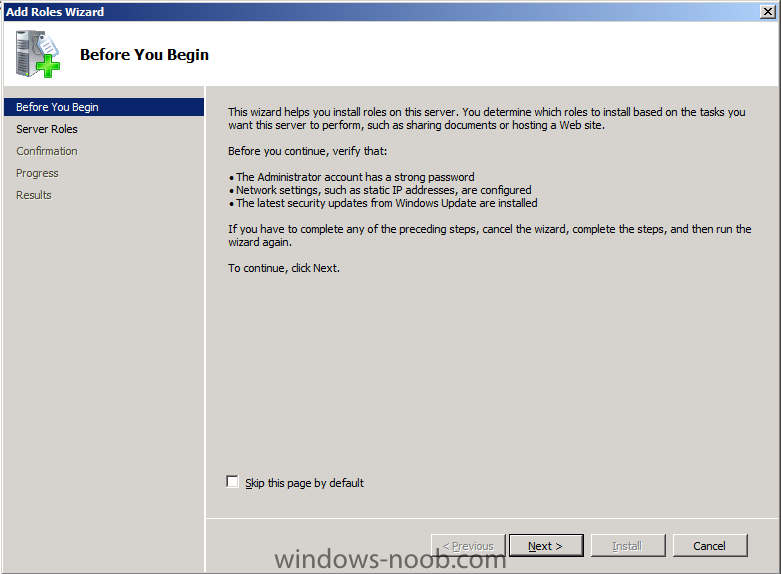

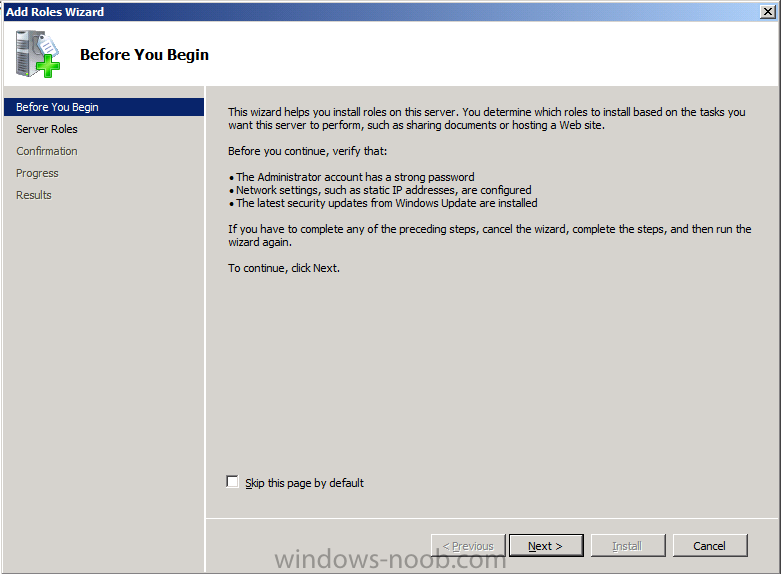

When the Add Roles wizard appears, click next


add roles wizard.png

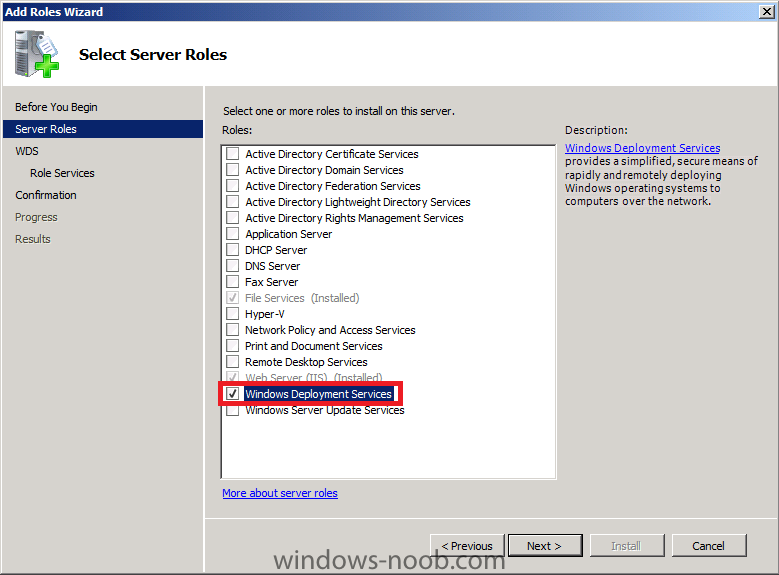

Select Windows Deployment Services and click next

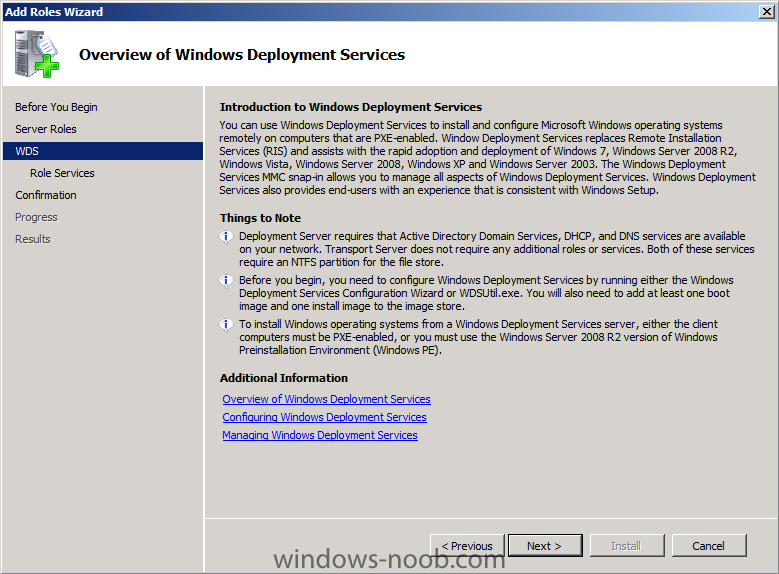

click next at the overview

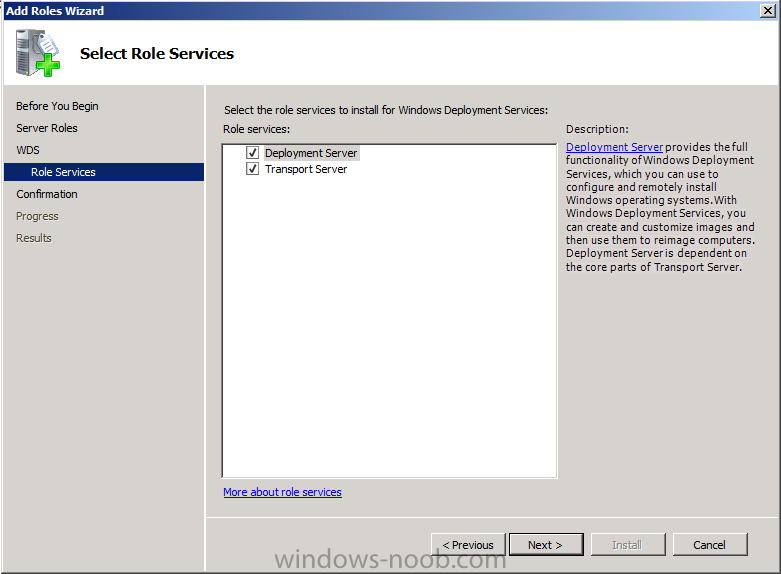

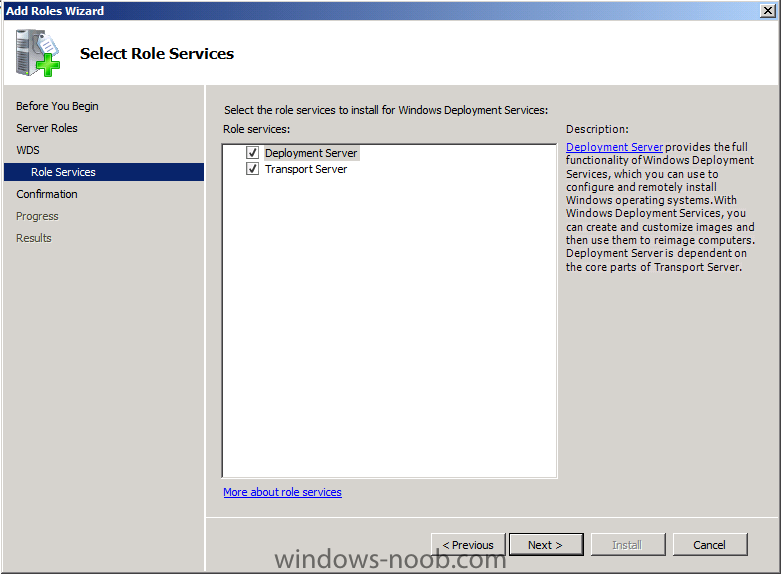

accept the defaults for Role Services


role services.png

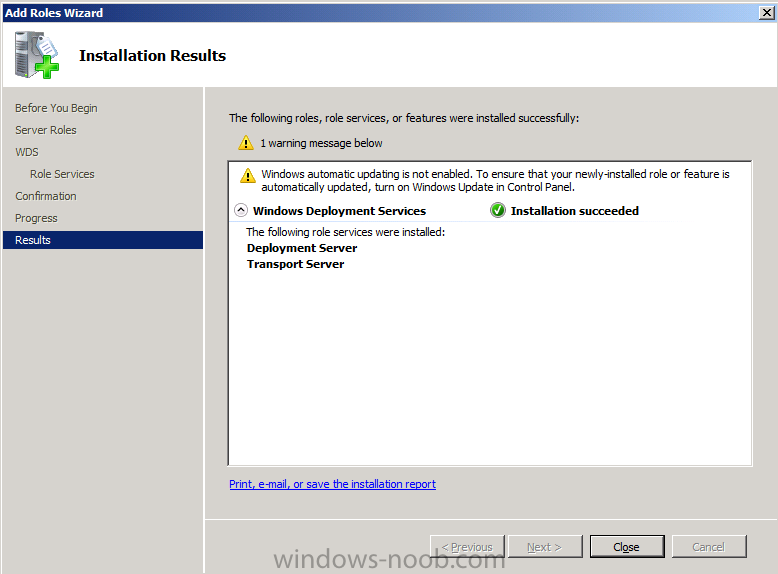

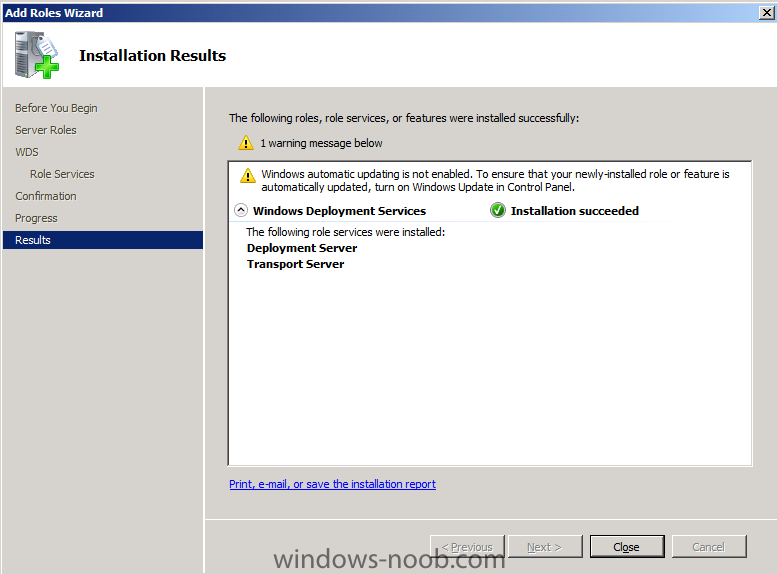

Click install at the confirmation screen and review the results


installation results.png


click Close.



Step 2. Configure Windows Deployment Services

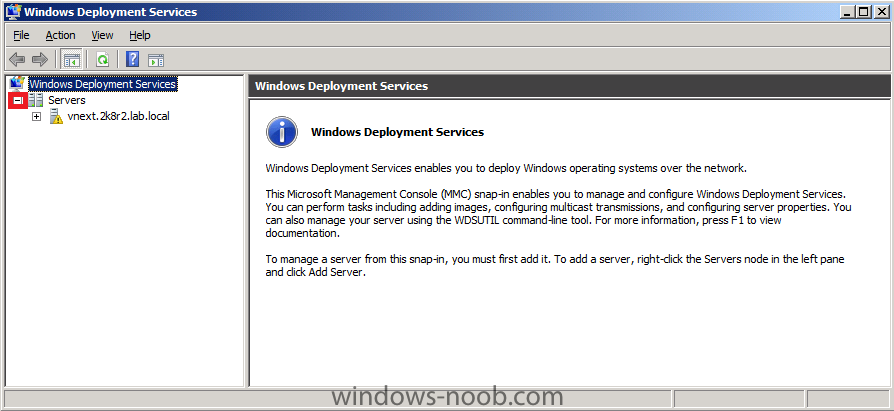

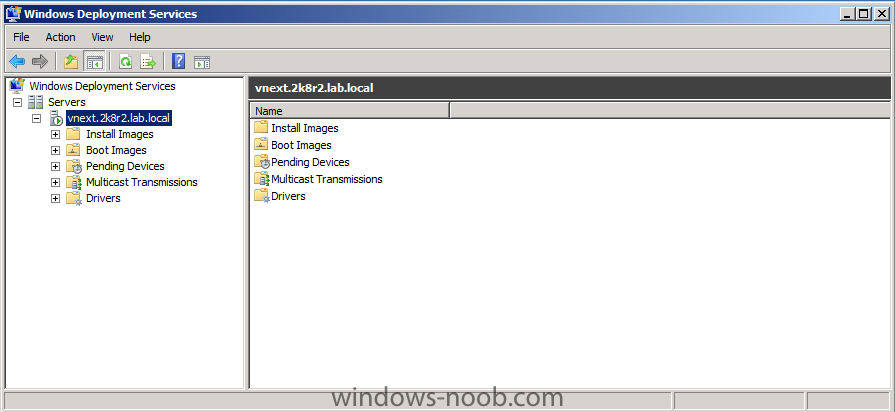

Click on Start, Administrative Tools, Windows Deployment Services to start the WDS console. Expand the + beside Servers. You will see a yellow exclamation mark meaning that the WDS service is not yet configured.

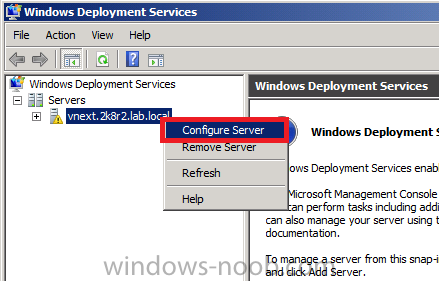

right click on it and choose Configure Server


configure server.png

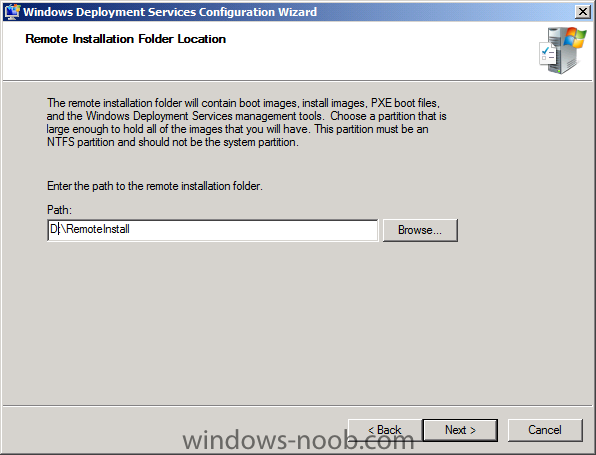

click next and change the path of Remote Installation Folder Location to suit your environment eg: D:\RemoteInstall




set the PXE response setting to Respond to All client computers...

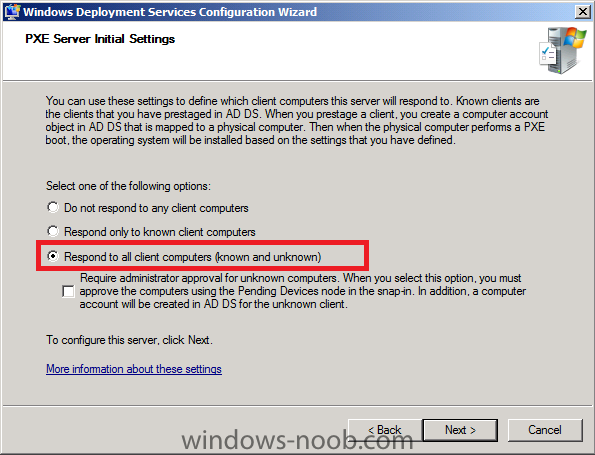

respond to all.png

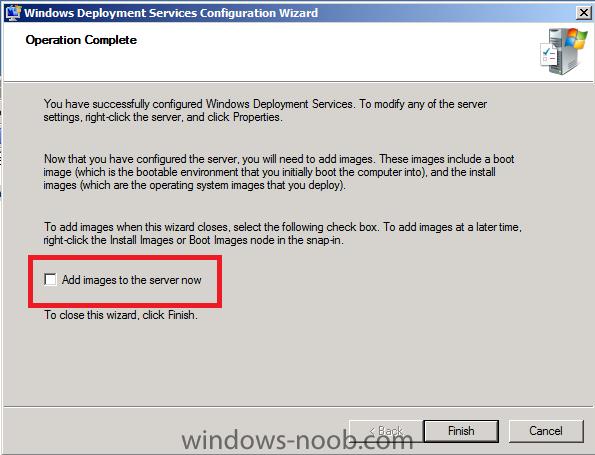

de-select Add images to the server now




and click Finish.


Windows Deployment Services is now configured



Share this post

Link to post
Share on other sites

Step 3. Add the PXE Service Point Role

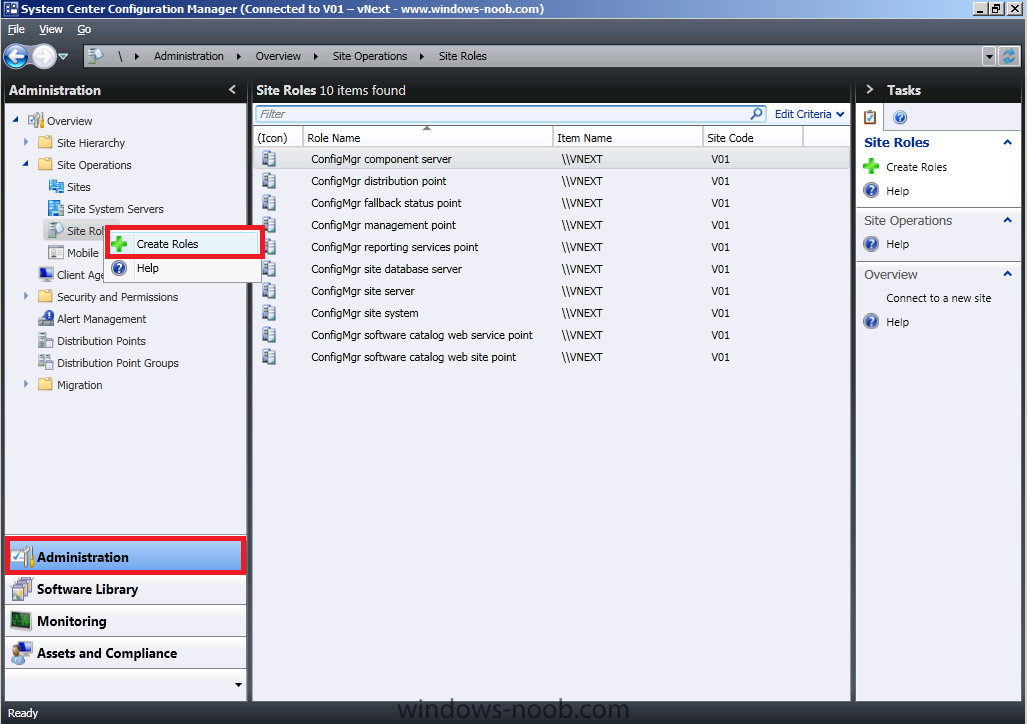

In the Wunderbar, click on Administration and select Site Roles, right click it and choose Create Roles.


create roles psp.png


When the New Site Role Wizard appears, click on Browse and select our vNext server,

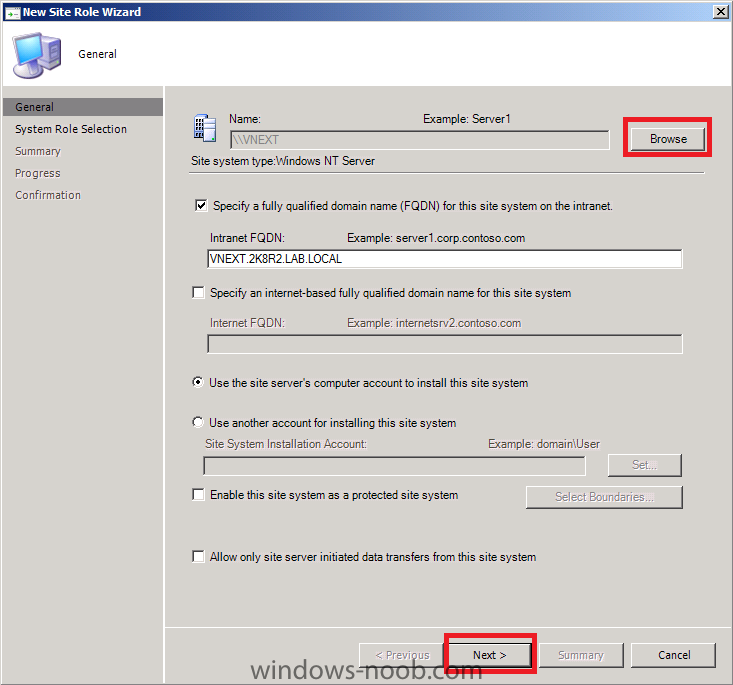

new site role wizard psp.png

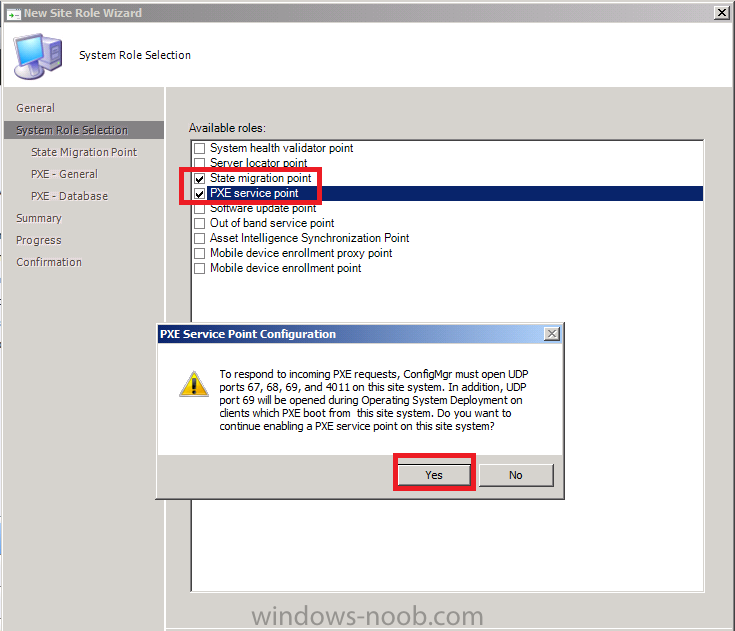

As we will use data migration at some point, select the State Migration Point role in addition to the PXE Service Point role, Answer yes when prompted

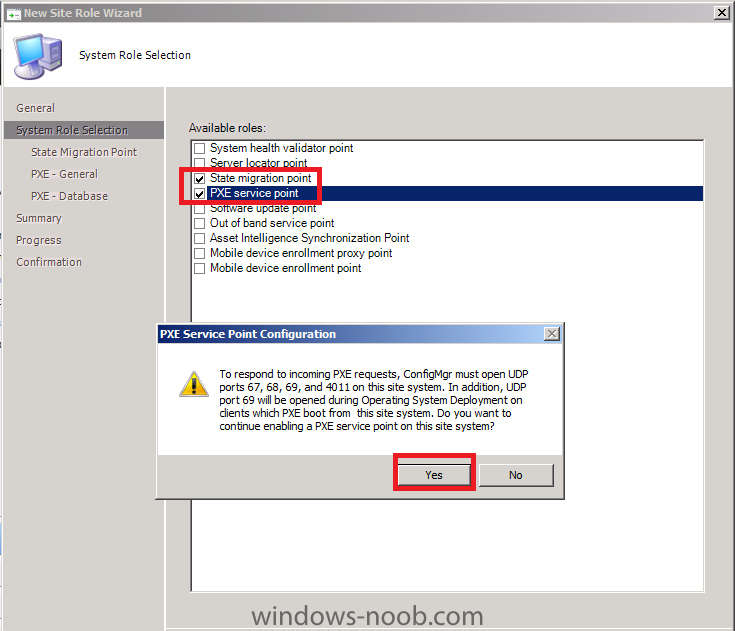

osd roles.png

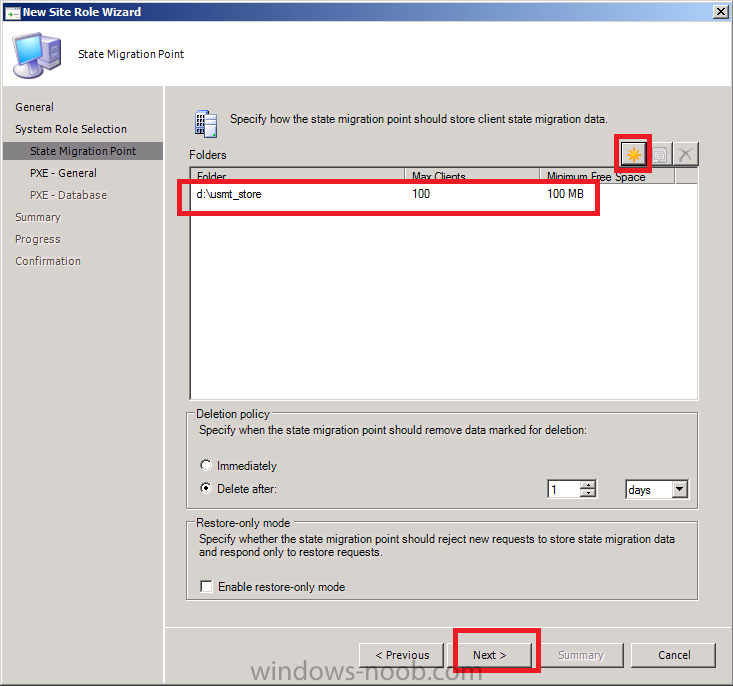

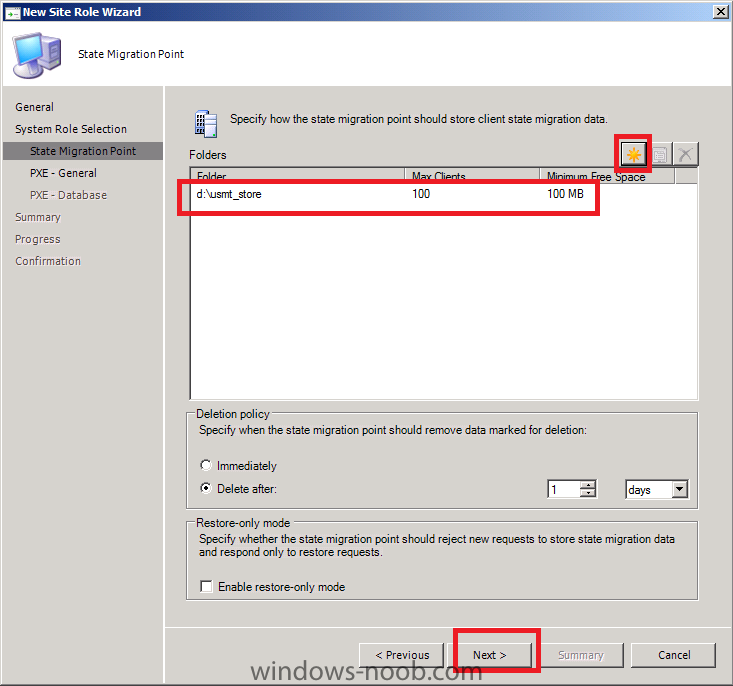

configure the State Migration Point by clicking on the yellow starburst


usmt store.png

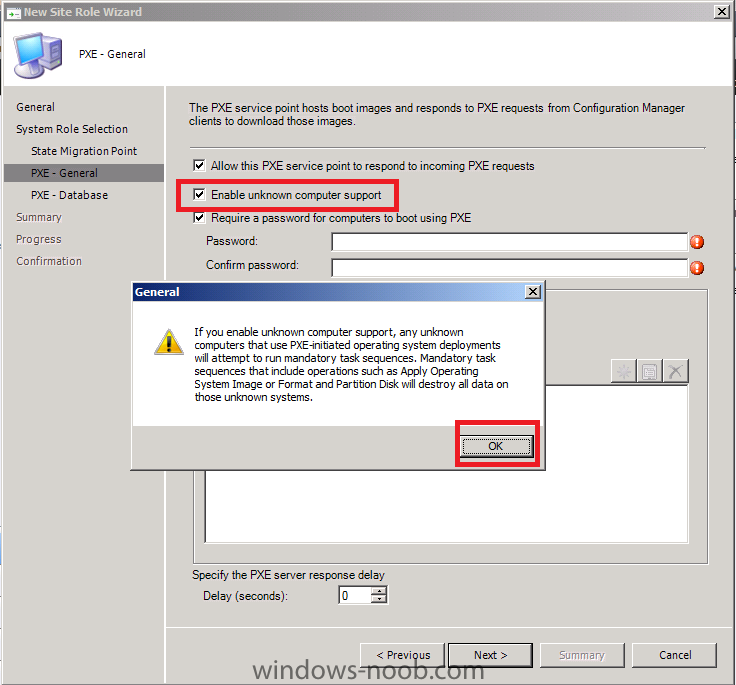

enable Unknown Computer Support and take note of the notice


unknown computer support.png

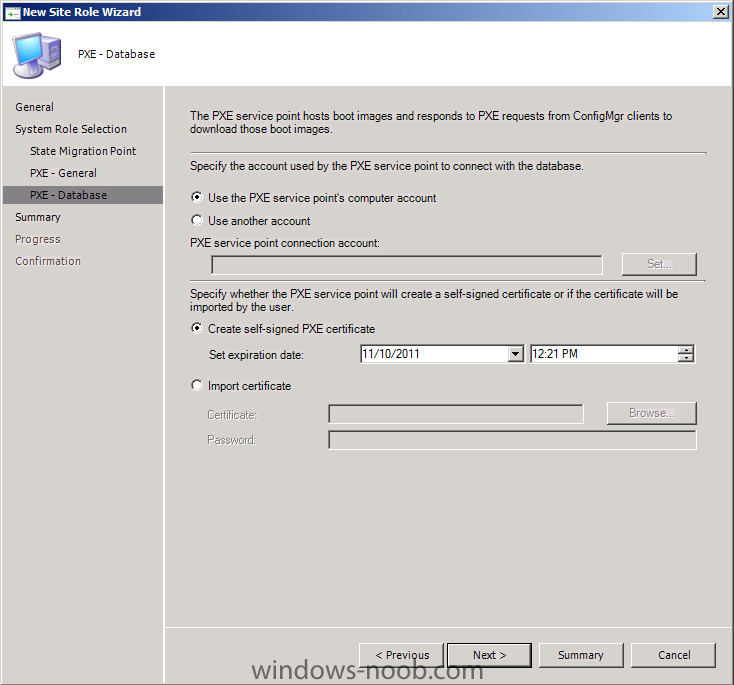

leave the PXE database settings as they are

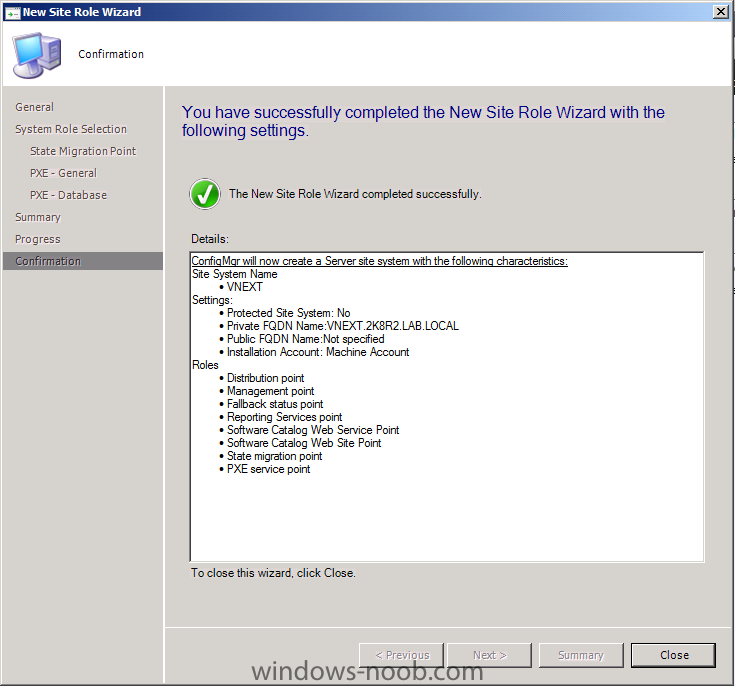

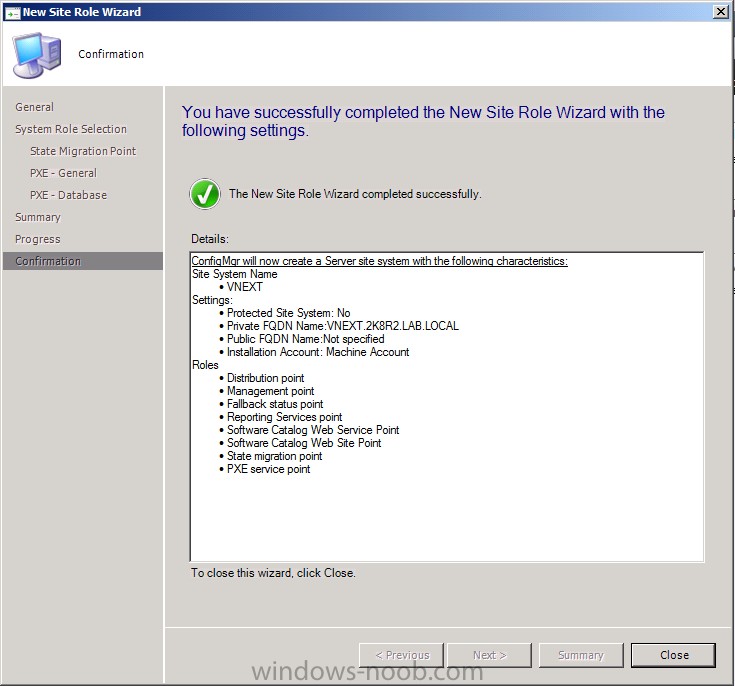

click next through the summary and review the confirmation once done


pxe done.png

Share this post

Link to post
Share on other sites

Step 4. Add the Windows 7 Enterprise Install Image

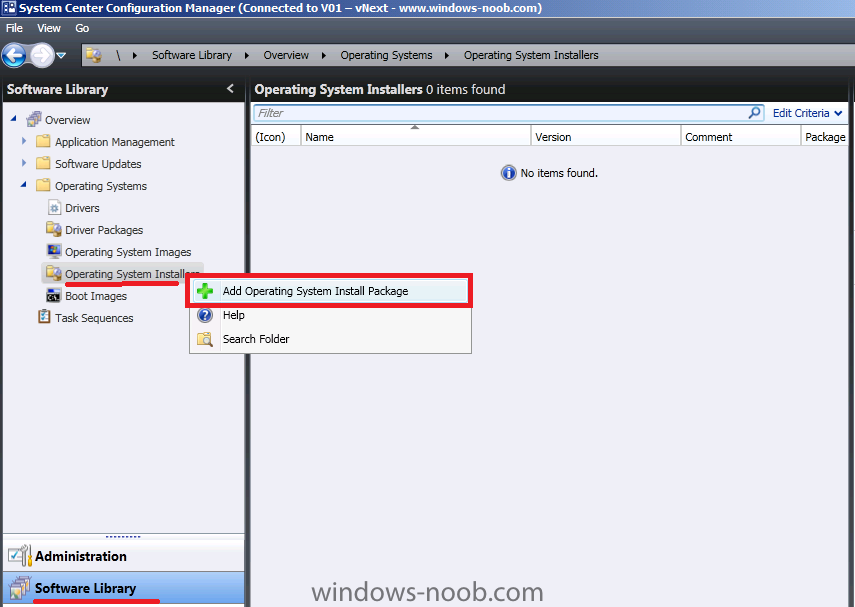

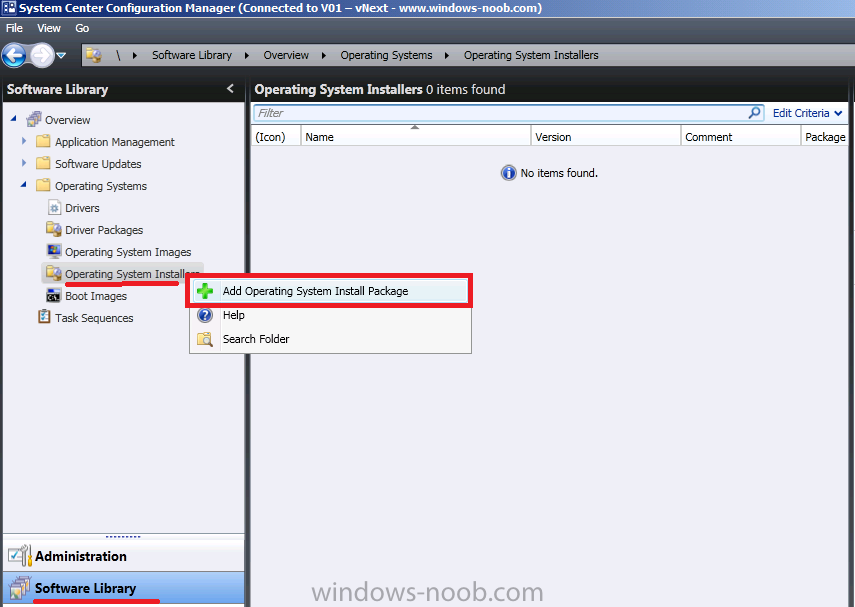

In the Wunderbar, select Software Library and expand Operating Systems, right click Operating System Installers and choose add operating system install package


add operating system install package.png

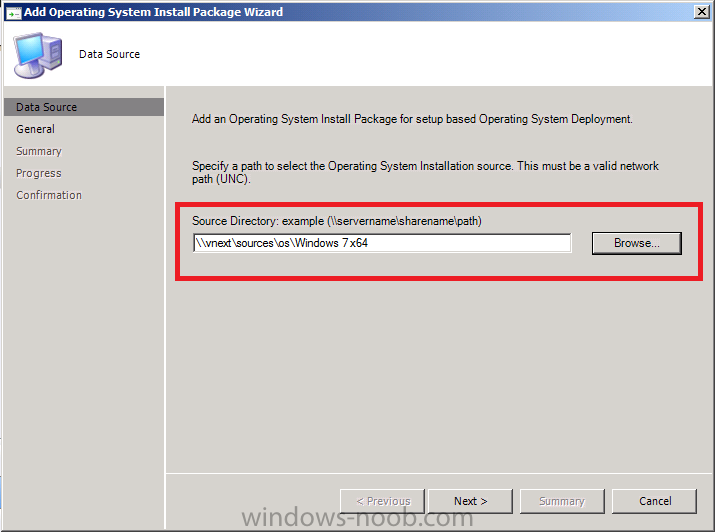

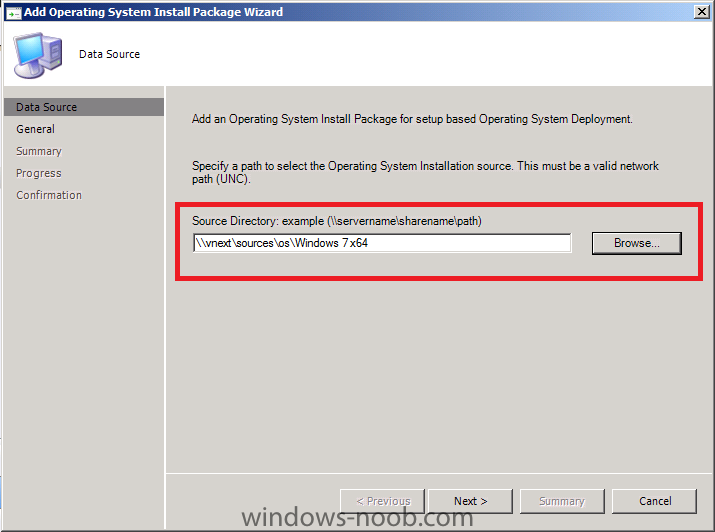

browse to the network share we you have previosly copied the contents of the Windows 7 Enterprise DVD

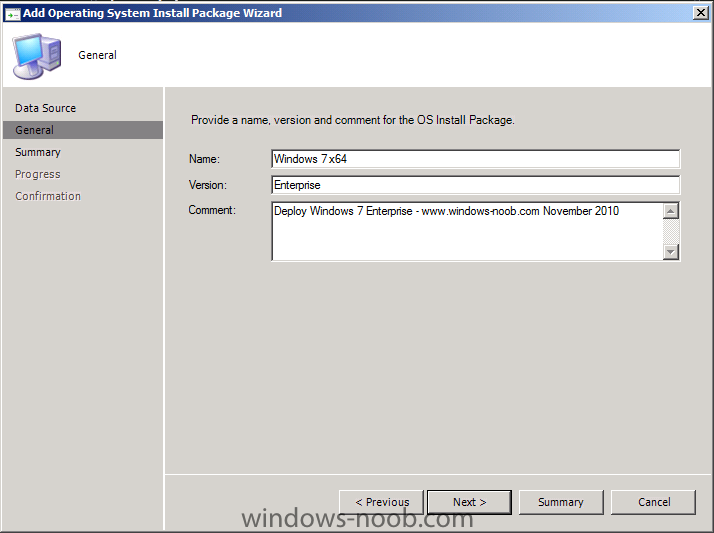

fill in some details about the image


details about the image.png

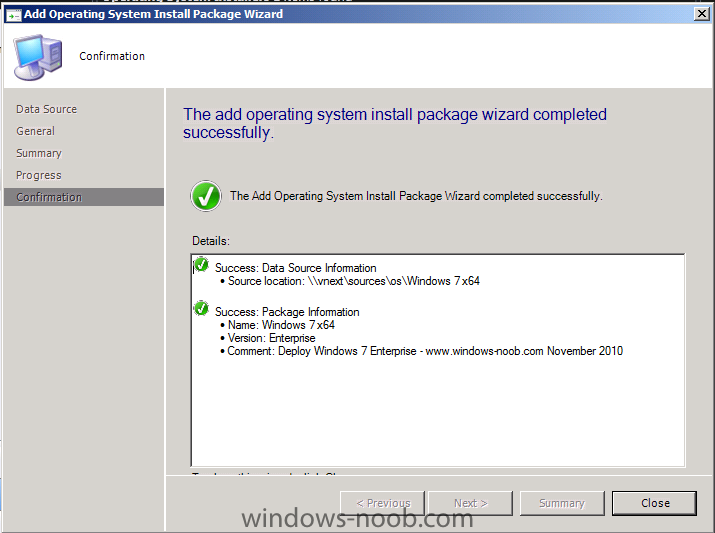

and click through to the confirmation screen


image added.png

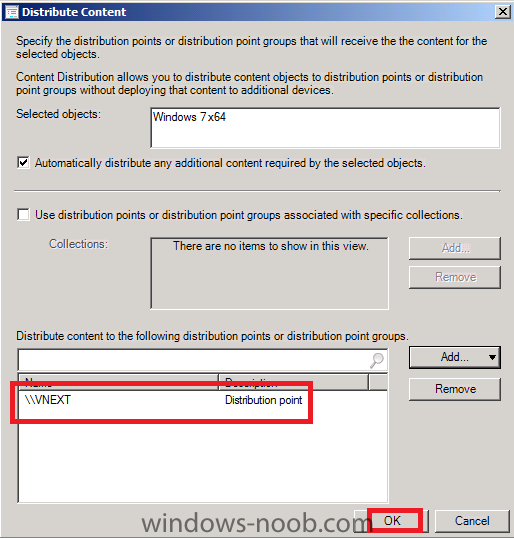

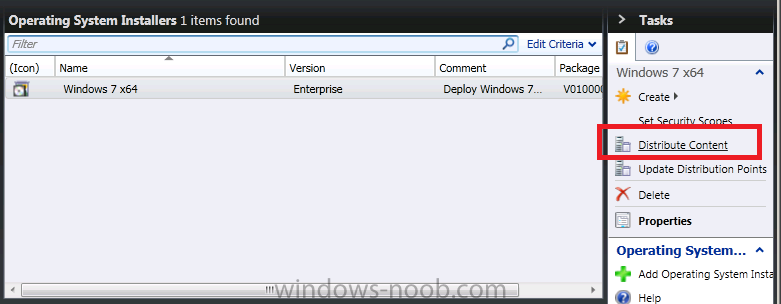

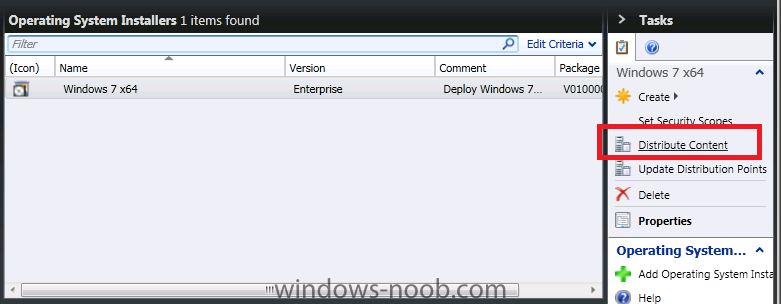

Once completed we need to distribute the image to our DP's, so click on Distribute content in the Action pane


distribute content.png

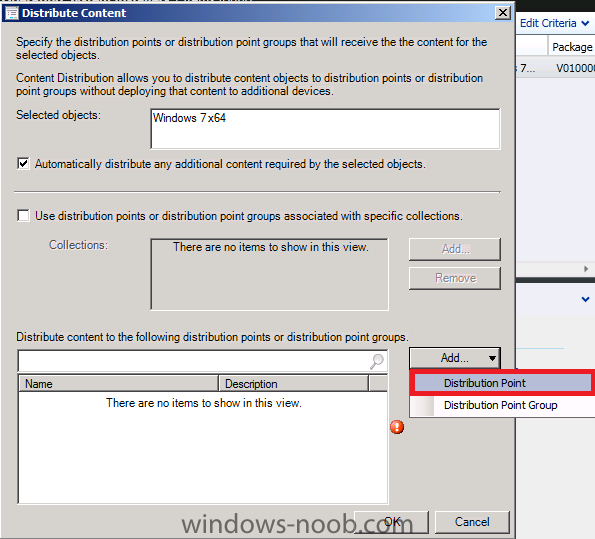

Click on the drop down menu Add, then select distribution point

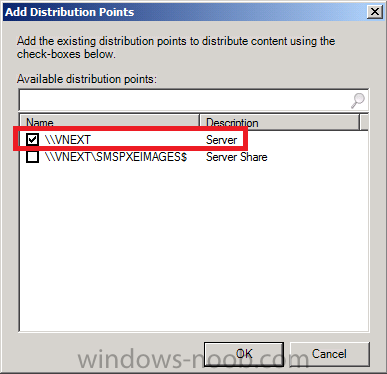

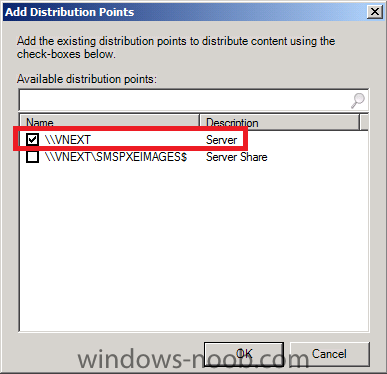

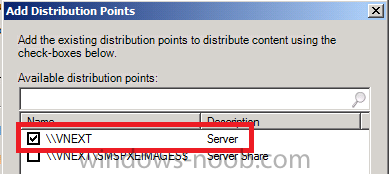

select only the vnext dp as this is an image file (and not a boot image)

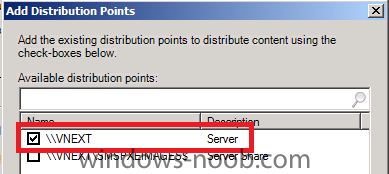

vnext dp.png


click ok


dp done.png

Share this post

Link to post
Share on other sites

Step 5. Distribute the Boot image to DP's


Select boot images in the left navigational pane, select the X86 boot image and on the right, right click on the Distribute Content.

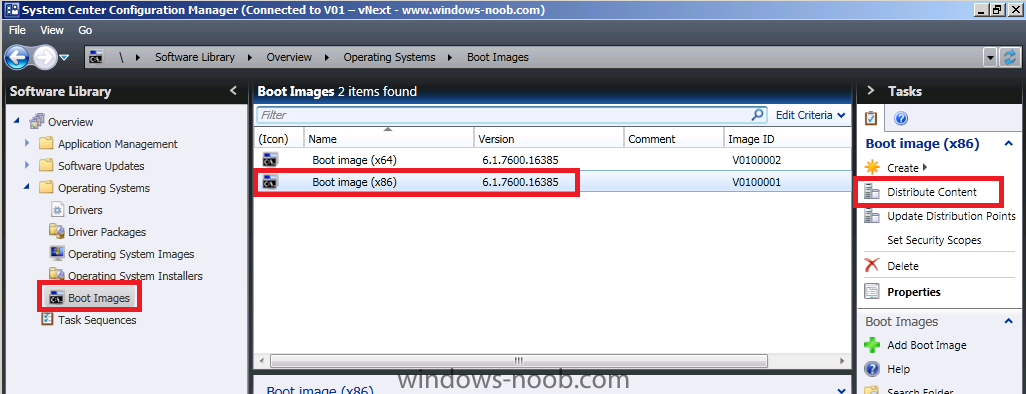

distribute content boot image.png

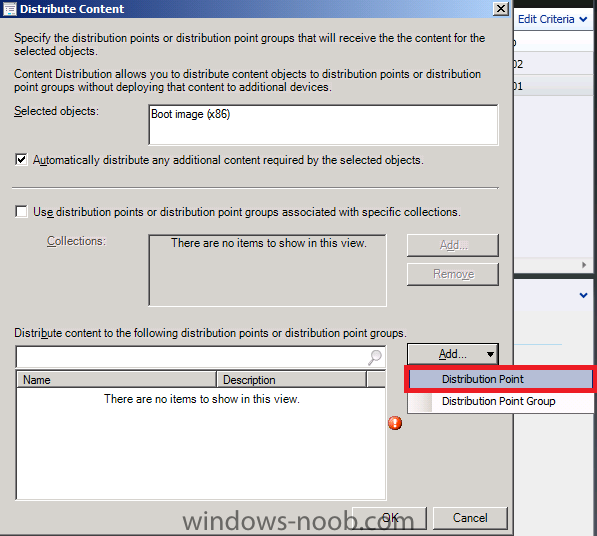

click on the Add drop down menu, select Distribution Point


add dp boot image.png

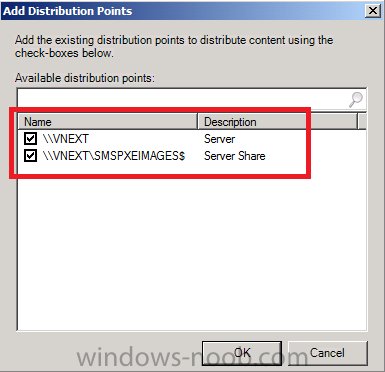

as this is a boot image, select both the normal and PXE dp's


both dps.png


Click OK and OK again.



Step 6. Update the Boot image with command support

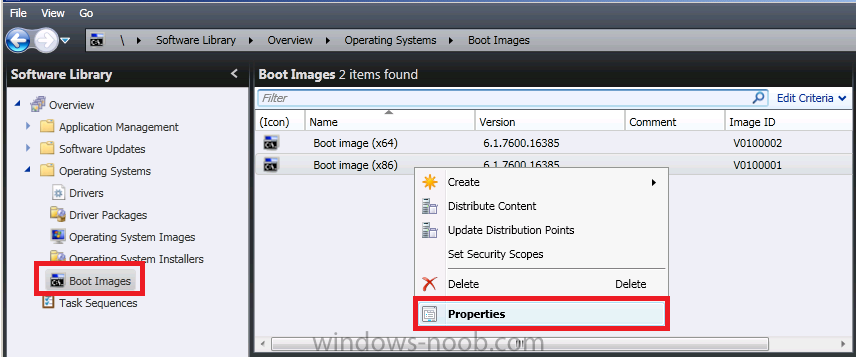

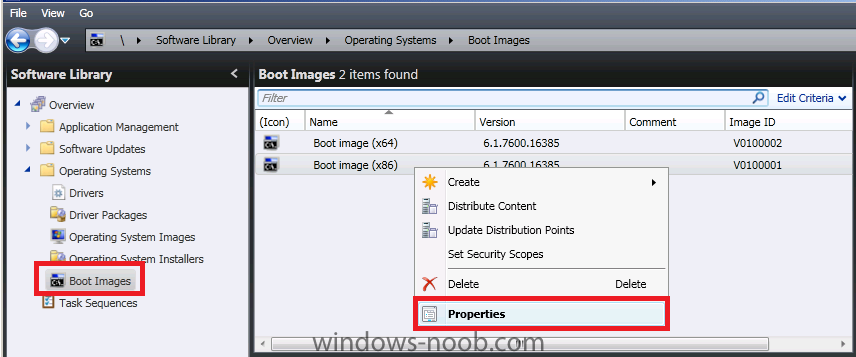

Select boot images in the left navigational pane, and on the right, right click on the X86 boot image and choose properties.


boot image properties.png

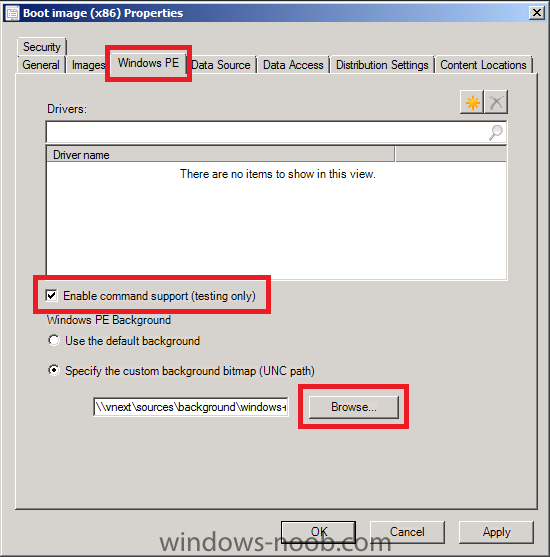

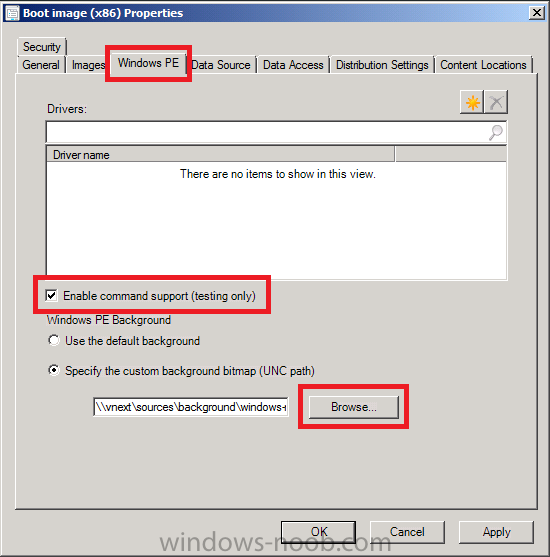

click on the Windows PE tab and place a checkmark in Enable command support, and optionally select a background for your Windows PE boot image by browsing to a picture


enable boot.png

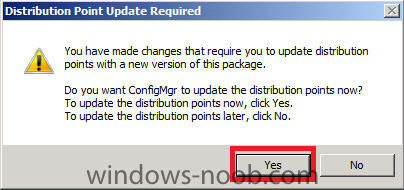

Click apply and answer Yes when prompted


yes to dp update.png


and continue through with the wizard until you are done

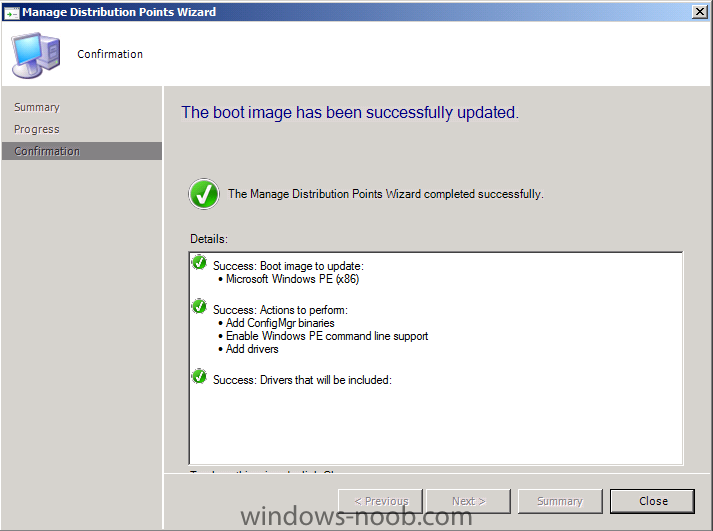

success manage dp wizard.png



Note: Repeat the above process for the X64 boot image otherwise you may get your PXE clients getting a Contacting Server: ...... problem later on. (check the SMSPXE.log file for errors after a PXE boot attempt - and you'll probably see Warning: Matching Processor Architecture boot image (6) not found)

Share this post

Link to post
Share on other sites

Step 7. Create the Configmgr Client from Definition Package

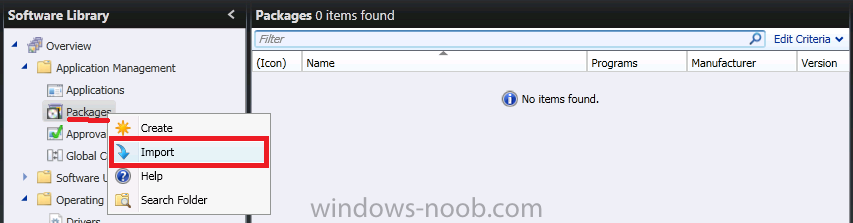

In Software Library, right click on Packages and choose Import

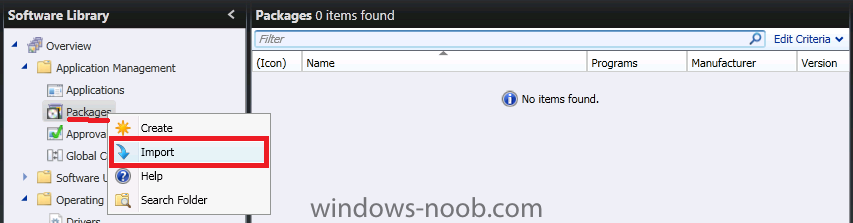

packages import.png

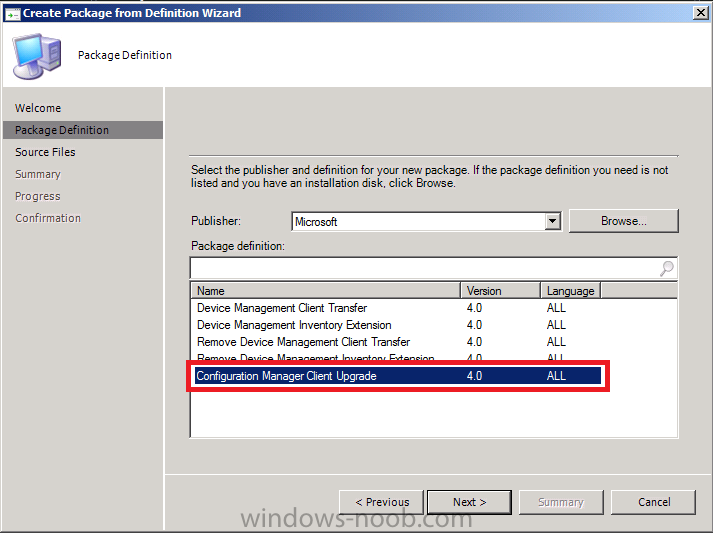

Click Next at the Welcome wizard, and select Configuration Manager Client Upgrade from the list

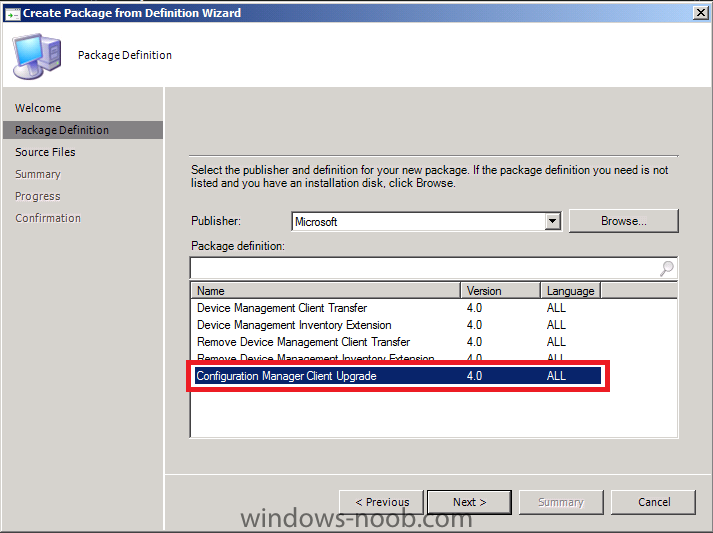

package from definition.png

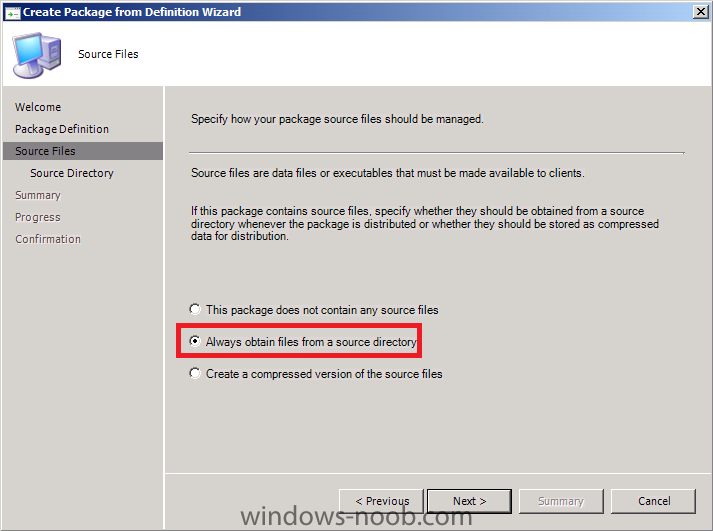

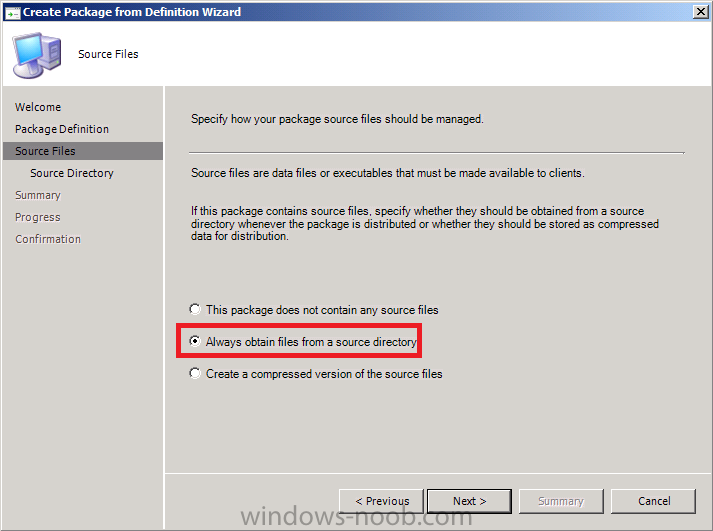

select always obtain files from a source directory


always obtain files from a source directory.png

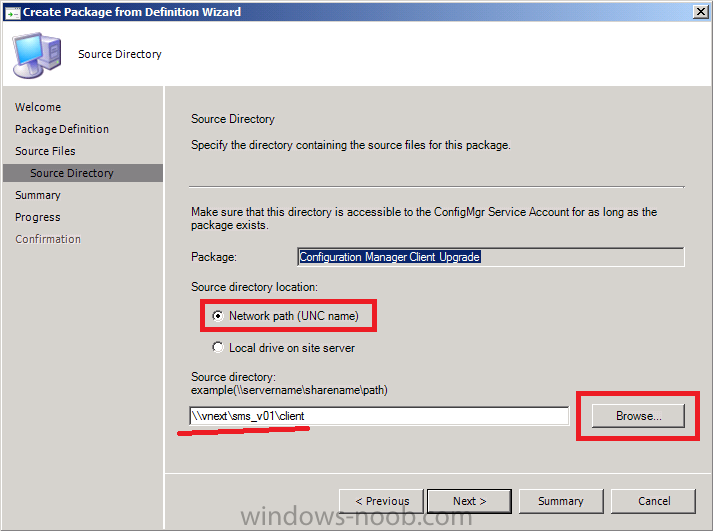

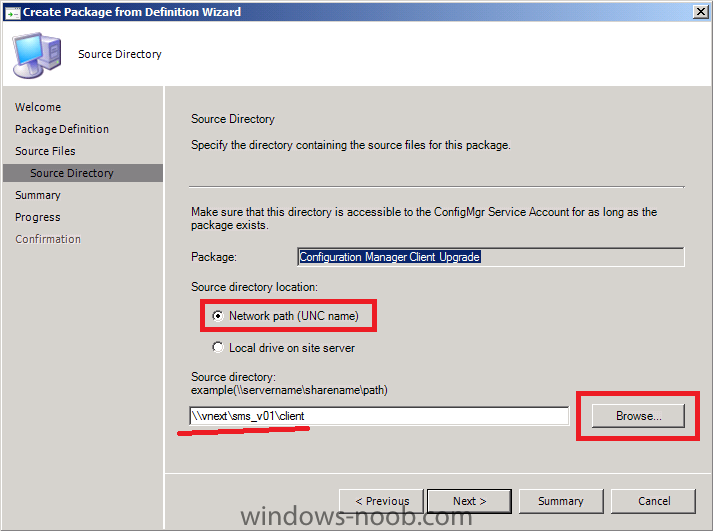

enter the client directory of your site server typically \\server\sms_xxx\client where xxx is the sitecode


vnext client.png

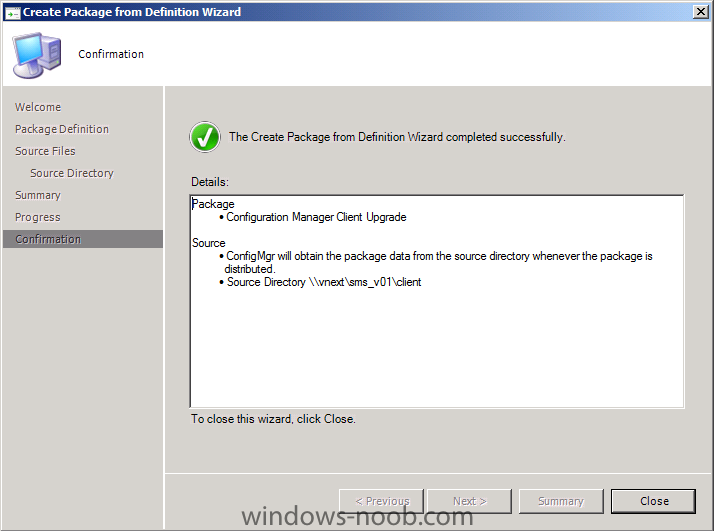

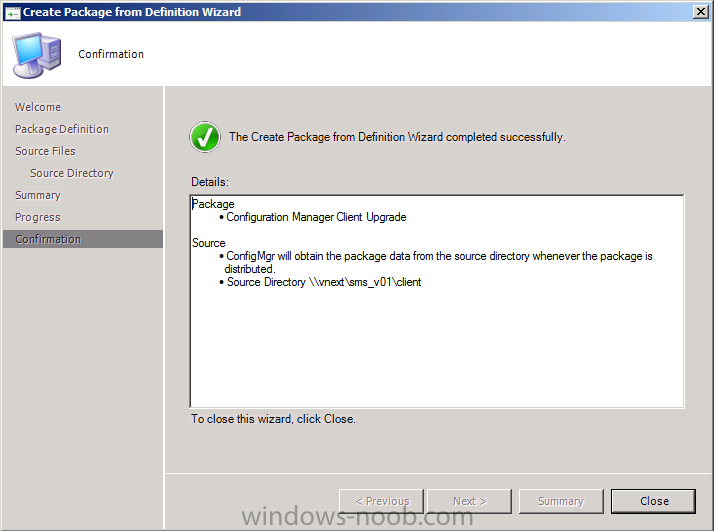

click next at the summary and review the confirmation of wizard completion


client wizard.png


click close to finish.

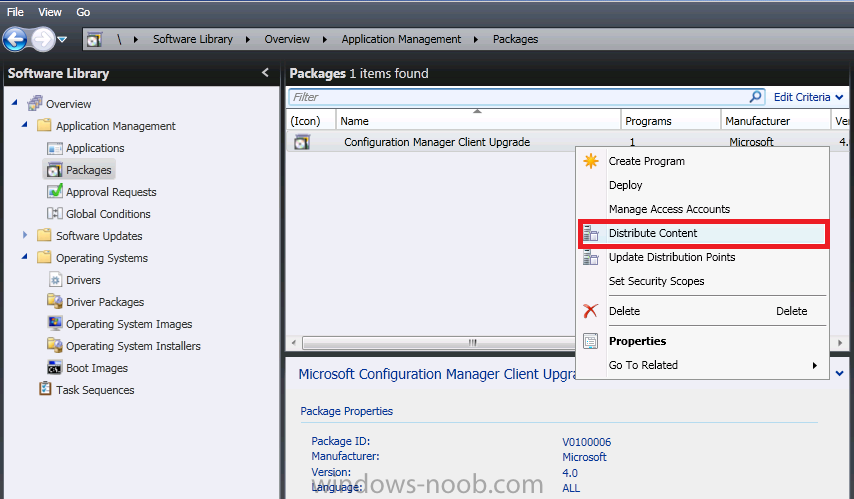

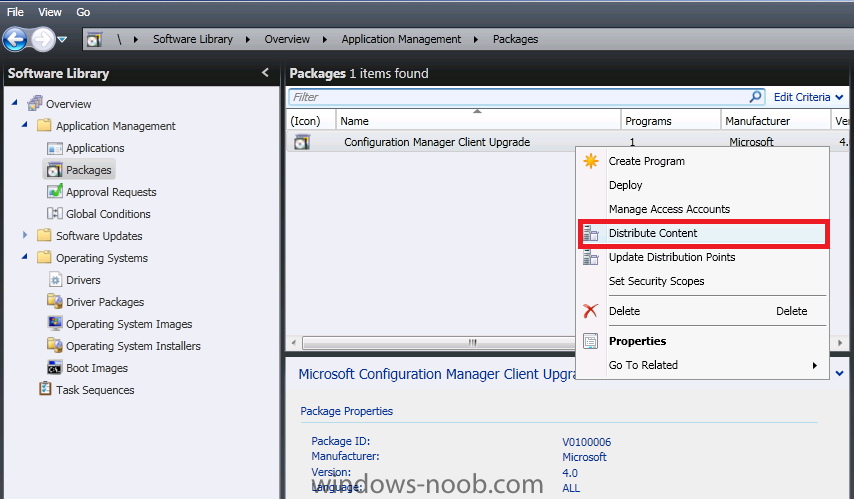

Now don't forget to Update the Client from Definition Package to the Distribution Points, in Software Library, click on Packages, right click on your Configuration Manager Client Upgrade package and choose Distribute Content


distribute content.png

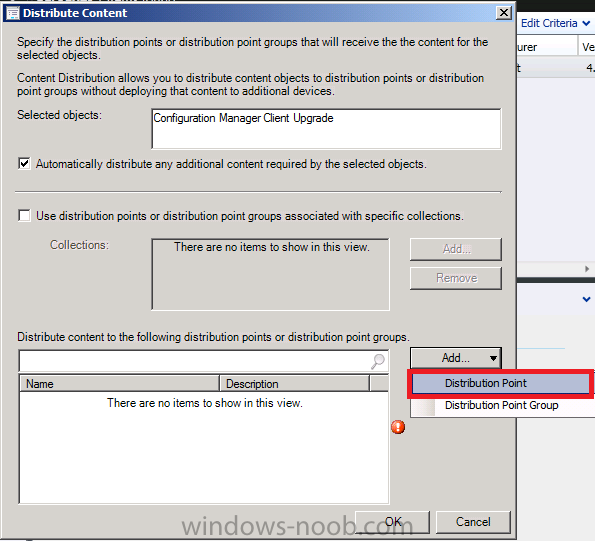

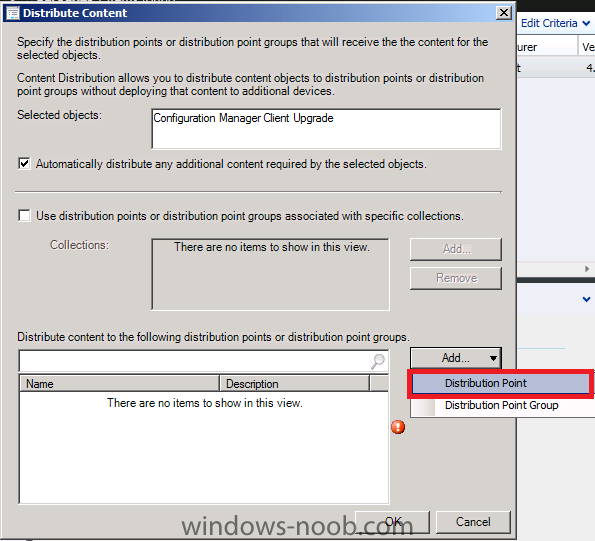

click on the Drop down Add menu, select Distribution Point
