using vNext in a LAB - Part 7. Deploying Windows 7 Enterprise

Recommended Posts

In Part 1. of this series we Installed vNext.

In Part 2., we then Configured vNext to use the New AD Site as a boundary and Configured Discovery Methods in vNext.

In Part 3, we installed the Reporting Point Role along with some additional roles and configured them.

In Part 4 we configured the client Agents and deployed the vNext Client.

In Part 5 we deployed an Application to All Users.

In Part 6 we added Windows Deployment Services, added the PSP role, added the Windows 7 Enterprise image, and updated our boot image for Deploying Windows 7.


Next we will continue with this process, and as part of that we need to utilise the built in Build and Capture Task Sequence.



Step 1. Create Build and Capture Task Sequence


Perform the following on the vNext server as SMSadmin

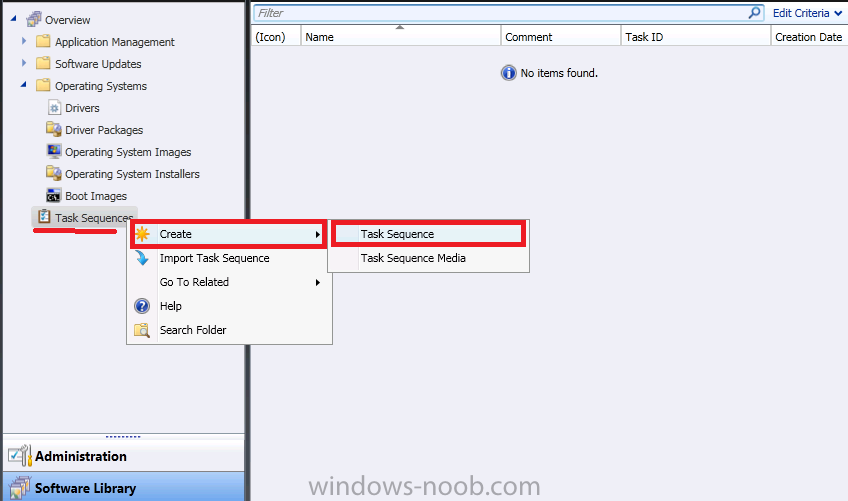

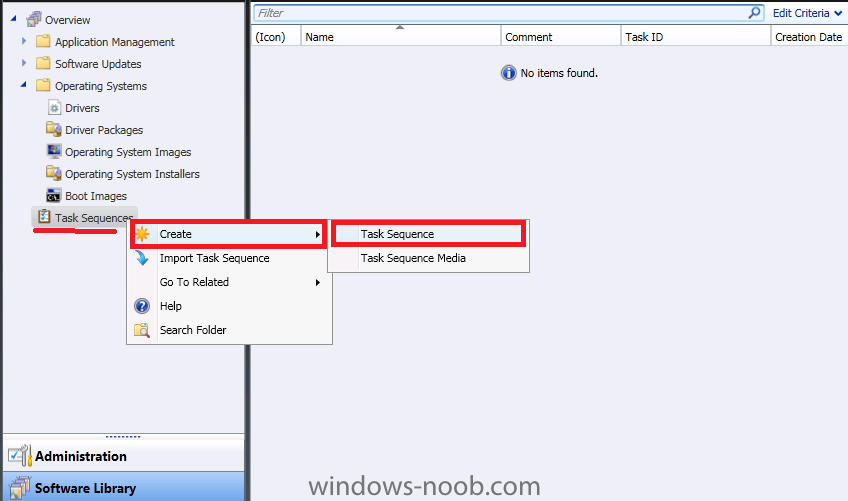

In the Software Library, Right-Click on Task Sequences and choose Create Task Sequence


create task sequence.png

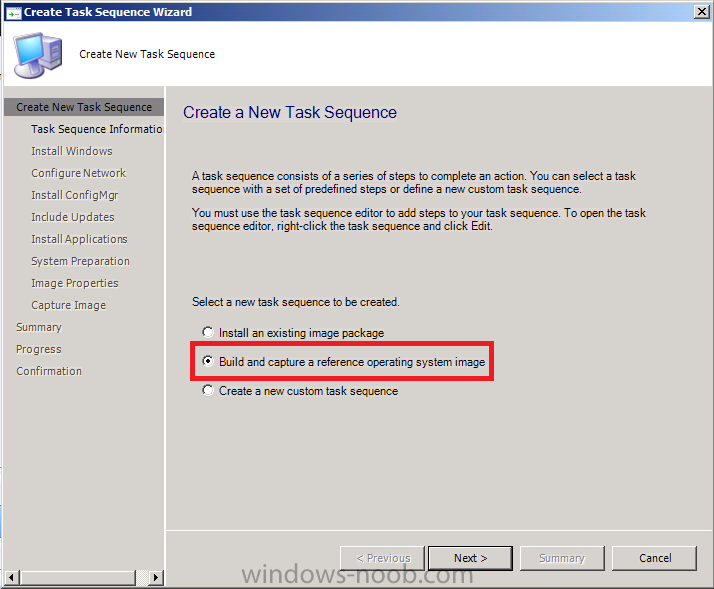

from the wizard that appears, choose Build and Capture a reference operating system image


build and capture.png

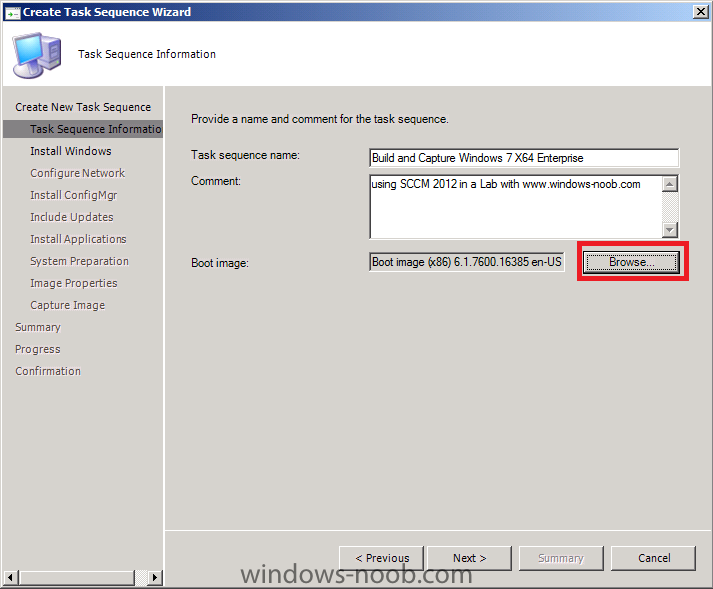

Fill in details about the image and select the X86 boot image we udpated previously


ts details.png

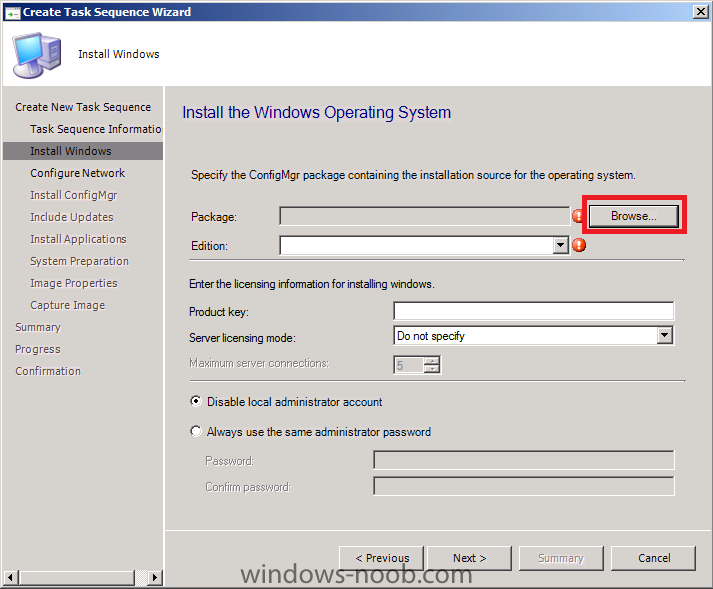

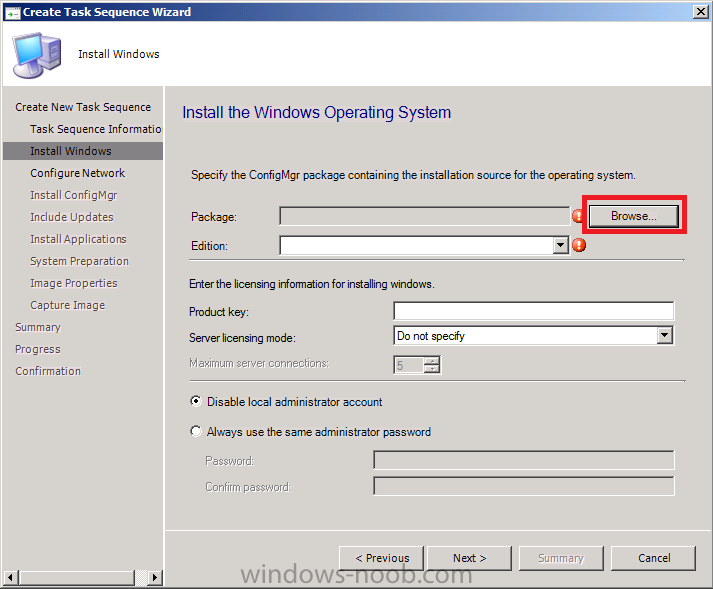

when the Install Windows Operating System window appears click on browse


browse os.png

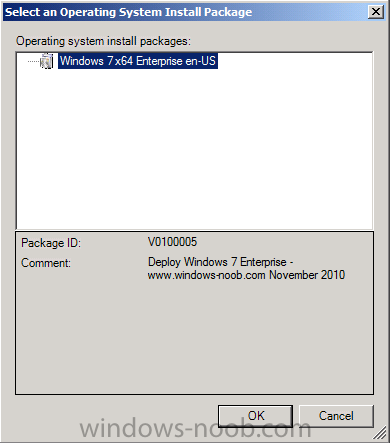

and select our Windows 7 X64 Enterprise image

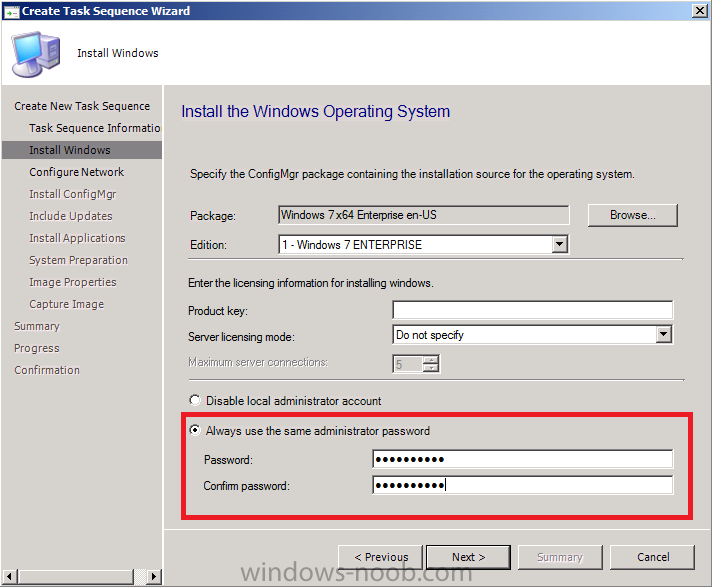

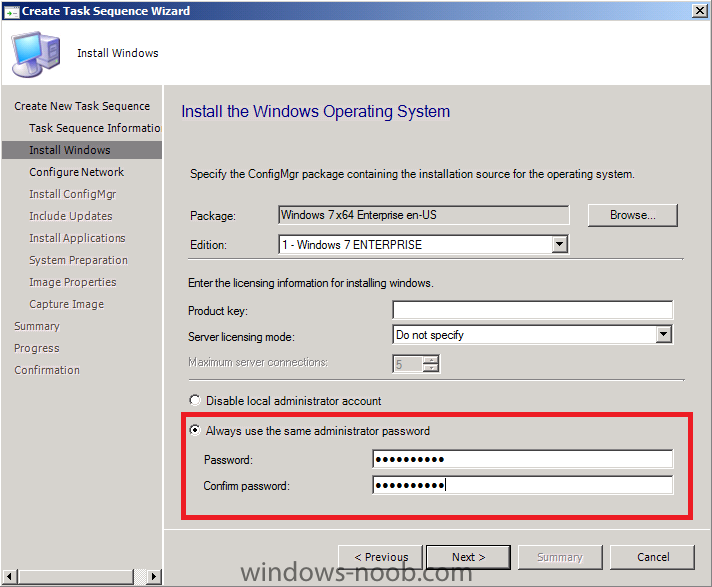

select Always use the same administrator password and type in an admin password


always use the same administrator password.png

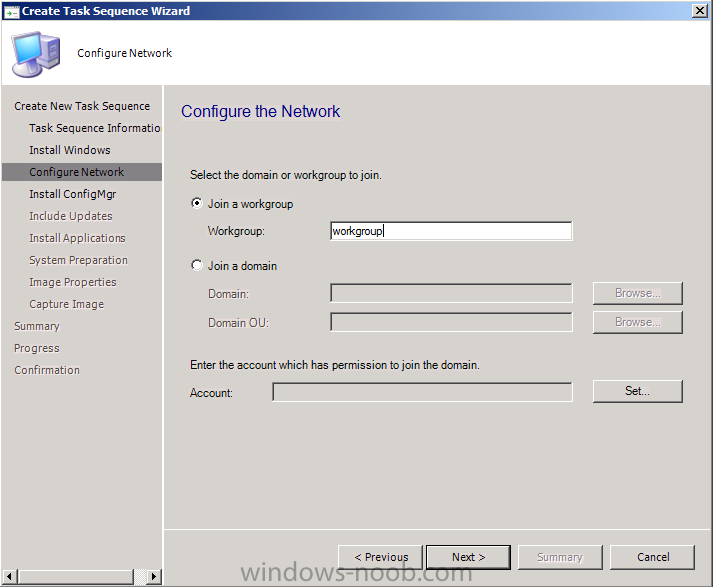

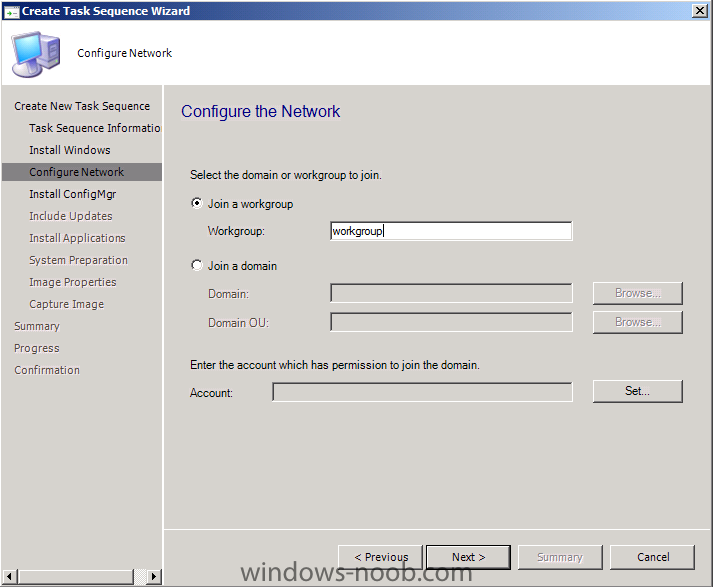

as this is Build and Capture, it's recommended best practise to be a member of a workgroup (don't join the domain)

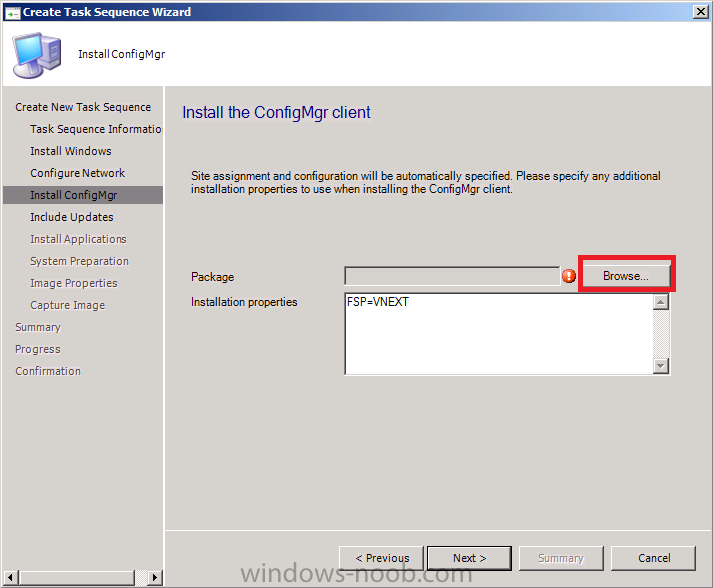

for the Install Configmgr Client step, click on browse


install configmgr client.png


and select our ConfigMgr Client Upgrade Package (if you don't have this package see here for details of how to create it)




we have not enabled the SUP yet, so do not install software updates

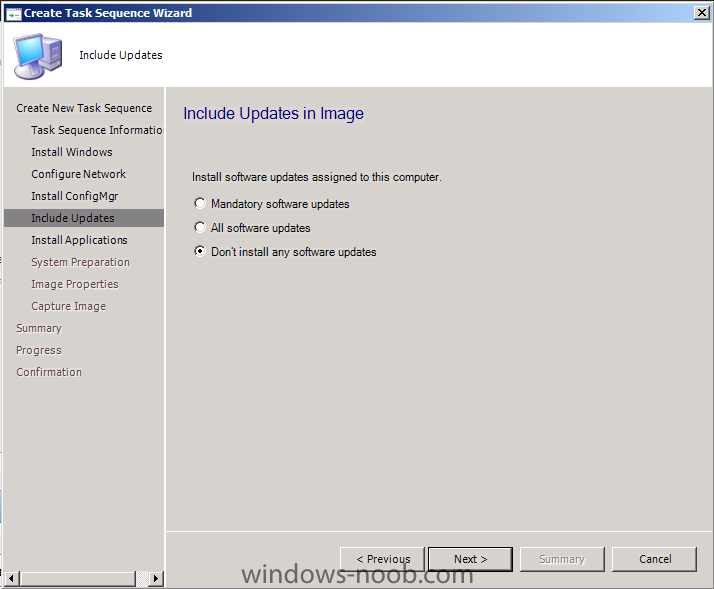

Dont install any software updates.png


leave applications blank


install apps.png


as this is Windows 7, no system preparation package needed (it's included with the OS), so just click next

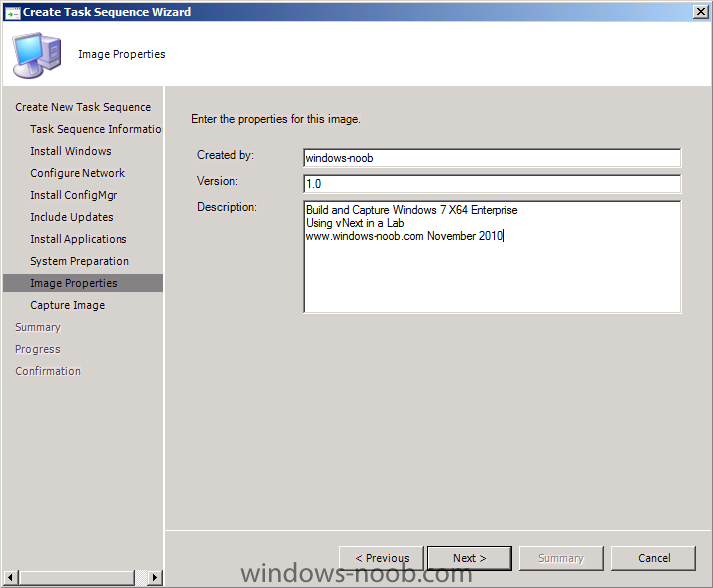

fill in some details about the image


image details.png

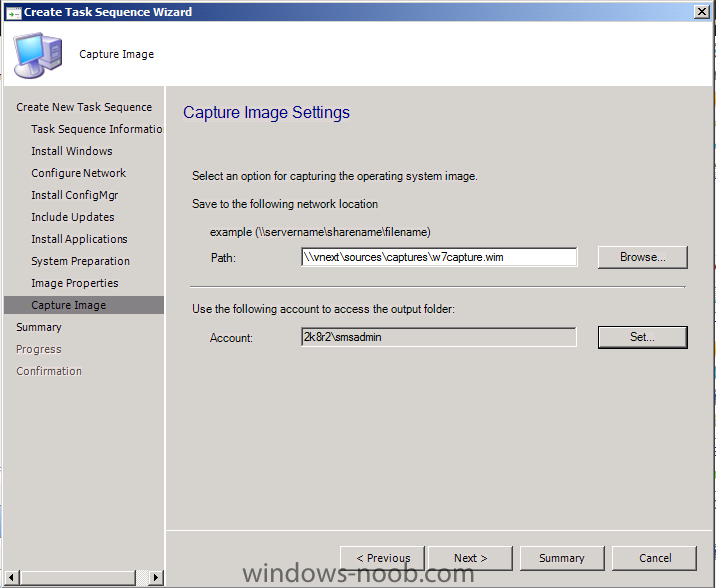

enter the capture wim file name (path) and user details to save the capture with


capture details.png


Click Next, Next and review the confirmation.


success bac.png



Step 2. Enable the Network Access Account

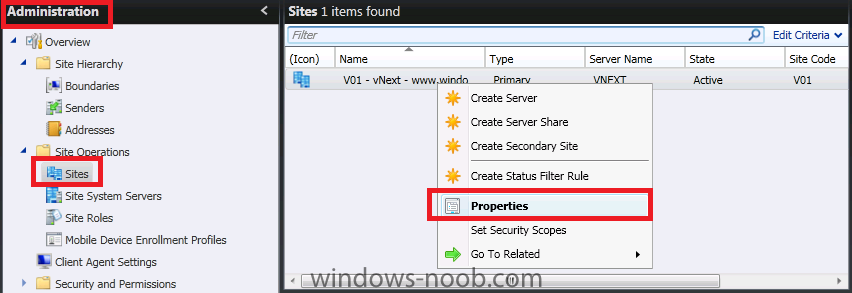

We need our Network Access Account set in order to copy packages in WinPE. We have already created the user in Active Directory (NAAUser), now lets add it to vNext. In Administration, click on sites, then select your site and right click, choose properties.



site properties.png

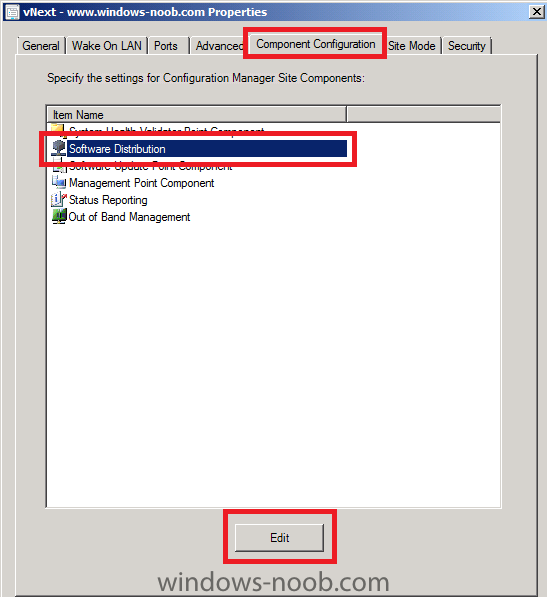

Click on the Component Configuration tab, software distribution, edit

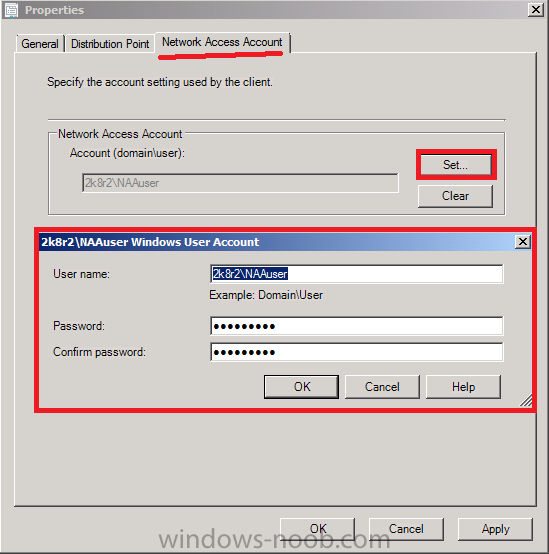

enter the network access account details (click on the network access account tab), and click ok, ok


network access account.png

Share this post

Link to post
Share on other sites

Step 2. Deploy (advertise) the Task Sequence to the Unknown Computers Collection

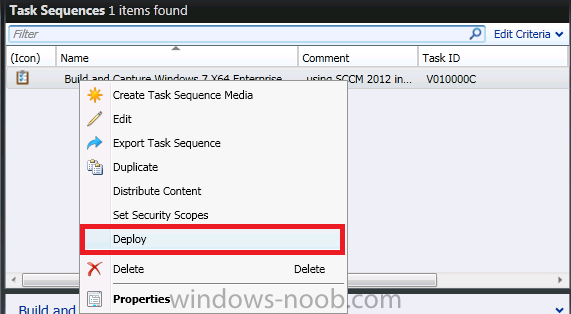

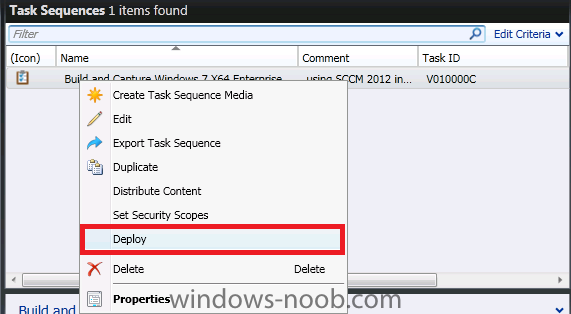

highlight our newly created task sequence, right-click and choose Deploy


deploy ts.png

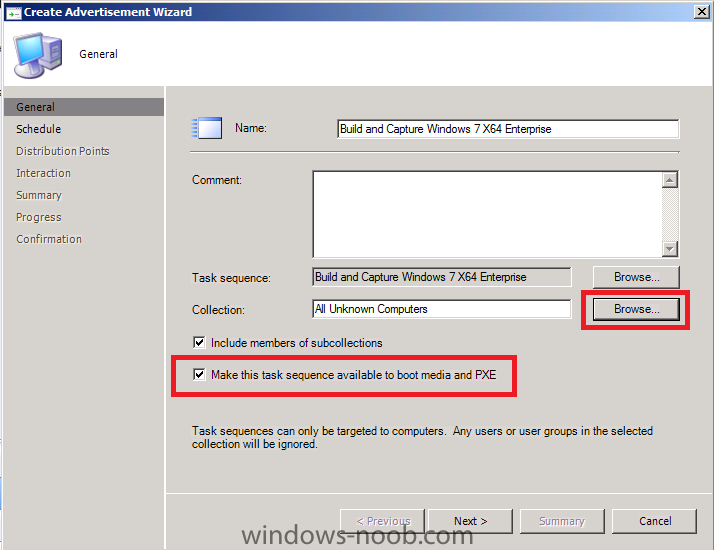

when the wizard appears, browse for the Unknown Computers collection, and make sure to place a checkmark in Make this task sequence available to boot media and PXE


select collection.png

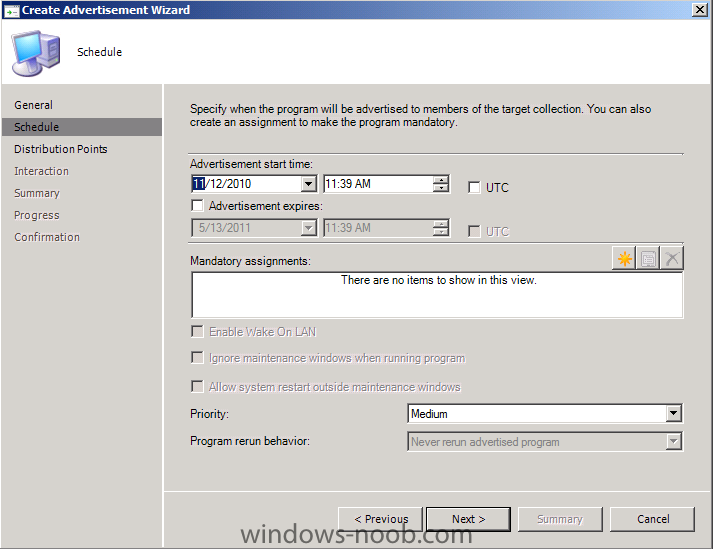

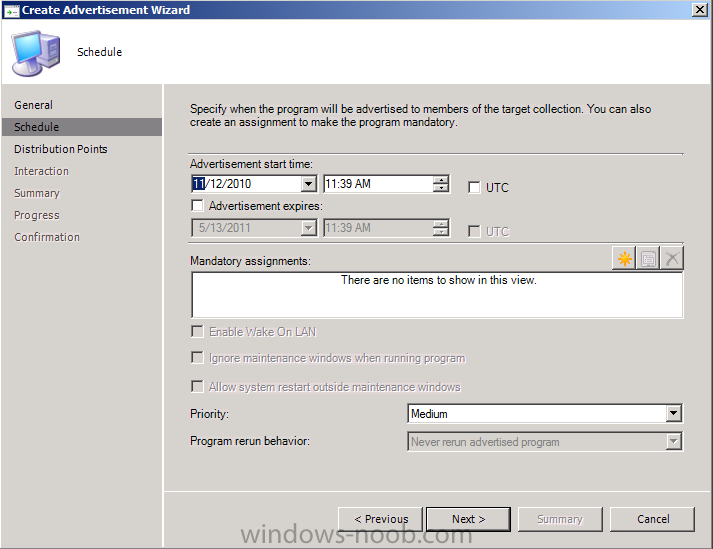

leave the schedule as it is

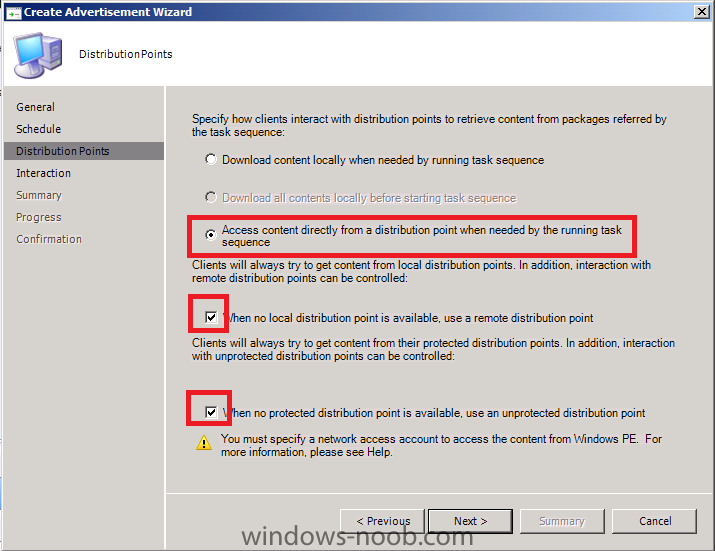

set the distribution point settings as follows


access content directly.png


and continue through the wizard accepting defaults

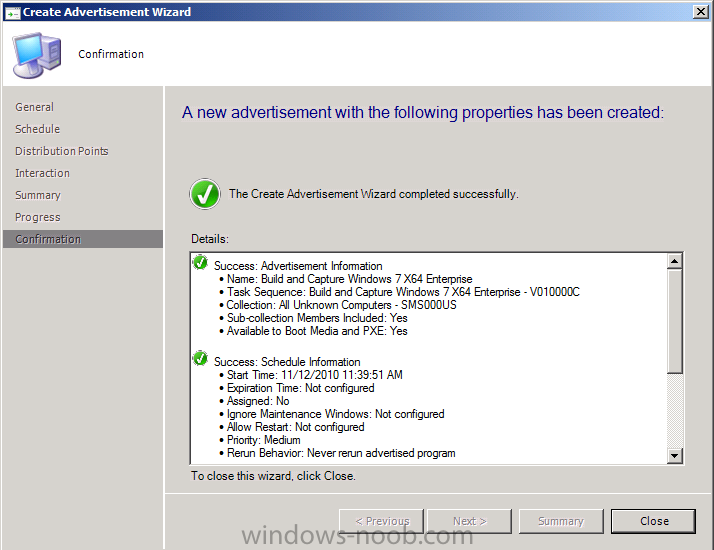

adv created.png

Share this post

Link to post
Share on other sites

Step 3. Create New hyperV virtual Machine

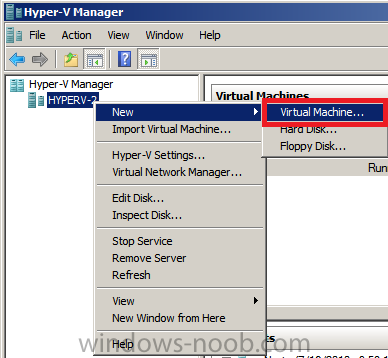

on your HyperV host, startup Hyper-V Manager, right click and choose New, Virtual Machine


new vm.png

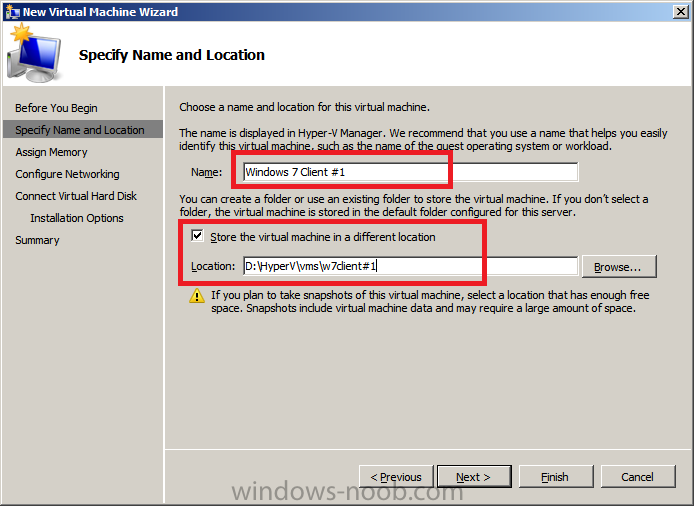

specify name and location


specify name and location.png

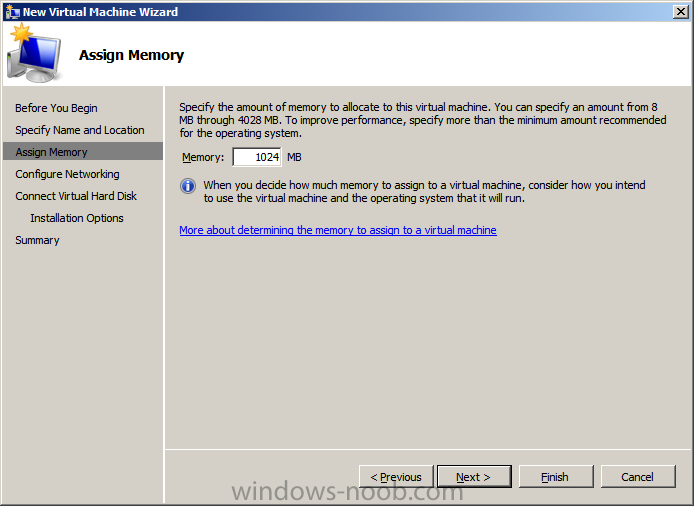

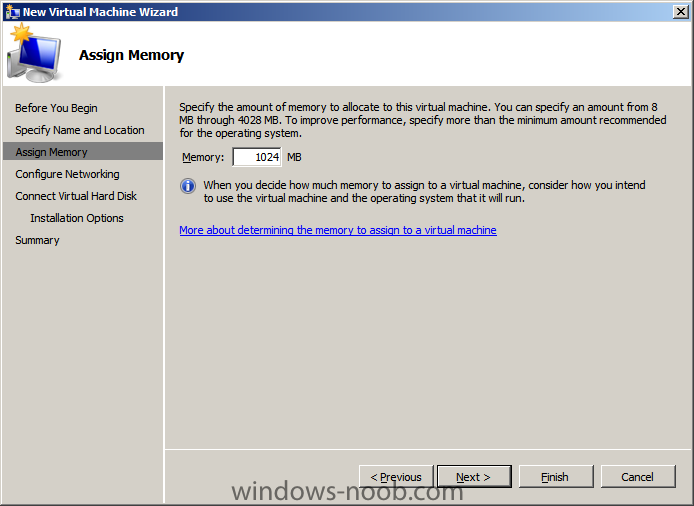

give it 1024 mb ram

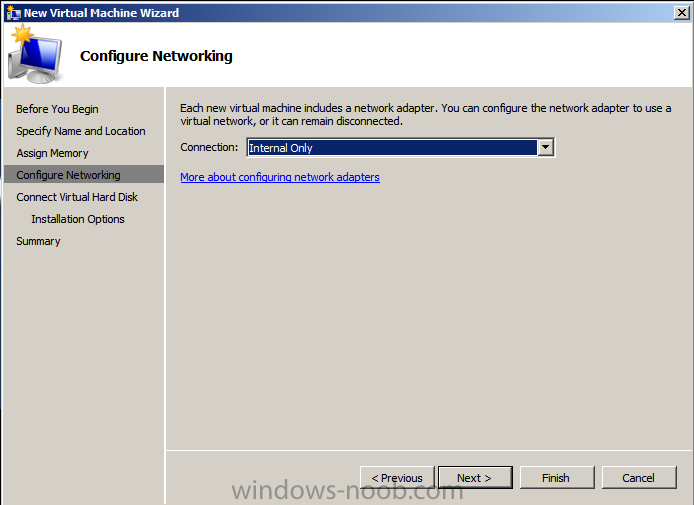

set the network type to Internal Only


internal only.png

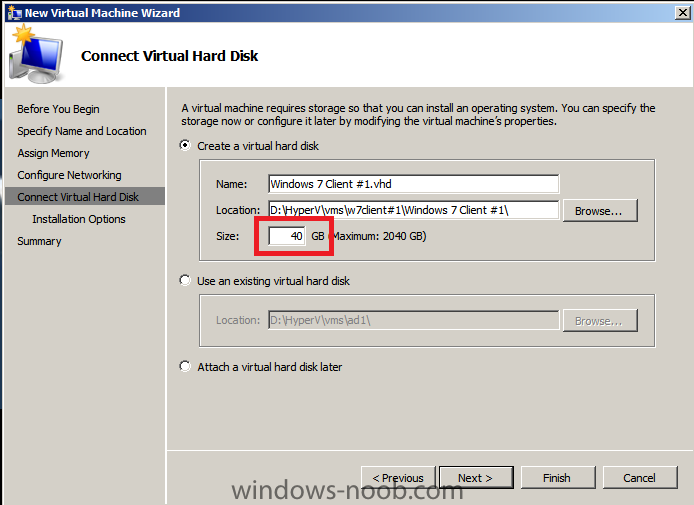

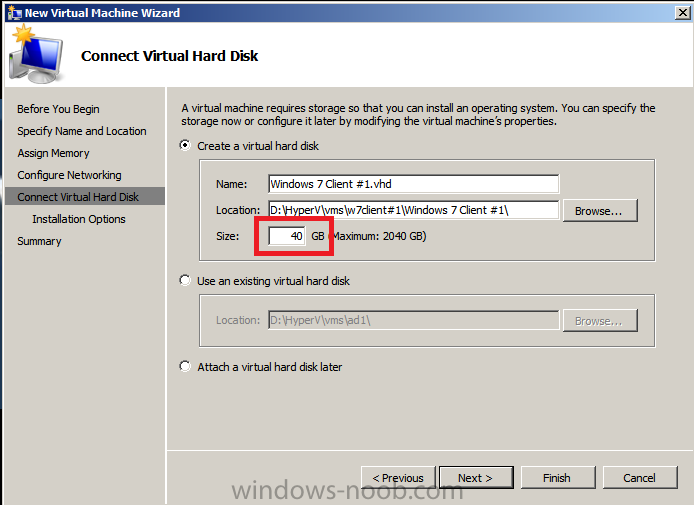

set the storage size to 40gb

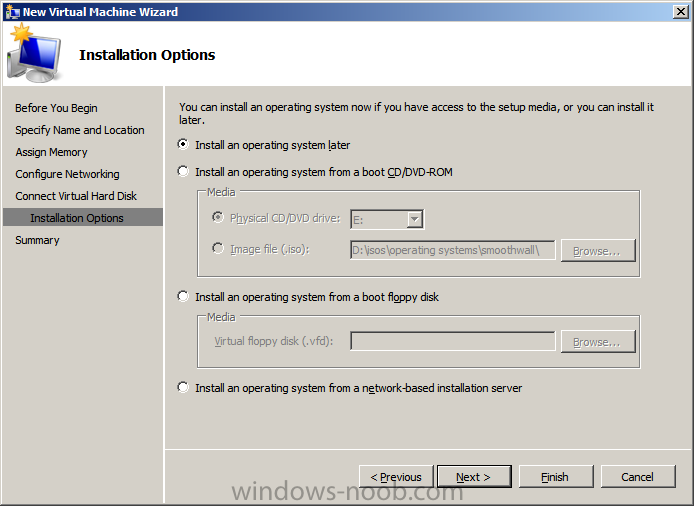

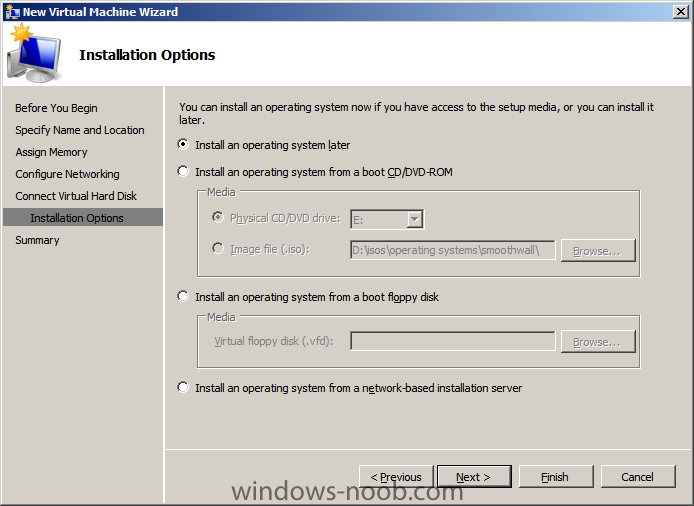

choose Install the operating system later


install os later.png

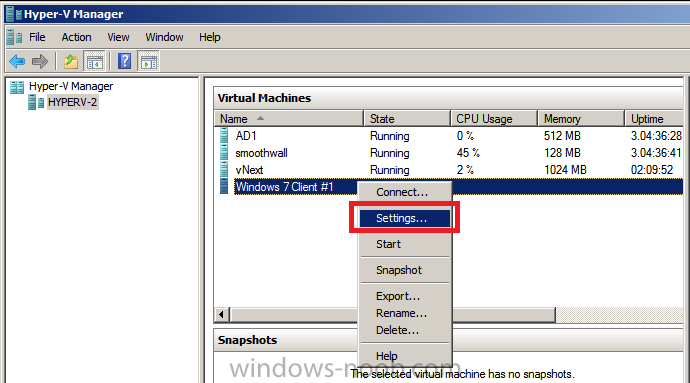

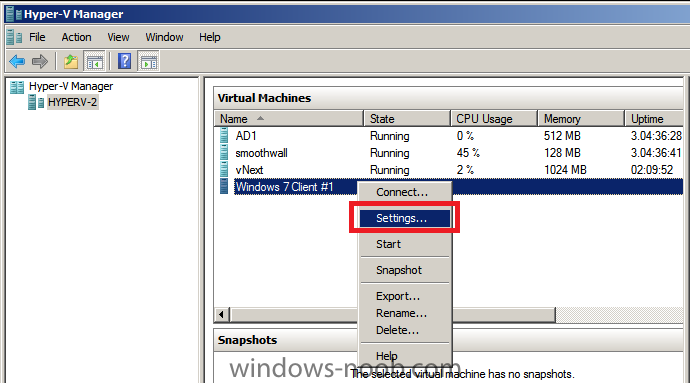

click Finish to close the wizard. When done, highlight the new vm in hyperv, right click and select settings

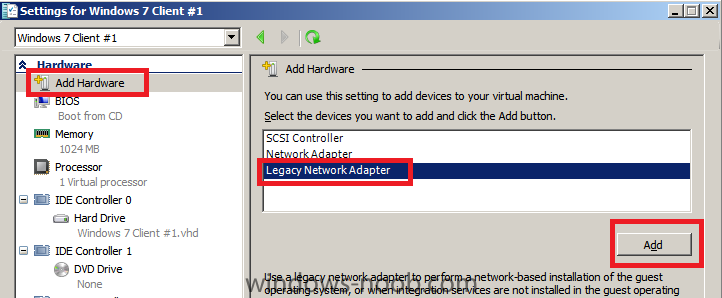

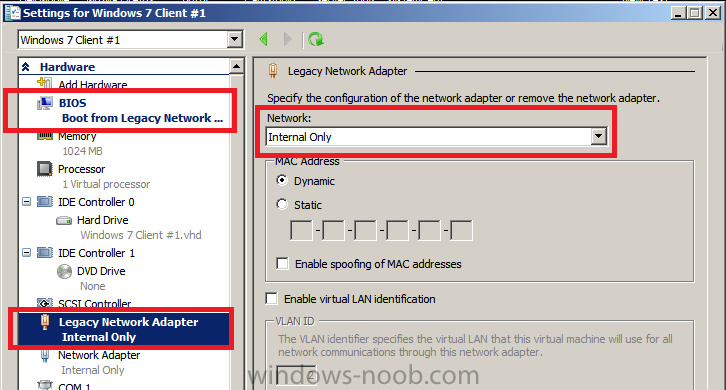

click Add Hardware, choose Legacy Network Adaptor, click Add




Change the Network to Internal Only from the Drop down menu, then select BIOS and ensure Boot from Legacy Network Card is first in the list

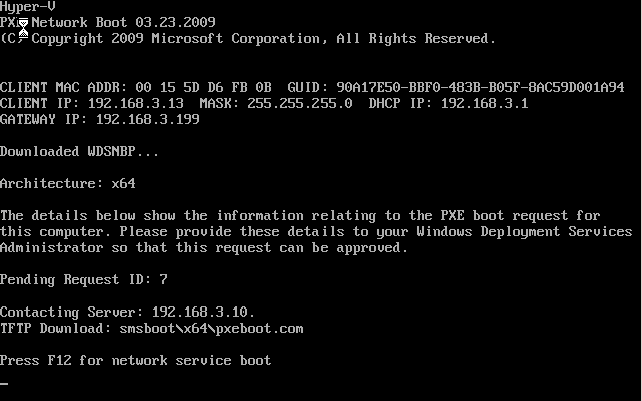

Once done PXE boot the Virtual Machine (turn it on) and press F12 when prompted, if you see 'contacting server: then verify you distributed both boot images).

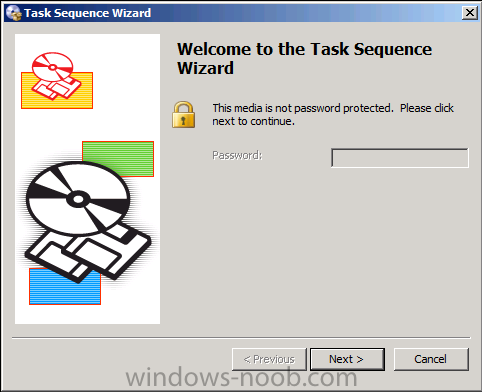

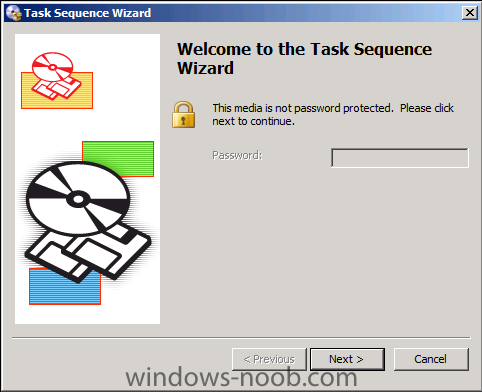

at the welcome to the task sequence screen, press next


no pxe password.png

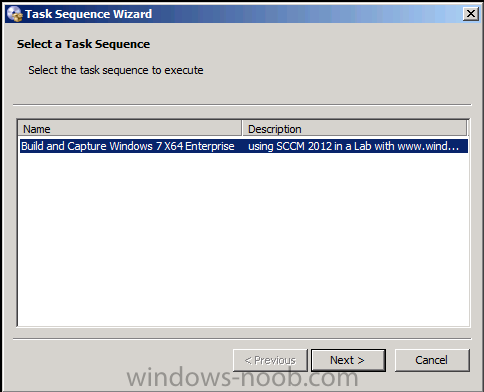

select our Build and Capture Task sequence


select ts.png

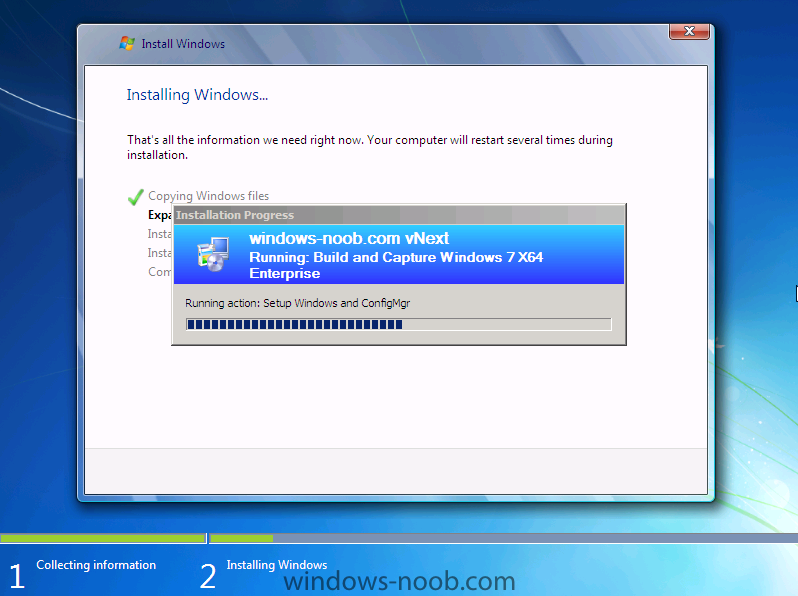

and off it goes

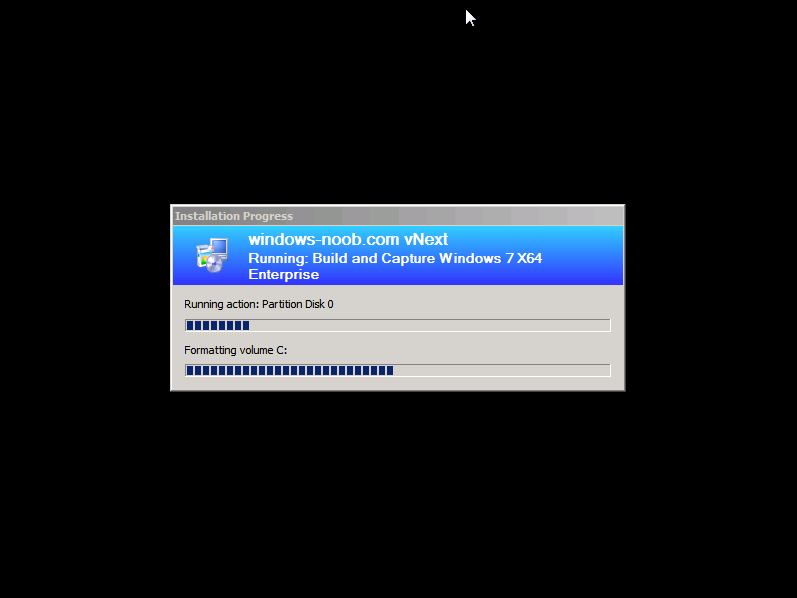

this will be slow until you edit the partition disk 0 step and change the format to Quick Format

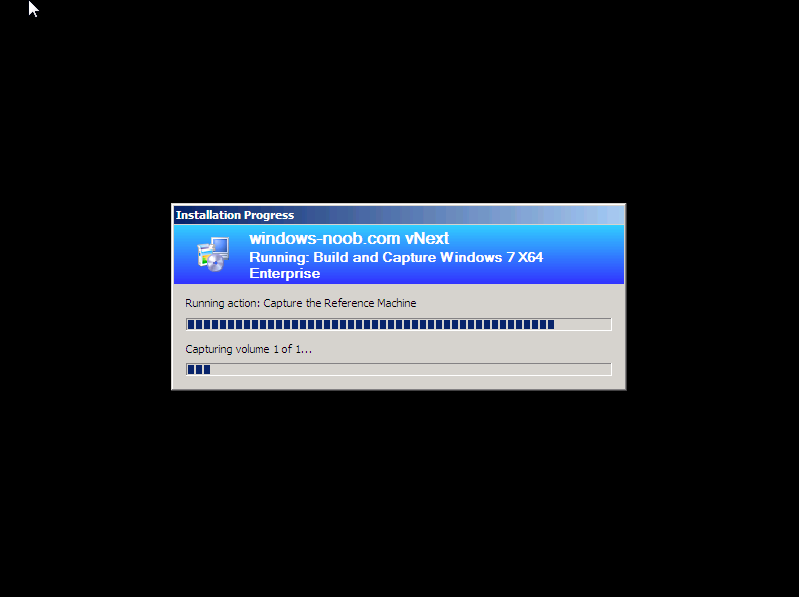

and out image is being captured



  • Like 1

Share this post

Link to post
Share on other sites

My build and capture does not work at all.

It gets pass the PXE boot by pressing f12, then it shows the SCCM logo screen.

But it never displays the task sequence window.

It just reboots back into the PXE post screen again.


This time displaying an error...



What did I do wrong and how to fix please.

Share this post

Link to post
Share on other sites

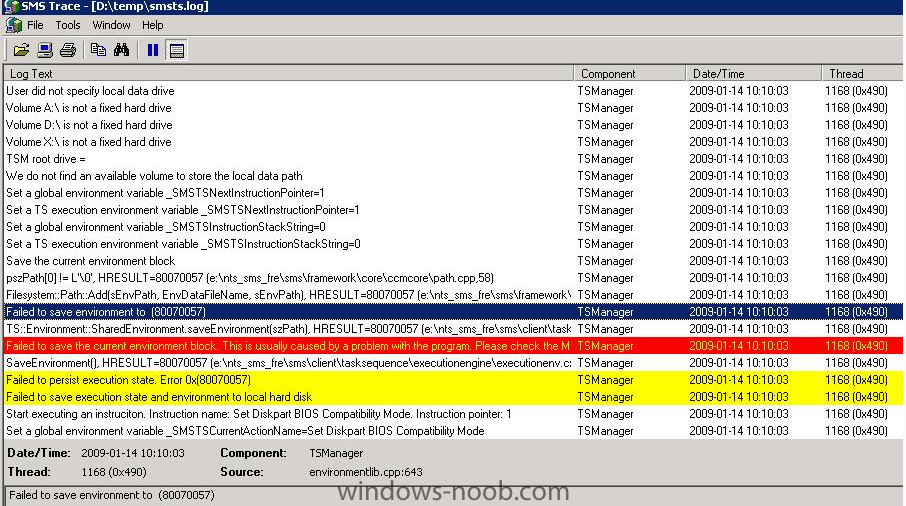

I am getting "Failed to Save environment to 80070057" error from my TS, my SMStslog says (please see the attached)
