using vNext in a LAB - Part 10. Deploying Windows 7 Enterprise

Recommended Posts

In Part 1. of this series we Installed vNext.

In Part 2., we then Configured vNext to use the New AD Site as a boundary and Configured Discovery Methods in vNext.

In Part 3, we installed the Reporting Point Role along with some additional roles and configured them.

In Part 4 we configured the client Agents and deployed the vNext Client.

In Part 5 we deployed an Application to All Users.

In Part 6 we added Windows Deployment Services, added the PSP role, added the Windows 7 Enterprise image, and updated our boot image for Deploying Windows 7.

In Part 7 we created our Build and Capture Task Sequence, enabled the Network Access Account, Advertised (Deployed) the Task Sequence, and created a new hyper-v virtual machine for capturing the wim on.

In Part 8 we installed WSUS and then the SUP and SLP roles.

In Part 9 we configured SUP and deployed some updates.



Now we want to deploy our captured Windows 7 image using a separate Deploy Windows 7 Task Sequence.



Step 1. Import the Captured Image

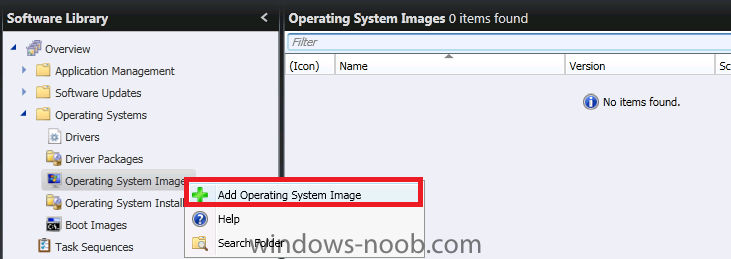

In Software Librady, Expand Operating Systems, and right click on Operating System Images, choose Add Operating System image



add operating system image.png

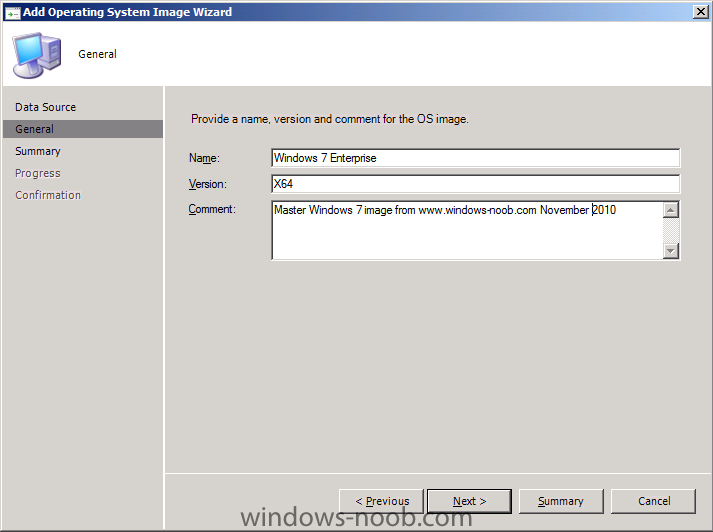

fill in some details about your master image







and click Close at the confirmation screen

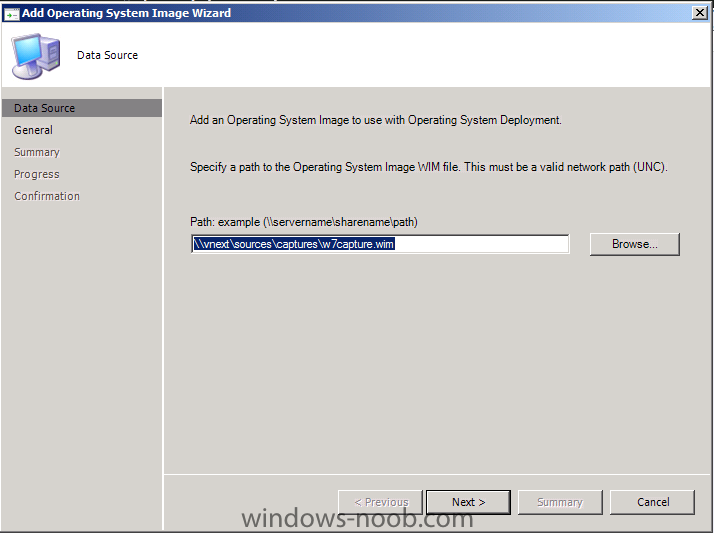

Browse to the previously captured WIM file



path to captured images.png



Fill in some details about the image



master image details.png

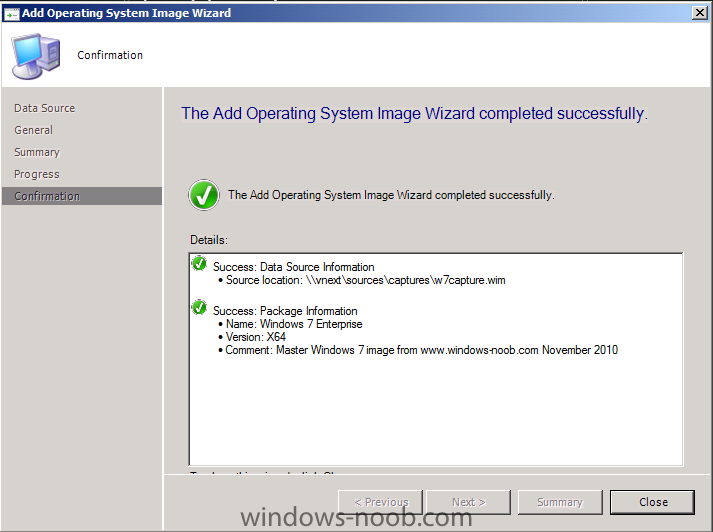

and proceed with the wizard through to the confirmation screen, click close when done.



confirmation of master image.png

Share this post


Link to post
Share on other sites

Step 2. Distribute the image to Distribution Points

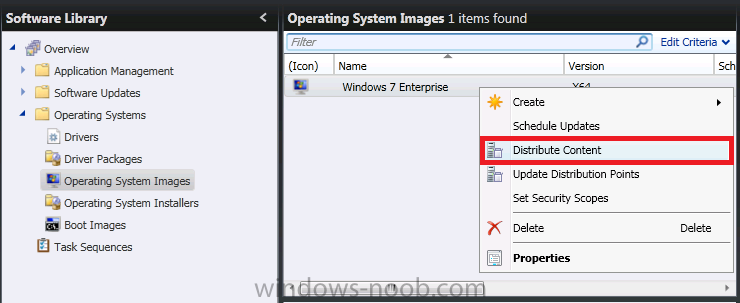

Highligh our newly created image and right click, choose Distribute Content



distribute content.png

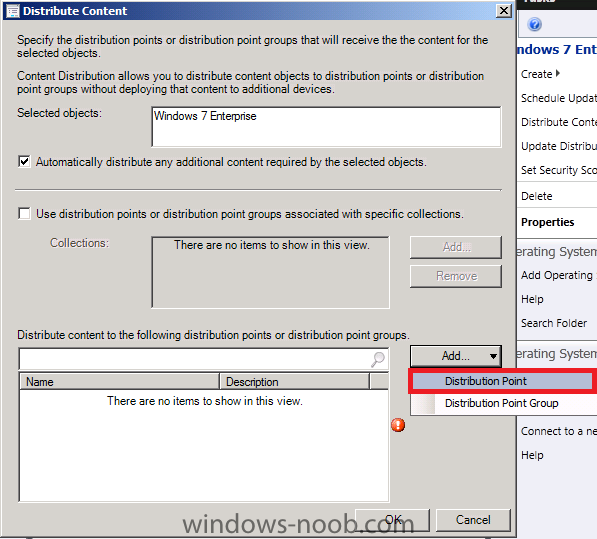

click on the Add drop down menu and choose Distribution Points

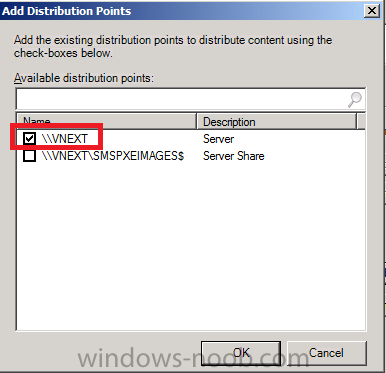

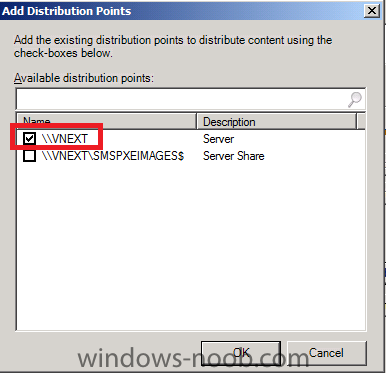

as this is not a boot image, select only the standard DP's



next dp only.png



Click Ok and OK again.





Step 3. Create the USMT 4 Package



In Application Management, right click on Packages and choose Create



CREATE NEW PACKAGE.png

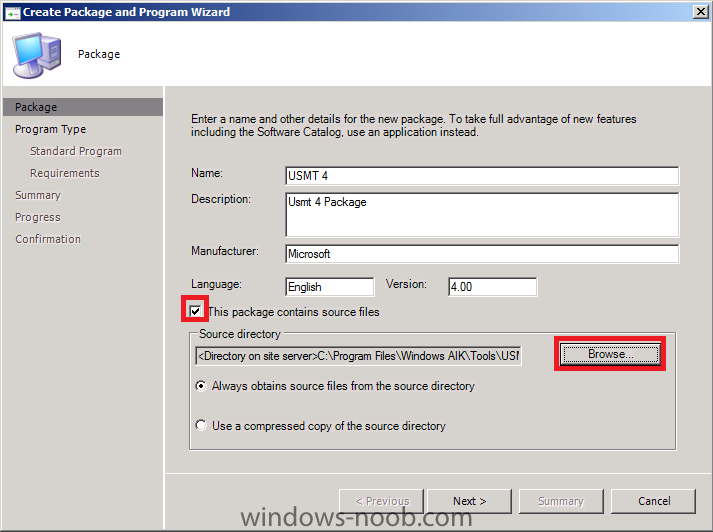

Fill in details about the USMT package, and for source, point to the following path C:\Program Files\Windows AIK\Tools\USMT



package source filespackage source files.png

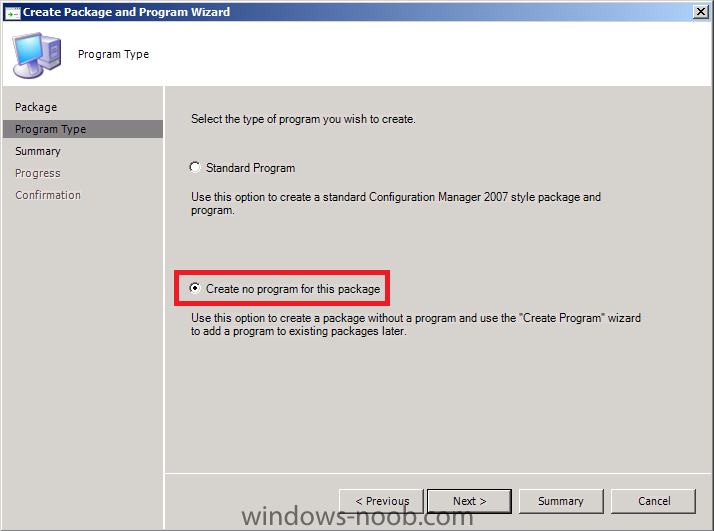

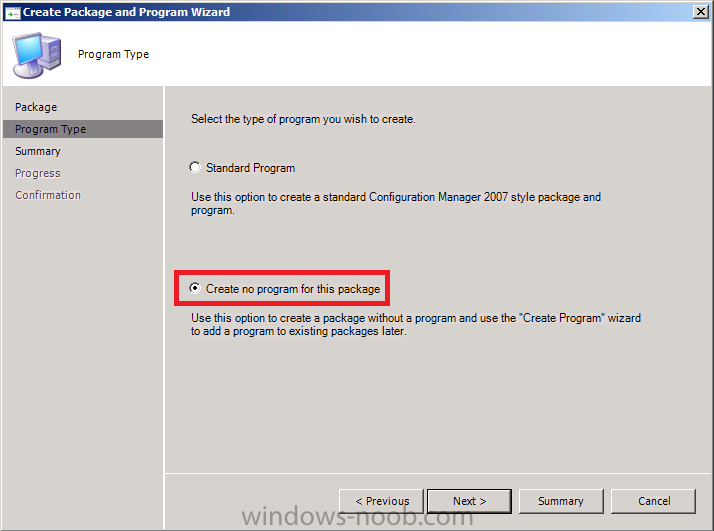

Choose Create No Program for this package as none is required



no program.png

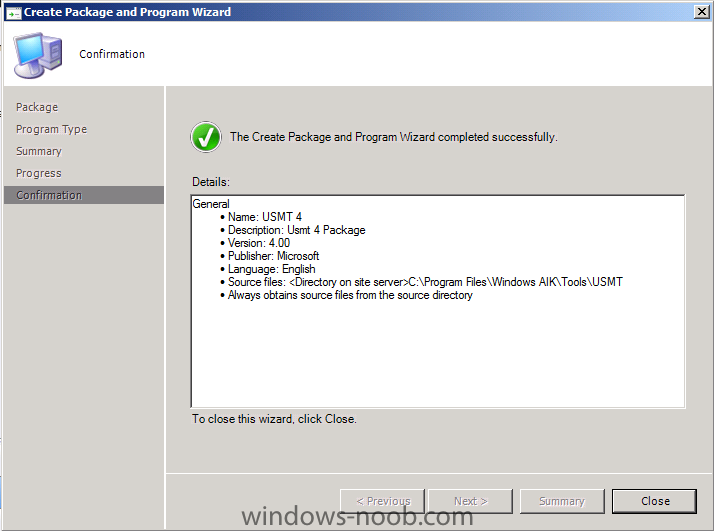

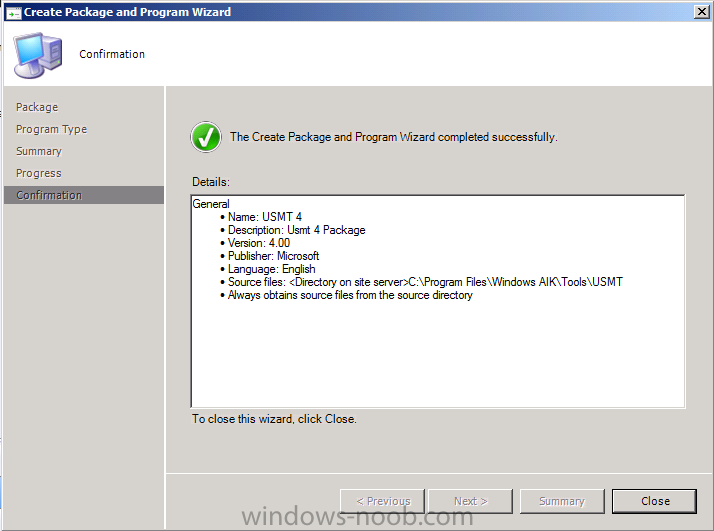

click next at the summary screen and click close at the confirmation



usmt done.png

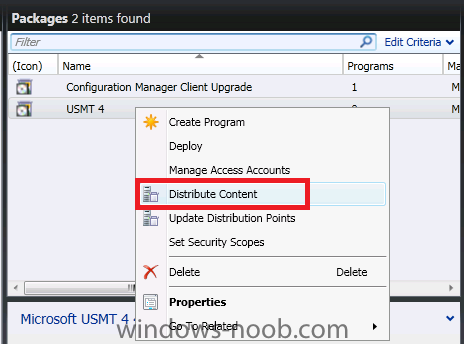

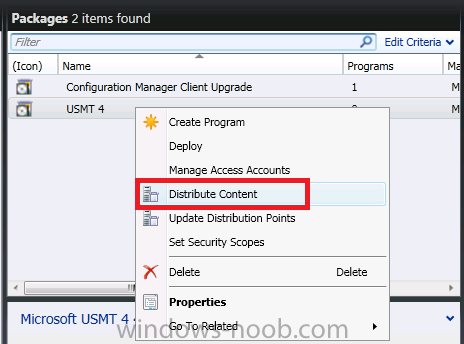

Note: Don't forget to Distribute your USMT package to your Distribution Points, to do so follow the way we did above for distributing the Operating System Image (click on Distribute Content and follow the wizard).



distribute usmt package.png

Share this post


Link to post
Share on other sites

Step 4. Create the Deploy Windows 7 X64 Task Sequence

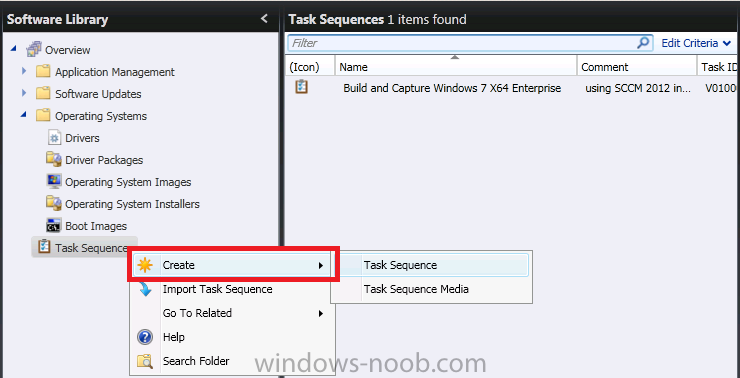

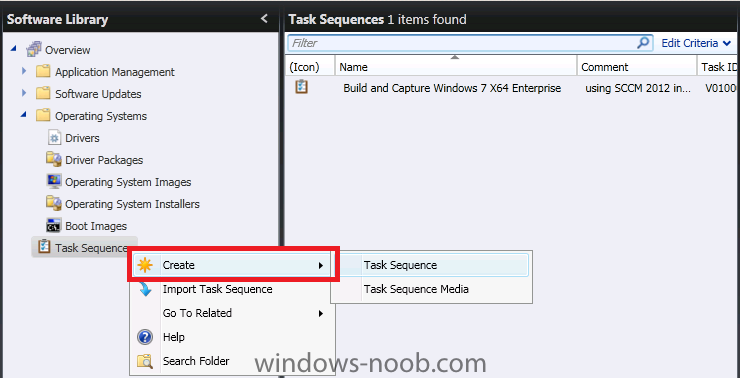

Right Click on Task Sequences and choose Create, Task Sequence



create new ts.png

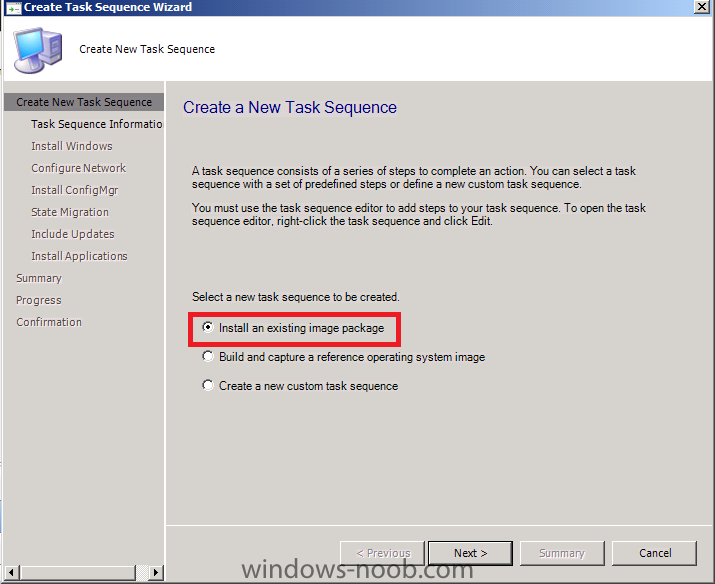

choose the first item, Install an existing image package



install an existing image package.png

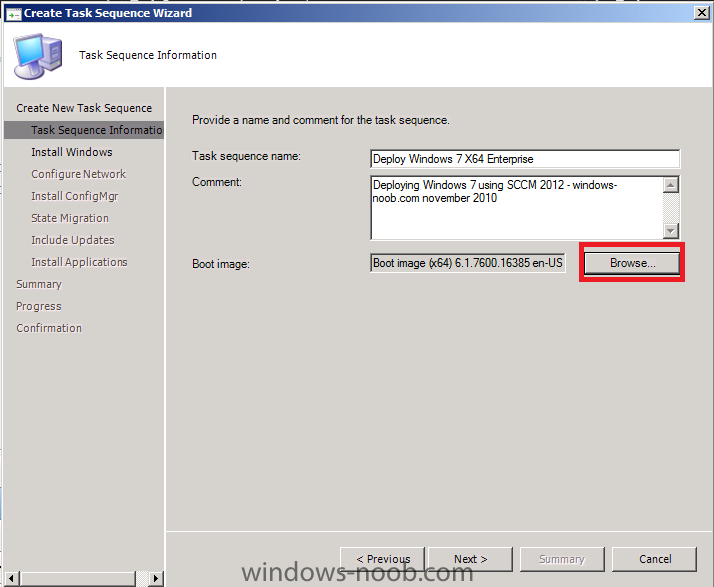

fill in details about our image and select the X64 boot image by clicking on Browse



create task sequence wizard.png

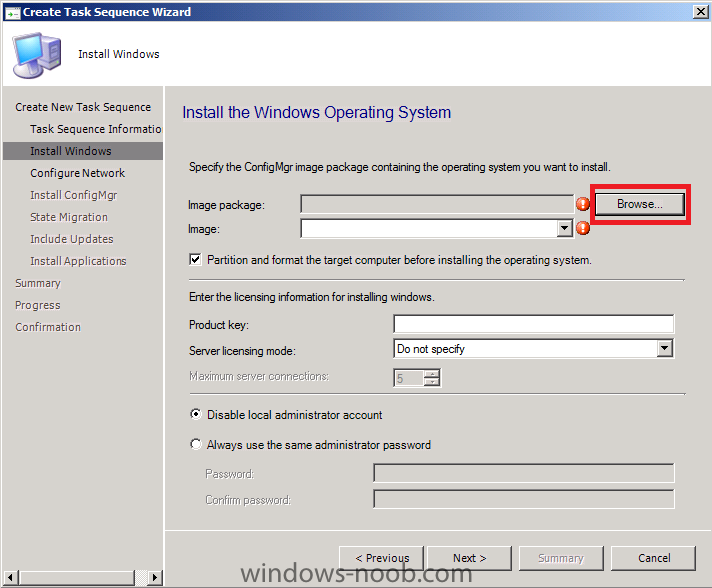

on the Install the Windows Operating System image screen appears, click browse



browse for image.png

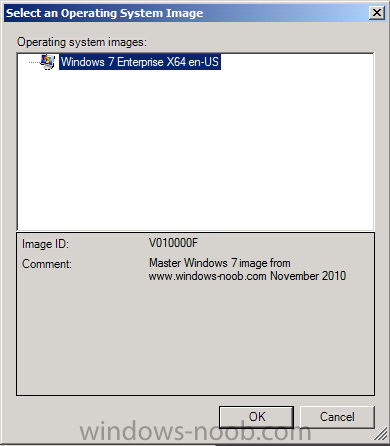

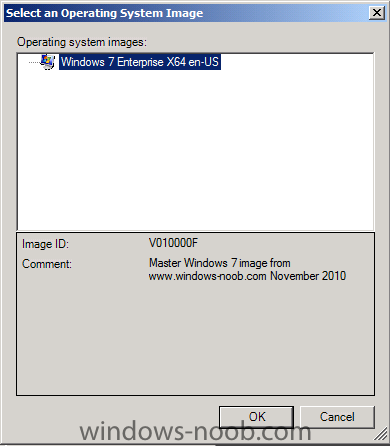

select our image



select an image.png

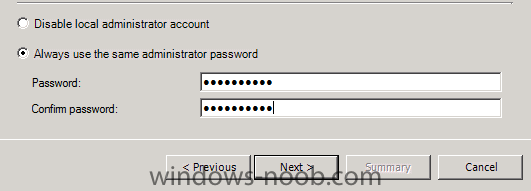

make sure to select the option Always use the same Administrator Password (useful for troubleshooting failed deployments, can be changed later via a script or gpo)



always use the same administrator password.png

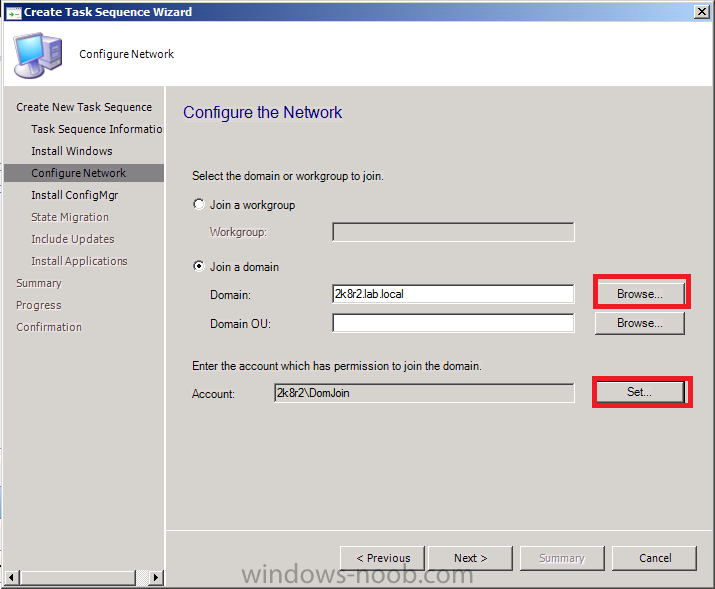

for Configure The Network, select your domain and enter a user with permissions to join the Domain (domjoin)



configure the network.png

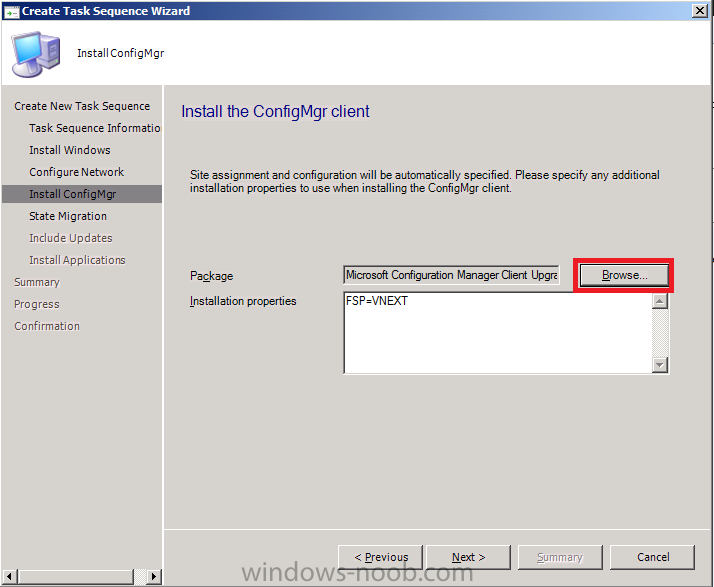

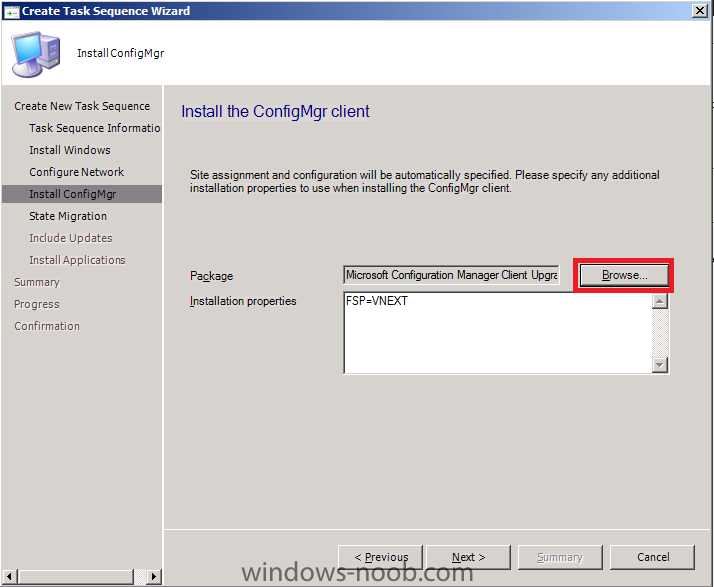

click on browse and select our Configuration Manager Client package we created earlier



install the configuration manager client.png

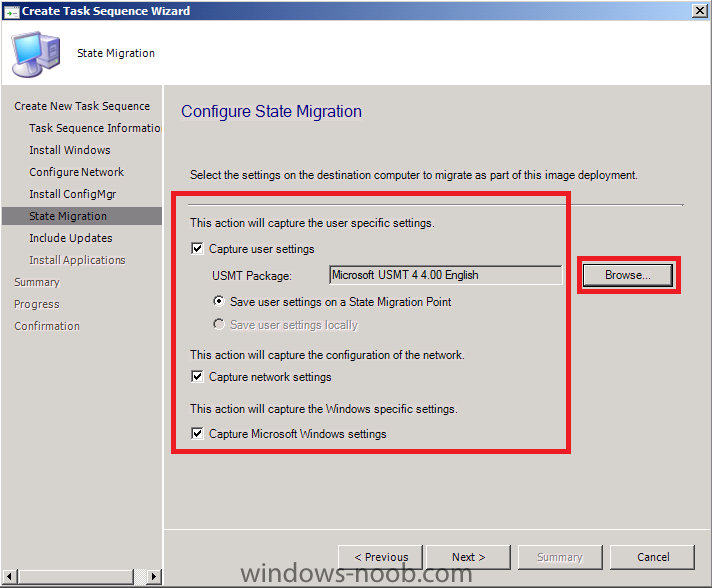

for State Migration select our USMT 4 package which we created above by clicking on browse



state migration.png

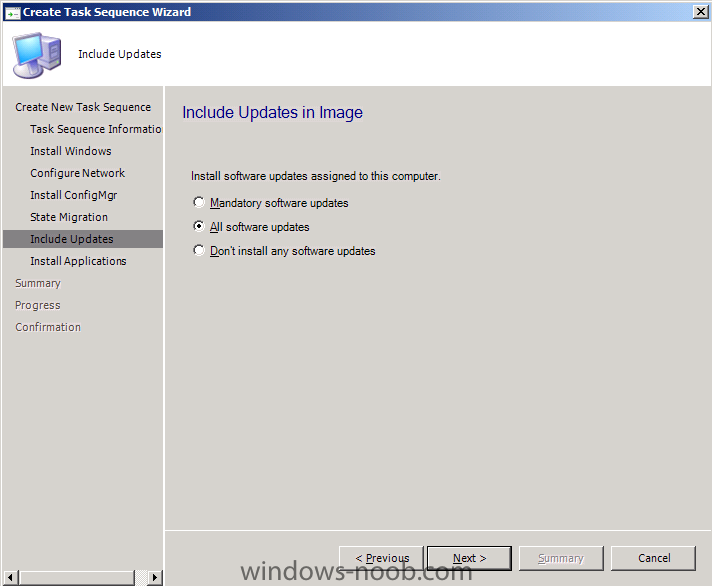

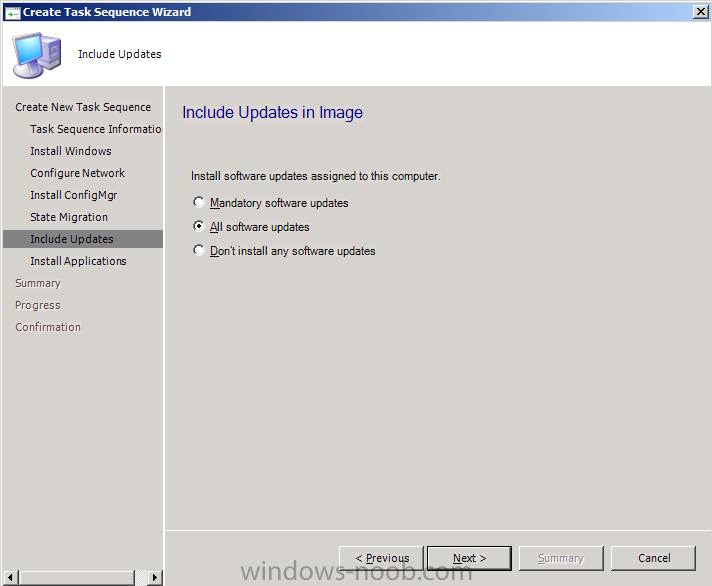

for updates in the image, choose All Software Updates



all software updates.png

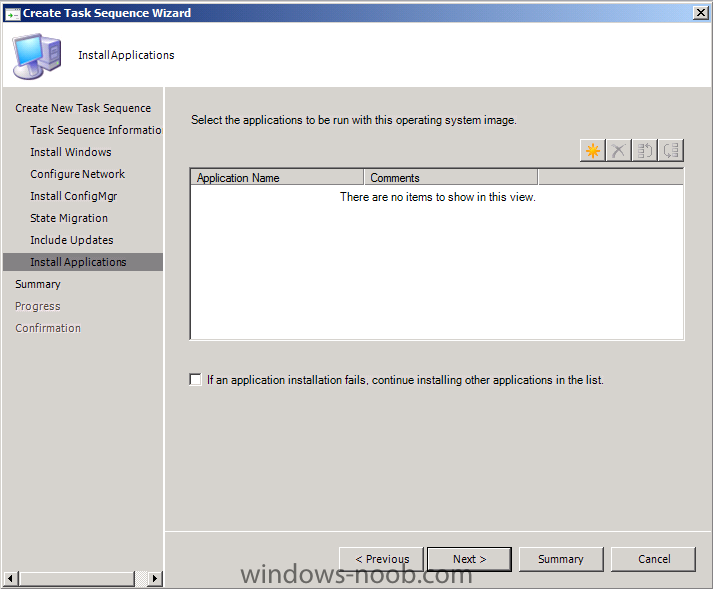

for applications don't select any for now !



dont install any apps.png



click next at the summary, review the progress and close at the confirmation



deploy ts doine.png

Share this post


Link to post
Share on other sites

Step 5. Deploy (advertise) the Task Sequence to the Unknown Computers Collection

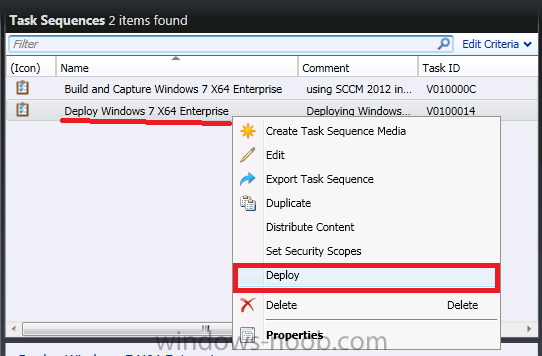

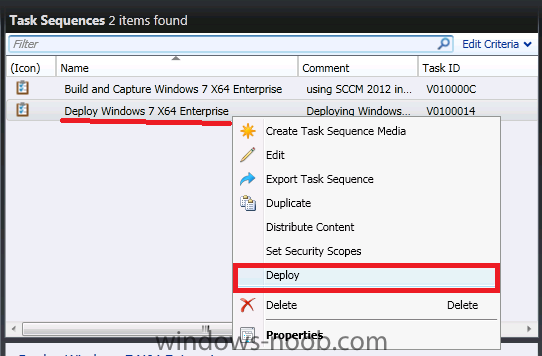

Highlight our newly created Deploy task sequence, right click and choose Deploy



deploy windows 7.png

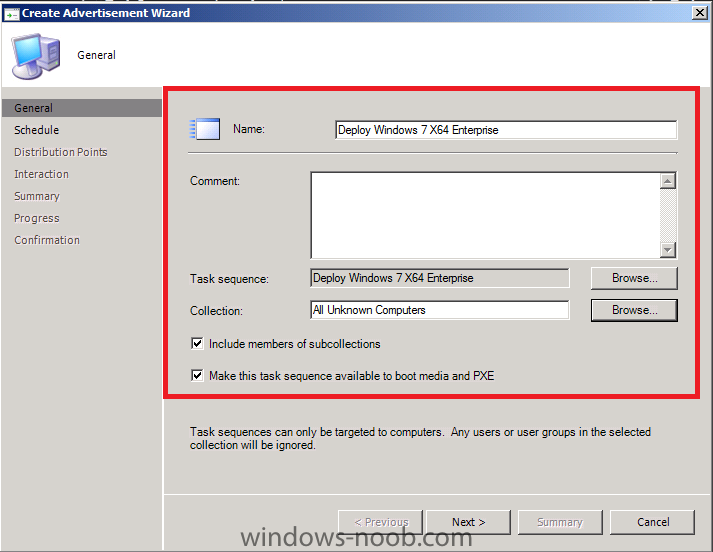

when the wizard appears, browse for the All Unknown Computers collection, and make sure to place a checkmark in Make this task sequence available to boot media and PXE



deploy pxe.png

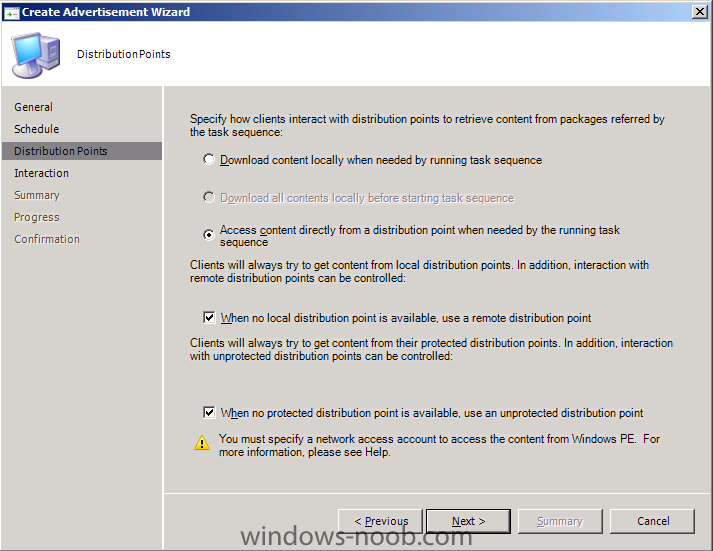

leave the schedule as it is (optional), click next, set the distribution point settings as follows



dp settings for deploy ts.png

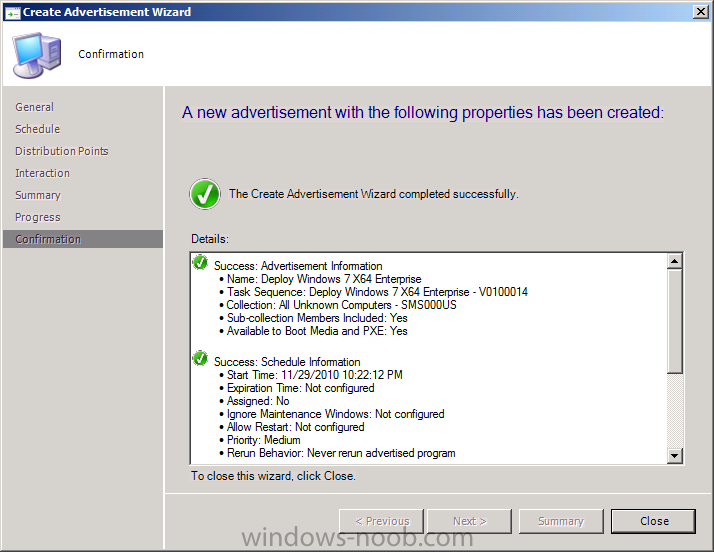

click next through Interaction, Summary, review the progress and finally click close at the confirmation.



ad done.png

Share this post


Link to post
Share on other sites

Step 6. Create a new hyperV virtual machine



Follow these steps to create a new HyperV virtual machine, called Windows 7 Client #2.

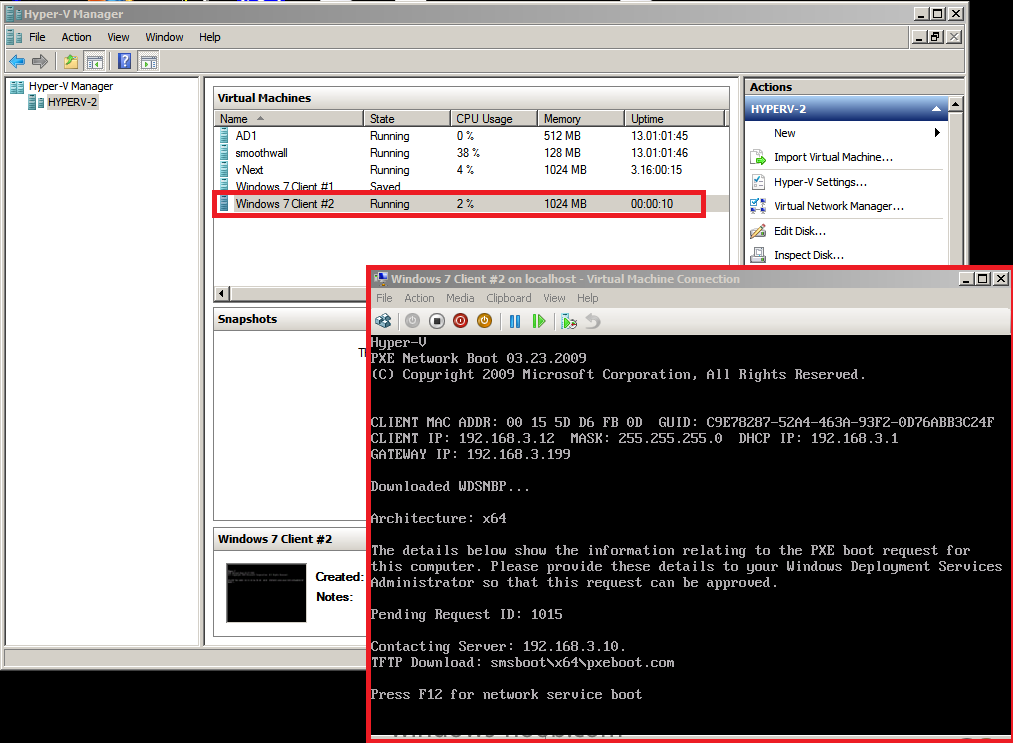

Once created, start the VM and PXE boot it

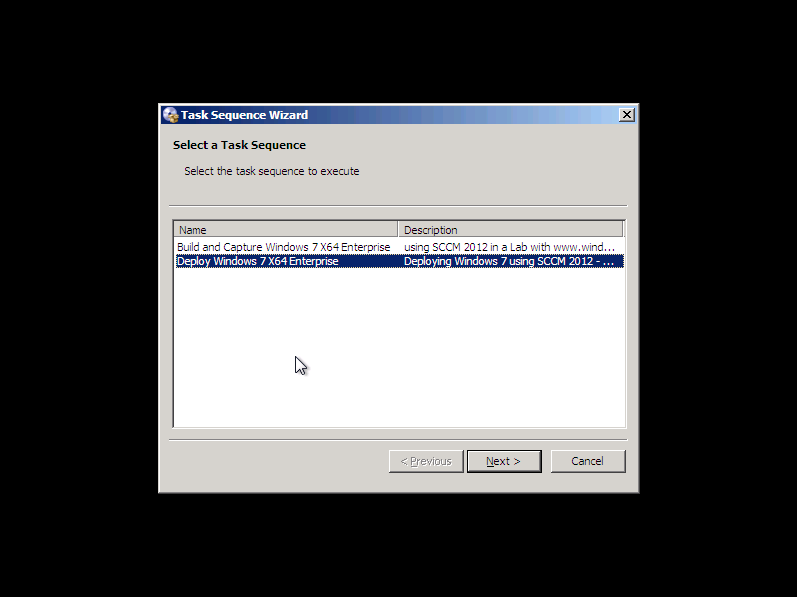

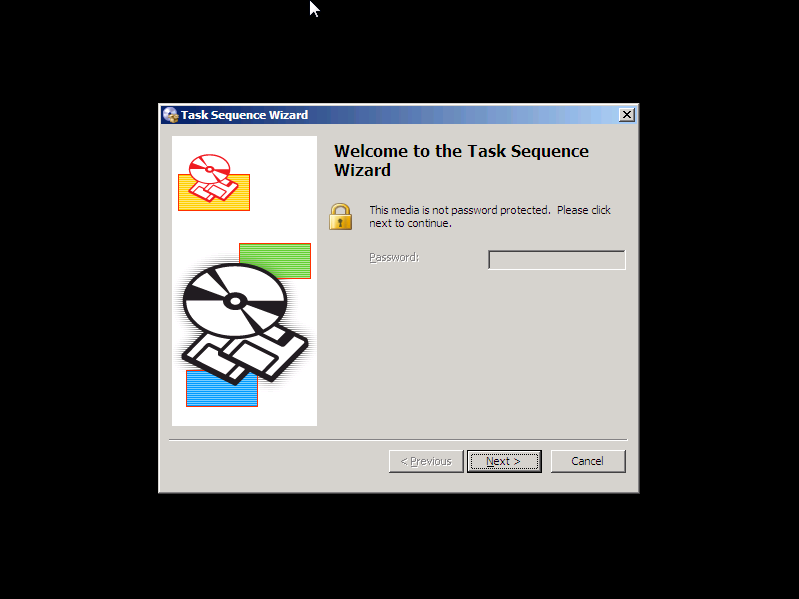

at the welcome to Task Sequence wizard click next



task sequence wizard menu.png



and select our Deploy Windows 7 X64 Enterprise Task Sequence from the menu and click next



deploy windows 7 x64.png

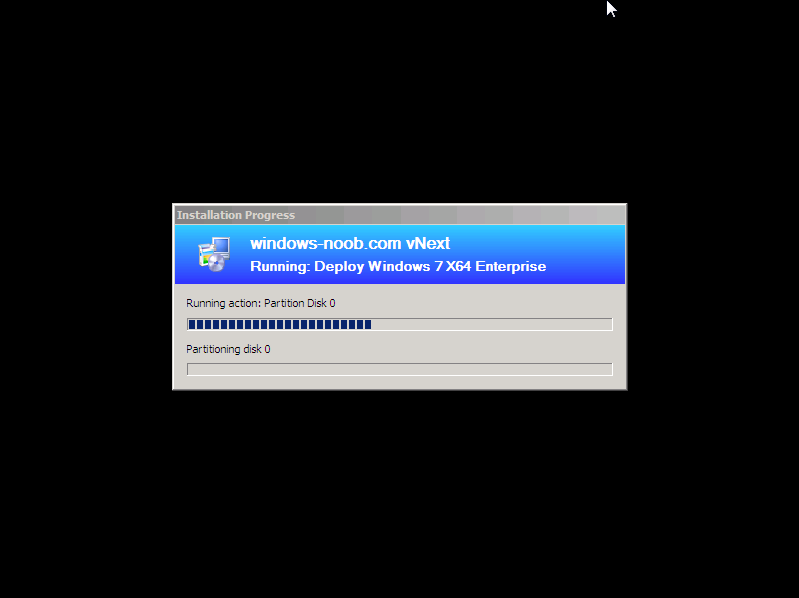

the deployment begins



deploy win7.png

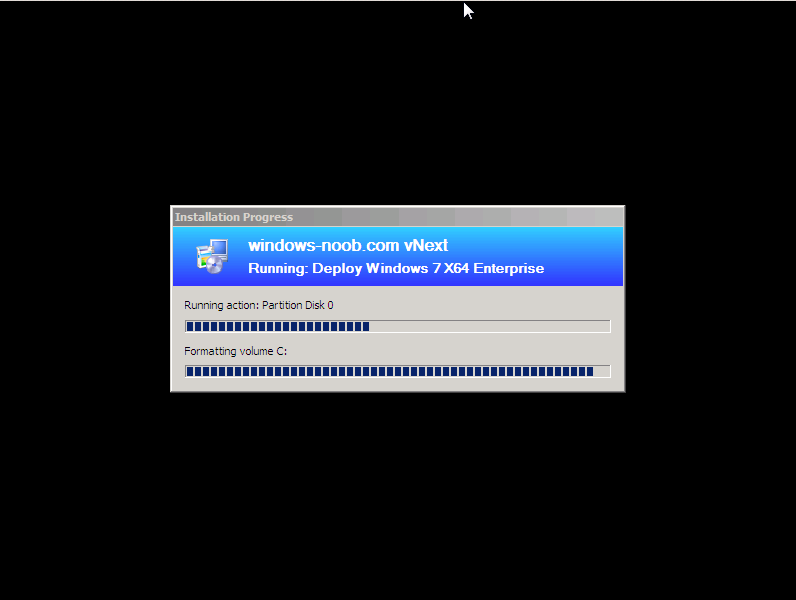

formatting the disc takes a while (we'll fix that later)



formatting disc.png

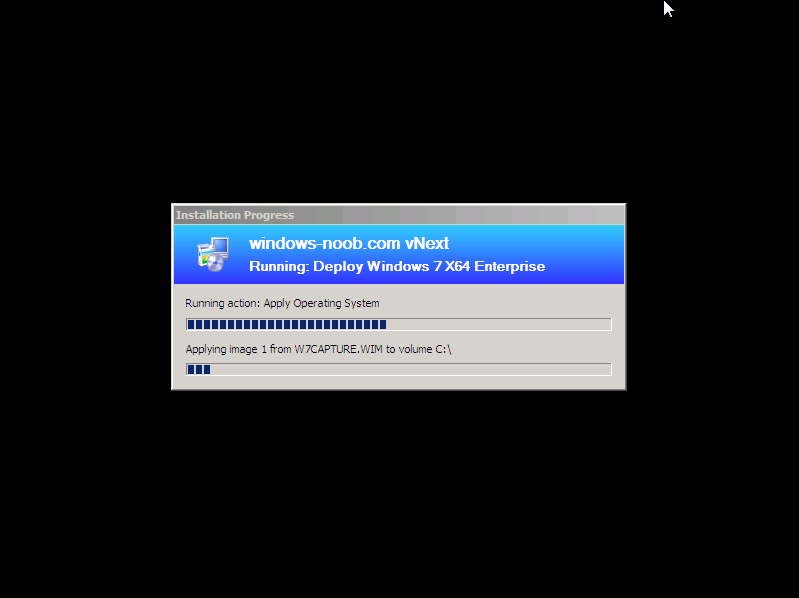

and now we see our captured image is getting applied to our VM



applying captured image.png

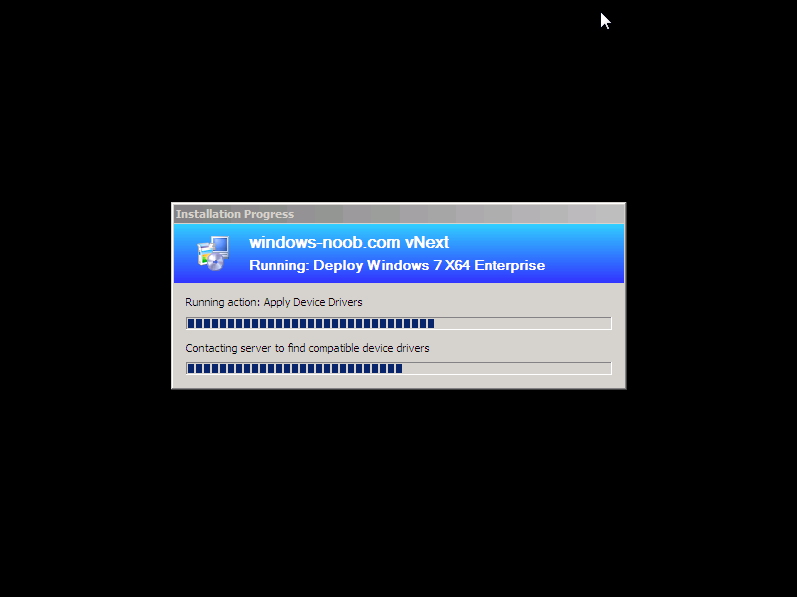

applies drivers



apply drivers.png



then we see the setup windows and configmgr step (involves a reboot)

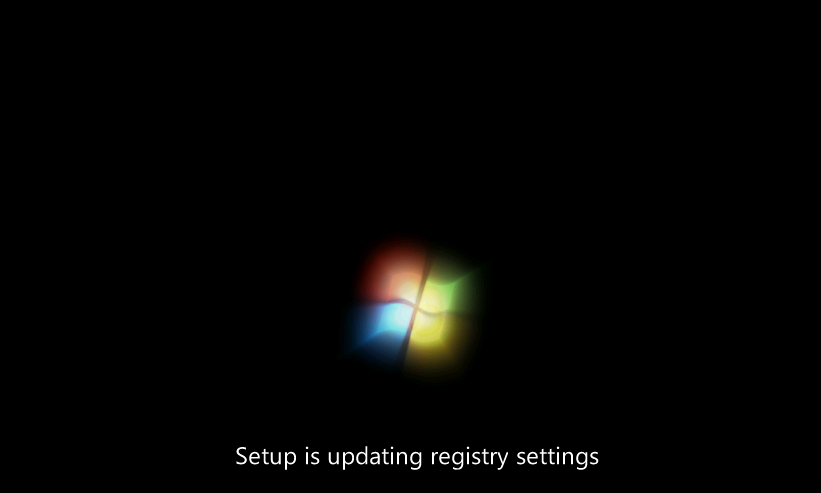

and after the reboot Setup is updating ...



setup is updating....png



after another reboot...

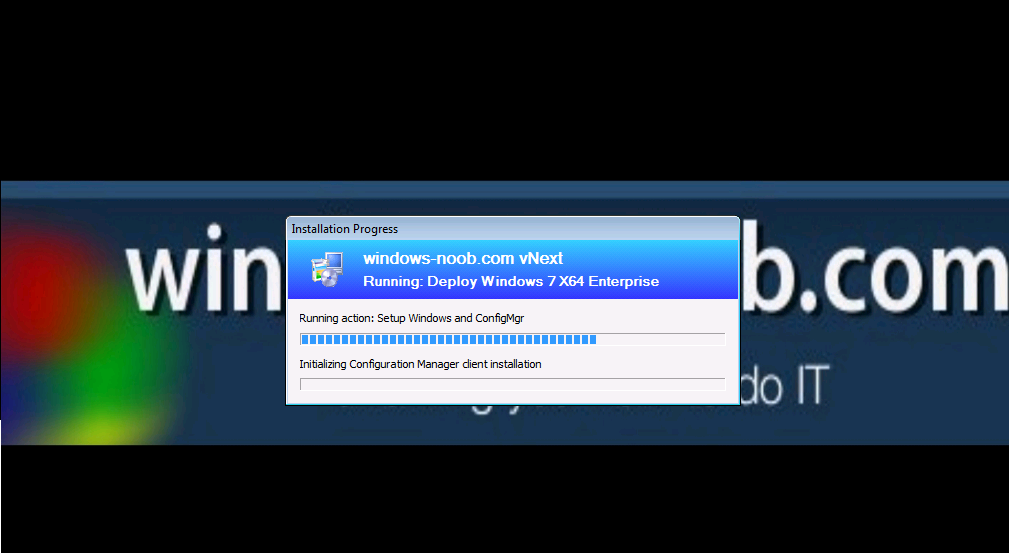

the Setup and Windows and configmgr step continues and installs the configmgr client..



setup windows and configmgr.png

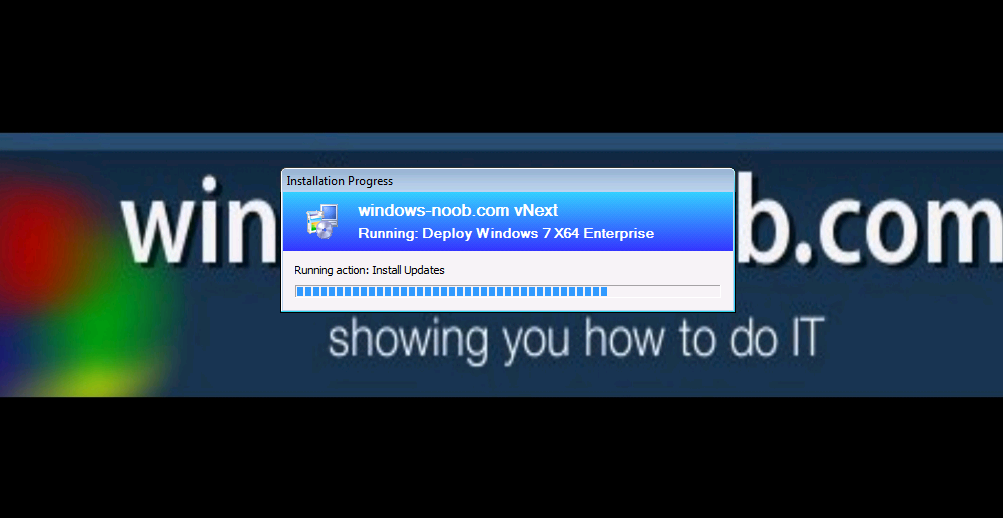

and now our Install Software Updates step takes over



install software updates.png

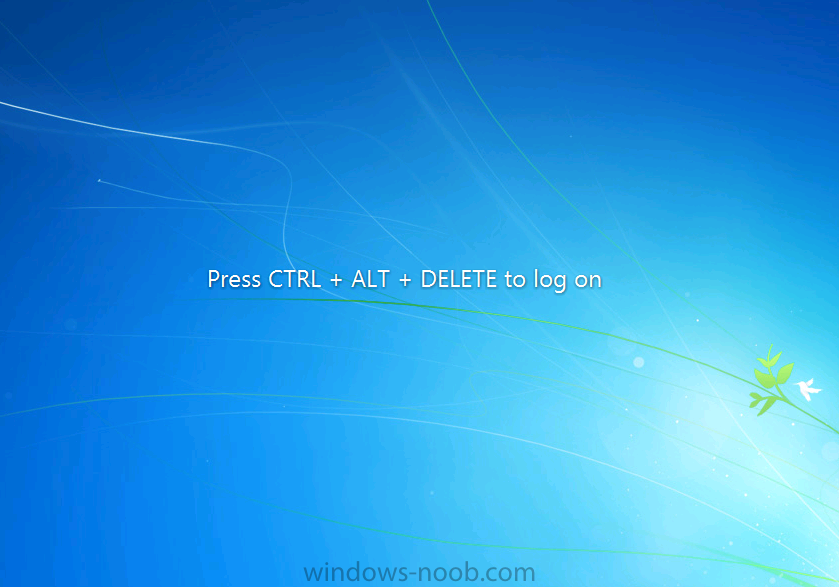

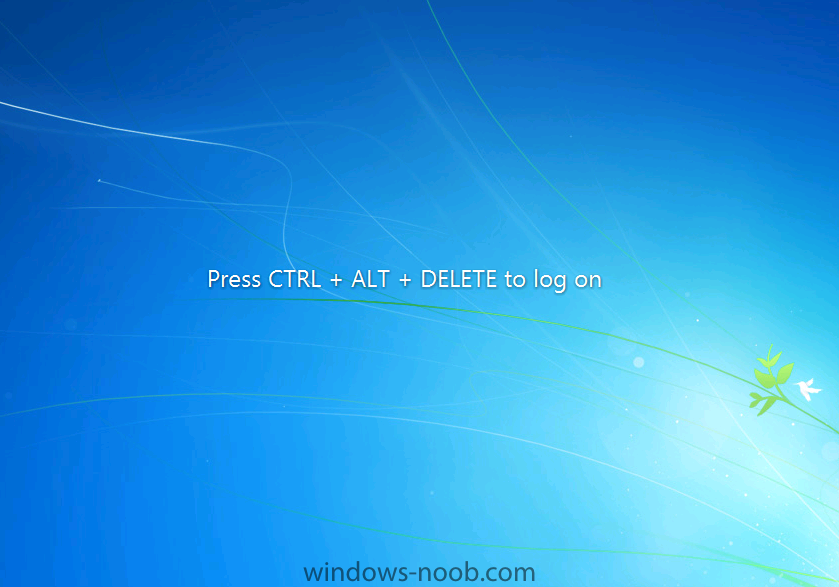

and then we are done
