using vNext in a LAB - Part 8. Installing WSUS, Adding SLP and SUP roles

Recommended Posts

In Part 1. of this series we Installed vNext.

In Part 2., we then Configured vNext to use the New AD Site as a boundary and Configured Discovery Methods in vNext.

In Part 3, we installed the Reporting Point Role along with some additional roles and configured them.

In Part 4 we configured the client Agents and deployed the vNext Client.

In Part 5 we deployed an Application to All Users.

In Part 6 we added Windows Deployment Services, added the PSP role, added the Windows 7 Enterprise image, and updated our boot image for Deploying Windows 7.

In Part 7 we created our Build and Capture Task Sequence, enabled the Network Access Account, Advertised (Deployed) the Task Sequence, and created a new hyper-v virtual machine for capturing the wim on.





Step 1. Add the WSUS role to our vNext server.



On our vNext server startup Server Manager. Click on Roles and click on Add Roles.



add roles sup.png

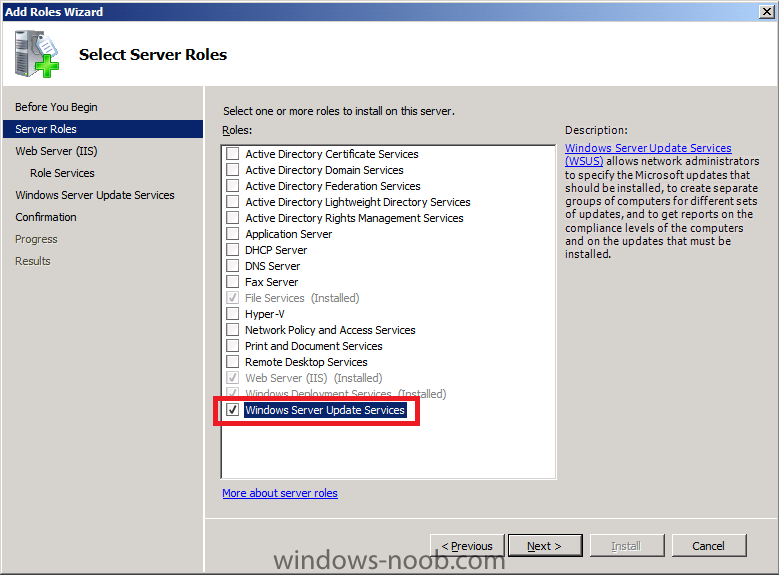

click on Next at the wizard welcome page, and select Windows Server Update Services (WSUS) from the list, answer yes to the required role services



wsus role.png

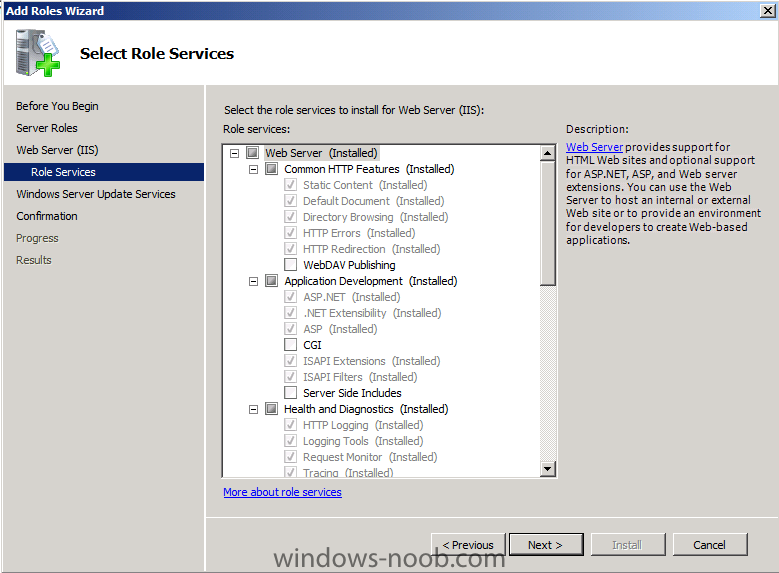

you'll get a note about Web Server IIS, click next and next again



iis roles services.png

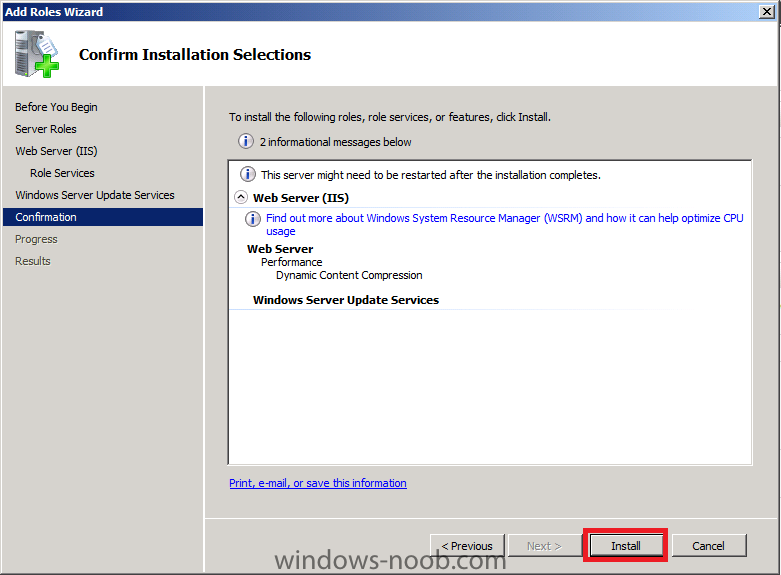

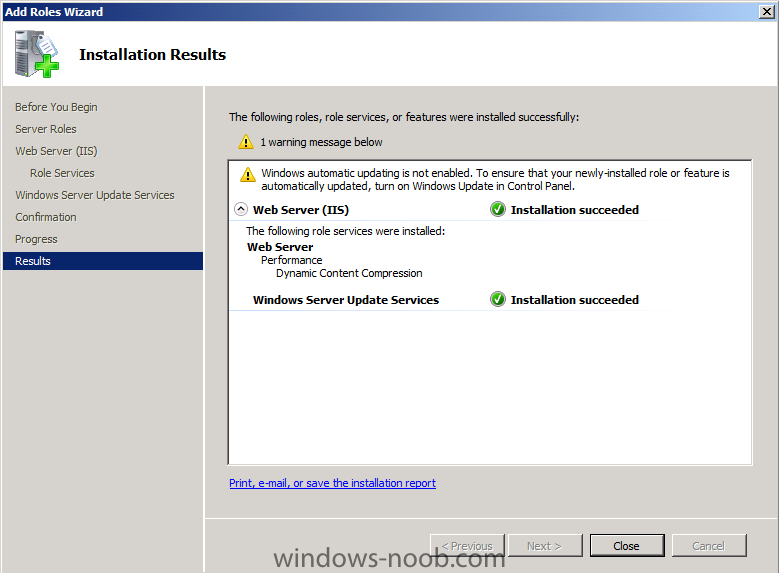

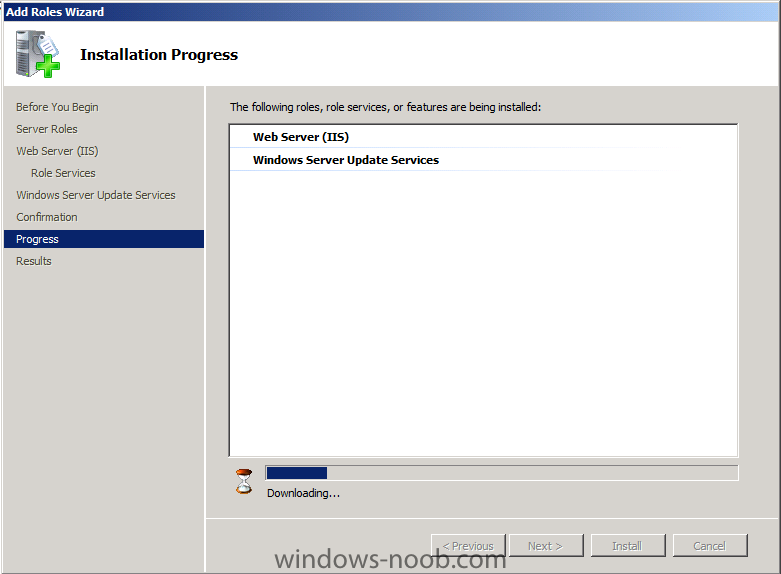

Click Install when prompted and review your results when done.



install wsus.png



At this point the WSUS role will be downloaded and then installed. Depending on your internet connection this could take some time.

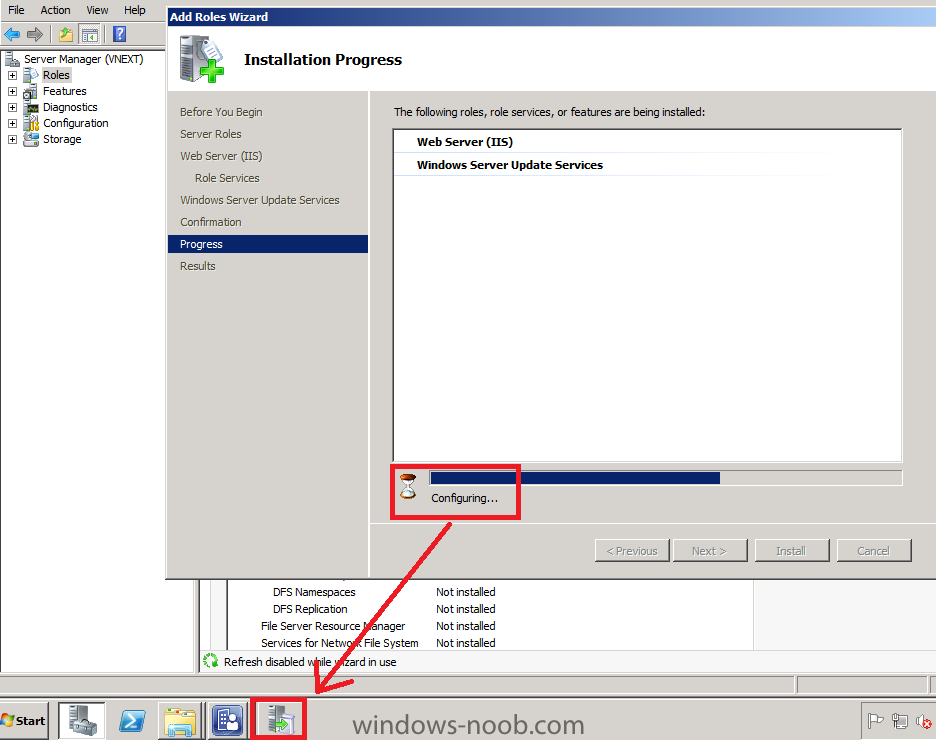

after a while it will say Configuring and (hidden from view) will be the WSUS wizard, so click on the wizard to bring it forward

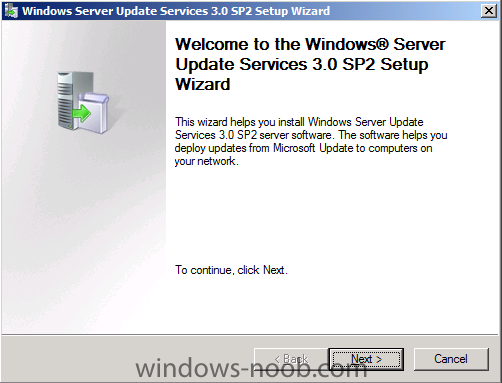

you'll now see the Welcome to the WSUS 3.0 SP2 wizard



welcome to the wsus wizard.png

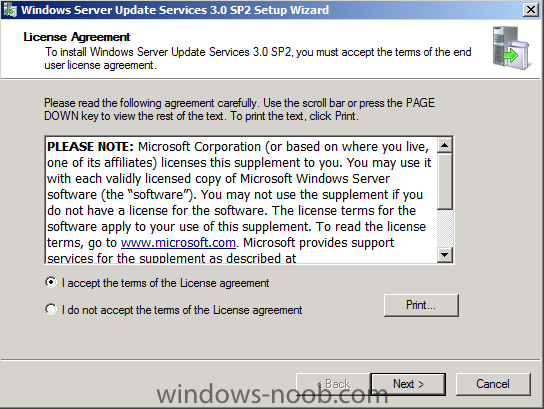

click next to continue and accept the EULA

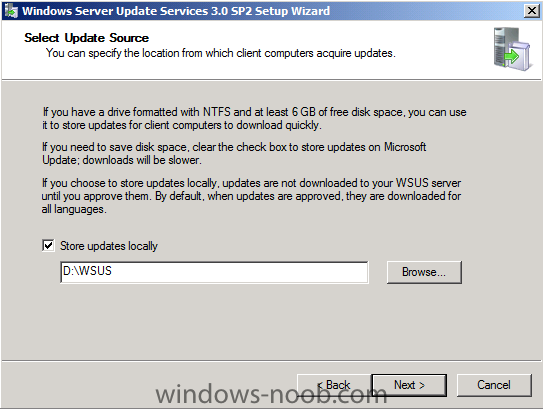

accept the local download defaults (store updates locally)



store updates locally.png

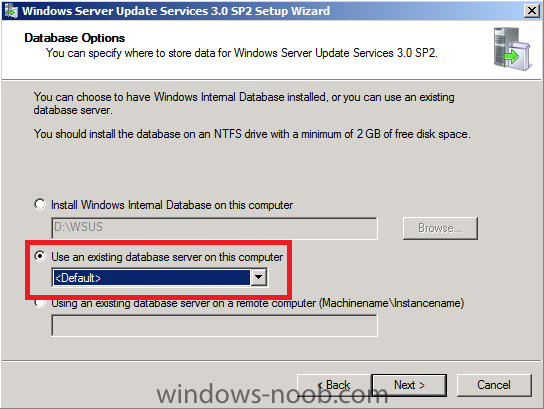

choose Use an Existing Database on this server



use existing.png

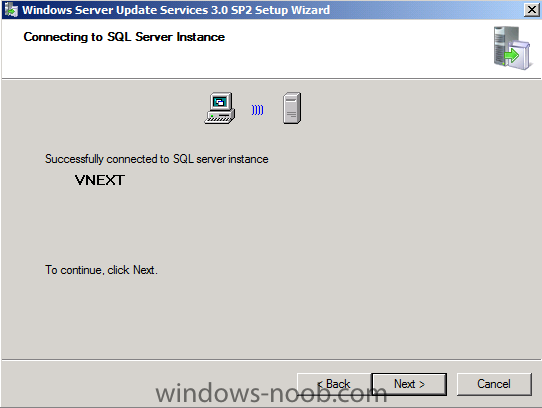

and it should say successfully connected to SQL Server Instance



successfully connected to SQL Server Instance.png

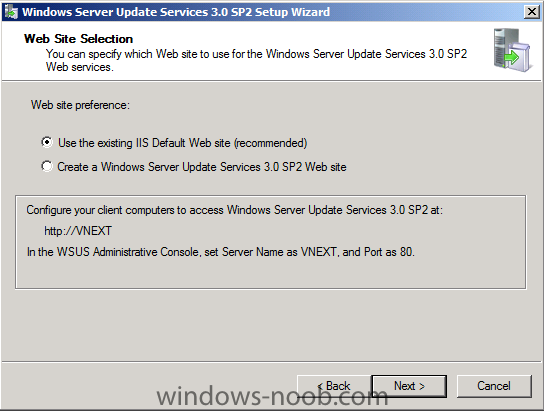

accept the Use an existing Default website



default website.png

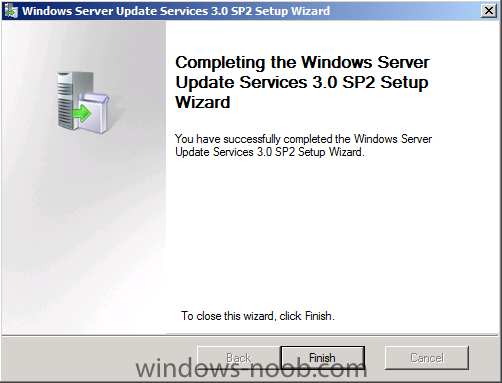

click next at the summary, click Finish

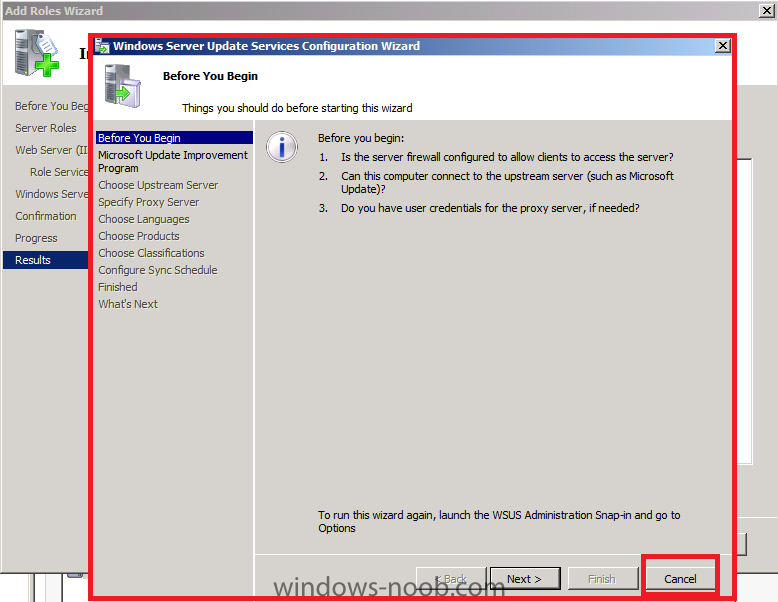

followed by Cancel *you must cancel the Windows Server Update Services Configuration Wizard*






finally click on Close



close wsus.png

Share this post


Link to post
Share on other sites

Step 2. Add the SUP and SLP roles

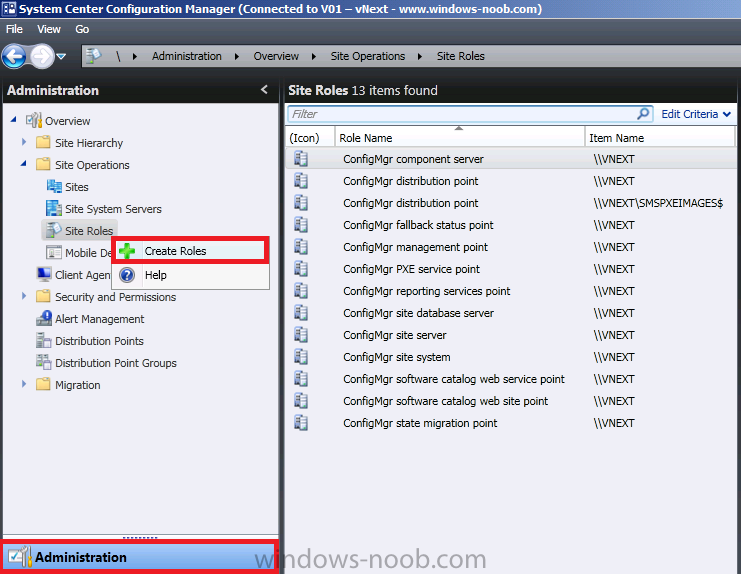

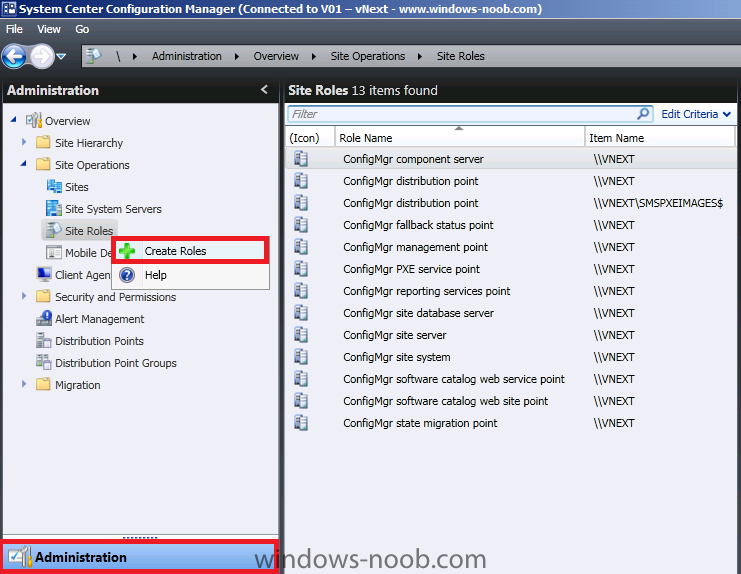

We will now add the Server Locator Point and Software Update Point roles to our vNext server. In the Wunderbar, click on Administration, select Site Operations, Site Roles. Right click and choose Create Roles



create roles for sup.png

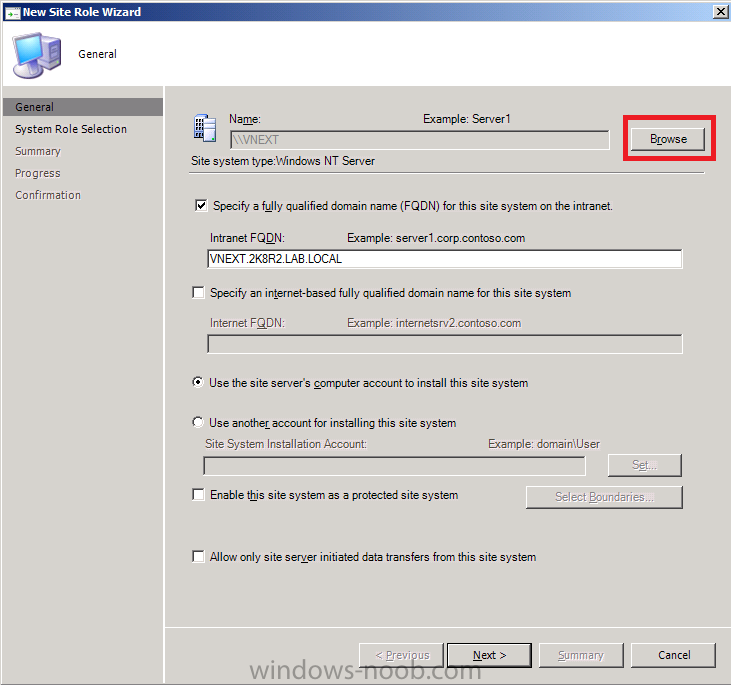

click on browse and select our vNext server



browse to vnext.png

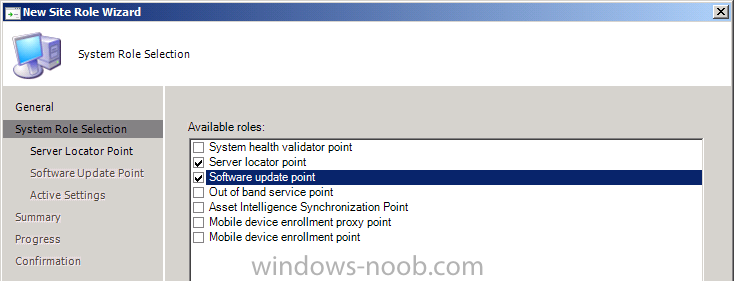

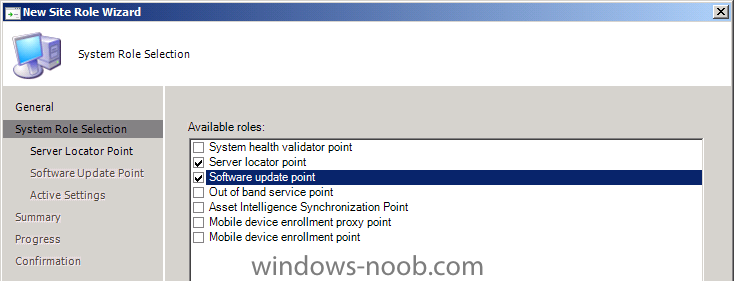

select Server Locator Point and Software Update Point and click next



new roles.png

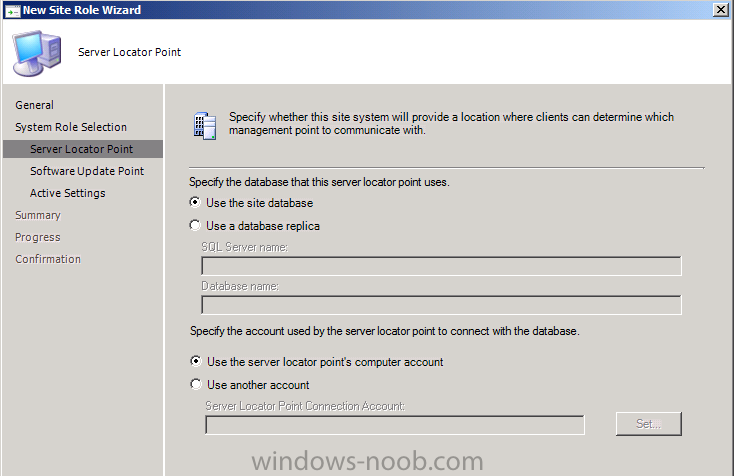

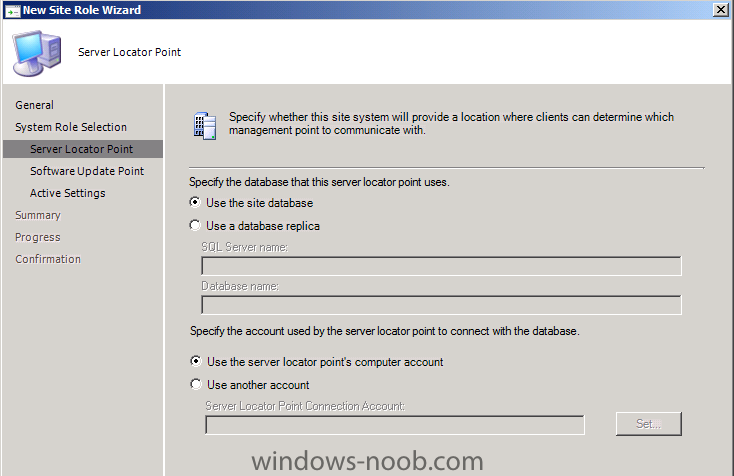

Accept the SLP defaults

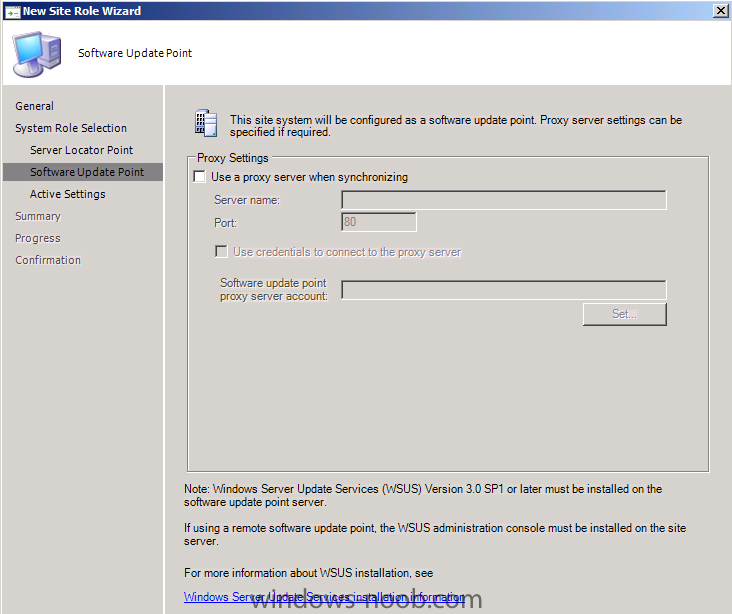

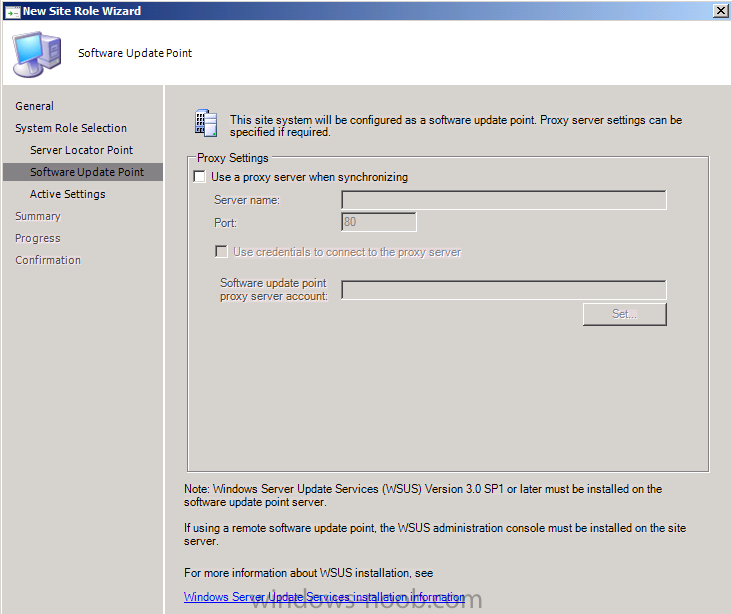

enter your proxy settings here if you have any otherwise click next



sup settings.png

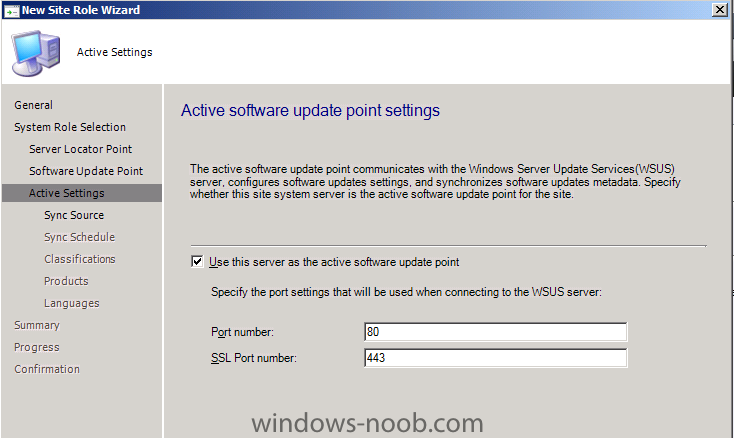

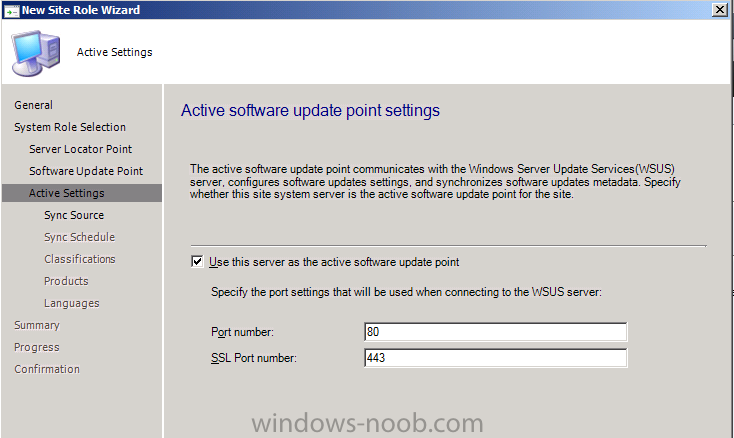

select Use this server as the active software update point

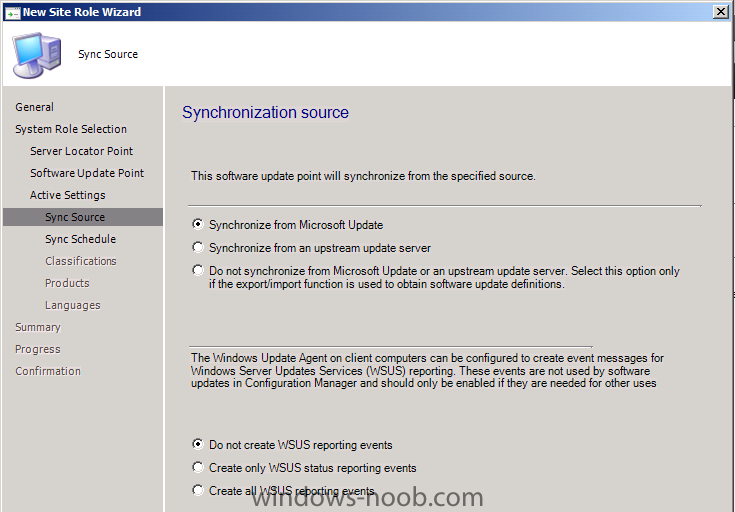

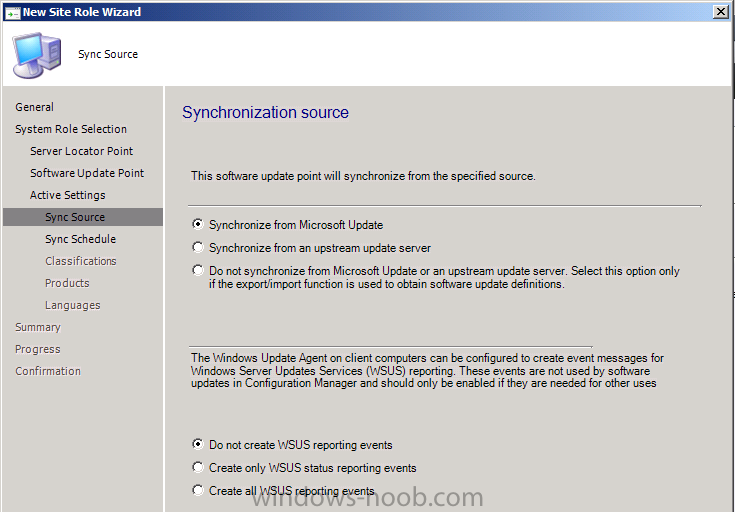

leave the synchronisation source settings as they are



synchronisation source.png

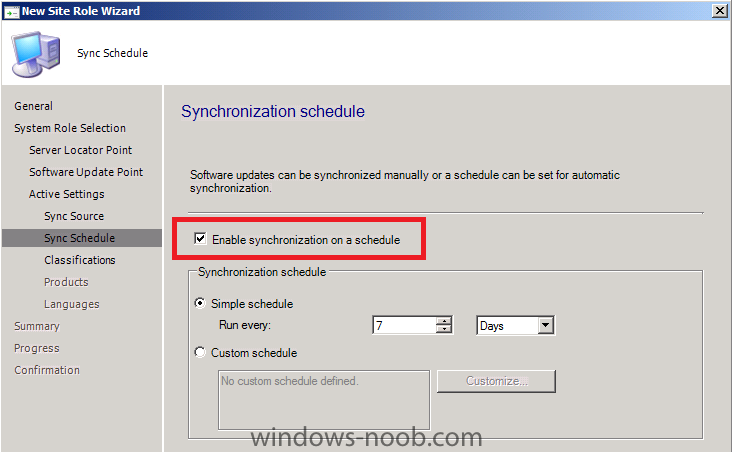

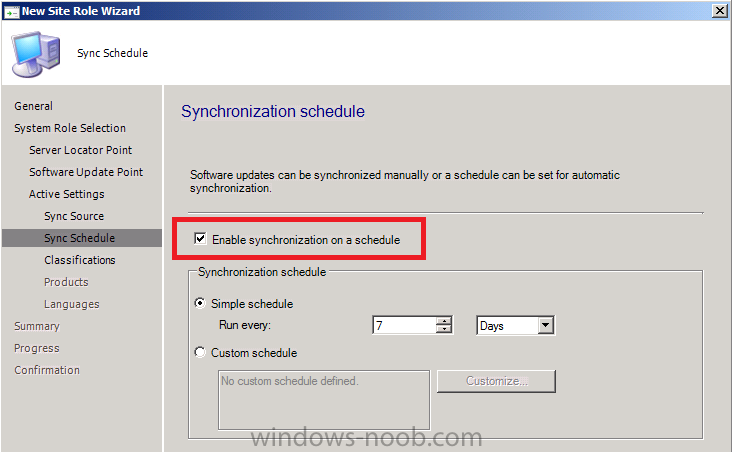

enable the schedule, the 7 day default is good enough



enable sync.png

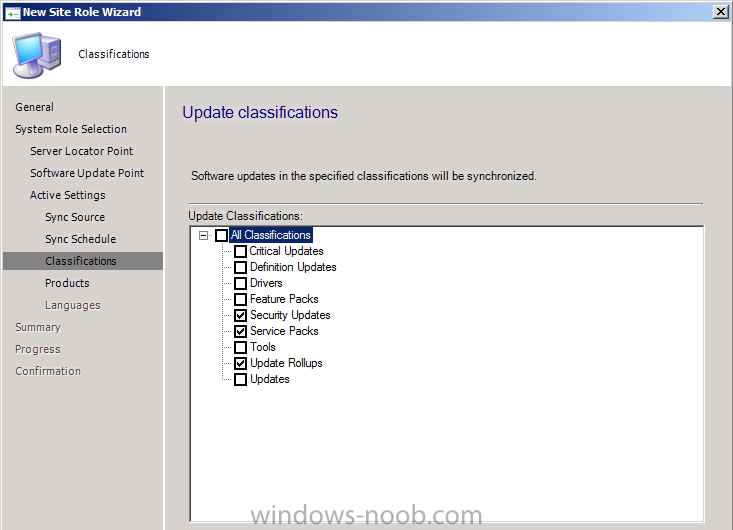

leave Classifications as they are

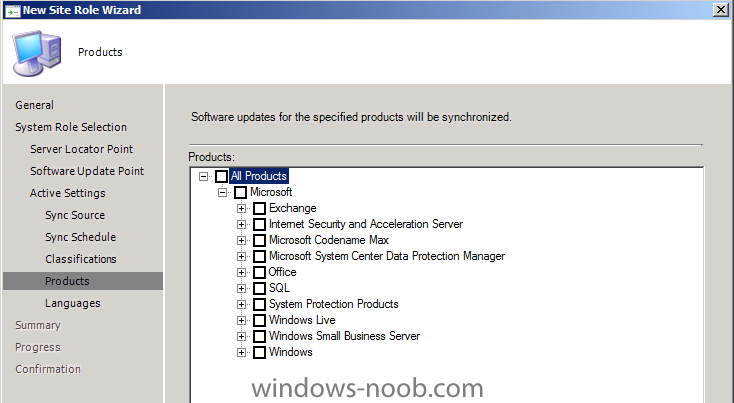

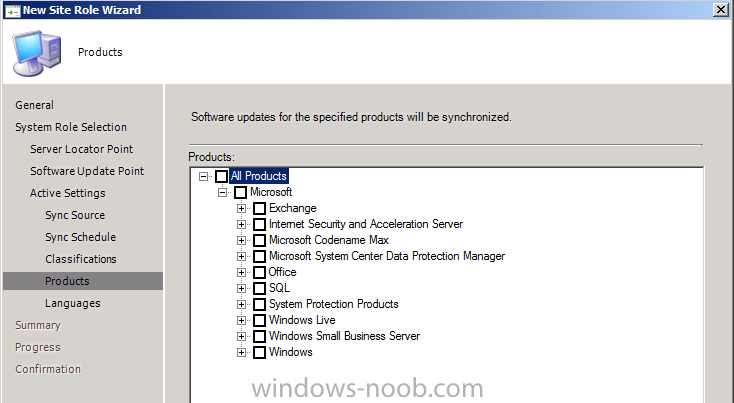

de-select all products (we will choose them later)



Note: No updates will appear in the vNext console until you select updates from the Products list, we will do this later.

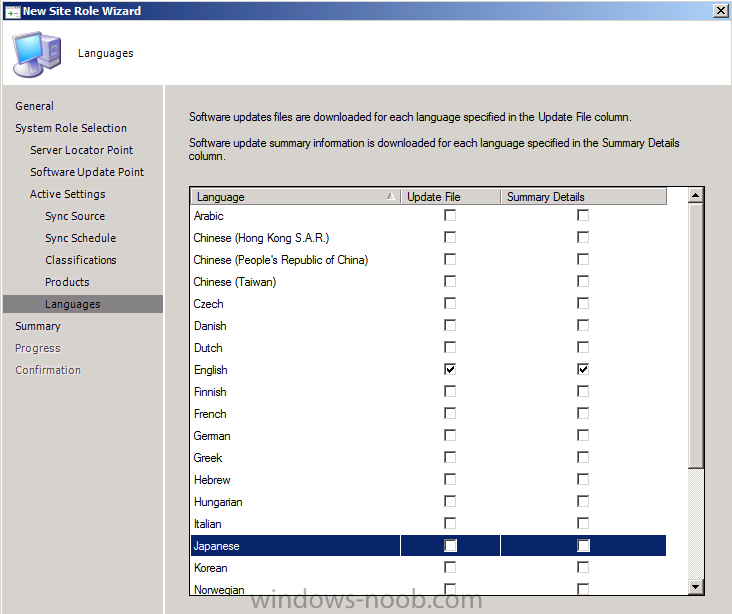

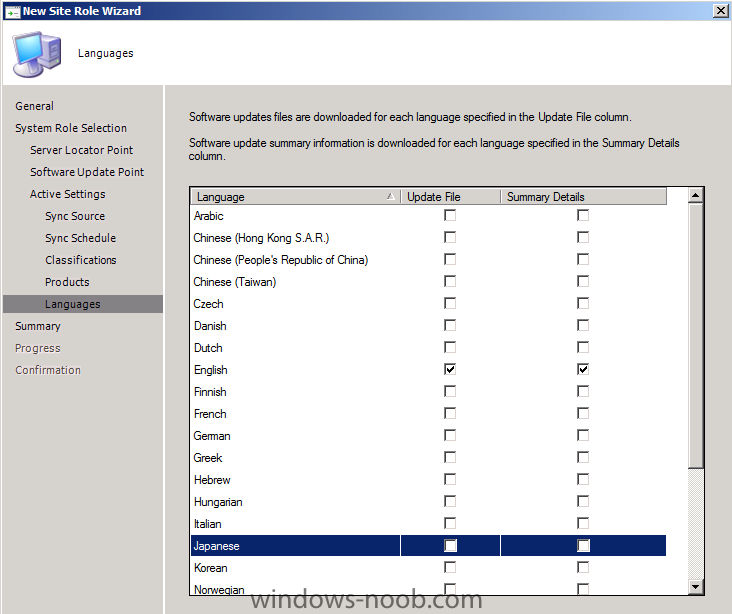

make sure only English is selected

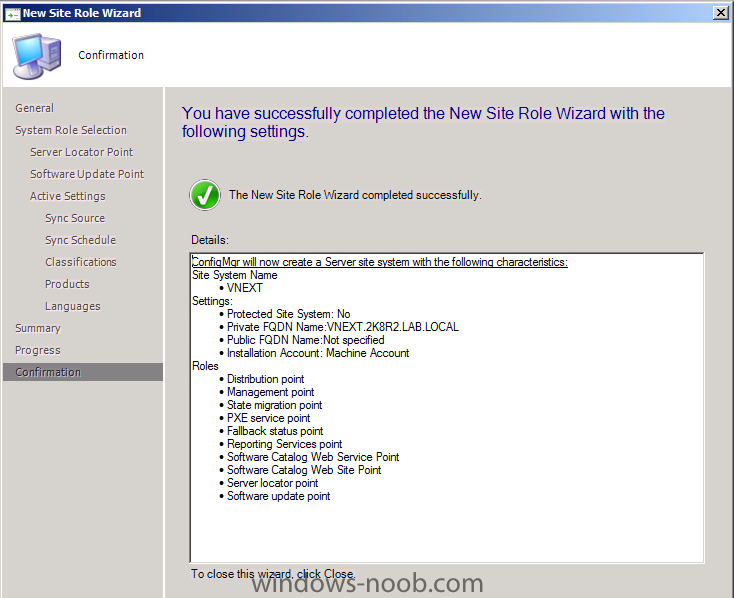

click next at the summary and review the confirmation



sup done.png
