Adding parameters to your web service

Question

Adding paramters to a webservice.





Ok now that the webservice is working, lets add two parameters (name and age) that we can pass to our webservice, go back and edit the code in Visual Studio.



Change this



using System;
using System.Collections.Generic;
using System.Web;
using System.Web.Services;

namespace windows_noob_webservice
{
   /// <summary>
   /// Summary description for Service1
   /// </summary>
   [WebService(Namespace = "http://windows-noob.com/")]
   [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
   [system.ComponentModel.ToolboxItem(false)]
   public class Service1 : System.Web.Services.WebService
   {

       [WebMethod]
       public string HelloWorld()
       {
           return "Hello World";
       }
   }
}





To this





using System;
using System.Collections.Generic;
using System.Web;
using System.Web.Services;

namespace windows_noob_webservice
{
   /// <summary>
   /// Summary description for Service1
   /// </summary>
   [WebService(Namespace = "http://windows-noob.com/")]
   [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
   [system.ComponentModel.ToolboxItem(false)]
   public class Service1 : System.Web.Services.WebService
   {

       [WebMethod]
       public string HelloWorld()
       {
           return "Hello World";
       }

       [WebMethod]
       public string HelloWorld2(string name)
       {
           return "Hi " + name;
       }

       [WebMethod]
       public string HelloWorld3(string name, string age)
       {
           return "Hi " + name + " your age is " + age;
       }

   }
}



Build the code (compile it) and you can simply copy the DLL found in bin to your webserver to test the new functions.



copy dll.jpg

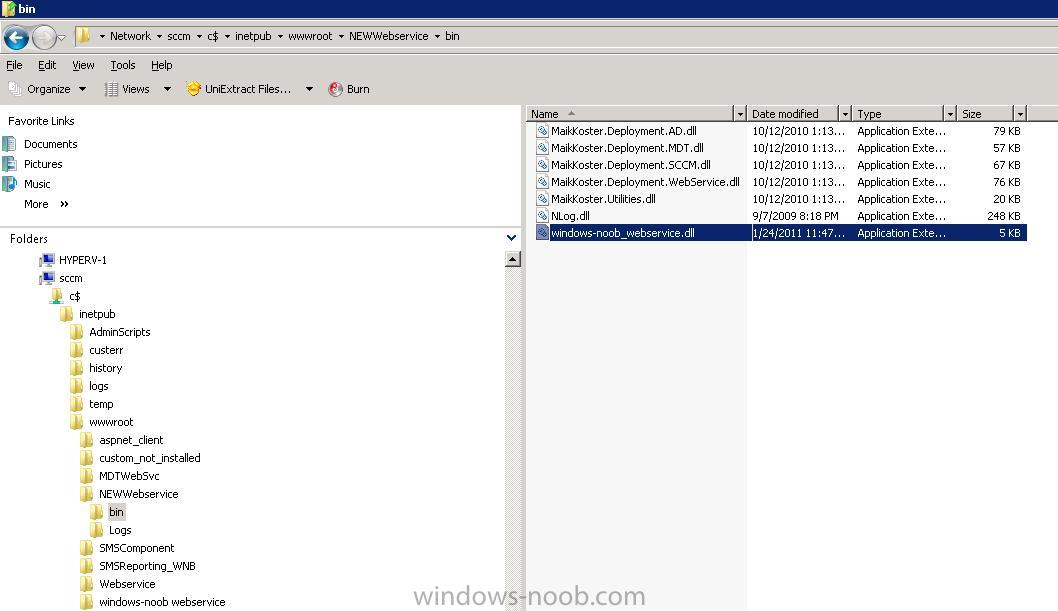

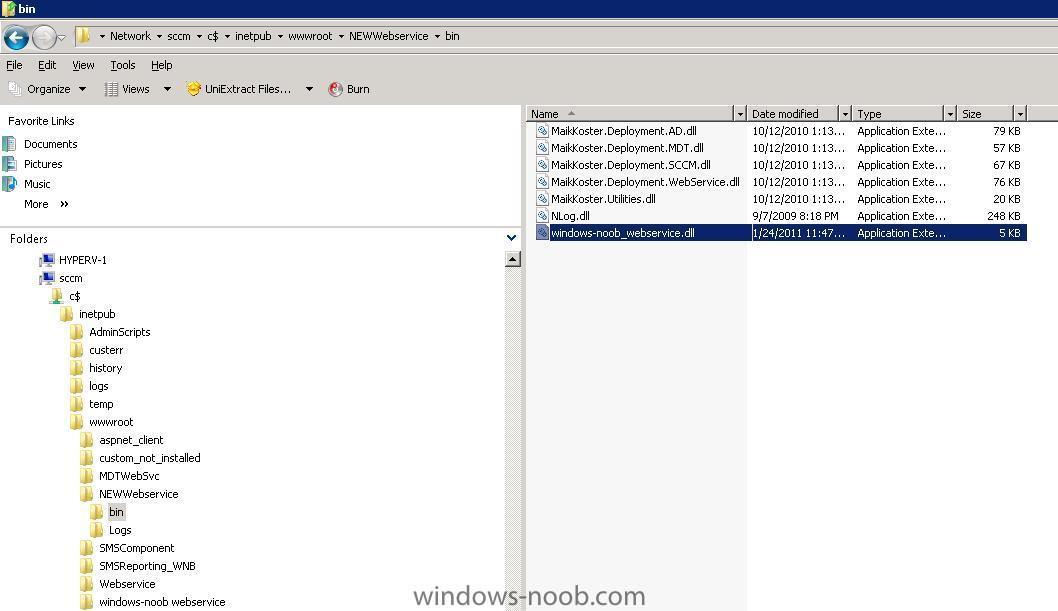

Copy the dll to the BIN folder of your current webservice on your server…



bin folder.jpg



Copy the new web service operation to your CustomSettings.ini file and update your MDT Files package once done.

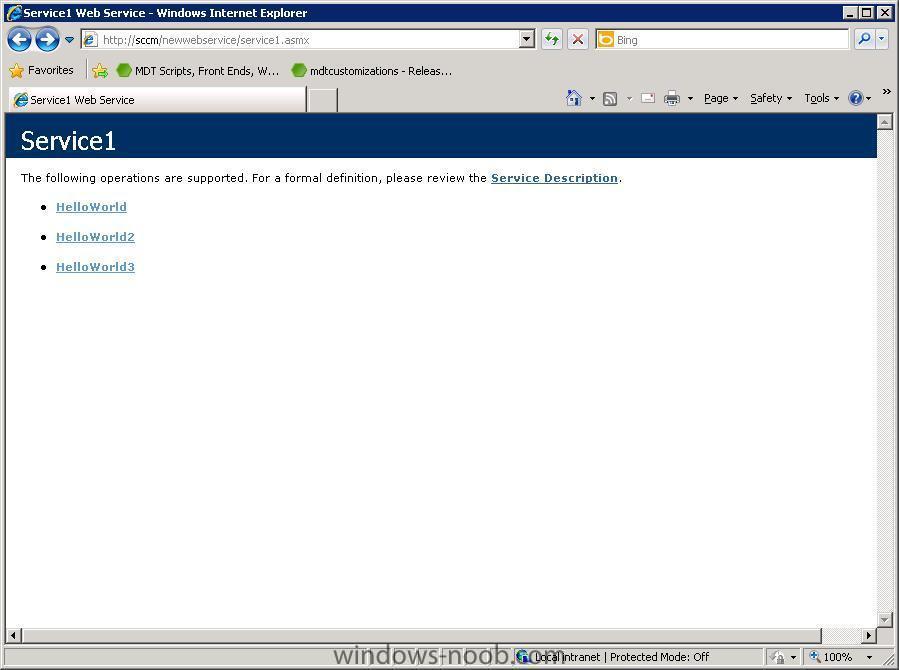

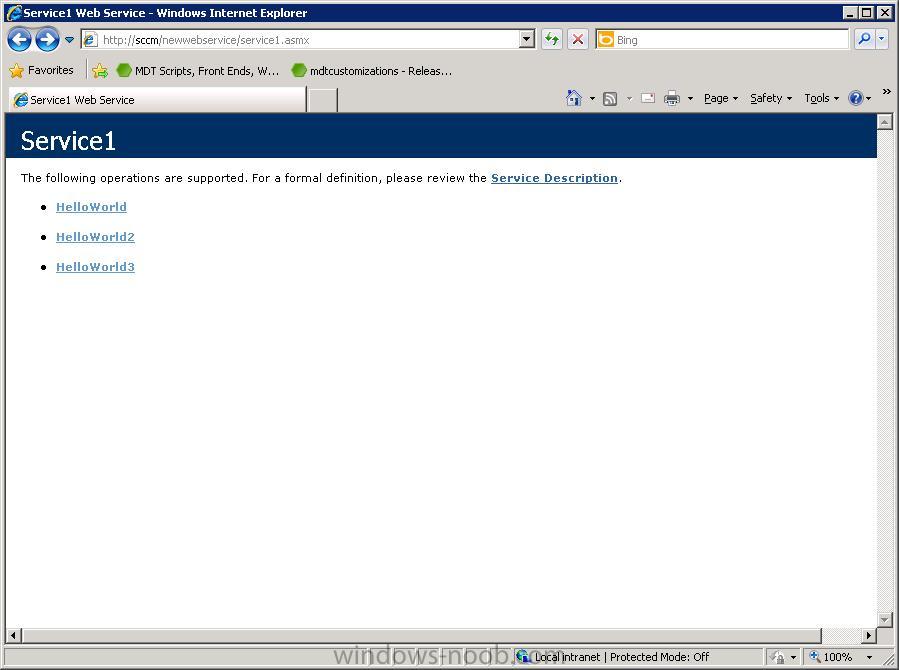

Once done, test the web service,



test ws.jpg



Click on HelloWorld3

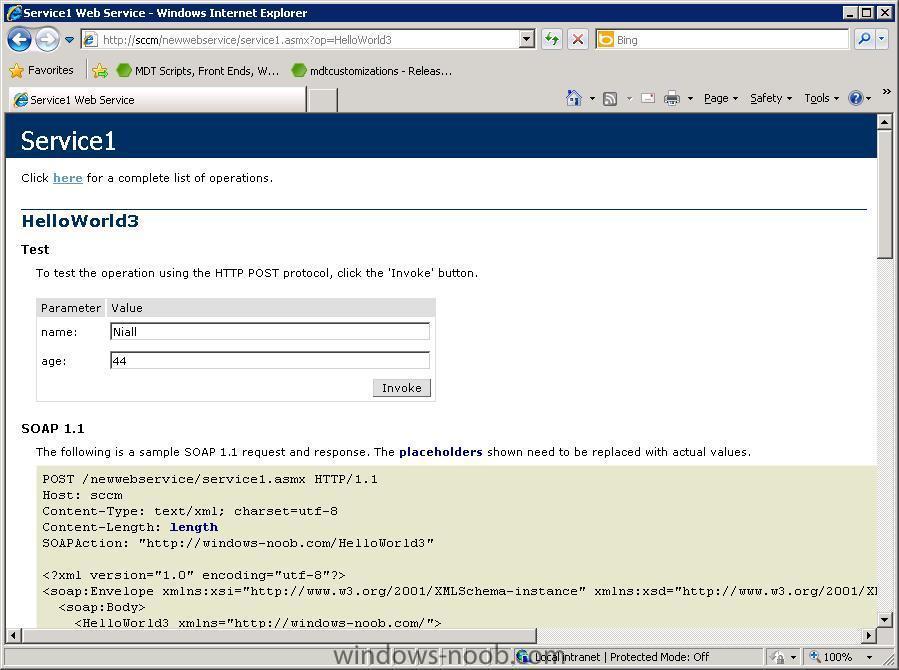

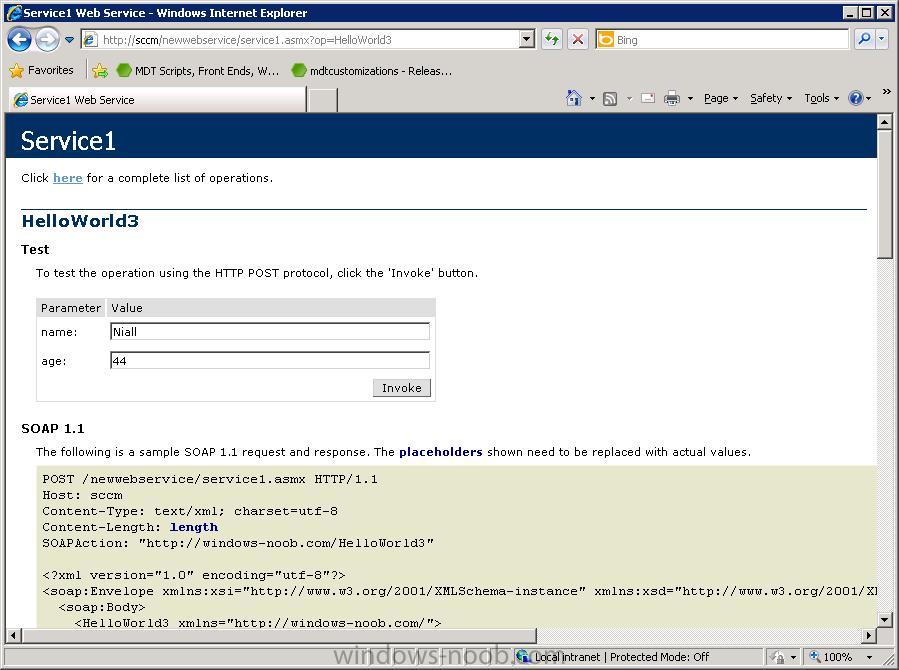

Input some values into the fields:-



enter values.jpg

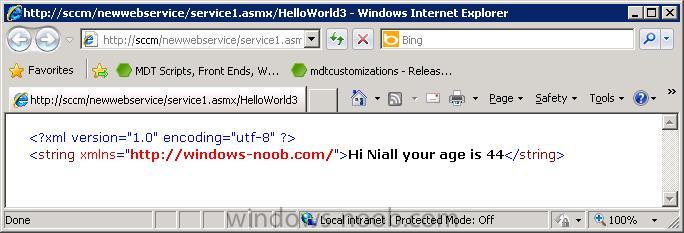

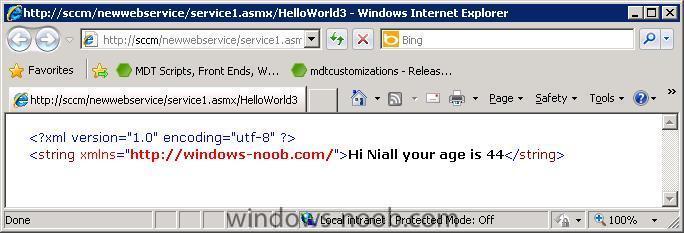

And click on Invoke, the result is ouput



hi niall your age is 44.jpg











Testing webservices from WinPE





We will now Create a WSF script file called helloworld.wsf, containing the following lines



<job id="MDTMenu_helloworld">
<script language="VBScript" src="..\ZTIUtility.vbs"/>
<script language="VBScript" src="..\ZTIDataAccess.vbs"/>
<script language="VBScript">

Dim oService
Dim oXML
oEnvironment.Item("testing") = Wscript.Arguments.Named.Item("helloworld")

Set oService = New WebService
oService.IniFile = "CustomSettings.ini"
oService.SectionName = "helloworld"
Set oXML = oService.Query
If oXML Is Nothing Then
oLogging.CreateEntry "Unable to call HelloWorld web service.", LogTypeWarning
WScript.Echo "Not Found" & vbcrlf
Else
oXML.setProperty "SelectionNamespaces", "xmlns:wn='http://windows-noob.com/'"
WScript.Echo oXML.SelectSingleNode("wn:string").Text
End If
</script>
</job>





Save it in the wnb subfolder of your MDT Files scripts directory. (eg: scripts\wnb)



Next create a new file called name_age.wsf, Paste in the following:-



<job id="MDTMenu_name">
<script language="VBScript" src="..\ZTIUtility.vbs"/>
<script language="VBScript" src="..\ZTIDataAccess.vbs"/>
<script language="VBScript">

Dim oService
Dim oXML
oEnvironment.Item("name") = Wscript.Arguments.Named.Item("name")
oEnvironment.Item("age") = Wscript.Arguments.Named.Item("age")

Set oService = New WebService
oService.IniFile = "CustomSettings.ini"
oService.SectionName = "helloworld3"

Set oXML = oService.Query

If oXML Is Nothing Then
oLogging.CreateEntry "Unable to call UserGetName web service.", LogTypeWarning
WScript.Echo "Not Found" & vbcrlf
Else	oXML.setProperty "SelectionNamespaces", "xmlns:wn='http://windows-noob.com/'"
WScript.Echo oXML.SelectSingleNode("wn:string").Text
End If
</script>
</job>

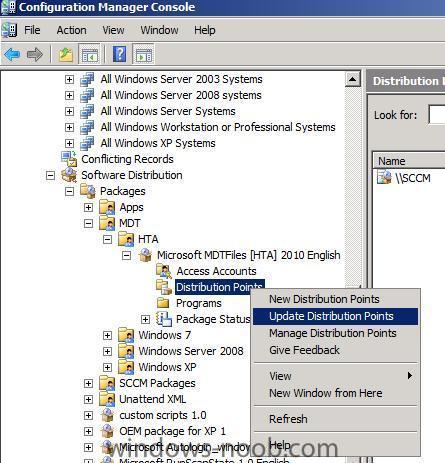

Save the file and update your MDT files package on the distribution points.



update dps.jpg

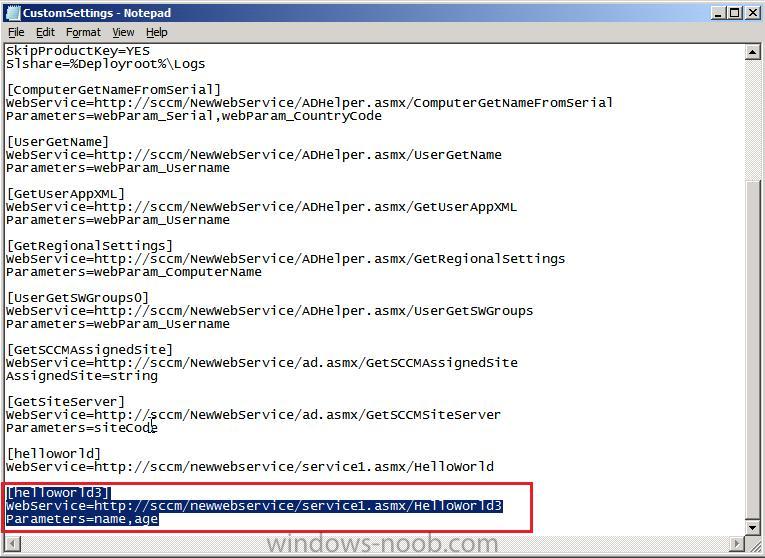

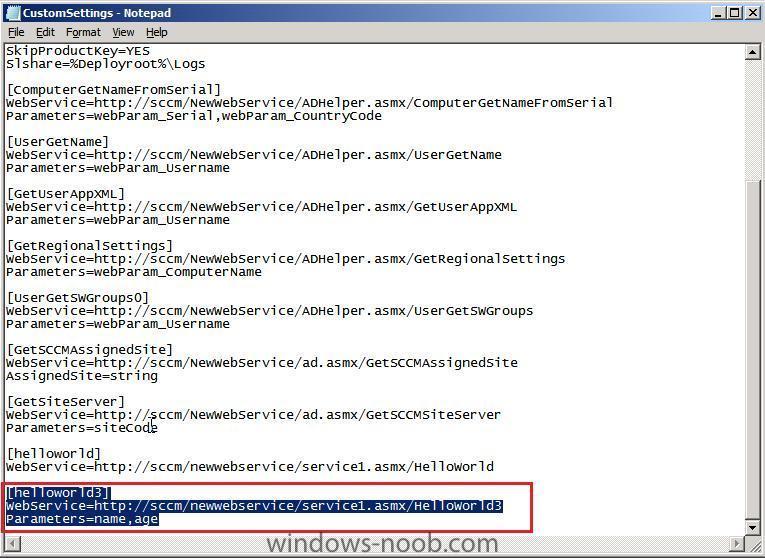

Edit your CustomSettings.ini file, Add the following lines:-



[helloworld]

WebService=http://sccm/newwebservice/service1.asmx/HelloWorld

[helloworld3]

WebService=http://sccm/newwebservice/service1.asmx/HelloWorld3

Parameters=name,age



PXE boot into WinPE, at your FrontEndHTA screen, press F8 to bring up a command prompt, cd to the following address



C:\_SMSTaskSequence\WDPackage\Scripts\wnb



And execute this:-

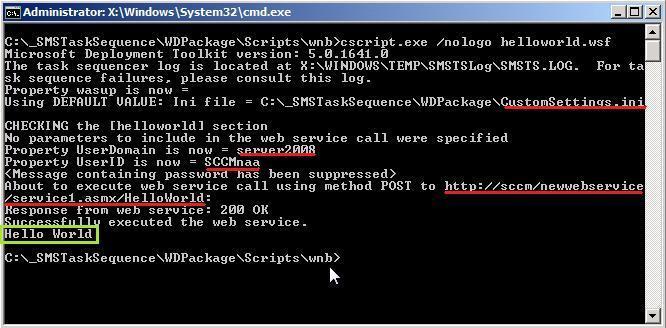

Cscript.exe /nologo helloworld.wsf



The following is output



hello world output.jpg

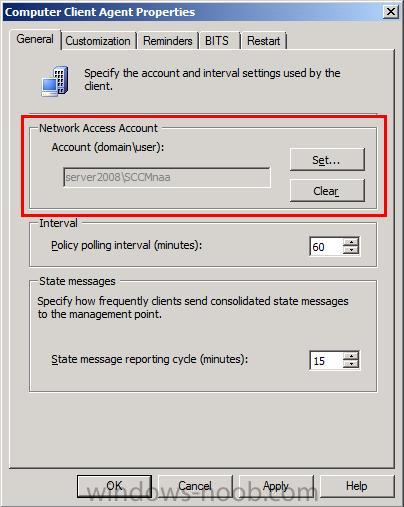

In the screenshot above, UserDomain and UserID are actually the Network Access Account retrieved from SCCM.

(SCCMnaa) as defined in Computer Client Agent Properties.






Now lets test passing values to our Hello World3 operation in our webservice, Open a command prompt in WinPE and type this:-



C:

Cd _SMSTaskSequence\WDPackage\Scripts\wnb



Then to execute the webservice try

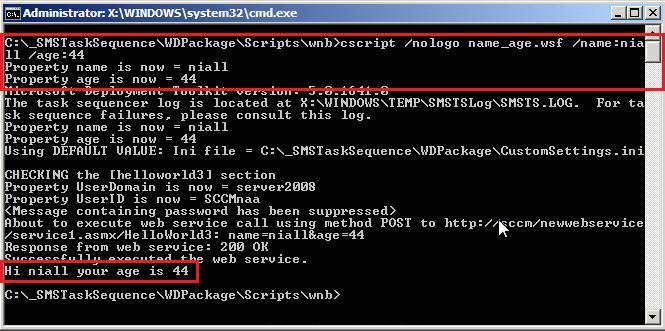

Cscript.exe /nologo name_age.wsf /name:niall /age:44



hi niall.jpg



We pass two properties to the web service, name and age, and the output is seen above.
