Step 11. Copy driver resources for SMS packaging

Recommended Posts

Step 11



This guide assumes that you have first completed the following 10 steps in the order listed below.



Create an OSD capture CD and then captured a Vista image (wim). Next you should have imported that captured Vista image into BDD, and then updated BDD with your Windows PE and XP OS files. You should then have created a new build in BDD for the captured WIM image. You should then have created and updated the BDD Deployment point (OSD/ZTI) and then updated Windows PE to support WMI. In addition, you must have imported the captured Vista WIM file into SMS and then created an OS Deploy Program. Update the SMS distribution points.





Copy driver resources for SMS packaging

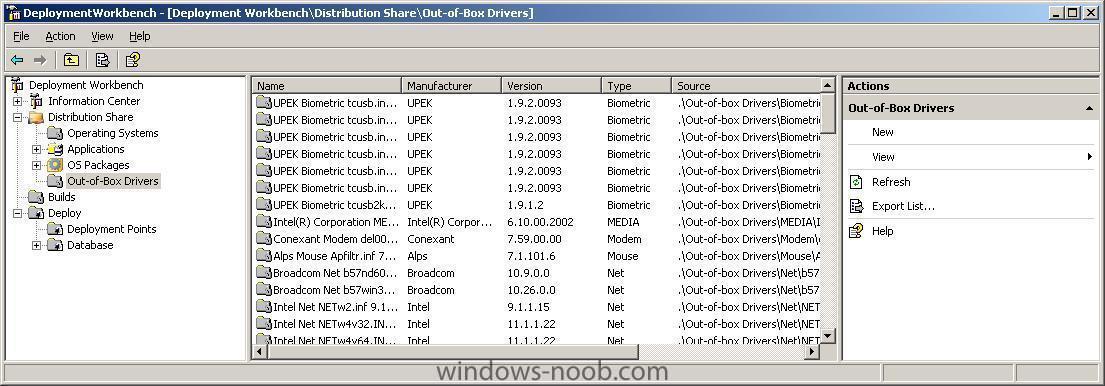

Open up the Deployment Workbench, and select Distribution Share in the Left pane, expand it and underneath that click on Out of The box Drivers.






We imported these drivers into BDD 2007 earlier, if you have none listed, import some now by right clicking on Out of box Drivers and clicking on New and follow the easy wizard.



These drivers are stored in the BDD 2007 Distribution point in the Out of the box Drivers folder

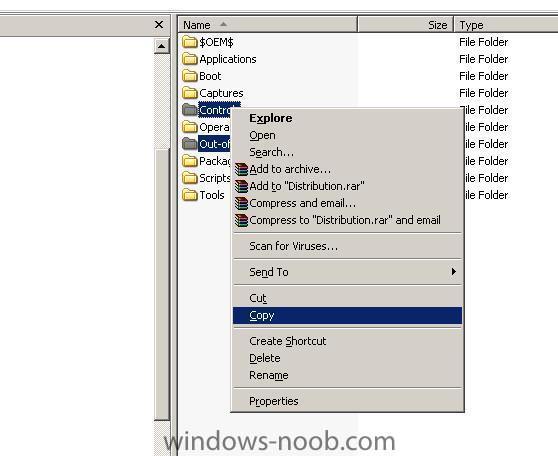

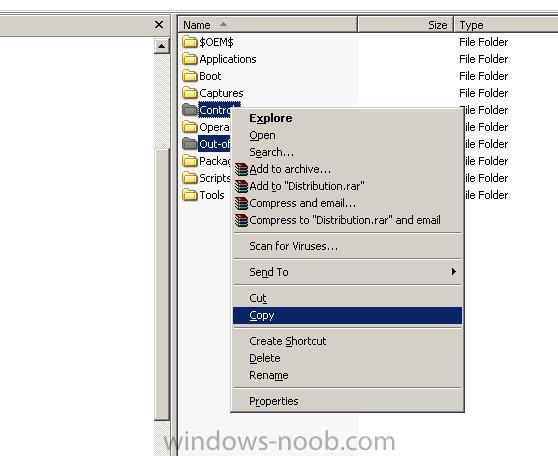

In explorer, mark the Out of the box Drivers folder and the Control folder and copy them






Create a new folder called ZTI_Driver_Source and paste the contents of the above copy operation into it. Once Done enter the Control folder in your newly created ZTI_Driver_Source folder, and delete everything in it except for two files



DriversGroups.xml

Drivers.Xml

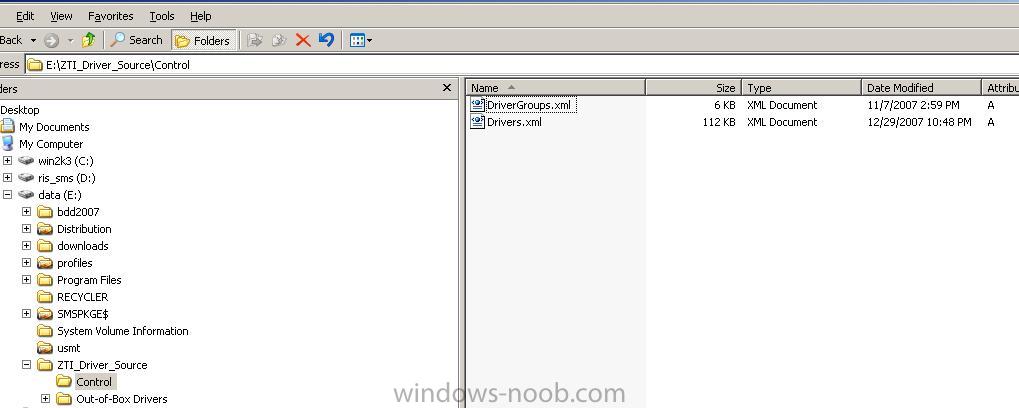

Once done, your newly created source should look like this.






If you found this guide useful then please Digg it.
