anyweb

using SCCM 2012 beta 2 in a LAB - Part 5. Add the SLP, SMP, SUP and FSP roles

Recommended Posts

In Part 1. of this series we Installed vNext, in Part 2 we started to configure it. In Part 3, we configed Beta 2 some more by enabling Active Directory discovery methods, adding some site system roles, configuring the computer client agent and client push settings and finally doing a manual client installation to verify it all worked, in Part 4 we looked at installing an application using Application Management and the Software Catalog and Software Center features of SCCM 2012. Our next task is to add WSUS and then add some additional roles which we'll use later on in this series (Windows Updates and Data Migration in OSD).





Perform the following on the vNext server as SMSadmin



Step 1. Add the WSUS role

We'll need the WSUS role installed as part of the Software Update Point role installation in the next step, so start Server Manager and click on Roles, Add Roles. Select Windows Server Update Services and a window will pop up asking to add role services required for Windows Server Update Services (IIS Dynamic Content compression), click Add Required Role Services



wsus role.png



click next through the wizard, you'll see the Select Role Services window appear, click next again



select role services.png



at the confirmation click Install, the WSUS role will be downloaded and if you are on 3G like me that'll take a bit of time, so take a break and have a cup of coffee smile.gif



after a while you'll see the Welcome to Windows Server Update Services 3.0 SP2 setup wizard appear click next



wsus welcome.png



To install WSUS SP2 you must accept the terms of the EULA, which are probably hidden behind the active windows, so in your system tray find it and click on it to show the EULA otherwise you'll be twiddling your thumbs for a long time wondering whats going on...






click accept and then choose where to store the updates locally, I selected D:\sources\WSUS



store updates.png



for database options choose Use an existing database server on this computer, click next



use existing.png



it will connect to your VNEXT sql server instance, click next



db vnext.png



accept the Use an existing Default website



use existing website.png



at the ready to install WSUS, click next



ready to install wsus.png



click Finish when done.






and close the Roles Wizard



roles wizard.png



followed by Cancel you must cancel the Windows Server Update Services Configuration Wizard




  • Like 1

Share this post


Link to post
Share on other sites


Step 2. Add the SLP, SMP, SUP and FSP roles



We will be doing some DATA migration later and hope to install Windows Updates too, so as part of that let's add the following roles, Server Locator Point (SLP - to find the Site server when not joined to AD, eg: workgroup joined as in Build and Capture), State Migration Point (SMP, for storing our saved user data) and Software Update Point (SUP, software updates), Fallback status point (FSP).



In Configmgr's console, click on Administration, Site Operations, Servers and Site System roles, in the Ribbon, click on Add Site System Role



add site system role.png

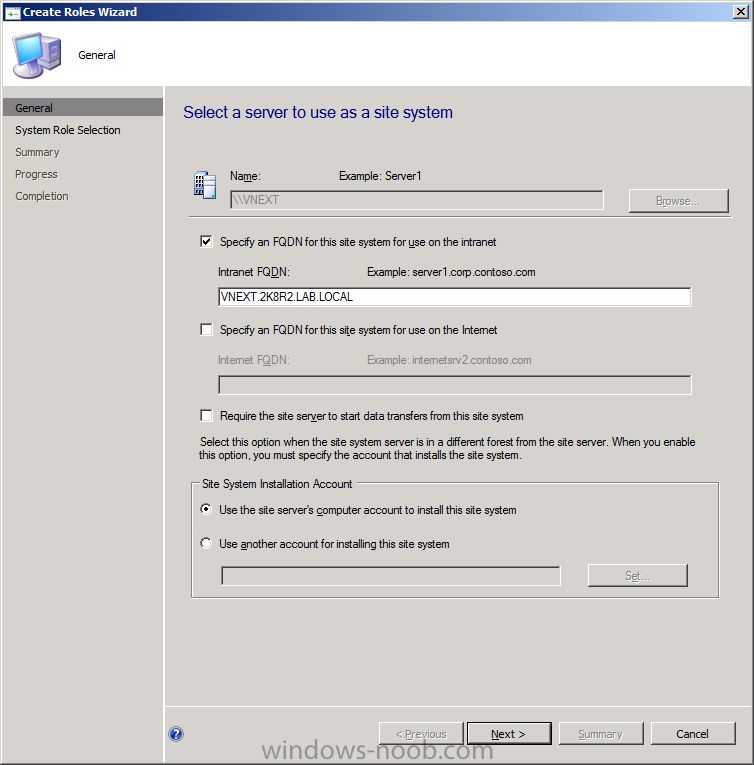

Click next on the Create Roles Wizard page



create roles wizard.png



select the 4 roles and click next



4 roles.png

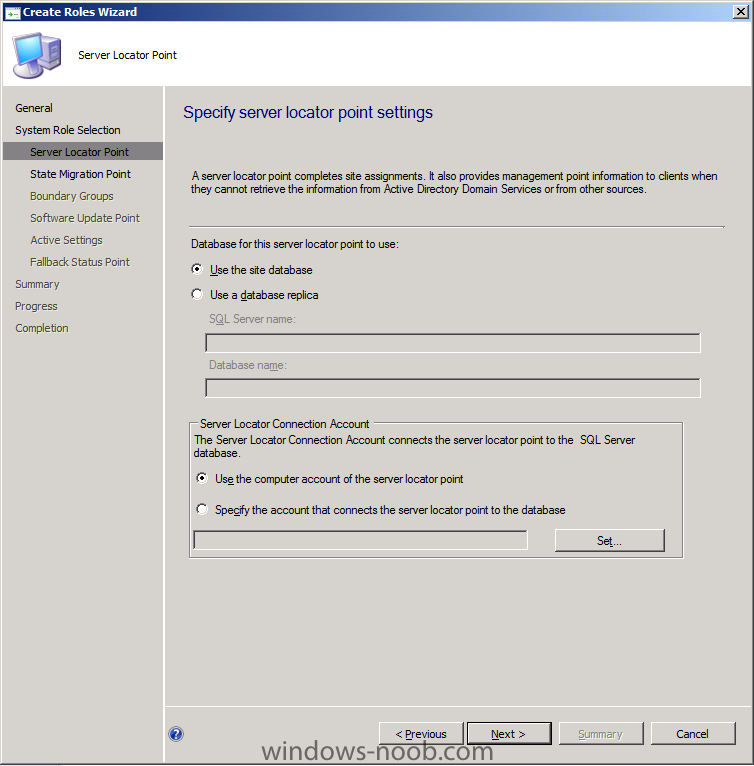

and accept the settings for SLP






for SMP, click on the yellow starburst and point the Storage folder to d:\sources\usmtstore, click ok and next when done






our previously defined Boundary Group (P01 Clients) is listed, click next to continue, it's needed for the SMP






click next at the specify software update point settings (we have no proxy)



specify software update point settings.png



select this server as the active software update point and configure WSUS to listen on default website (ports 80 and 443)



use this server as the active.png



Synchronize from Microsoft Update



sync from ms.png



enable Sync on a Schedule



enable sync on schedule.png



set it to Immediately Expire superseded updates



immediatly expire.png



leave classifications as it is, we'll come back to this later






leave Products as it is, we'll come back to this later (after a sync...)






and leave only English selected in Languages






now that the SUP role questions are out of the way, for the FSP leave it as it is






click next, next and review the successful completion



4 roles added.png



That's it !
