Part 2: how can I configure SMS 2003 ?




  • This topic is locked This topic is locked
No replies to this topic

#1 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,206 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 21 February 2008 - 08:30 PM

This guide assumes that you have first installed and configured IIS and then installed SMS as outlined here.

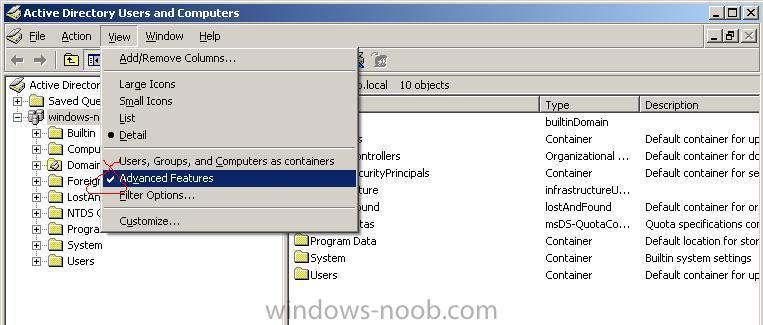

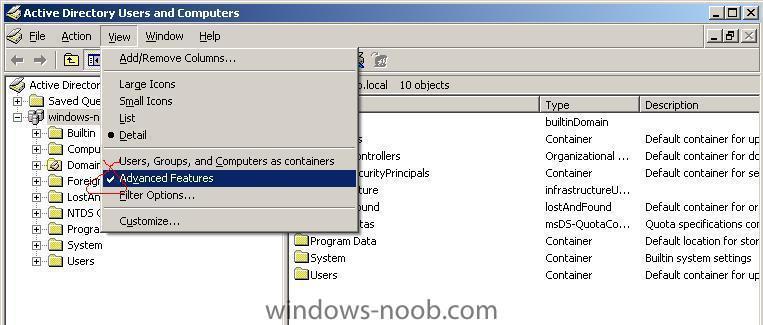

We need to open up active directory and add the computer account to the SMS groups. Click on Start/All Programs/Administrative tools/Active Directory Users and Computers. Click on View and make sure that Advanced Features is selected.

Attached File  advanced_view.JPG   52.66KB   103 downloads

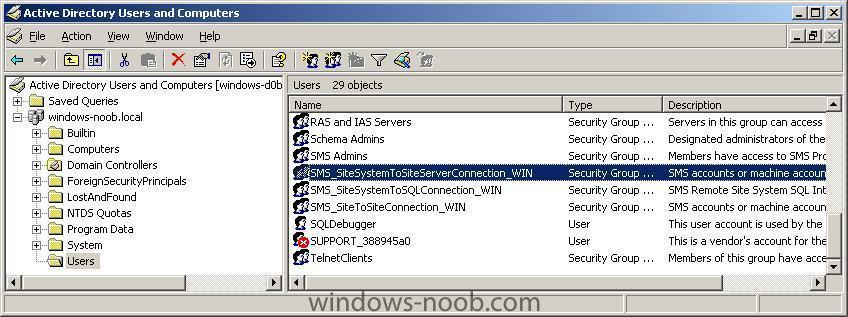

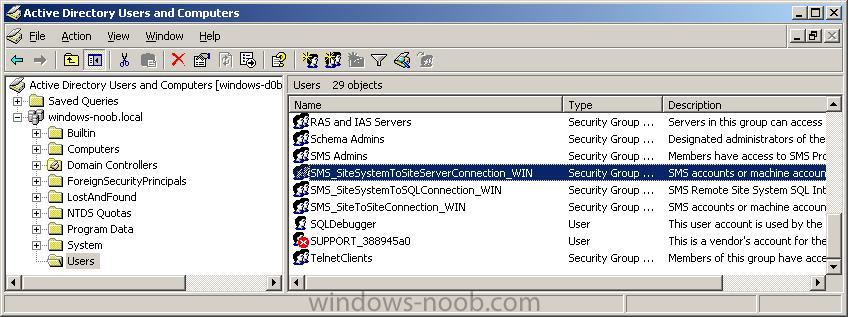

select the Users option in the left pane and in the right pane scroll down until you see the SMS groups listed.


Attached File  sms_groups_in_ad.JPG   73.03KB   77 downloads

The two groups we will add the computer account to are SMS_SiteSystemToSiteServerConnection_WIN and SMS_SiteSystemToSQLConnection_WIN. (note: the _WIN extension may be different on your sms server if you used a different SMS site code).

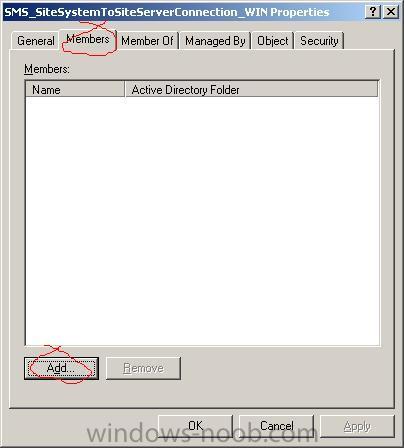

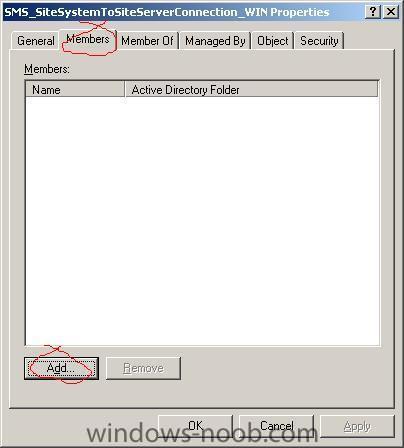

Double click on SMS_SiteSystemToSiteServerConnection_WIN and click on the Members tab.

Attached File  members.JPG   21.93KB   48 downloads

click on Add

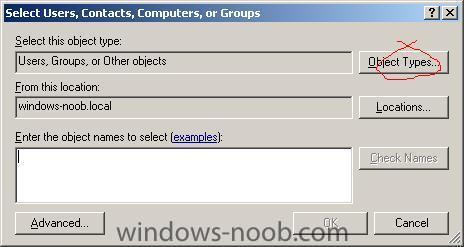

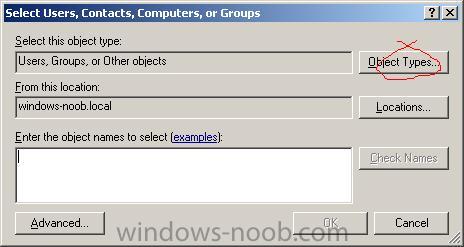

in the window that appears click on object types
Attached File  object_types.JPG   21.26KB   48 downloads

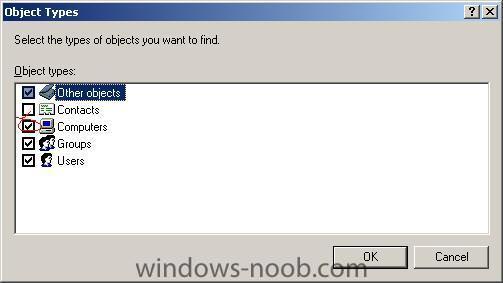

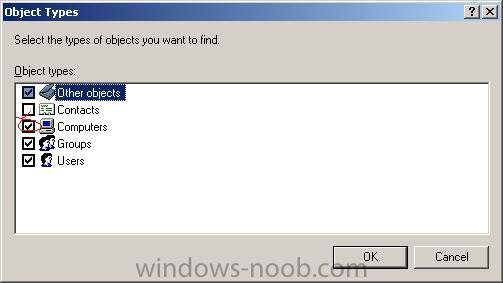

select 'Computers'

Attached File  computers_selected.JPG   17.03KB   44 downloads

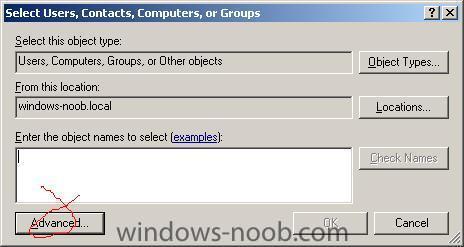

click ok and then click on Advanced

Attached File  advanced.JPG   21.9KB   47 downloads

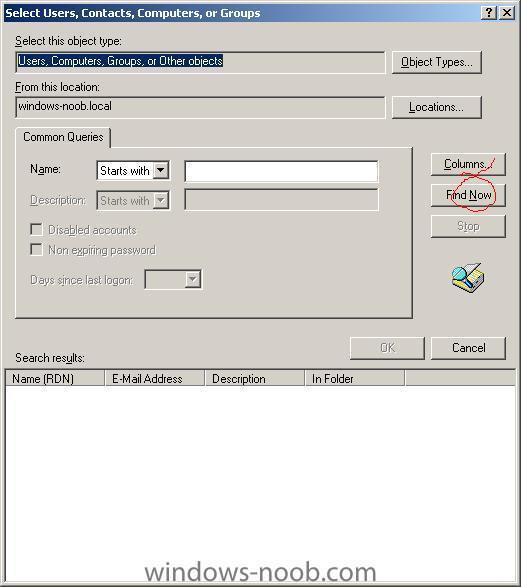

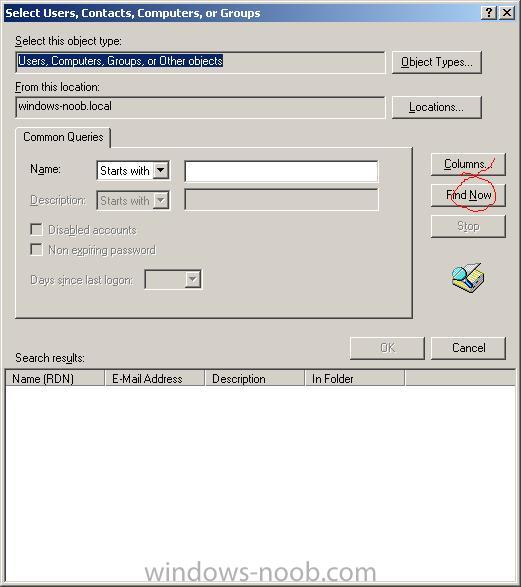

click on Find now

Attached File  find_now.JPG   36.85KB   36 downloads

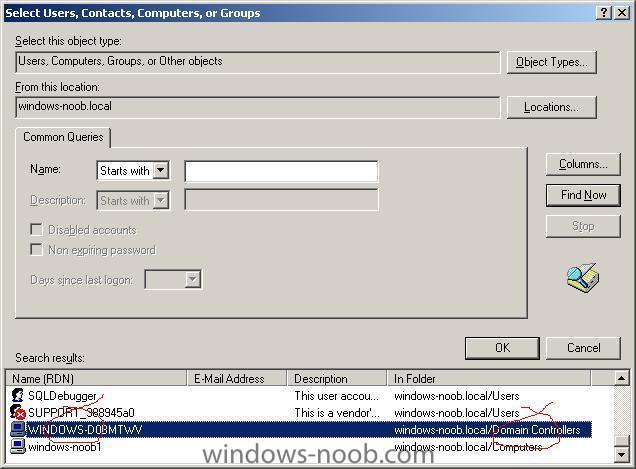

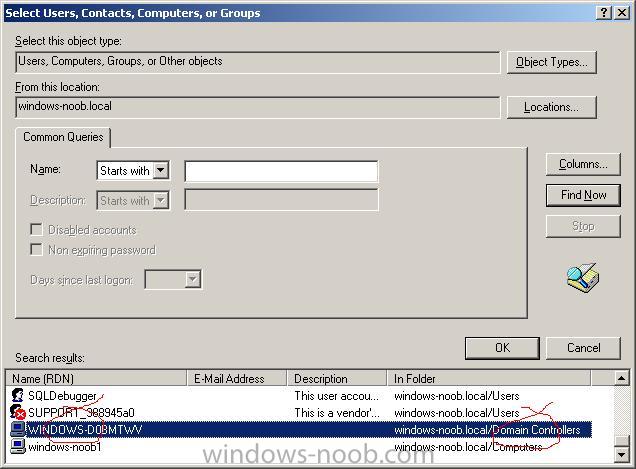

scroll down until you see your SMS server name (the domain controller you set the SMS server up on) and select it

Attached File  add_computer_account.JPG   51.65KB   40 downloads

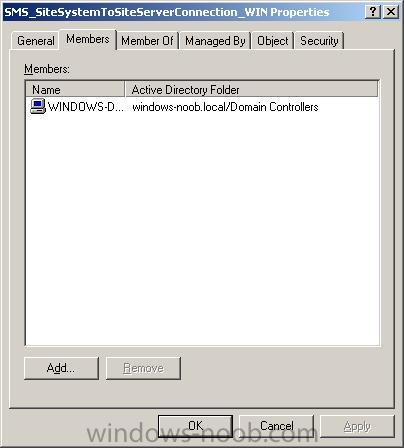

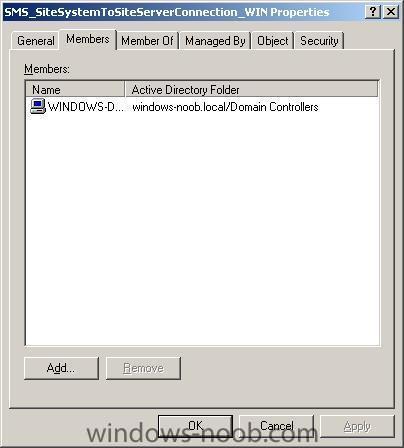

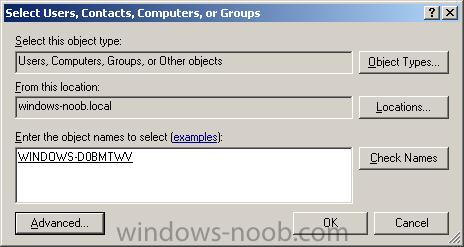

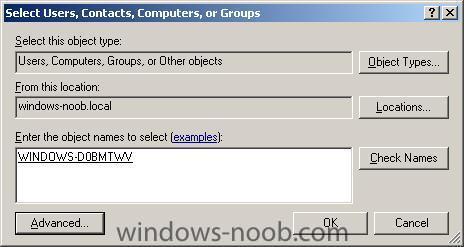

click ok and it should be listed similar to this

Attached File  added.JPG   22.64KB   37 downloads

click ok then apply to complete this action

Attached File  done.JPG   22.8KB   36 downloads

Now repeat the above actions for SMS_SiteSystemToSQLConnection_WIN



When you have completed the above, we now need to startup the SMS Administrator console and to check the site boundries and verify the the sms server site name is configured for active directory instead of the IP address (as it is by default). Startup the SMS administrator console and click on the + beside Site Hierarchy to expand that section.

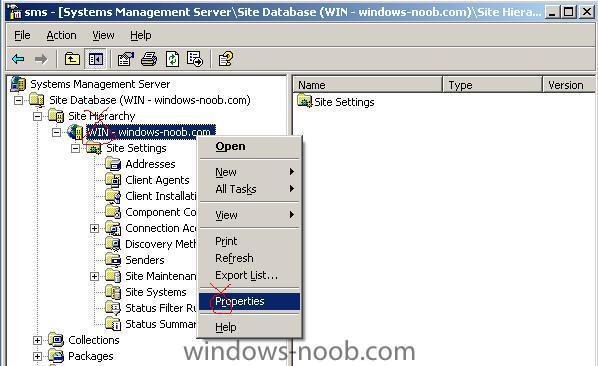

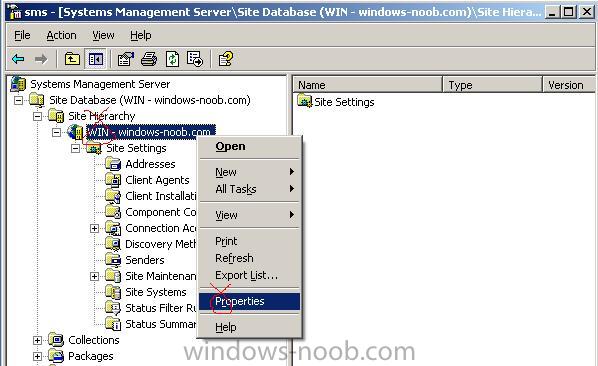

Underneath that you'll have your SMS Site Server name (in my case WIN), and underneath that we have the Sites settings. Right click on the SMS Site Server name and choose Properties.

Attached File  sms_site_code_name.JPG   38.38KB   60 downloads

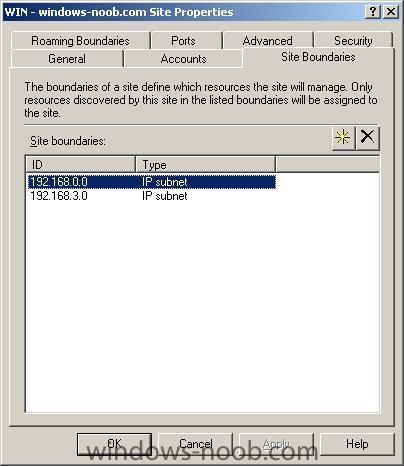

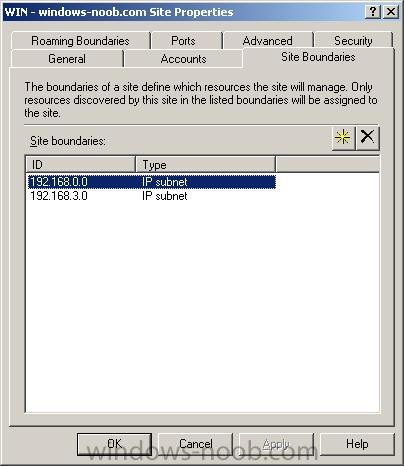

click on the Site Boundries tab and you'll probably see one or more IP address's listed.

Note:

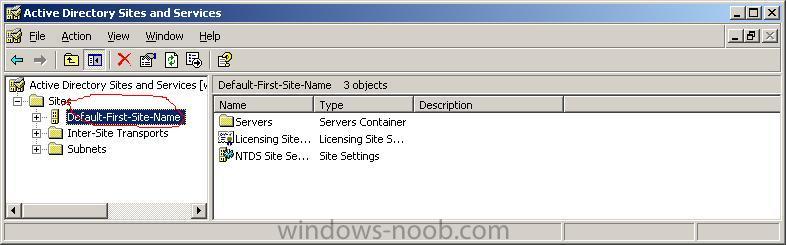

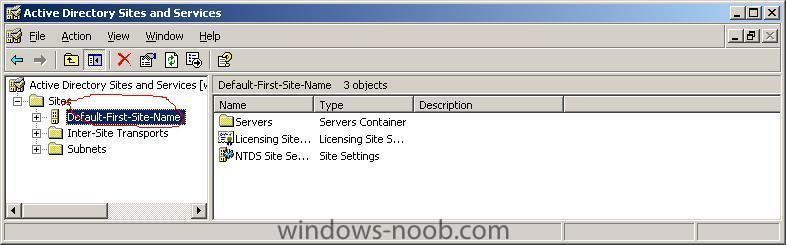

You'll need to know your AD site name. The AD site name is by default called Default-First-Site-Name and you can change that in Active Directory sites and services just as long as the site name is the SAME in both AD and SMS site boundries.

Attached File  sites_and_services.JPG   37.03KB   58 downloads

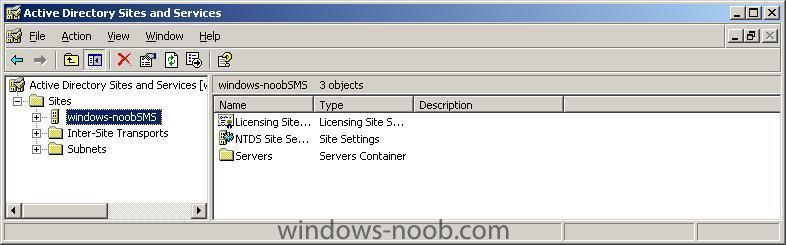

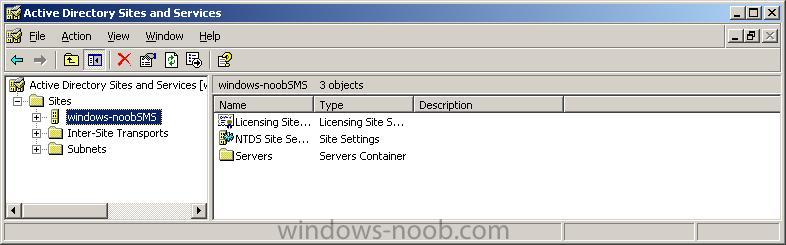

Here we have renamed the Default-First-Site-Name to windows-noobSMS in Active directory sites and services

Attached File  windows_noobSMS.JPG   36.54KB   49 downloads

back to SMS >

click on the Yellow star button to add our site name and to tell SMS to look for it in AD.

Attached File  site_boundries.JPG   28.66KB   47 downloads

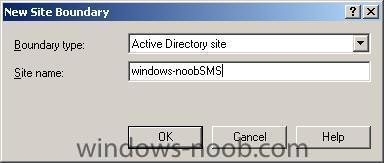

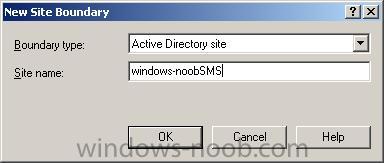

in the new site boundary window that pops up, click on the down arrow to reveal Active Directory and then fill in the AD site name.

Attached File  new_site_boundry.JPG   10.94KB   51 downloads

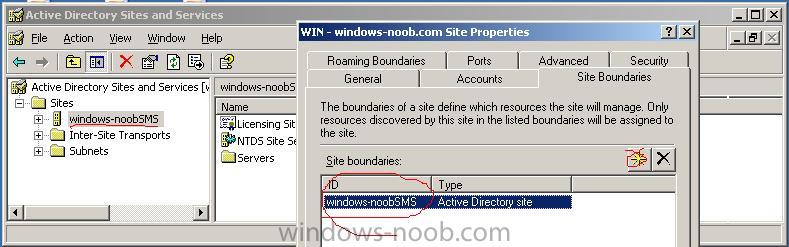

next we want to remove the one (or two or more) IP address's that SMS has listed here, to do so, highlight each one in turn and press the X. finally we should have our Active directory Sites and services plus SMS site boundries configured so it looks like this, click apply and ok to finish.


Attached File  ad_site_name_is_configured_in_ad_and_sms.JPG   48.14KB   52 downloads




Next we need to configure the Management Point (MP), Distribution Point (DP) and Client Access Point (CAP).

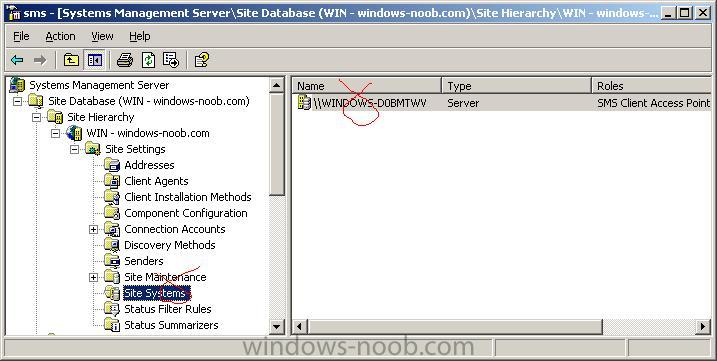

To do this we will click on site systems and then right click on our server listed on the right

Attached File  configure_site_systems.JPG   49.64KB   46 downloads

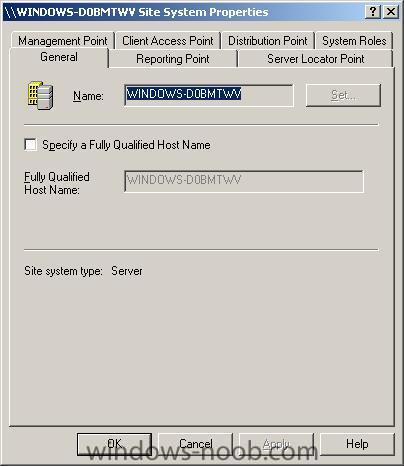

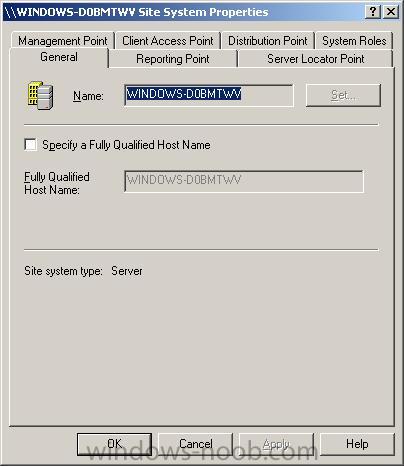

choose properties and you'll see the SMS site properties

Attached File  site_properties.JPG   26.97KB   45 downloads

Click on the Distribution Point tab and enable the following choices:-

* Use this site system as a distribution point
* Enable Background Intelligent Transfer Service (BITS)

Attached File  apply_dp_settings.JPG   33.44KB   42 downloads

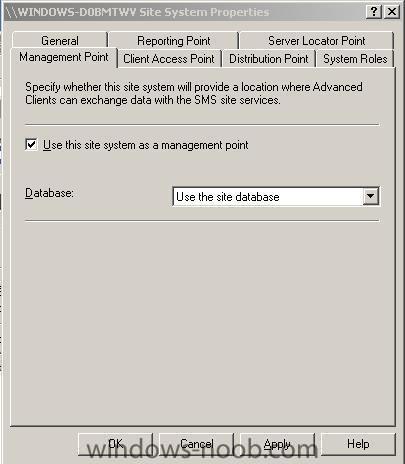

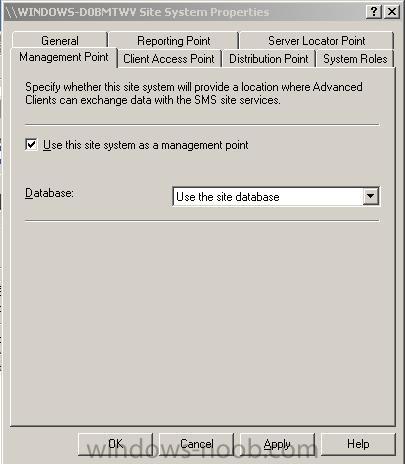

click on Apply and then select the CAP tab, and verify that it is enabled (it will be), and finally click on the MP tab and enable it.

Attached File  enable_mp.JPG   25.74KB   45 downloads

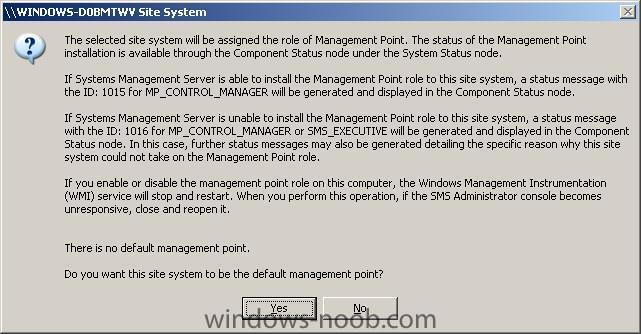

you will most likely see the following, answer yes.

Attached File  assign_management_point.JPG   52.07KB   40 downloads

click on OK to continue.

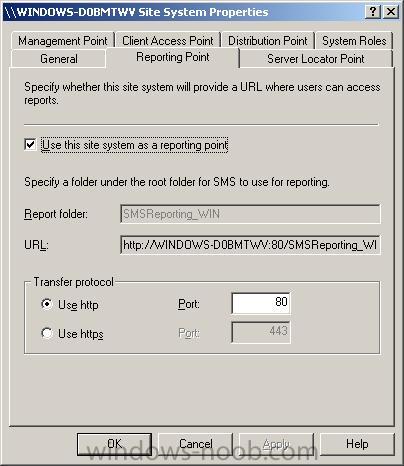

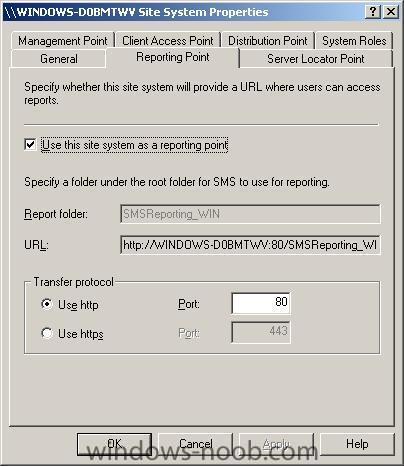

You may also wish to select the Reporting point option.

Attached File  reporting_point.JPG   34.94KB   38 downloads

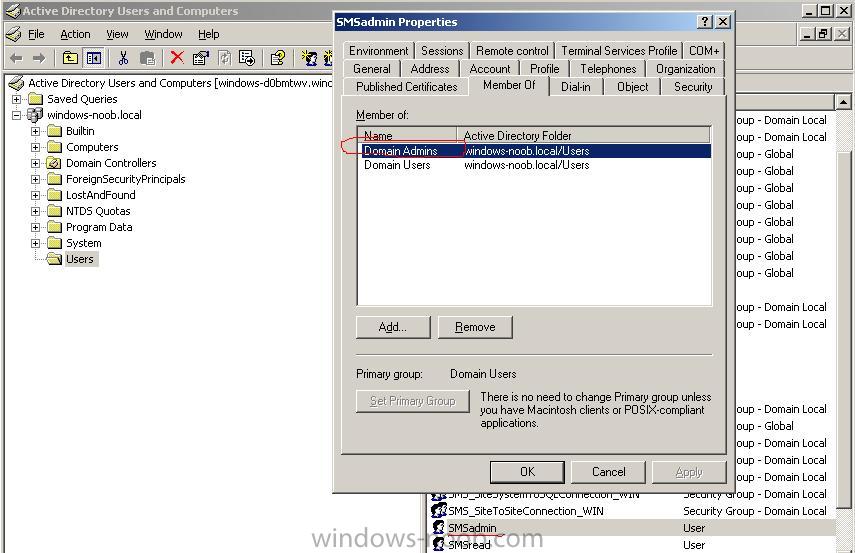

At this point I popped into Active Directory Users and Computers and created two new users

SMSadmin and SMSread, I made SMSadmin a domain admin and SMSread a user.

Attached File  smsusers.JPG   80.42KB   50 downloads

and then back to SMS Administrator Console, Site Database, Site Hierarchy, Site Settings, Component configuration, software distribution.

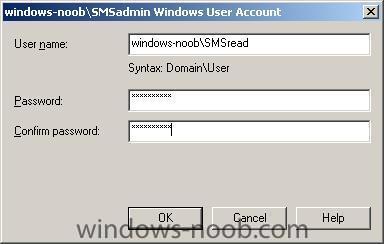

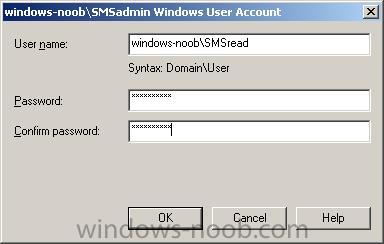

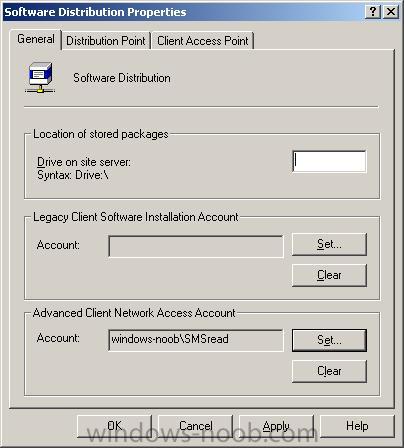

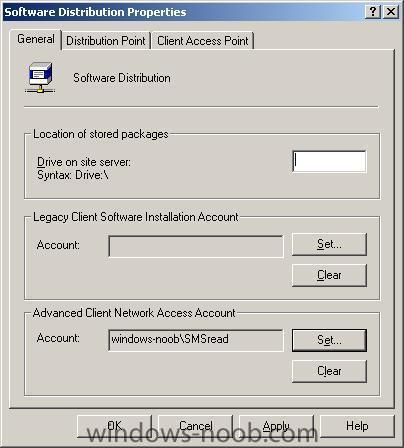

I then added SMSread as a user for the Advanced Client Network Access account

Attached File  smsread.JPG   13.7KB   46 downloads

Attached File  smsreadadded.JPG   30.58KB   45 downloads

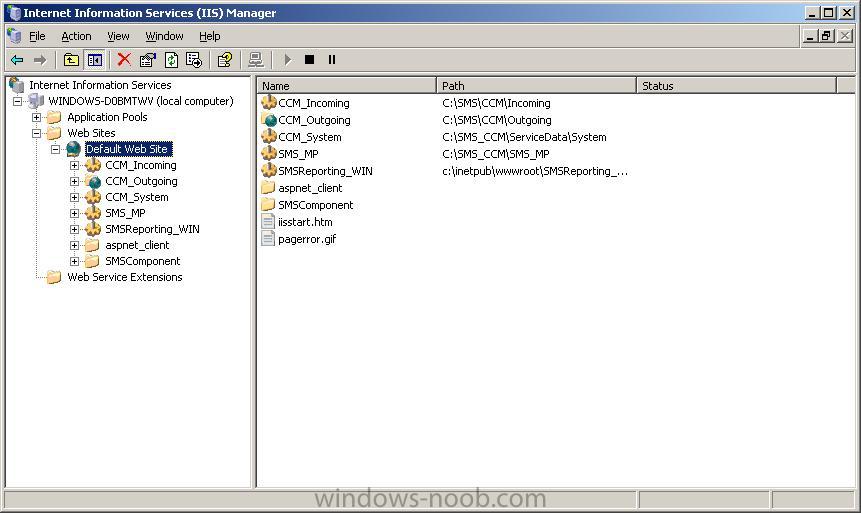

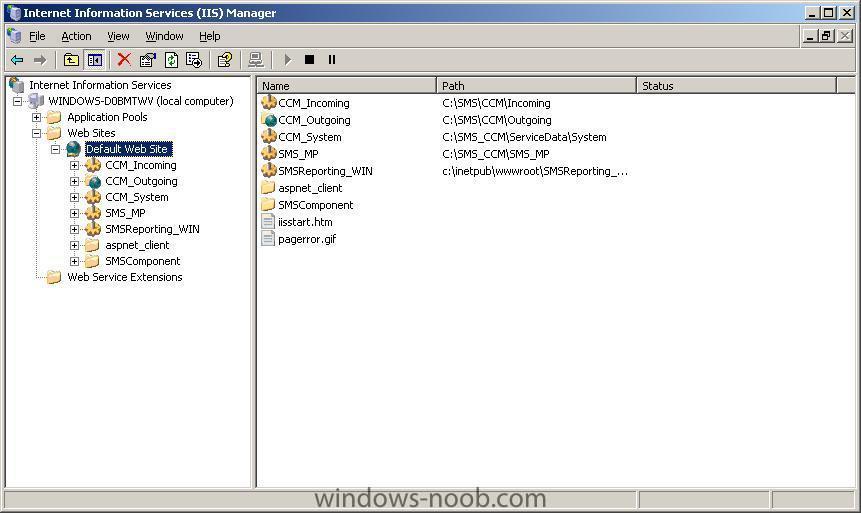

Please reboot to complete this part of the process. Once you have rebooted you can start up IIS and you'll notice some new SMS areas are added... and once we start to add SMS packages we will see this area expand some more.
Attached File  iis_with_sms.JPG   58.84KB   48 downloads

Now that you have got this far you'll want to complete the SMS final configuration.
