How can I determine if there's a TPM chip on my Lenovo system for BitLocker ?

Recommended Posts

If you haven't don'e so already check out my similar post on verifying if there's a TPM present for Dell systems here.



Using similar logic (it works after all :-)) I've changed the script to look for the Lenovo programmed response and edited my task sequence to load the required Lenovo drivers in the order they must be placed, the Lenovo Check for TPM group will only run based on a wmi query, the wmi query is as follow



Select * from Win32_ComputerSystem where Manufacturer like "%Lenovo%"

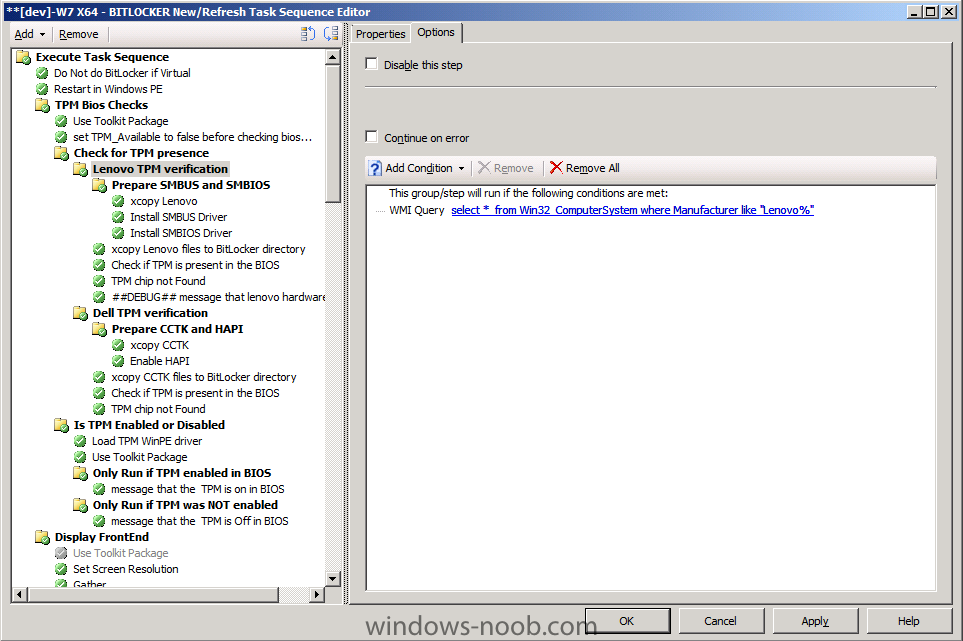

wmi query lenovo.png



In this group we have a sub-group which plugs the needed drivers into our WinPE session (without the need for changing your boot images, cool huh ?)



The sub-group is called Prepare SMBUS and SMBIOS (much like Prepare CCTK and HAPI on the Dell TPM check) and has three steps

xcopy Lenovo
Install SMBUS Driver
Install SMBIOS Driver





Xcopy simply copies the Lenovo specific drivers *see screenshot*

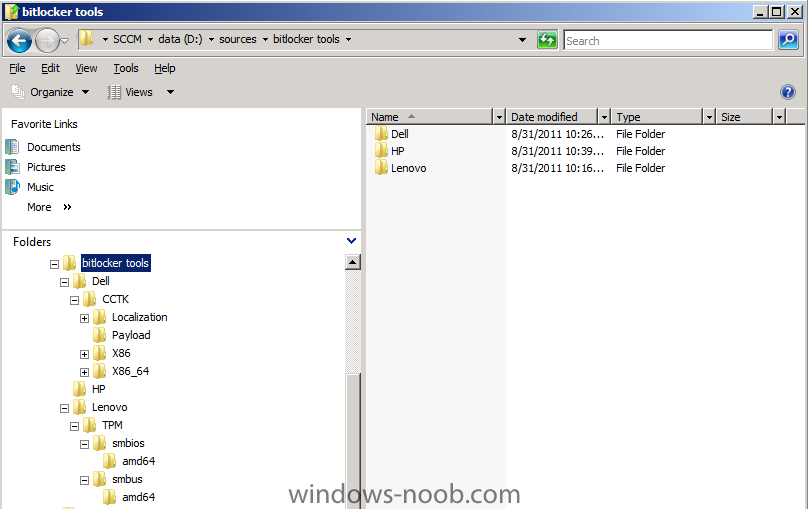

bitlocker tools.png



from our previously created
BitLocker Tools
package to where we want them, you'll need to download the SMBUS and SMBIOS drivers from Lenovo (ask your Lenovo TAM if you cannot find them) and the next two commands install the correct drivers from the xcopied source.

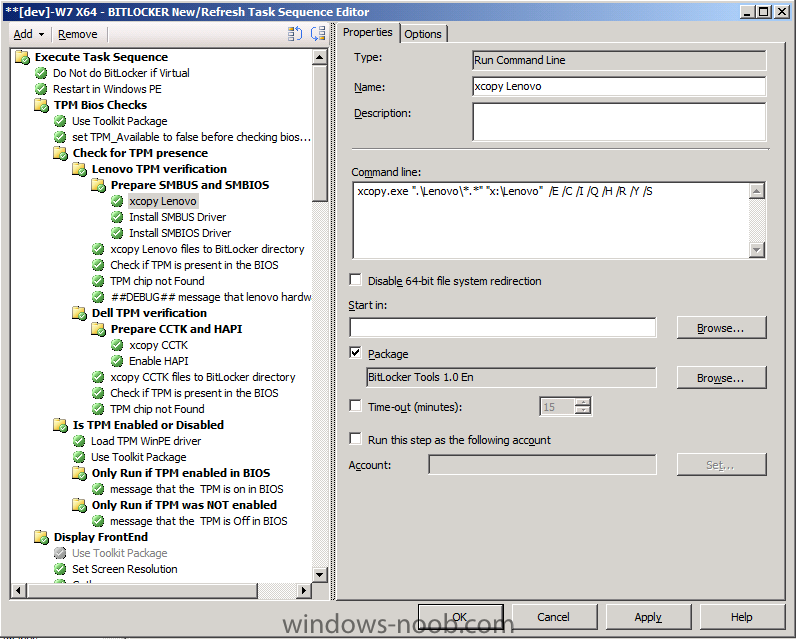

xcopy lenovo.png



Next we have the
Install SMBUS Driver
, which does just that, it installs the required SMBUS driver for Lenovo, note that this step will fail unless you
specify the working directory
, in our case it's x:\lenovo\tpm\smbus

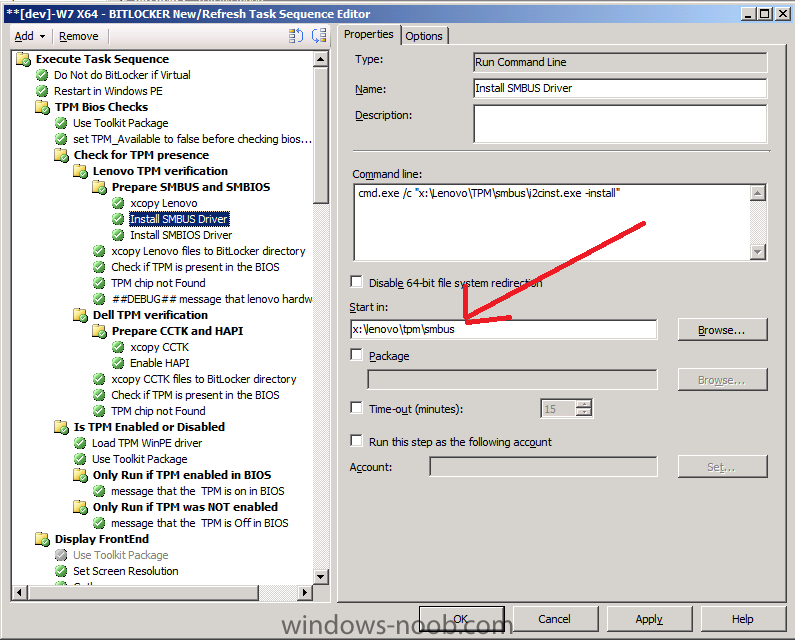

install smbus driver.png



The
Install SMBIOS Driver
loads another driver but you must also specify the correct working directory for THAT driver otherwise once again it will fail.



install smbios driver.png



After successful completion of that group we xcopy the Lenovo files to a sub directory of our
%scriptroot%
before running the actual
Check_for_TPM_Lenovo.WSF
file, this will only set our TPM_Available variable=True if the correct string is found, otherwise the variable will be false.

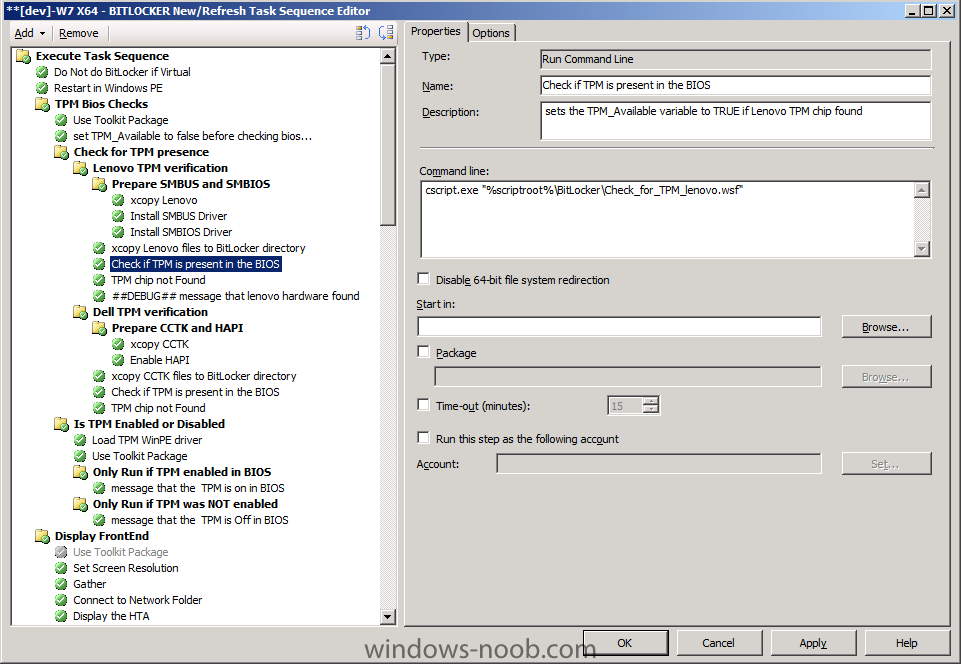

check if tpm is present in the bios.png



The remaining steps in this group will run/not run based on the result of that variable.



here's the script





<job id="checkTPM">
 <script language="VBScript" src="..\ZTIUtility.vbs"/>
 <script language="VBScript">

   Dim oShell
   Set oShell = CreateObject("WScript.Shell")

   oEnvironment.Item("TPM_AVAILABLE") = False

     retCode = oShell.Run("cmd /c " & Replace(WScript.ScriptFullName,WScript.ScriptName,"") & "tpm_activate_cmd.exe /verbose | find " & chr(34) & "TPM is present in this system" & chr(34) , 0, True)

     If(retCode = 0) Then
       oEnvironment.Item("TPM_AVAILABLE") = True
     End If

     WScript.Quit(0)

 </script>
</job>





have fun !

cheers

niall





Related Reading:-





Customising Windows 7 deployments -
part 5
.



Is the TPM Chip Enabled or Disabled in the Bios on my Dell system ? -
http://myitforum.com...ell-system.aspx



How can I determine if there's a TPM chip on my Dell system needed for BitLocker ?
http://myitforum.com...-bitlocker.aspx



BitLocker Hardware Requirements -
http://windows.micro...rive-Encryption



Microsoft Scripts to Enable Bitlocker -
http://go.microsoft..../?LinkID=151997



BitLocker Info - a List of Resources -
http://myitforum.com...-resources.aspx



How can I determine if the drive is Encrypted (Protected) or not during a BitLocker task sequence in WinPE ? -
http://www.windows-n...uence-in-winpe/

Share this post


Link to post
Share on other sites


you mean a sample XML file containing the task sequence ? if so see below



Introducing the BitLocker FrontEnd HTA

Multipurpose HTA with BitLocker Support for all three common scenarios, backup, reinstall, new computer [added Jan 2012]
