using SCCM 2012 RC in a LAB - Part 9. Adding an Application, editing a Deployment Type, Copying the Deploy Task Sequence



32 posts in this topic

This Post has been superseded by the following Configuration Manager 2012 RTM post.





In Part 1 of this series we got our AD and SCCM servers ready, and then we installed System Center 2012 Configuration Manager as a standalone Primary site. In Part 2 we configured the SCCM server further by adding some Windows Server roles necessary for the following Configuration Manager 2012 functionality, Software Update Point (SUP) and Operating System Deployment. In Part 3 we configured the server further by Enabling Discovery methods and creating Boundary's and Boundary Groups. In Part 4 we configured Client Settings, Added roles and Distributed the Configmgr Client to our Computers within the LAB, then in Part 5 we enabled the Endpoint Protection Role and configured Endpoint Protection settings and targeted a collection called All Windows 7 Computers with these settings and policies.



In Part 6 we configured our SUP further to Deploy software updates to our All Windows 7 Computers and Build Windows 7 X64 collections. In Part 7 we used the Build and Capture process to create our Base Windows 7 X64 wim image. In Part 8 we created a USMT 4 package to migrate the users data using hardlinking and then we imported the captured image into ConfigMgr and created a Deploy Windows 7 X64 task sequence. We created a Deploy Windows 7 X64 Collection and set some User Device Affinity collection variables.



In this part we will create an Application, and create a deployment type for that application to only install if the Primary User is True for that device (User Device Affinity), we will then copy our Task Sequence (duplicate it), deploy the new Task Sequence, add a computer to the new collection and then PXE boot the computer to the Deployment Menu.



Applications are new in System Center 2012 Configuration Manager and have the following characteristics:

  • Applications contain the files and information necessary to deploy a software package to a computer or a mobile device. Applications contain multiple deployment types that contain the files and commands necessary to install the software. For example, an application could contain deployment types for a local installation of a software package, a virtual application package or a version of the application for mobile devices.
  • Requirement rules define conditions that specify how an application is deployed to client devices. For example, you can specify that the application should not be installed if the destination computer has less than 2GB RAM or you could specify that a virtual application deployment type is installed when the destination computer is not the primary device of the user.
  • Global conditions are similar to requirement rules but can be reused with any deployment type.
  • User device affinity allows you to associate a user with specified devices. This allows you to deploy software to a user rather than a device. For example, you could deploy an application so that it only installs on the primary device of the user. On devices that are not the primary device of the user, you could deploy a virtual application that is removed when the user logs out.
  • Deployments are used to distribute applications. A deployment can have an action which specifies whether to install or uninstall the application and a purpose which specifies whether the application must be installed or whether the user can choose to install it.
  • System Center 2012 Configuration Manager can use detection methods to determine if a deployment type has already been installed on a device by using product information, or a script.
  • Application management supports the new monitoring features in System Center 2012 Configuration Manager. The status of an application deployment can be monitored directly in the Configuration Manager console.
  • Packages and programs from Configuration Manager 2007 are supported in System Center 2012 Configuration Manager and can use some of the new deployment and monitoring features.
  • You can now deploy a task sequence on the Internet, as a method to deploy a script, for example, prior to installing a package and program. It is still not supported to deploy an operating system over the Internet.
  • Software Center is a new client interface that allows users to request and install applications, control some client functionality, and to access the Application Catalog, which contains details about all available applications.

Step 1. Create an Application



Perform the following on your SCCM 2012 server as SMSadmin.

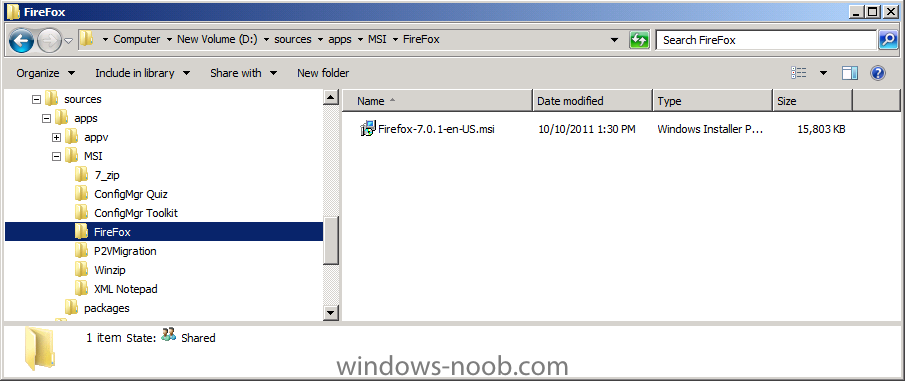

Now we will create an application in this case FireFox, you can download an MSI of it from here (The files contained in this MSI are the official binaries with no modifications). Save the application in your package sources share (I have shared a root folder on D:\ called Sources with sub folders within, one is called Apps). Copy the downloaded FireFox MSI to a subdirectory of your sources\apps\msi share just like I have done in the screenshot below.



firefox msi in Apps.png



In the Configmgr Console, click on Software Library, Applications, in the ribbon click on Create Application



create application.png

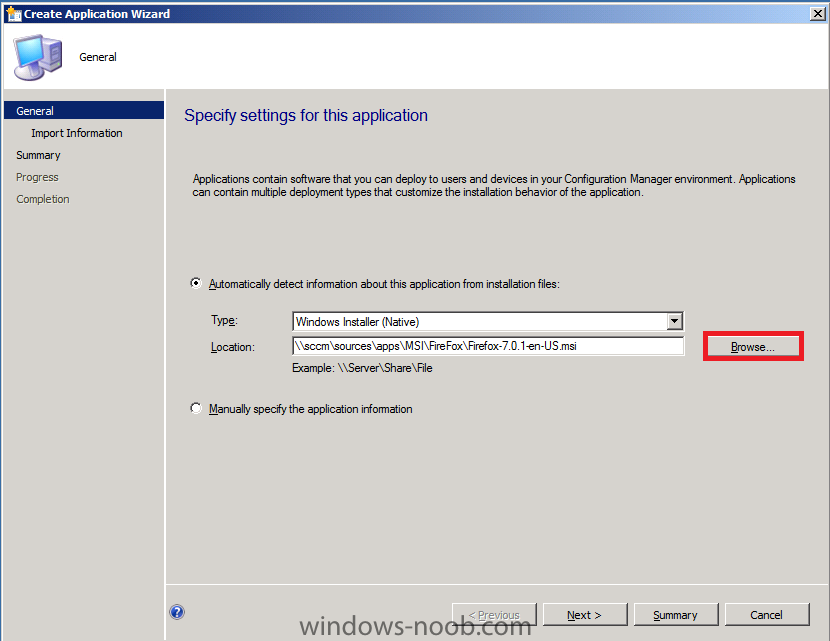

When the Create Application wizard appears click on browse then point it to the UNC of where the MSI is stored eg: \\sccm\sources\apps\msi\firefox\Firefox-7.0.1-en-US.msi



browse to firefox msi.png

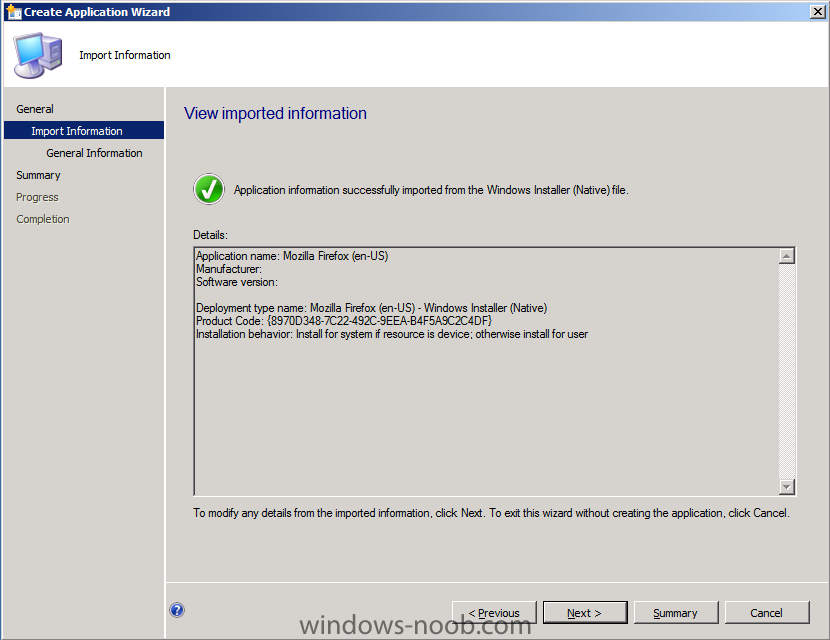

click next and you'll get to the Imported Information screen,



imported info.png

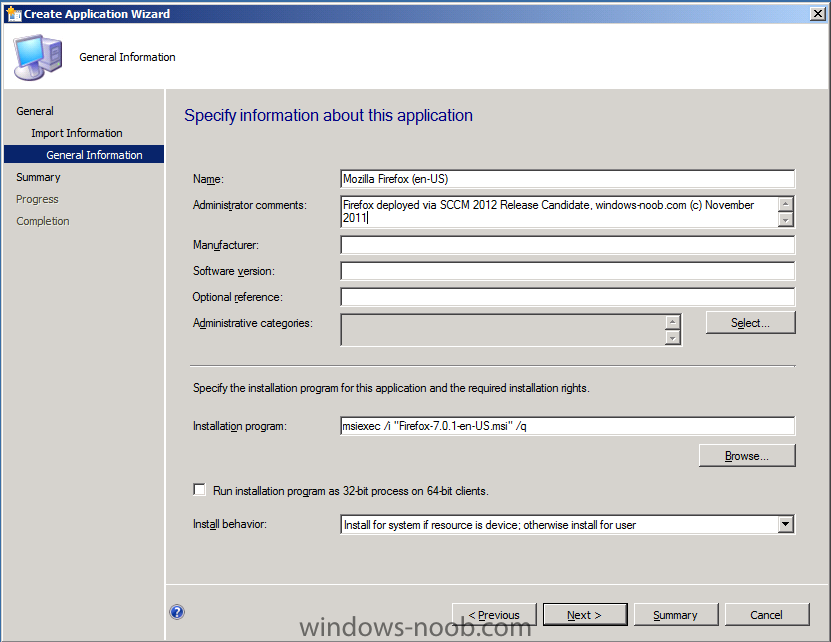

click next again to enter General Information about this application, verify that the installation switches are ok and click next



general info about this application.png

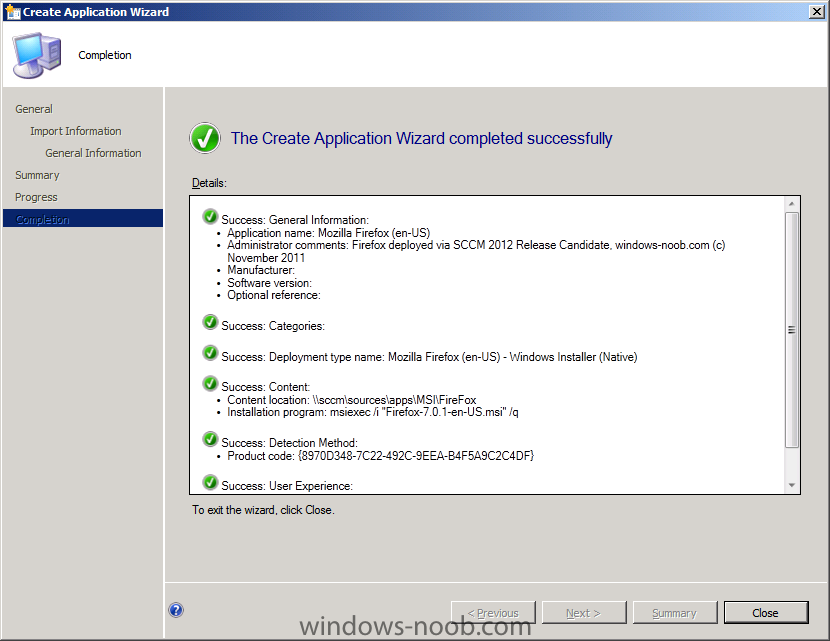

click next at the summary through to completion



application wizard done.png







Step 2. Edit the Deployment Type



Perform the following on your SCCM 2012 server as SMSadmin.

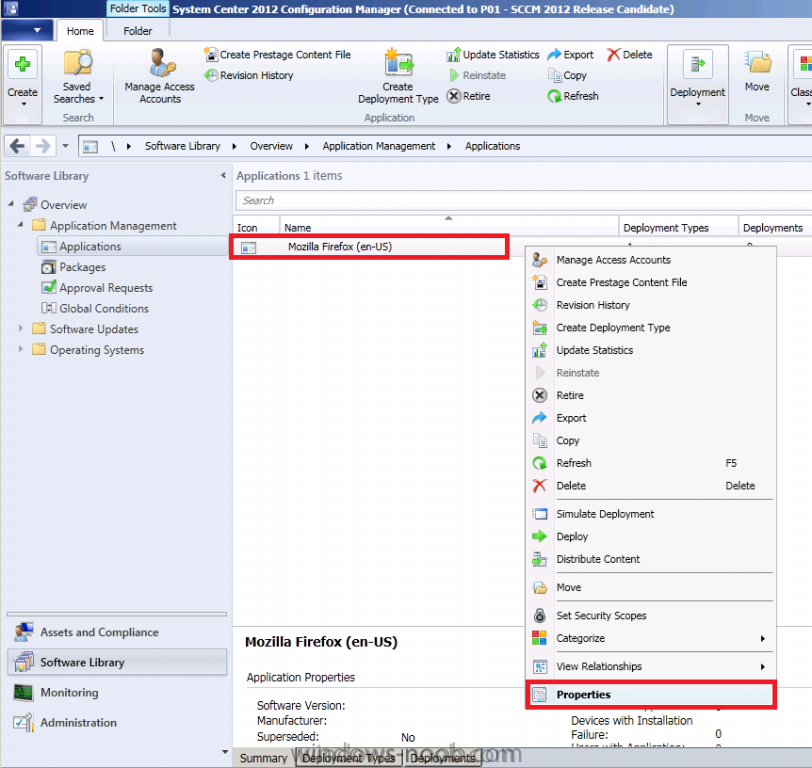

As we have selected the default values during the wizard, a Deployment Type has already been setup but we want to edit it so that this application only installs if a primary user has been associated with the device (UDA), so right click on the Application and choose Properties



mozilla firefox properties.png

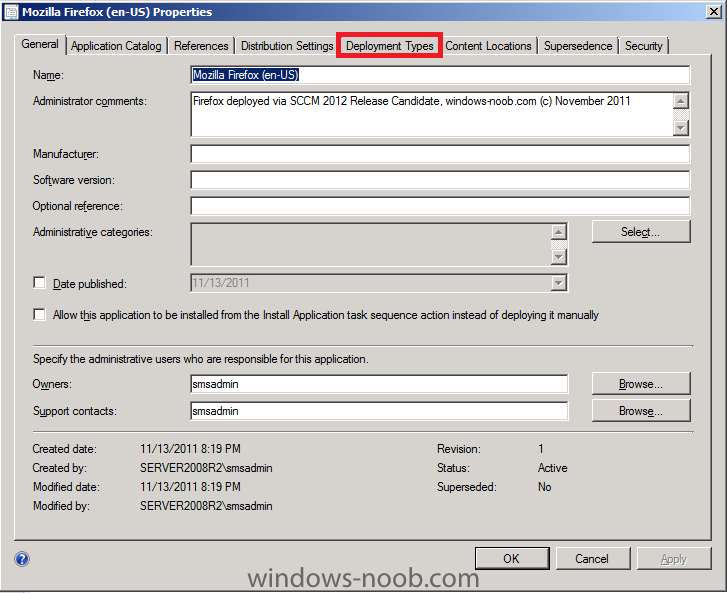

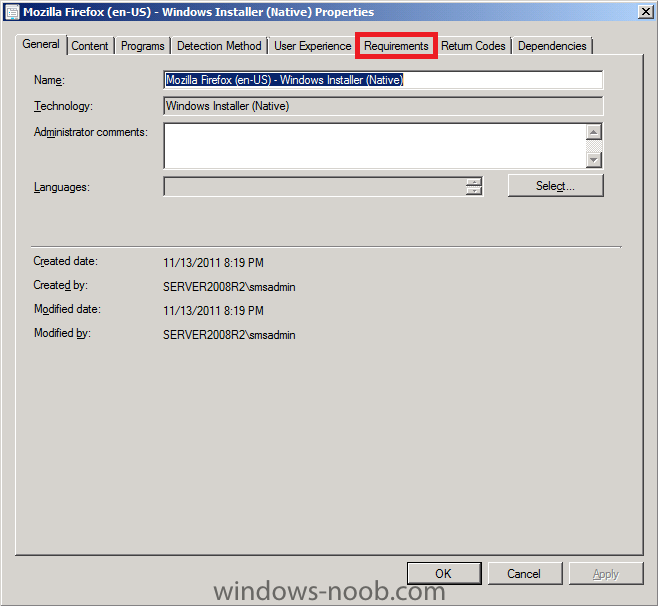

the Applications properties are revealed, click on the Deployment Types Tab



firefox properties.png

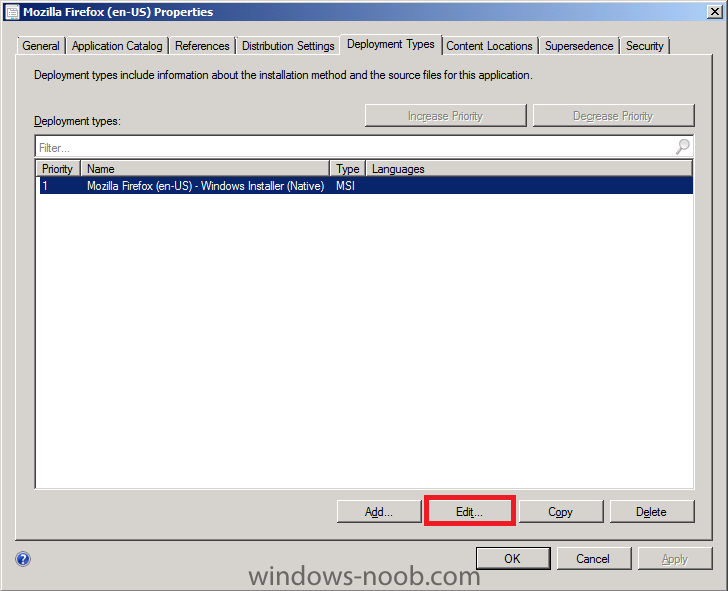

select the Deployment type and click on Edit



edit deployment type.png

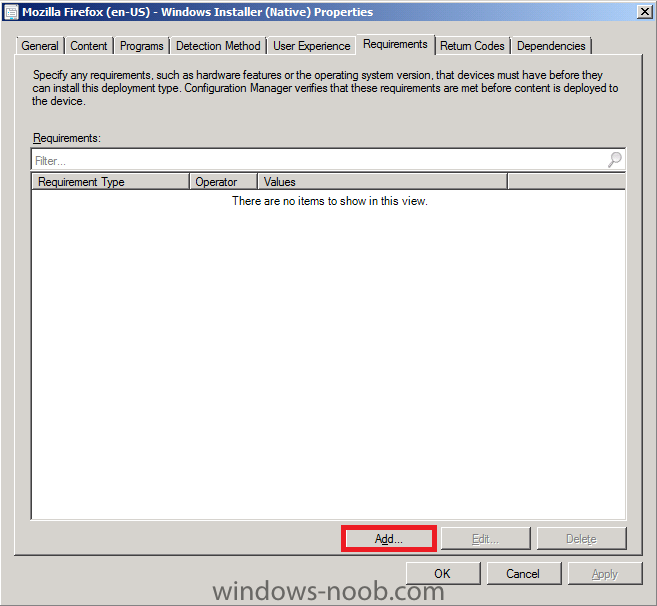

the Deployment Type properties are revealed, click on the Requirements Tab






there are no requirements listed, click on Add



add requirement.png

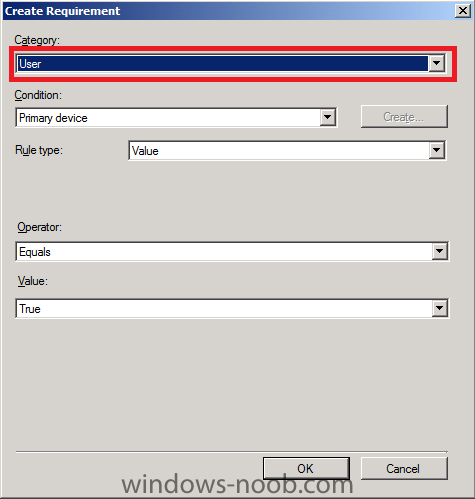

on the Create Requirement screen, select the Category drop down menu and select User, verify that it's set as below (primary device equals true)



create requirement.png

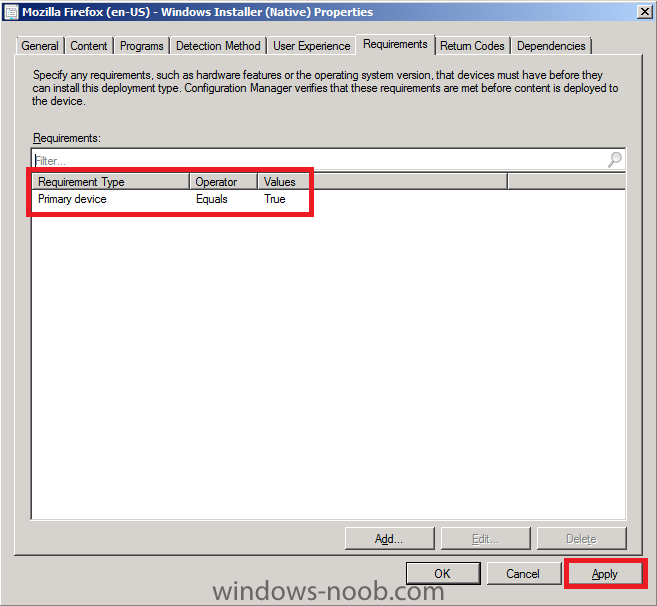

click Apply



primary device equals true.png



and click ok, then click apply and ok again to exit from the Deployment Type menu





Step 3. Create a Deployment for our Application



Perform the following on your SCCM 2012 server as SMSadmin.

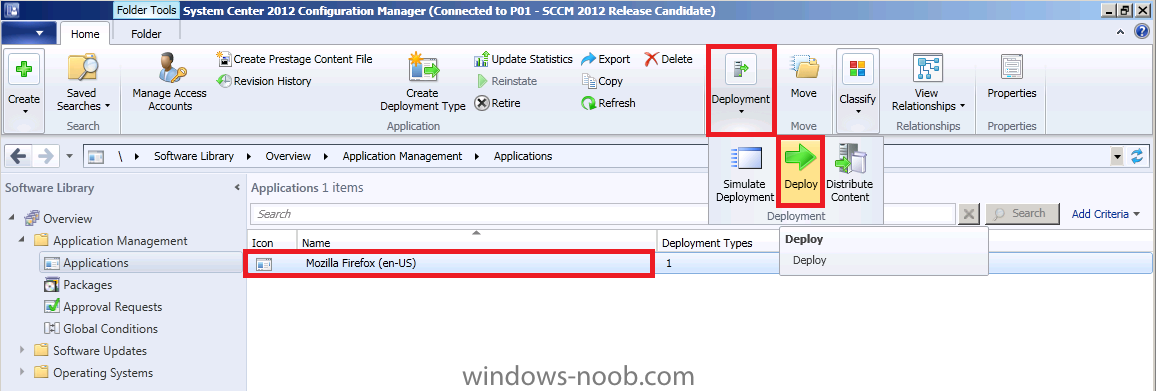

Select the Firefox application and in the ribbon click on Deployment and select Deploy from the menu



deploy firefox.png

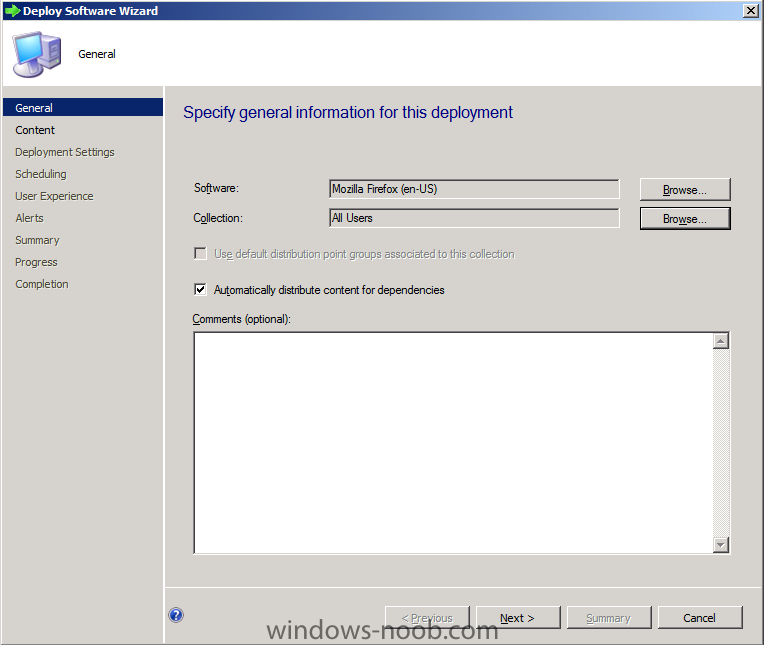

when the Deploy Software wizard appears, browse to All Users for collection



all users.png

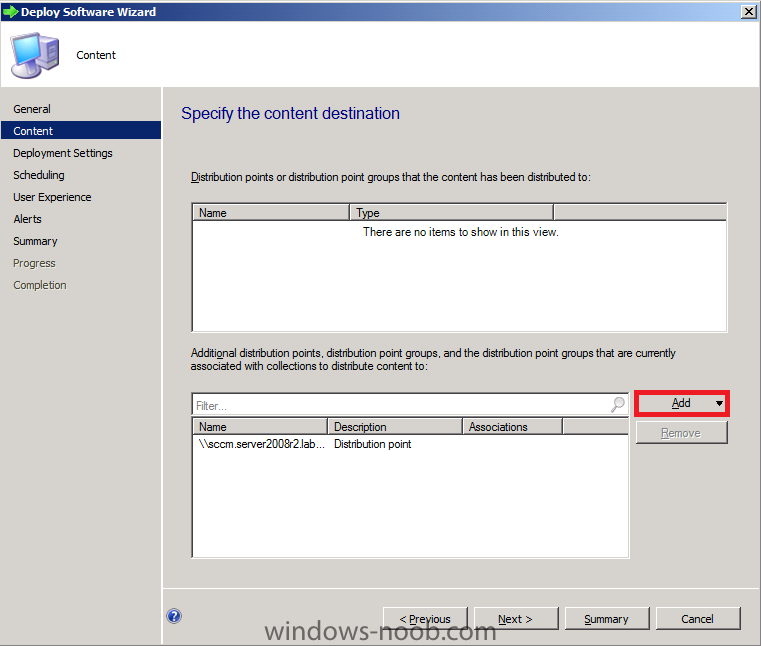

for Content, click on Add and select our Distribution Point



deploy software wizard - content.png

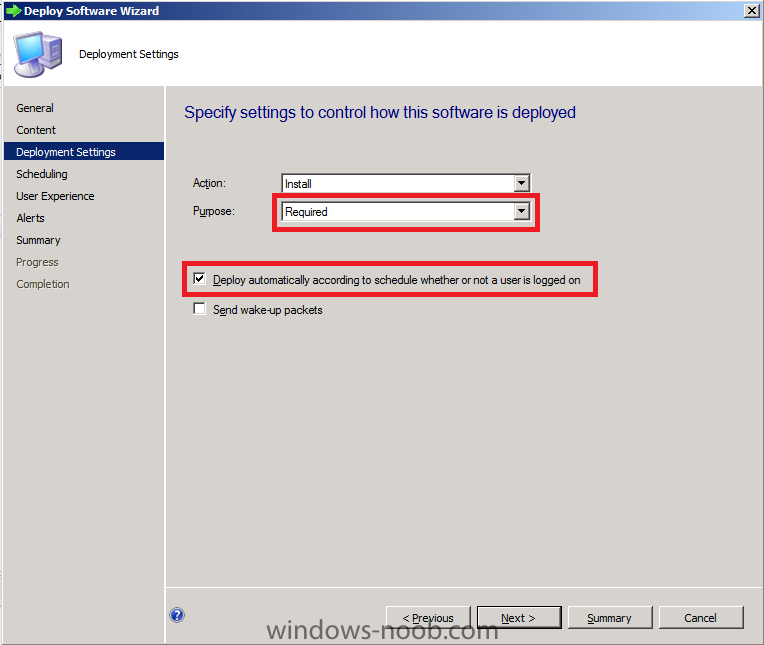

next change the Purpose from Available to Required and place a checkmark in Deploy Automatically according to schedule whether or not a user is logged on



purpose required.png

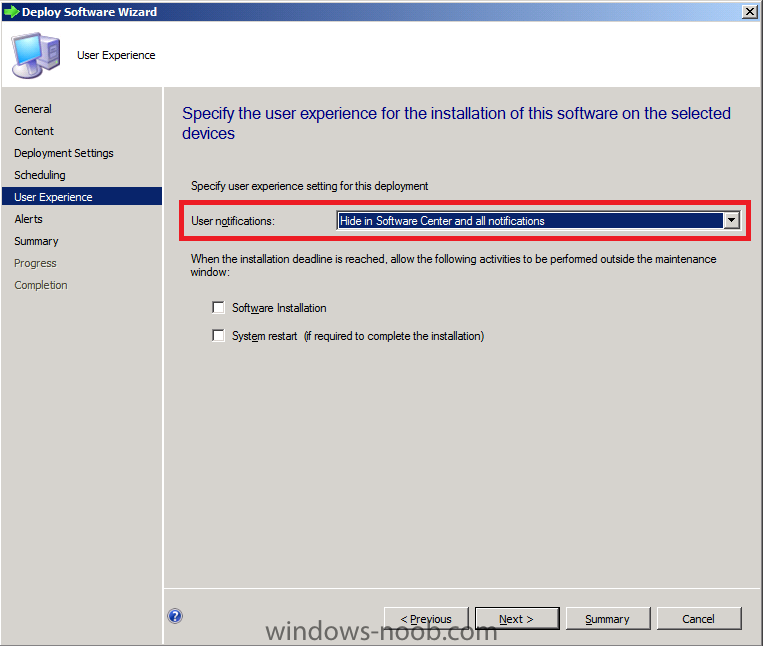

for User Experience set it to hide in software center and all notifications



hide in software center and all notifications.png

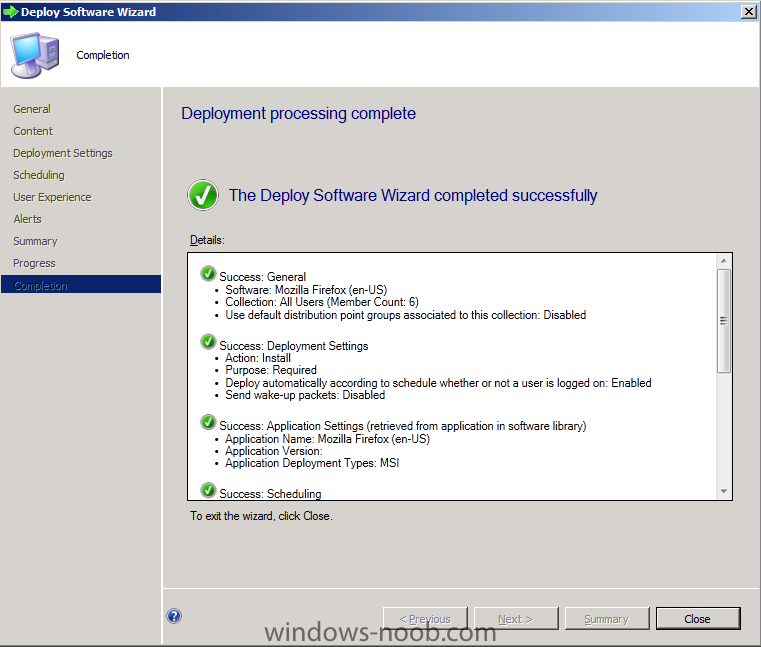

click next through the rest of the wizard to completion (no other changes)



deploy firefox wizard complete.png







Step 4. Copy our Task Sequence



Perform the following on your SCCM 2012 server as SMSadmin.

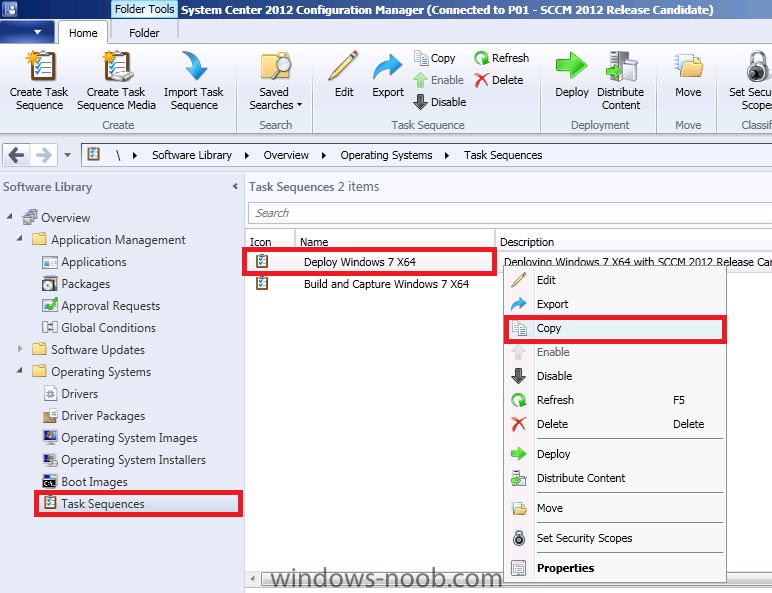

We want to be able to both Refresh our computers (reinstall and migrate data) and do a New Computer installation, to do this we need another task sequence, so lets copy (duplicate) the one we have as we've already created one Deploy Windows 7 X64 task sequence, so select it right click and choose Copy



copy ts.png

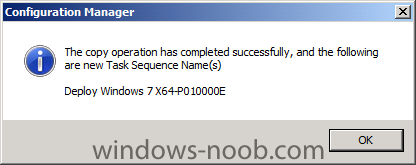

you'll be notified of the copy completion



copy complete.png



Rename the First task sequence to Deploy Window 7 X64 - Refresh by right clicking on it, properties, edit the name



rename ts.png



Now we need to edit the second Task sequence, right click it and choose edit

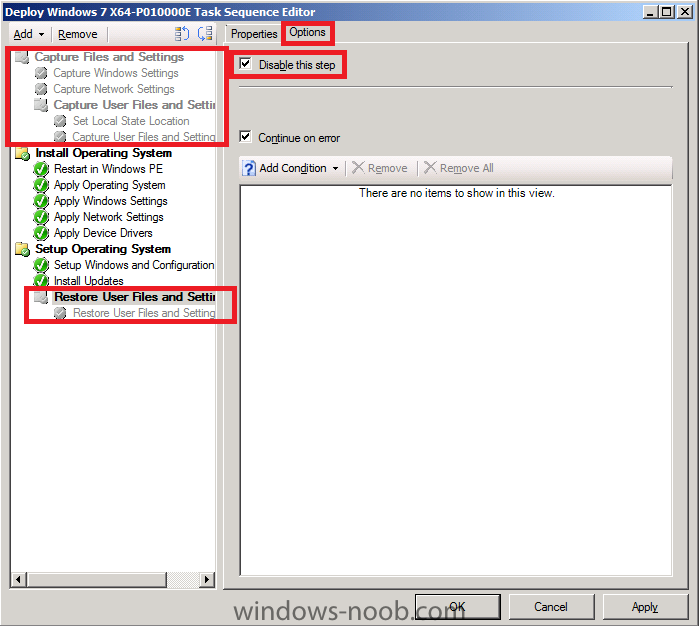

As this is a New Computer Task Sequence, we don't need to migrate data, so Disable the Capture Files and Settings group and the Restore User files and settings Group, click on the Options tab for each group and place a checkmark in Disable, click Apply.



disable usmt.png

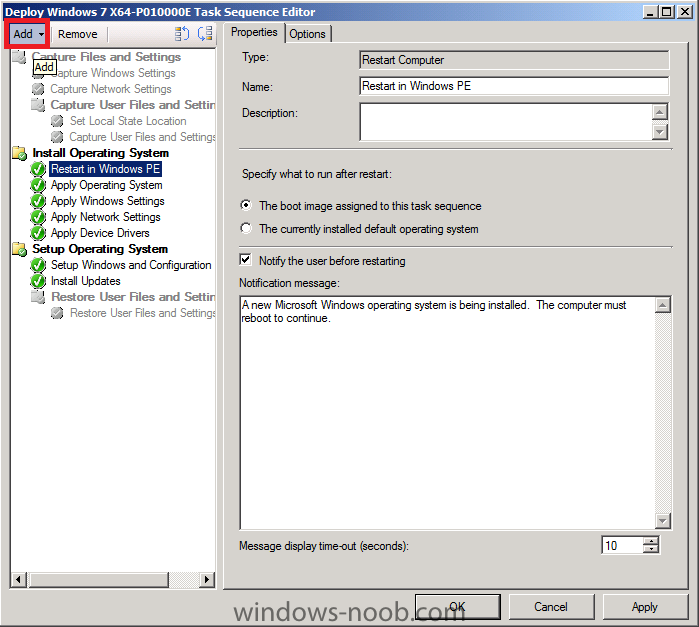

Now we need to add a new step in the Install Operating system group just after Restart in Windows PE step, so select that step and choose Add from the drop down menu



add step.png

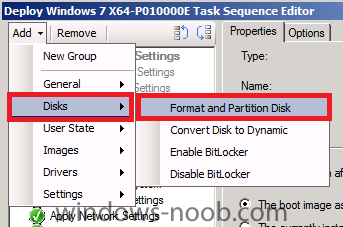

select Disks, Format and Paritition Disk



disks format and partition disk.png

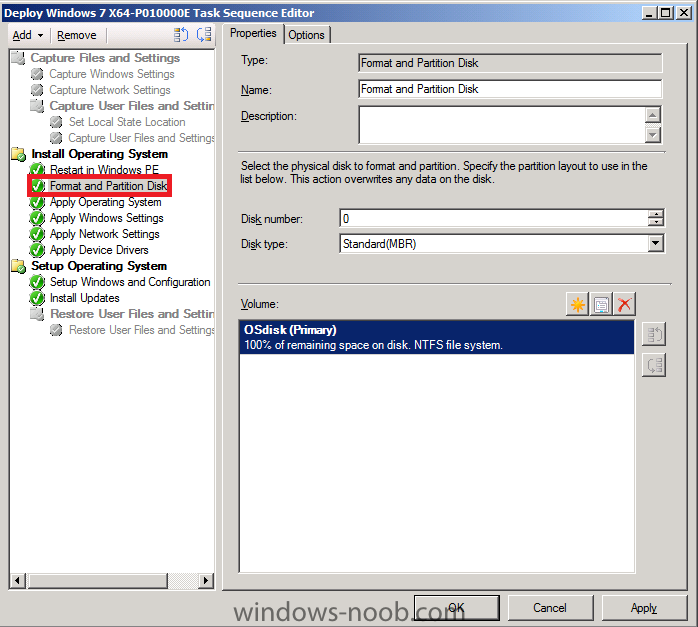

so that it looks like so



format and partition disk.png

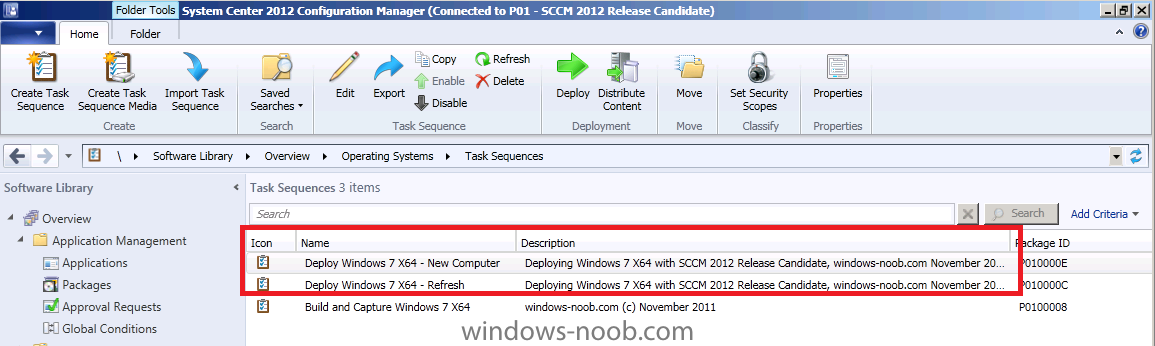

Apply the changes and rename this task sequence to Deploy Windows 7 X64 - New Computer, so now we have two Deploy Task Sequences



two deploy ts.png





Step 5. Deploy our new Task Sequence to the Deploy Windows 7 X64 collection



Perform the following on your SCCM 2012 server as SMSadmin.

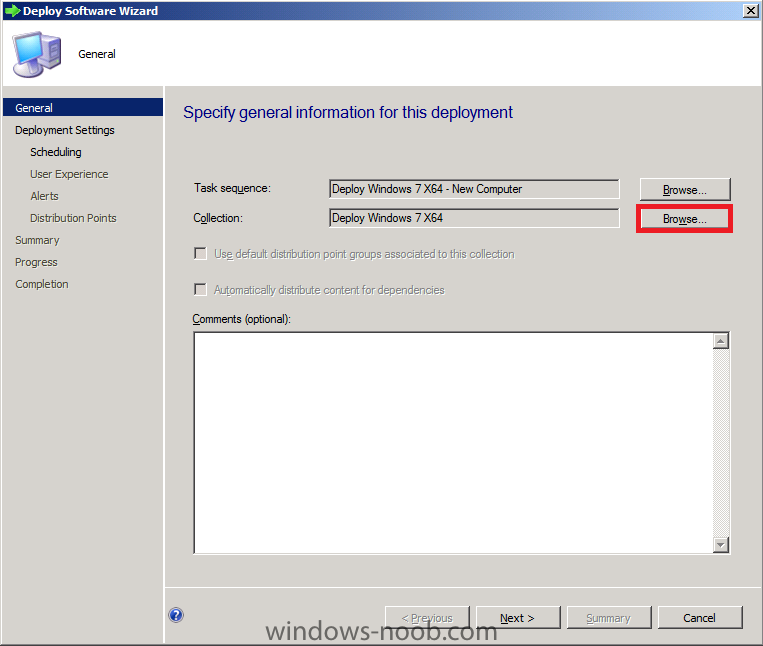

To make the task sequence available to computers we need to Deploy it. In Software Library, select our Deploy Windows 7 X64 - New Computer task sequence and choose Deploy, point the wizard collection to Deploy Windows 7 X64



deploy 7 collection.png

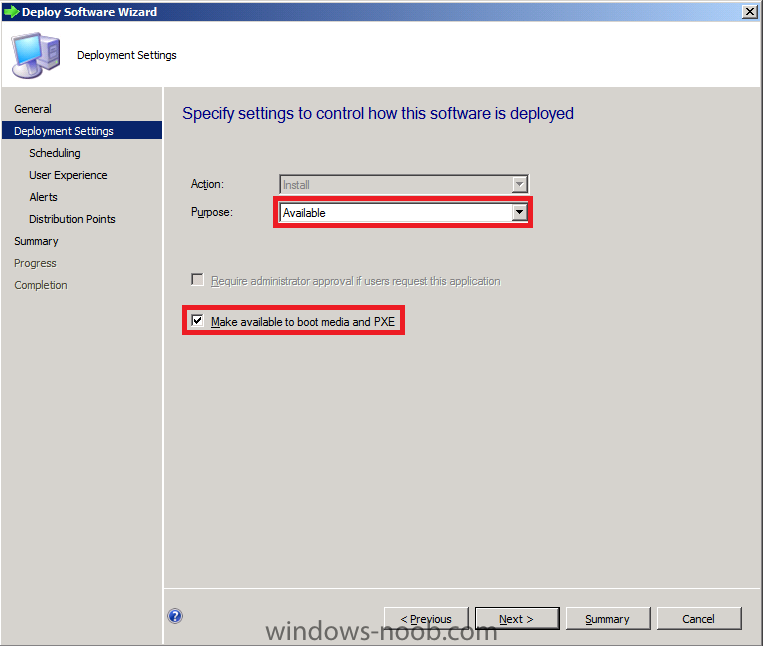

change purpose to Available, place a checkmark in Make available to boot media and PXE



available and pxe.png

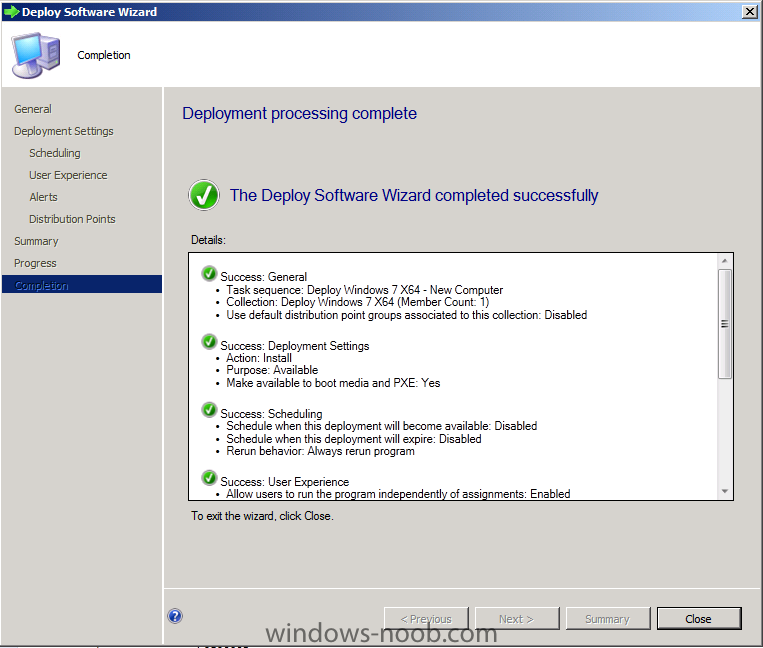

click next through to completion



deploy windows 7 x64 new computer.png







Step 6. Import a computer into the Deploy Windows 7 X64 collection



Perform the following on your SCCM 2012 server as SMSadmin.

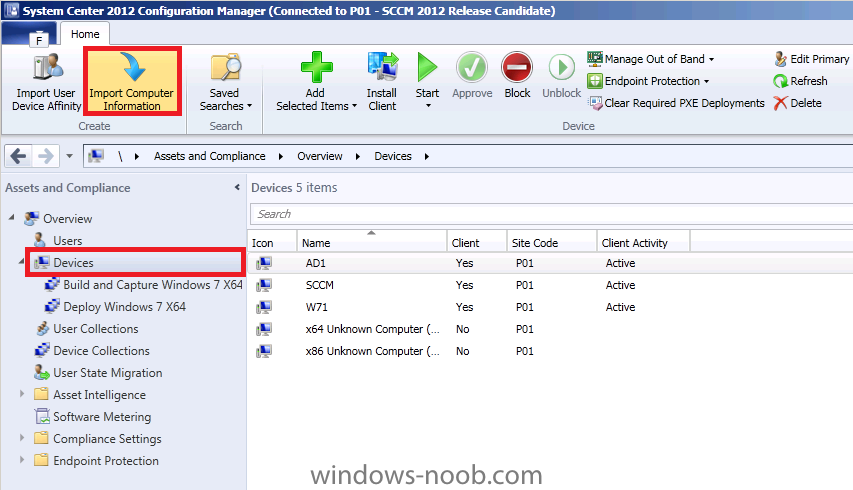

We need a new Virtual Machine to be imported into ConfigMgr's database to add it to our Deploy Windows 7 X64 collection. In the ConfigMgr console, click on Assets and Compliance, Devices, and in the Ribbon click on Import Computer Information. If you havn't already created a Virtual Machine do so now, we need one with 1 gig of Virtual Ram and we need to know it's MAC address.



import computer information.png

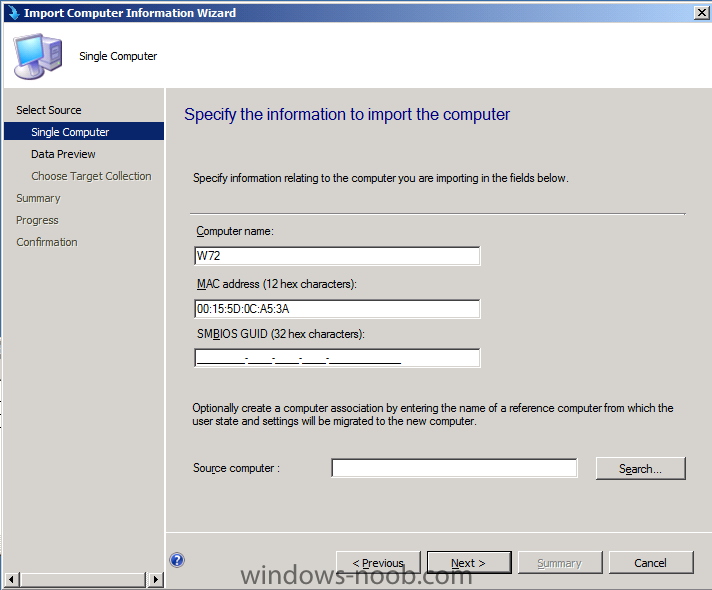

choose import single computer, filll in the computername and mac address (if you want to import multiple comptuers using a file follow this guide)

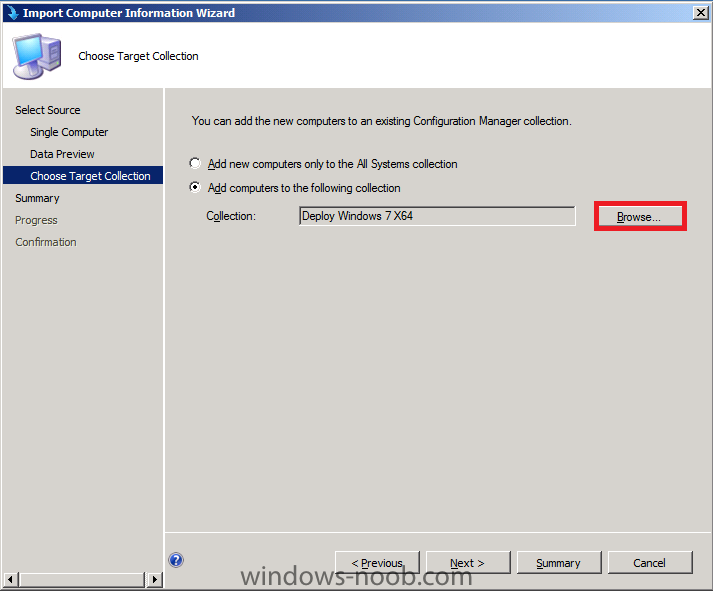

add it to our Deploy Windows 7 X64 collection



add it to our deploy windows 7 x64 collection.png

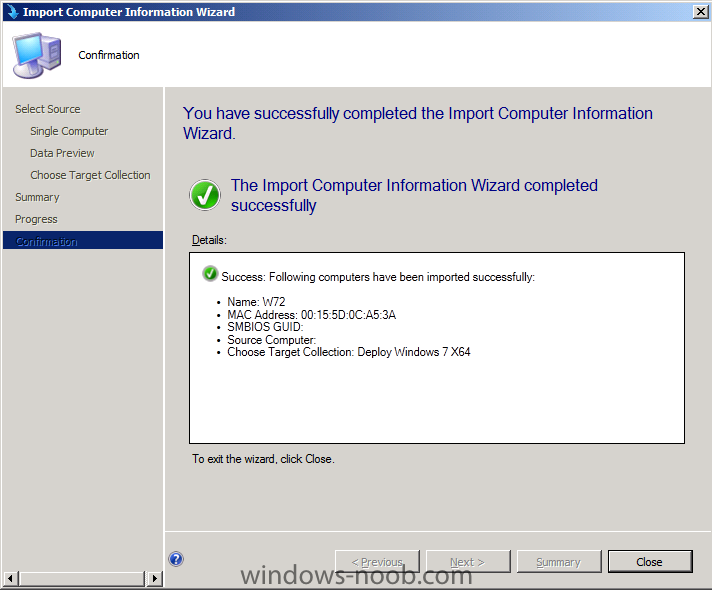

done



w72 added.png

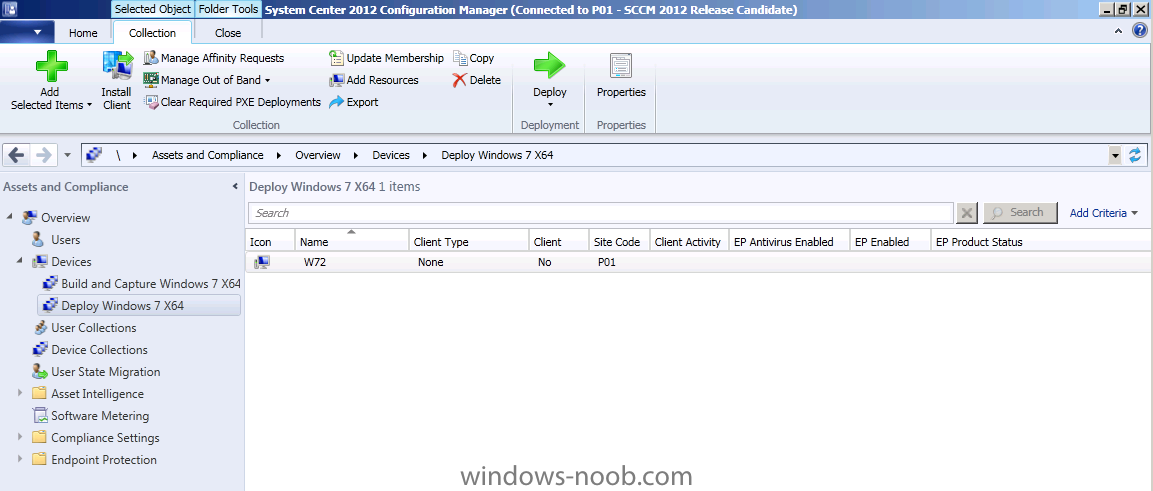

Verify it's in the collection (right click and choose Update Membership)



and after a few minutes there it is



w72 in deploy collection.png









Step 7. PXE boot the New Computer



Perform the following on your SCCM 2012 server as SMSadmin.

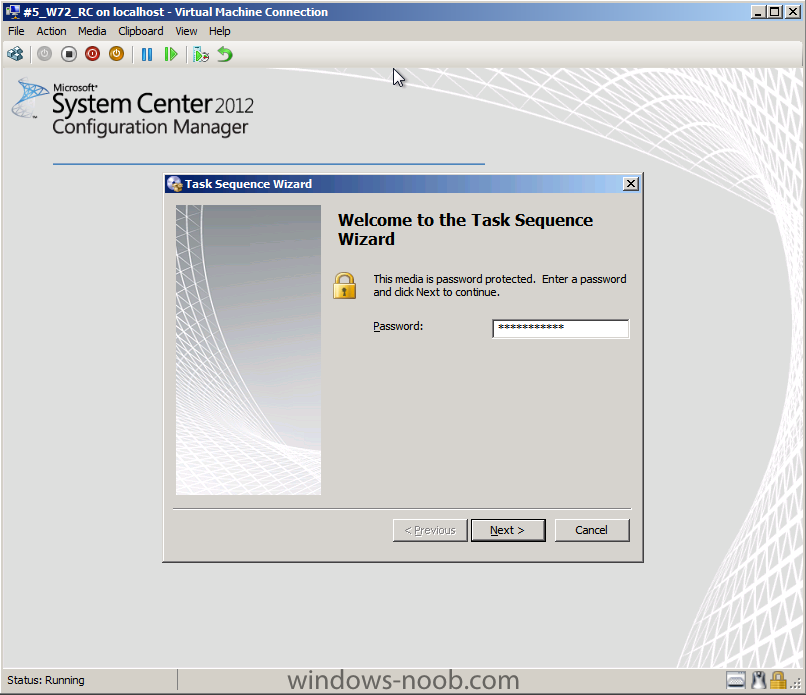

PXE boot the new Virtual Machine, and you should get to the familiar password prompt



pxe password.png

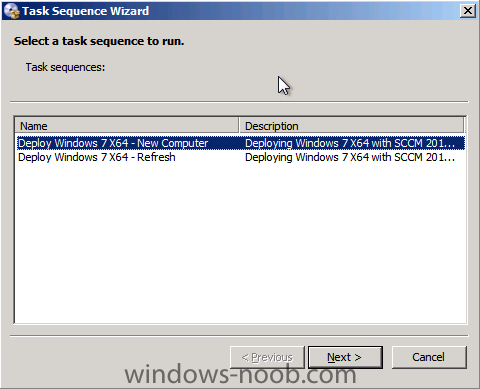

and two new task sequences are ready for us, select Deploy Windows 7 X64 - New Computer



new computer.png

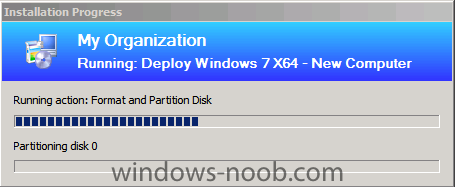

and there's that Format and Partition disk step in action



format disc.png

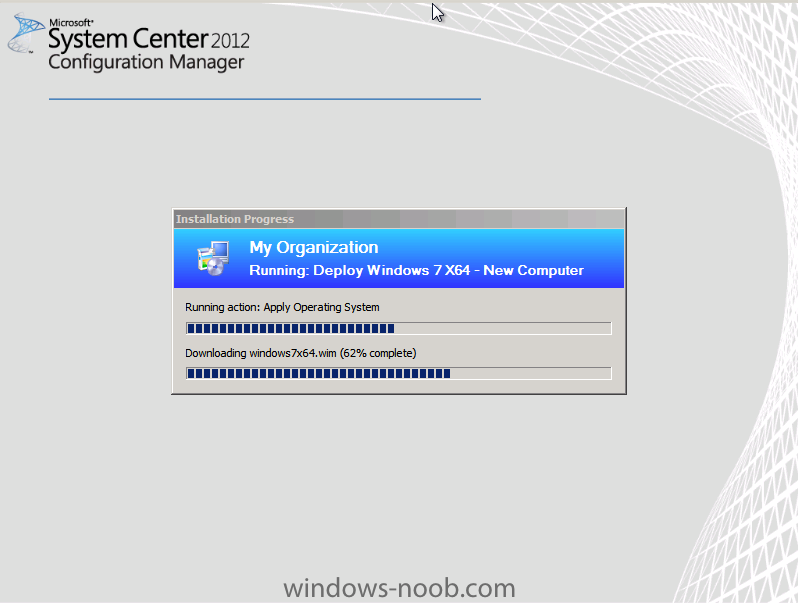

and our captured OS get's applied



windows 7 getting applied.png



In the Next Part we will review how Firefox get's deployed automatically to this computer based on the UDA variables we set, and we will review the logs involved and we'll edit our boot image to support prestart and add some extrafiles, these will be some VBS scripts to prompt for the UDA user instead of setting the variable on the collection as we really don't want all computers that get deployed to have one user as the primary user.

Share this post


Link to post
Share on other sites


Hi , I deploy firefox application according to your guide.but client PC could not receive this application(firefox) .

which logs should I check to troubleshoot this issue ?

thanks in advance!

Share this post


Link to post
Share on other sites

the next part of this series covers this in detail

Share this post


Link to post
Share on other sites

that part is already done, what i meant was it was the next part (after the one you had just read) in the series - check it out here

Share this post


Link to post
Share on other sites

Hi

i succeeded in deploying many application until now "firfox, office 2010, 3dsmax, ...." but the only application that does not work for me is the visual studio 2010. i made the required unattended.ini file but it does not work. all i want is full installation but it hangs with 1603 error on the client. any help will be greatly appricaited

Share this post


Link to post
Share on other sites

what does the application installation LOG file tell you

Share this post


Link to post
Share on other sites

Unmatched exit code (1603) is considered an execution failure. AppEnforce 1/25/2012 8:42:18 AM 3664 (0x0E50)

++++++ App enforcement completed (43 seconds) for App DT "Microsoft Visual Studio 2010 Professional - ENU - Windows Installer (Native)" [scopeId_4F37E771-26E2-4012-B088-82E709540E5F/DeploymentType_6298ffcb-ba33-4e35-9869-62bc0a75d277], Revision: 3, User SID: ] ++++++ AppEnforce 1/25/2012 8:42:18 AM 3664 (0x0E50)

+++ Starting Install enforcement for App DT "Microsoft Visual Studio 2010 Professional - ENU - Windows Installer (Native)" ApplicationDeliveryType - ScopeId_4F37E771-26E2-4012-B088-82E709540E5F/DeploymentType_6298ffcb-ba33-4e35-9869-62bc0a75d277, Revision - 3, ContentPath - C:\Windows\ccmcache\2, Execution Context - Any AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

A user is logged on to the system. AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Performing detection of app deployment type Microsoft Visual Studio 2010 Professional - ENU - Windows Installer (Native)(ScopeId_4F37E771-26E2-4012-B088-82E709540E5F/DeploymentType_6298ffcb-ba33-4e35-9869-62bc0a75d277, revision 3) for system. AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

+++ Application not discovered. [AppDT Id: ScopeId_4F37E771-26E2-4012-B088-82E709540E5F/DeploymentType_6298ffcb-ba33-4e35-9869-62bc0a75d277, Revision: 3] AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

App enforcement environment:

Context: Machine

Command line: msiexec /i "vs_setup.msi" /q

Allow user interaction: No

UI mode: 1

User token: null

Session Id: 2

Content path: C:\Windows\ccmcache\2

Working directory: AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Prepared working directory: C:\Windows\ccmcache\2 AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Found executable file msiexec with complete path C:\Windows\system32\msiexec.exe AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Prepared command line: "C:\Windows\system32\msiexec.exe" /i "vs_setup.msi" /q /qn AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Valid MSI Package path = C:\Windows\ccmcache\2\vs_setup.msi AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

AdvertisePackage [C:\Windows\ccmcache\2\vs_setup.msi] - Created Temp File Name : C:\Windows\CCM\SystemTemp\tmp8829.tmp AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Working directory C:\Windows\ccmcache\2 AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Post install behavior is BasedOnExitCode AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Waiting for process 2964 to finish. Timeout = 120 minutes. AppEnforce 1/25/2012 8:50:28 AM 1016 (0x03F8)

Process 2964 terminated with exitcode: 1603 AppEnforce 1/25/2012 8:50:37 AM 1016 (0x03F8)

Looking for exit code 1603 in exit codes table... AppEnforce 1/25/2012 8:50:37 AM 1016 (0x03F8)

Share this post


Link to post
Share on other sites

i mean, what does the actual application that you are trying to install, that MSI log file say, not the appenforce.log...

Share this post


Link to post
Share on other sites

as i said before it is Visual Studio 2010 and there is no log. i dont event get any errors in the eventvwr on the client computer. on software center the application status says installing and i can see setup.exe is running in the process manager and it just hangs nothing happens. any spectial place you want me to look into ??

Share this post


Link to post
Share on other sites

it is solved as i found the error in the path to the installation folder. there are two setup.exe one is in the root and the other is inside a folder in which it is called setup too. i made the unattend.ini and i pointed it into the setup.exe that is in the root. i pointed it into the other setup file and it worked thanx anyway.

Share this post


Link to post
Share on other sites

well i have another question for you if you have time. i am deploying an application and it works on the client after deployment but the SCCM client shows FAILED while it is deployed without errors. do you have any idea how to fix this.

Share this post


Link to post
Share on other sites

Hi,



I don't understand what's the difference between "Applications" and "Packages".

Could explain me in which situation we've to use them?



Thanks in advance.

Share this post


Link to post
Share on other sites

Hi:



Let's say I deployed Firefox 7 via SCCM 2012 to all my clients. Now I would like to upgrade all my clents to Firefox 10. What are the SCCM

best practices to accomplish this? Do I need to create a brand new application deployment for Firefox 10 or can I edited the Firefox 7

deployment?



Thanks.



Mark

Share this post


Link to post
Share on other sites

Hi,



First of all I must thank you for the great guide on configuring sccm 2012.

At our company we have setup a test environment with both altiris and sccm 2012 to chose our new deployment software.

Both have their shortcomings, but there is one thing I can't seem to figure out.

In sccm reports I can find "package and program deployment status messages for a specified client and deployment".

But since I created mostly applications instead of packages (this is the new way to go i assume) I can't seem to find any report on the deployment status of applications for a specific client. Do you know any report that does this or might it be added to the rtm version?

Since we will also use sccm for removing and reinstalling software we really need this to know the current status of deployment at any time.

Share this post


Link to post
Share on other sites

hi, this is indeed a good question, i'm investigating this for you and will come back as soon as I can

Share this post


Link to post
Share on other sites

I got stuck on a Step 6. I added a new workstation as a single computer. And able to see it in "All systems". A new VM without any OS installed. However it was not added to a "Deploy windows 7X64" collection. I am trying to add it manually by right clicking the client /Add Selected Item/Add Selected Items to Existing Device Collection.

When i go back to the collection i see "No items Found."

What am i missing?



Thank you.

Share this post


Link to post
Share on other sites

I am getting 0x8000405 error when I add any application in the build and capture, i have copied smstslog.



<![LOG[Received job completion notification from DCM Agent]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="installapplication.cpp:1166">

<![LOG[GetAppMgmtSDKInterface successful]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="installapplication.cpp:160">

<![LOG[Policy Evaluation failed, hr=0x80004005]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="3" thread="2776" file="installapplication.cpp:1187">

<![LOG[setting TSEnv variable 'SMSTSAppPolicyEvaluationJobID__ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313'='']LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="installapplication.cpp:63">

<![LOG[EvaluationJob complete]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="installapplication.cpp:1206">

<![LOG[m_hResult, HRESULT=80004005 (e:\nts_sccm_release\sms\client\osdeployment\installapplication\installapplication.cpp,993)]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="installapplication.cpp:993">

<![LOG[step 2 out of 2 complete]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="daprogress.cpp:226">

<![LOG[install application action failed: 'Mozilla Firefox (en-US)'. Error Code 0x80004005]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="3" thread="2776" file="installapplication.cpp:788">

<![LOG[sending error status message]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="installapplication.cpp:793">

<![LOG[ Setting URL = http://SCCM1.amerpvt.com, Ports = 80,443, CRL = false]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="utils.cpp:5110">

<![LOG[ Setting Server Certificates.]LOG]!><time="14:51:57.250-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="utils.cpp:5138">

<![LOG[ Setting Authenticator.]LOG]!><time="14:51:57.281-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="utils.cpp:5145">

<![LOG[set authenticator in transport]LOG]!><time="14:51:57.281-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="libsmsmessaging.cpp:7574">

<![LOG[ Setting Media Certificate.]LOG]!><time="14:51:57.281-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="utils.cpp:5162">

<![LOG[sending StatusMessage]LOG]!><time="14:51:57.313-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="libsmsmessaging.cpp:4019">

<![LOG[setting message signatures.]LOG]!><time="14:51:57.313-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="libsmsmessaging.cpp:1291">

<![LOG[setting the authenticator.]LOG]!><time="14:51:57.313-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="libsmsmessaging.cpp:1321">

<![LOG[CLibSMSMessageWinHttpTransport::Send: URL: SCCM1.amerpvt.com:80 CCM_POST /ccm_system/request]LOG]!><time="14:51:57.313-600" date="04-07-2012" component="InstallApplication" context="" type="1" thread="2776" file="libsmsmessaging.cpp:8404">

<![LOG[Request was succesful.]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="libsmsmessaging.cpp:8740">

<![LOG[install application action cannot continue. ContinueOnErrorFlag is set to false.]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="InstallApplication" context="" type="3" thread="2776" file="installapplication.cpp:798">

<![LOG[hrInstallation, HRESULT=80004005 (e:\nts_sccm_release\sms\client\osdeployment\installapplication\installapplication.cpp,799)]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="installapplication.cpp:799">

<![LOG[pInstall->InstallApplications(saAppNames, sContinueOnError), HRESULT=80004005 (e:\nts_sccm_release\sms\client\osdeployment\installapplication\main.cpp,277)]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="InstallApplication" context="" type="0" thread="2776" file="main.cpp:277">

<![LOG[install Static Applications failed, hr=0x80004005]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="InstallApplication" context="" type="3" thread="2776" file="main.cpp:277">

<![LOG[Process completed with exit code 2147500037]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="commandline.cpp:1098">

<![LOG[!--------------------------------------------------------------------------------------------!]LOG]!><time="14:51:57.328-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="instruction.cxx:3011">

<![LOG[Failed to run the action: Install Firefox.

Unspecified error (Error: 80004005; Source: Windows)]LOG]!><time="14:51:57.391-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="instruction.cxx:3102">

<![LOG[MP server http://SCCM1.amerpvt.com. Ports 80,443. CRL=false.]LOG]!><time="14:51:57.391-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4855">

<![LOG[setting authenticator]LOG]!><time="14:51:57.406-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4877">

<![LOG[set authenticator in transport]LOG]!><time="14:51:57.406-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:7574">

<![LOG[sending StatusMessage]LOG]!><time="14:51:57.422-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:4019">

<![LOG[setting message signatures.]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1291">

<![LOG[setting the authenticator.]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1321">

<![LOG[CLibSMSMessageWinHttpTransport::Send: URL: SCCM1.amerpvt.com:80 CCM_POST /ccm_system/request]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:8404">

<![LOG[Request was succesful.]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:8740">

<![LOG[set a global environment variable _SMSTSLastActionRetCode=-2147467259]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="executionenv.cxx:668">

<![LOG[set a global environment variable _SMSTSLastActionSucceeded=false]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="executionenv.cxx:668">

<![LOG[Clear local default environment]LOG]!><time="14:51:57.437-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="executionenv.cxx:807">

<![LOG[Let the parent group (Build the Reference Machine) decides whether to continue execution]LOG]!><time="14:51:57.453-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="instruction.cxx:3211">

<![LOG[The execution of the group (Build the Reference Machine) has failed and the execution has been aborted. An action failed.

Operation aborted (Error: 80004004; Source: Windows)]LOG]!><time="14:51:57.453-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="instruction.cxx:2425">

<![LOG[Failed to run the last action: Install Firefox. Execution of task sequence failed.

Unspecified error (Error: 80004005; Source: Windows)]LOG]!><time="14:51:57.453-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="engine.cxx:214">

<![LOG[MP server http://SCCM1.amerpvt.com. Ports 80,443. CRL=false.]LOG]!><time="14:51:57.453-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4855">

<![LOG[setting authenticator]LOG]!><time="14:51:57.469-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4877">

<![LOG[set authenticator in transport]LOG]!><time="14:51:57.469-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:7574">

<![LOG[sending StatusMessage]LOG]!><time="14:51:57.469-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:4019">

<![LOG[setting message signatures.]LOG]!><time="14:51:57.484-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1291">

<![LOG[setting the authenticator.]LOG]!><time="14:51:57.484-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1321">

<![LOG[CLibSMSMessageWinHttpTransport::Send: URL: SCCM1.amerpvt.com:80 CCM_POST /ccm_system/request]LOG]!><time="14:51:57.484-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:8404">

<![LOG[Request was succesful.]LOG]!><time="14:51:57.484-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:8740">

<![LOG[Launching command shell.]LOG]!><time="15:02:57.849-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="debugwindow.cpp:202">

<![LOG[Windows station: WinSta0]LOG]!><time="15:02:57.849-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="utils.cpp:43">

<![LOG[Desktop: Default]LOG]!><time="15:02:57.849-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="utils.cpp:62">

<![LOG[executing command: C:\Windows\system32\cmd.exe /k]LOG]!><time="15:02:57.849-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="debugwindow.cpp:63">

<![LOG[executed command: C:\Windows\system32\cmd.exe /k]LOG]!><time="15:02:57.849-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="debugwindow.cpp:80">

<![LOG[Execution::enExecutionFail != m_eExecutionResult, HRESULT=80004005 (e:\nts_sccm_release\sms\client\tasksequence\tsmanager\tsmanager.cpp,756)]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="tsmanager.cpp:756">

<![LOG[Task Sequence Engine failed! Code: enExecutionFail]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="tsmanager.cpp:756">

<![LOG[****************************************************************************]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanager.cpp:779">

<![LOG[Task sequence execution failed with error code 80004005]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="tsmanager.cpp:780">

<![LOG[Cleaning Up.]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanager.cpp:574">

<![LOG[Removing Authenticator]LOG]!><time="15:07:10.304-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanager.cpp:585">

<![LOG[Cleaning up task sequence folder]LOG]!><time="15:07:10.351-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:1503">

<![LOG[unable to delete file C:\_SMSTaskSequence\TSEnv.dat (0x80070005). Continuing.]LOG]!><time="15:07:11.646-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="ccmfile.cpp:1056">

<![LOG[hr, HRESULT=80070091 (e:\nts_sccm_release\sms\framework\core\ccmcore\ccmfile.cpp,1218)]LOG]!><time="15:07:11.646-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="ccmfile.cpp:1218">

<![LOG[Failed to delete directory 'C:\_SMSTaskSequence']LOG]!><time="15:07:11.646-600" date="04-07-2012" component="TSManager" context="" type="2" thread="2424" file="ccmfile.cpp:1218">

<![LOG[DeleteFileW(sVolumeIDFile.c_str()), HRESULT=80070002 (e:\nts_sccm_release\sms\framework\tscore\resolvesource.cpp,518)]LOG]!><time="15:07:11.661-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="resolvesource.cpp:518">

<![LOG[successfully unregistered Task Sequencing Environment COM Interface.]LOG]!><time="15:07:11.693-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="environmentlib.cpp:885">

<![LOG[Command line for extension .exe is "%1" %*]LOG]!><time="15:07:11.693-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="commandline.cpp:228">

<![LOG[set command line: "C:\Windows\CCM\TsProgressUI.exe" /Unregister]LOG]!><time="15:07:11.693-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="commandline.cpp:705">

<![LOG[Executing command line: "C:\Windows\CCM\TsProgressUI.exe" /Unregister]LOG]!><time="15:07:11.693-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="commandline.cpp:801">

<![LOG[==========[ TsProgressUI started in process 1252 ]==========]LOG]!><time="15:07:11.958-600" date="04-07-2012" component="TsProgressUI" context="" type="1" thread="2892" file="winmain.cpp:329">

<![LOG[Command line: "C:\Windows\CCM\TsProgressUI.exe" /Unregister]LOG]!><time="15:07:12.020-600" date="04-07-2012" component="TsProgressUI" context="" type="0" thread="2892" file="winmain.cpp:332">

<![LOG[unregistering COM classes]LOG]!><time="15:07:12.020-600" date="04-07-2012" component="TsProgressUI" context="" type="1" thread="2892" file="winmain.cpp:204">

<![LOG[unregistering class objects]LOG]!><time="15:07:12.051-600" date="04-07-2012" component="TsProgressUI" context="" type="1" thread="2892" file="winmain.cpp:495">

<![LOG[shutdown complete.]LOG]!><time="15:07:12.051-600" date="04-07-2012" component="TsProgressUI" context="" type="1" thread="2892" file="winmain.cpp:512">

<![LOG[Process completed with exit code 0]LOG]!><time="15:07:12.051-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="commandline.cpp:1098">

<![LOG[successfully unregistered TS Progress UI.]LOG]!><time="15:07:12.051-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:2075">

<![LOG[setting program history for AM100007:*]LOG]!><time="15:07:12.254-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanagerutils.cpp:212">

<![LOG[Opening the task sequence key HKLM\Software\Microsoft\SMS\Task Sequence]LOG]!><time="15:07:12.270-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:3215">

<![LOG[kTaskSequence.Open(HKEY_LOCAL_MACHINE, sTaskSequenceKey.c_str(), KEY_READ|KEY_WRITE), HRESULT=80070002 (e:\nts_sccm_release\sms\framework\tscore\utils.cpp,3219)]LOG]!><time="15:07:12.270-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:3219">

<![LOG[Failed to open the task sequence key HKLM\Software\Microsoft\SMS\Task Sequence. Error code 0x80070002]LOG]!><time="15:07:12.270-600" date="04-07-2012" component="TSManager" context="" type="2" thread="2424" file="utils.cpp:3219">

<![LOG[start to cleanup TS policy]LOG]!><time="15:07:12.285-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2773">

<![LOG[TS deleting 'CCM_ApplicationCIAssignment.PolicyID="DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313",PolicyInstanceID="{1C56788C-F937-4C23-8B28-6D89D9BAAF84}",PolicyRuleID="{Rule_DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.504-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_CIVersionInfo.PolicyID="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI",PolicyInstanceID="{903183D3-86C8-4EE2-9648-5D86D09F310C}",PolicyRuleID="{Rule_ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.519-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_CIVersionInfo.PolicyID="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI",PolicyInstanceID="{378647A0-1463-4313-A1BB-CF675785D621}",PolicyRuleID="{Rule_ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.519-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_CIVersionInfo.PolicyID="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI",PolicyInstanceID="{27A7F747-F587-423E-9067-7ACA6F3F248A}",PolicyRuleID="{Rule_ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.519-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_CIVersionInfo.PolicyID="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI",PolicyInstanceID="{09225196-9225-4B1B-8A83-910E5EF62C2E}",PolicyRuleID="{Rule_ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313/VI}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.519-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_ClientActions.PolicyID="{0b66b3d7-7984-4136-94c8-3a1968bc3bf6}",PolicyInstanceID="{1E517010-B35A-4985-8EE4-2615F26C8013}",PolicyRuleID="{09f1ec60-2228-4c7c-bb04-9601f4ef2118}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_SoftwareUpdatesClientConfig.PolicyID="{0b66b3d7-7984-4136-94c8-3a1968bc3bf6}",PolicyInstanceID="{2D501108-69D4-46DE-8B27-4F7341F72274}",PolicyRuleID="{09f1ec60-2228-4c7c-bb04-9601f4ef2118}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_SoftwareDistributionClientConfig.PolicyID="{323a8a8b-0368-4302-bfd4-ff27c5bcce78}",PolicyInstanceID="{CAA073D7-D7DB-484E-8B9F-FCC0D5CF5F53}",PolicyRuleID="{349f68e7-d47f-43dc-a29c-f7a62045145b}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_NetworkAccessAccount.PolicyID="{0afbcd47-547f-4ada-9c56-700d2e673f23}",PolicyInstanceID="{08572117-91D4-4E81-9E40-DFA7CE0BF60C}",PolicyRuleID="{dc1df73f-9cd8-480b-b0c6-4c4184ec8959}",PolicySource="CcmTaskSequence",PolicyVersion="2.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_SystemHealthClientConfig.PolicyID="{4fbeda79-381f-4ef7-842f-612c98685c23}",PolicyInstanceID="{F2B76586-F517-4228-8F9B-09134B3ACFE1}",PolicyRuleID="{f0b58966-bfc3-4512-a8e2-14bcc55e613e}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_RebootSettings.PolicyID="{59c1d5f7-2fba-4f47-a19e-fae70f6d7823}",PolicyInstanceID="{2E7BB70E-CBD3-4EAD-A445-05CC238B4F5B}",PolicyRuleID="{e54e0a75-1080-4fdf-83b1-eb0ac2f403da}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_Scheduler_ScheduledMessage.PolicyID="{0b66b3d7-7984-4136-94c8-3a1968bc3bf6}",PolicyInstanceID="{6945DE02-46AB-4583-97F3-DD56337A9C3E}",PolicyRuleID="{09f1ec60-2228-4c7c-bb04-9601f4ef2118}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_Scheduler_ScheduledMessage.PolicyID="{0b66b3d7-7984-4136-94c8-3a1968bc3bf6}",PolicyInstanceID="{1C198D0E-9075-4652-9FA0-1E1FCB7D1F07}",PolicyRuleID="{09f1ec60-2228-4c7c-bb04-9601f4ef2118}",PolicySource="CcmTaskSequence",PolicyVersion="1.00"'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS deleting 'CCM_Scheduler_ScheduledMessage.PolicyID="DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313",PolicyInstanceID="{E39C9E2A-7596-4E8F-BC82-9E8C4A9740F3}",PolicyRuleID="{Rule_DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313}",PolicySource="CcmTaskSequence",PolicyVersion=""'.]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2807">

<![LOG[TS Deleted 14 instances]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2816">

<![LOG[TS Policy cleanup done]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2817">

<![LOG[End TS policy cleanup]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:2821">

<![LOG[Get Install Directory for SMS Client]LOG]!><time="15:07:12.535-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="utils.cpp:3349">

<![LOG[start to evaluate TS policy with lock]LOG]!><time="15:07:12.707-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:10577">

<![LOG[Locked policy transaction lock successfully]LOG]!><time="15:07:12.753-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7560">

<![LOG[updating settings in \\test\root\ccm\policy\machine\actualconfig]LOG]!><time="15:07:12.753-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7563">

<![LOG[Locked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source SMS:Client:Default:{09BCDDDC-11A6-4D62-ACC7-B43739463C31} successfully]LOG]!><time="15:07:12.785-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[RequestedConfig policy instance(s) : 400]LOG]!><time="15:07:12.863-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7192">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source SMS:Client:Default:{09BCDDDC-11A6-4D62-ACC7-B43739463C31} successfully]LOG]!><time="15:07:12.863-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source SMS:Client:Default:{09BCDDDC-11A6-4D62-ACC7-B43739463C31} successfully]LOG]!><time="15:07:12.863-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[Namespace: \\TEST\ROOT\ccm\policy\machine\RequestedConfig, Query: SELECT * FROM CCM_Policy_Policy4 WHERE (PolicySource = "SMS:Client:Default:{09BCDDDC-11A6-4D62-ACC7-B43739463C31}") AND (PolicyState = "Active") AND (PolicyType = "Machine")]LOG]!><time="15:07:12.909-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7050">

<![LOG[There is no ccm_policy_policy instance, skipping addition to realinst map]LOG]!><time="15:07:12.909-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7051">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source SMS:Client:Default:{09BCDDDC-11A6-4D62-ACC7-B43739463C31} successfully]LOG]!><time="15:07:12.909-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source CcmPortal successfully]LOG]!><time="15:07:12.909-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[RequestedConfig policy instance(s) : 0]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7192">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source CcmPortal successfully]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source CcmPortal successfully]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[Namespace: \\TEST\ROOT\ccm\policy\machine\RequestedConfig, Query: SELECT * FROM CCM_Policy_Policy4 WHERE (PolicySource = "CcmPortal") AND (PolicyState = "Active") AND (PolicyType = "Machine")]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7050">

<![LOG[There is no ccm_policy_policy instance, skipping addition to realinst map]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7051">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source CcmPortal successfully]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source Local successfully]LOG]!><time="15:07:12.956-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[RequestedConfig policy instance(s) : 0]LOG]!><time="15:07:12.972-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7192">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source Local successfully]LOG]!><time="15:07:12.972-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source Local successfully]LOG]!><time="15:07:12.972-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[RequestedConfig policy instance(s) : 9]LOG]!><time="15:07:13.081-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7192">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source Local successfully]LOG]!><time="15:07:13.081-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source CcmTaskSequence successfully]LOG]!><time="15:07:13.081-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[RequestedConfig policy instance(s) : 0]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7192">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\defaultmachine\requestedconfig for source CcmTaskSequence successfully]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Locked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source CcmTaskSequence successfully]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7004">

<![LOG[Namespace: \\TEST\ROOT\ccm\policy\machine\RequestedConfig, Query: SELECT * FROM CCM_Policy_Policy4 WHERE (PolicySource = "CcmTaskSequence") AND (PolicyState = "Active") AND (PolicyType = "Machine")]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7050">

<![LOG[There is no ccm_policy_policy instance, skipping addition to realinst map]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:7051">

<![LOG[unlocked \\TEST\ROOT\ccm\policy\machine\RequestedConfig for source CcmTaskSequence successfully]LOG]!><time="15:07:13.097-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7199">

<![LOG[Total RequestedConfig policy instance(s) : 409]LOG]!><time="15:07:13.175-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7725">

<![LOG[Locked ActualConfig successfully]LOG]!><time="15:07:13.175-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7738">

<![LOG[[1] Deleted setting 'CCM_ApplicationCIAssignment.AssignmentID="DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313"'.]LOG]!><time="15:07:13.206-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[2] Deleted setting 'CCM_CIVersionInfo.ModelName="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313",Version="3"'.]LOG]!><time="15:07:13.206-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[3] Deleted setting 'CCM_CIVersionInfo.ModelName="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/RequiredApplication_6e5177fb-d2c8-499e-9678-5953185b5313",Version="3"'.]LOG]!><time="15:07:13.206-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[4] Deleted setting 'CCM_CIVersionInfo.ModelName="Windows/All_Windows_Client_Server",Version="1"'.]LOG]!><time="15:07:13.206-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[5] Deleted setting 'CCM_CIVersionInfo.ModelName="ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/DeploymentType_5739d1be-7395-4f10-9339-dc8e966d2742",Version="1"'.]LOG]!><time="15:07:13.206-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[6] Deleted setting 'CCM_Scheduler_ScheduledMessage.ScheduledMessageID="DEP-AM120002-ScopeId_2248288C-D15A-430D-A861-7CA2B097E26B/Application_6e5177fb-d2c8-499e-9678-5953185b5313"'.]LOG]!><time="15:07:13.221-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[7] Deleted setting 'CCM_Scheduler_ScheduledMessage.ScheduledMessageID="{00000000-0000-0000-0000-000000000114}"'.]LOG]!><time="15:07:13.221-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[8] Deleted setting 'CCM_Scheduler_ScheduledMessage.ScheduledMessageID="{00000000-0000-0000-0000-000000000108}"'.]LOG]!><time="15:07:13.237-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[9] Deleted setting 'CCM_NetworkAccessAccount.SiteSettingsKey=1'.]LOG]!><time="15:07:13.237-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[10] Deleted setting 'CCM_SoftwareDistributionClientConfig.SiteSettingsKey=1'.]LOG]!><time="15:07:13.237-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[11] Deleted setting 'CCM_SoftwareUpdatesClientConfig.SiteSettingsKey=1'.]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[12] Deleted setting 'CCM_SystemHealthClientConfig.SiteSettingsKey=1'.]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[[13] Deleted setting 'CCM_ClientActions.ActionID="{00000000-0000-0000-0000-000000000108}"'.]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7790">

<![LOG[New/Changed ActualConfig policy instance(s) : 0]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7827">

<![LOG[unlocked ActualConfig successfully]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7898">

<![LOG[unlocked policy transaction lock successfully]LOG]!><time="15:07:13.253-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="policyutil.cpp:7904">

<![LOG[Raising event:

instance of CCM_PolicyAgent_SettingsEvaluationComplete

{

ClientID = "GUID:1E701D65-75F4-48D7-A40F-9372C2B9D2C5";

DateTime = "20120407050713.362000+000";

PolicyNamespace = "\\\\test\\root\\ccm\\policy\\machine\\actualconfig";

ProcessID = 2420;

ThreadID = 2424;

};

]LOG]!><time="15:07:13.362-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="event.cpp:729">

<![LOG[successfully submitted event to the Status Agent.]LOG]!><time="15:07:13.455-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="event.cpp:747">

<![LOG[End TS policy evaluation]LOG]!><time="15:07:13.455-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="policyutil.cpp:10580">

<![LOG[Policy evaluation initiated]LOG]!><time="15:07:13.455-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:3387">

<![LOG[g_TSManager.Run(), HRESULT=80004005 (e:\nts_sccm_release\sms\client\tasksequence\tsmanager\tsmanager.cpp,641)]LOG]!><time="15:07:13.549-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="tsmanager.cpp:641">

<![LOG[Error Task Sequence Manager failed to execute task sequence. Code 0x80004005]LOG]!><time="15:07:13.549-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="tsmanager.cpp:671">

<![LOG[sending error status message]LOG]!><time="15:07:13.549-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanager.cpp:672">

<![LOG[MP server http://SCCM1.amerpvt.com. Ports 80,443. CRL=false.]LOG]!><time="15:07:13.549-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4855">

<![LOG[setting authenticator]LOG]!><time="15:07:13.565-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4877">

<![LOG[set authenticator in transport]LOG]!><time="15:07:13.565-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:7574">

<![LOG[sending StatusMessage]LOG]!><time="15:07:13.674-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:4019">

<![LOG[setting message signatures.]LOG]!><time="15:07:13.689-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1291">

<![LOG[setting the authenticator.]LOG]!><time="15:07:13.689-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:1321">

<![LOG[CLibSMSMessageWinHttpTransport::Send: URL: SCCM1.amerpvt.com:80 CCM_POST /ccm_system/request]LOG]!><time="15:07:13.705-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="libsmsmessaging.cpp:8404">

<![LOG[Request was succesful.]LOG]!><time="15:07:13.736-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="libsmsmessaging.cpp:8740">

<![LOG[Finalize logging request ignored from process 2420]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tslogging.cpp:1737">

<![LOG[Waiting for CcmExec service to be fully operational]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4019">

<![LOG[CcmExec service is up and fully operational]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="utils.cpp:4024">

<![LOG[Access handle will be read from _SMSTSActiveRequestHandle]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanagerutils.cpp:99">

<![LOG[Access handle: {A5F2E141-0018-49AD-A771-66C76D88C5D5}]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanagerutils.cpp:111">

<![LOG[Attempting to release request using {A5F2E141-0018-49AD-A771-66C76D88C5D5}]LOG]!><time="15:07:13.767-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanagerutils.cpp:118">

<![LOG[CoCreateInstance succeeded]LOG]!><time="15:07:13.783-600" date="04-07-2012" component="TSManager" context="" type="1" thread="2424" file="tsmanagerutils.cpp:133">

<![LOG[pISoftwareExecutionRequestMgr->ReleaseRequest(ActiveRequestGUID), HRESULT=80004005 (e:\nts_sccm_release\sms\client\tasksequence\tsmanager\tsmanagerutils.cpp,136)]LOG]!><time="15:07:13.814-600" date="04-07-2012" component="TSManager" context="" type="0" thread="2424" file="tsmanagerutils.cpp:136">

<![LOG[ReleaseRequest failed with error code 0x80004005]LOG]!><time="15:07:13.814-600" date="04-07-2012" component="TSManager" context="" type="3" thread="2424" file="tsmanagerutils.cpp:136">

<![LOG[Task Sequence Manager could not release active TS request. code 80004005]LOG]!><time="15:07:13.814-600" date="04-07-2012" component="TSManager" context="" type="2" thread="2424" file="tsmanagerutils.cpp:165">

<![LOG[Process completed with exit code 2147500037]LOG]!><time="15:07:13.892-600" date="04-07-2012" component="TSMBootstrap" context="" type="1" thread="2400" file="commandline.cpp:1098">

<![LOG[Exiting with return code 0x80004005]LOG]!><time="15:07:13.892-600" date="04-07-2012" component="TSMBootstrap" context="" type="1" thread="2400" file="tsmbootstrap.cpp:1032">

<![LOG[Process completed with exit code 2147500037]LOG]!><time="15:07:13.892-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1616" file="commandline.cpp:1098">

<![LOG[Task sequence completed 0x80004005]LOG]!><time="15:07:13.892-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1616" file="basesetuphook.cpp:1384">

<![LOG[Waiting for command shell to complete.]LOG]!><time="15:07:13.892-600" date="04-07-2012" component="OSDSetupHook" context="" type="1" thread="1672" file="debugwindow.cpp:218">





Regards

Share this post


Link to post
Share on other sites

I just recently implemented a SCCM 2012 RC server, and have built up a test environment for it. The clients are recieving update policies, but are not receiving notifications on available software items through the Software Center. They can go to the Application Catalog, where tey are able to see the available software, but are not able to submit a request, nor can they download and install the applications. I also noticed that they are unable to select the "I regularly use this computer to do my work" option from the "My devices" tab on the Catalog. All site components are in the green, and I have tried to check the logs, but I am unable to find anything that points to any issue. I am including screenshots of the 2 issues that I mentioned regarding the Application Catalog.



We are a Windows 7 shop, and all machines are currently running IE8. The AD Schema has not been extended, since our senior systems admin is worried about any negative repurcussions that may cause.



I am almost certain that this has to do with some settings in IIS, but I am too unfamiliar with it to go poking around.



Any guidance would be more than appreciated.







Share this post


Link to post
Share on other sites

Hi DoomCrewInc,



Just wondering did you ever get this resolved? I have the exact same problem myself.



Thx.

Al.

Share this post


Link to post
Share on other sites

Hmmm....this seems to have something to do with the SCCM client running & passing a "Client Check" - now if I coud find out how to force this on a non behaving client.



Al.

Share this post


Link to post
Share on other sites

Yup, the "Client Check" had to run on each SCCM Client. Once that had happened, I could install apps through the S/W centre.



Al.

Share this post


Link to post
Share on other sites

So, let me preface this post by saying that I am pretty new to SCCM. I'm in the process of setting up the RTM in production but am trying to get the basics figured out. I'm having diffuculty getting my applications to deploy to my collections. When viewing the Deployments tab (or Deployment Status) my application says it has 0.0% Compliance (see attachement). Forgive my ignorance, but what else must I do so-as to ensure my applications deploy to collectins. Thanks for any help you can provide!


Share this post


Link to post
Share on other sites

Please tell me that SCCM 2012 can install .exe silently, I thought SCCM would have a "snapshot"/"record" function so that you could capture the install of a program and its settings, save this and deploy the software with these settings included... Like setting Firefox default browser and setting a default homepage in firefox. Like is possible with this tool: http://www.remotepctools.com/pc_network_deploy/features.html

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
