Can someone help me, i cannot install Management Point on my server,

here is my logs.

I configures all parameters correctly but every time i get same error.

i reinstaled server 7 times someone help me please :)







<10-19-2012 18:07:12> SMSMP Setup Started....

<10-19-2012 18:07:12> Parameters: C:\Program Files\Microsoft Configuration Manager\bin\x64\rolesetup.exe /install /siteserver:SCCM SMSMP 0

<10-19-2012 18:07:12> Installing Pre Reqs for SMSMP

<10-19-2012 18:07:12> ======== Installing Pre Reqs for Role SMSMP ========

<10-19-2012 18:07:12> Found 2 Pre Reqs for Role SMSMP

<10-19-2012 18:07:12> Pre Req MSXML60 found.

<10-19-2012 18:07:12> No versions of MSXML60 are installed. Would install new MSXML60.

<10-19-2012 18:07:12> Enabling MSI logging. msxml6_x64.msi will log to C:\Program Files\Microsoft Configuration Manager\logs\msxml6_x64MSI.log

<10-19-2012 18:07:12> Installing C:\Program Files\Microsoft Configuration Manager\bin\x64\00000409\msxml6_x64.msi

<10-19-2012 18:07:13> msxml6_x64.msi exited with return code: 0

<10-19-2012 18:07:13> msxml6_x64.msi Installation was successful.

<10-19-2012 18:07:13> Pre Req SqlNativeClient found.

<10-19-2012 18:07:13> SqlNativeClient already installed (Product Code: {C79A7EAB-9D6F-4072-8A6D-F8F54957CD93}). Would not install again.

<10-19-2012 18:07:13> Pre Req SqlNativeClient is already installed. Skipping it.

<10-19-2012 18:07:13> ======== Completed Installation of Pre Reqs for Role SMSMP ========

<10-19-2012 18:07:13> Installing the SMSMP

<10-19-2012 18:07:13> Passed OS version check.

<10-19-2012 18:07:13> IIS Service is installed.

<10-19-2012 18:07:13> No versions of SMSMP are installed. Installing new SMSMP.

<10-19-2012 18:07:13> Enabling MSI logging. mp.msi will log to C:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log

<10-19-2012 18:07:13> Installing C:\Program Files\Microsoft Configuration Manager\bin\x64\mp.msi CCMINSTALLDIR="C:\Program Files\SMS_CCM" CCMSERVERDATAROOT="C:\Program Files\Microsoft Configuration Manager" USESMSPORTS=TRUE SMSPORTS=80 USESMSSSLPORTS=TRUE SMSSSLPORTS=443 USESMSSSL=TRUE SMSSSLSTATE=0 CCMENABLELOGGING=TRUE CCMLOGLEVEL=1 CCMLOGMAXSIZE=1000000 CCMLOGMAXHISTORY=1

<10-19-2012 18:07:41> mp.msi exited with return code: 1603

<10-19-2012 18:07:41> Backing up C:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log to C:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log.LastError

<10-19-2012 18:07:41> Fatal MSI Error - mp.msi could not be installed.

<10-19-2012 18:07:41> ~RoleSetup().





__________________________





Property(S): FilesInUse_Info = Setup has detected that it needs to update some files that are currently in use by other processes.

To prevent having to reboot the machine, please close the following applications:

Property(S): DefaultUIFont = DefaultDlgFont

Property(S): DialogBox_Title = ConfigMgr Management Point Setup

Property(S): WelcomeDialog_Info = This will install the ConfigMgr Management Point.

Property(S): InstallDialog_Title = Install

Property(S): InstallDialog_SubTitle = The product is now ready to install

Property(S): InstallDialog_Info = Click Next to proceed.

Property(S): ProgressDialog_Title = Please Wait

Property(S): ProgressDialog_SubTitle = Setup is configuring your system.

Property(S): CompleteDialog_Title = Setup Complete

Property(S): CompleteDialog_SubTitle = Setup has finished updating your system.

Property(S): CompleteDialog_Info = Setup was successful.

Property(S): UserExitDialog_Title = Setup Aborted

Property(S): UserExitDialog_SubTitle = Setup was cancelled

Property(S): UserExitDialog_Info = The ConfigMgr Management Point setup was cancelled.

Property(S): InstallErrorDialog_Title = Setup Aborted

Property(S): InstallErrorDialog_SubTitle = Setup failed

Property(S): InstallErrorDialog_Info = Setup encountered an error and could not continue.

Property(S): PolReqStagingDir.1114972D_590D_4AB6_BA2E_779928CEDCC2 = C:\Program Files\SMS_CCM\PolReqStaging\

Property(S): SystemFolder.1114972D_590D_4AB6_BA2E_779928CEDCC2 = C:\Windows\SysWOW64\

Property(S): System64Folder.1114972D_590D_4AB6_BA2E_779928CEDCC2 = C:\Windows\system32\

Property(S): CcmDefaultPolicyAuthority = SMS:MP:Default:{26ED0430-F99D-4A6B-89B6-90BC56EC40EE}

Property(S): MPVDirRoot.67022EC1_A401_46E9_91FC_2DF2ED04CF15 = C:\Program Files\SMS_CCM\SMS_MP\

Property(S): Res1033.0EACD2EE_412B_4985_9727_96BC217AABD8 = C:\Program Files\SMS_CCM\1033\

Property(S): Res1033.4CB41E5B_59DE_4D09_98C5_332377961F73 = C:\Program Files\SMS_CCM\1033\

Property(S): MsiLogFileLocation = C:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log

Property(S): ProductState = -1

Property(S): PackagecodeChanging = 1

Property(S): USESMSPORTS = TRUE

Property(S): SMSPORTS = 80

Property(S): USESMSSSLPORTS = TRUE

Property(S): SMSSSLPORTS = 443

Property(S): USESMSSSL = TRUE

Property(S): SMSSSLSTATE = 0

Property(S): CCMENABLELOGGING = TRUE

Property(S): CCMLOGLEVEL = 1

Property(S): CCMLOGMAXSIZE = 1000000

Property(S): CCMLOGMAXHISTORY = 1

Property(S): CURRENTDIRECTORY = C:\Program Files\Microsoft Configuration Manager\bin\x64

Property(S): CLIENTUILEVEL = 3

Property(S): MSICLIENTUSESEXTERNALUI = 1

Property(S): CLIENTPROCESSID = 3904

Property(S): MsiSystemRebootPending = 1

Property(S): VersionDatabase = 200

Property(S): VersionMsi = 5.00

Property(S): VersionNT = 601

Property(S): WindowsBuild = 7601

Property(S): ServicePackLevel = 1

Property(S): ServicePackLevelMinor = 0

Property(S): MsiNTProductType = 3

Property(S): WindowsFolder = C:\Windows\

Property(S): WindowsVolume = C:\

Property(S): System64Folder = C:\Windows\system32\

Property(S): SystemFolder = C:\Windows\SysWOW64\

Property(S): RemoteAdminTS = 1

Property(S): TempFolder = C:\Windows\TEMP\

Property(S): ProgramFilesFolder = C:\Program Files (x86)\

Property(S): CommonFilesFolder = C:\Program Files (x86)\Common Files\

Property(S): ProgramFiles64Folder = C:\Program Files\

Property(S): CommonFiles64Folder = C:\Program Files\Common Files\

Property(S): AppDataFolder = C:\Windows\system32\config\systemprofile\AppData\Roaming\

Property(S): FavoritesFolder = C:\Windows\system32\config\systemprofile\Favorites\

Property(S): NetHoodFolder = C:\Windows\system32\config\systemprofile\AppData\Roaming\Microsoft\Windows\Network Shortcuts\

Property(S): PersonalFolder = C:\Windows\system32\config\systemprofile\Documents\

Property(S): PrintHoodFolder = C:\Windows\system32\config\systemprofile\AppData\Roaming\Microsoft\Windows\Printer Shortcuts\

Property(S): RecentFolder = C:\Windows\system32\config\systemprofile\AppData\Roaming\Microsoft\Windows\Recent\

Property(S): SendToFolder = C:\Windows\system32\config\systemprofile\AppData\Roaming\Microsoft\Windows\SendTo\

Property(S): TemplateFolder = C:\ProgramData\Microsoft\Windows\Templates\

Property(S): CommonAppDataFolder = C:\ProgramData\

You posted only the Property Table dump of the MSI log. Without the complete log it's hard to tell where the problem is.

I guess this is a secondary server installation? Make sure you have installed the the prerequisite features (.NET 3.5, BITS, Remote Differential Compression).

  • Author

You posted only the Property Table dump of the MSI log. Without the complete log it's hard to tell where the problem is.

I guess this is a secondary server installation? Make sure you have installed the the prerequisite features (.NET 3.5, BITS, Remote Differential Compression).



hello

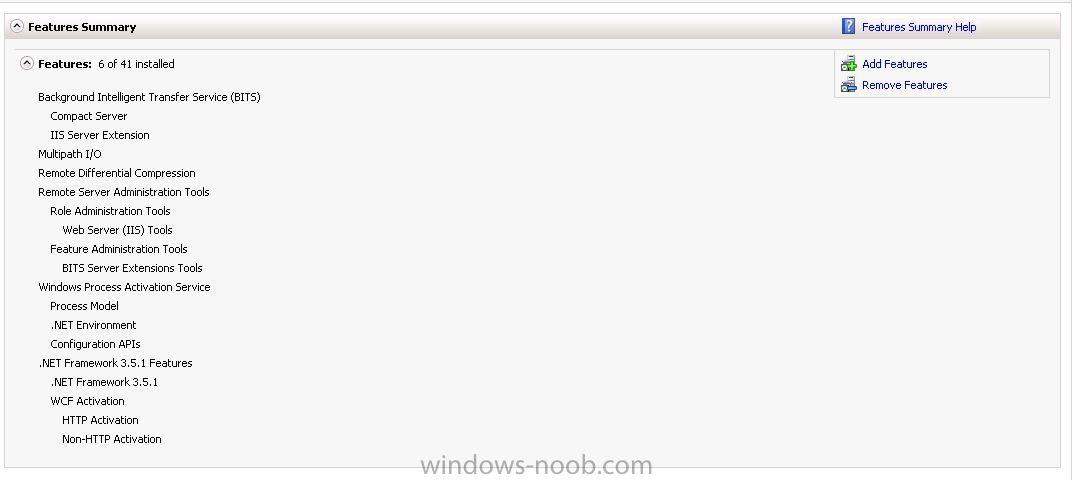

this is primary site installation, all prerequisite features (.NET 3.5, BITS, Remote Differential Compression) are installed,

i have read many posts on forums and internet and try everything but still noting.

OK, here is what the log says.



Error 25006. Setup was unable to create the Internet virtual directory CCM_Incoming

CustomAction CcmCreateIISVirtualDirectories returned actual error code 1603



MP Control Manager detected MPsetup has failed to create the CCM_Incoming Virtual Directory. <--- this is a popular error from SCCM 2007. Removing BITS - Reboot - Readd BITS helped there.



Also you may have not all required IIS role features installed.

  • Author

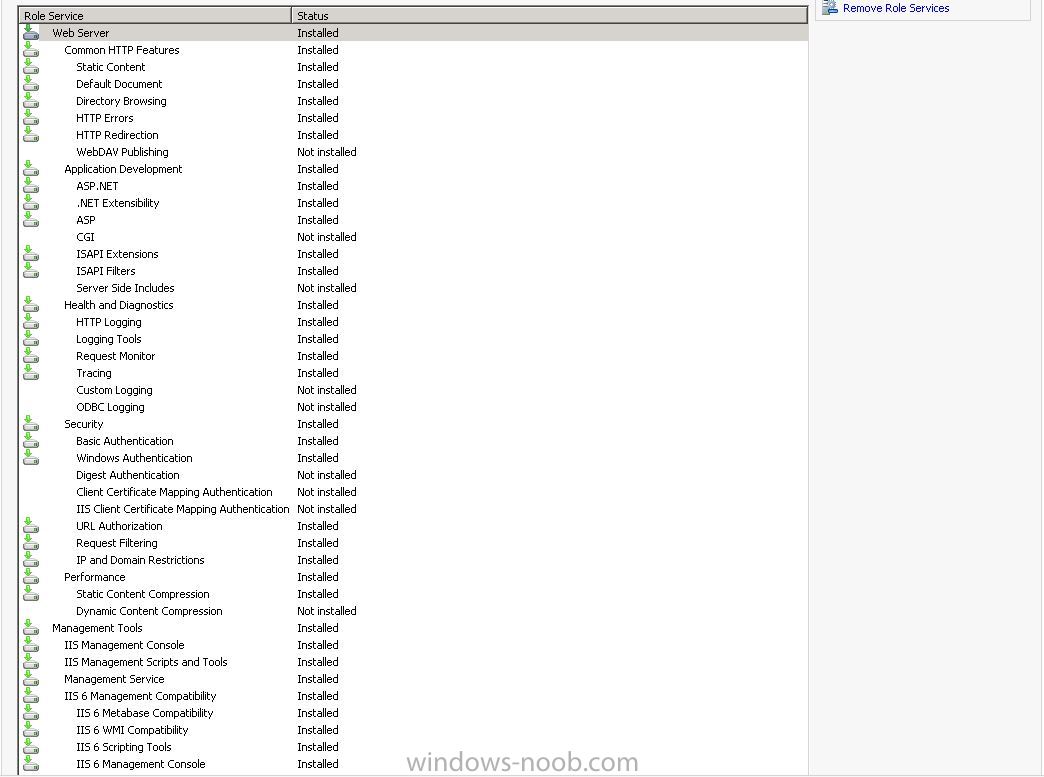

here is my IIS configuration

I have SCCM 2012



  • 3 weeks later...

I have the same issue on Windows 2008 R2 OS, SCCM 2012 - SMS_MP_CONTROL_MANAGER shows Critical

  • Author

hello , i solved my problem, i have policy restriction on Scheduler Tasks folder permission and it was reason,

i give administrator full control end it works great,



thanks to all ...

hello , i solved my problem, i have policy restriction on Scheduler Tasks folder permission and it was reason,

i give administrator full control end it works great,



thanks to all ...



can you explain this further ? was there some GPO apply this policy ? or what ?

  • 1 year later...

Hello....I have the exact same issue where my MP wont install.



I've tried the various suggestions from this post and others, with no success as yet.



I've completely uninstalled and reinstalled and still get the same error.



?<04/14/14 16:34:05> ====================================================================
?<04/14/14 16:34:05> SMSMP Setup Started....
?<04/14/14 16:34:05> Parameters: D:\Program Files\Microsoft Configuration Manager\bin\x64\rolesetup.exe /install /siteserver:EICSC001 SMSMP 0
?<04/14/14 16:34:05> Installing Pre Reqs for SMSMP
?<04/14/14 16:34:05> ======== Installing Pre Reqs for Role SMSMP ========
?<04/14/14 16:34:05> Found 3 Pre Reqs for Role SMSMP
?<04/14/14 16:34:05> Pre Req MSXML60 found.
?<04/14/14 16:34:05> No versions of MSXML60 are installed. Would install new MSXML60.
?<04/14/14 16:34:05> Enabling MSI logging. msxml6_x64.msi will log to D:\Program Files\Microsoft Configuration Manager\logs\msxml6_x64MSI.log
?<04/14/14 16:34:06> Installing D:\Program Files\Microsoft Configuration Manager\bin\x64\00000409\msxml6_x64.msi
?<04/14/14 16:34:06> msxml6_x64.msi exited with return code: 0
?<04/14/14 16:34:06> msxml6_x64.msi Installation was successful.
?<04/14/14 16:34:06> Pre Req CcmSetup found.
?<04/14/14 16:34:06> Installing pre-req using command line "D:\Program Files\Microsoft Configuration Manager\client\ccmsetup.exe" /UpgradeWithServer:mp
?<04/14/14 16:34:06> Pre-req installer "D:\Program Files\Microsoft Configuration Manager\client\ccmsetup.exe" /UpgradeWithServer:mp finished with exit code 0
?<04/14/14 16:34:06> Pre Req SqlNativeClient found.
?<04/14/14 16:34:06> SqlNativeClient already installed (Product Code: {D411E9C9-CE62-4DBF-9D92-4CB22B750ED5}). Would not install again.
?<04/14/14 16:34:06> Pre Req SqlNativeClient is already installed. Skipping it.
?<04/14/14 16:34:06> ======== Completed Installation of Pre Reqs for Role SMSMP ========
?<04/14/14 16:34:06> Installing the SMSMP
?<04/14/14 16:34:06> Passed OS version check.
?<04/14/14 16:34:06> IIS Service is installed.
?<04/14/14 16:34:06> No versions of SMSMP are installed. Installing new SMSMP.
?<04/14/14 16:34:06> Enabling MSI logging. mp.msi will log to D:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log
?<04/14/14 16:34:06> Installing D:\Program Files\Microsoft Configuration Manager\bin\x64\mp.msi CCMINSTALLDIR="D:\Program Files\SMS_CCM" CCMSERVERDATAROOT="D:\Program Files\Microsoft Configuration Manager" USESMSPORTS=TRUE SMSPORTS=80 USESMSSSLPORTS=TRUE SMSSSLPORTS=443 USESMSSSL=TRUE SMSSSLSTATE=0 CCMENABLELOGGING=TRUE CCMLOGLEVEL=1 CCMLOGMAXSIZE=1000000 CCMLOGMAXHISTORY=1
?<04/14/14 16:34:07> mp.msi exited with return code: 1603
?<04/14/14 16:34:07> Backing up D:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log to D:\Program Files\Microsoft Configuration Manager\logs\mpMSI.log.LastError
?<04/14/14 16:34:07> Fatal MSI Error - mp.msi could not be installed.
?<04/14/14 16:34:07> ~RoleSetup().



Any assistance greatly appreciated.
