How can I setup Operations Manager 2007 - Part 3




  • Please log in to reply
2 replies to this topic

#1 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,212 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 07 April 2009 - 06:25 PM

Step 1. Install Microsoft SQL Server 2005 Standard Edition

Log on to the server with an account with Local Administrative permissions.

Insert the Microsoft SQL Server 2005 Standard Edition DVD (or mount the ISO available on MSDN called en_sql_2005_std_x86_dvd.iso) using Daemon tools or similar.

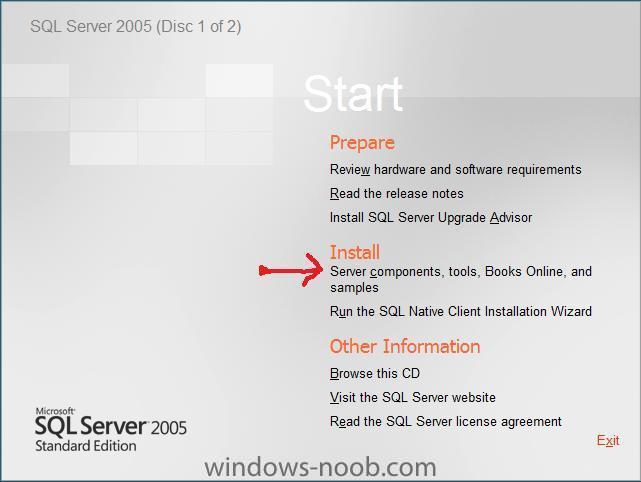

When the splash screen appears, choose the Server components, tools, Books Online, and Samples choice under the Install menu.

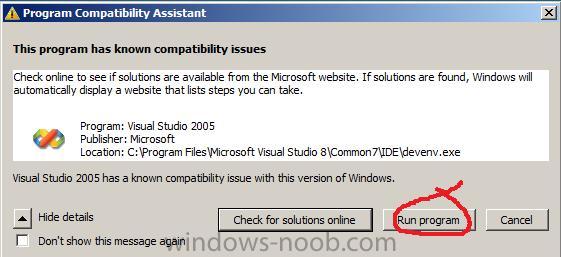

choose Run Program when you see the Program compatibility Assistant appear (we will be installing SP3 later anyway),

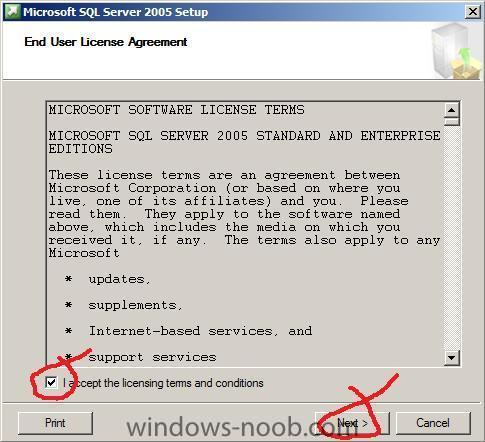

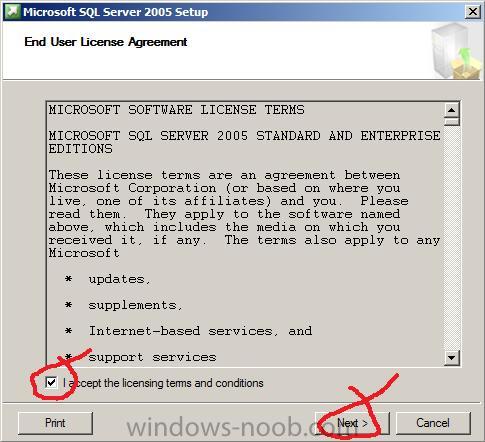

Accept the EULA

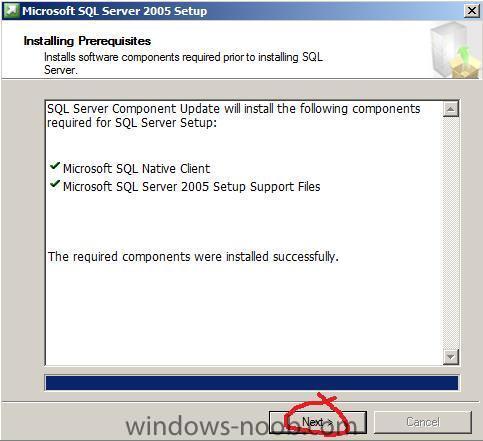

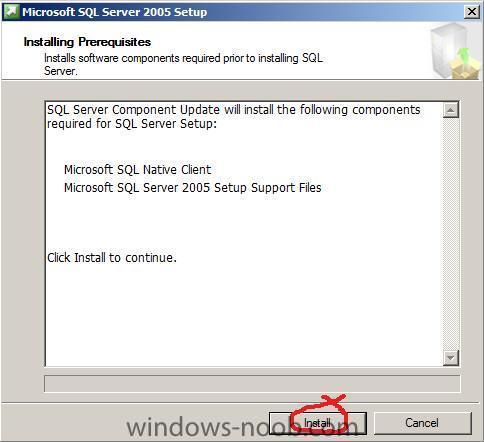

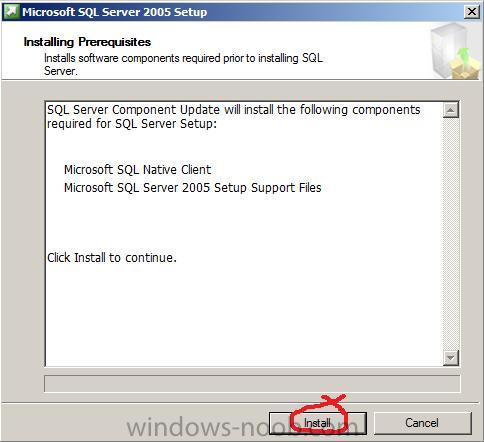

you'll be informed that setup has to install some prerequisites (Microsoft SQL Native Client and Microsoft SQL Server 2005 Setup Support Files)

click install to continue


once installed click next to continue

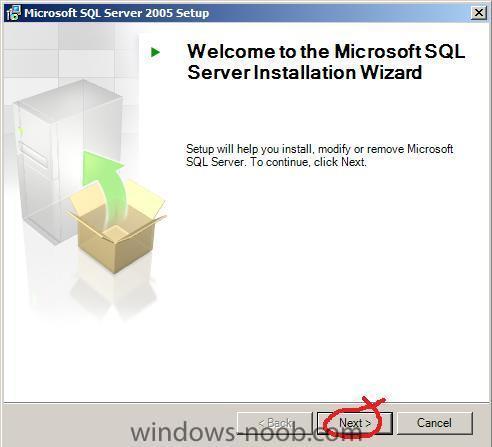

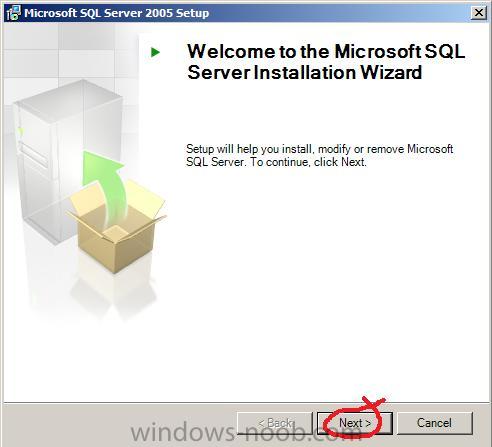

in the Welcome to the Microsoft SQL Server installation Wizard, click next

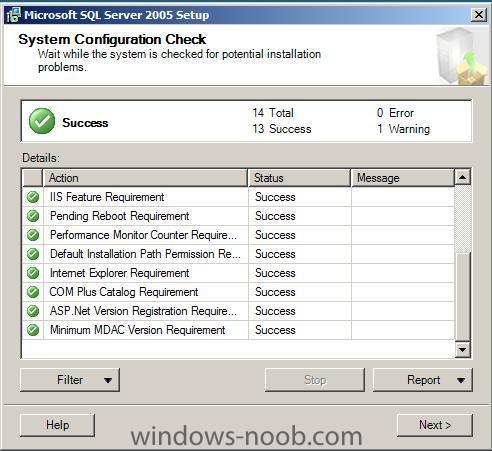

at the System Configuration Check, click next (I got a warning about minimum hardware spec as this is a virtual box with only 512mb ram)

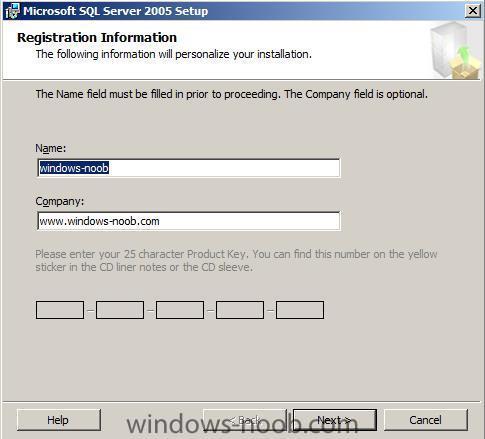

On the Registration Information screen, click next

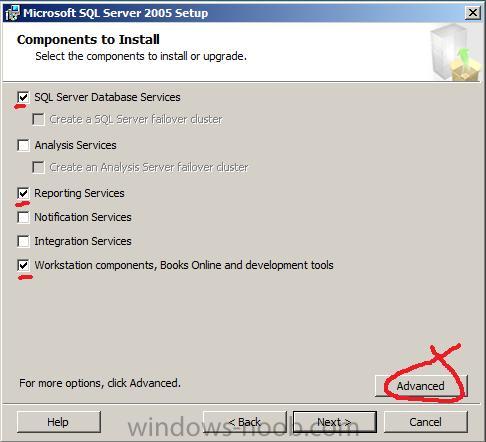

On the Components to Install screen, check SQL Server Database Services, Reporting Services, Workstation components, books online and development tools are selected

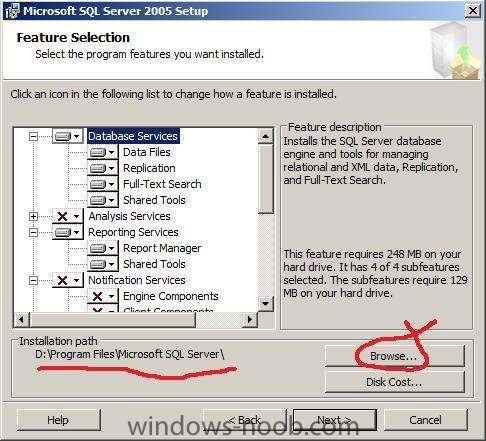

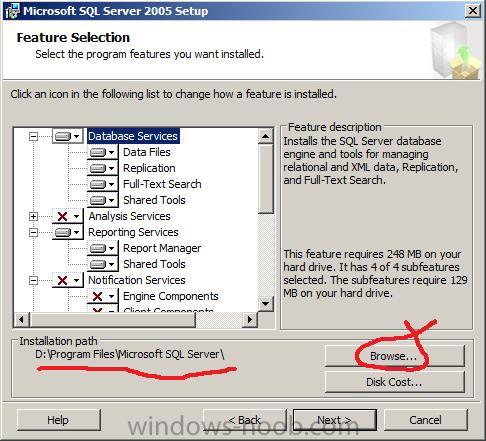

click Advanced Change the Installation Path to D:\Program Files\Microsoft SQL Server\ and click Next

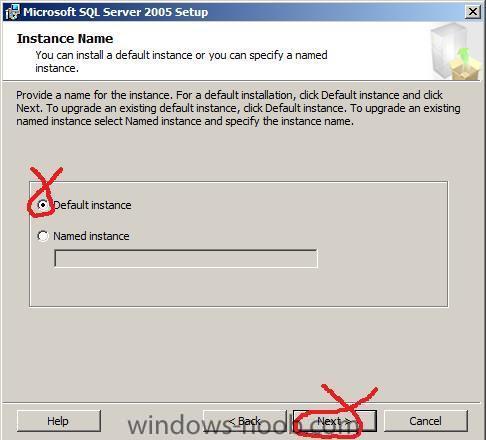

choose Default Instance and click next

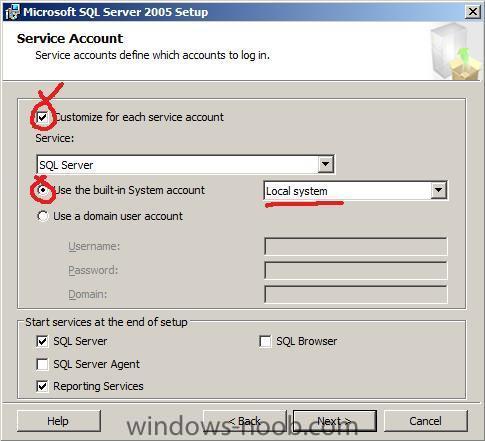

On the Service Account screen, check Use the built-in System account and select Local system, put a checkmark in Customise for Each service account and click Next,

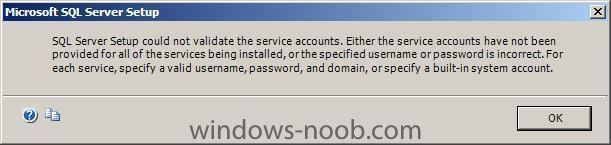

you will get a warning, click ok


select local system account for the remaining services like this (you'll see the above warning each time until all three are configured to use the local system account.... namely SQL Server Agent, Analysis Services and SQL Browser

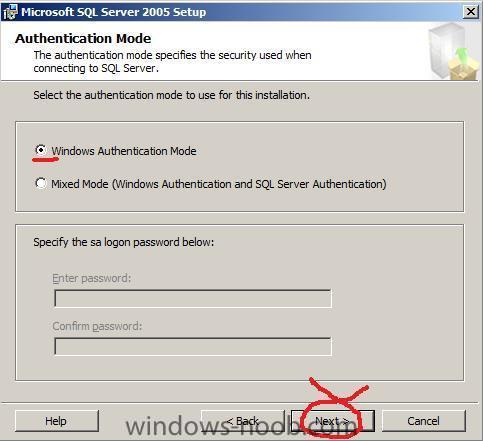

leave the authentication mode as it is (Windows Authentication Mode)

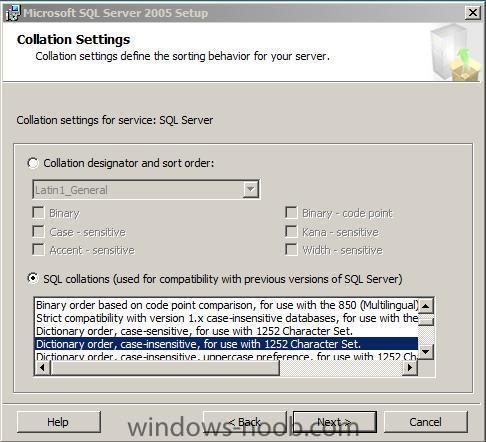

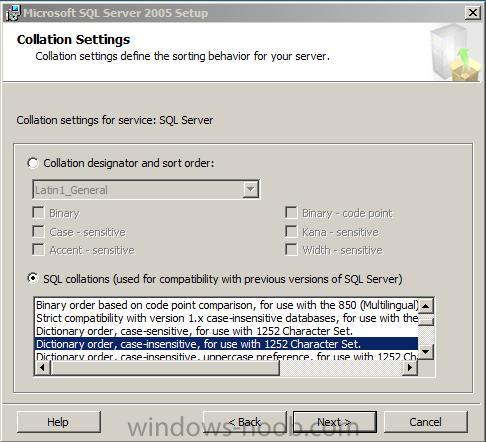

in the Collation Settings screen, leave defaults and click Next

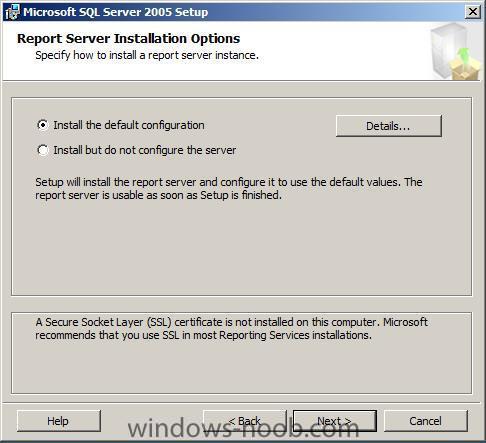

On the Report Server Installation Options screen, click Next


click next at the Error Usage and Report Settings and on the Ready to Install screen click Install, this takes time so you can go and get a coffee now....

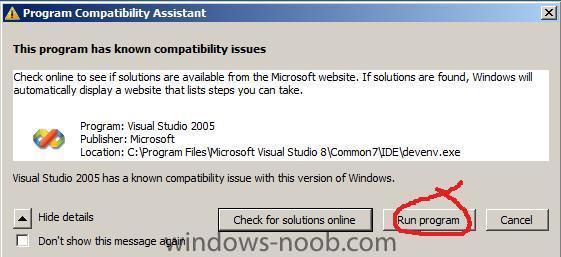

If you get prompted with a Program Compatibility Assistant, click Run Program

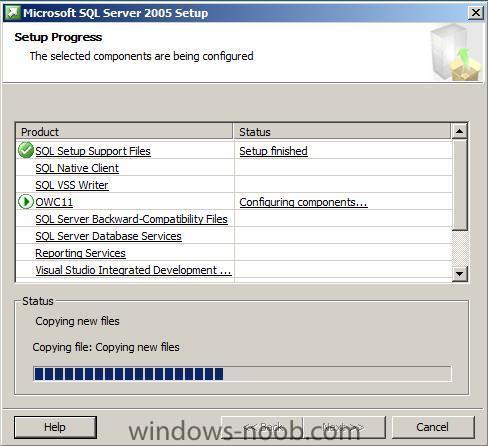

When Setup Progress completes, click Next


On the Completing Microsoft SQL Server 2005 Setup screen, click Finish


Finally, reboot the Server.
Microsoft MVP > Enterprise Client Management
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog



#2 anyweb

anyweb

    Administrator

  • Root Admin
  • PipPipPip
  • 7,212 posts
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager

Posted 08 April 2009 - 02:13 PM

Step 2. Install Service Pack 3 for Sql Server 2005

Download SP3.

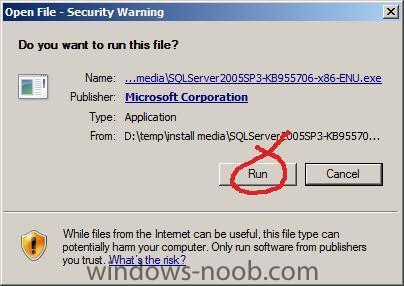

Double click on the SQL Server 2005 SP3 installation file, when the Open File Security Warning appears, click Run

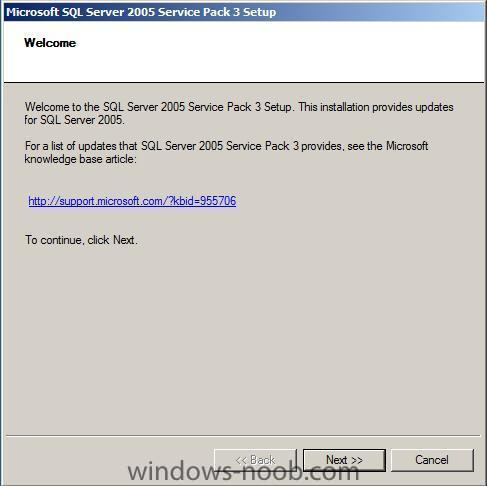

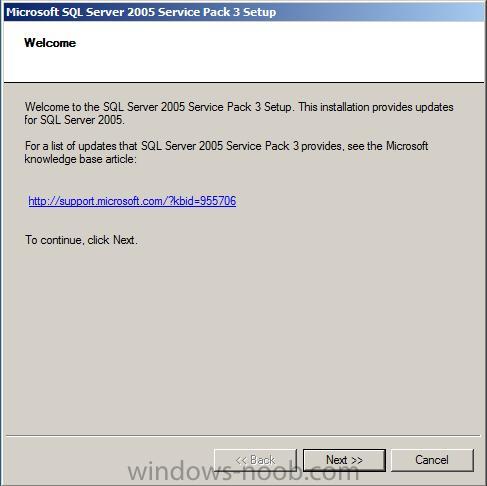

In the User Account Control message box, click Continue, on the Welcome screen, click Next

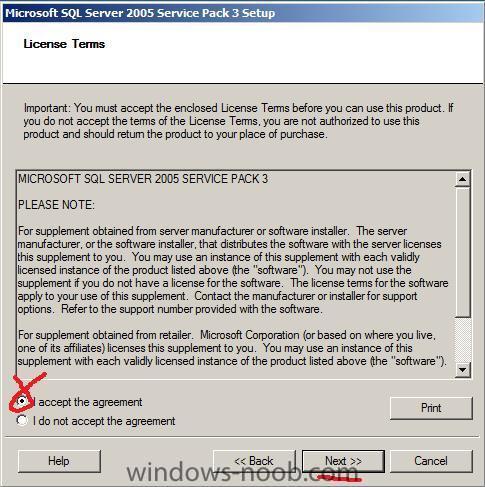

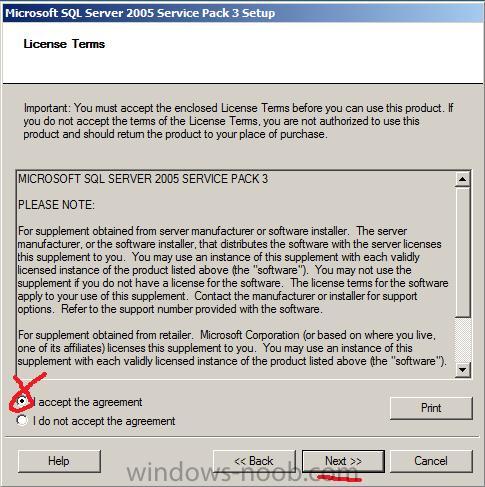

At the License Terms screen, check I accept the agreement and click Next

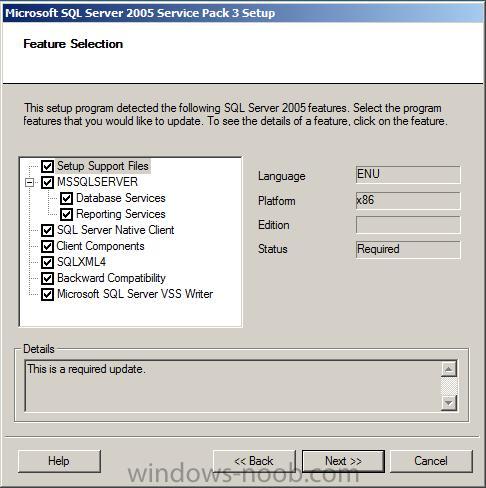

For the Feature Selection screen, click Next


On the Authentication screen, click Next

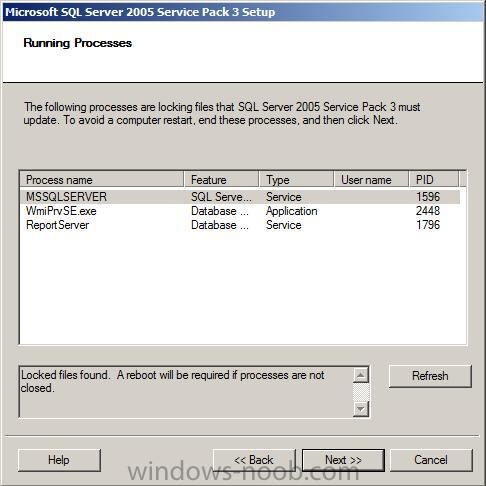

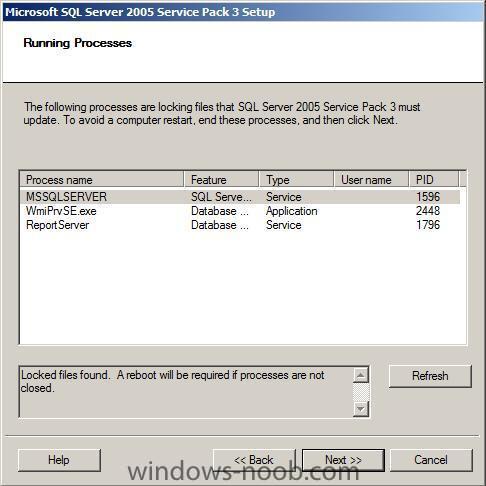

On the Error and Usage Report Settings screen, verify that no check-box is checked and click Next, and for the Running Processes screen, click Next


On the Ready to Install screen, click Install

If you get prompted with a Program Compatibility Assistant, click Run Program,

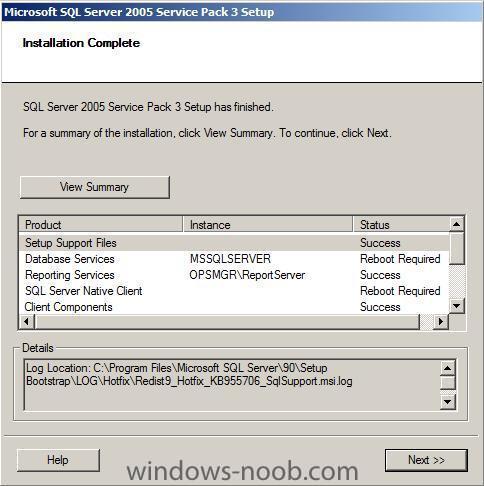

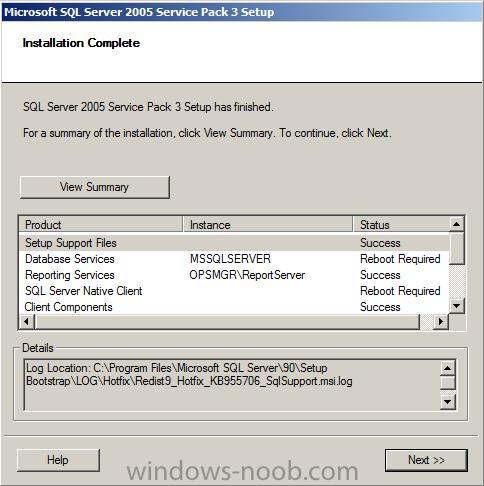

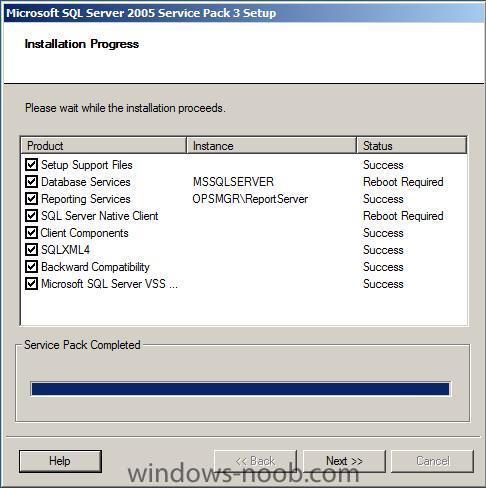

On the Installation Complete screen, click Next

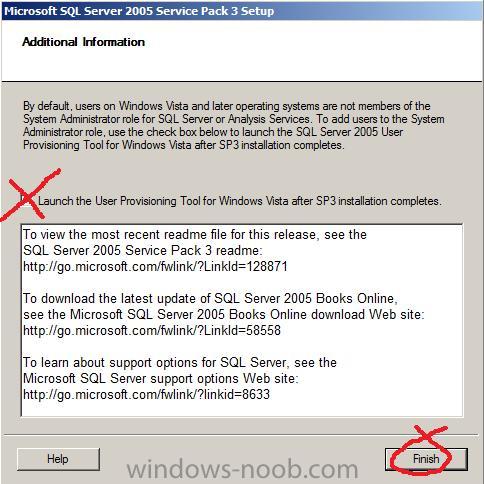

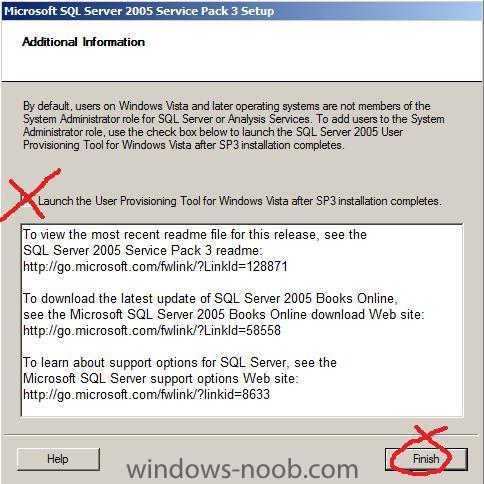

On the Additional Information screen, uncheck Launch the User Provisioning Tool for Windows Vista after SP3 Installation Completes and click Finish



Reboot the server

Continue on to Part 4. Install Operations Manager 2007
Microsoft MVP > Enterprise Client Management
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog

#3 win.raja

win.raja

    Newbie

  • Established Members
  • Pip
  • 1 posts

Posted 29 April 2013 - 12:37 PM

Hi Admin,



  I just following your SCOM 2007 installation article,  am facing problem in SCOM 2007 installation. i.e.,  My site infrastructure is windows server 2008 R2 with SQL Server 2005 sp2 & SCOM 2007. when i try install SCOM 2007 prerequisites failed for MS SQL server 2005 SP1 failed, Even i installed SQL Server 2005 SP1, SP2 & SP3 also. its giving error in prerequisites  MS SQL server 2005 SP1 failed. Its not allowing to go next step. Please guide me.
