anyweb

How can I copy files from a package

Recommended Posts

Let's say you want to copy some files from a package to your target computer, should be simple enough right ?



In the following Task Sequence, copying files from packages - access.xml



copying files from packages - access.xml



we reference a package (called copy_files) which contains some blank files and folders



copy_files.zip



We have two groups in this simple task sequence, the first group copies all files from a package to a directory on your target computer (the computer that you run the task sequence on).

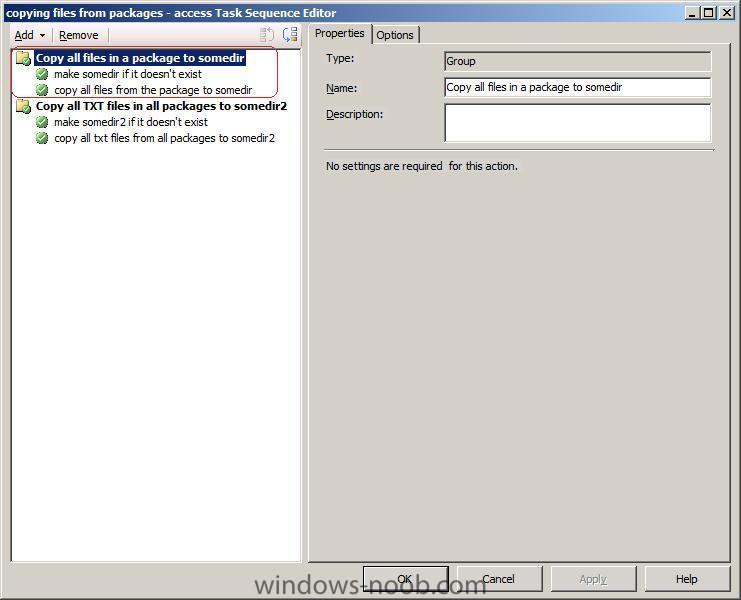

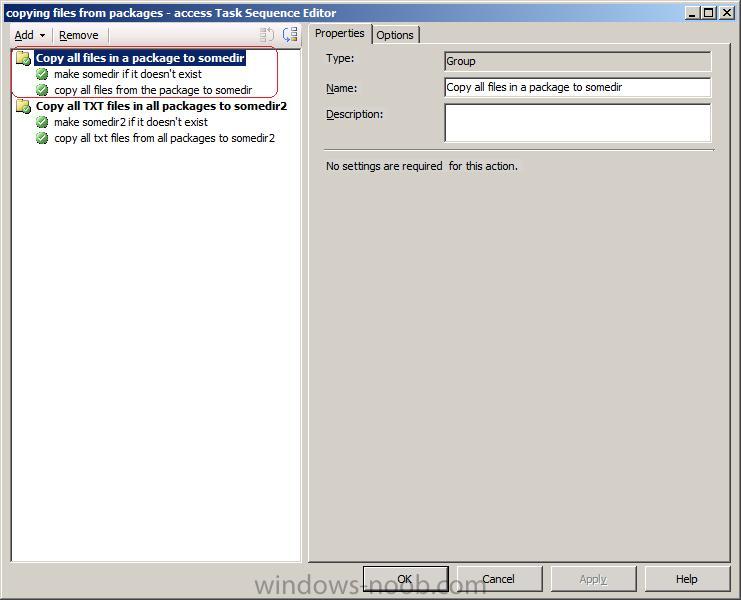

copy all files in a package to somedir.jpg

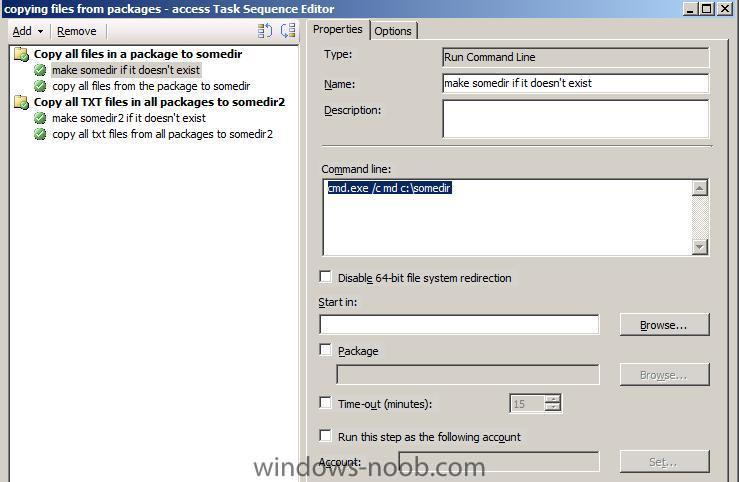

The first step in the group creates the target folder if it doesn't exist, via a command line



cmd.exe /c md c:\somedir



make somedir.jpg

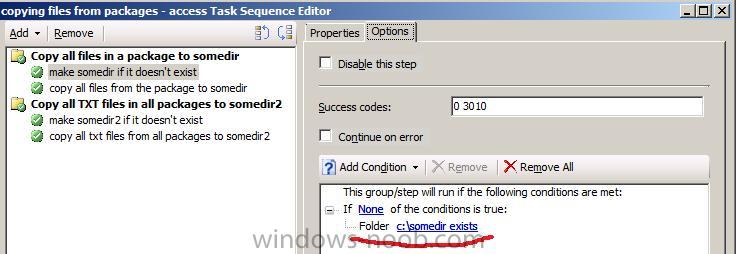

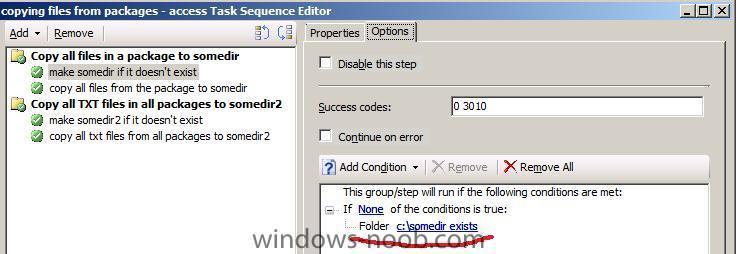

To check if the folder already exists, you have to look at the options tab of that step



if some dir exists.jpg

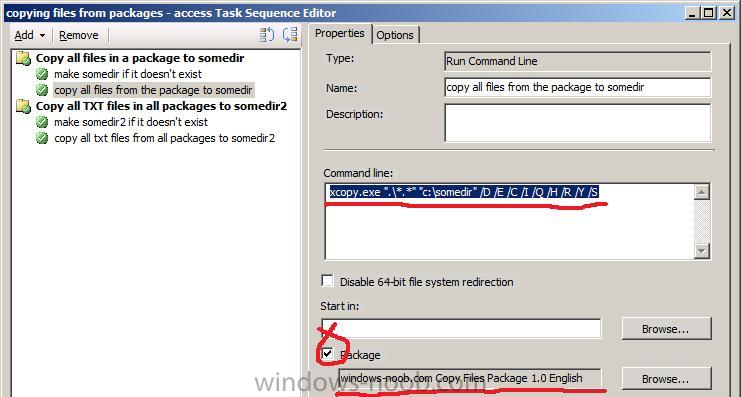

The second step actually copies the files by referencing our copy_files package, the clever part here is the .\ infront of our path.



copy all files from package to somedir.jpg



so the command line to do the copying is as follows



xcopy.exe ".\*.*" "c:\somedir" /D /E /C /I /Q /H /R /Y /S

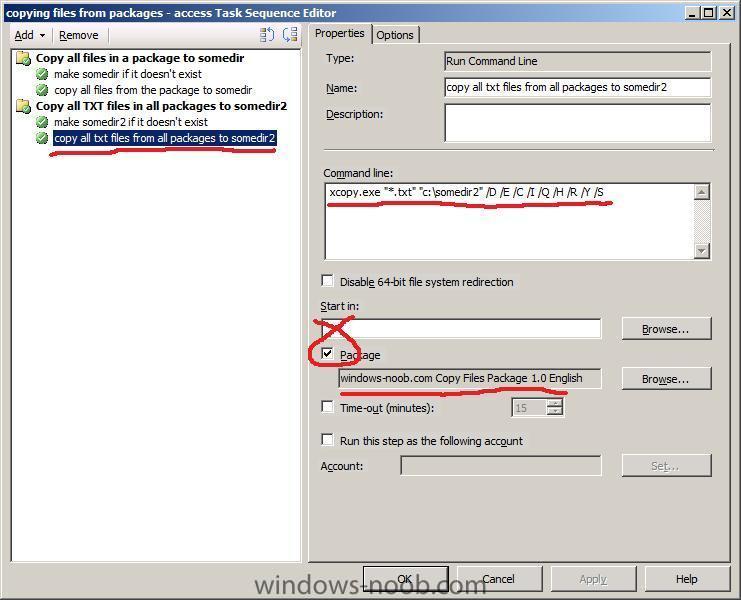

The second group in the task sequence is similar to the first except that it creates somedir2 and it only copies the TXT files from our selected package. (This is deliberate so that you can see what happens next..)





copy all txt files from our package.jpg



Note: In the screenshot of the step above, I am deliberatly NOT including the .\ in front of the path, this is to show you how an advertisements distribution points settings can change the way command lines function.



the xcopy command in the second group is as follows



xcopy.exe "*.txt" "c:\somedir2" /D /E /C /I /Q /H /R /Y /S

Share this post


Link to post
Share on other sites


Advertise the Task Sequence



Import the task sequence into configmgr and create the copy_files package using the package included in the post above. don't forget to distribute that package to your distribution points. Once ready, we will then advertise our Task Sequence.

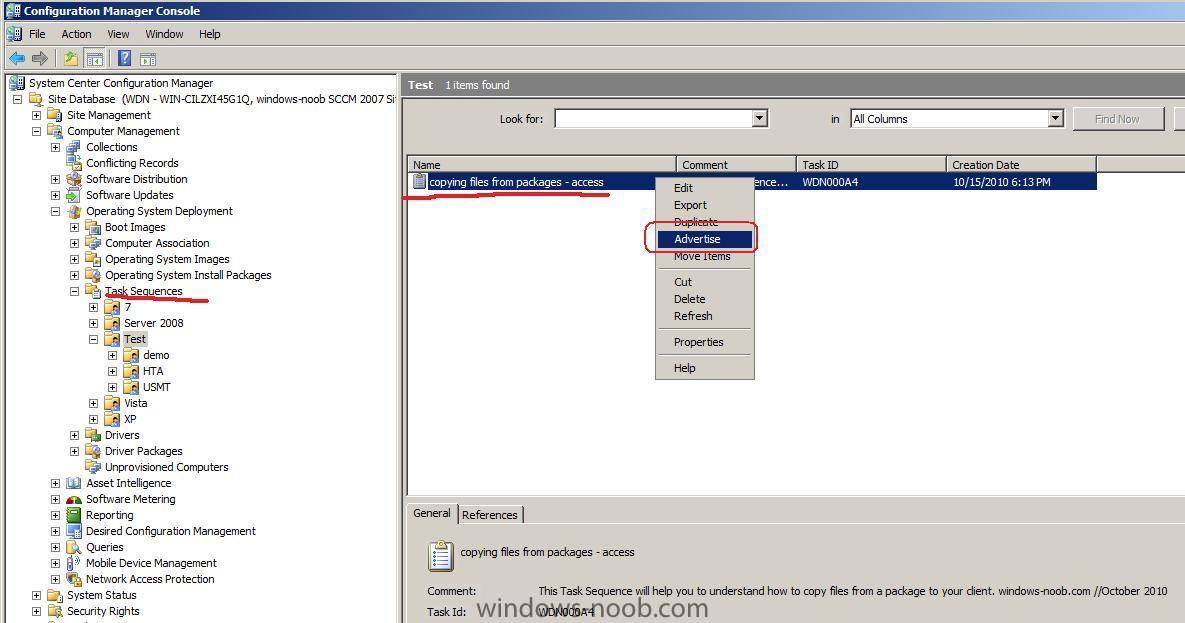

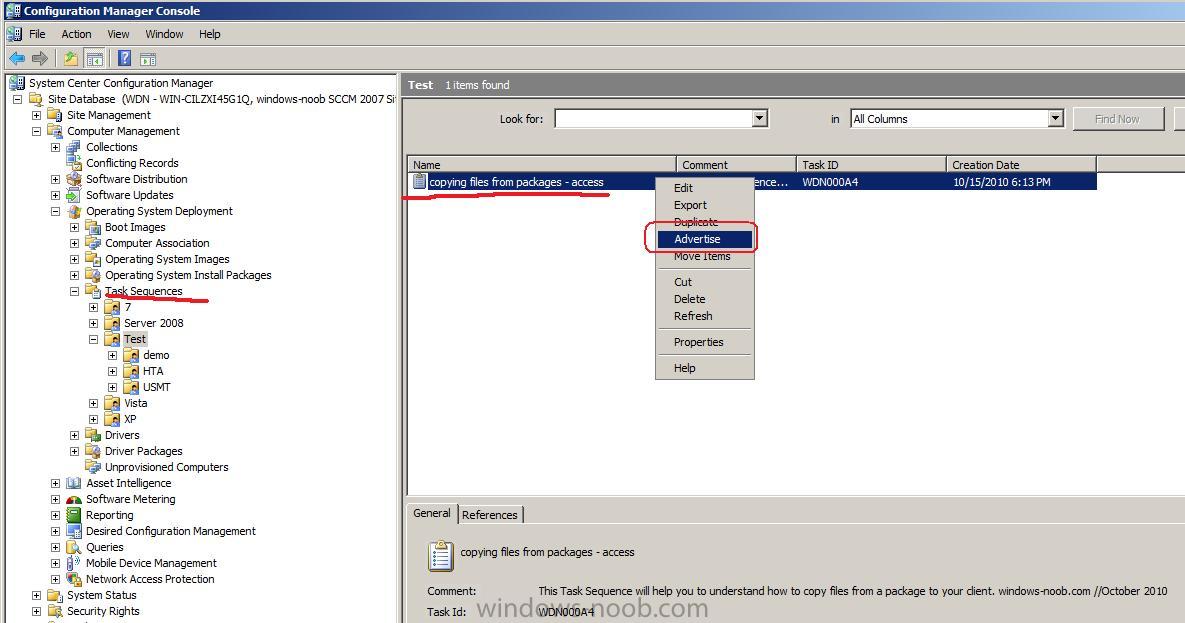

In Task Sequences, select the imported task sequence, right click on it and choose Advertise



advertise ts.jpg

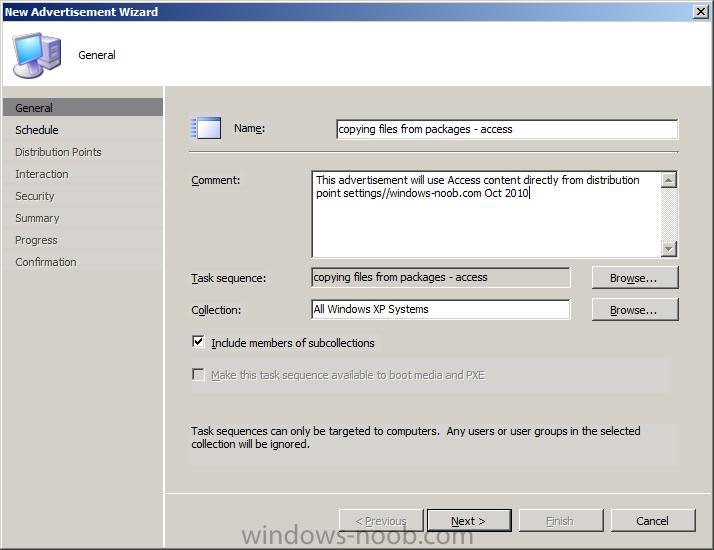

When the New Advertisement Wizard begins, select your All Windows XP collection (or whichever one you are testing with) and click next



new advertisement wizard.jpg

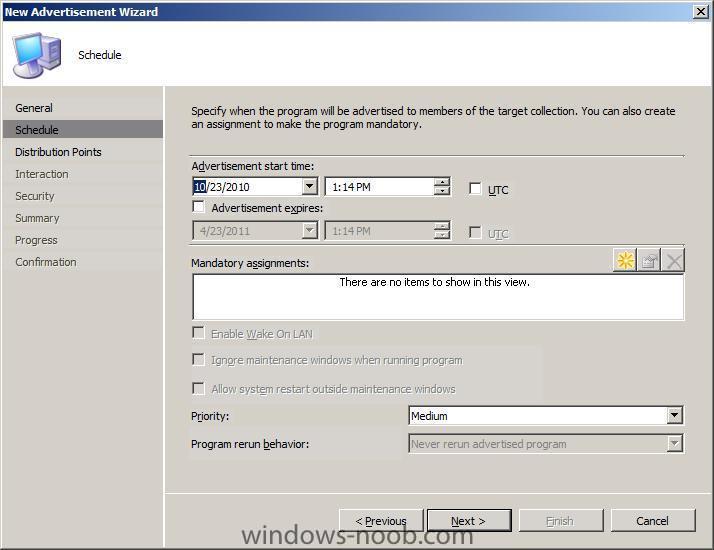

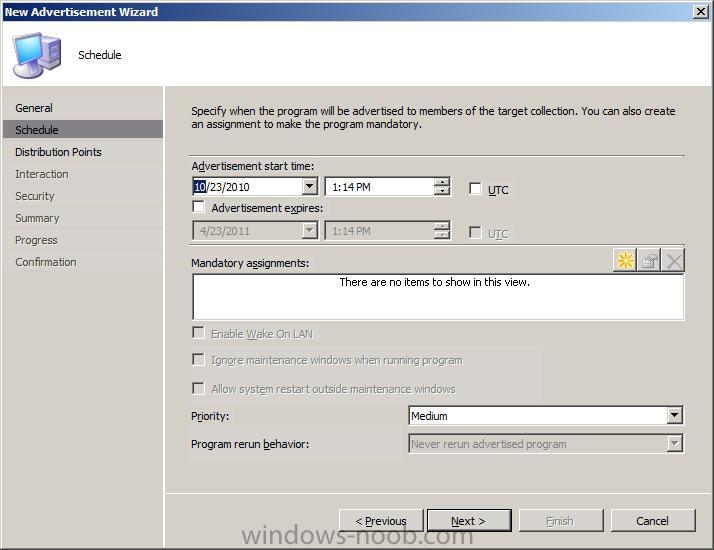

leave schedule as it is, make no changes

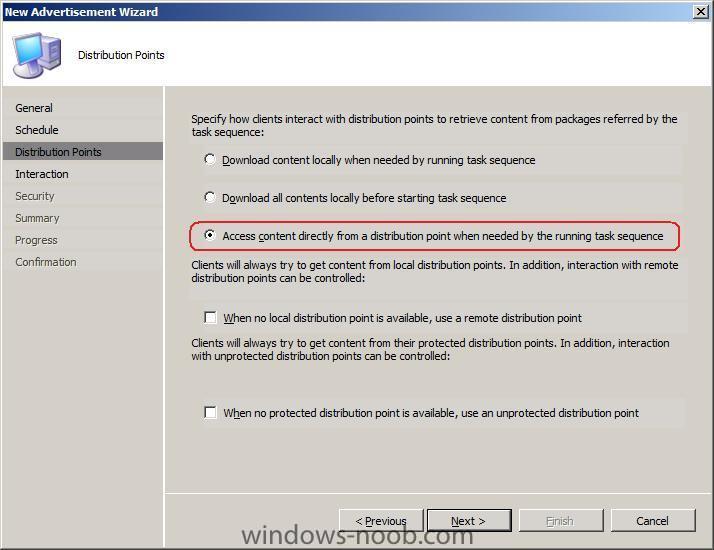

For distribution settings, choose access content directly from a distribution point when needed by the running task sequence



access content directly from a distribution point when needed by the running task sequence.jpg



for Interaction, choose show the task sequence progress

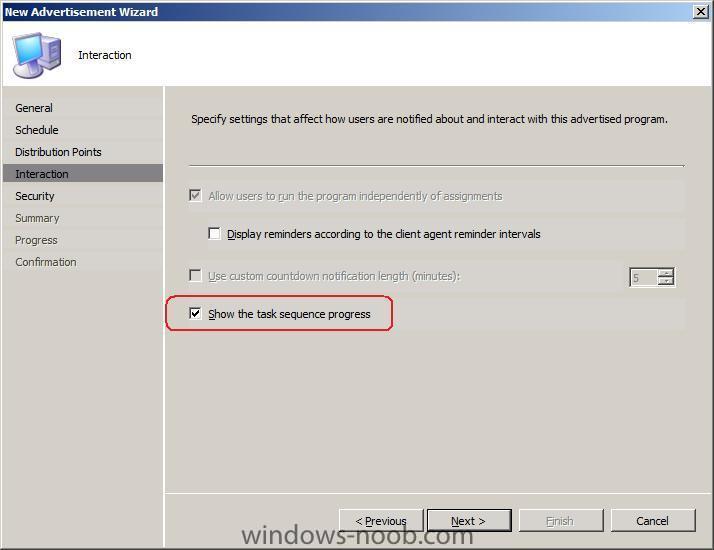

show the task sequence progress.jpg



click next through the wizard to finish.

Share this post


Link to post
Share on other sites

Duplicate the Task Sequence



Right click on our selected task sequence again, but this time choose Duplicate

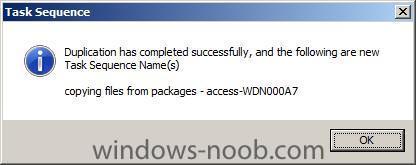

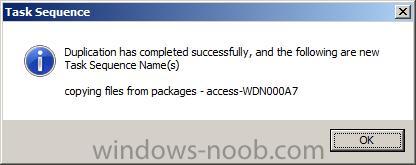

you will be informed when the duplication is done, click Ok.



dup done.jpg



Right click on the task sequence, choose properties and change the name to copying files from packages - download



We now have our second Task Sequence and it is identical to the first except for the name (the reason of which will become clear soon).

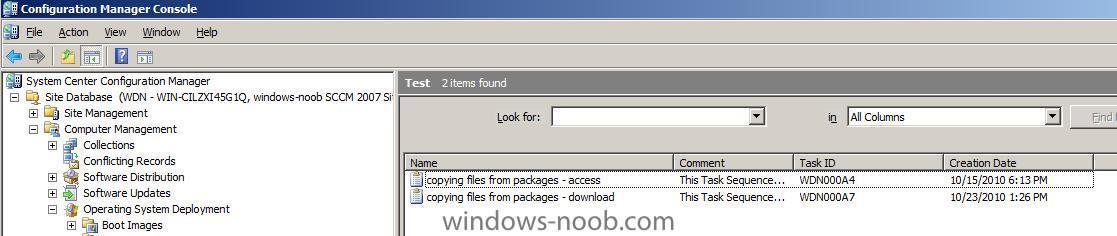

two task sequences.jpg





Create a New Advertisement



Create a new advertisement for the copying files from packages - download task sequence as we did above except for the distribution settings do as follows:-

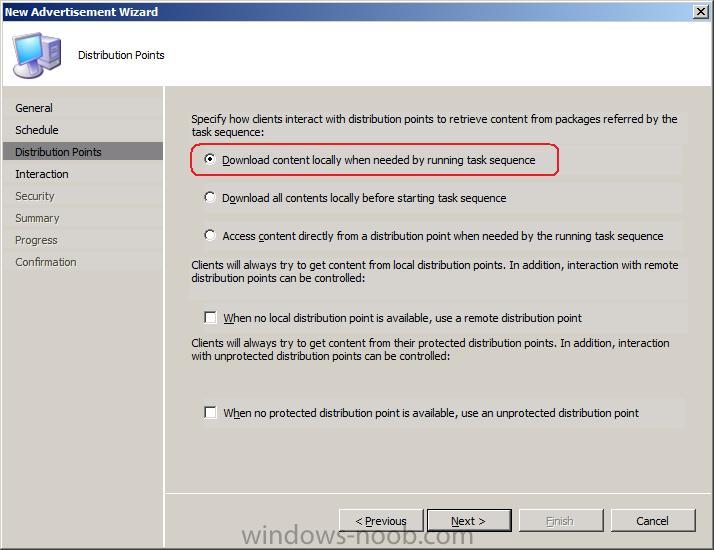

Choose the following setting download content locally when needed by running task sequence

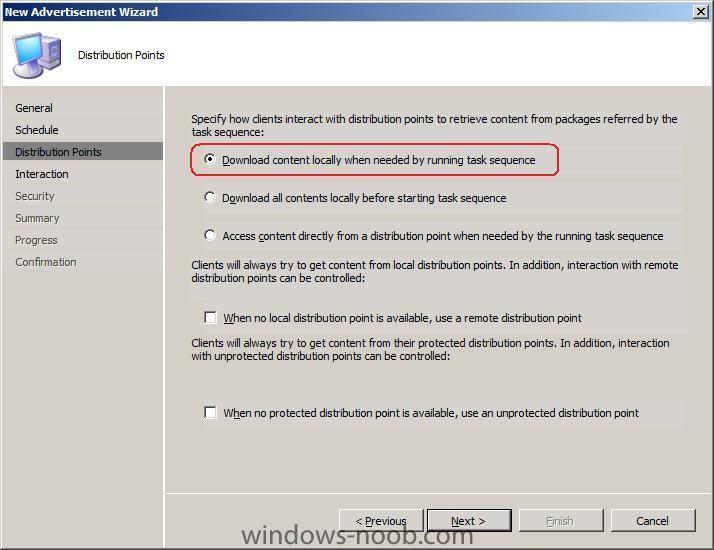

download content locally when needed by running task sequence.jpg

Share this post


Link to post
Share on other sites

Run the first Advertisement from RAP



Now that we have done all the hard work, let's test it on the client, open up RAP (Run Advertised Programs) and select the first Advertisement which is called copying files from packages - access

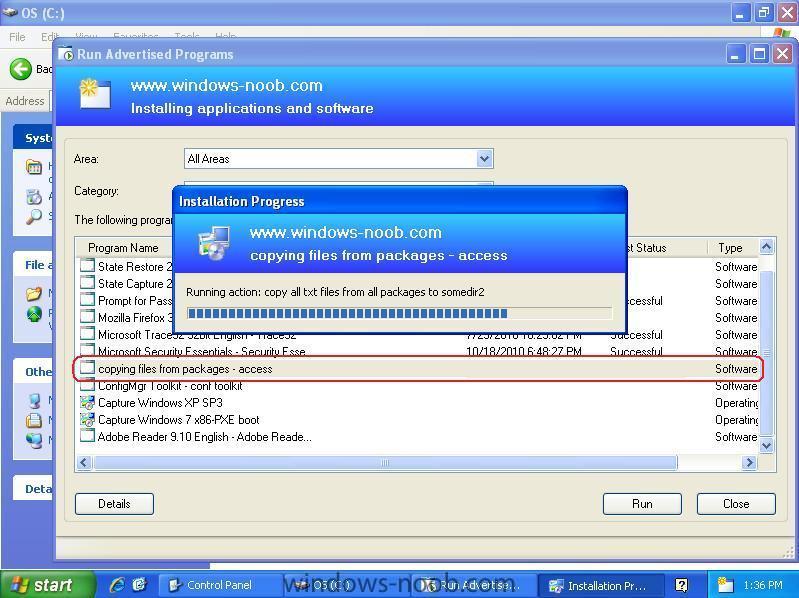

running action - copy all txt files from all packages to somedir2 access.jpg



Let the advertisement complete and then check your c:\ for the results

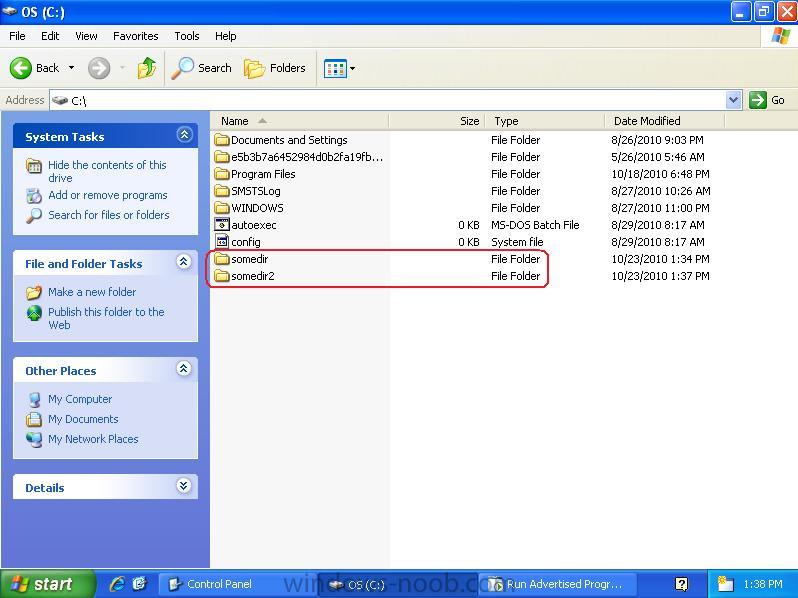

when finished we'll see our two directories created,



two dirs.jpg

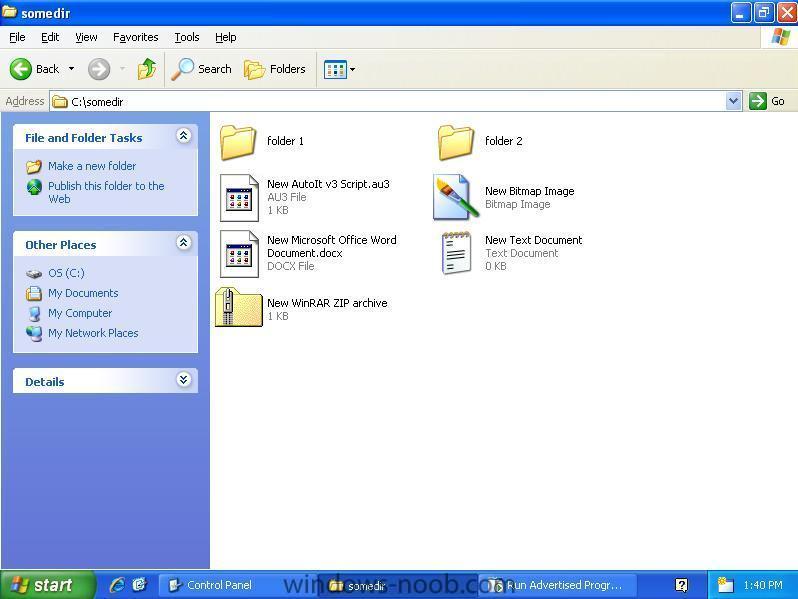

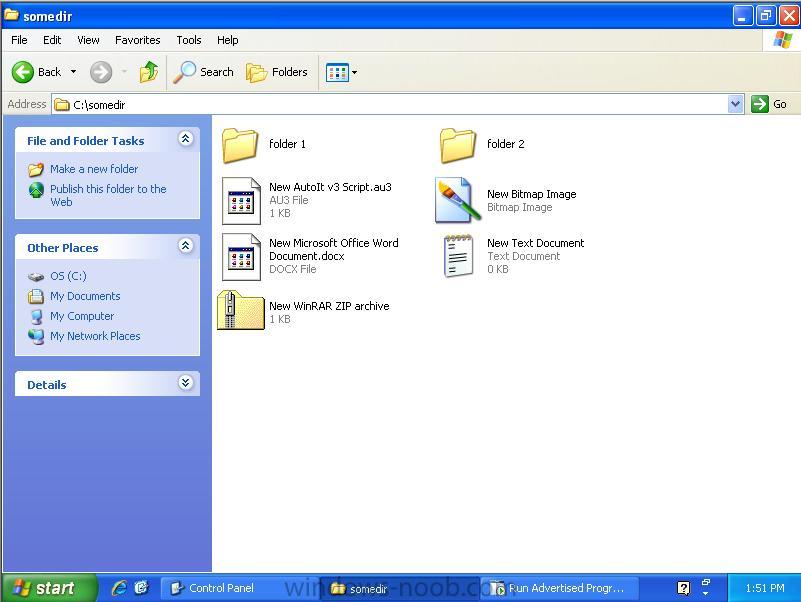

the first dir (somedir) should contain all files from the copy_files package, and indeed it does



files from copy_files.jpg



We would naturally expect the second dir (somedir2)to only contain the TXT files from the copy_files package, but to our surprise it contains possibly hundreds of folders all marked with your site code, infact, these folders are every single package on your site server (and thankfully only the TXT files are copied, now do you see why I selected only the TXT files ;))

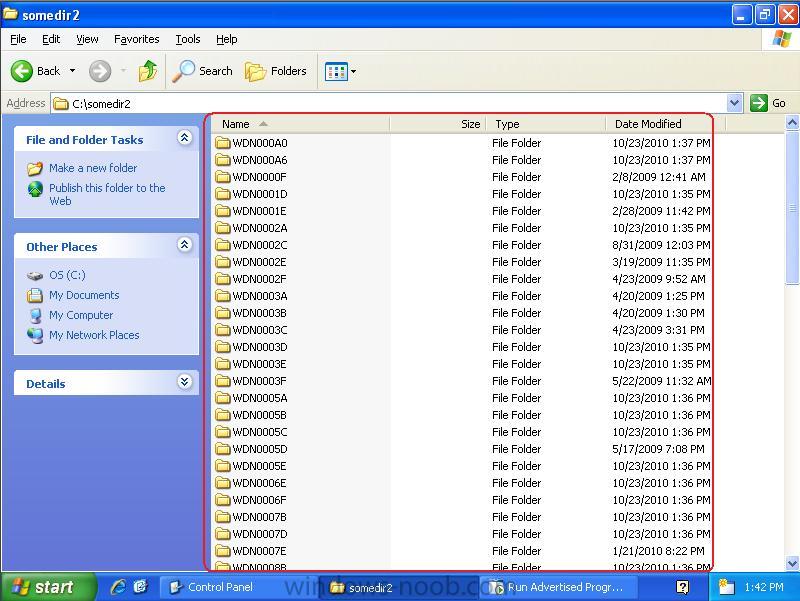

all packages from site server.jpg

Share this post


Link to post
Share on other sites

Run the second advertisement from RAP

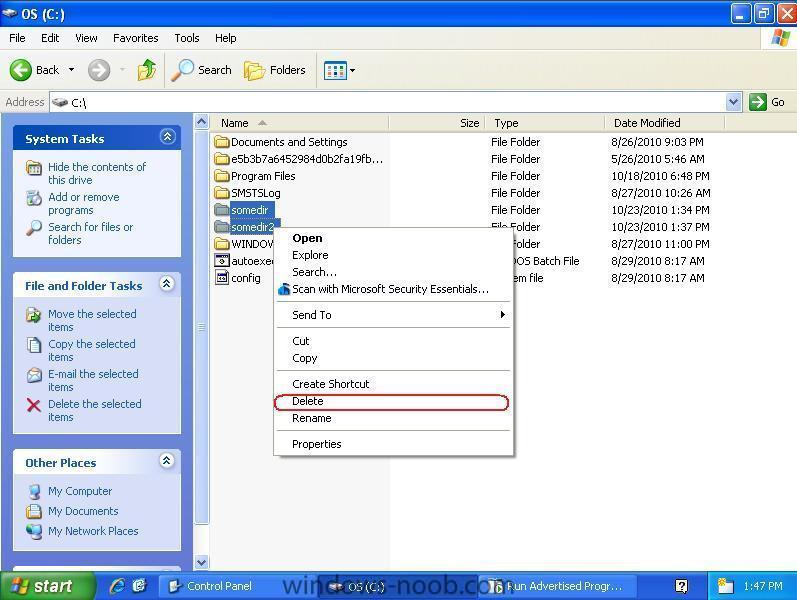

Now that we've seen what the access content directly from Distribution Points setting does in relation to file copy, let's run the other advertisement, but before we do, delete the somedir and somedir2 directories

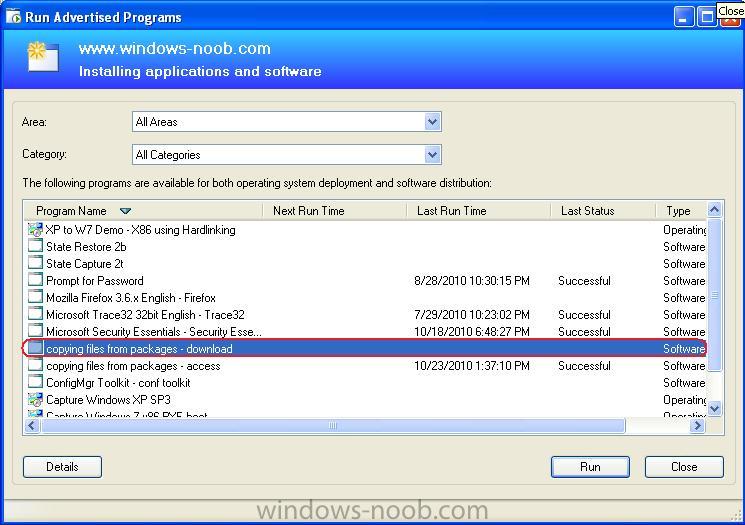

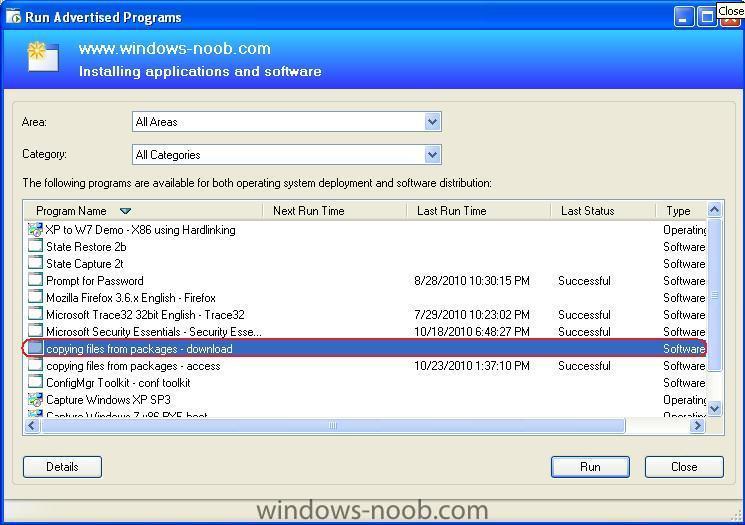

Choose the copying file from packages - download task sequence and run.



copying file from packages - download.jpg

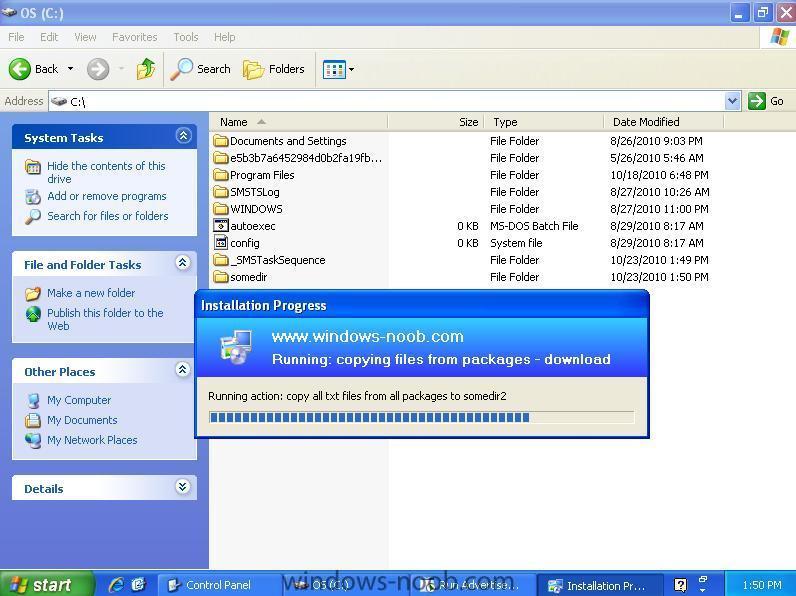

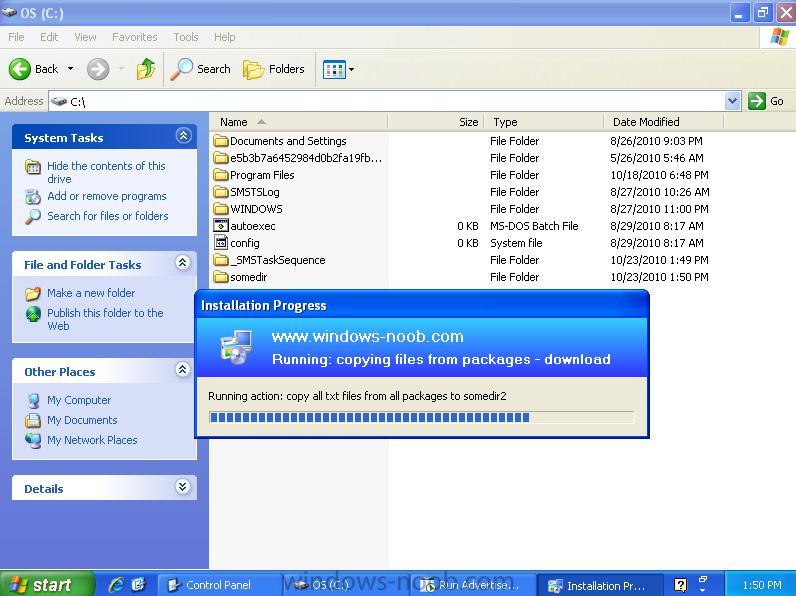

this task sequence will execute much quicker than the first



in progress.jpg



when done, check c:\somedir, it contains all files and folders as we would expect from the package

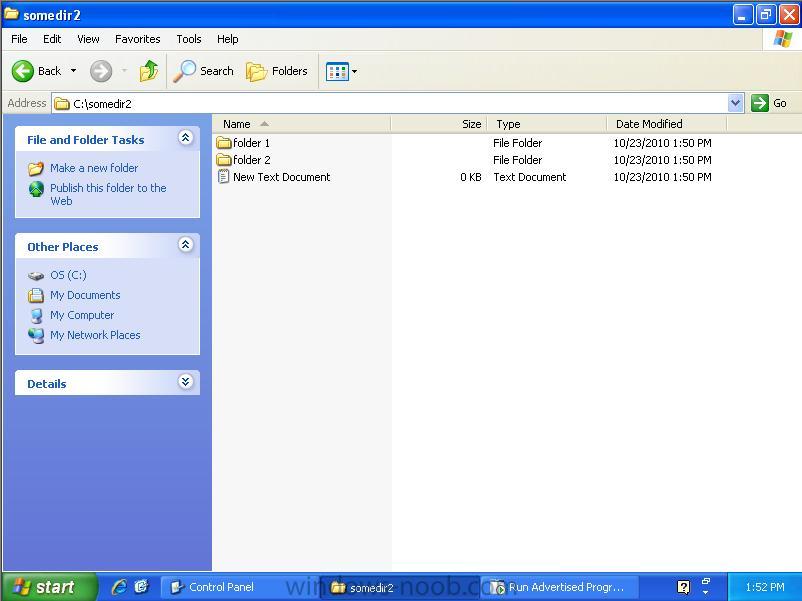

and finally check c:\somedir2



note how it ONLY contains the text files from our copy_file package, exactly as we expected originally, and this is all down to our Distribution Point settings in our Advertisement !






Interesting huh ? try it for yourself and share your results please



cheers

niall

Share this post


Link to post
Share on other sites

Really Interesting...... I think it downloads all the content packages from DP based on the Criteria given in the commandline but also it copies all the DP content even if the folder doesnt have .txt files. In this case(with option access content directly ),is there any importance or usage for the package (copy files package) used ?



will this happen to all the advertised TS on the clients if we select access content directly ?







Share this post


Link to post
Share on other sites

How would you change this task sequence to work with a task sequence that is being used to image a machine? It seems that it doesn't like writing files to any place other than the public user directory.

Share this post


Link to post
Share on other sites

I am trying to use this method during OSD to copy a files onto the local HD. Does the target computer need to be joined to the domain for this method to work?

Share this post


Link to post
Share on other sites

No it doesn't has to be domain joined. It only needs to be able to communicate with ConfigMgr (MP/DP) and a network access account has to be configured in ConfigMgr to access the DP.

Share this post


Link to post
Share on other sites

No it doesn't has to be domain joined. It only needs to be able to communicate with ConfigMgr (MP/DP) and a network access account has to be configured in ConfigMgr to access the DP

Can this be done during OSD?
