using vNext in a LAB - Part 4. Configuring the Client Agent Settings

Recommended Posts

In Part 1. of this series we Installed vNext.

In Part 2., we then Configured vNext to use the New AD Site as a boundary and Configured Discovery Methods in vNext. In Part 3, we installed the Reporting Point Role along with some additional roles and configured them.



Now we will configure the Client Agents and install the client on our Lab systems.



Perform the following on the vNext server as SMSadmin



Step 1. Configure Default Settings for the Computer Agent



In the vNext console, click on Administration, and then right click on Client Agent Settings choose Modify Default Settings.



modify default settings.png



Scroll down to Computer Agent and select Organization Name, change it to your organisation name



organization name.png



While we are there let's add the default software catalog website to trusted sites zone, double click on it and change false to true



default software catalog.png

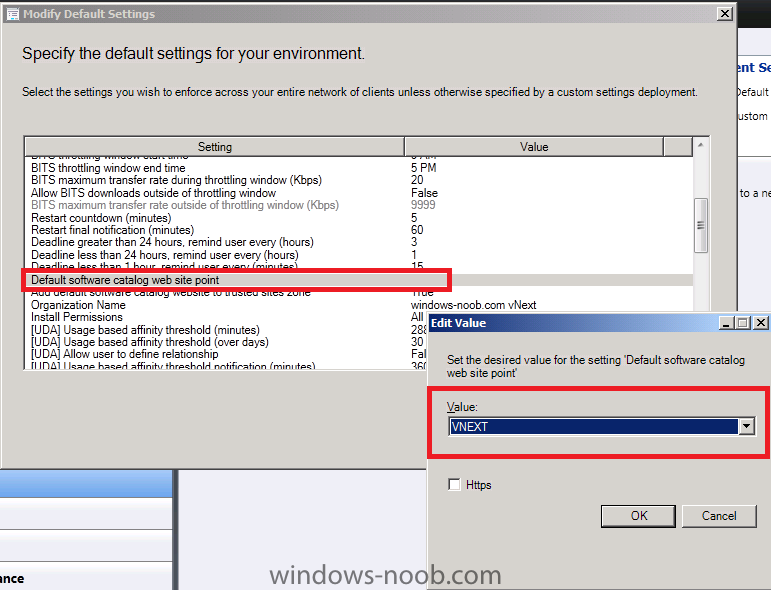

and let's select the default software catalog web site point, double click on it and change the drop down menu to VNEXT



default software catalog web site point.png



Click Ok when done.



At this point you can startup Internet Explorer and browse to your Vnext Software Catalog Web Site Point http://vnext/CMSoftwareCatalog/



vnext software catalog website.png

Share this post


Link to post
Share on other sites

Step 2. Configure Client Installation Settings



In the Administration node of the Wunderbar click on Site Operations, Sites and select our vNext site V01, select Client Installation Settings in the bottom right.



client push installation.png



Double Click on Client Push Installation to set its' settings and then click on the Accounts Tab. Click on the yellow starburst to add a new account

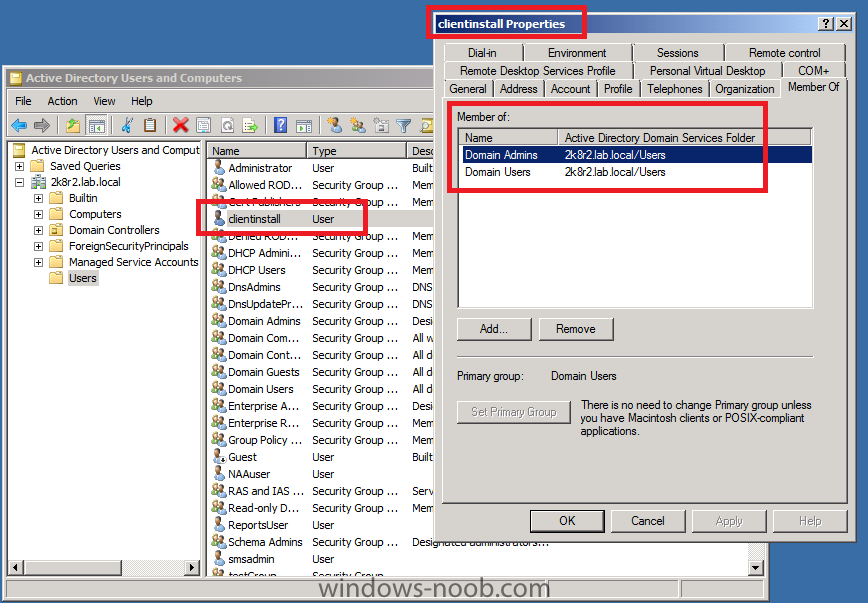

we will use the following user created in AD in part 1 of this series, ClientInstall (a domain admin user in this lab, the screenshot below is from the Active Directory server)

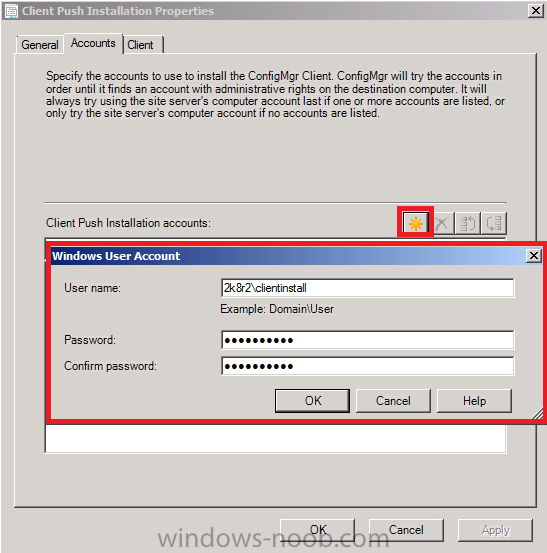

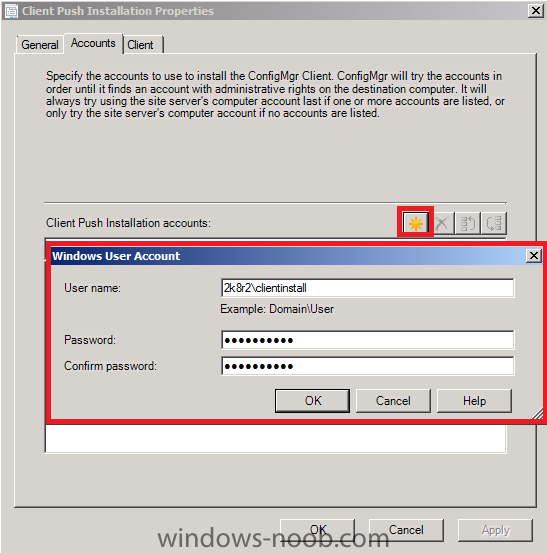

After clicking on the yellow starburst, add your ClientInstall details



add clientinstall.png



Click on the Client tab and add FSP=VNEXT to add the Fallback Status Point properties to our client installation settings.






Click Apply then ok to exit.

Share this post


Link to post
Share on other sites

Step 3. Install the Client



In the Wunderbar, select Assets and Compliance and select the All Systems collection.



assets and compliance.png

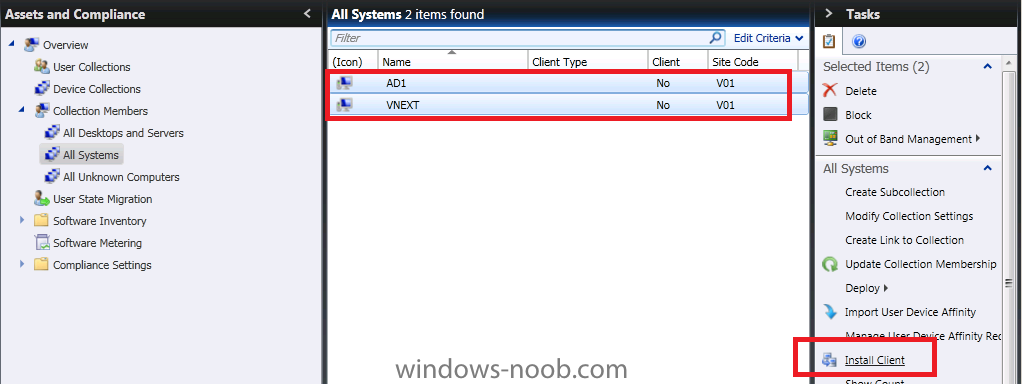

In this lab we will select all our systems (ctrl_a) and choose Install Client from the Actions menu,



install client.png



the Client Push Installation Wizard appears, click next



client push installation wizard.png



Select the Include Domain controllers option (to Install the client on AD1) and click next



include domain controllers.png

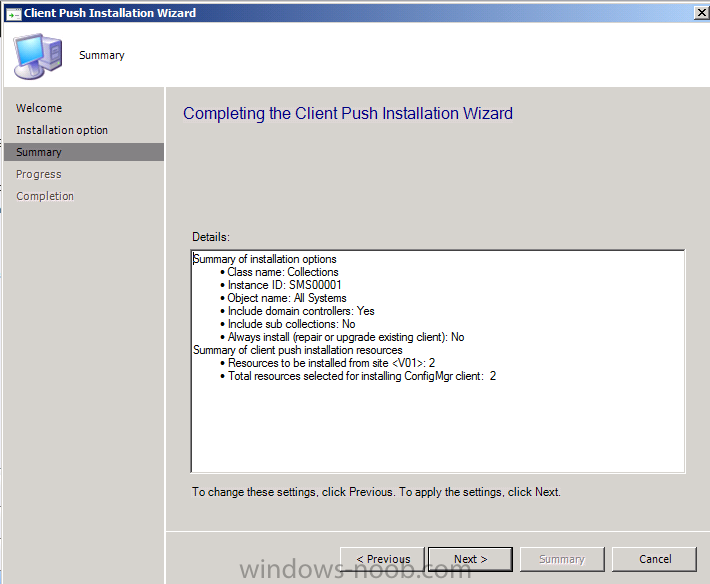

review the summary



wizard done.png



click Next and view the completion results






Troubleshooting Tip:

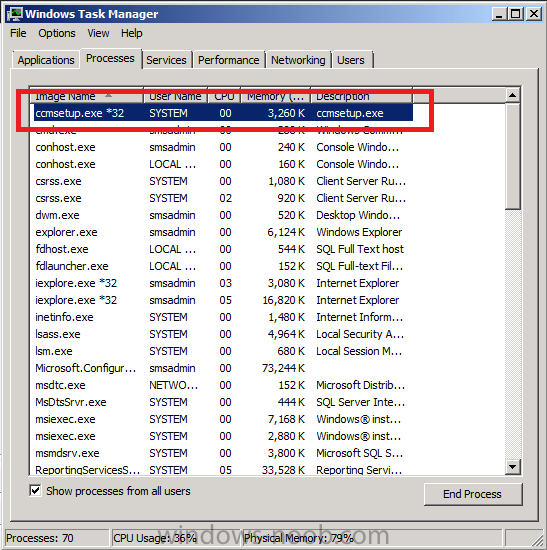

You can open Task Manager on one of the computers that you are installing the client on, look for CCMSETUP.EXE starting/running

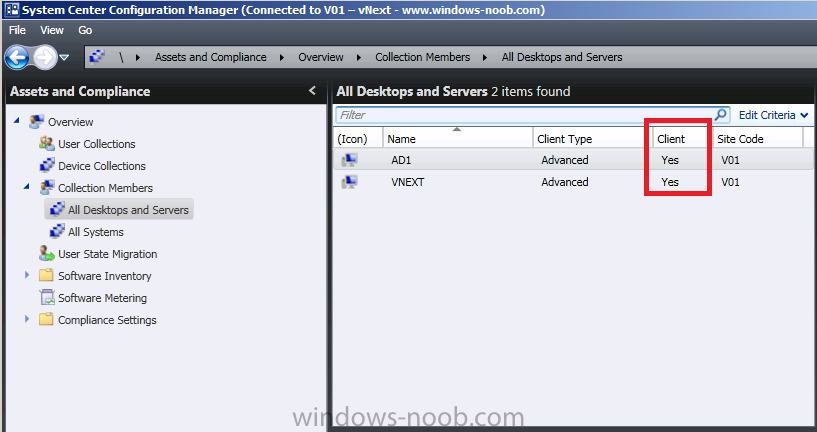

After some minutes the clients will be installed, Check the All Desktops and Servers collection, you should see your computers listed with Client = Yes



client = yes.png

  • Like 2

Share this post


Link to post
Share on other sites

Very nice tutorial.

But if I configure CMSoftwareCatalog and go the webpage I get this:



System.ServiceModel.CommunicationException: [HttpWebRequest_WebException_RemoteServer]

Arguments: NotFound

Debugging resource strings are unavailable. Often the key and arguments provide sufficient information to diagnose the problem. See http://go.microsoft.com/fwlink/?linkid=106663&Version=4.0.60129.0&File=System.Windows.dll&Key=HttpWebRequest_WebException_RemoteServer ---> System.Net.WebException: [HttpWebRequest_WebException_RemoteServer]

Arguments: NotFound

Debugging resource strings are unavailable. Often the key and arguments provide sufficient information to diagnose the problem. See http://go.microsoft.com/fwlink/?linkid=106663&Version=4.0.60129.0&File=System.Windows.dll&Key=HttpWebRequest_WebException_RemoteServer ---> System.Net.WebException: [HttpWebRequest_WebException_RemoteServer]

Arguments: NotFound

Debugging resource strings are unavailable. Often the key and arguments provide sufficient information to diagnose the problem. See http://go.microsoft.com/fwlink/?linkid=106663&Version=4.0.60129.0&File=System.Windows.dll&Key=HttpWebRequest_WebException_RemoteServer

at System.Net.Browser.BrowserHttpWebRequest.InternalEndGetResponse(IAsyncResult asyncResult)

at System.Net.Browser.BrowserHttpWebRequest.<>c__DisplayClass5.<EndGetResponse>b__4(Object sendState)

at System.Net.Browser.AsyncHelper.<>c__DisplayClass4.<BeginOnUI>b__1(Object sendState)

--- End of inner exception stack trace ---

at System.Net.Browser.AsyncHelper.BeginOnUI(SendOrPostCallback beginMethod, Object state)

at System.Net.Browser.BrowserHttpWebRequest.EndGetResponse(IAsyncResult asyncResult)

at System.ServiceModel.Channels.HttpChannelFactory.HttpRequestChannel.HttpChannelAsyncRequest.CompleteGetResponse(IAsyncResult result)

--- End of inner exception stack trace ---

at System.ServiceModel.AsyncResult.End[TAsyncResult](IAsyncResult result)

at System.ServiceModel.Channels.ServiceChannel.SendAsyncResult.End(SendAsyncResult result)

at System.ServiceModel.Channels.ServiceChannel.EndCall(String action, Object[] outs, IAsyncResult result)

at System.ServiceModel.ClientBase`1.ChannelBase`1.EndInvoke(String methodName, Object[] args, IAsyncResult result)

at Microsoft.ConfigurationManagement.ServicePortal.PortalControls.ServiceReference.ApplicationViewServiceSoapClient.ApplicationViewServiceSoapClientChannel.EndGetApplicationValuesForProperty(IAsyncResult result)

at Microsoft.ConfigurationManagement.ServicePortal.PortalControls.ServiceReference.ApplicationViewServiceSoapClient.Microsoft.ConfigurationManagement.ServicePortal.PortalControls.ServiceReference.ApplicationViewServiceSoap.EndGetApplicationValuesForProperty(IAsyncResult result)

at Microsoft.ConfigurationManagement.ServicePortal.PortalControls.ServiceReference.ApplicationViewServiceSoapClient.EndGetApplicationValuesForProperty(IAsyncResult result)

at Microsoft.ConfigurationManagement.ServicePortal.PortalControls.ServiceReference.ApplicationViewServiceSoapClient.OnEndGetApplicationValuesForProperty(IAsyncResult result)

at System.ServiceModel.ClientBase`1.OnAsyncCallCompleted(IAsyncResult result)
