using SCCM 2012 beta2 in a LAB - Part 8. Deploying Windows 7 Enterprise

Recommended Posts

In Part 1. of this series we Installed SCCM 2012, in Part 2 we started to configure it. In Part 3, we configed Beta 2 some more by enabling Active Directory discovery methods, adding some site system roles, configuring the computer client agent and client push settings and finally doing a manual client installation to verify it all worked, in Part 4 we looked at installing an application using Application Management and the Software Catalog and the Software Center features of SCCM 2012, and in Part 5, we added the FSP, SLP, SMP, SUP. In Part 6 we got our SCCM 2012 server ready for Deploying Windows 7 Enterprise SP1 so that we can start deploying some Windows 7 clients to enhance our LAB, then in Part 7 we created a Build and Capture Task Sequence and deployed it to our Build and Capture collection.



Now we will configure the Network Access Account because it is needed during the Build and Capture task sequence to access network resources (the Local System Account won't have access to these network resources and if you have not configured your Network Access Account you'll see Authentication failure 401 error messages in your SMSTS.log file).



In addition to configuring the Network Access Account, we'll PXE boot our Virtual Machine and observe the Build and Capture process, we will also look at how we can monitor our Build and Capture Deployment while it's happening on our SCCM 2012 server.







Step 1. Configure the Network Access Account



Perform the following on our vNext server as SMSADMIN.

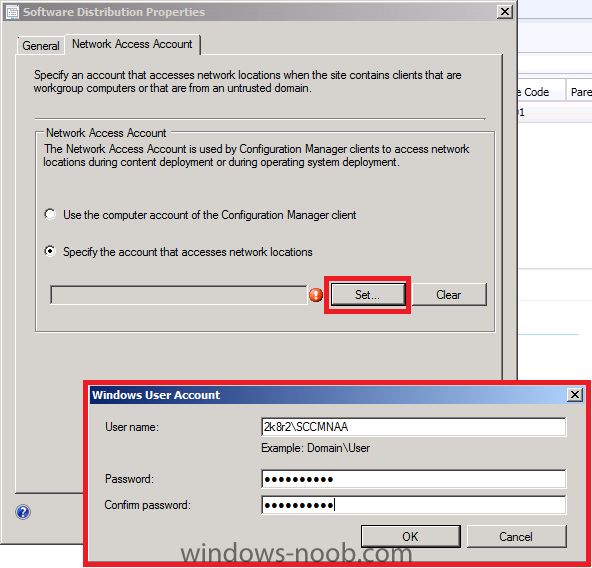

In the ConfigMgr console, select Site Operations, Sites and right click on our P01 site, choose Software Distribution (alternatively in the ribbon click on Configure Site Components, Software Distribution)



configure network access account.png

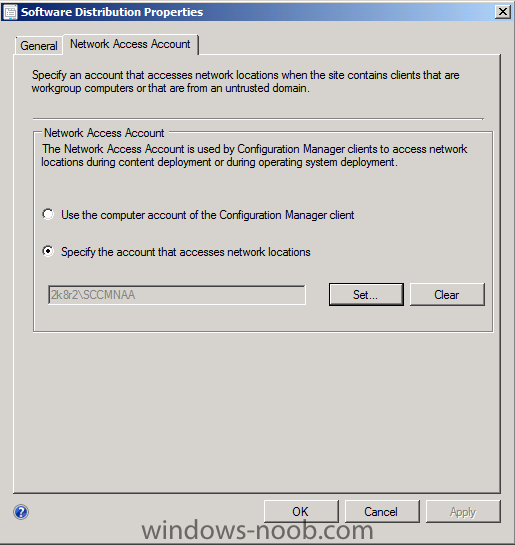

when the Software Distribution window appears, click on the Network Access Account tab, and input your Network access account credentials, we will use the user called SCCMNAA which we created in Part 1 of this series.






click Apply



sccmnaa configured.png





Step 2. Boot our Virtual Machine



We have already created a new VM for our Build and capture process, and now we will PXE boot it and observe the process.

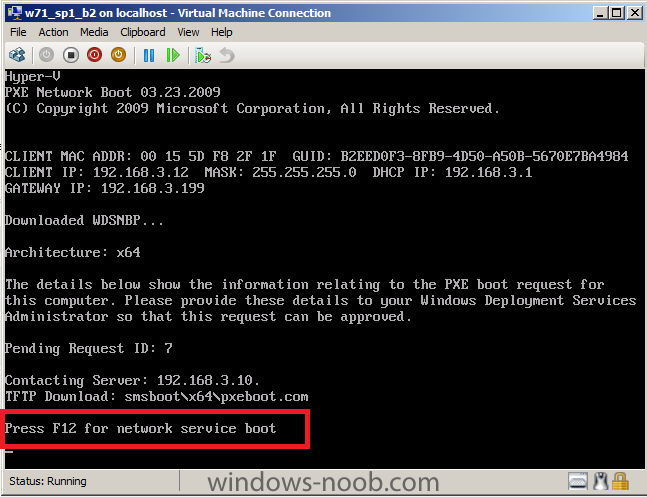

Press F12 when prompted



press f12.png

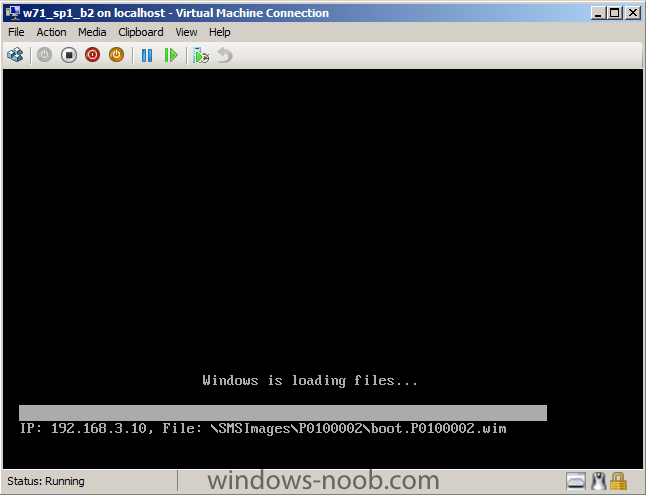

the PXE boot process begins, windows is loading files...



windows is loading files.png

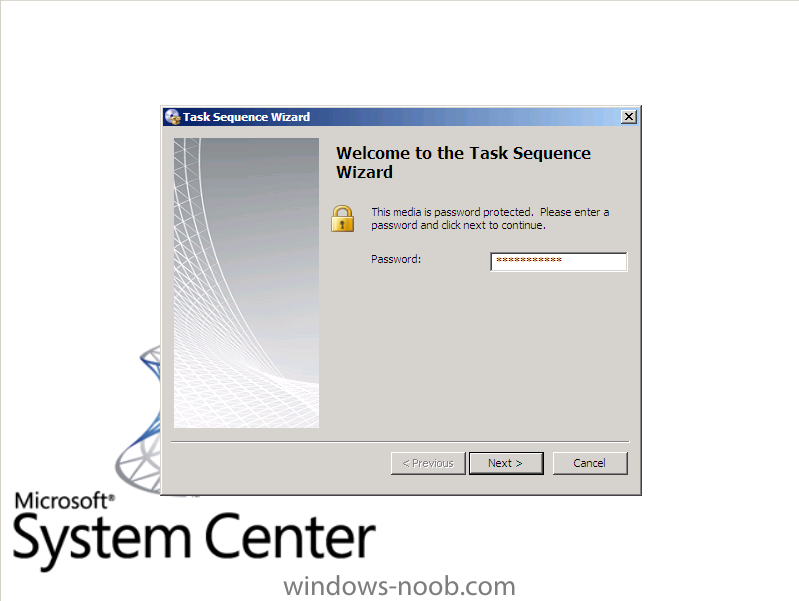

we get prompted for the PXE password



pxe password.png

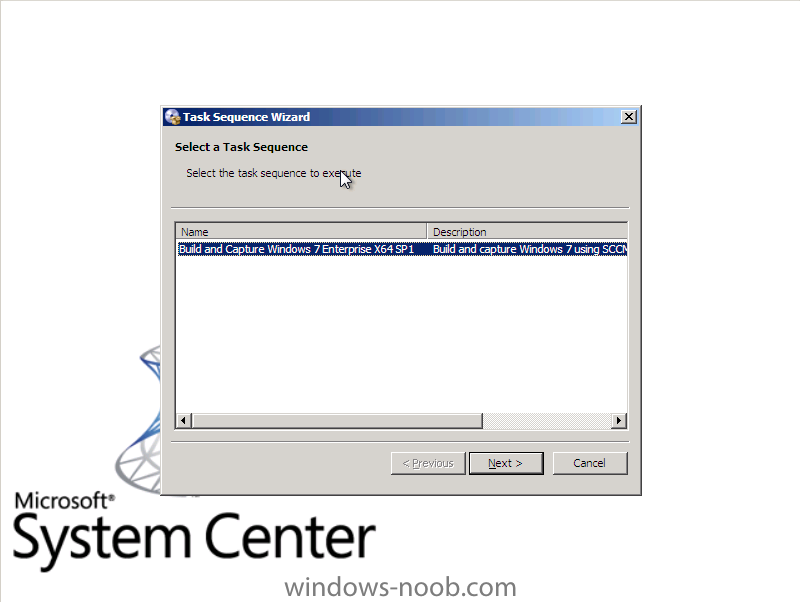

click next, and the list of available task sequences appears



list of ts.png



select our previously created Build and capture task sequence and click next

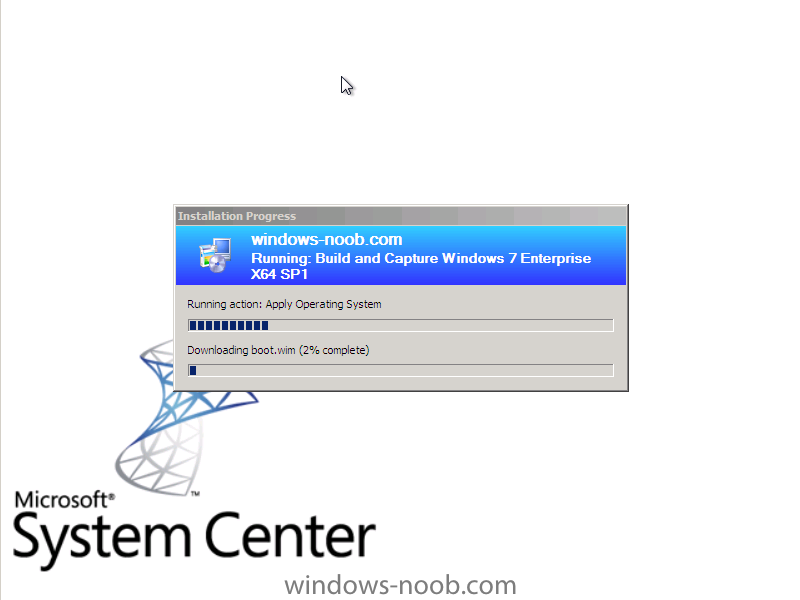

after partitioning and formatting the disc, the apply operating system step begins...



apply operating system.png

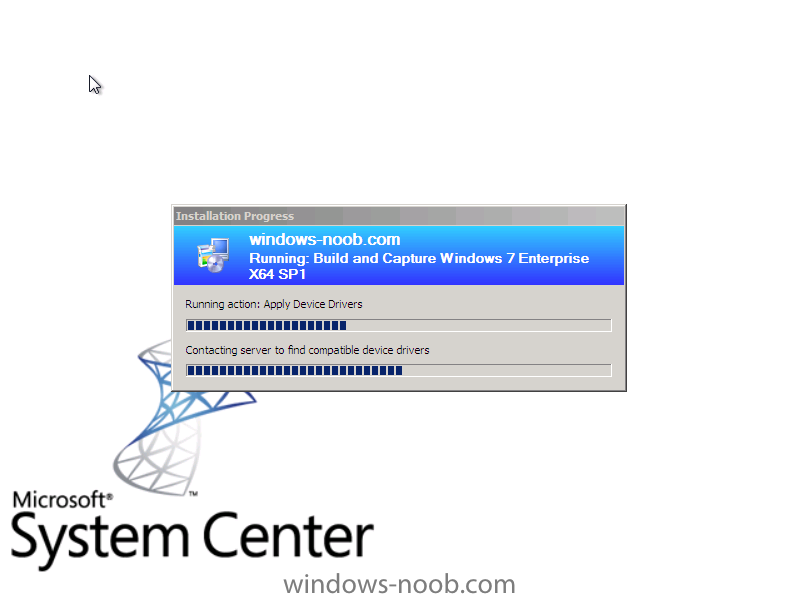

Apply Windows Settings, Apply Network Settings, Apply Device Drivers...



apply drivers.png

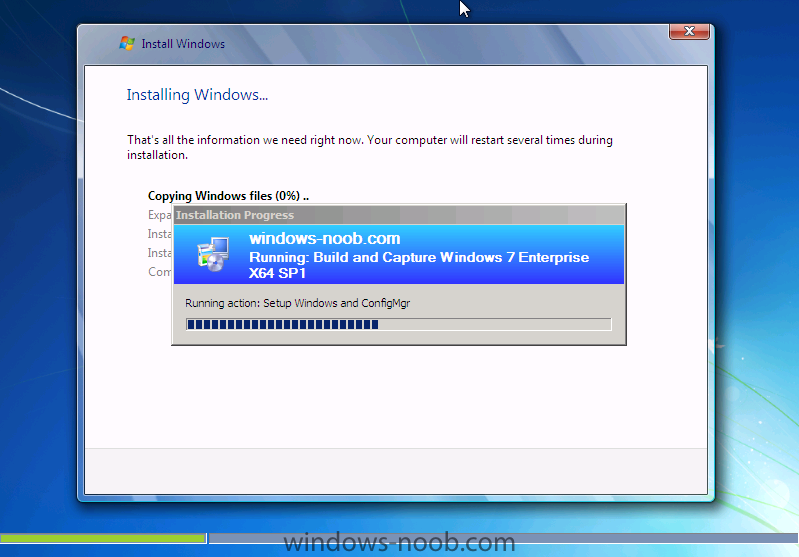

and it starts to Setup Windows



setup windwos.png

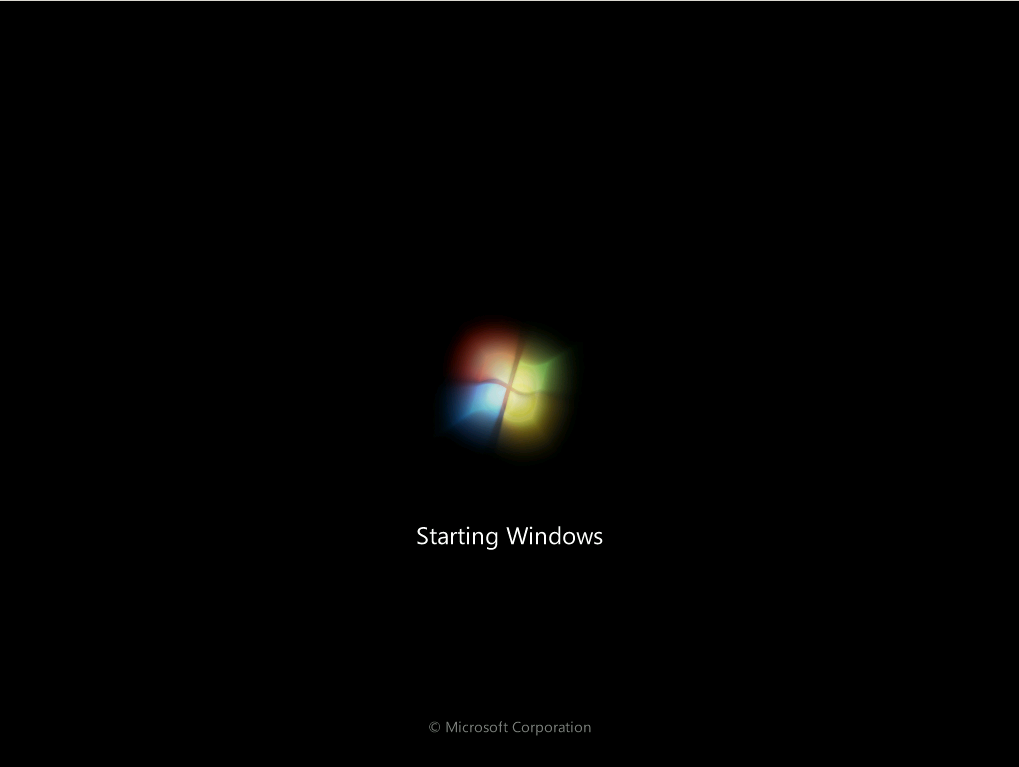

the next step involves rebooting the computer



starting windows.png



which allows Windows setup to continue (adding drivers etc) before another reboot...and then setting up the Configmgr client,



setup windows and configmgr 2.png

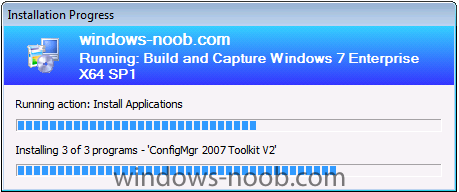

followed by installing updates and then applications

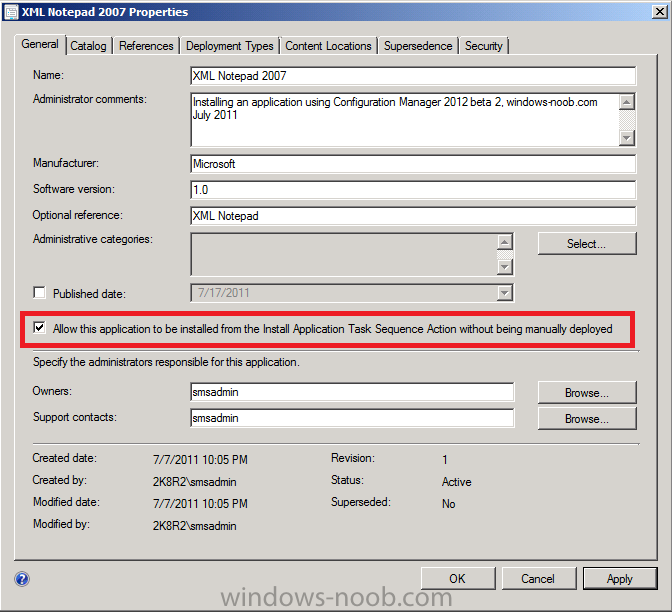

TIP: If your applciations are not installing check the following setting in your application allow this application to be installed from the Install Application Task Sequence Action without being manually deployed



allow this application to be installed from the Install Application Task Sequence Action without being manually deployed.png



We have not created any Update deployments so nothing will happen in the Install Updates step (we'll come back to that later in this series).



install app.png



After it's done with the Applications, it will continue on to another reboot

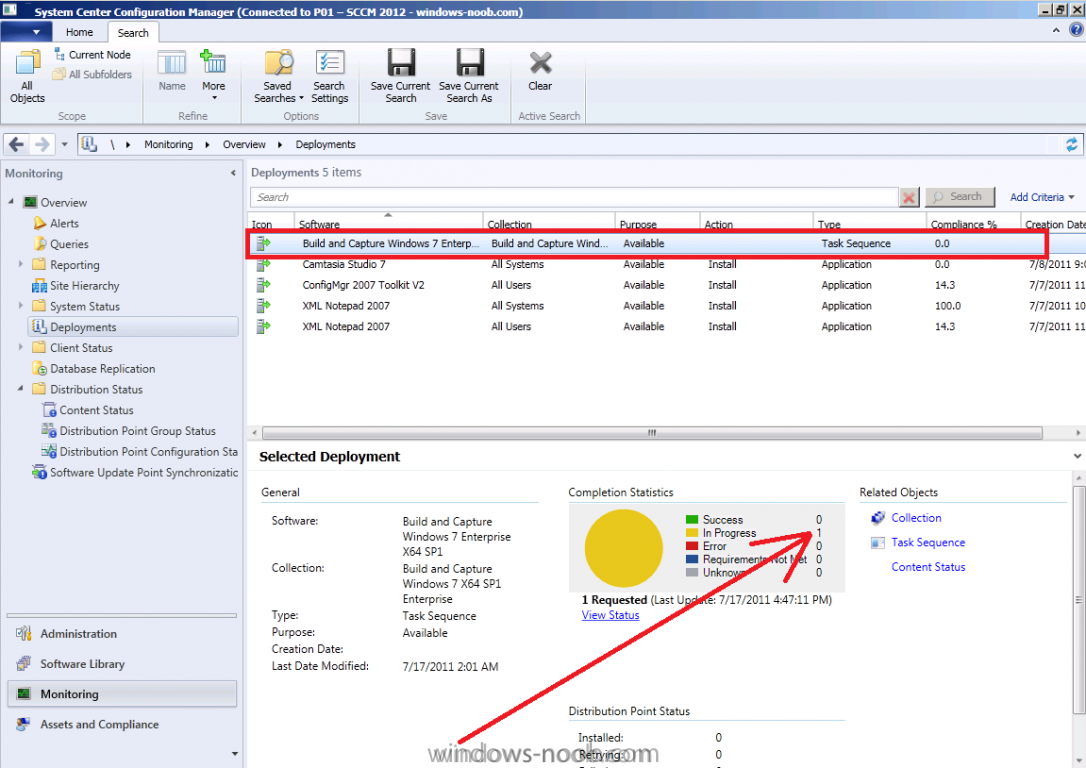

Tip: while you are waiting you can click on Monitoring, Deployments, select our Build and Capture Task Sequence to see an overview of the Deployment in process,



monitoring in progress.png

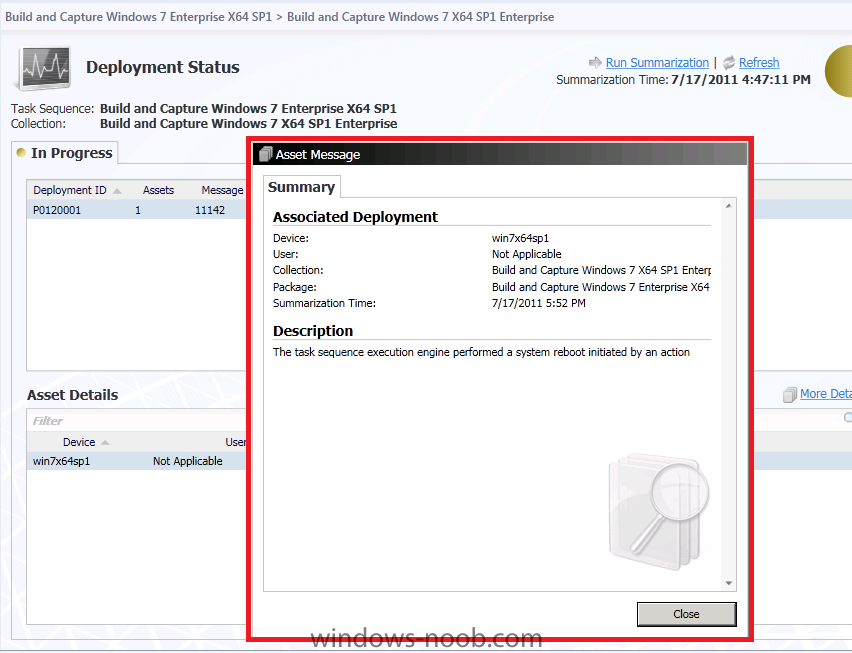

click on View Status followed by More Details to get more info about what is happening



more info.png

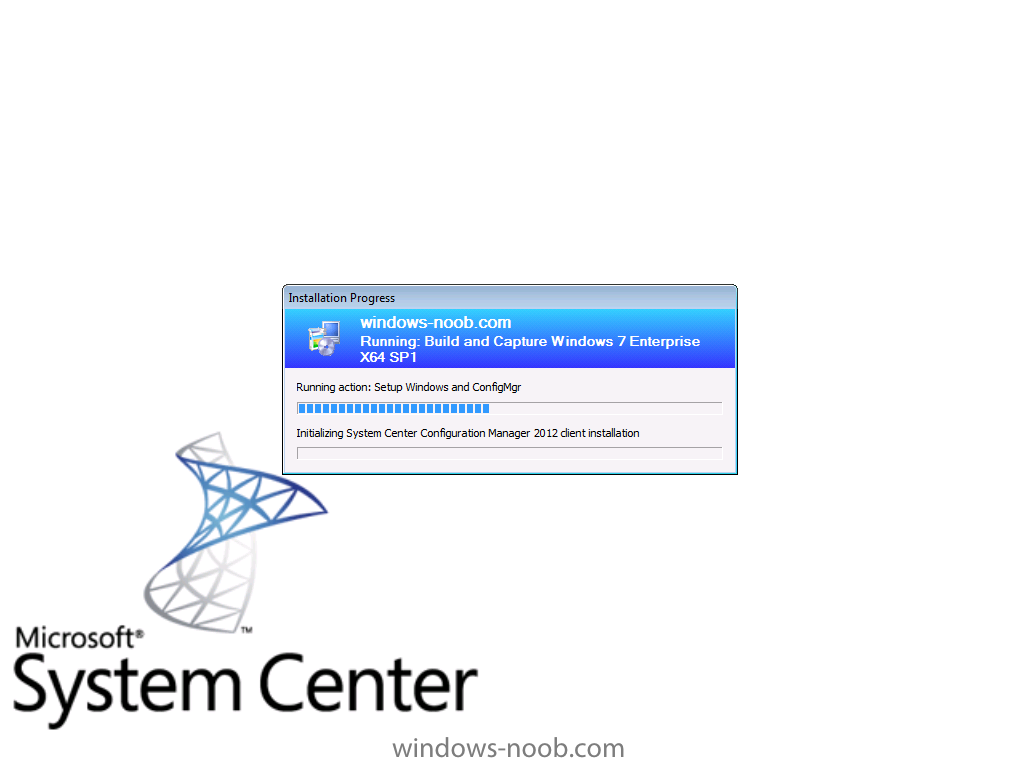

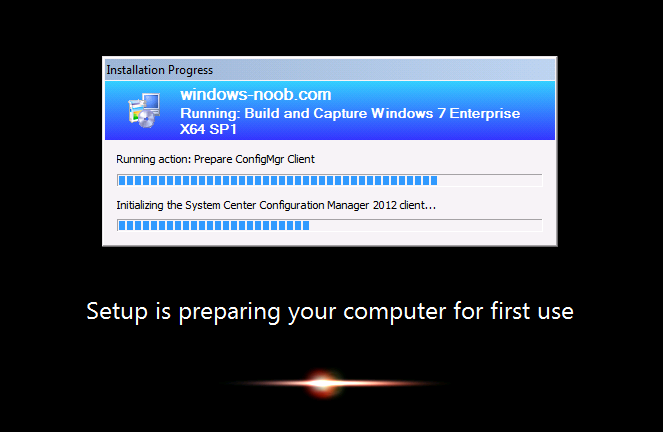

Meanwhile, the task sequence continues by Initializing the Configuration Manager 2012 client *slow*






before doing the Prepare OS step



prepare os.png



and finally after rebooting into WinPE, we being capturing our Windows 7 X64 SP1 image, success !



capture os.png

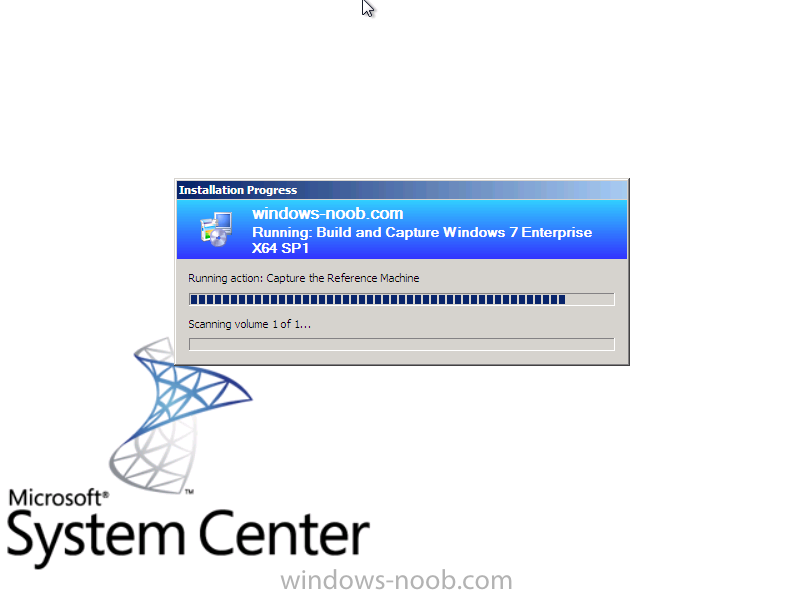

if you entered your capture account correctly in the task sequence, then it'll start scanning volume one of one



scanning volume 1 of 1.png

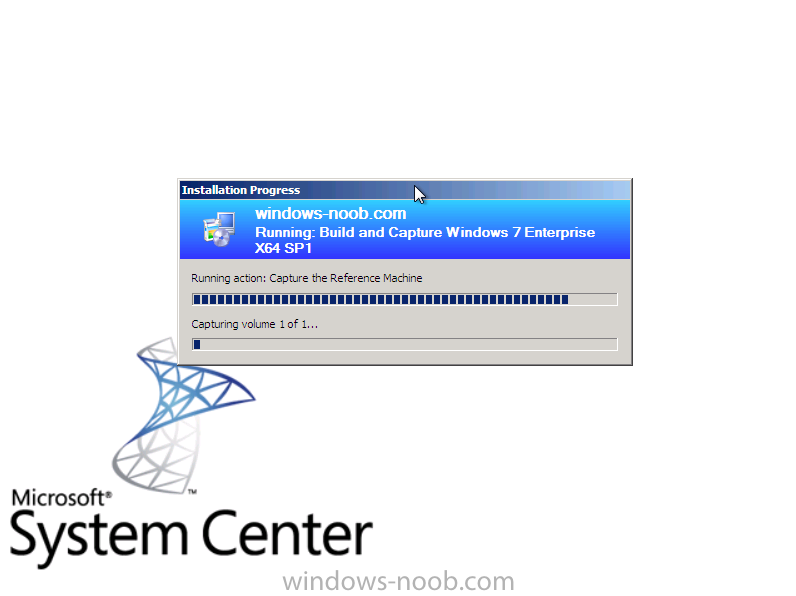

followed by the Capture itself, in the next part of this series, we'll deploy this captured image to another Virtual Machine.



capturing volume one of one.png



job done :)

Share this post


Link to post
Share on other sites

so what error do you see when you PXE boot and what other details do you need to share ?

Share this post


Link to post
Share on other sites

is the DHCP server on the same server as Configmgr or on your Domain Controller ? are they in the same vlan ?

can you post a screenshot of the failure ?

Share this post


Link to post
Share on other sites

Hi, i'm able to start Task sequence with no problem but during a restart

i'm getting error that windows couldn't parse or process unattend answer file

for pass [spesialize] . I'm receiving the same error when I try to install existing image as well.

So I was wondering how do I resolve this?

Share this post


Link to post
Share on other sites

First I would like to thank you for such a great guide. Everything so far has worked great. On step two of part 8, my computer boots into PXE and prompts me for the PXE password. After the password is entered I get error 0x80072ee2 and the computer doesn't go any further to the sequence selection. Any ideas?

Share this post


Link to post
Share on other sites

hmm are you deploying to virtual machines or real hardware ? sounds like a network driver issue, do you get an ip address ? can you ping the fqdn of your SCCM server ?

Share this post


Link to post
Share on other sites

Hoping you can help! I am new to SCCM but not windows or networks. I am following your tutorials as they are the best I have found on the Internet!

I am using real computers, no VM's. One AD DC computer, one SCCM computer and one client computer.

Client computer boots BIOS, select Network boot, client receives PXE boot image, IP address, etc, starts "Task Sequence Wizard", accepts password, sets up Partition 0, Downloads and Installs Windows, First Reboot, displays "Completing installation ...", Second Reboot, displays "Setup is preparing computer for first time use", displays "Setup is checking Video performance", Desktop appears, Normal Username and Password Text boxes appear.

Nothing!!! - Cannot login as Administrator, account is disabled! cannot login as SMSadmin username/password incorrect

Help?

Share this post


Link to post
Share on other sites

Found the answer: The client computer hardware was the problem. The Same Build and Capture Sequence works fine on different hardware. Repeated the steps several times to be sure that I was not just making a mistake in the Sequence.

Share this post


Link to post
Share on other sites

I am now dead in the water until I find a solution. I completely forgot that we have a citrix provisioning server for our thin client virtual machines that use PXE on the same subnet as the SCCM server I created... My understanding is that 2 PXE servers can't exist in the same subnet... Not sure what to do now.

Share this post


Link to post
Share on other sites

go virtual, place the vm's in a virtual network separated from all others, its the way i do it, highly recommended

Share this post


Link to post
