anyweb

how can I PRESTAGE a computer for WDS ?



Recommended Posts

You can use Windows Deployment Services to link physical computers to computer account objects in Active Directory Domain Servers (AD DS). This is called prestaging the client. Prestaged clients are also called known computers.



If you have set WDS to only respond to known computers then you'll need to prestage the computers otherwise the PXE boot will fail.






To prestage a computer for WDS deployment you'll need to know the mac address or GUID of it, you can get that info in a variety of ways, the easiest (for one computer) is to simply press the PAUSE button on your client pc when it is PXE booting to the server, you'll see both the MAC address and GUID listed.






If you want to use scripts to get these values then download the following from Microsoft (Sample_RIS_Scripts.zip), this bunch of scripts can collect GUIDs and more...



ok, now that we have the GUID lets start Active Directory Users and Computers, click on Computers and right click, choose New, Computer.






give the computer a name






click next and make sure to select This is a managed computer



Input the GUID or MAC address with no -



eg: if the GUID reported in the bios pxe boot screen is



C2EB3E06-82DB-F741-A5F0-8312855E7753



then remove the dashes so it reads

C2EB3E0682DBF741A5F08312855E7753



the Next button below will remain Greyed out (inactive) until you input the GUID (or mac address) correctly








select your Remote Installation server (the WDS server....)






click next and review the summary, click finish and you have now prestaged your computer in Active Directory.






at this point you can PXE boot the client and WDS will treat it as a 'known' computer and you can deploy as per normal.



more info about prestaging with WDS from Microsoft here >

Creating Computer Account Objects in AD DS



You can use Windows Deployment Services to link physical computers to computer account objects in Active Directory Domain Servers (AD DS). This is called prestaging the client. Prestaged clients are also called known computers. This allows you to then configure properties on the computer account to control the installation for the client. For example, you can configure the network boot program and the unattend file that the client should receive, as well as the server from which the client should download the network boot program. You can create a computer account object and associate it with a physical computer using the following methods:



* Using WDSUTIL. You can prestage client computers before they have attempted a network boot, by running WDSUTIL /Add-Device /Device:<name> /ID:<ID>. You cannot prestage computers by using the Windows Deployment Services MMC snap-in, but you can set the Auto-Add policy and approve or reject pending computers.

* Using the Active Directory Users and Computers snap-in. You can prestage client computers before they have attempted a network boot using AD DS. For instructions, see the section "To prestage a client computer" in How to Manage Client Computers.

* Enabling the Auto-Add policy. If you enable this policy, when you approve the installation for an unknown client, the installation will proceed and a computer account will be created in AD DS for the client. For more information, see Enabling the Auto-Add Policy

* Using Windows Deployment Services as part of the image installation. By default, all operating system installations using Windows Deployment Services result in a client computer that is joined to a domain. You can disable this functionality using the Client tab of the server’s properties

Share this post


Link to post
Share on other sites


You should not add a computer account, you should create a new one. I'm possible to choose that option when I creating new computer objects.

Share this post


Link to post
Share on other sites

[sorry, do mean create ;)

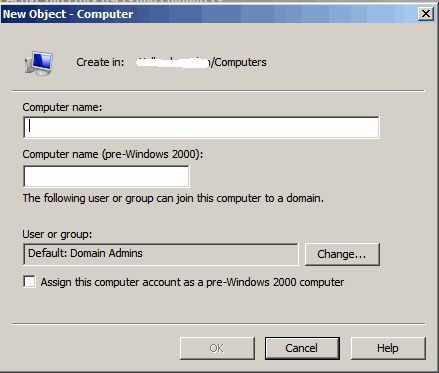

But when i right click the computers container, choose new/computer object than no next is available. I am using w2008 dc's; maybe thats the problem .


Share this post


Link to post
Share on other sites

DC -> Windows Server 2008 = No problem



Uninstall adminpak2003 and install the Active Directory console instead.

Post a note if don't now how to do install AD Console when you have been able to uninstall adminpak2003

Share this post


Link to post
Share on other sites
DC -> Windows Server 2008 = No problem



Uninstall adminpak2003 and install the Active Directory console instead.

Post a note if don't now how to do install AD Console when you have been able to uninstall adminpak2003





what ad console do you mean??? i do know that ad has some new features instead of the admin pak...although i still need to figure out what their purposes are

Share this post


Link to post
Share on other sites

i've checked two windows 2008 servers one which doesnt have WDS installed, one with it installed. the one with it installed shows me the option to manage



i'm not sure if this is the way forward with this but if you can test it by installing wds then i'd like to know



cheers

anyweb

Share this post


Link to post
Share on other sites
i've checked two windows 2008 servers one which doesnt have WDS installed, one with it installed. the one with it installed shows me the option to manage



i'm not sure if this is the way forward with this but if you can test it by installing wds then i'd like to know



cheers

anyweb



i am using a member server for wds. And you?? Are ye using a mem or a dc??

Share this post


Link to post
Share on other sites

this is a DC



i've checked and some w2k8 servers (both DCs) have this ability and some don't, i havnt figured out what needs to be installed to make the change, i thought it was the WDS service but it seems not....



time to investigate

Share this post


Link to post
Share on other sites
this is a DC



i've checked and some w2k8 servers (both DCs) have this ability and some don't, i havnt figured out what needs to be installed to make the change, i thought it was the WDS service but it seems not....



time to investigate





oef, indeed. time to investigate. think i need to get me a new pc cause with w2008 i need to build a new virtual environment otherwise investigation isnt nice because of the waiting times

Share this post


Link to post
Share on other sites

here's what microsoft say on the subject



http://technet.microsoft.com/en-us/library/cc770832.aspx



Prestaging Client Computers



Creating Computer Account Objects in AD DS



You can use Windows Deployment Services to link physical computers to computer account objects in Active Directory Domain Servers (AD DS). This is called prestaging the client. Prestaged clients are also called known computers. This allows you to then configure properties on the computer account to control the installation for the client. For example, you can configure the network boot program and the unattend file that the client should receive, as well as the server from which the client should download the network boot program. You can create a computer account object and associate it with a physical computer using the following methods:



* Using WDSUTIL. You can prestage client computers before they have attempted a network boot, by running WDSUTIL /Add-Device /Device:<name> /ID:<ID>. You cannot prestage computers by using the Windows Deployment Services MMC snap-in, but you can set the Auto-Add policy and approve or reject pending computers.

* Using the Active Directory Users and Computers snap-in. You can prestage client computers before they have attempted a network boot using AD DS. For instructions, see the section "To prestage a client computer" in How to Manage Client Computers.

* Enabling the Auto-Add policy. If you enable this policy, when you approve the installation for an unknown client, the installation will proceed and a computer account will be created in AD DS for the client. For more information, see Enabling the Auto-Add Policy

* Using Windows Deployment Services as part of the image installation. By default, all operating system installations using Windows Deployment Services result in a client computer that is joined to a domain. You can disable this functionality using the Client tab of the server’s properties page.



Benefits



Prestaging clients provides three main benefits:



* An additional layer of security. You can configure Windows Deployment Services to answer only prestaged clients, therefore ensuring that clients that are not prestaged will not be able to boot from the network.

* Additional flexibility. Prestaging clients increases flexibility by enabling you to control the following:

o The computer account name and location within AD DS.

o Which Pre-Boot Execution Environment (PXE) server should service the client.

o Which network boot program (NBP) the client should receive.

o Other advanced options — for example, what boot image a client will receive or what Windows Deployment Services client unattend file the client should use.

* The ability for multiple PXE servers to service the same network segment. You can do this by restricting the server to answer only a particular set of clients. Note that the prestaged client must be in the same forest as the Windows Deployment Services server (trusted forests do not work).



so, install WDS, reboot, verify its installed correctly and try again...



cheers

anyweb

Share this post


Link to post
Share on other sites

So, I have followed the instruction on how to pre-stage computers, and yet WDS is still generating a random machine name. I have even gone in and used the syntax for WDSUTIL, and yet, WDS still generates a random Machine Name. Any help would be appreciated.



UPDATE: So I set this up on my test lab at home, and it worked with no problems. The only difference is the fact that I am running a Novell DHCP server instead of a windows DHCP server and the WDS server is sitting in a different subnet than the machine that I want to image. My guess is that it has something to do with the Novell DHCP server and WDS can not authorize to a Novell DHCP server. If anyone has any knowledge of this, please let me know.

Share this post


Link to post
Share on other sites

[sorry, do mean create ;)

But when i right click the computers container, choose new/computer object than no next is available. I am using w2008 dc's; maybe thats the problem .



I've run into this exact same issue. Did you ever find a resoultion?



I've tried using AD Users & Computers from the WDS server, from a DC, from a windows 7 box, none of them give me an option to move beyond that first screen and add more info.

Share this post


Link to post
Share on other sites

I've run into this exact same issue. Did you ever find a resoultion?



I've tried using AD Users & Computers from the WDS server, from a DC, from a windows 7 box, none of them give me an option to move beyond that first screen and add more info.





I believe it as windows 2003 thing. I don't have the next button avaiable on any of my win7 machines with RSAT installed. However, my coworker installed adminpak.msi and has the next button feature when creating a new computer object. Makes it a little hard to prestage though.



Nevermind, I just ate my words. I went to add remove features on a w2k8r2 member server and install the AD DS tool set. I opened up AD users and computers and low and behold, there was the next option.



Can't explain why they doesn't appear on my win7 box with RSAT....

Edited by wuzzle

Share this post


Link to post
Share on other sites

To prestage a computer for WDS deployment you'll need to know the mac address or GUID of it, you can get that info in a variety of ways, the easiest (for one computer) is to simply press the PAUSE button on your client pc when it is PXE booting to the server, you'll see both the MAC address and GUID listed.










We use WDS and not RIS, do you have a script for WDS to collect GUIDS on startup or something?

Share this post


Link to post
Share on other sites

I believe it as windows 2003 thing. I don't have the next button avaiable on any of my win7 machines with RSAT installed. However, my coworker installed adminpak.msi and has the next button feature when creating a new computer object. Makes it a little hard to prestage though.



Nevermind, I just ate my words. I went to add remove features on a w2k8r2 member server and install the AD DS tool set. I opened up AD users and computers and low and behold, there was the next option.



Can't explain why they doesn't appear on my win7 box with RSAT....



In case someone else runs across this - in order to see the "Next" button when adding a new computer you must turn on "Advanced Features" in Active Directory Users & Computers - Click on "View" and then click on "Advanced Features".



Dave

Share this post


Link to post
Share on other sites

I am playing around WDS on Windows Server 2008 R2. I tried to install WDS on the second server, which is just a member server firstly. But I couldn't prestage computer via Active Directory Users and Computers on the DC, no that option;

Once I installed WDS on the DC, I tried and achieved it.



hbrlhd

Share this post


Link to post
Share on other sites

for security reasons I would not install the wds service on the DC

Just add the Features: Remote Server Administration Tools->Windows Deployment Services Tools and you will be able to pre-stage Computers with the GUID!



Note:

Do not use the GUID which you see in the BIOS! This may differ from the SMBIOS GUID!

=>Due to this your machine will not boot your wINPE image



Use instead the SMBIOS GUID which you will see in the logs of SCCM PXE Server (SMSPXE.log) or the WDSSERVER!

Share this post


Link to post
Share on other sites

If you're missing the next button on your domain controllers it's because you don't have the feature Windows Deployment Services Tools installed which are part of the feature Remote Server Administration Tools under Role Administration Tools.




Share this post


Link to post
Share on other sites
