how can I DEPLOY an image captured using WDS ?



Recommended Posts

anyweb    399

Note: this article assumes that you have previously captured an image using WDS as outlined in the following post: how can I capture an Image using WDS



Part 1 - add boot.wim to WDS





Step 1. Get your Windows Vista DVD ready.



Step 2. Insert the DVD and start WDS (windows deployment services) gui.



Step 3. In the Left Pane of WDS, select boot images



Step 4. In the Right Pane, right click the mouse and choose 'Add Boot Image'.






Step 5. In the Add Image Wizard, click the Browse button and browse to the Sources folder on your Vista DVD that you inserted in Step 2.





Step 6. Highlight the file called boot.wim and click Open, once done Click Next






Step 7. In the next window, set the Image name from "Microsoft Windows Longhorn Setup (x86)" to 'Windows Vista/XP WDS deploy'



Step 8. Change the image description to 'Deploy Windows using WDS from windows-noob.com'






Step 9. Click next to review the settings, and next again to proceed.






Step 10. After the file copying is complete click on Finish.


Share this post


Link to post
Share on other sites


anyweb    399

Part 2. Add a captured image to WDS

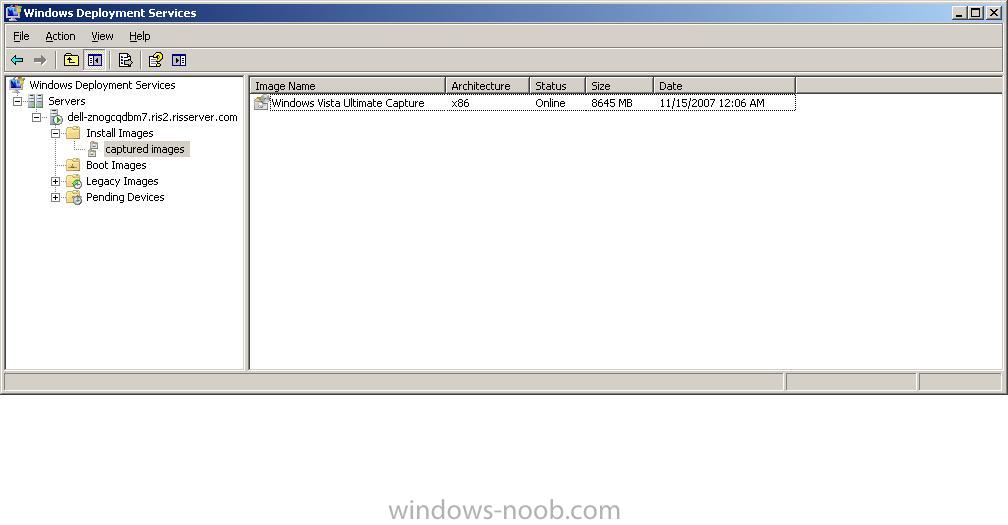

Step 1. Open WDS and on the left pane select Install Images.
