Step 1. make the MDT boot image PXE bootable

Note: Perform the following on the ConfigMgr 2012 server as SMSadmin



After integrating MDT with ConfigMgr we created a MDT Task Sequence and as part of that wizard we created a MDT Boot image. This boot image gives us additional power and functionality over a standard ConfigMgr boot image (for example, we can display HTA's with this boot image without having to mount/unmount the boot.wim file and add additional support).

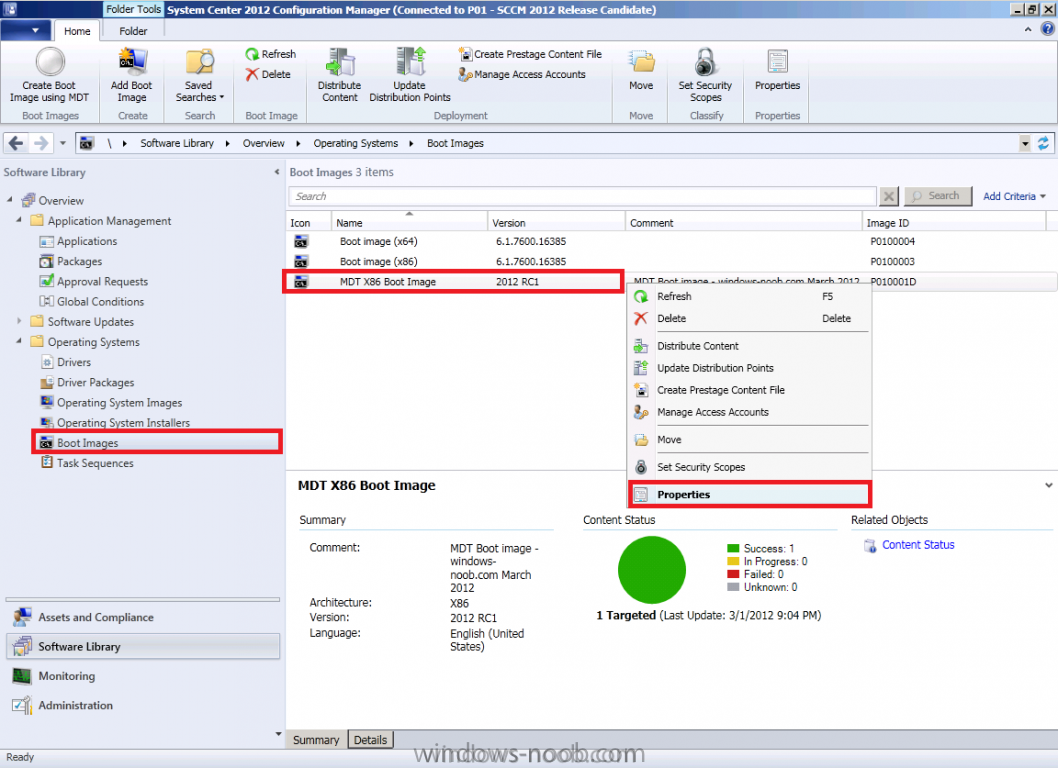

Locate your MDT boot image in Software Library, Operating Systems, Boot Images, right click on it and choose Properties

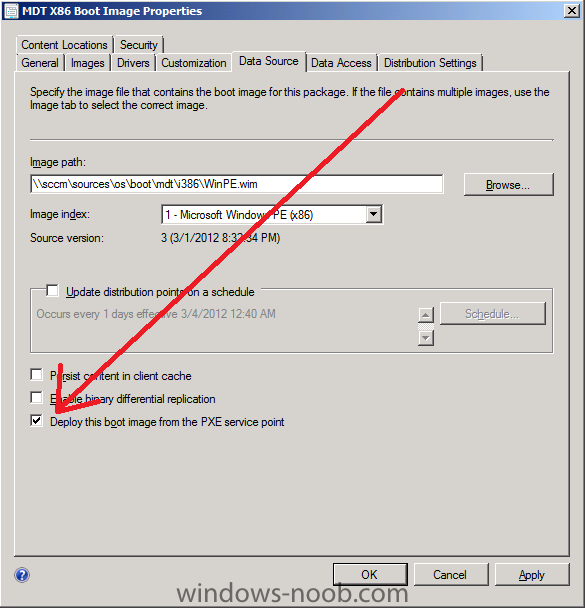

When the properties screen appears, click on the Data Source tab, place a check-mark in Deploy this boot image from the PXE service point.





click OK when done.





Step 2. Modify the UDIWizard_Config xml file using the UDI Designer Wizard.

Note: Perform the following on the ConfigMgr 2012 server as SMSadmin

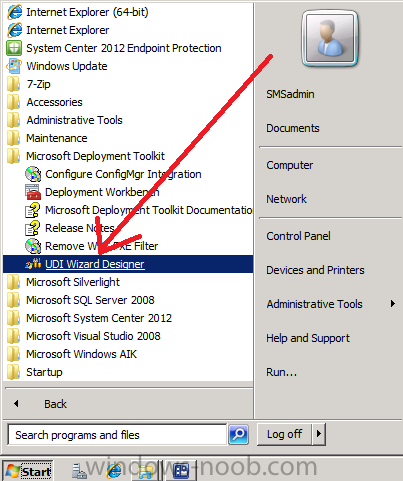

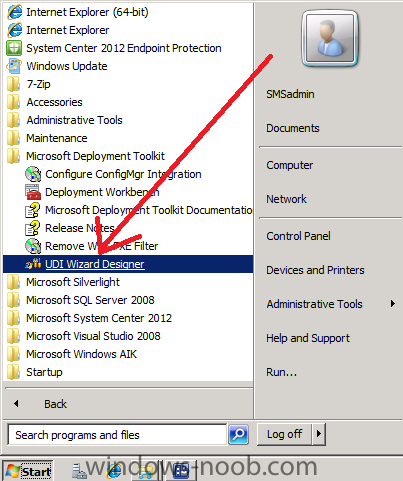

As we will be creating a User Driven Installation Task Sequence in the next part, we first want to customise what our users will see when that wizard appears and to do so we need to use the UDI Designer Wizard. So click on Start, Programs, Microsoft Deployment Toolkit, and select the UDI Wizard Designer from the menu.

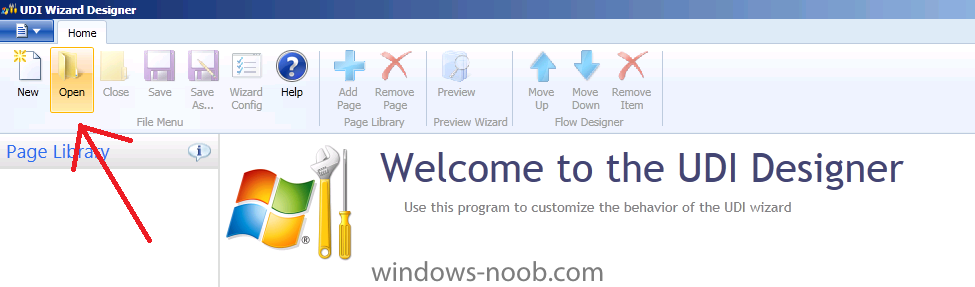

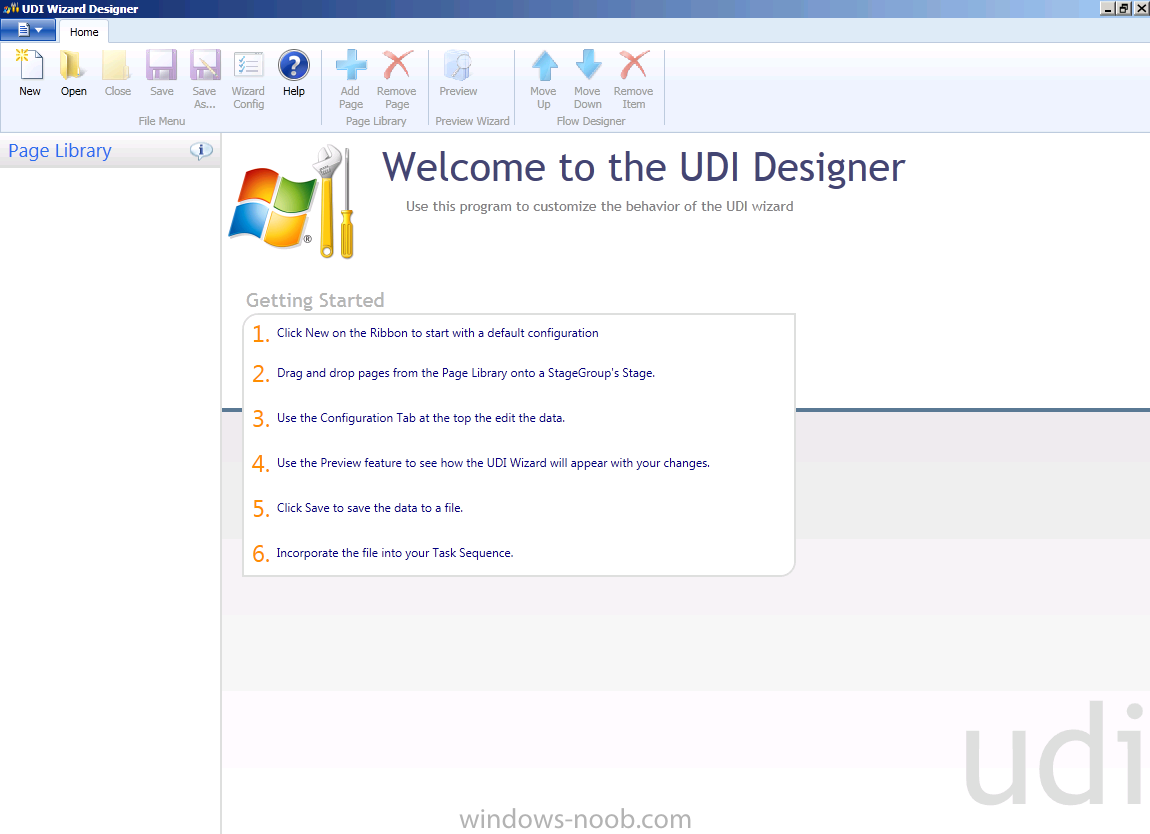

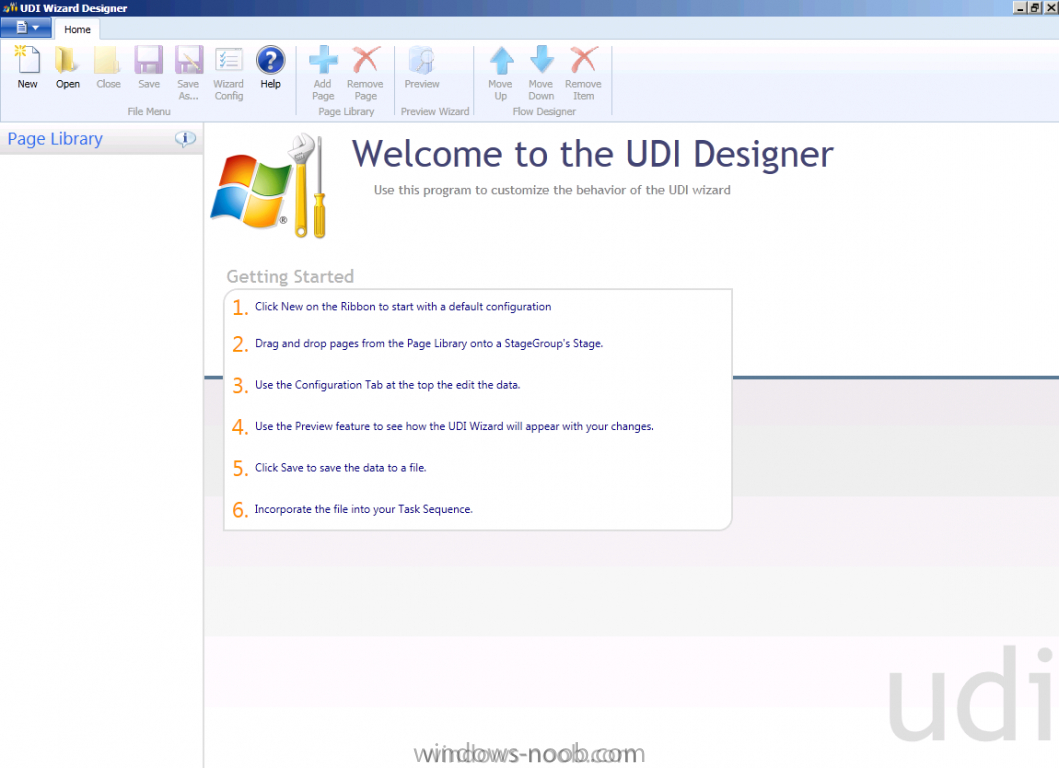

The UDI Wizard Designer starts and you'll be presented with the new gui, we can use this gui to make changes to the built in UDI templates, they are simply XML files stored in the scripts folder of our MDT Files package.





We could click on New to create a new XML file but let's import that one that the standard UDI Task Sequence uses namely UDIWizard_Config.xml. So let's load up that file from the copy we have in our MDT Files package, if you remember in Part 16 we created that package in \\sccm\sources\os\mdt\2012_rc1\files so let's click on Open in the UDI Wizard ribbon to browse to that location.

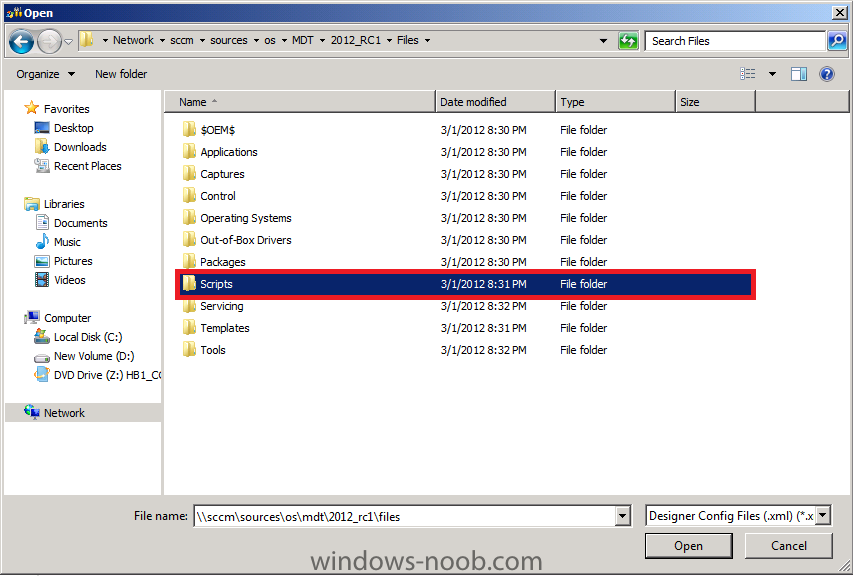

type in the path to our MDT Files package namely \\sccm\sources\os\mdt\2012_rc1\files and click on the Scripts folder highlighted in the screenshot below

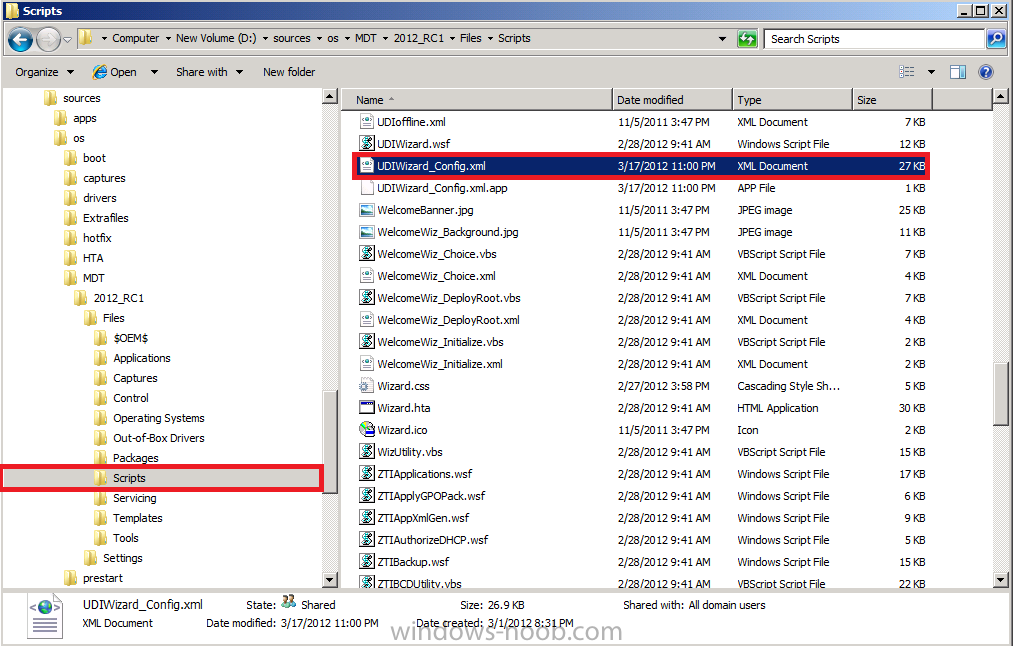

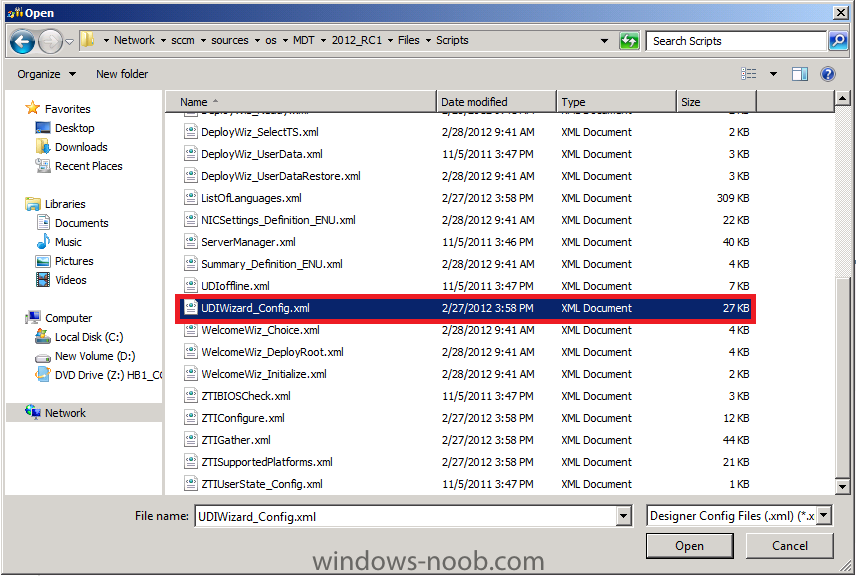

a long list of xml files appears, scroll down to UDIWizard_Config.xml and click on it then click on open

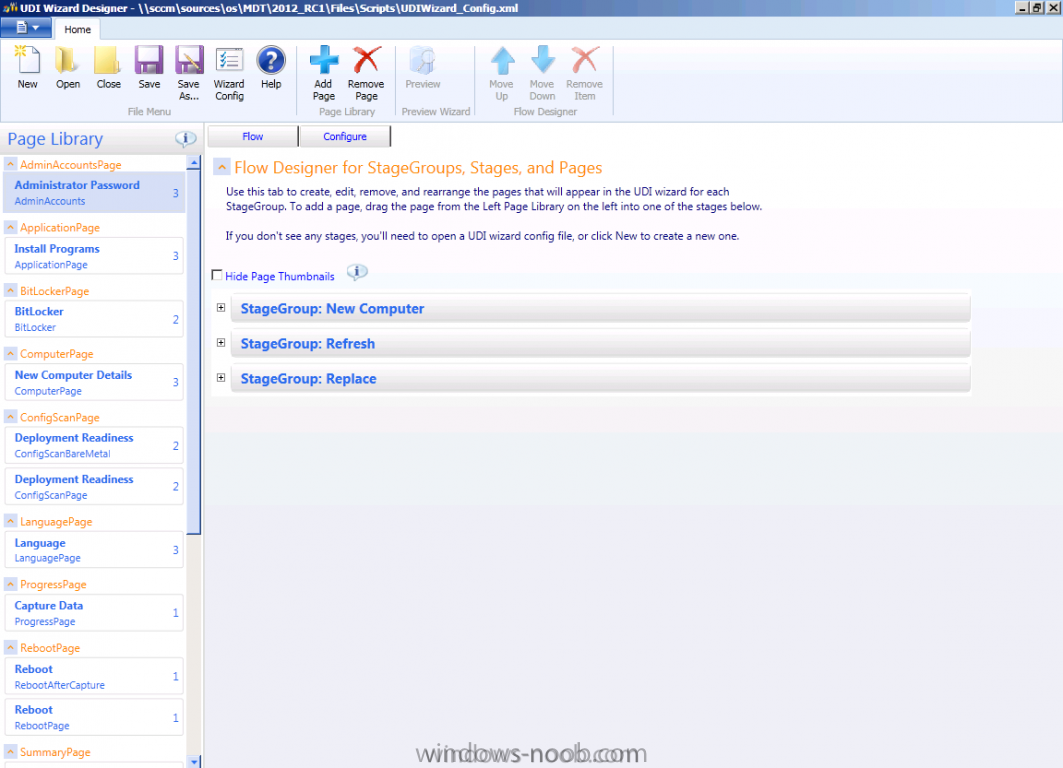

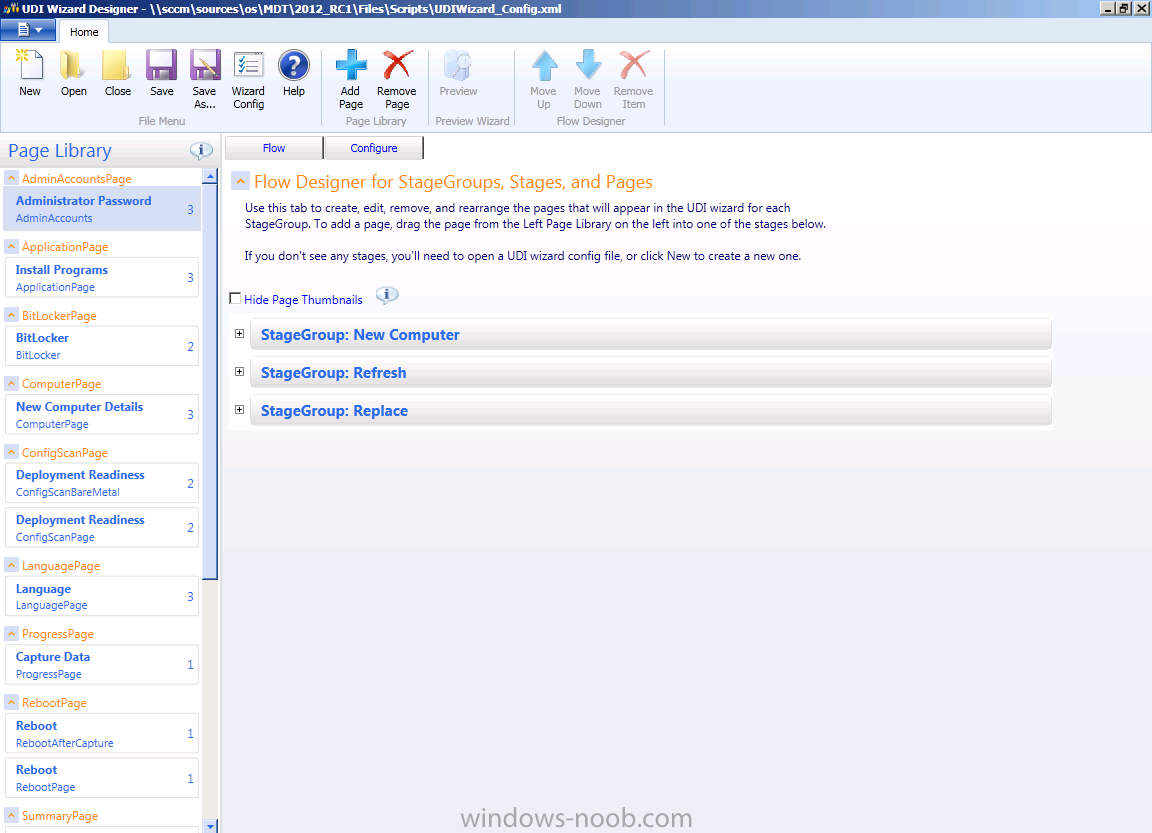

once the xml file is loaded you'll notice the wizard changes look, this is an overview of each page that the User Driven Installation task sequence wizard is capable of showing and here is where we configure them. But first, how do we make sense of this gui, i'll try and explain it briefly, in the Red box below you have the three main scenarios that we'll encounter during deployments sorted into StageGroups



• New Computer

• Refresh

• Replace


If you expand New Computer you'll see a whole bunch of thumbnails for that StageGroup (and you'll also see New Computer.Prestaged below it), those thumbnails are what the User will see when the wizard kicks off later... note that depending on the scenario you are in, you'll be presented with different pages of the wizard.

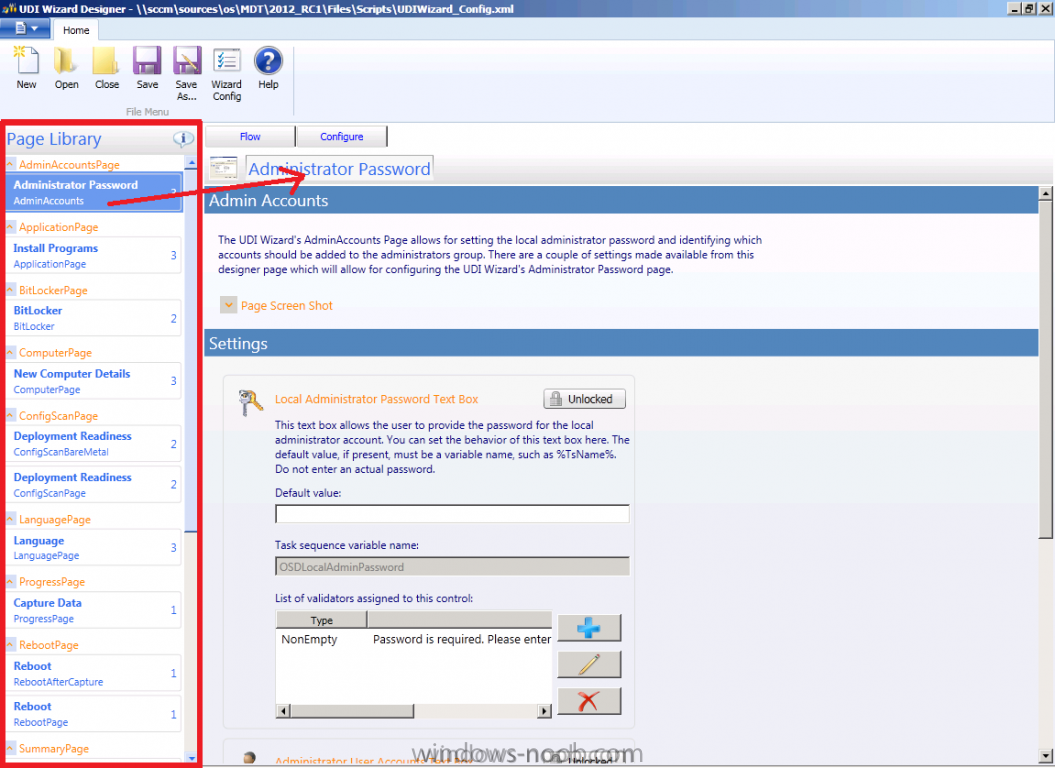

In the Left pane of the wizard you'll see the available pages listed alphabetically in the page library (not in the same order as they are presented to the end-user). Double click on one and you'll see the configurable options for that page (you can single click and you might see those options depending on whether or not you are in Flow or Configure mode, that's those two tabs in the right pane...)

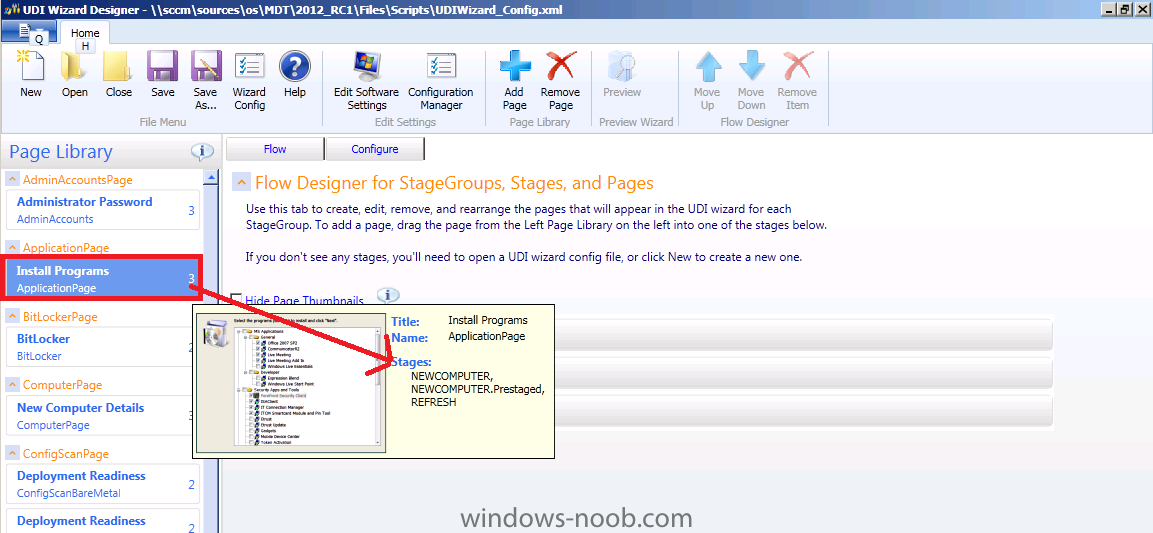

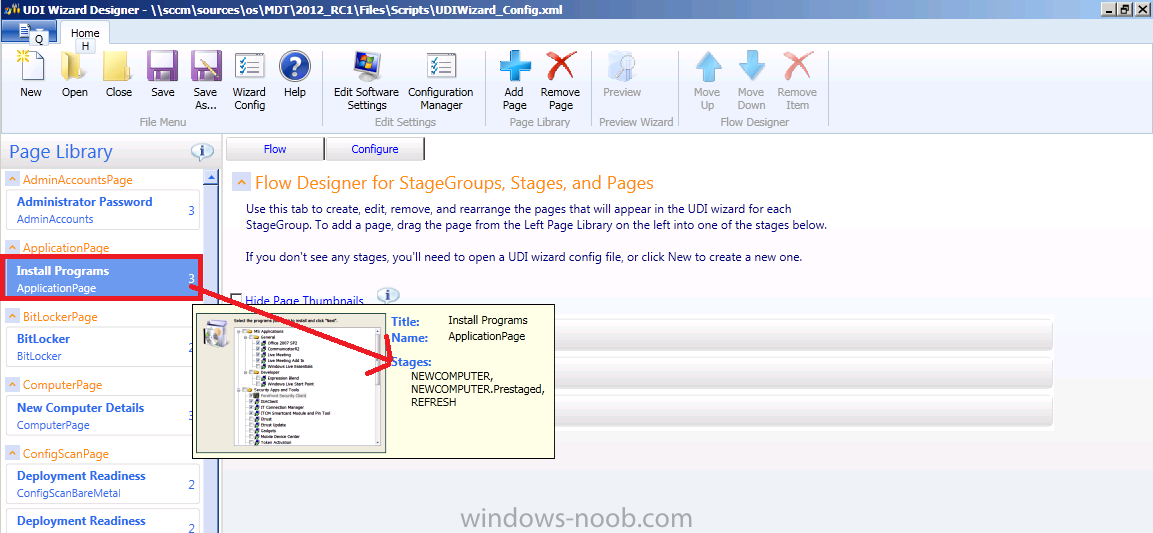

Click on Install Programs in the Left Pane, the number 3 in the right is the number of stages this Page is available in (you can hover your mouse over it to see what they are).





Notice there is a Configuration Manager button in the ribbon, click on it.

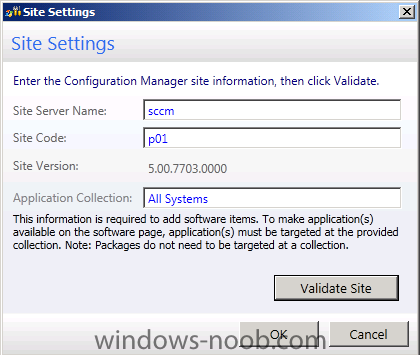

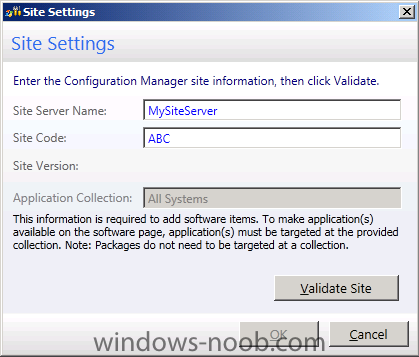

This brings up the Site Settings box, fill in your Configuration Manager site server name and site code and click on Validate Site.





Note: The message states that this is required to add software items. To make application(s) available on the software page, applications must be targetted at the provided collection namely All Systems. The All Systems collection is a Device collection (for your computers..) so please deploy a few applications to that collection.

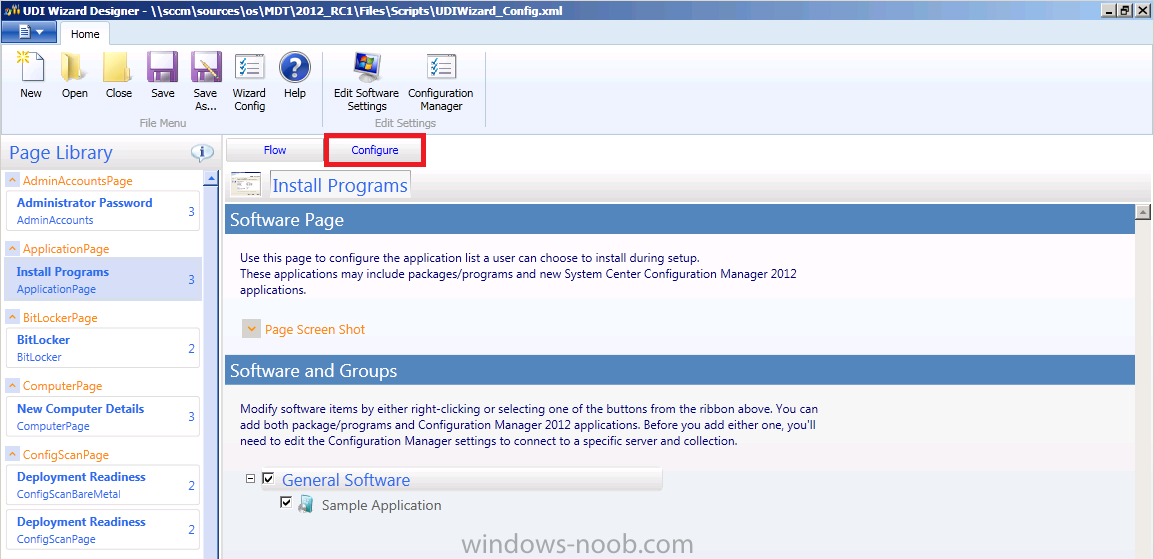

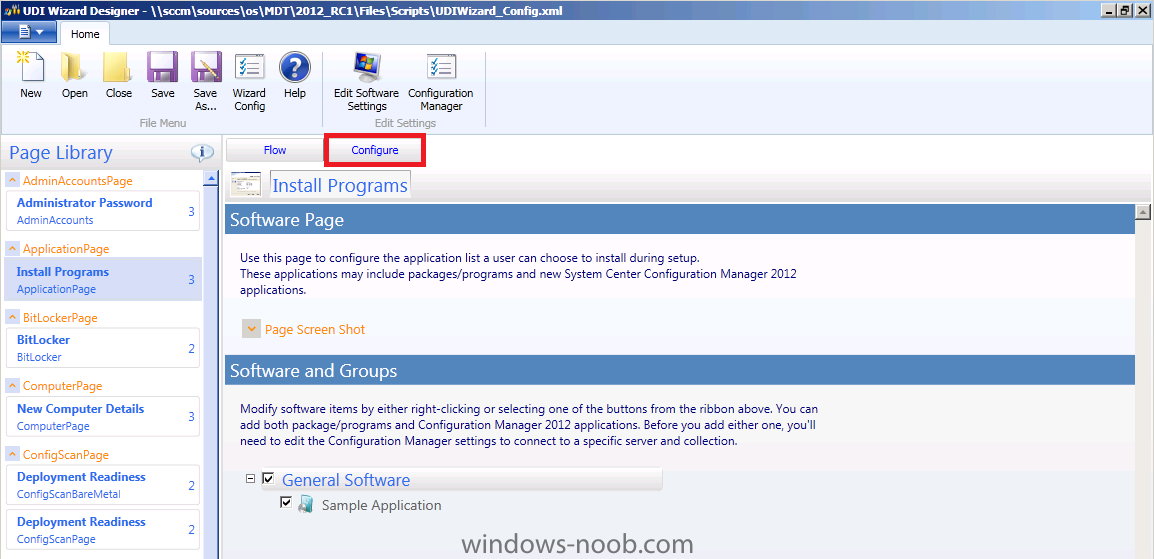

Double click on Install Programs or click on the Configure tab

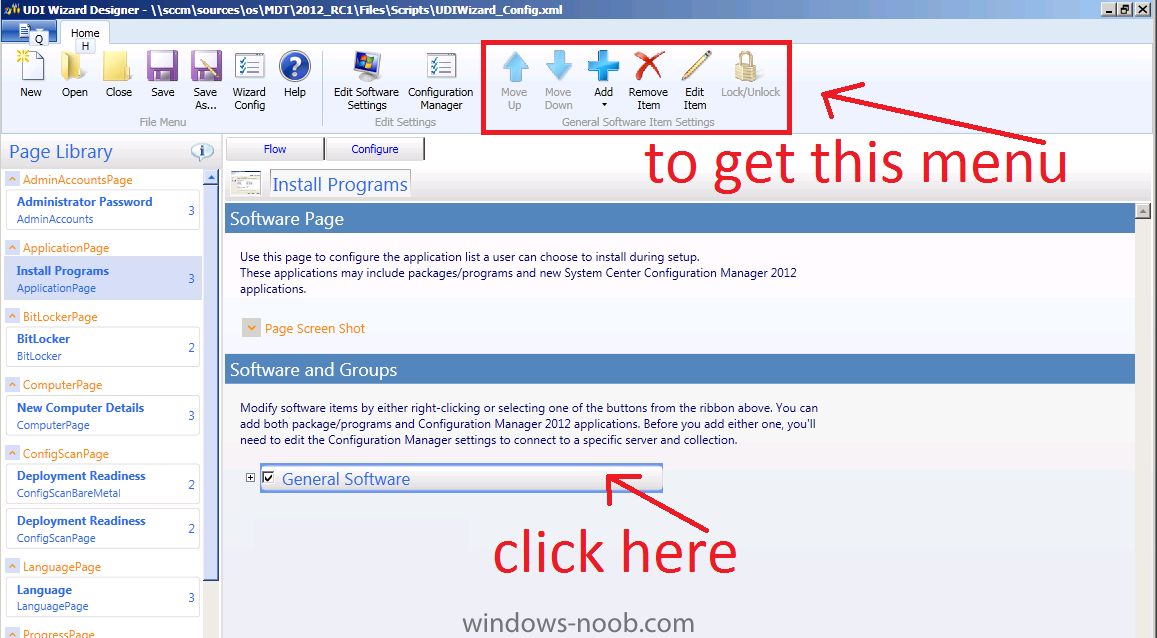

next, click on General Software in order to see a menu we need (you can also right click on General Software to see a menu)





Now that we have these extra options let's click on the big blue plus sign to add software to group

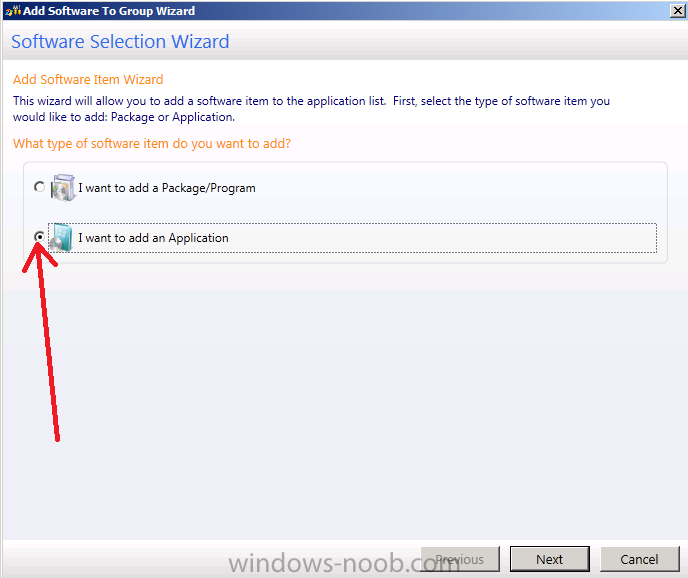

the Add Software to Group wizard appears, select I want to add an application and click next

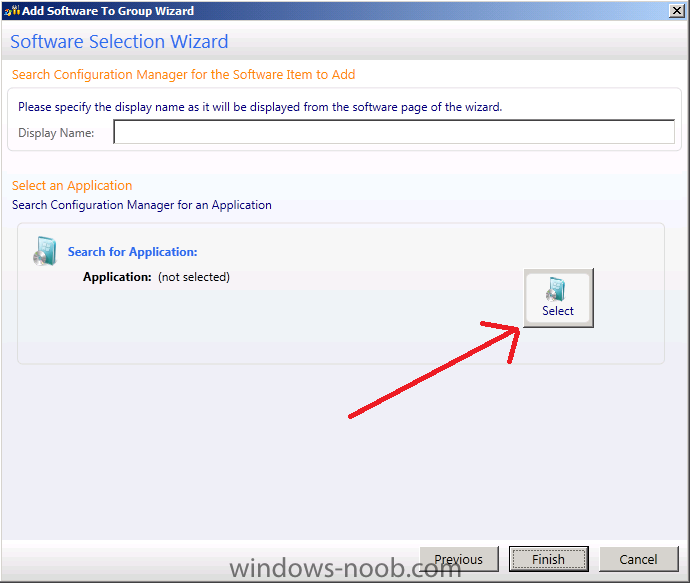

now the Software Selection Wizard appears (another wizard within a wizard), click on Select to search for an application (why not call it search..?)

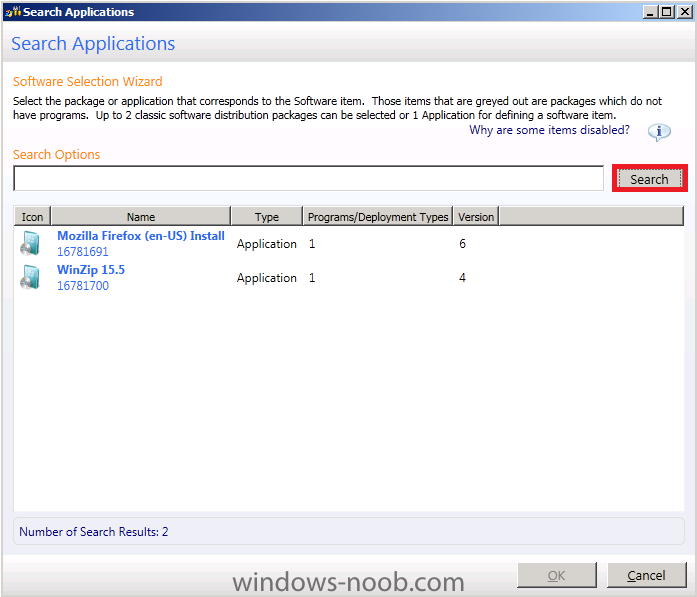

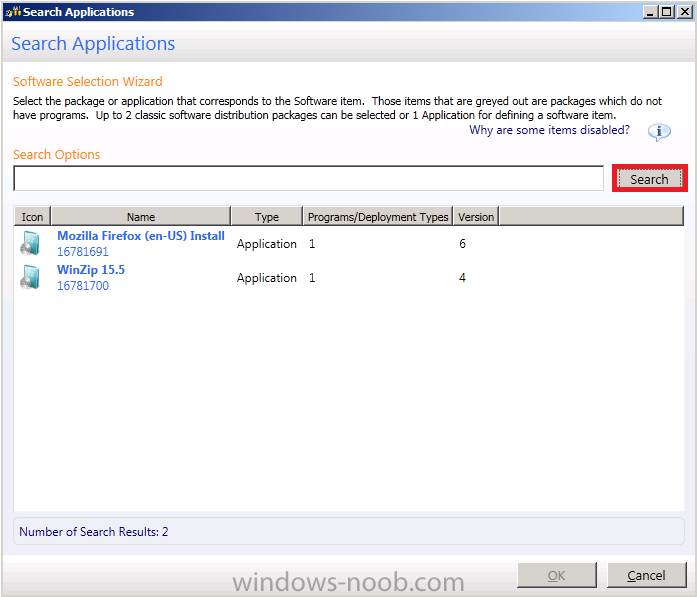

and that brings up another wizard to search applications.. if you know the name of your application type it in here or click on search, after clicking on search, any applications deployed to the All Systems collection and with the Allow this application to be installed from the Install Application task sequence action instead of deploying it manually setting set in the applications properties will appear in the list.





The application setting is here...

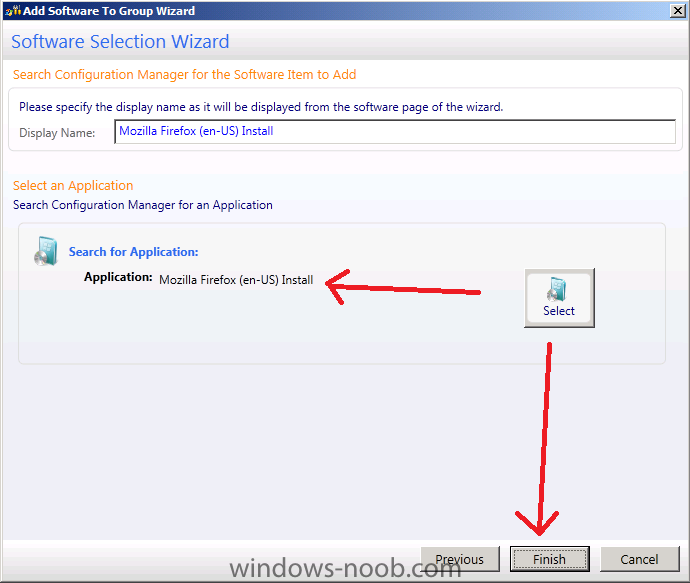

select one application from the list and click on Finish





you're newly added application appears in the list





repeat the above process until you've added all your cool apps...

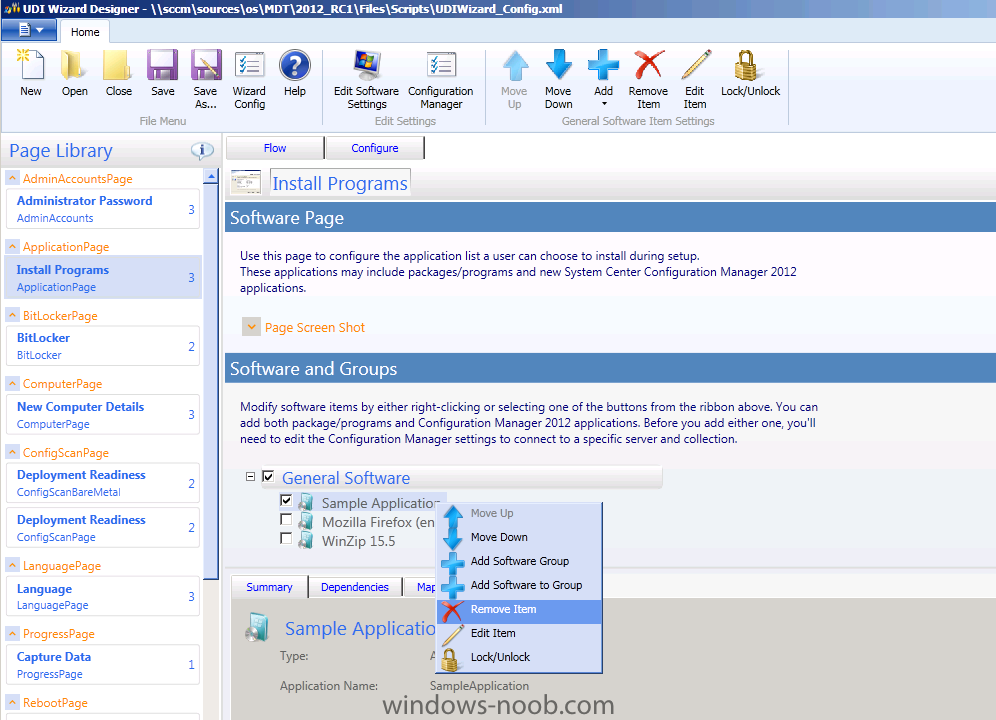

and finally right click on the Sample Application from the list and click on Remove Item

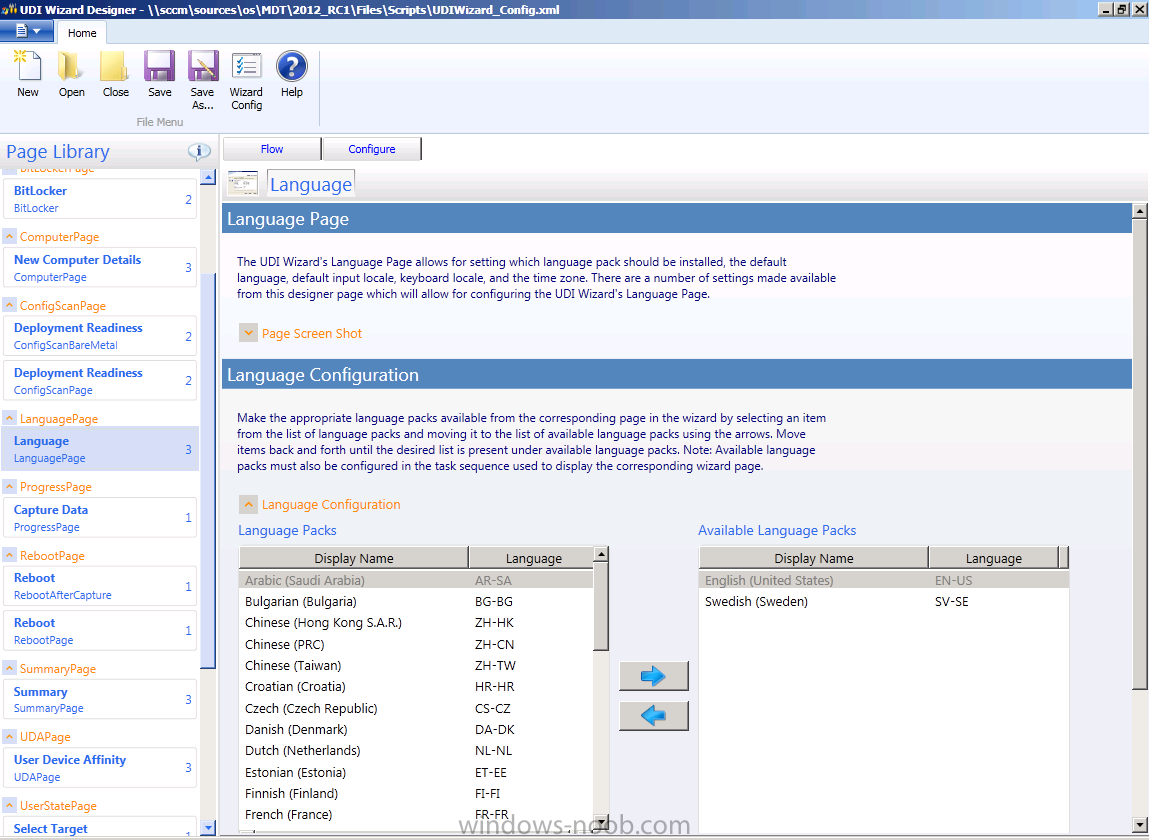

Next, Click on the LanguagePage in the left pane and add the Swedish Language (or whatever language(s) you want)

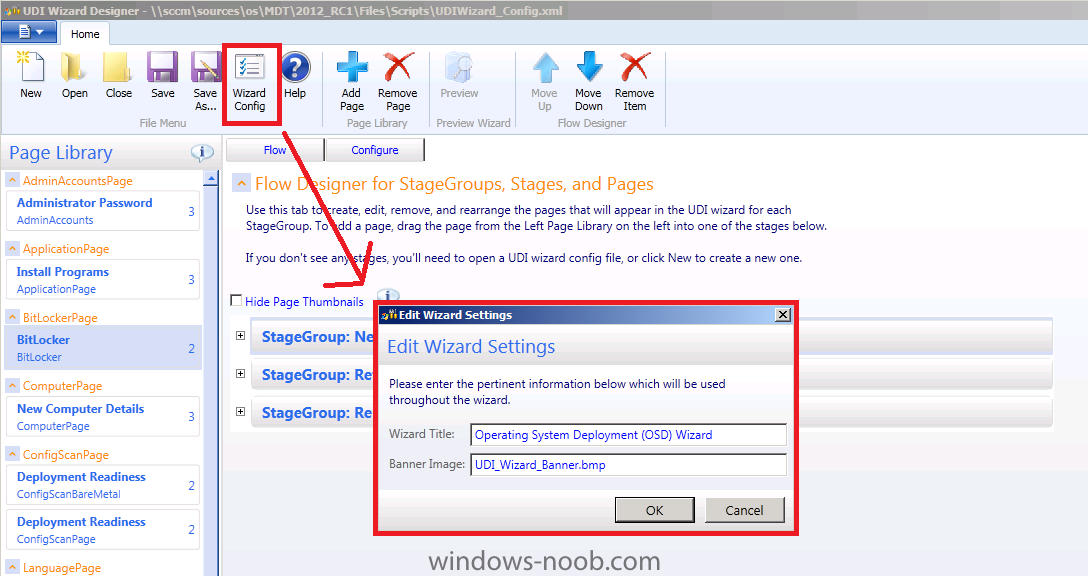

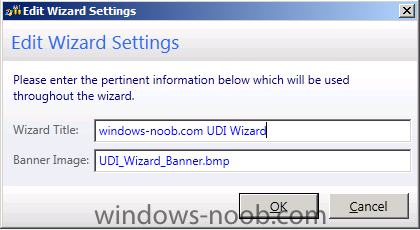

and finally configure our Wizard config by clicking on Wizard Config in the ribbon. The Edit Wizard settings diaglouge box appears, you can customize the name and the background (banner), the default bmp file itself is located in the path where you installed Microsoft Deployment Toolkit in the Templates\Disitribution\Tools\X64 or X86 folders.





make your changes and click ok.

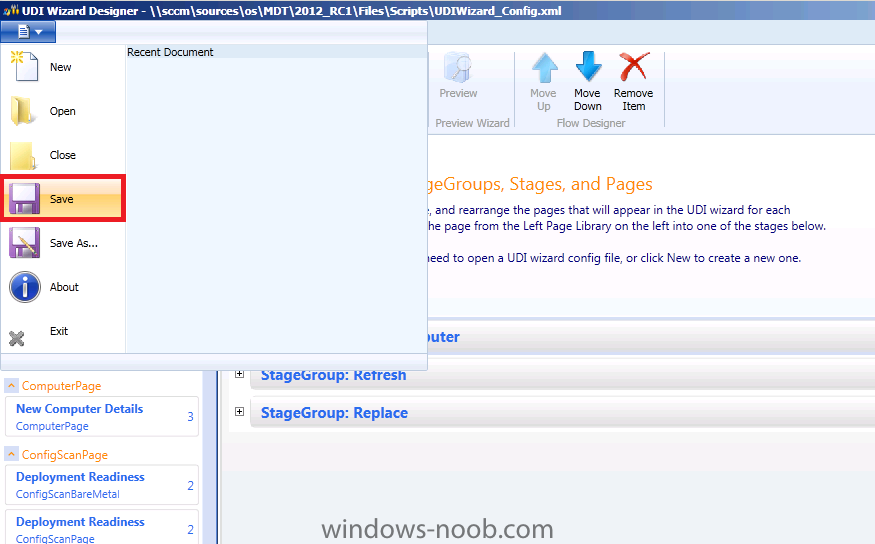

Ok now that we've done some basic configuration of our UDI template let's save it.





if all went well you'll see File Save Complete.





you can verify that the XML file itself has changed by it's date/time





Step 3. Update your MDT Files package.

Note: Perform the following on the ConfigMgr 2012 server as SMSadmin



now that you've made changes to your UDIWizard_Config.xml you will want to update the MDT Files package so that we have access to those changes in the next part of this series where we'll create and deploy a User Driven Installation Task Sequence.

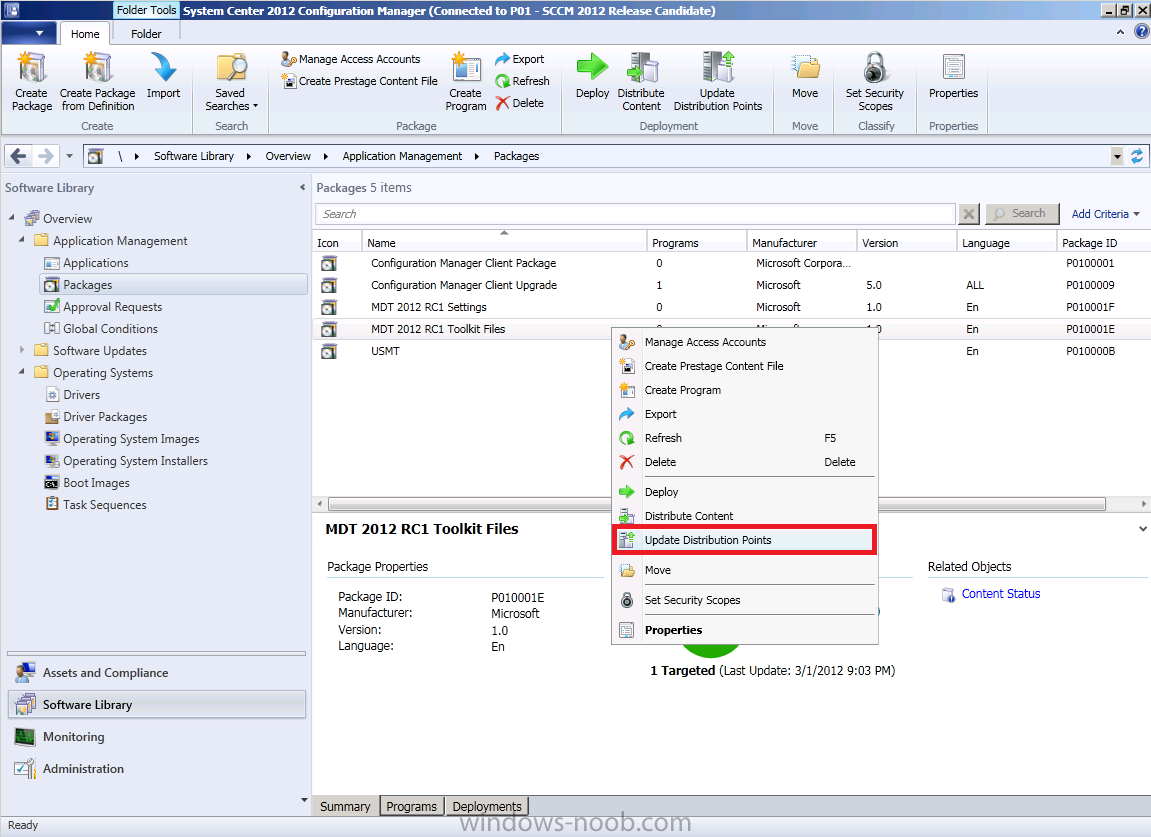

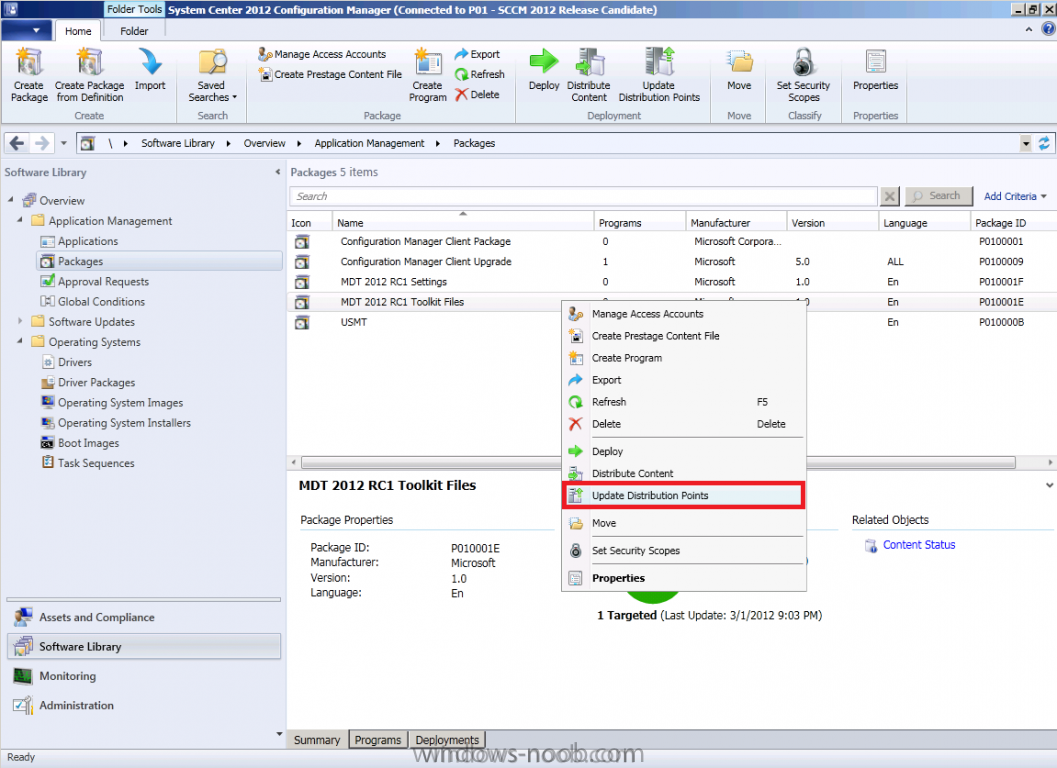

In Software Library click on Packages and locate your MDT Files package. Right click on it and choose Update Distribution Points









thats it for this part, see you next time when we will create a UDI task sequence and deploy it ! and see what happens on the client side.
