How can I install System Center 2012 R2 Configuration Manager ?



Recommended Posts

Introduction



Today at Tech Ed Europe 2013 in Madrid, Brad Anderson announced the availability of System Center 2012 R2 Configuration Manager preview (amongst other things). In this post I will focus on installing the R2 preview release on Configuration Manager 2012 SP1 (which just so happens to have Cu2 installed). In the past, R2 releases for System Center products traditionally add cool features to an otherwise complete product so this is going to be exciting.



Note: Test upgrading to R2 in a LAB before doing it in production and always backup your database before doing so. When upgrading a hierarchy always upgrade from the Top down, for example that would be CAS ---> Primaries ---> Secondaries ---> clients



Step 1. Get the goodies

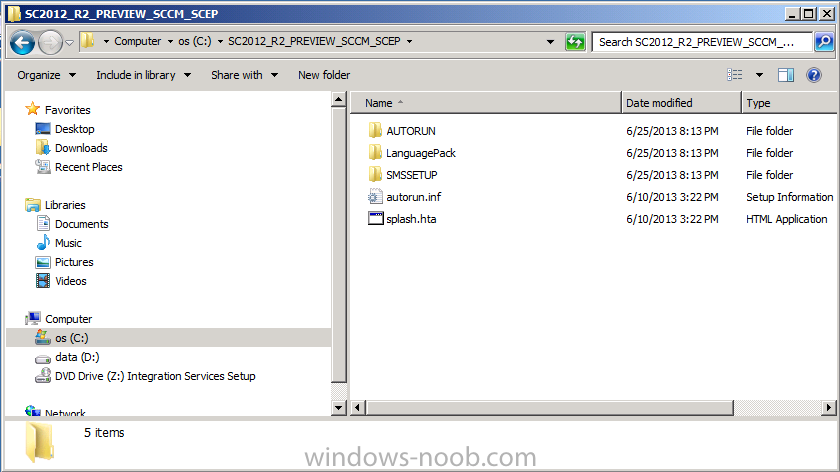

You can get the System Center 2012 Configuration Manager R2 Preview release from here. Once you've downloaded the bits extract them to somewhere like C:\SC2012_R2_Preview_SCCM_SCEP



extracted files.png



Once done, download Windows ADK 8.1 from here.



Step 2. Uninstall Windows ADK 8.0



Before you install R2, you'll need to satisfy certain prerequisites, and one of those is ADK 8.1, and as part of that you'll need to uninstall Windows ADK 8.0, it's not sufficient to simply install ADK 8.1 over ADK 8.0.

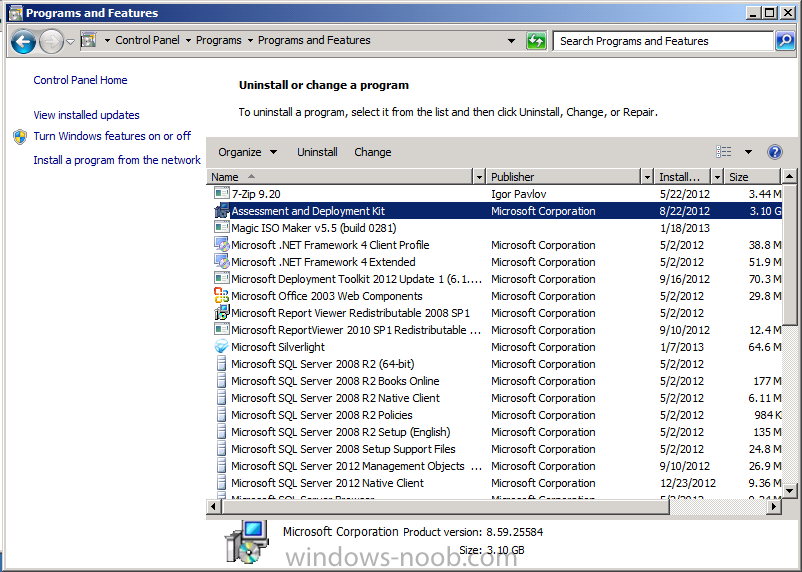

Open control panel and locate Windows Automated Installation Kit, click it and choose Uninstall (it's the one with version 8.59.25584).



uninstall WADK.png



Once uninstalled, no need for a reboot.



Step 3. Install Windows ADK 8.1



Now that you've removed the previous version, download the new ADK to support Windows 8.1 and Server 2012 R2 from here.



Update: A new version of ADK 8.1 was released in the last week, see this post before continuing.

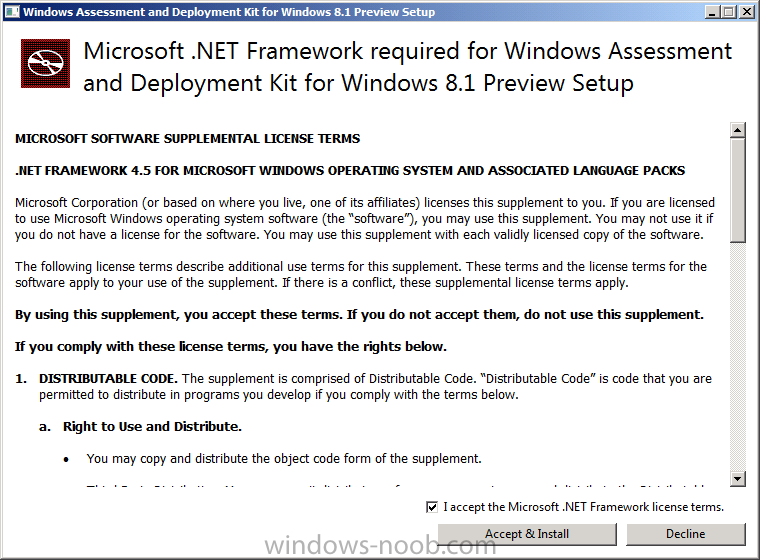

Run adksetup and accept the .NET 4.5 FrameWork agreement, make sure you've 2.25 GB free space on your C:\ drive before attempting to continue otherwise you may get a strange ASIA failure message (if you do get any failures, check %temp% for the .net installation logs to see why it failed.)



net framework.png

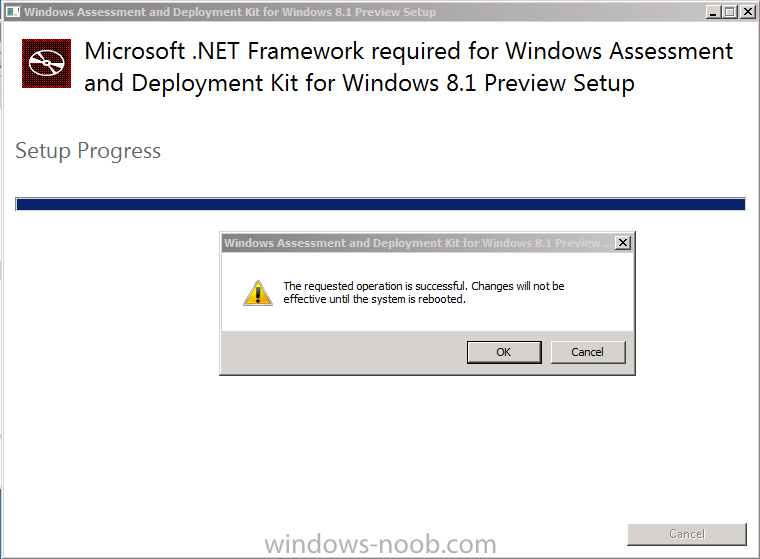

clicking on OK will enforce a reboot so if you don't want a reboot at this time, then wait before clicking ok.



reboot after .net 4.5.png

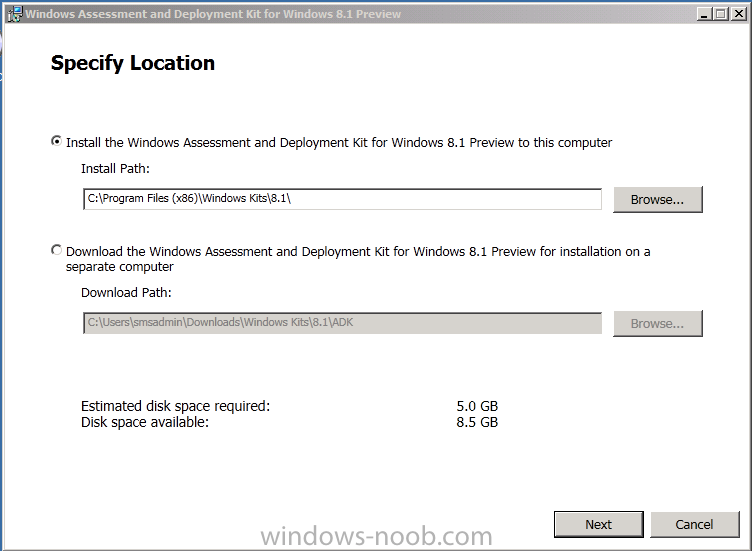

after the reboot, login and you'll see the specify location screen for the new Windows ADK installation



specify location.png

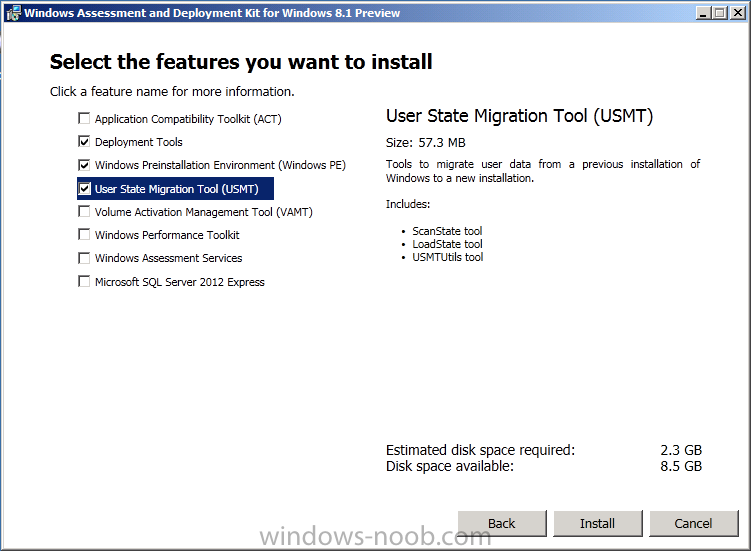

click next through the wizard and select at least the following 3 components

  • User State Migration Tool (USMT)
  • Windows Deployment Tools
  • Windows PreInstallation Environment (Windows PE)

3 things to install.png



and the installation should continue...slowly but surely...



installing ADK 8.1.png

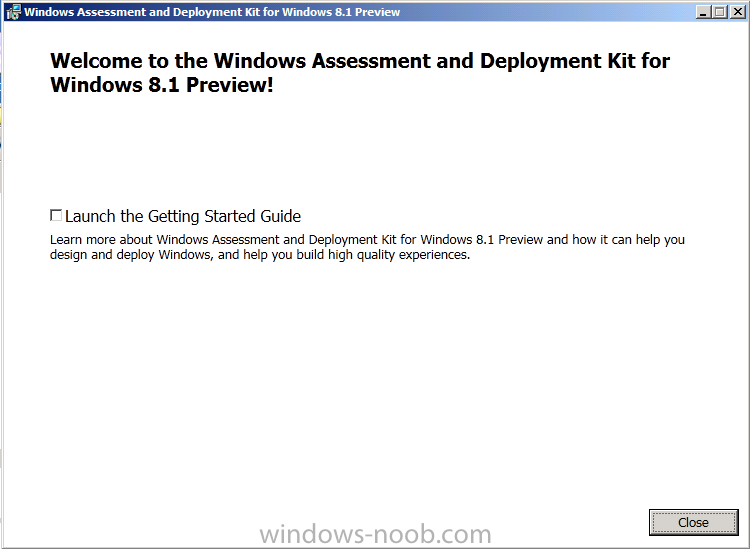

click close when done.



Tip: Installation of the ADK will produce several logs for the separate components in %temp%\adk if you have any issues with the installation of the ADK open those logs individually in CMTrace to look for any errors during the installation.



ADK 8.1 done.png





Step 3. Install/Upgrade to R2



Tip: before starting the install consider stopping any in-progress package distributions (or waiting until they are complete) and stop all normal activities in the console (package/application creation etc). Also reboot the server (s) involved before commencing the upgrade in case any update required a reboot that could interfere with the below process. Always upgrade your Primary servers first, then upgrade any secondaries.

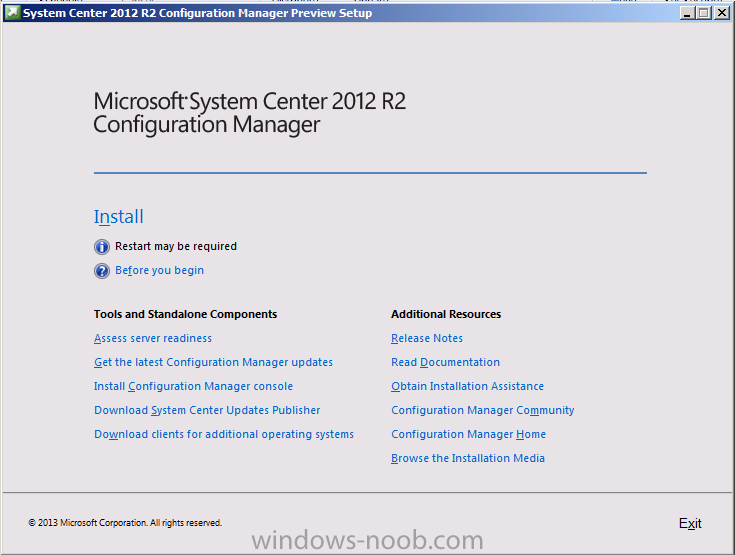

Now that we've fixed Windows ADK, browse to the extracted System Center 2012 Configuration Manager R2 files and click on splash.hta to start the wizard



System Center 2012 R2 Configuration Manager setup.png

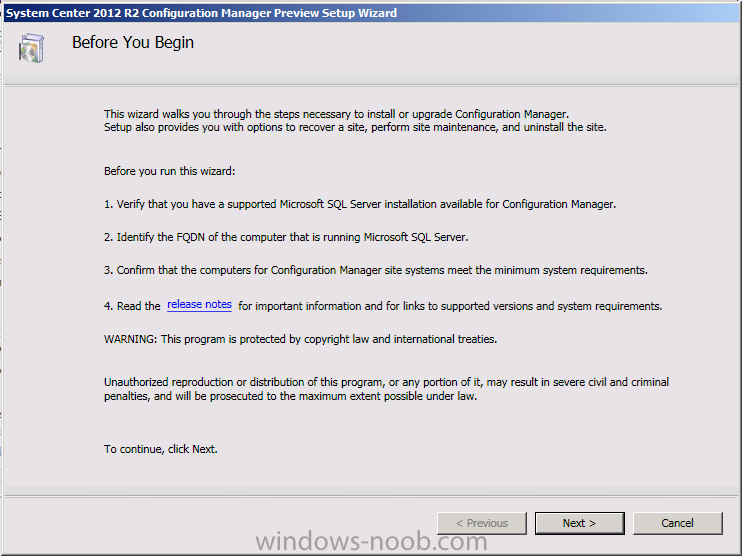

and click on Install to start the installer, you will be presented with the before you begin screen, click next



before you begin.png

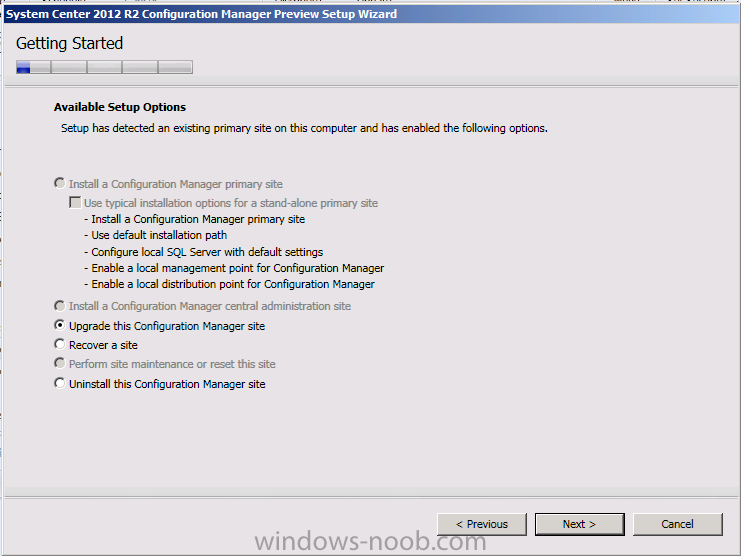

and then you'll see the available setup options on the Getting started screen, it should auto detect that you have a primary installed and that you are upgrading the site



getting started.png



you can choose whether to input your license key or not, I entered the key it works fine



install the licensed edition of this product.png



accept the EULA to continue






and place checkmarks in the products listed for Prerequisite licenses



prerequisite licenses.png



choose to download the setup prerequisites locally or from a previously downloaded location



prerequisite licenses.png

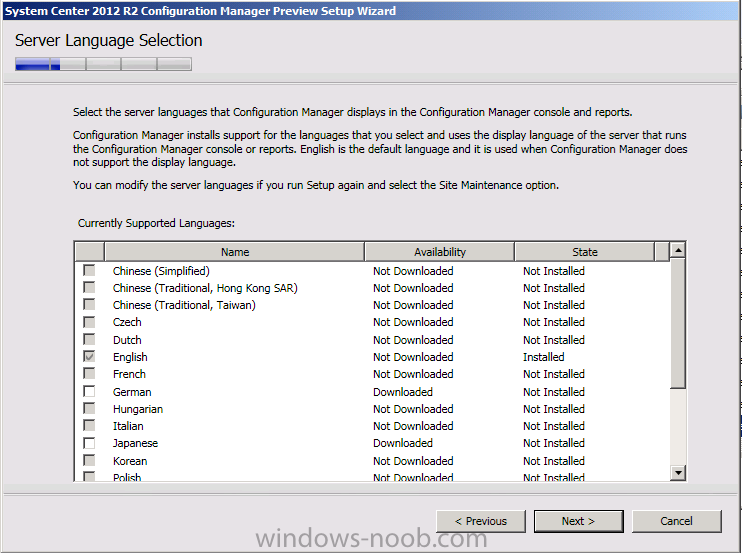

and then select the server languages that Configuration Manager will support



server language selection.png

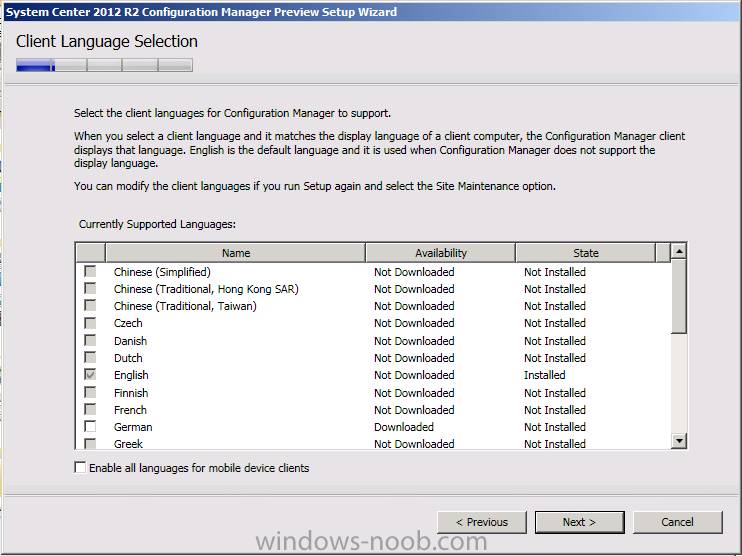

and then the client languages



client language selection.png

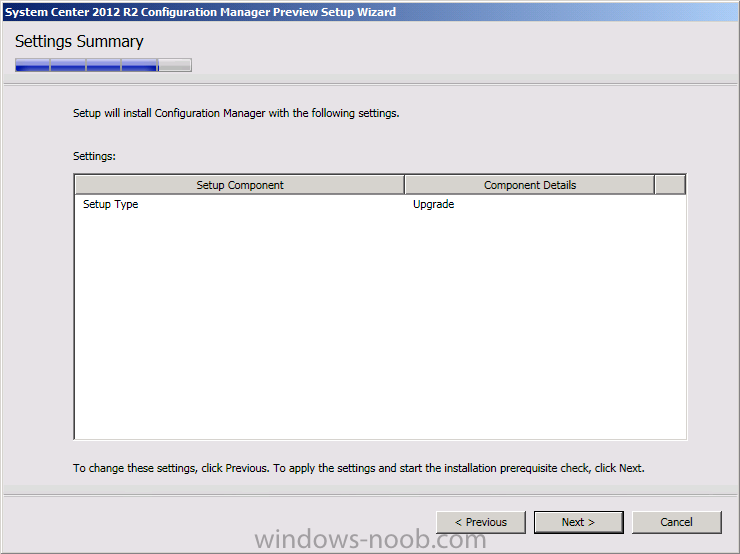

review the settings summary



settings summary.png

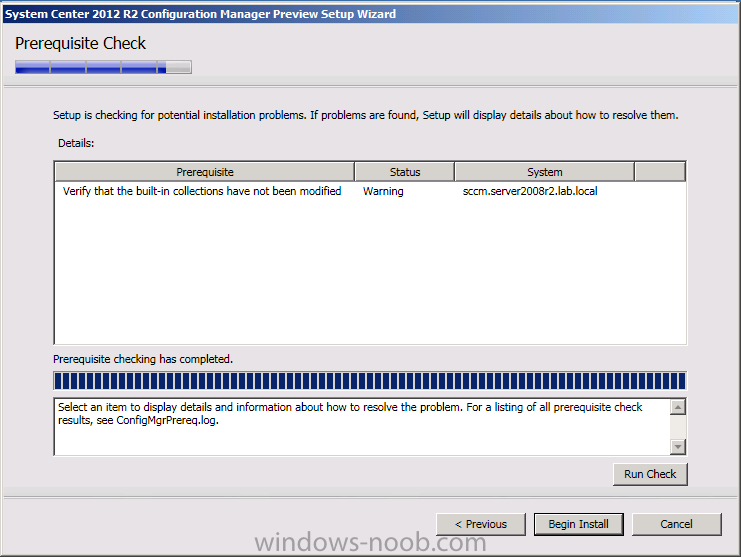

and the Prerequisite check will complete, it may list warnings (which are usually ok to ignore) or errors (failures, which you must fix). Click Begin install to continue (in the screenshot below I've modified a system collection, it's ok, and it's ok to continue)



prerequisite check.png

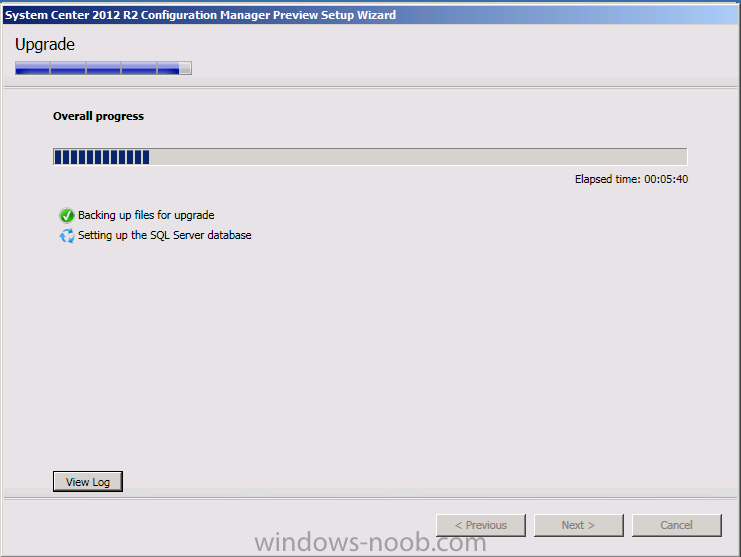

time for a siesta (if you are in Madrid :-)) while it installs, as this will take some time...,



R2 installing.png

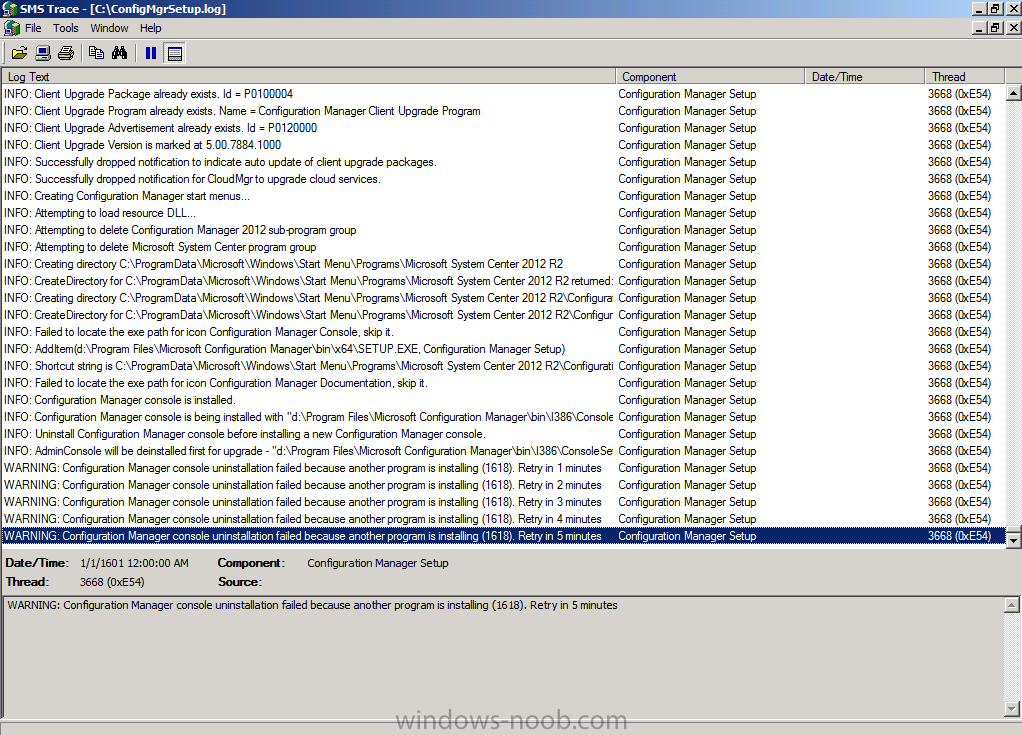

click on View Log to view the installation in CMTrace



cmtrace of r2 installation.png

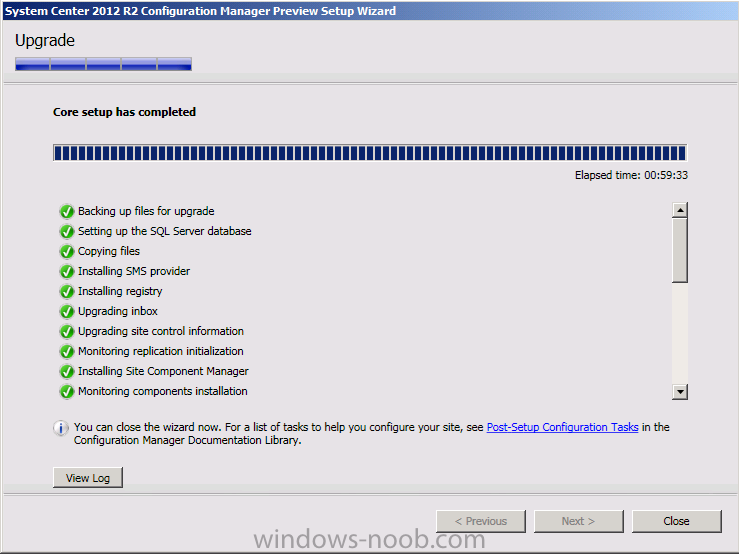

Once the installation of System Center 2012 R2 Configuration Manager is done you'll see the following, I'd recommend you scroll up and down to verify all listed components are green, close the wizard when you can.



close the wizard.png



and start the new console via the new Start menu link, notice the R2 reference



Microsoft System Center 2012 R2.png

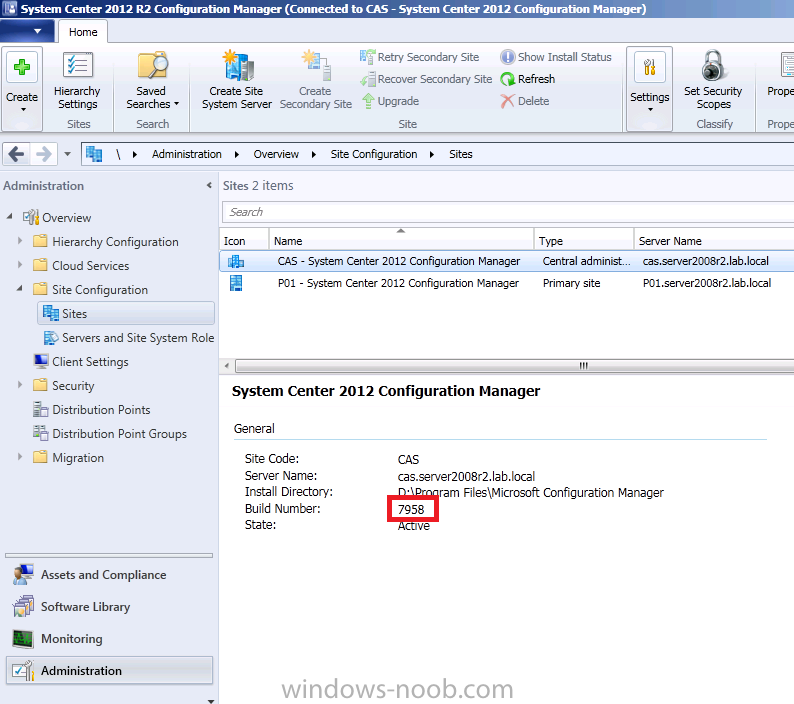

the console appears, congratulations you've installed System Center 2012 R2 Configuration Manager. Notice the new build number of 7598 in the screenshot below



R2 Build number.png



Further Reading



What’s New in System Center 2012 R2 Configuration Manager - http://technet.microsoft.com/library/dn236351.aspx
System Requirements

Installation Guide

Evaluation Guide



cheers

niall.

  • Like 2

Share this post


Link to post
Share on other sites


Hi, thanks for all your tutorials :D .

I'm having a problem to create mdt boot images after upgrading to R2. I'm getting the following message "Could not find a part of the path 'C:\Tools\PETools\x86\WinPE-FP's'.

It looks like the new AIK for windows 8.1 does not contains these files/folders. Are you having the same problem?

Thanks again.

Share this post


Link to post
Share on other sites

Do you know why the boot disk created from a MDT boot image wizard is almost 3 GB in size (I'm using the default settings)?

The boot disks created from x86 and/or x64 boot image are around 238MB in size only.

Thanks.

Share this post


Link to post
Share on other sites

you are probably including prestart commands in your boot image and it contains files/folders = 3gb in size,

Share this post


Link to post
Share on other sites

The weird part is that if I create the boot image as part of the "Create MDT Task Sequence" wizard and then use that boot image to create a boot disk, everything works fine, the boot disk size is about 292MB (with the prestart commands included), but if I build a boot image from "Create Boot Image using MDT" and create a boot disk based on this image the image size is almost 3GB (maybe this is a bug?).

Thanks

Share this post


Link to post
Share on other sites

what version of mdt are you using and please describe what extrafiles and prestart files you are including in your mdt boot image

Share this post


Link to post
Share on other sites

try running it as a user with Administrator permissions on the box

Share this post


Link to post
Share on other sites

of course, why are you installing R2 though it's preview software, are you doing this in a lab only ?



can you show me a screenshot of the error you are seeing

Share this post


Link to post
Share on other sites

and what does the setup log file tell you about the problem ?

Share this post


Link to post
Share on other sites

what happens when you try to click on the log file ? i would presume the log file is stored in your %temp% profile

Share this post


Link to post
Share on other sites

open a command prompt and type this

cd %temp%

seriously though, you should know this already (where temp folders are located) ...you may have to unhide system files, check folder options.

Share this post


Link to post
Share on other sites

Im having an issue where under site system roles the distribution point role is installed and there is a boundary group set for it but when i go to the distribution points nothing shows up therefore when i follow the guide for OS deployment there are no distribution points to choose from when i right click the boot images or any image for that matter and choose distribute content. Do you have any idea what I am missing?





Share this post


Link to post
Share on other sites

I would imagine that SP1 is a requirement so R2 can be installed on top of it.

Share this post


Link to post
Share on other sites

Any chance you can include how to upgrade the Boot Images to WinPE 5 and MDT Package?



I Upgraded to CM 2012 R2, MDT 2013, AIK 8.1. and my task sequence stops at BDD_UninstallRoles (MDT integration).

I'm assuming I have to update the MDT integration, MDT Package and Boot Image files.



I did run the Configure ConfigMgr Intergration to remove and then readd the integration.

I did delete the task BDD_UninstallRoles and recreated it.



Any help would be appreciated. tks



n00b

Share this post


Link to post
Share on other sites

my boot images were updated just fine to WinPE 5 in my R2 upgrade, what version are yours listed at in the console ?

Share this post


Link to post
Share on other sites

my boot images were updated just fine to WinPE 5 in my R2 upgrade, what version are yours listed at in the console ?



6.2.9200.16384
