Introduction

Remotely accessing computers allows you to control those computers from your own desktop with (or in some cases without) the other users consent. System Center 2012 Configuration Manager offers three methods from within the console to remotely control other computers with the client agent installed.

  • Remote Control
  • Remote Assistance
  • Remote Desktop client

In the above list, only Remote Control is specific to Configuration Manager (i.e. it's a tool provided by Configuration Manager). Both Remote Assistance and Remote Desktop Client are Windows technologies.



Workgroup based computers pose their own challenges as they lack many of the security benefits of Domain membership and as a result lack access to resources. Before we can do anything with our workgroup clients (including remote control) we need our Configuration Manager client software installed but before we do that we have to prepare our clients for this installation by preparing them. As workgroup clients are not joined to a domain they will need some help to communicate with the Configuration Manager management point as they will not be able to retrieve these values from Active Directory and they may have no (or limited) access to DNS.



Microsoft have listed a number of limitations to supporting workgroup computers:

  • Workgroup clients cannot locate management points from Active Directory Domain Services, and instead must use DNS, WINS, or another management point.
  • Global roaming is not supported, because clients cannot query Active Directory Domain Services for site information
  • Active Directory discovery methods cannot discover computers in workgroups.
  • You cannot deploy software to users of workgroup computers.
  • You cannot use the client push installation method to install the client on workgroup computers.
  • Workgroup clients cannot use Kerberos for authentication and so might require manual approval.
  • A workgroup client cannot be configured as a distribution point. System Center 2012 Configuration Manager requires that distribution point computers be members of a domain.

Note: In the steps below I am assuming all client computers are WorkGroup joined with no access to DNS. If you have access to a fully functioning DNS then go ahead and start at Step 3. In addition, I assume that you have installed the Remote Assistance features on your server and client computers.



Step 1. Create and then edit the LMHosts file

Perform the following on a workgroup computer as Administrator



Note: If you have access to working DNS then your client can use DNS to resolve the Configuration Manager server management point. However if you have no access to DNS then you can use the hosts file as in step 2. This step is optional as it helps client installation with auto site assignment if DNS is not accessible



As our workgroup computers need to locate and communicate with the Configuration Manager server, we will create a text file on the client and this file will contain the information we need to find our Configuration Manager server. The LMHOSTS (LAN Manager Hosts) file is used to enable Netbios Name Resolution under Windows when other methods, such as WINS, fail.

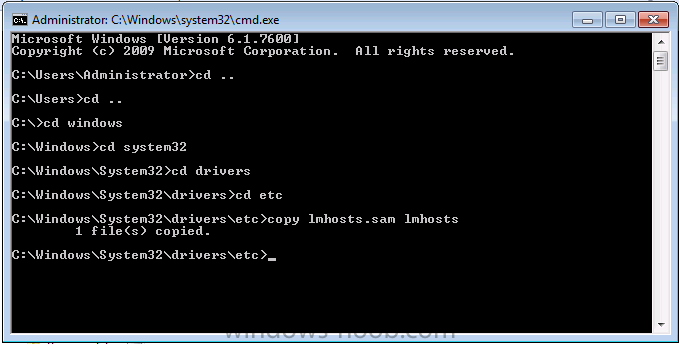

We will create this new file called lmhosts on the client by copying a built in sample lmhosts file. This sample file is located in C:\Windows\System32\Drivers\Etc\. Open a command prompt on the workgroup computer and issue the following commands

cd windows\system32\drivers\etc
copy lmhosts.sam lmhosts

copy lmhosts sample.png



Open the newly created lmhosts file in notepad and add the following information,



XX.XX.XX.XX YYYY #PRE
XX.XX.XX.XX "SMS_SLP \0x1A" #PRE
XX.XX.XX.XX "MP_ZZZ \0x1A" #PRE



where XX.XX.XX.XX is the IP address of your Configuration Manager server, YYYY is the hostname of your Configuration Manager server and ZZZ is the site code.



In the example below the ip address 192.168.1.2 is the ip address of my Configuration Manager 2012 SP1 standalone primary server, you should enter the ip address of your Configuration Manager Primary server. In the example below SCCM is the hostname of my standalone primary. You should enter the hostname of your server instead. In the example below P01 is the site code of my Configuration Manager Primary server, use the site code of your Configuration Manager Primary server instead.

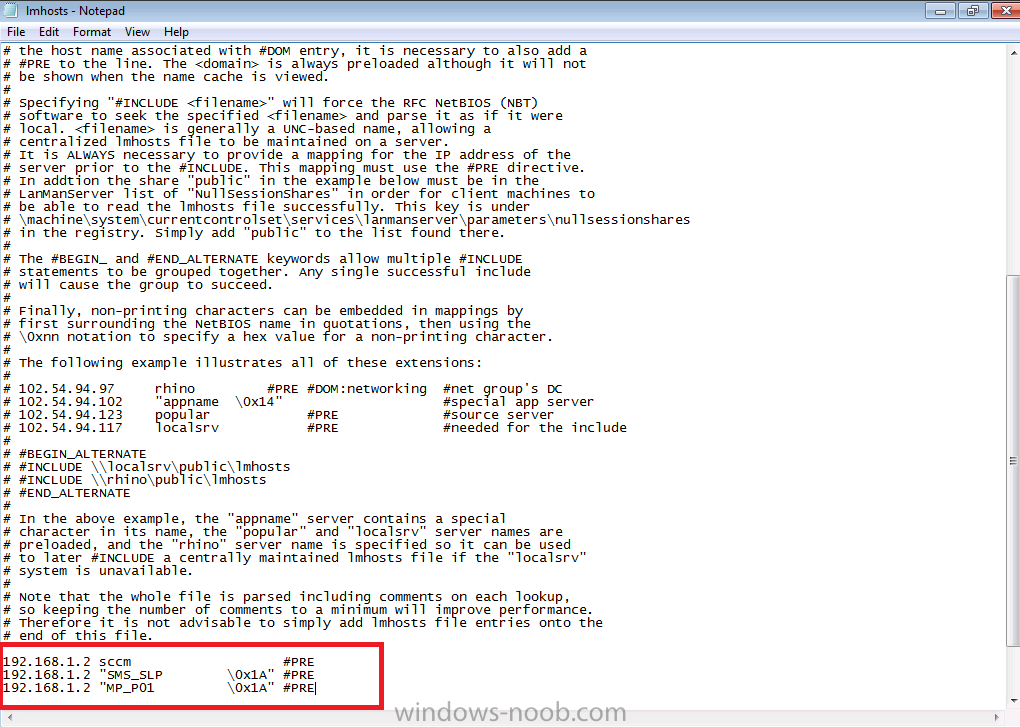

Save the file when you are finished adding the required info. After editing the lmhosts file it will look something like this:





192.168.1.2 SCCM #PRE
192.168.1.2 "SMS_SLP \0x1A" #PRE
192.168.1.2 "MP_P01 \0x1A" #PRE



lmhosts edited.png

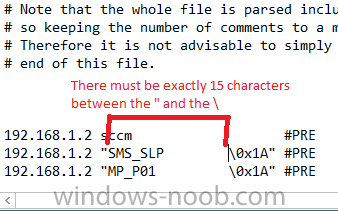

Note: The NetBIOS naming convention allows for 16 characters in a NetBIOS name. Microsoft, however, limits NetBIOS names to 15 characters and uses the 16th character as a NetBIOS suffix. The "\0x1a" is a NetBIOS suffix and there must be exactly 15 characters between the the first quote and the backslash.



15 characters.png



if you have an incorrect number of spaces between the " and / in your lmhosts file then the file may be parsed incorrectly,

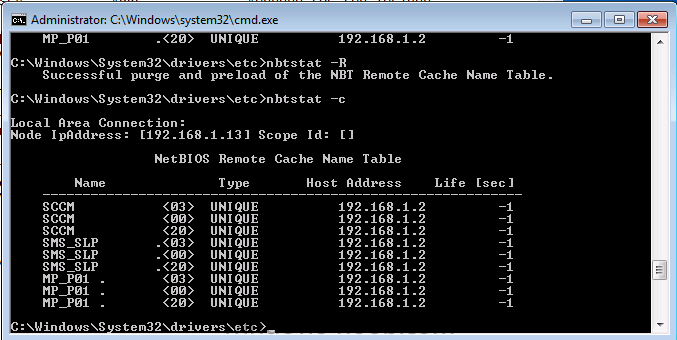

below is an example of too many spaces



too many spaces.png



below is an example of not enough spacing



not enough spacing.png

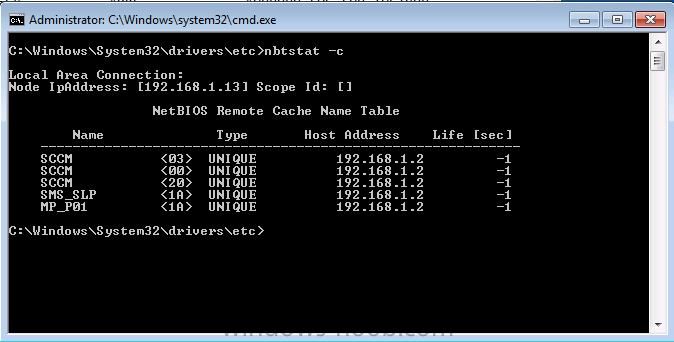

and below is an example with the correct spacing



spacing is correct.png

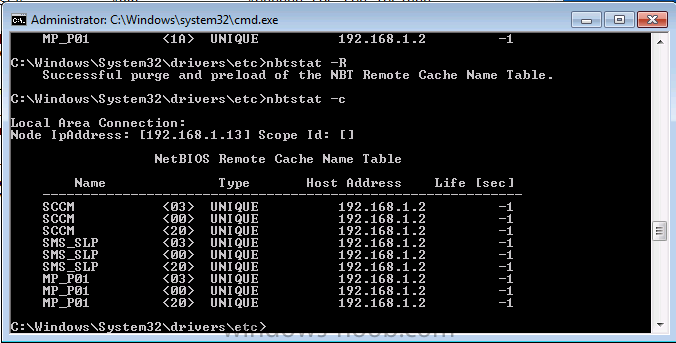

At system start up, the name cache on a client computer is preloaded with entries from the LMHOSTS file, defined as preloaded by a special keyword, the #PRE keyword. You can force these entries into the name cache by rebooting the computer or by using a command line tool called nbtstat as follows.

nbtstat -R

  • nbtstat -R clears the name cache of any previous entries and then preloads the entries in the Lmhosts file (purge and preload)
  • nbtstat -c lists NBT's cache of remote machine names and their ip addresses



Step 2. Edit the hosts file

Perform the following on a workgroup computer as Administrator

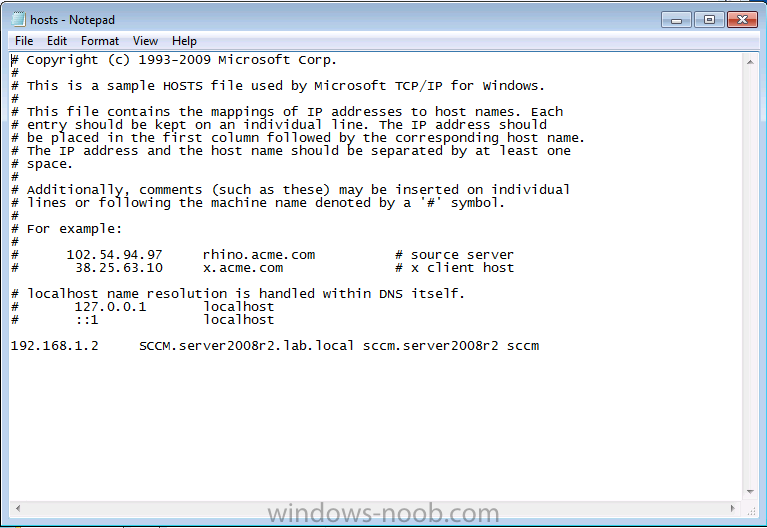

Open the hosts file located in C:\Windows\System32\driver\etc using notepad and add the ip address and fully qualified domain name (FQDN) of your Configuration Manager 2012 server like in the example below



hosts file.png



save the file. Failure to add the FQDN of the Configuration Manager Server will result in client registration failure as noted in ClientIDStartupManager.log.



Step 3. Install the Configuration Manager client

Perform the following on a workgroup computer as Administrator



Installation of the Configuration Manager client requires the following

  • local administrative permissions on the workgroup computers
  • The Network Access Account must be configured to to access resources in the System Center 2012 Configuration Manager site server domain.

Installation of the client on workgroup computers is usually done manually and that's how we will do it here.

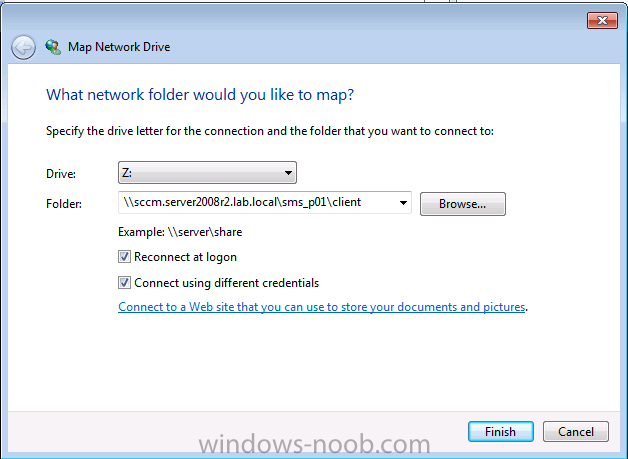

On the client computer, log on as a local administrator, map a drive to \\XX.XX.XX.XX\SMS_YYY\Client, where XX.XX.XX.XX is the ip address of your management point and YYY is the site code.



map network drive.png

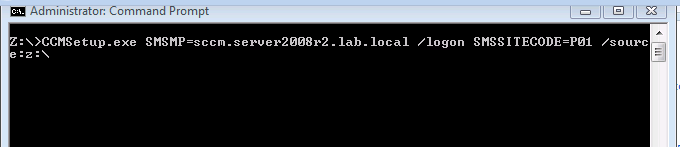

change to the drive letter you mapped (eg: Z:\) and issue the following command in a command line (assuming Z:\ is your mapped network drive)

CCMSetup.exe SMSMP=sccm.server2008r2.lab.local /logon SMSSITECODE=P01 /source:z:

ccmsetup command line.png



the switches above are explained below

  • SMSMP Specifies an initial management point for the Configuration Manager client to use. (see also http://blog.configmgrftw.com/ccmsetup-mp-and-smsmp/)

  • /logon This CCMSetup property specifies that the installation should stop if an existing System Center 2012 Configuration Manager or Configuration Manager 2007 client is found on the computer.
  • SMSSITECODE=P01 This explicitly tells the client which Site code to use, if you set to AUTO then you must make sure that the boundary is properly configured for Workgroup computers (cannot be set to use AD Site for example).
  • /source: tells the client where to download the client files from

at this point you can monitor the progress of the client installation in CMTrace using the following log file C:\Windows\CCMSetup\logs\ccmsetup.log



monitor ccmsetup in cmtrace.png



once ccmsetup is finished, you should see the following in cmsetup.log



CCMSetup is exiting with return code 0



You should also monitor ClientLocation.log,LocationServices.log in C:\Windows\CCM\Logs\ to see how things are progressing with your workgroup client and review ClientIDManagerStartup.log to check the status of Client registration with your management point.



Client Is Registered.png

Step 4. Approve the Configuration Manager client

Perform the following in the Configuration Manager console as SMSadmin



At this point the client will be installed but more than likely not working, if you open the Configuration Manager client in Windows control panel and check the actions tab most likely there will be two actions listed.



only two actions available.png



This is a symptom of a client that's either not registered with the site (we saw that it was registered above), or that it is not approved. Approval relies on AD authentication which naturally you won't get with a workgroup machine. In the Configuration Manager console locate your workgroup client and verify its status, it should say 'Not Approved' (you may have to add the Approved column to your console view as in the screenshot below).



Not Approved.png



This is because the default site setting for client approval in Configuration Manager is to automatically approve clients in trusted domains and as a workgroup client is not in a trusted domain you would have to approve it manually or change the site setting to "automatically approve all clients" (not recommended).



automatically approve.png

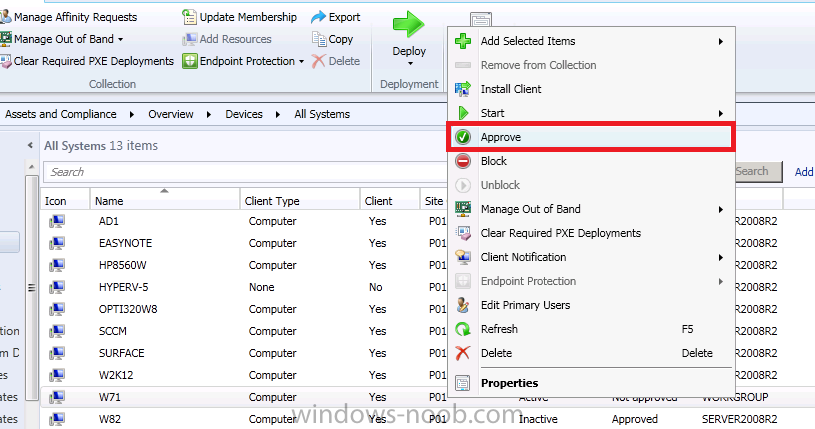

As a Configuration Manager client is pretty much useless without policy we will manually approve the workgroup client. Right click on the client, and click Approve. Answer Yes when prompted.

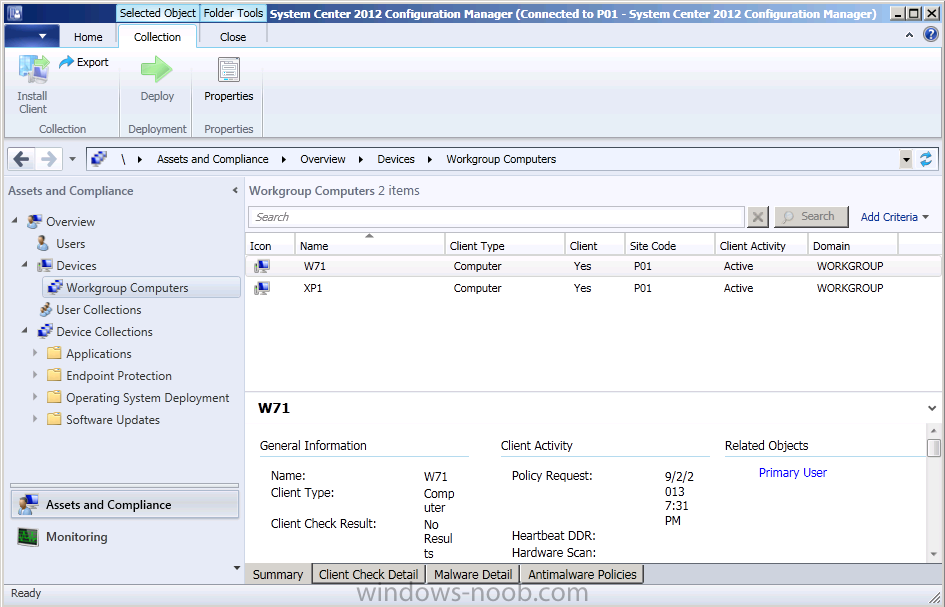

After approval, the client should receive policy correctly and all actions will become available. Not only that, but it should now be ready for the next stage.



all actions available.png



Step 5. Create a Remote Tools Operator

Perform the following in the Configuration Manager console as SMSadmin



Now we will add a previously created Domain user called RemoteUser1 as a Configuration Manager console remote tools operator with permission to do Remote tools actions in the console, we are doing this using Role Based Access Control (RBAC) which is a pretty cool feature in Configuration Manager 2012.



In the Configuration Manager console, click on Administration, Security, Administrative Users and then click on Add User or Group.



Add User or Group.png



next click on Browse and select our domain user (RemoteUser1) then click ok, next click on Add to add the assigned security roles, select Remote Tools Operator.



add remote tools operator.png



Step 6. Create custom client settings with remote tools enabled

Perform the following in the Configuration Manager console as SMSadmin

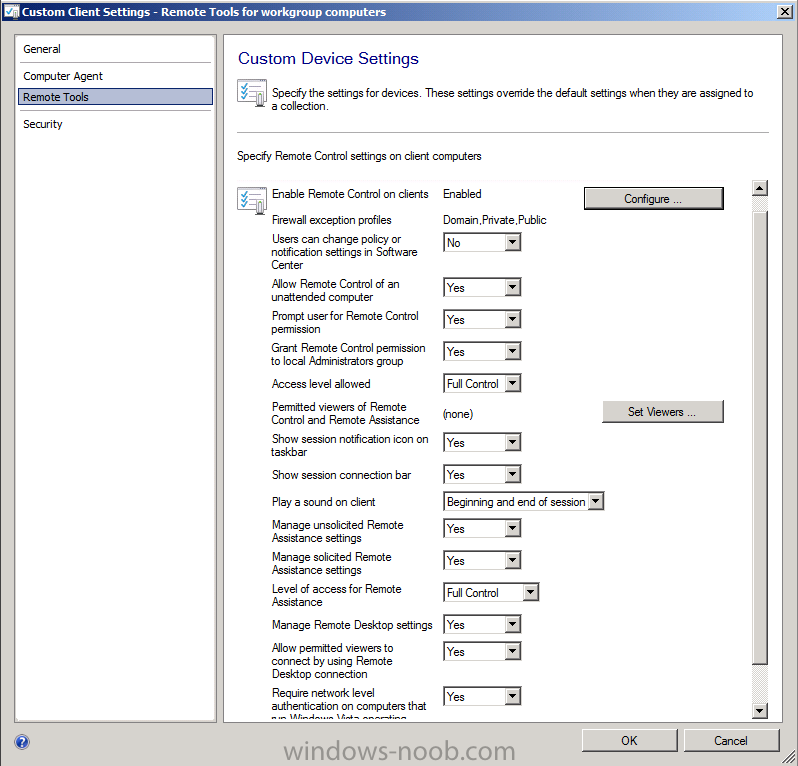

In the Administration node of the console, create new custom client device settings with Remote Tools enabled, give the client settings a suitable name like Custom Client Settings - Remote Tools for WorkGroup computers, in the example client settings below I've enabled pretty much every option available in the remote tools agent. In addition, I've added the computer agent and for Organization Name entered Custom Client Settings - Remote Tools.



Tip: To get a step by step guide for creating custom client device settings and targeting them to a collection see this post.



Custom client Settings - remote tools for workgroup computers.png

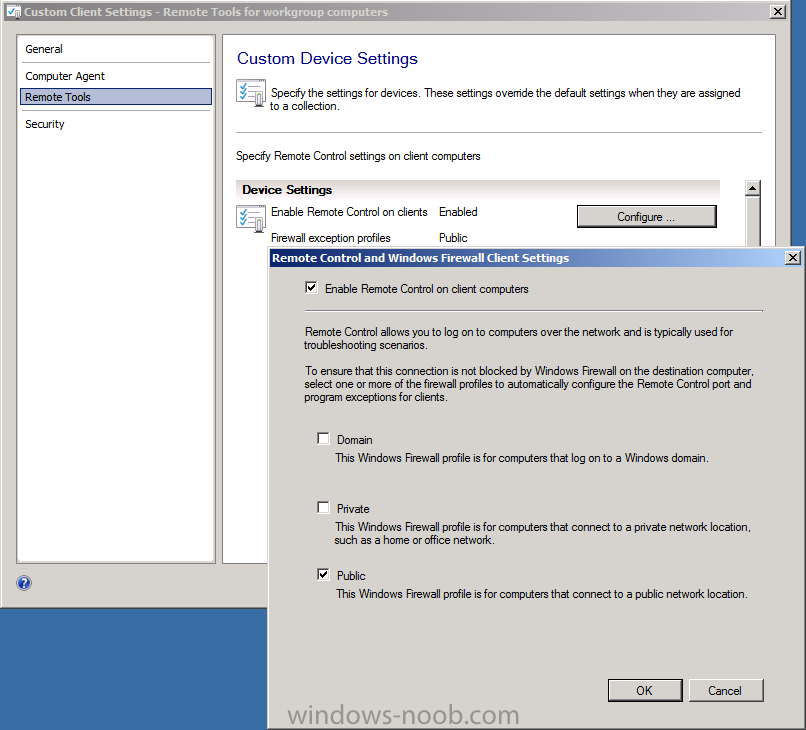

click on Configure and set the Public profile as enabled, click ok



set the Remote control firewall policy to enable and choose Public as the firewall profile.png

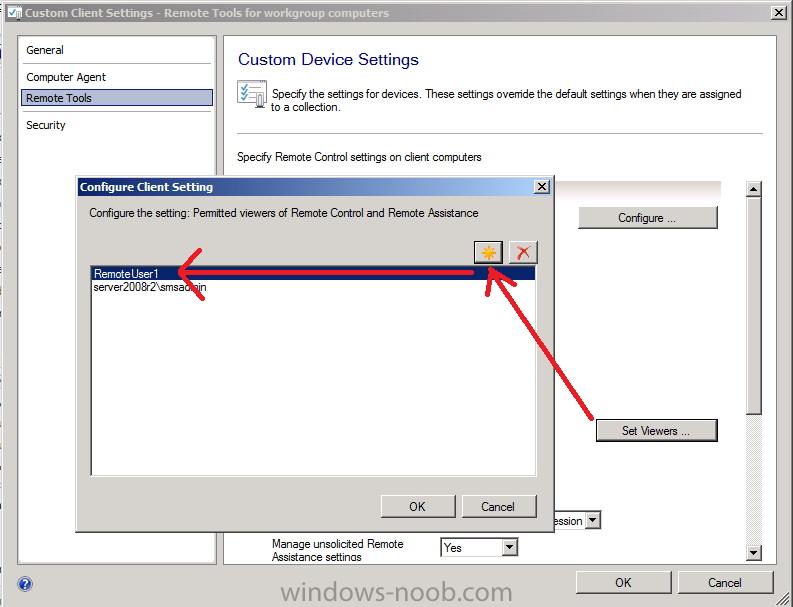

click on Set Viewers and add a local user with a password that matches a domain user that has access to the Console. In other words if you have a domain user called domain\RemoteUser1 and you want them to do the remote tools actions in the console, then you should also create a local user called RemoteUser1 on all your workgroup clients that you want to remotely control, this user must have the same password as the domain user.



create a local user in set viewers.png

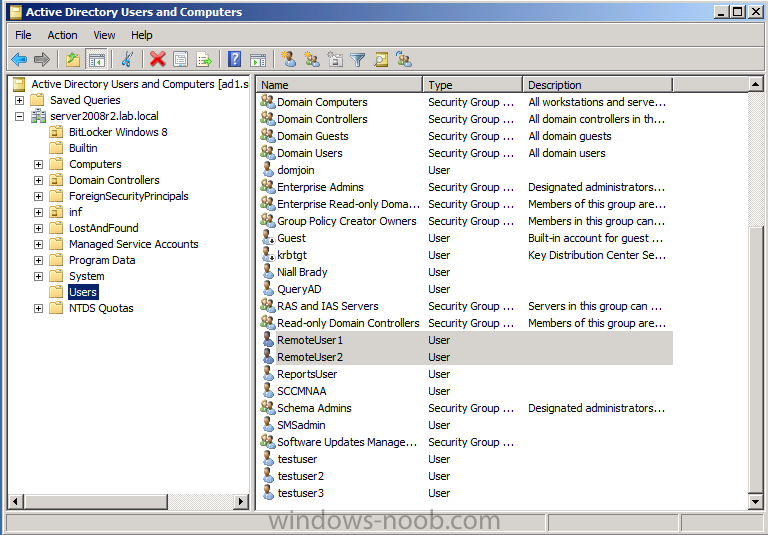

Below is a screenshot of Users and computers in Active Directory, note our RemoteUser1 is listed (this is a Domain User).



RemoteUser1 is a domain user.png

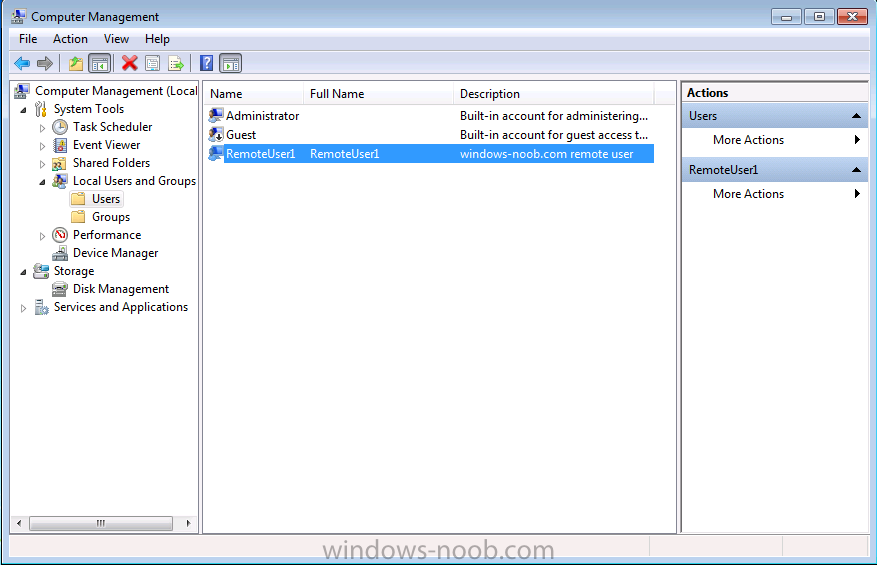

and below is our RemoteUser1 added as a local user on our WorkGroup client, this user has the same password as the same name domain user.



RemoteUser1 local user on workgroup client.png



Step 7. Deploy custom client settings to a collection

Perform the following in the Configuration Manager console as SMSadmin



Now we are ready to deploy our custom client device settings to a collection containing our workgroup computers, right click the client settings and choose Deploy



Deploy custom client settings.png

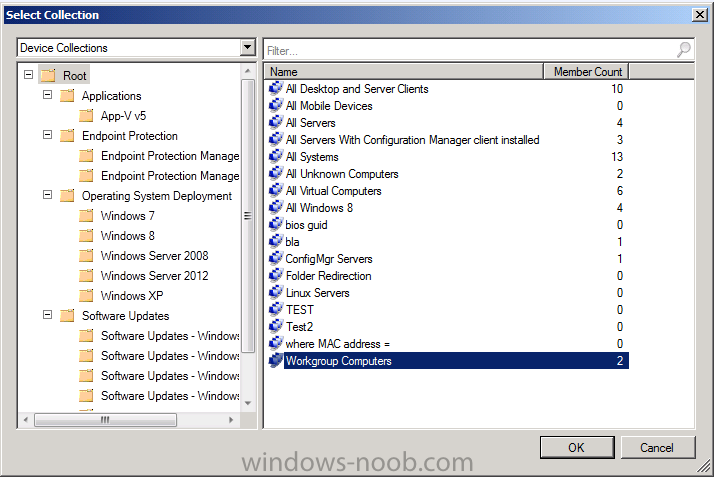

and select a Device collection containing our Workgroup computers



workgroup computers collection.png



Step 8. Add Firewall exceptions

Perform the following on a workgroup computer as Administrator



Even though we enabled Remote Control, Remote Assistance and Remote Desktop via client settings only one of the three gets added to the firewall exceptions, (Remote Control) as a result you need to open your firewall on the workgroup computers for Remote Assistance and Remote Desktop Client.

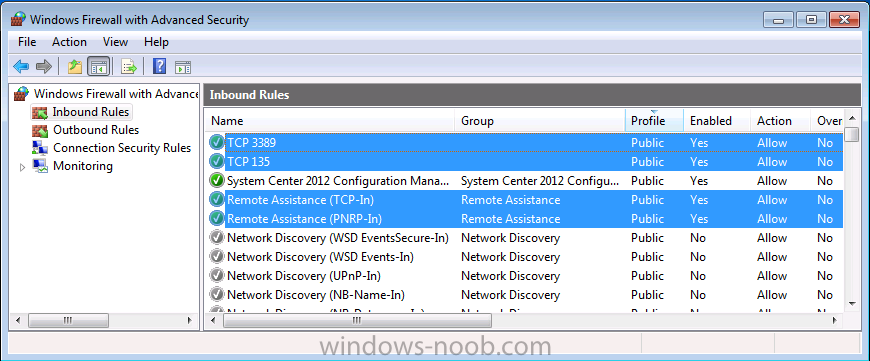

Here are the settings you need to allow as inbound exceptions for both Remote Assistance and Remote Desktop Client



Remote Assistance and Remote Desktop Client firewall exceptions.png





Step 9. Update Machine Policy

Perform the following on a workgroup computer as Administrator

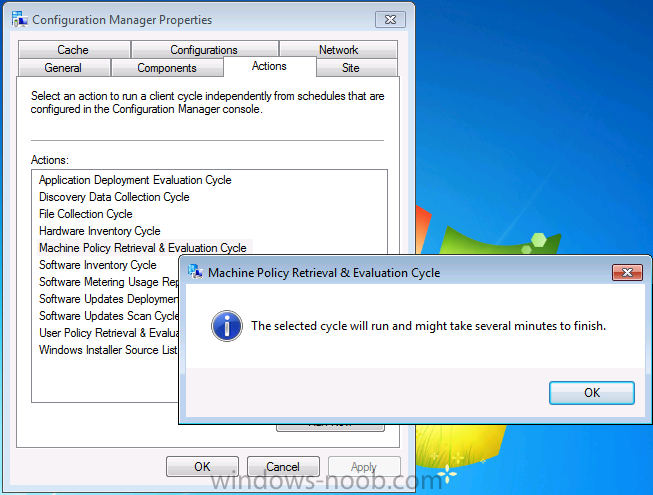

On a workgroup computer that is in our targeted collection, start up the Configuration Manager client, click on the actions tab and initiate a Machine Policy retrieval. alternatively do nothing and wait until the policy is automatically updated.



Machine Policy.png



and after a few minutes you can start Software Center to verify that the correct Custom Client device Settings are applied by reviewing the Organization name in the top right corner.



software center.png



Step 10. Edit hosts on the computer hosting the Configuration Manager console

Perform the following on the computer running the Configuration Manager console as Administrator

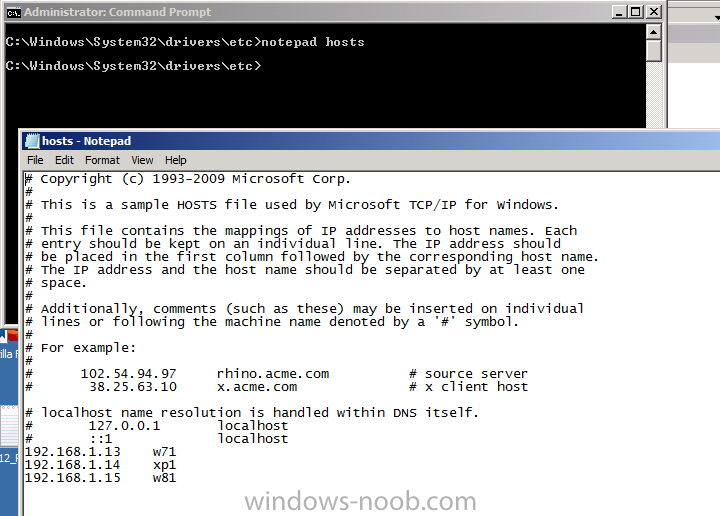

In an administrative command prompt, open the hosts file (located in C:\Windows\System32\Drivers\Etc) on the computer hosting the configuration Manager console and add the ip address and hostnames of your workgroup computers, save the file when done. This will allow us to connect via Remote Assistance and Remote Desktop Client via the console.



hosts on the computer running the Console.png



Step 11. Start the Configuration Manager console as RemoteUser1

Perform the following on the computer running the Configuration Manager console as RemoteUser1



On a computer that has the Console installed,logon as domain user RemoteUser1, note how the console appears to be 'slimmed down'. This is RBAC in action. Browse to our Workgroup Computers collection.



remoteuser1 console.png



Right click on a workgroup computer and choose Start, and select one of the three Remote access tools available which are



  • Remote control
  • Remote Assistance
  • Remote Desktop client

start remote tools.png



The sessions are described below



Step 12. Do a Remote Control session

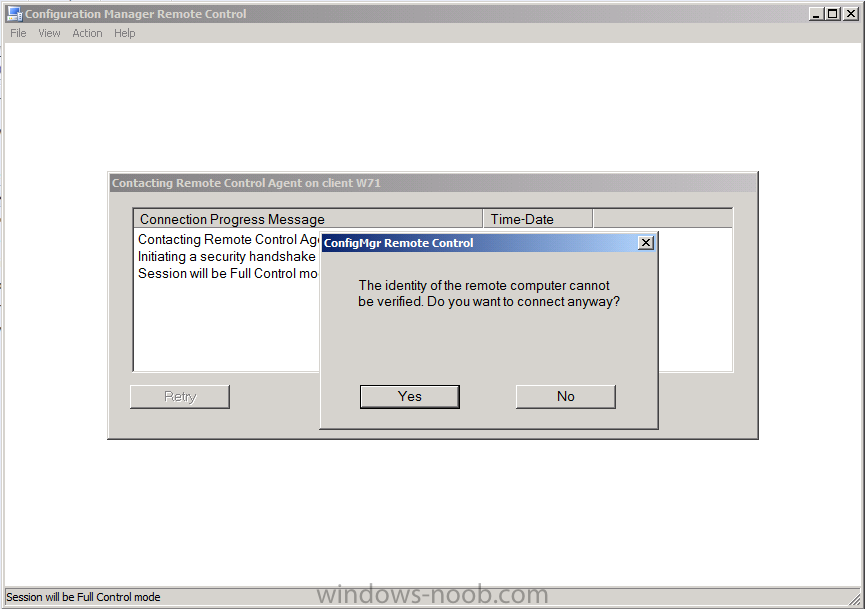

Right click on a workgroup computer, select Start, then Remote Control, when you select it you might be informed that the identity of the remote computer cannot be verified, answer yes to connect anyway.



yes to connect anyway.png

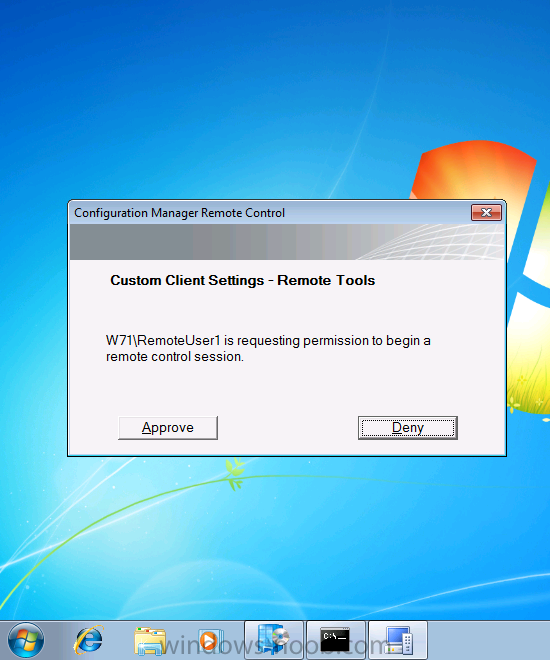

the client will be prompted to accept (depending on your choices in the Custom Client Settings) choose Approve on the client



approve on the client computer.png



the session is now active with a nice Green bar on the top of the target screen to denote the connection, below you can see how it appears on the computer that initiated the connection vhe console



remote session as viewed on the RemoteUser1 desktop.png

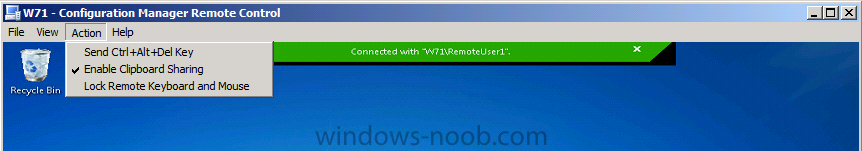

via the Action menu you can send ctrl alt del to the client (great function) or indeed stop the end user from interrupting your work by locking the remote keyboard and mouse



send ctrl alt del or lock remote keyboard and mouse.png



If you want details about the remote control session you can review the CmRcService.log which records information for the remote control service (found in C:\Windows\CCM\Logs).



CmRcService log file.png



Step 13. Do a Remote Assistance session

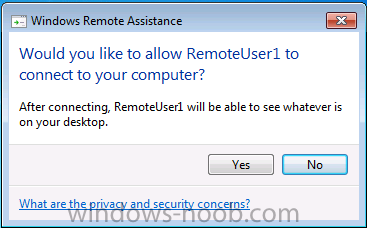

Right click on a workgroup client computer and choose start, then choose Remote Assistance, on the client computer you are connecting to the end user will be prompted to accept the connection (if not then you probably havn't followed all the advice above, double check your firewall settings on the client).



Windows Remote Assistance would you like to allow RemoteUser1.png



if they click accept you'll see this in the console,



Remote assistance as seen from the console.png



you can then use the options available to request control or have a chat



would you like to allow RemoteUser1 to share control of your desktop.png



if the user agrees then you are in control ! The log files for Remote Assistance are stored in both the client and the server as described below

  • On the server: C:\Users\[userName]\Documents\Remote Assistance Logs with username the name of the user running the CM12 console.
  • On the client: C:\Users\[userName]\Documents\Remote Assistance Logs with username the name of the user accepting the Remote Assistance.

RA Logs.png





Step 14. Do a Remote Desktop Client session

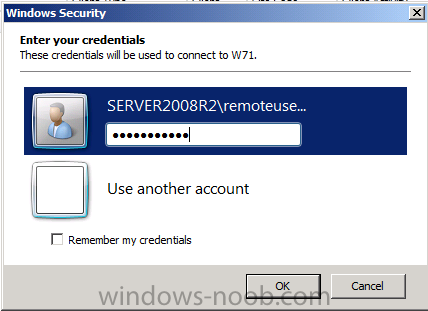

Right click on a workgroup client computer and choose start, then choose Remote Assistance, you'll get prompted for Credentials (note that the domain user is listed, don't worry about that, it'll use the Local user to connect...)



Remote  Desktop Client credentials prompt.png

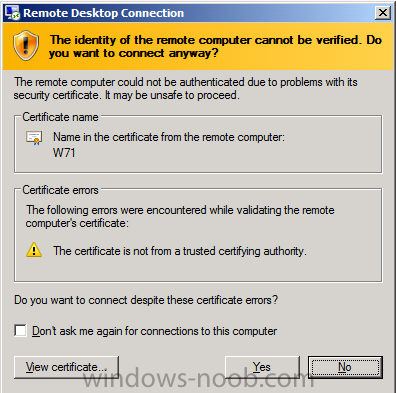

answer yes to the Identity prompt



the identity of the remote computer cannot be verified.png



and yes to the logon message



Logon Message annother user is currently logged on to this computer.png



and you are in



remote desktop client connected.png



Troubleshooting

If you have any client installation failures verify that you can ping the Configuration Manager servers ip address (assuming that the server allows you to ping it), does the ip address resolve to the correct ip of the Configuration Manager server ?



if not perhaps you need to double check your lmhosts file and/or hosts. If you make a change to the lmhosts file you'll need to repopulate the cache as described above (nbtstat -R or reboot the computer for the same effect).



If you are having issues with Remote Control verify the following

  • that the workgroup computer is in a collection that is targeted with the Custom device client settings for remote control
  • that it has received that policy (check software center to verify or use policy spy RSOPv2)
  • check the firewall settings on the client are enabled for the Public firewall profile for Remote control
  • verify you've created a local user matching the name/password of the domain user you are running the console as

Related Reading





Summary

System Center 2012 Configuration Manager makes life easier for the admin as they can easily manage and remote control computers in the enterprise. Many enterprises still have workgroup clients however and while those workgroup clients do pose setup challenges, it's still possible to use Remote Tools with Workgroup clients.



Update 2017/1/5: System Center Configuration Manager 1610 (Current Branch) offers updates to Remote capabilities as described here.



until next time !

cheers

niall.



You can download this document in Word format here - how can I remote control workgroup clients.zip

1 person likes this

Share this post


Link to post
Share on other sites


Hi,



I did everything you outlined in the article. Everything works: SCCM picked up the computer. I approved and it even installed the Endpoint protection as we have it set up.

I can do a remote control, a remote desktop client BUT I cannot get remote assistance to work. It gives me an error message like: Your offer to help could not be sent. check the following ....etc etc.



You have any idea what I missed?



Rudolf
