using SCCM 2012 RC in a LAB - Part 8. Deploying Windows 7 X64



Recommended Posts

anyweb    399

In Part 1 of this series we got our AD and SCCM servers ready, and then we installed System Center 2012 Configuration Manager as a standalone Primary site. In Part 2 we configured the SCCM server further by adding some Windows Server roles necessary for the following Configuration Manager 2012 functionality, Software Update Point (SUP) and Operating System Deployment. In Part 3 we configured the server further by Enabling Discovery methods and creating Boundary's and Boundary Groups. In Part 4 we configured Client Settings, Added roles and Distributed the Configmgr Client to our Computers within the LAB, then in Part 5 we enabled the Endpoint Protection Role and configured Endpoint Protection settings and targeted a collection called All Windows 7 Computers with these settings and policies. In Part 6 we configured our SUP further to Deploy software updates to our All Windows 7 Computers and Build Windows 7 X64 collections. In Part 7 we used the Build and Capture process to create our Base Windows 7 X64 wim image. In this part we'll use the captured image in our Deploy Windows 7 X64 task sequence and we'll set some User Device Affinity collection variables and use a USMT 4 package to migrate the users data using hardlinking.





Step 1. Create the USMT 4 package



Perform the following on your SCCM 2012 server as SMSadmin.



If you want to migrate data in a Deploy Task Sequence you'll need to have the USMT 4 package ready, so let's create it now so that we can access the necessary migration files in our Deploy Windows 7 X64 task sequence.



On your SCCM server in Windows Explorer, browse to C:\Program Files\Windows AIK\Tools\



Right click on the USMT folder and choose Copy,



copy usmt package.png



select your sources folder (mine is on D:\) and paste the USMT folder in sources\os so that it's path is sources\os\usmt



sources os usmt.png

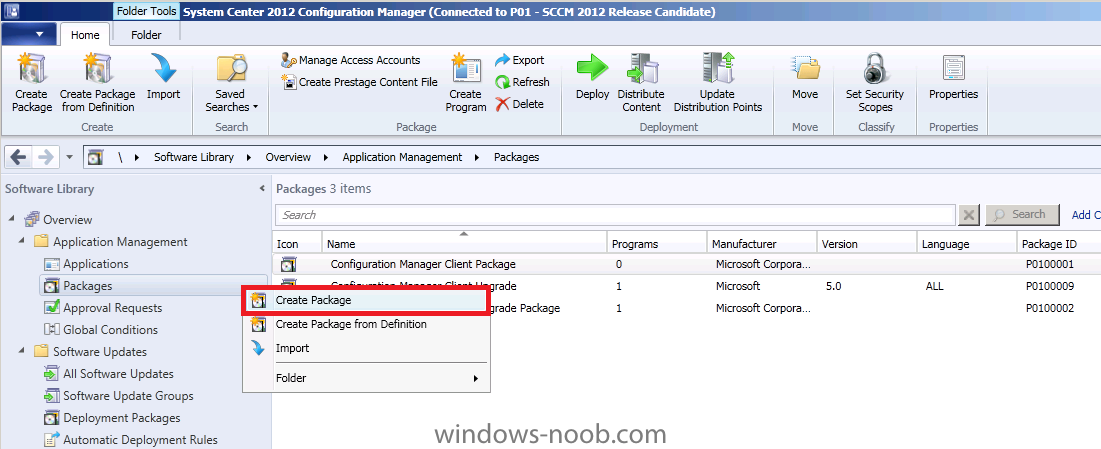

In the ConfigMgr Console, select Software Library, Application Management, Packages, right click and choose Create Package.



create package.png



fill in the details about the package, call it USMT version 4 and point to the UNC path of our newly copied files, \\sccm\sources\os\usmt



this package contains source files.png

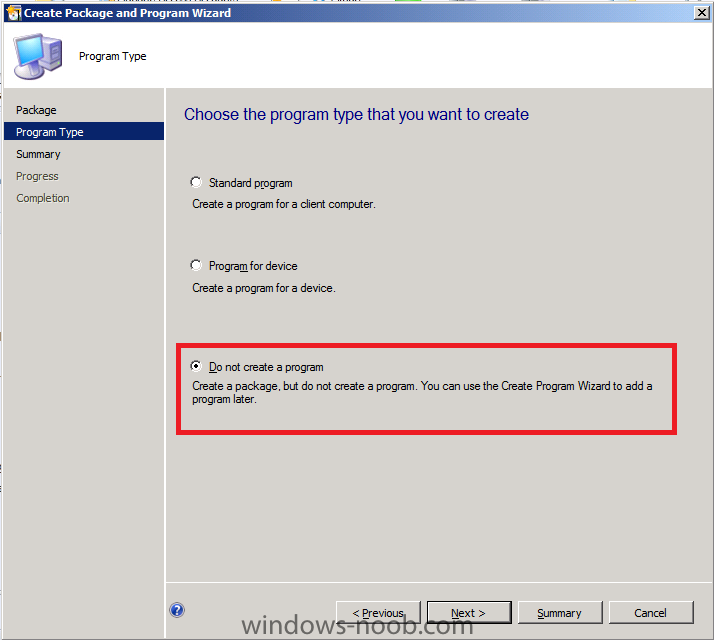

for Program Type select Do not create a program



do not create a program.png



Complete the Wizard

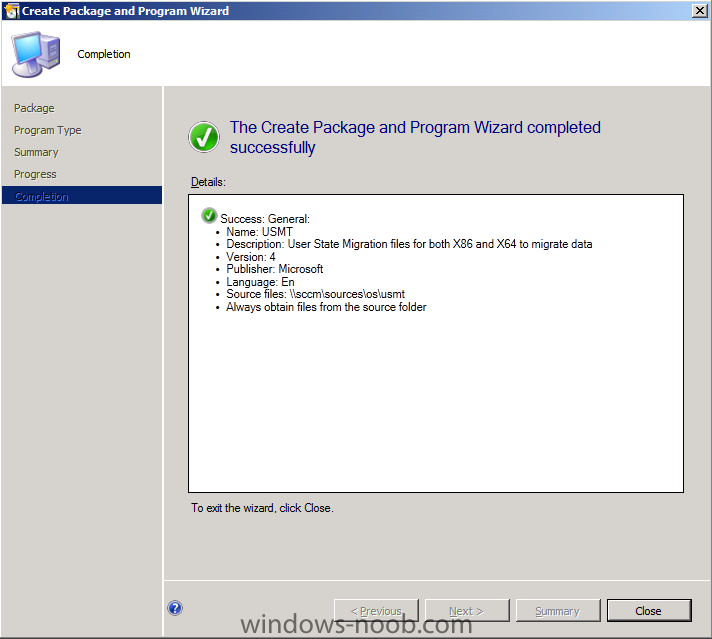

complete the wizard.png







Step 2. Distribute the USMT package to our Distribution Points

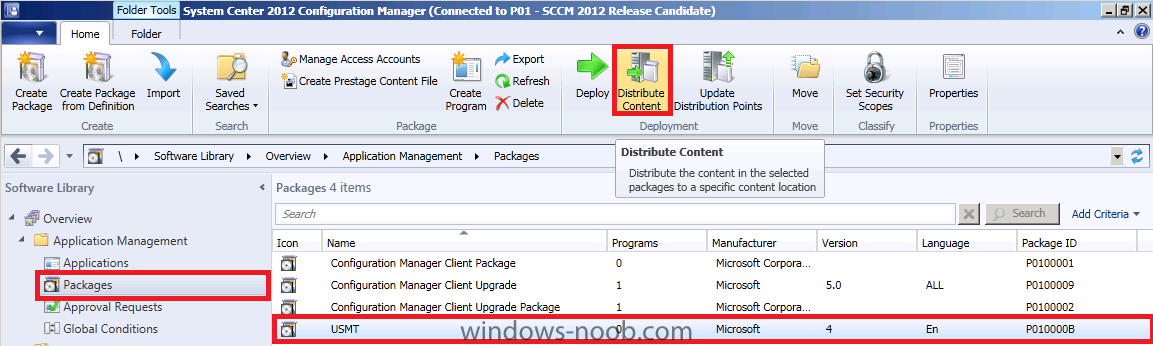

Select the USMT package and click on Distribute Content in the Ribbon



distribute content usmt.png



for Content Destination, click on Add, select Distribution point, select our DP,

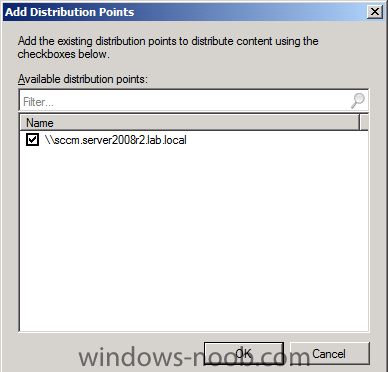

add dp usmt.png



click through the rest of the wizard



usmt done.png







Step 3. Import the captured Windows 7 X64 wim file



Perform the following on your SCCM 2012 server as SMSadmin.



In the Software Library, Operating Systems section of the Configmgr console, click on Operating System Images, you'll note that it is empty because we havn't imported any images yet. Right click and choose Add Operating System Image



add operating system image.png

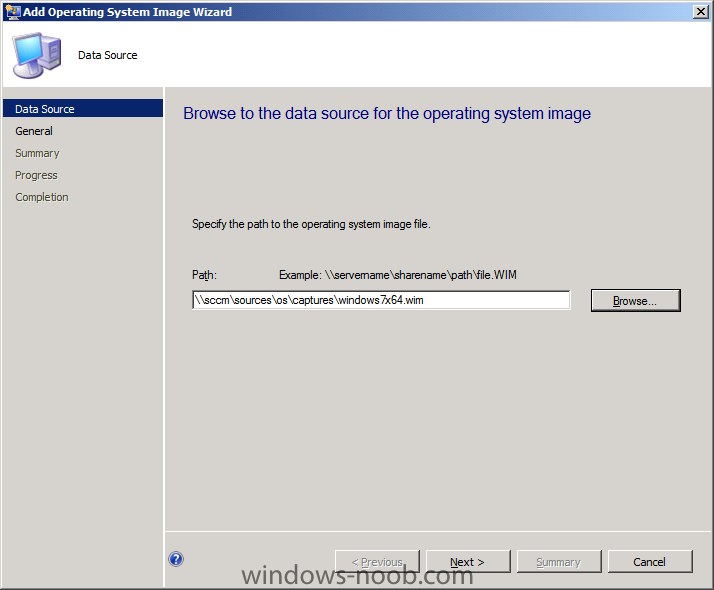

browse to the UNC of where we captured the image in Part 7 and select the captured wim file



eg: \\sccm\sources\os\captures\windows7x64.wim



add captured wim.png



fill in some details about the image



image details.png



click through the summary, progress to completion








Step 4. Distribute the image to the Distribution points



Perform the following on your SCCM 2012 server as SMSadmin.



We now need to distribute our imported image to our distribution points. Select Our Windows 7 Enterprise X64 image and in the ribbon above click on Home and then Distribute Content



distribute content.png



when the Distribute Content Wizard appears, click next



distribute content next.png

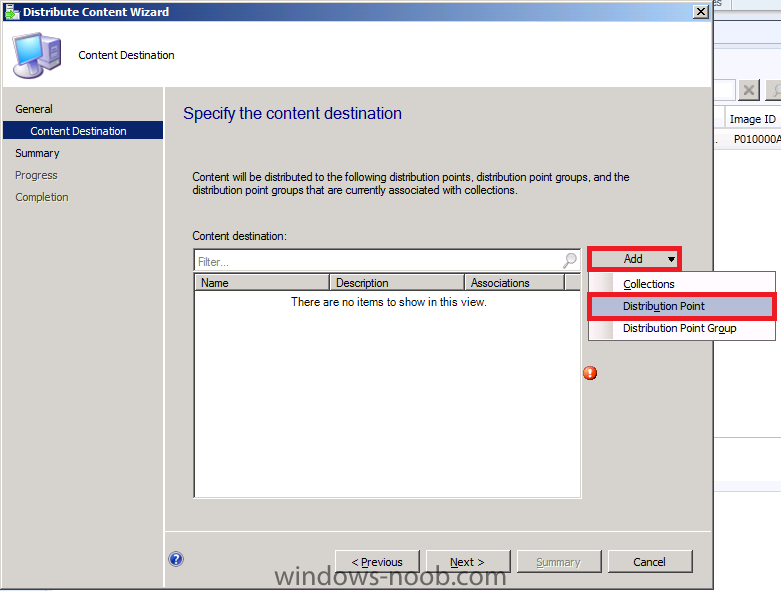

to specify the destination, click on add and select distribution point

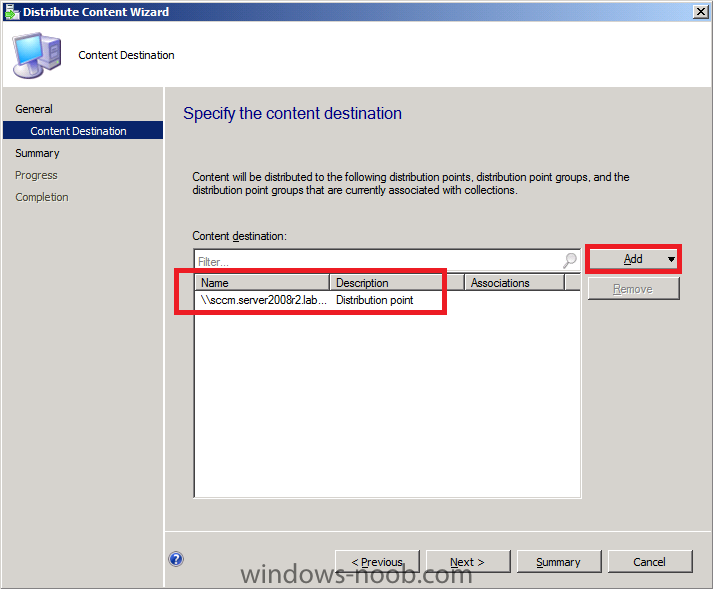

add dp.png



select our Distribution Point from the list



select our dp.png



the DP appears selected



dp selected.png



click next through summary/progress to completion



image added to dp.png







Step 5. Create the Deploy Task Sequence



Perform the following on your SCCM 2012 server as SMSadmin.

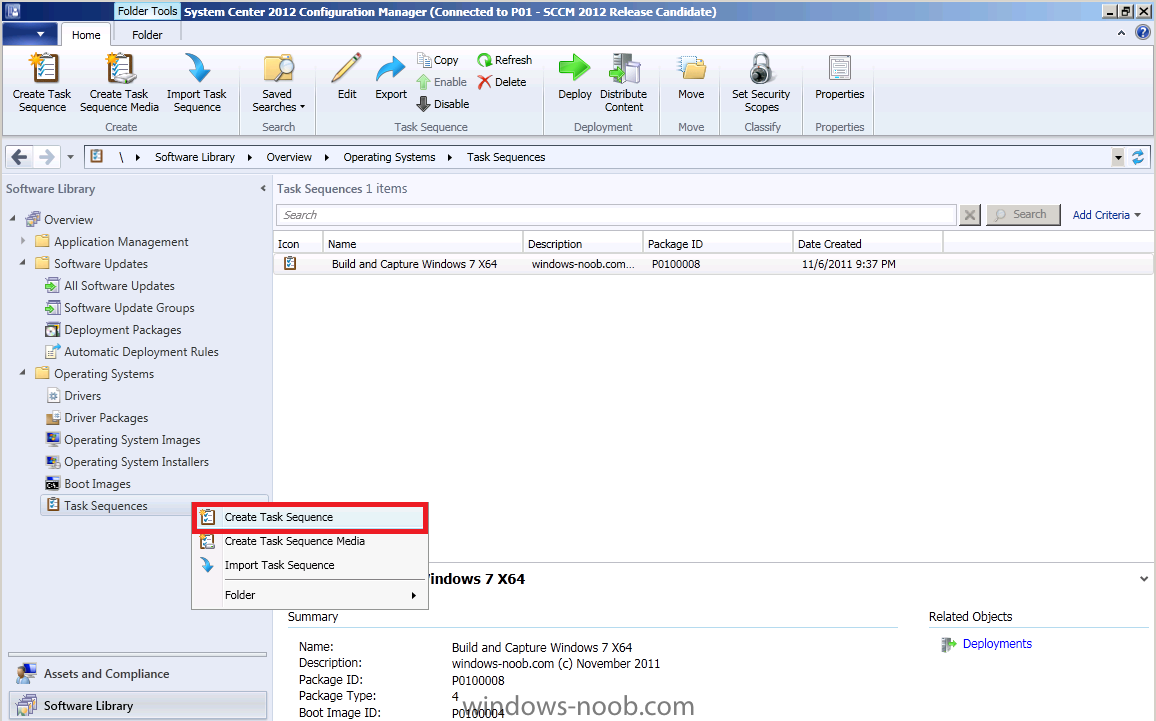

Now that we have added our captured operating system image to Configmgr, and distributed it to our dp's we want to create a Deploy Task sequence to Deploy the image. In Task Sequences, right click and choose Create Task Sequence.



create deploy task sequence.png



choose to Install an existing image package



Install an existing image package.png



fill in some details about the image and click browse and select the X86 boot image, click next to proceed



browse to x86 boot image.png



now select the Windows 7 image by clicking on browse and set an administrator password, uncheck Partition and format the target computer before installing the operating system if you want to use hardlinking for User state migration, otherwise files cannot be stored locally



install windows uncheck partition and format.png

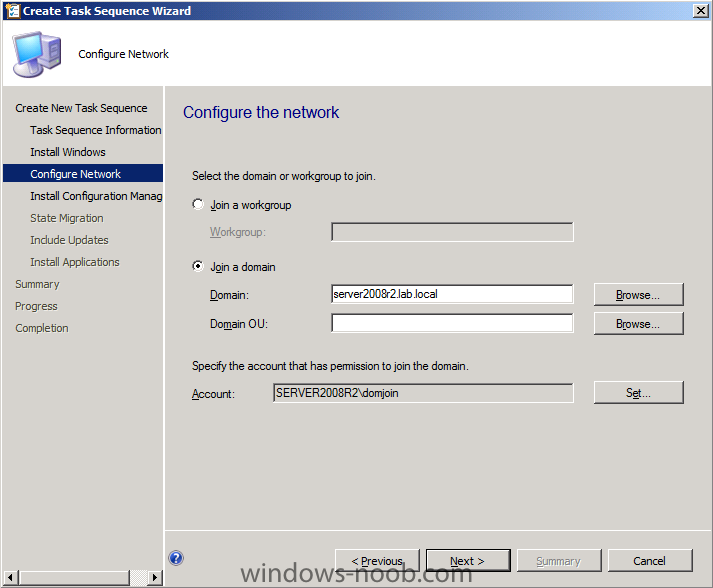

for the Configure the Network step, we want to join the domain so click on browse beside join a domain



browse to select domain.png



and now we need to specify the user that has permissions to join the domain, i use the DomJoin user just or this task (create the user and delegate them enough permissions to add computers to the domain)






I'm not specifying an OU in this step, you can, but don't select the Computers Container if you do...



configure the network step.png



for the Install the Configuration Manager client step click on browse and select the client package from defintion we created in the last part



install the configuration manager client.png



click next and for State Migration, select our USMT 4 package



usmt 4 package.png



change the setting to Save user settings Locally (this will mean we can use Hard Links)



save user settings locally.png



for Include Updates select All Software Updates

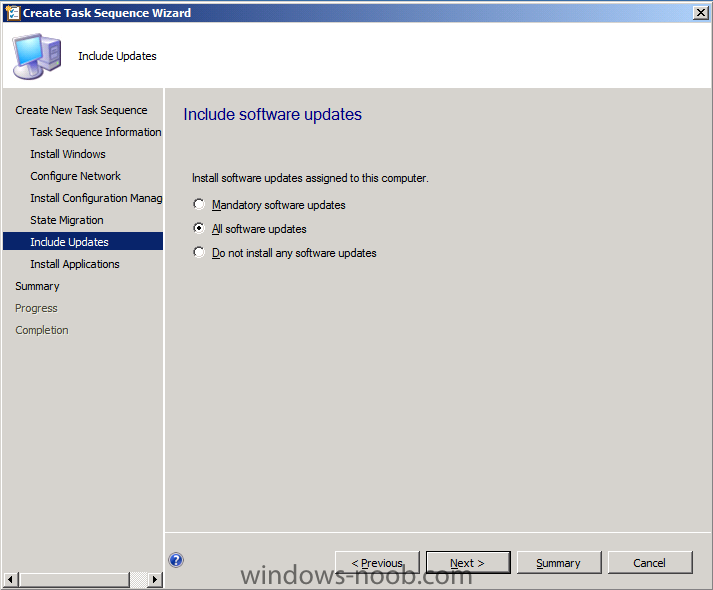

all software updates.png



and click next through to completion (we are not installing any applications at this point).

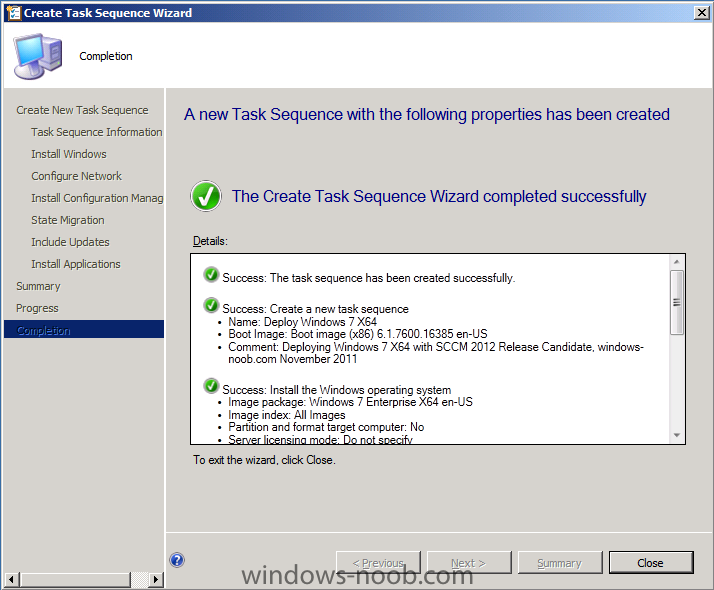

ts completion.png







Step 6. Create a Deploy Windows 7 X64 collection



Perform the following on your SCCM 2012 server as SMSadmin.



In the ConfigMgr console, click on Assets and Compliance, select Device Collections, click on Create Device Collection in the Ribbon



create device collection for deploy windows 7.png



fill in the collection details, call it Deploy Windows 7 X64, limit it to All Systems



deploy windows 7 x64 collection.png



click next through the wizard, we will not add any computers to it yet, and we will not create any queries.

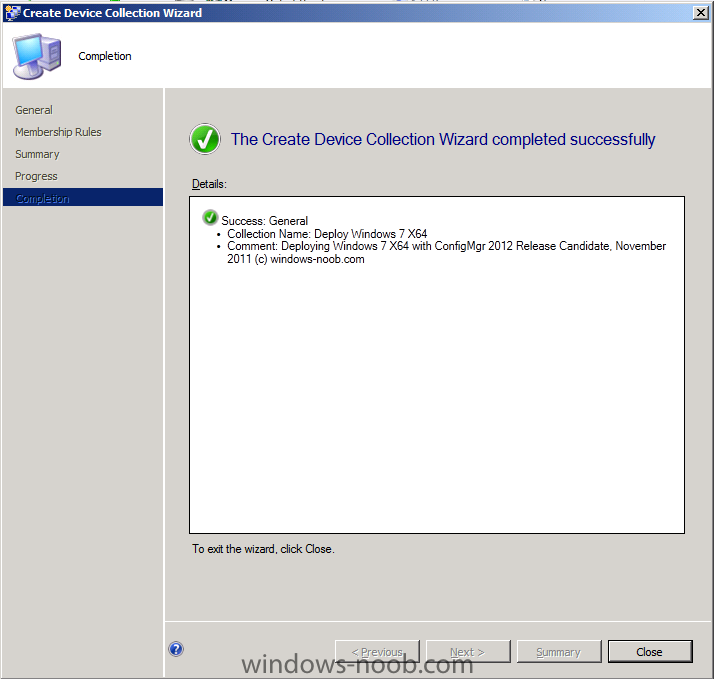

deploy 7 collection done.png







Step 7. Create Collection variables



Perform the following on your SCCM 2012 server as SMSadmin.



We want to set UDA variables on our collection, so that a UDA user gets assigned as the primary user of computers deployed in this collection. We are doing this to show you that you can set a primary user to a device based on Collection Variables.



We could do this in other ways, for example using task sequence steps to set the variables or prestart commands or a frontend HTA, I will come back to this subject later, but for now, let's just see it in action by specifying the two variables below.



Right click on the Deploy Windows 7 X64 Collection and choose Properties



collection properties.png



click on the Collection Variables tab, click on the yellow startburst and add a new variable called SMSTSAssignUsersMode, set the value to Auto and remove the checkmark from Do not display this value in the Configuration Manager console

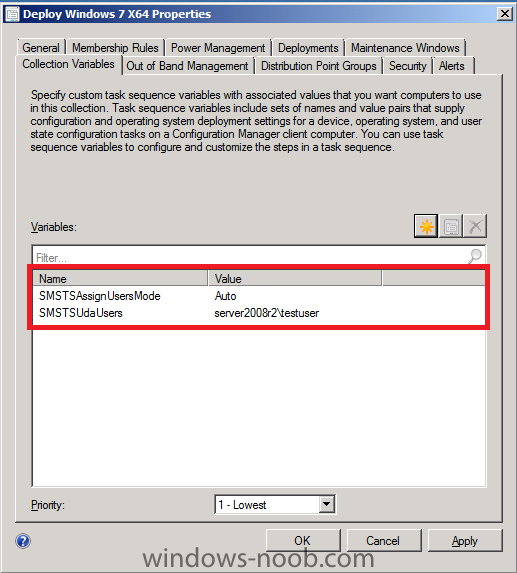

do the same again for another variable called SMSTSUdaUsers, specify the user as domain\user








Step 8. Deploy our Task Sequence



Perform the following on your SCCM 2012 server as SMSadmin.

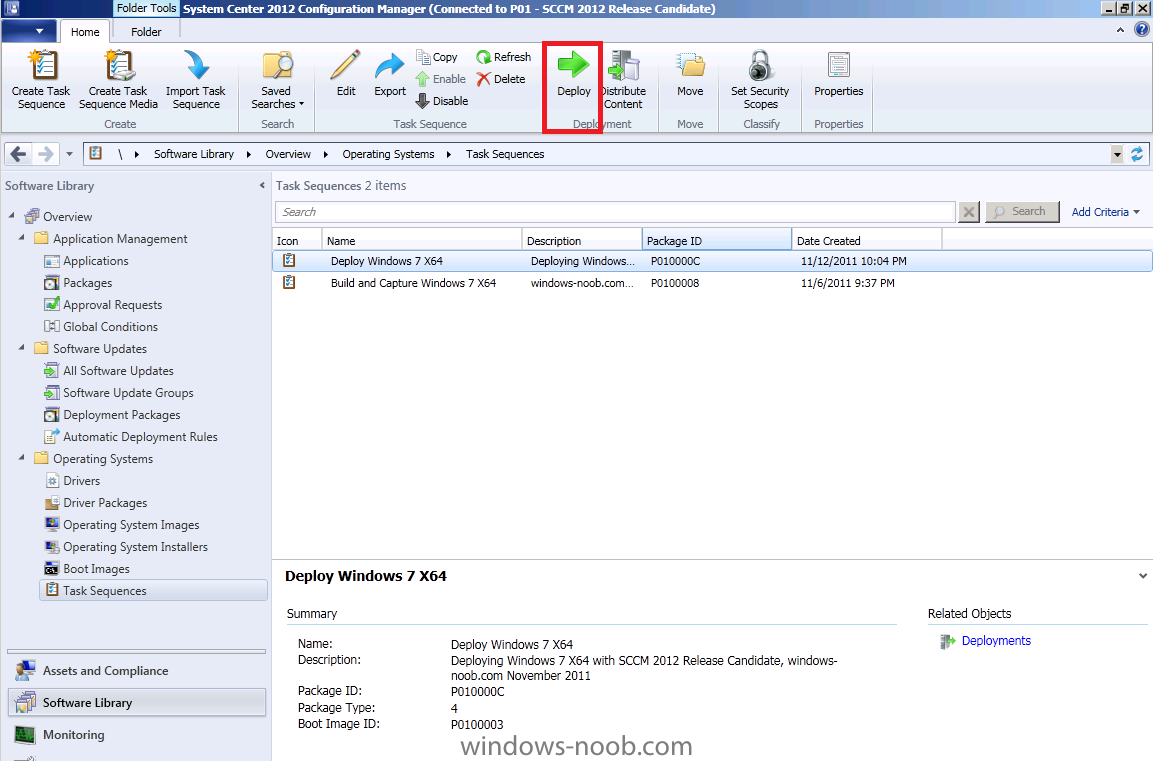

To make the task sequence available to computers we need to Deploy it. In Software Library, select our Deploy Windows 7 X64 task sequence and choose Deploy



deploy task sequence.png



select our Deploy Windows 7 X64 collection and click ok to the warning



ok no members.png



change purpose to Available (this keeps it optional, Required is Mandatory ! and dangerous as a result), place a checkmark in Make available to boot media and PXE






click next through the task sequence, until distribution points, by Default it will be set to Download content locally when needed by running task sequence, you can get this to change to Access content directly by editing each package referenced in the task sequence and setting the Data Access tab for each package, place a checkmark in Copy the content in this package to a package share on Distribution points



download content locally.png



click next through the wizard to completion.

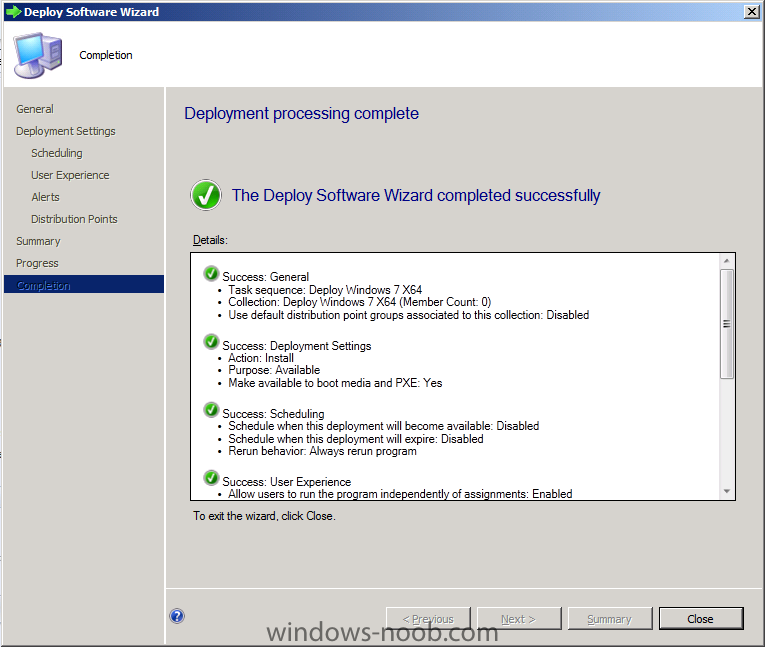

deploy wizard completed successfully.png
