using SCCM 2012 RC in a LAB - Part 11. Adding the Reporting Services Point role



Recommended Posts

anyweb    399

In Part 1 of this series we got our AD and SCCM servers ready, and then we installed System Center 2012 Configuration Manager as a standalone Primary site. In Part 2 we configured the SCCM server further by adding some Windows Server roles necessary for the following Configuration Manager 2012 functionality, Software Update Point (SUP) and Operating System Deployment. In Part 3 we configured the server further by Enabling Discovery methods and creating Boundary's and Boundary Groups. In Part 4 we configured Client Settings, Added roles and Distributed the Configmgr Client to our Computers within the LAB, then in Part 5 we enabled the Endpoint Protection Role and configured Endpoint Protection settings and targeted a collection called All Windows 7 Computers with these settings and policies.



In Part 6 we configured our SUP further to Deploy software updates to our All Windows 7 Computers and Build Windows 7 X64 collections. In Part 7 we used the Build and Capture process to create our Base Windows 7 X64 wim image. In Part 8 we created a USMT 4 package to migrate the users data using hardlinking and then we imported the captured image into ConfigMgr and created a Deploy Windows 7 X64 task sequence. We created a Deploy Windows 7 X64 Collection and set some User Device Affinity collection variables.



In Part 9 we created an Application, and created a deployment type for that application to only install if the Primary User was True for that device (User Device Affinity), we then copied our Task Sequence (duplicated it), deployed the new Task Sequence, added a computer to the new collection and then PXE booted the computer to the Deployment Menu. In Part 10 we monitored the Deployment process in a lot of detail to how UDA sent state messages and we verified that our application installed on the users Primary Device, in addition we modified our collection variables, and added a prestart command to our boot image to prompt for the SMSTSUdaUsers. Now we will setup the Reporting Services Point Role and verify that reporting is working.





Reporting in Configuration Manager:-



The following reporting features are new or have changed in System Center 2012 Configuration Manager.

  • The reporting point has been deprecated

The Reporting Services point is the only site system role used for reporting in System Center 2012 Configuration Manager. For more information about the Reporting Services point, see the Reporting Services Point section later in this topic.

  • Full integration of the Configuration Manager 2007 R2 SQL Server Reporting Services solution

In addition to standard report management, Configuration Manager 2007 R2 introduced support for SQL Server Reporting Services reporting. System Center 2012 Configuration Manager has integrated the Reporting Services solution, added new functionality, and removed standard report management as a reporting solution. For more information about Reporting Services, see the SQL Server Reporting Services section later in this topic.

  • Report Builder 2.0 integration

System Center 2012 Configuration Manager uses Microsoft SQL Server 2008 SP1 Reporting Services Report Builder 2.0 as the exclusive authoring and editing tool for both Model and SQL-based reports. Report Builder 2.0 is automatically installed when you create or modify a report for the first time. For more information about Report Builder, see the Report Builder section later in this topic.

  • Subscription management

Report subscriptions in SQL Reporting Services enable you to configure the automatic delivery of specified reports by e-mail or to a file share at scheduled intervals.

  • Running reports

You can run System Center 2012 Configuration Manager reports in the Configuration Manager console by using Report Viewer or you can run reports from a browser by using Report Manager. Each method for running reports provides a similar experience.

  • Localized reporting

Reports in System Center 2012 Configuration Manager are rendered in the locale of the installed Configuration Manager console. Subscriptions are rendered in the locale that SQL Server Reporting Services is installed. When you author a report, you can specify the assembly and expression.



Reporting in System Center 2012 Configuration Manager provides a set of tools and resources that help you use the advanced reporting capabilities of SQL Server Reporting Services and the rich authoring experience that Microsoft SQL Server 2008 with Service Pack 1 (SP1) Reporting Services Report Builder 2.0 provides. Reporting helps you to gather, organize, and present information about users, hardware and software inventory, software updates, applications, site status, and other Configuration Manager operations in your organization. Reporting provides you with a number of predefined reports that you can use as is or that you can modify to meet your needs, or you can create custom reports.



The following topics on Technet help you to manage reporting in System Center 2012 Configuration Manager:

Step 1. Install the Reporting Services Point Role

Perform the following on your SCCM 2012 server as SMSadmin.

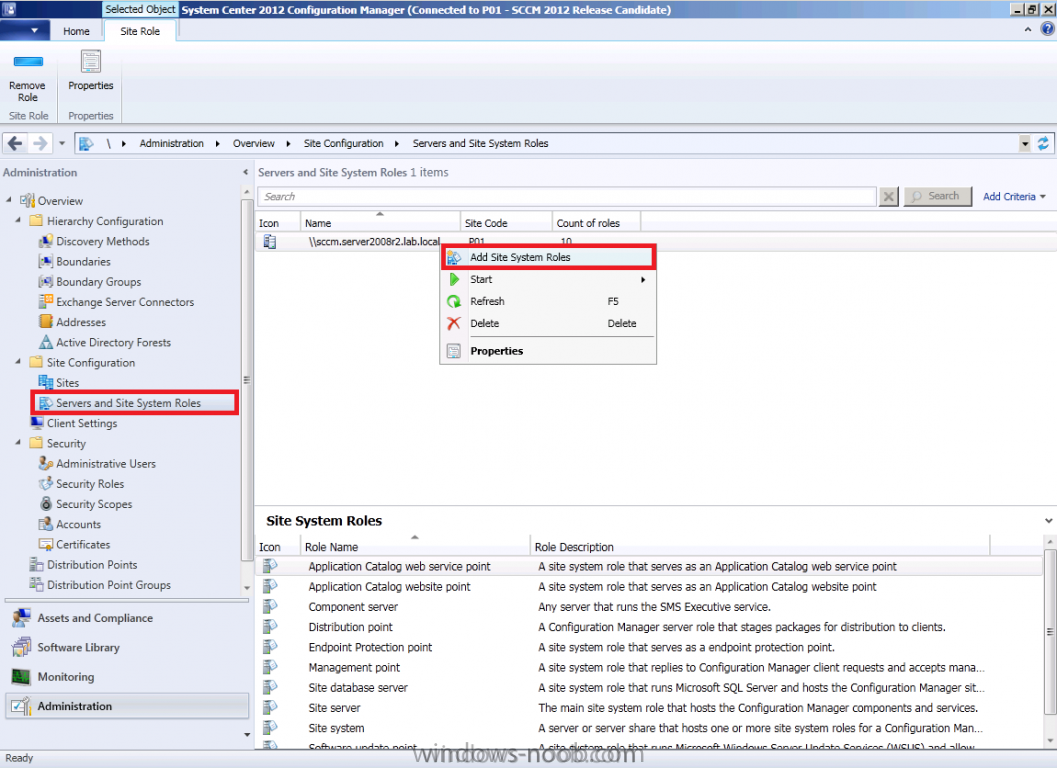

In the ConfigMgr console, click on Administration, Site Configuration, Servers and Site System Roles, right click on our server and choose Add Site System Roles



add site system roles r.png

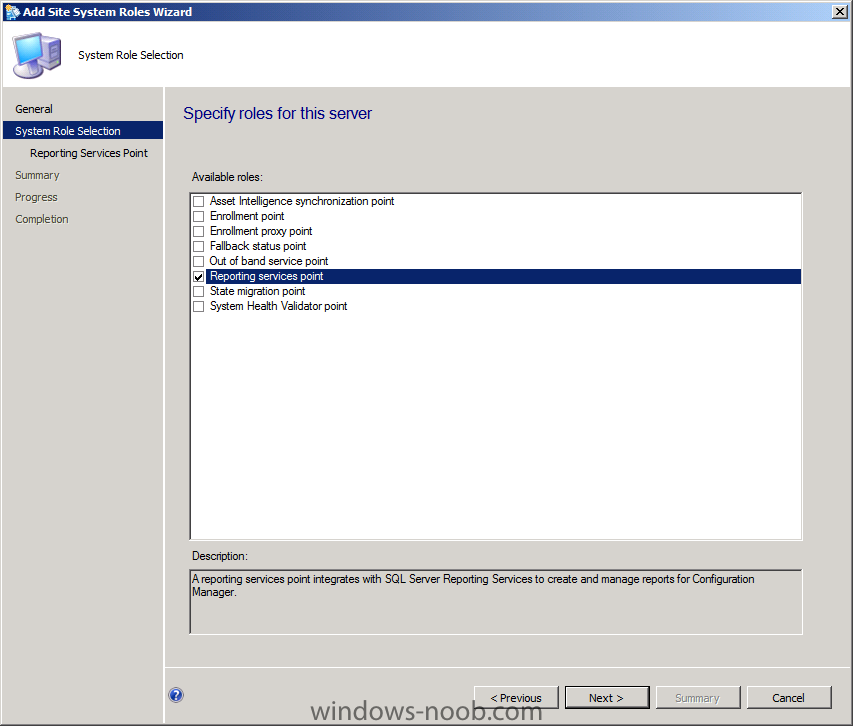

when the Add site system roles wizard appears click next and select Reporting Services Point from the list of available choices



reporting services point role added.png

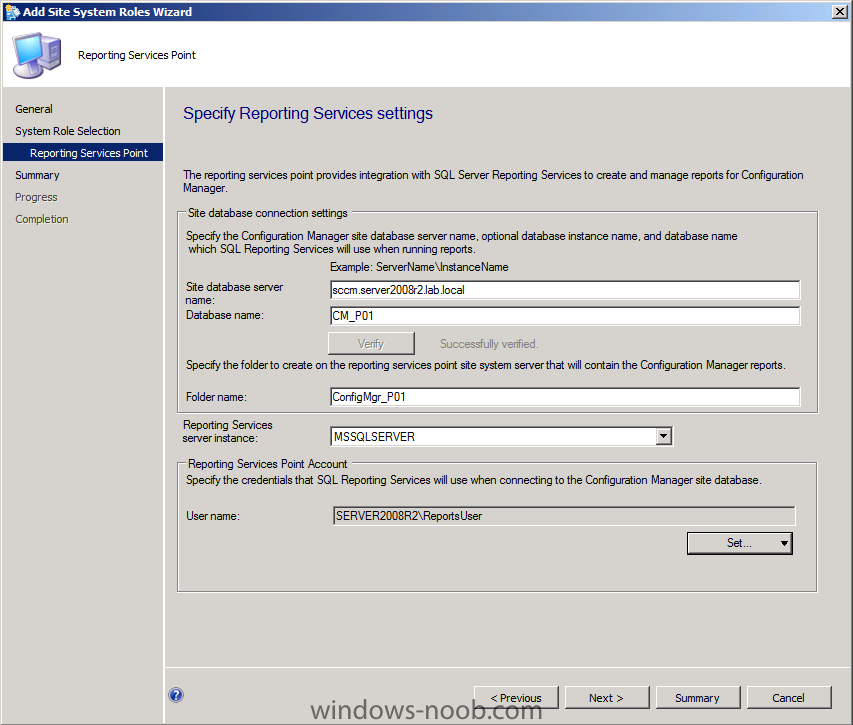

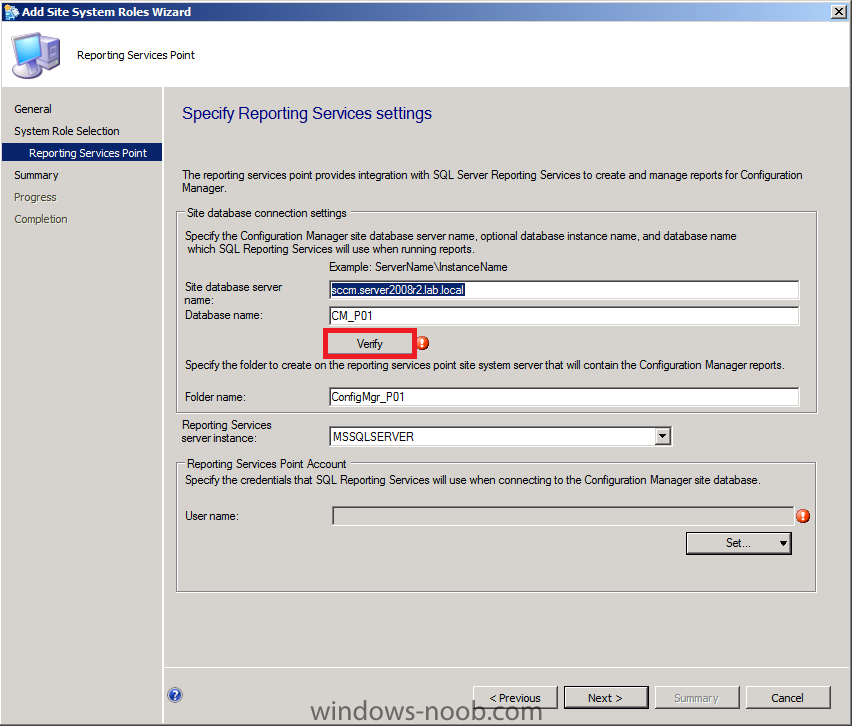

you'll be asked to specify some Reporting Services settings, click on Verify beside database name



verify site database name.png



if all goes well it will be listed as Successfully Verified, now we need to configure a Reporting Services Point Account, and we will use the Active Directory User (called ReportsUser) which we created in Part 1 of this series in Active Directory Users and Computers.



* ReportsUser, a domain user for reporting services.

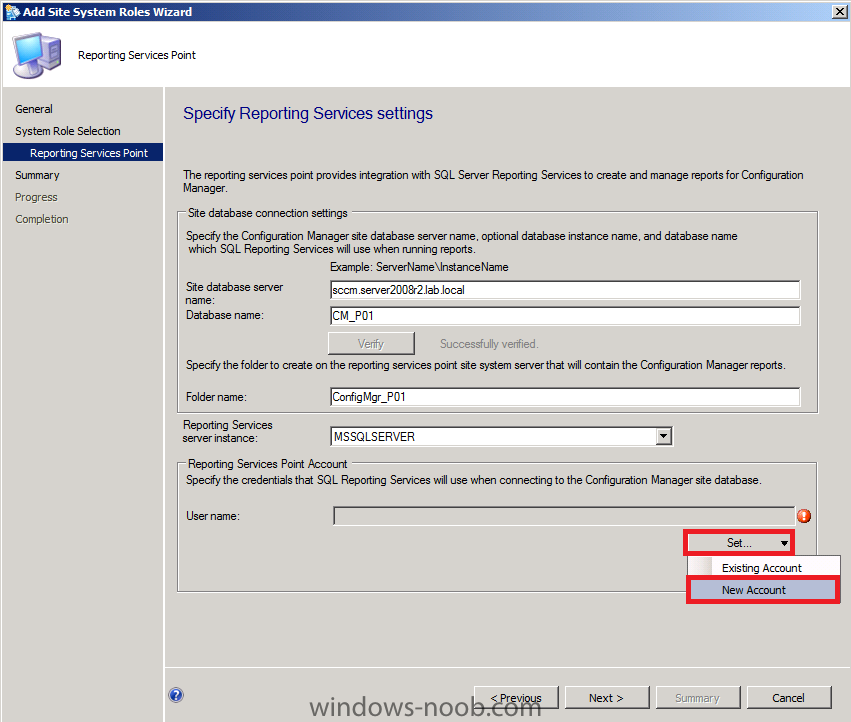

so for User Name click on the Set drop down menu and select New Account



Set New Account.png

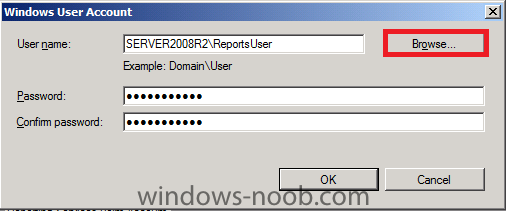

when prompted for Windows User Account, enter the credentials of your ReportsUser account, you can use Browse to easily find the user in Active Directory. The specified Windows user account and password is encrypted and stored in the Reporting Services database.



Note: Reporting Services retrieves the data for reports from the site database using this account and password.



Tip: When installing the Reporting Service Point role, you do not have the ability to 'verify' the Reports user you specify, so the user may not even exist in AD. Therefore, you should browse AD when searching for the user.



windows user account.png



click next to install Reporting Services



next to install reporting services.png

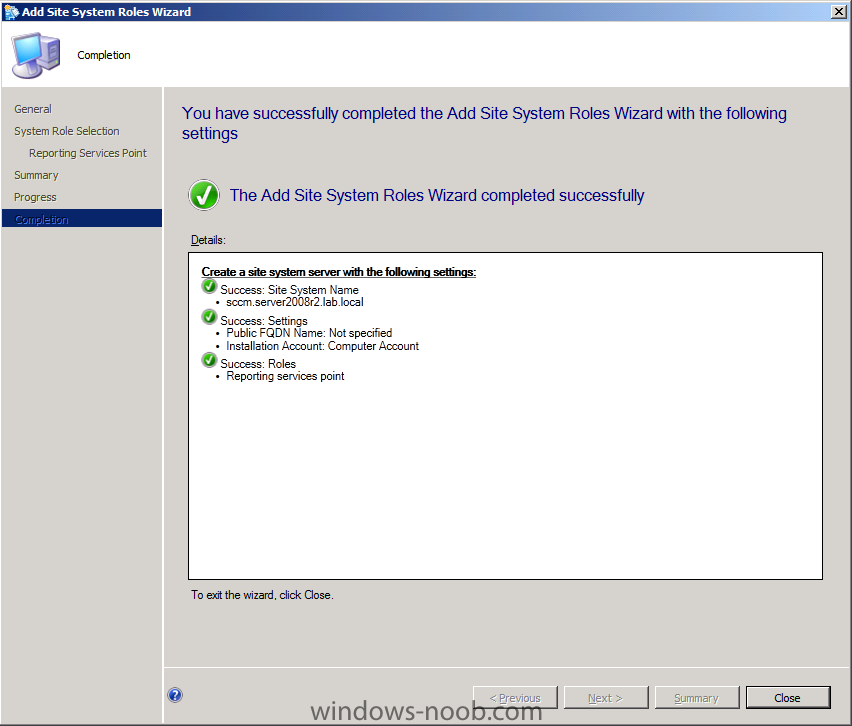

click next at the summary and review the completion screen.



reporting service point role added.png

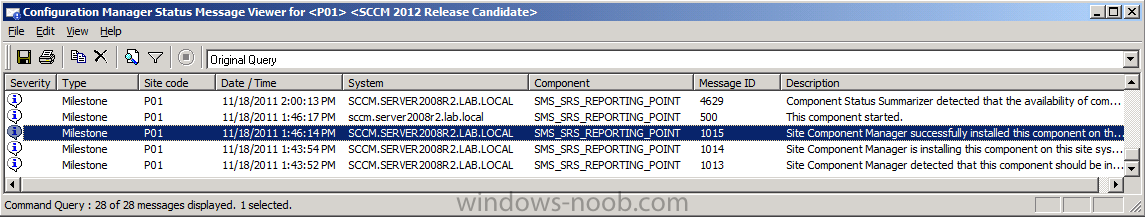

Tip: you can verify that the role installs successfully by monitoring the SMS_SRS_REPORTING_POINT log in Component Status, Monitoring. Look for Message ID 1015 which indicates that the Reporting Services point was successfully installed.

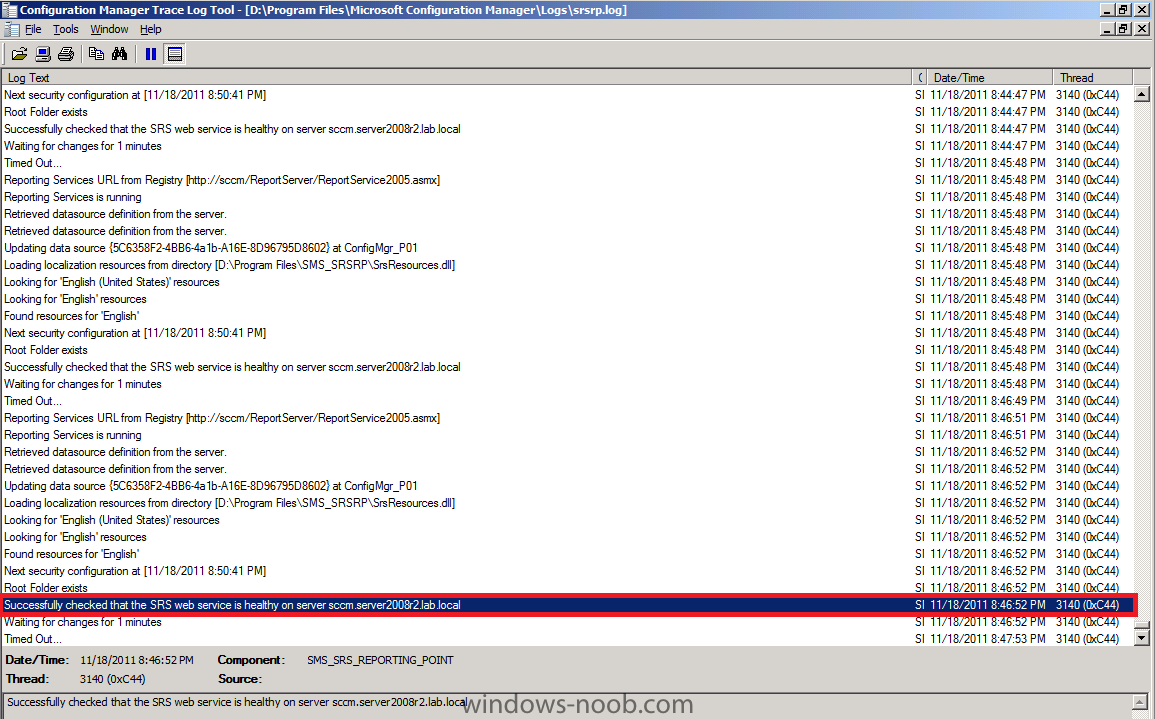

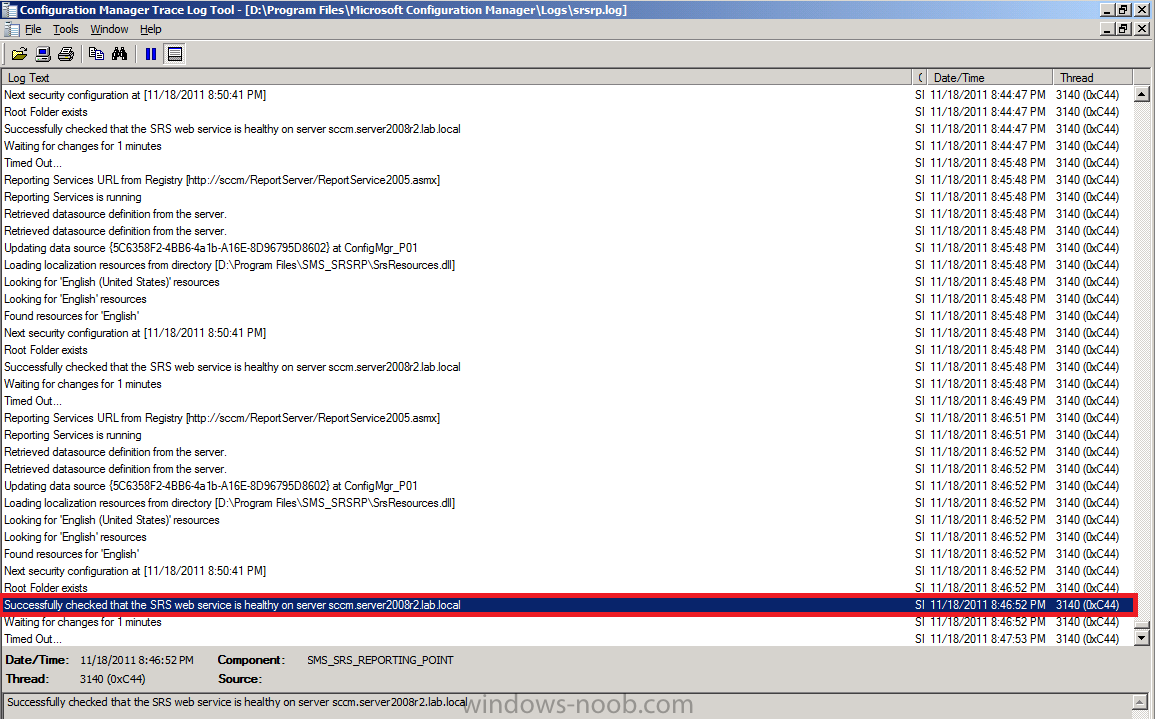

In addition you can verify by checking the following Log on your server, SRSRP.LOG located in D:\Program Files\Microsoft Configuration Manager\Logs, look for a line which reads



Successfully checked that the SRS web service is healthy on server



successfully checked that the SRS Web Service is healthy.png



You should also inspect the SRSRPSetup.log file for the following line, Installation was Successful.







Step 2. Configure Reporting

Perform the following on your SCCM 2012 server as SMSadmin.

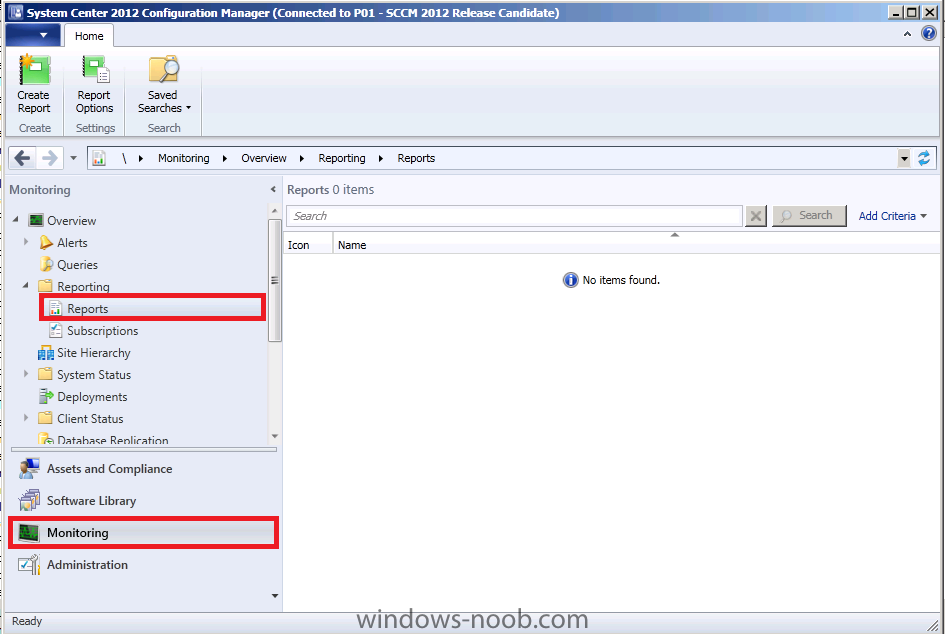

Now that the Reporting Services Point role is installed we need to do some configuration before we can view reports. In the Monitoring Space of ConfigMgr console click on Reports it will list 0 items.



reports 0 items found.png

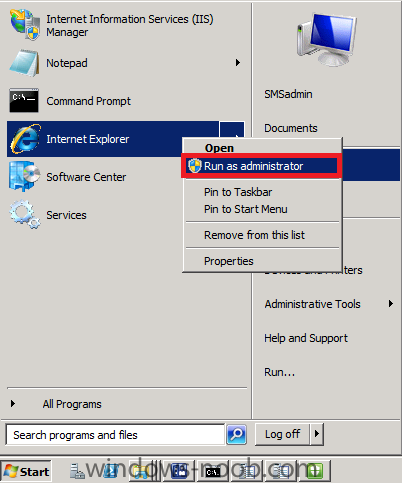

On your ConfigMgr server, click on the start menu and right click on Internet Explorer, choose Run As Administrator, answer Yes to the UAC prompt.



run IE as administrator.png

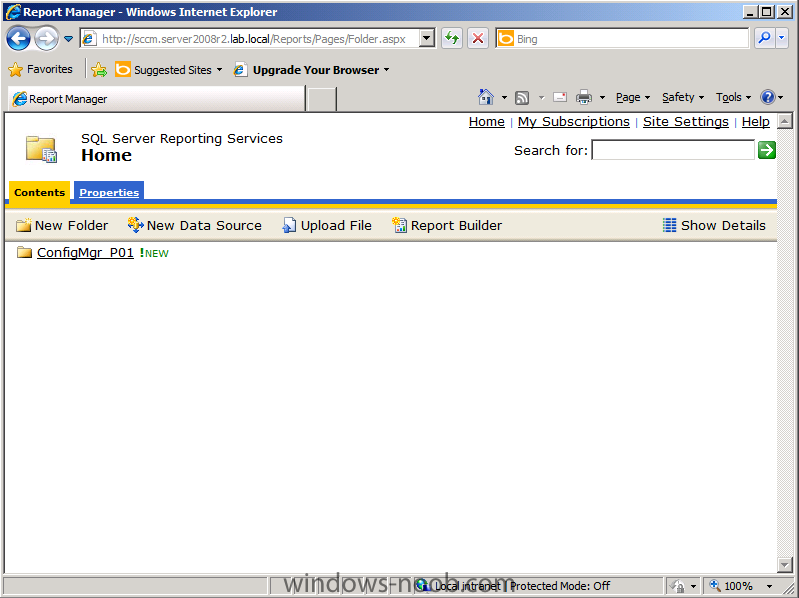

enter the following URL http://sccm.server20...b.local/Reports obviously replace your server FQDN in the URL.



reports URL.png

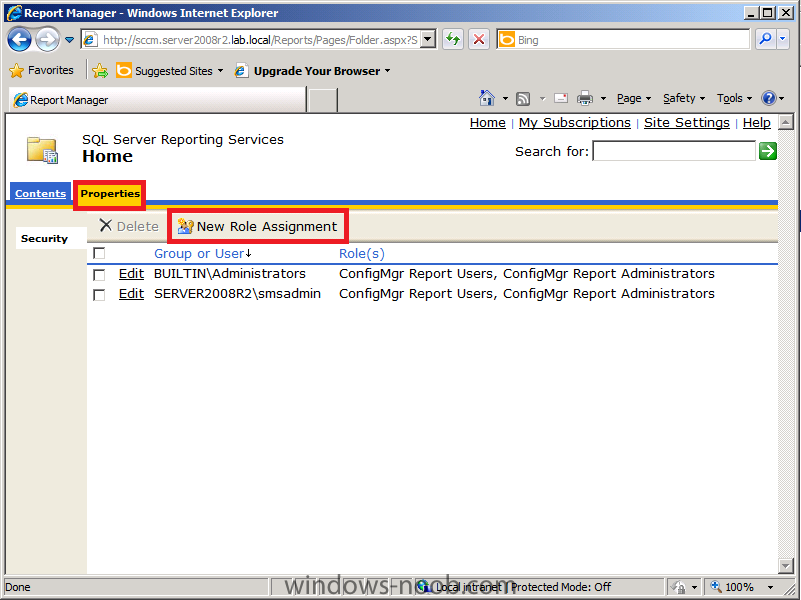

click on the Properties Tab followed by New Role Assignment



New Role Assignment.png

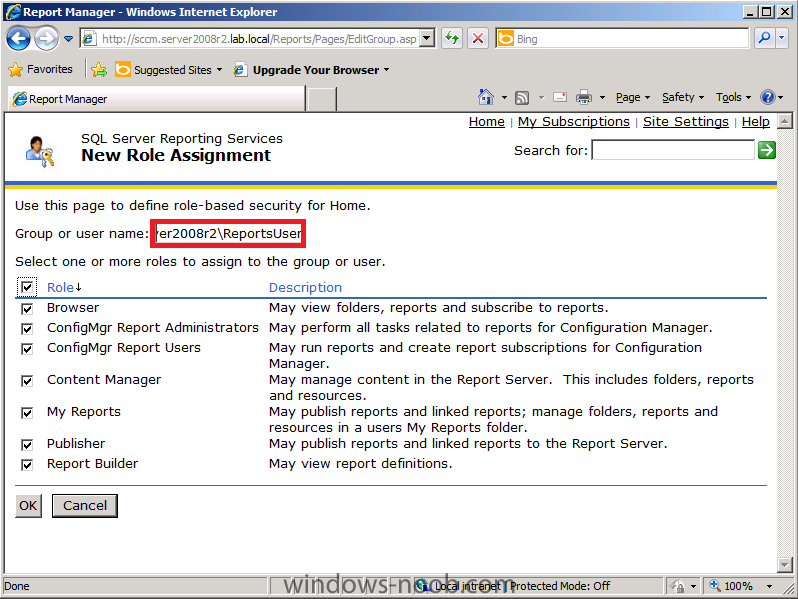

In Group or Username enter Server2008R2ReportsUser and give the user the permissions you want



add reportsuser role assignment.png

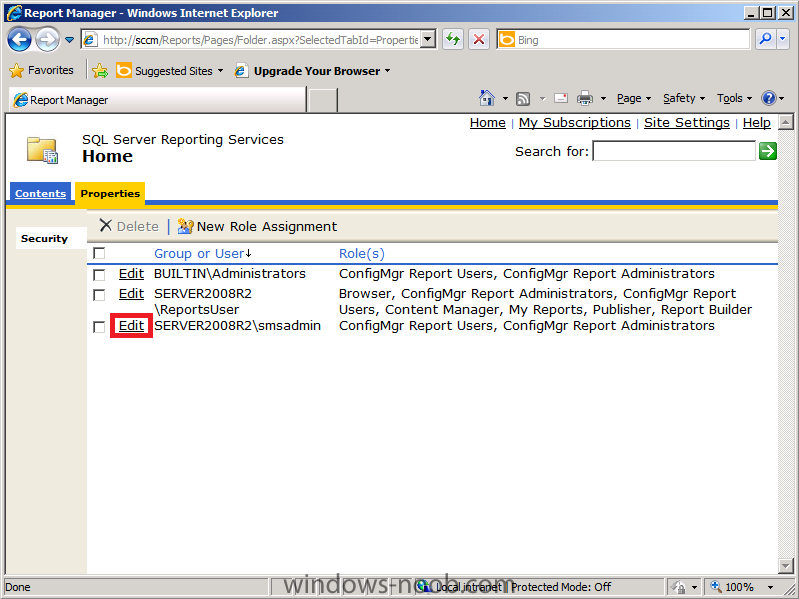

now we can see that the ReportsUser has all reporting roles, and as this is a LAB we should verify that SMSadmin has the rights to do everything, select the SMSadmin user and choose Edit,



edit SMSadmin.png

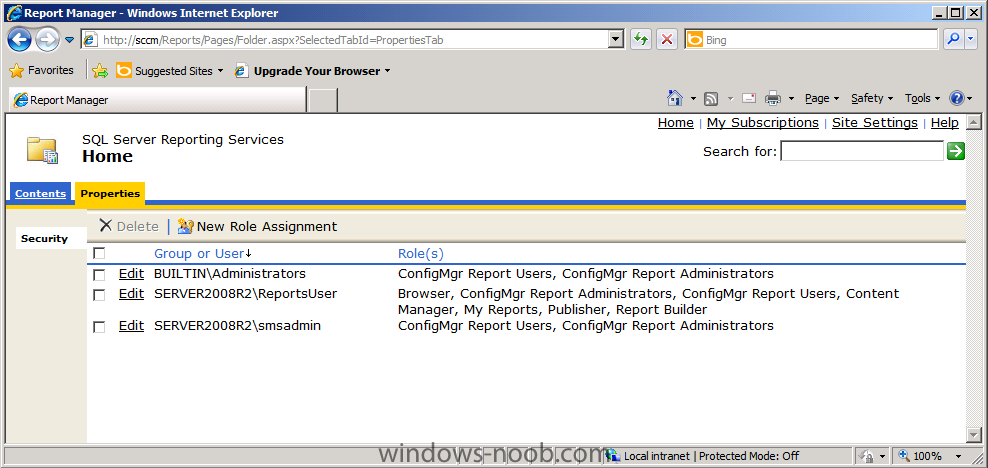

click the Role checkbox so that we get all roles, and then click Apply, after editing both users we want them to have all permissions for Reporting services,



Tip: This is a LAB so it's ok to configure Reporting this way, in production you would want to be more specific about what permissions users are granted.



roles assigned.png

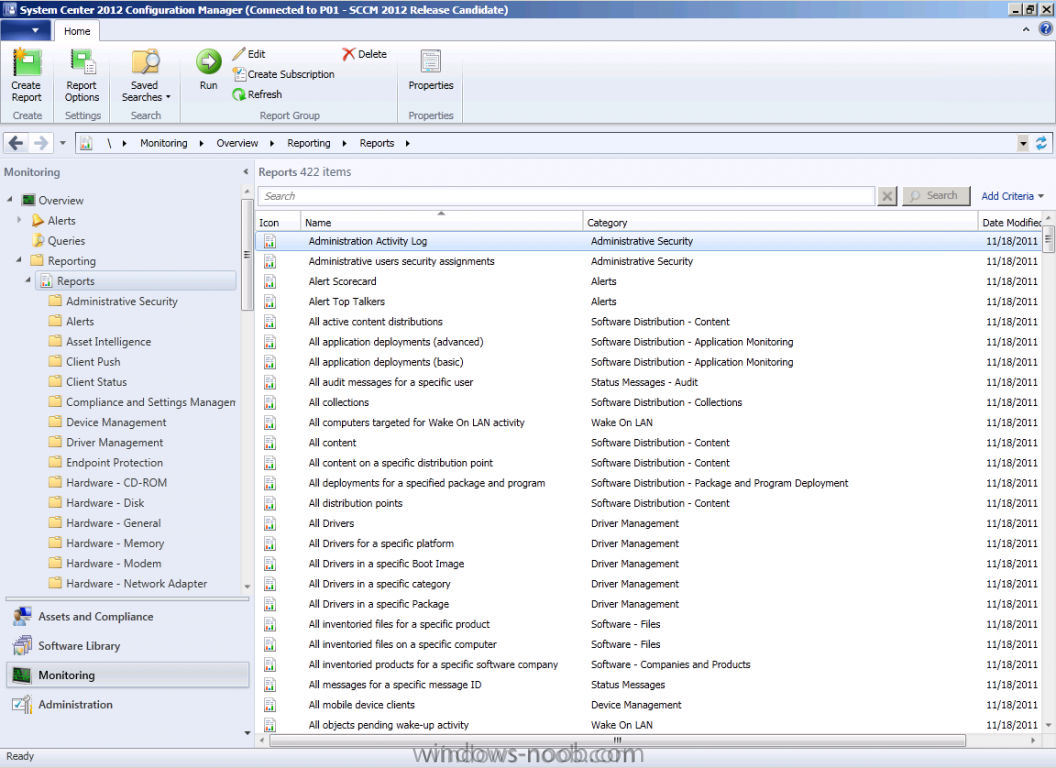

exit from Internet Explorer, and browse Reports within ConfigMgr again, the Reports are listed and ready to be used, note that they are sorted by Category (and also below Reports are Category Folders)



reports listed.png





Step 3. Viewing some Reports

Perform the following on your SCCM 2012 server as SMSadmin.

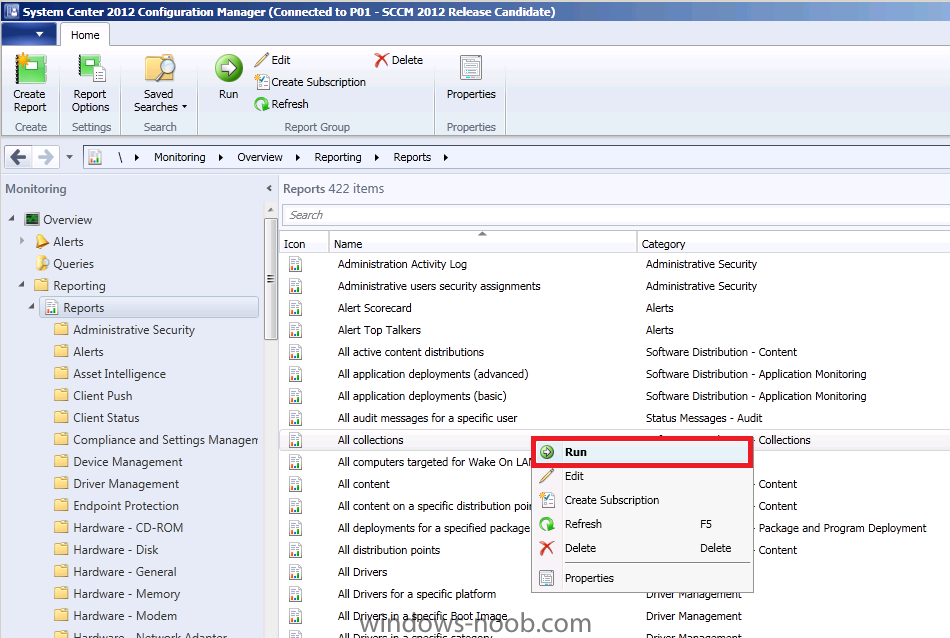

In the ConfigMgr console, expand reports, Select the All Collections report, right click it, choose Run,



run a report.png

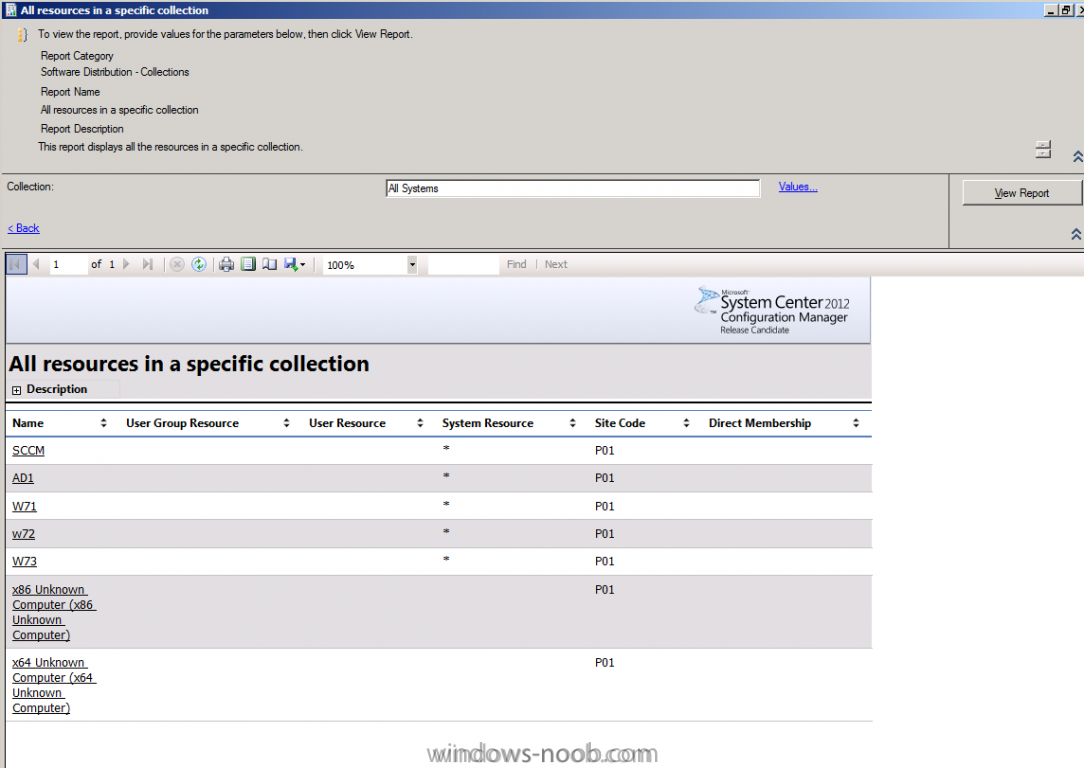

a list of collections appears in the Report Viewer, you can drill down further into the report by clicking on All Systems



All Systems.png

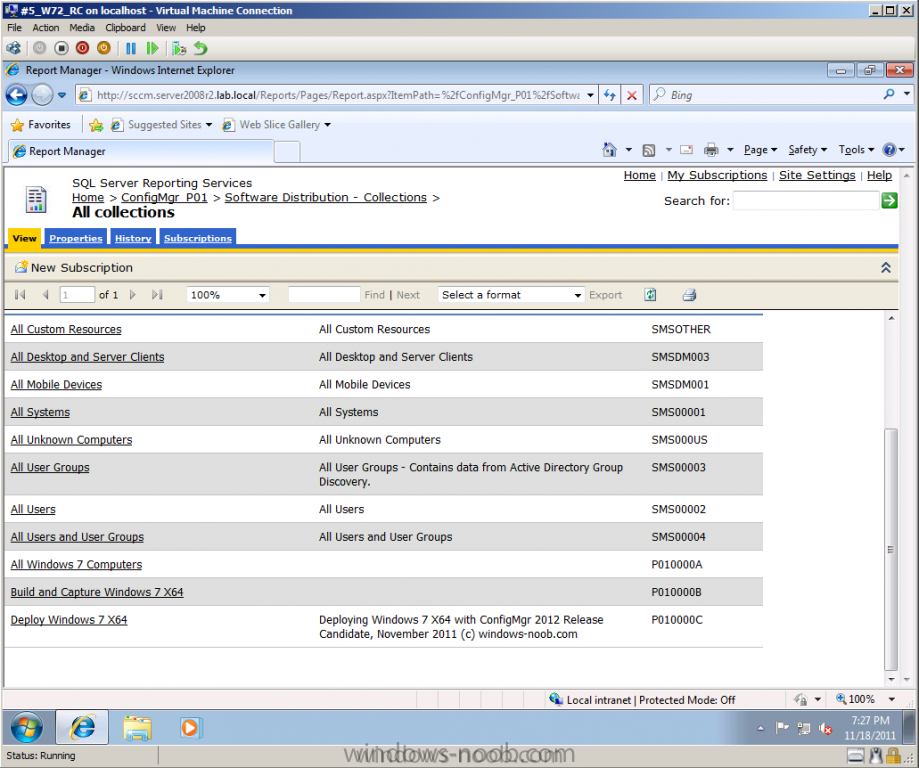

on one of your Windows 7 Client Computers, login as ReportsUser and start Internet Explorer, browse to http:\sccm.server2008r2.lab.localreports and select a report from the ConfigMgr_P01 database



Tip: if the ConfigMgr_P01 database doesn't appear as a temporary measure you can add the ReportsUser to the Local Administrators group on your SCCM server, that's ok in a LAB, in production you'll want to configure your security accordingly and create Groups for Report Readers and Report Administrators.



browsing reports on windows 7 client.png



Thats it ! Reporting Services Point is installed and in our next part we will look at our Endpoint Protection reports and monitor it real time both on the Server and Clients.

Share this post


Link to post
Share on other sites


tmewin    0

Hi



I'm having a problem whereby i get an error stating that the SQL Reporting services root folder "configmgr-P01" is not present or not properly configured on the reporting point server and this error keeps re-occuring.



Not sure what needs to be done for this.



Thanks

Share this post


Link to post
Share on other sites
anyweb    399

where are you getting that error exactly ?

Share this post


Link to post
Share on other sites
tmewin    0

I get that error when i look into monitoring>system status>site status.



It comes up as a critical for the reporting services point.






and i found this in my srsrp.log






Is it an issue with the account i'm using to set up the report point or is the the version of sql. I'm using SQL 2008 workgroup with SP2.



thanks

Share this post


Link to post
Share on other sites
pxedave    0

Hmmm I have a strange one. I'm able to access role administration via IE as described above, but when I add the Report User or Report Administrator role to any accounts (either SMSAdmin or SMSReportsUser), 30 seconds later I refresh the screen and those roles have been removed! Some roles do seem to stick, but not the two Report ones. And when I try and access reports (via IE or the SCCM console) I get an error in a messagebox like the one I've pasted below. Any ideas what I might be missing here? FYI my SMSReportsUser is just a Domain User as I didn't see any step telling me to add it to anything else...







Microsoft.Reporting.WinForms.ReportServerException

An error has occurred during report processing. (rsProcessingAborted)





Stack Trace:

at Microsoft.Reporting.WinForms.ServerReport.ServerUrlRequest(Boolean isAbortable, String url, Stream outputStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.ServerReport.InternalRender(Boolean isAbortable, String format, String deviceInfo, NameValueCollection urlAccessParameters, Stream reportStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.AsyncMainStreamRenderingOperation.RenderServerReport(ServerReport report)

at Microsoft.Reporting.WinForms.AsyncRenderingOperation.PerformOperation()

at Microsoft.Reporting.WinForms.ReportViewer.AsyncReportOperationWrapper.PerformOperation()

at Microsoft.Reporting.WinForms.ProcessingThread.ProcessThreadMain(Object arg)



-------------------------------



Microsoft.Reporting.WinForms.ReportServerException

Cannot impersonate user for data source 'DataSource1'. (rsErrorImpersonatingUser)





Stack Trace:

at Microsoft.Reporting.WinForms.ServerReport.ServerUrlRequest(Boolean isAbortable, String url, Stream outputStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.ServerReport.InternalRender(Boolean isAbortable, String format, String deviceInfo, NameValueCollection urlAccessParameters, Stream reportStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.AsyncMainStreamRenderingOperation.RenderServerReport(ServerReport report)

at Microsoft.Reporting.WinForms.AsyncRenderingOperation.PerformOperation()

at Microsoft.Reporting.WinForms.ReportViewer.AsyncReportOperationWrapper.PerformOperation()

at Microsoft.Reporting.WinForms.ProcessingThread.ProcessThreadMain(Object arg)



-------------------------------



Microsoft.Reporting.WinForms.ReportServerException

Log on failed. (rsLogonFailed)





Stack Trace:

at Microsoft.Reporting.WinForms.ServerReport.ServerUrlRequest(Boolean isAbortable, String url, Stream outputStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.ServerReport.InternalRender(Boolean isAbortable, String format, String deviceInfo, NameValueCollection urlAccessParameters, Stream reportStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.AsyncMainStreamRenderingOperation.RenderServerReport(ServerReport report)

at Microsoft.Reporting.WinForms.AsyncRenderingOperation.PerformOperation()

at Microsoft.Reporting.WinForms.ReportViewer.AsyncReportOperationWrapper.PerformOperation()

at Microsoft.Reporting.WinForms.ProcessingThread.ProcessThreadMain(Object arg)



-------------------------------



Microsoft.Reporting.WinForms.ReportServerException

Logon failure: the user has not been granted the requested logon type at this computer. (Exception from HRESULT: 0x80070569)





Stack Trace:

at Microsoft.Reporting.WinForms.ServerReport.ServerUrlRequest(Boolean isAbortable, String url, Stream outputStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.ServerReport.InternalRender(Boolean isAbortable, String format, String deviceInfo, NameValueCollection urlAccessParameters, Stream reportStream, String& mimeType, String& fileNameExtension)

at Microsoft.Reporting.WinForms.AsyncMainStreamRenderingOperation.RenderServerReport(ServerReport report)

at Microsoft.Reporting.WinForms.AsyncRenderingOperation.PerformOperation()

at Microsoft.Reporting.WinForms.ReportViewer.AsyncReportOperationWrapper.PerformOperation()

at Microsoft.Reporting.WinForms.ProcessingThread.ProcessThreadMain(Object arg)



-------------------------------







UPDATE: OK see the solution to my problem here:

http://www.windows-noob.com/forums/index.php?/topic/4733-permission-problem-with-reporting-part-11/

Share this post


Link to post
Share on other sites
RIX78    1

I am having issues with reporting services , No reports are showing up in the console. SQL reporting services is configured . I checked the srps installation log and installation was successful.

There are three DB's ReportServer , ReportServerTemp ( as of SQL reporting services configuration) and SCCM2012 DB.

It complains that SQL reporting services is not running.



I reconfigured the Reporting services as mentioned in the post by creating a reportuser but when I open http://sccm2012/Reports , I dont see reports folder and when internet explorer is opened with run as admininstrator option.

Share this post


Link to post
Share on other sites
anyweb    399

are you starting internet explorer by right clicking it and choosing 'run as administrator' ?

Share this post


Link to post
Share on other sites
RIX78    1

Yes, I am opening the webpage as administrator and SQL reporting services page opens, However there is no folder ConfigMrg_SiteCode folder on the page.



I uninstall and reinstalled Reporting services role but still same result. No folder on the page.



I also see srsps log http error 404 unauthorised.

Share this post


Link to post
Share on other sites
anyweb    399

you didn't answer my question properly, are you starting Internet Explorer, by right clicking on it, and choosing Run As Administrator ?



runas administrator.png

Share this post


Link to post
Share on other sites
lion1971    0

i am getting the error: "The report server service is not running on Reporting Service Point Server; start the service to enable reporting". i have made sure the SQL server reporting services are running, does anyone know what the problem could be?

Share this post


Link to post
Share on other sites
anyweb    399

if you restart that server does it work then ?

Share this post


Link to post
Share on other sites
lion1971    0

I have restarted the server about 3 times, still not working!!! When i try to run internet explorer, I get this error message: The report server has encountered a configuration error. (rsServerConfigurationError) Get Online Help



Home

Share this post


Link to post
Share on other sites
anyweb    399

strange, in your configmgr status logs do you see any clues as to what the failure is ?

Share this post


Link to post
Share on other sites
lion1971    0

Intially when installing the Report Services Point role, it could not find the Report Services server instance name, but I restarted the server and it found the RSinstance name. After the completing the role, i checked the logs and it says:

indicates that the Reporting Services point was successfully installed.

, but 15 seconds later it gives me this error: "The report server service is not running on Reporting Service Point Server; start the service to enable reporting" I have been troubleshooting for an entire day, but still stuck in the mud. Anyone's help would be greatly appreciated, I am trying to finish the lab, thanks.

Share this post


Link to post
Share on other sites
anyweb    399

did you do anything differently in relation to the lab setup ?

Share this post


Link to post
Share on other sites
lion1971    0

Not that I know of, i have followed it step by step, this is the only major problem I have had, and I would really like for this part to work so i can finish the lab, so i can start adding some other Systems Center products to my lab. Your documentation is outstanding, but I don't know what is going on with this Reporting Service Point role. I really don't want to start this lab all over again :( :(

Share this post


Link to post
Share on other sites
lion1971    0

Ok, I got the problem resolved. I had to login to the sccm server as the Domain\administrator account. Then go to start, all programs, SQL 2008, configuration tools, Reporting Services config manager: Then connect to the database, then you go to the database tab on the left panel and click on change database, I changed mine to ReportServer2, then Report server mode is native; For credentials I used service account=LocalSystem; It will then create the database. I logged off and logged back in as smsadmin and followed the steps to create the reporting services point roll and YES it works now. If I have missed any steps please let me know, because i am not that great of a writer :rolleyes:

Share this post


Link to post
Share on other sites
pulsedrive    0

I have been getting this in my SRSRP log. Any ideas?



Reporting Services URL from Registry ["]http://sbsccm/Report...rvice2005.asmx] SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

The request failed with HTTP status 401: Unauthorized. SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

(!) SRS not detected as running SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

STATMSG: ID=7403 SEV=E LEV=M SOURCE="SMS Server" COMP="SMS_SRS_REPORTING_POINT" SYS=SBSCCM.SANDBOX.COM SITE=P01 PID=2072 TID=3344 GMTDATE=Wed Jan 04 21:36:44.292 2012 ISTR0="SBSCCM.SANDBOX.COM" ISTR1="" ISTR2="" ISTR3="" ISTR4="" ISTR5="" ISTR6="" ISTR7="" ISTR8="" ISTR9="" NUMATTRS=0 SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

Failures reported during periodic health check by the SRS Server SBSCCM.SANDBOX.COM. SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

Waiting for changes for 1 minutes SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

Share this post


Link to post
Share on other sites
Maxx8864    1

I had the same problem as pxedave:



The ReportsUser account would not retain it's settings and returned an error message:



Logon failure: the user has not been granted the requested logon type at this computer. (Exception from HRESULT: 0x80070569)



For me adding the ReportsUser to the Domain Admins group did the trick. Not a brilliant solution but at least it worked. Strangely the existing Admin accounts don't retain their settings but the ReportsUser does.

Share this post


Link to post
Share on other sites
pxedave    0

Hi!



FYI. I went on to create an SMSReportUsers group in AD, allowing normal test user accounts to access reports through their broswers too. I found I didn't have to define this group in the SCCM console at all, only through the browser as described above.



When doing this I noticed that the permissions being set did not propegate to the child folders so I had to do this manually (hit ConfigMgr_001, Properties, Security, Revert To Parent Security, and also repeat this for subfolders under ConfigMgr_001 to allow this groups to see reports). I'm not sure if this is perculiar to my setup, the RC etc. I also noticed that adding this group to the local administrators group got around this issue, but obviously this is not ideal. Maybe this is why this tip is provided in the instructions above.

Share this post


Link to post
Share on other sites
pxedave    0

I had the same problem as pxedave:



The ReportsUser account would not retain it's settings and returned an error message:



Logon failure: the user has not been granted the requested logon type at this computer. (Exception from HRESULT: 0x80070569)



For me adding the ReportsUser to the Domain Admins group did the trick. Not a brilliant solution but at least it worked. Strangely the existing Admin accounts don't retain their settings but the ReportsUser does.





Find my resolution here, maxx...

http://www.windows-noob.com/forums/index.php?/topic/4733-permission-problem-with-reporting-part-11/

Share this post


Link to post
Share on other sites

I have been getting this in my SRSRP log. Any ideas?



Reporting Services URL from Registry [http://sbsccm/Report...rvice2005.asmx] SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

The request failed with HTTP status 401: Unauthorized. SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

(!) SRS not detected as running SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

STATMSG: ID=7403 SEV=E LEV=M SOURCE="SMS Server" COMP="SMS_SRS_REPORTING_POINT" SYS=SBSCCM.SANDBOX.COM SITE=P01 PID=2072 TID=3344 GMTDATE=Wed Jan 04 21:36:44.292 2012 ISTR0="SBSCCM.SANDBOX.COM" ISTR1="" ISTR2="" ISTR3="" ISTR4="" ISTR5="" ISTR6="" ISTR7="" ISTR8="" ISTR9="" NUMATTRS=0 SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

Failures reported during periodic health check by the SRS Server SBSCCM.SANDBOX.COM. SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)

Waiting for changes for 1 minutes SMS_SRS_REPORTING_POINT 1/4/2012 4:36:44 PM 3344 (0x0D10)





First make sure that you have CU 4 for SQL Server 2008 R2 installed (if you have 2008 R2). If you did install it and are still having this problem, try deleting and recreating the Encryption Key within Reporting Services Configuration Manager. That's what ultimately fixed it for me.

Share this post


Link to post
Share on other sites

Hello - I'm stuck trying to add Reporting Services Role.

My DBA wants us to point to an existing reporting services server. I can't figure out where to configure that.




Is it even possible to use a separate Report Server?

Thanks for any help,

Murf

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
