using SCCM 2012 RC in a LAB - Part 16. Integrating MDT with Configuration Manager 2012



Recommended Posts

In Part 1 of this series we got our AD and SCCM servers ready, and then we installed System Center 2012 Configuration Manager as a standalone Primary site. In Part 2 we configured the SCCM server further by adding some Windows Server roles necessary for the following Configuration Manager 2012 functionality, Software Update Point (SUP) and Operating System Deployment. In Part 3 we configured the server further by Enabling Discovery methods and creating Boundary's and Boundary Groups. In Part 4 we configured Client Settings, Added roles and Distributed the Configmgr Client to our Computers within the LAB, then in Part 5 we enabled the Endpoint Protection Role and configured Endpoint Protection settings and targeted a collection called All Windows 7 Computers with these settings and policies.

In Part 6 we configured our SUP further to Deploy software updates to our All Windows 7 Computers and Build Windows 7 X64 collections. In Part 7 we used the Build and Capture process to create our Base Windows 7 X64 wim image. In Part 8 we created a USMT 4 package to migrate the users data using hardlinking and then we imported the captured image into ConfigMgr and created a Deploy Windows 7 X64 task sequence. We created a Deploy Windows 7 X64 Collection and set some User Device Affinity collection variables.

In Part 9 we created an Application, and created a deployment type for that application to only install if the Primary User was True for that device (User Device Affinity), we then copied our Task Sequence (duplicated it), deployed the new Task Sequence, added a computer to the new collection and then PXE booted the computer to the Deployment Menu. In Part 10 we monitored the Deployment process in a lot of detail to how UDA sent state messages and we verified that our application installed on the users Primary Device, in addition we modified our collection variables, and added a prestart command to our boot image to prompt for the SMSTSUdaUsers. In Part 11 we setup the Reporting Services Point Role and verified that reporting was working.

In Part 12 we demonstrated a new feature in ConfigMgr which allows us to Patch operating system WIM images using Offline Servicing. This means that you can apply Windows Updates by using Component-Based Servicing (CBS) to update the your previously captured WIM images. In Part 13 we looked at how Role Based Administration is used within ConfigMgr and we created a new custom role to allow a user (or users within a Security Group) to view Software Update Reports. This is useful because you will probably want one team to take care of configuring and deploying software updates, and to grant another (Management etc) the capability of reviewing Compliance Reports. In Part 14 we performed a side-by-side migration from Configuration Manager 2007.

In Part 15, we deployed Windows 8 Consumer Preview to see if it was possible, and indeed it was (it's not supported by Microsoft however). Now we will integrate the recently released MDT 2012 RC1 with Configuration Manager to avail of new features (features and enhancements which can help to make large-scale desktop and server deployments smoother than ever) that it provides through MDT Integration. Having MDT integrated with ConfigMgr will give you lots of benefits and abilities so I would definitely recommend you integrate it. Note that in order to download this build of MDT you have to be registered with the MDT program on Connect.

Support for Configuration Manager 2012 RC2: This update provides support for Configuration Manager 2012 RC2 releases. MDT 2012 fully leverages the capabilities provided by Configuration Manager 2012 for OS deployment. The latest version of MDT offers new User-Driven Installation components and extensibility for Configuration Manager 2007 and 2012. Users now also have the ability to migrate MDT 2012 task sequences from Configuration Manager 2007 to Configuration Manager 2012.


Step 1. Download MDT 2013 and Install it.
Note: Perform the following on the ConfigMgr 2012 server as SMSadmin

MDT 2013 is available from the following location. As we are using Server 2008 R2 (64bit OS) we will download and install the 64 bit version of the software (MicrosoftDeploymentToolkit2013_x64.msi).

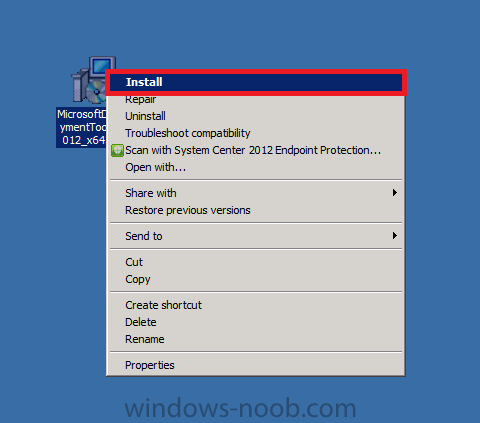

If your ConfigMgr console is open, close it and then install the MSI by right clicking on the downloaded MSI file and choose Install.

Install MDT Msi.png

when the open file security window appears choose Run

run mdt.png

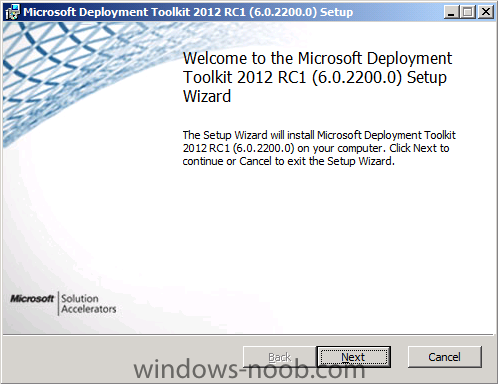

the Welcome to MDT wizard appears, click next

mdt welcome wizard.png

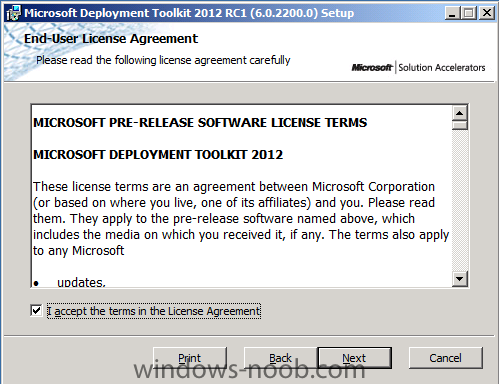

accept the EULA if you want to continue and click next

mdt eula.png

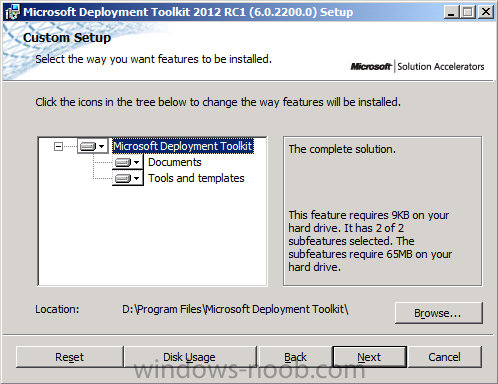

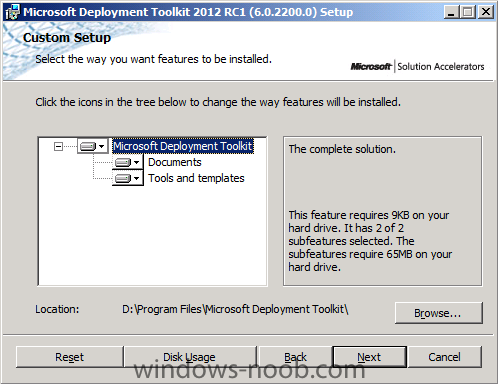

and next you get to choose where you want to isntall MDT, we will install it on D:\Program Files\Microsoft Deployment Toolkit\ so set your path accordingly

mdt toolkit location.png

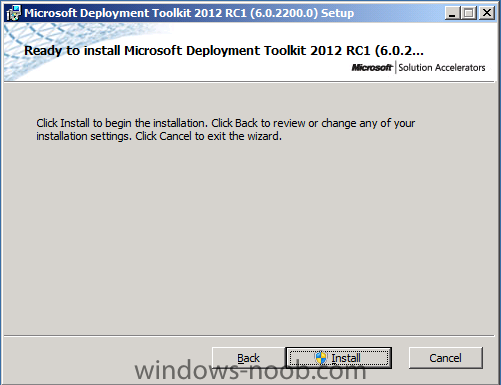

click next, and then click Install

mdt next install.png

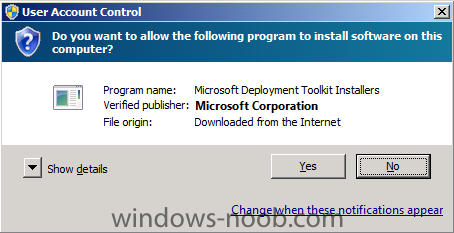

answer yes to the UAC prompt

mdt uac.png

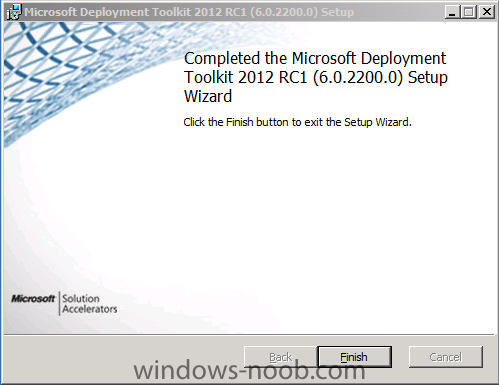

and finally it's installed by clicking Finish.

mdt finish.png


Step 2. Integrating MDT with Configuration Manager
Note: Perform the following on the ConfigMgr 2012 server as SMSadmin

Now that you have installed MDT you want to integrate it (Configure ConfigMgr Integration) with ConfigMgr. We do this to gain access to tools and features that MDT provides from within the ConfigMgr console.

In the start menu, locate the newly installed Microsoft Deployment Toolkit application and expand it, locate the Configure ConfigMgr Integration shortcut and right click, choose Run as Administrator.

mdt integrate mdt.png

click yes when prompted by UAC

mdt uac integrate.png

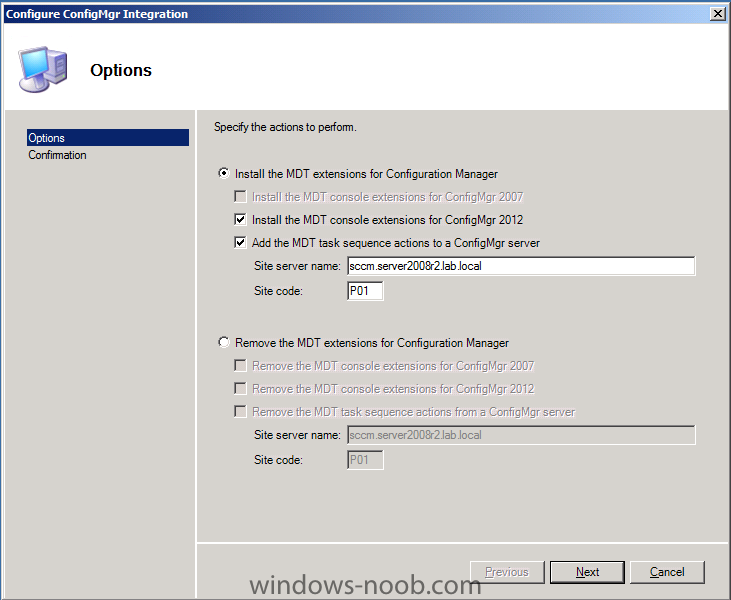

review the pre-populated options and click next

mdt options.png

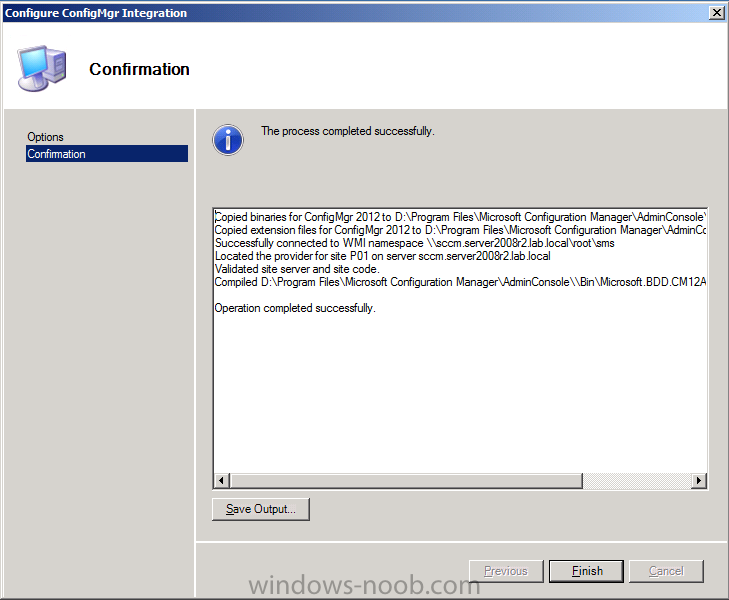

and review the Confirmation, make sure there are no issues reported otherwise your MDT Integration has failed

mdt confirmation.png


Step 3. Create a MDT Task Sequence in ConfigMgr
Note: Perform the following on the ConfigMgr 2012 server as SMSadmin

We need the following MDT components to be created:



  • MDT Boot image
  • MDT Toolkit Files
  • MDT Settings

To create these MDT components so that we can use them later on, we run a wizard by creating a MDT Task Sequence. The wizard will guide you through creating these packages. The MDT boot image (for example) gives you extra abilities over the standard ConfigMgr boot image such as the ability to display a HTA.

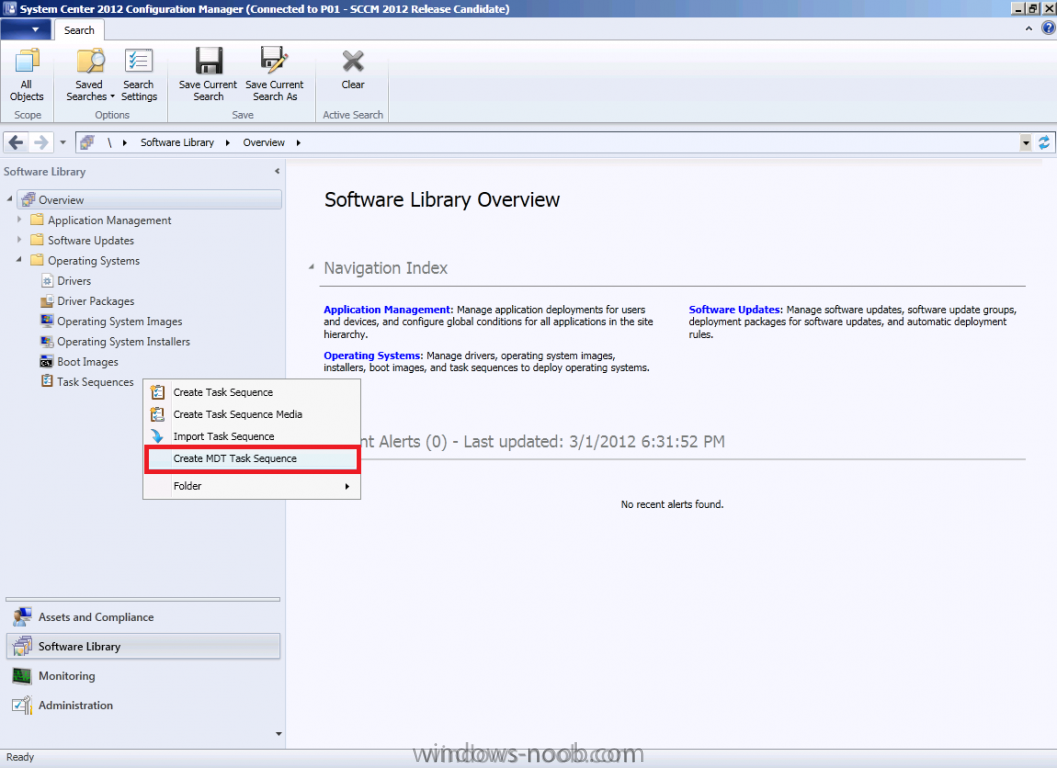

Start up the ConfigMgr console and browse to Software Library, Operating Systems, right click on Task Sequences and choose Create MDT Task Sequence.

create mdt task sequence.png

Choose a Template, there are several provided in the drop down menu, we will choose Client Task sequence


fill in the Task Sequence name and comments

MDT ts name.png

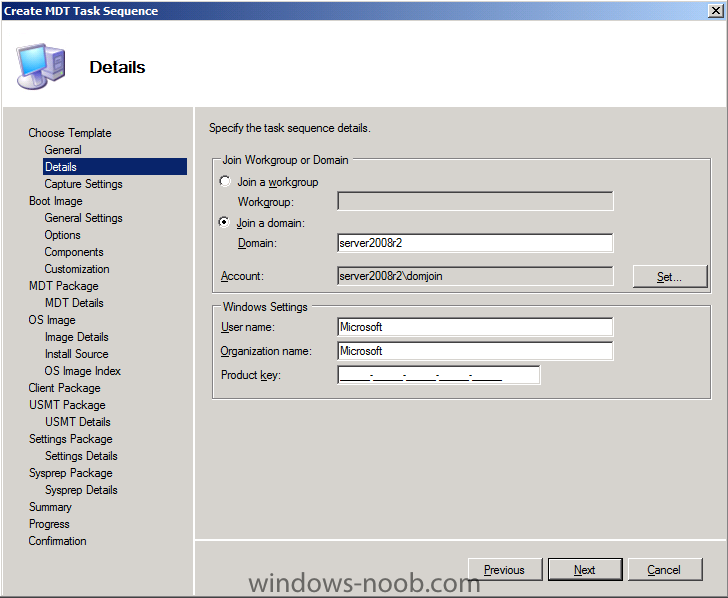

for Details, fill in your Domain Join credentials

mdt details.png

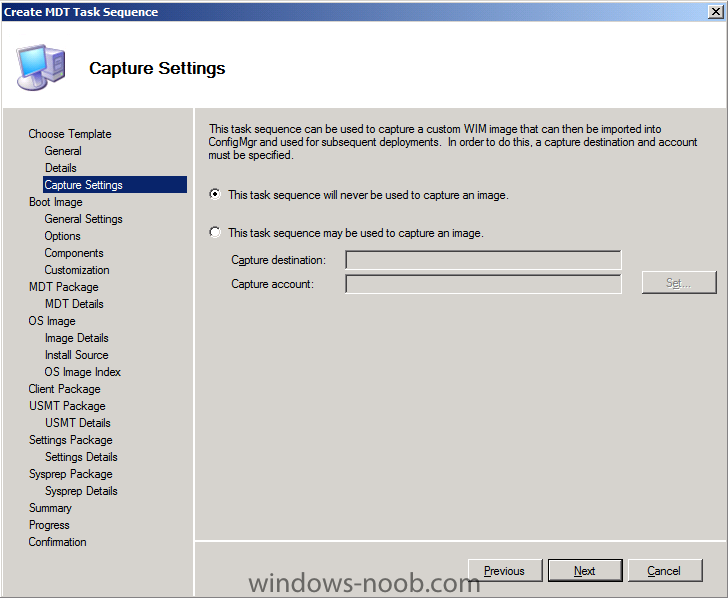

We are not going to catpure an image with this Task Sequence, as we are only using this Task Sequence to create the needed MDT Files and Settings packages...

mdt not going to capture.png

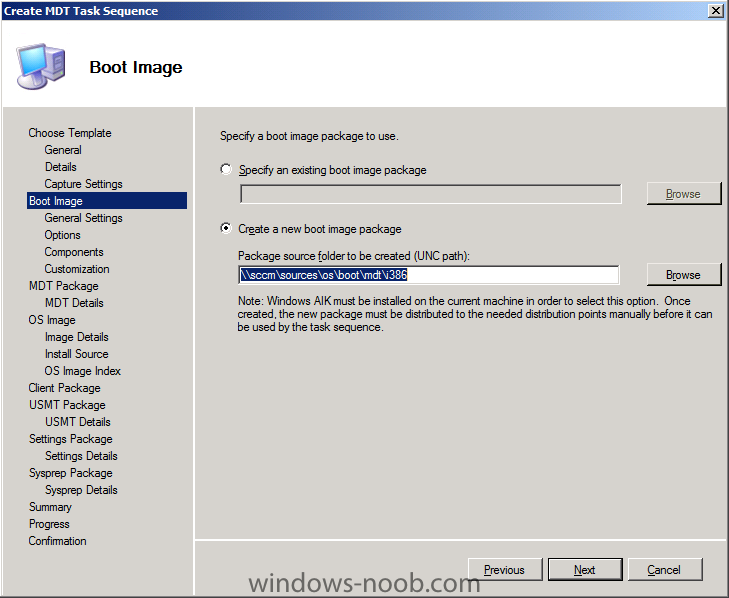

for boot image, specify a previously created (empty folder) UNC path, eg: \\sccm\sources\os\boot\mdt\i386

mdt boot unc.png

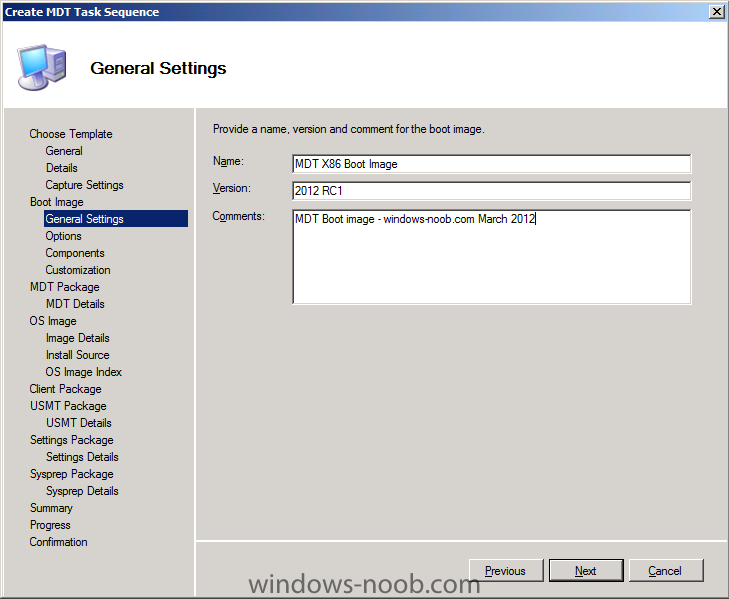

fill in some MDT boot image details

mdt boot image details.png

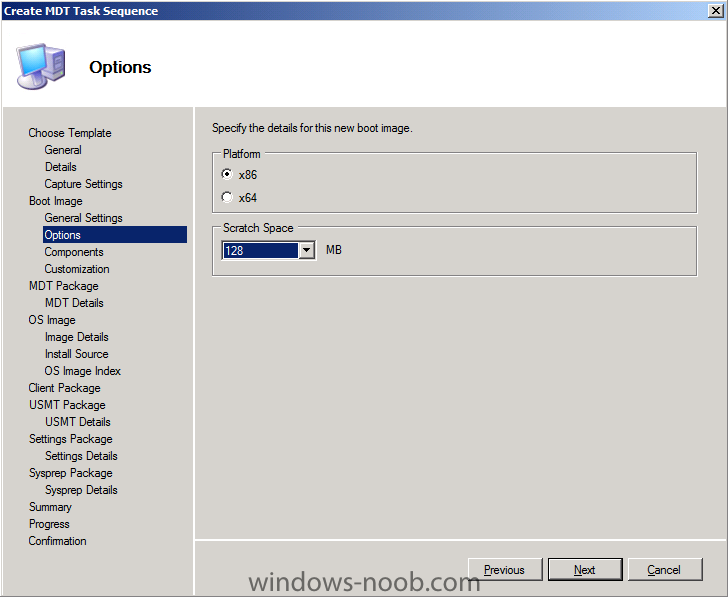

and for options specify the X86 architecture and set your scratch space (environment for MDT to use in WinPE) to 128MB (to allow drivers etc...)

mdt scratch options.png

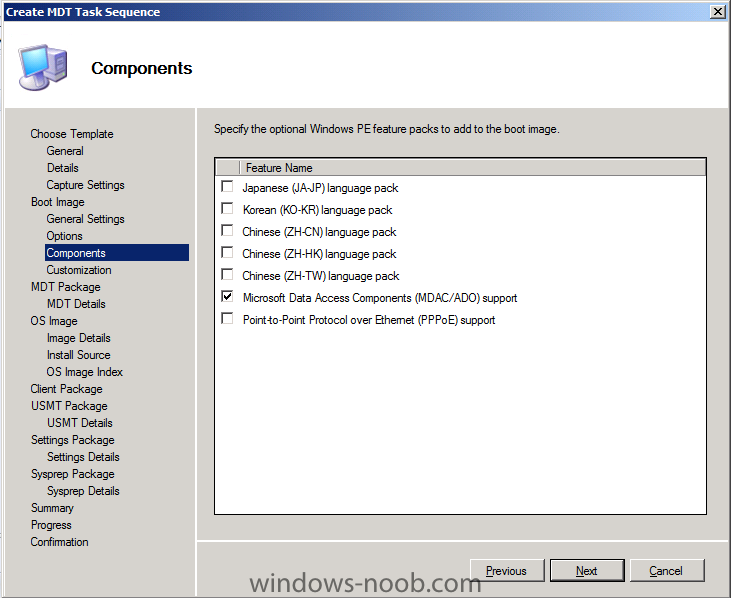

next select your optional WinPE components (language, MDAC/ADO support and PPoE)

winpe components.png

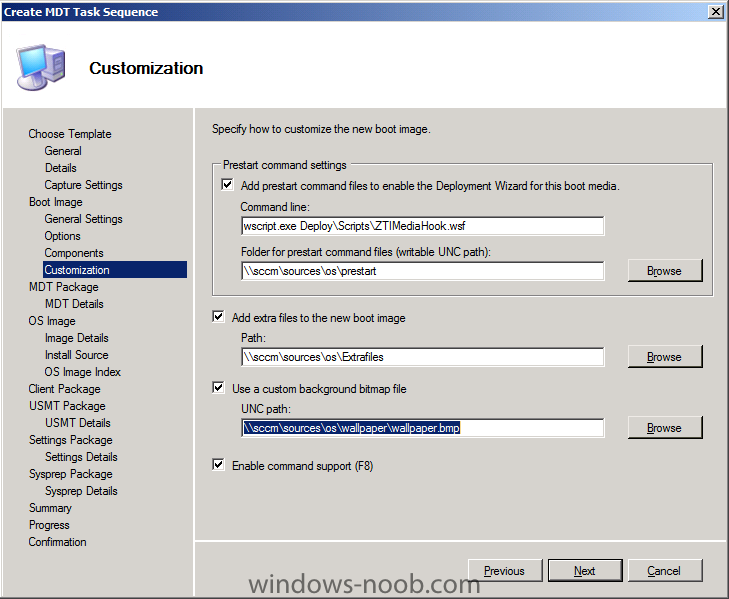

and fill in your prestart, extrafiles and wallpaper options (all optional), make sure to leave F8 command prompt selected

winpe customization.png

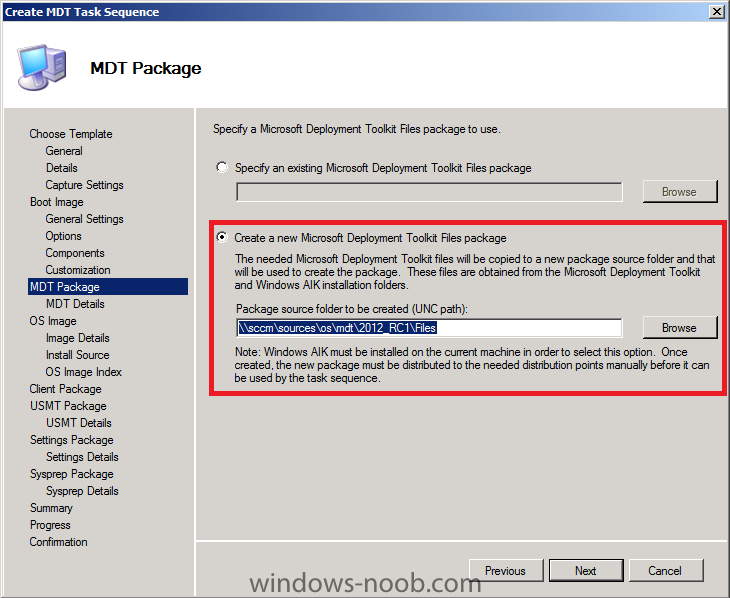

Next we get to create our MDT Toolkit Files package, so select the Create a new Microsoft Deployment Toolkit Files package option, point it to a previously created path such as \\sccm\sources\os\mdt2013\files

mdt files.png

fill in details about the MDT Toolkit Files package..be descriptive as it's common to have different versions of MDT Files in your lab (in the future)

MDT toolkit files details.png

for OS Image, specify an exiting image, select the Windows 7 X64 image we captured in part 7

os image.png

and then select our previously created Configuration Manager Client Package

client package.png

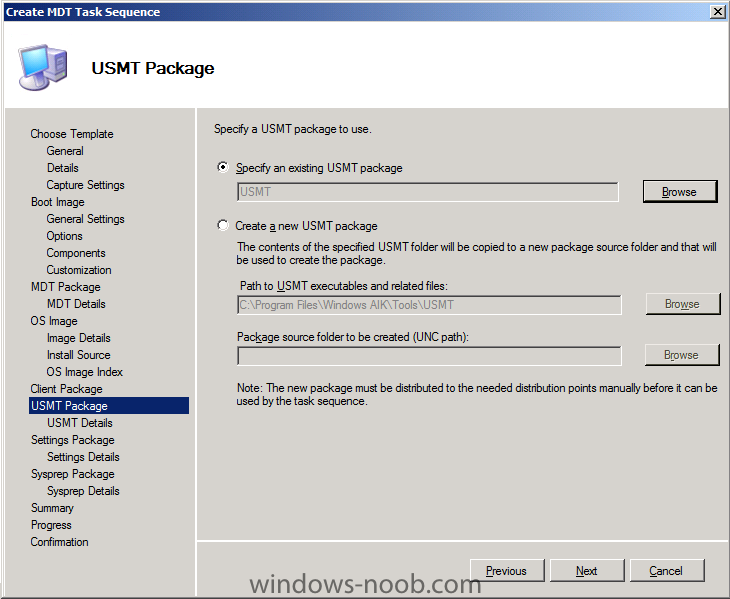

and our previously created USMT 4 package

usmt package.png

for the Settings Package, we choose to create a new Microsoft Deployment Toolkit Settings Package, point it to \\sccm\sources\os\mdt2013\settings

mdt settings package.png

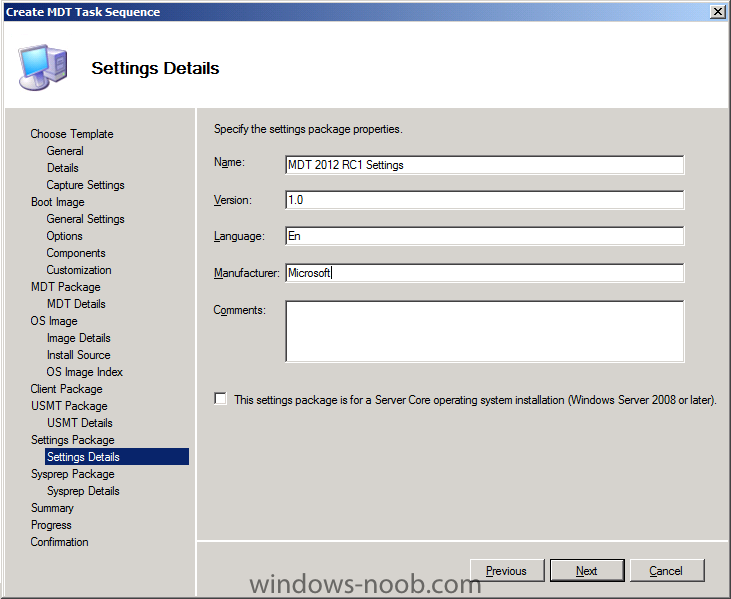

fill in the Settings Package details

mdt settings details.png

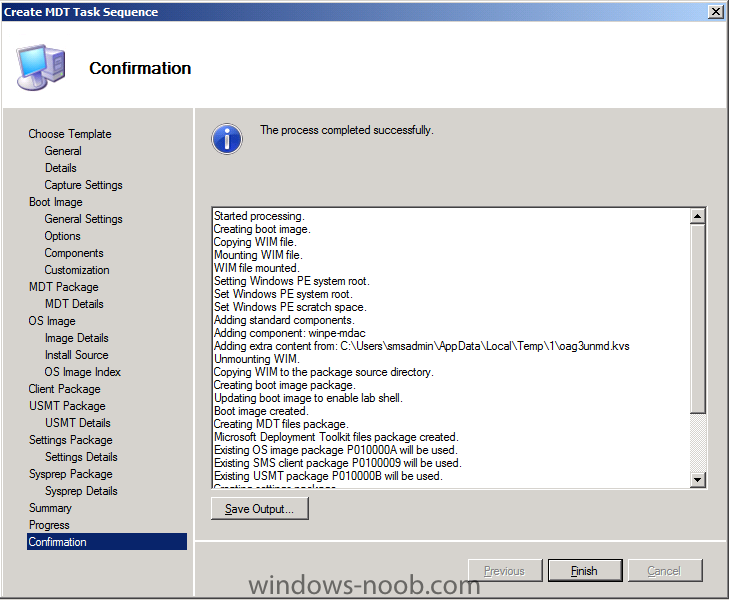

choose No Sysprep package and click next through the summary to Confirmation, answer Yes to any UAC prompt that may appear, at this point you can go take a long coffee break as this takes quite some time to mount the WIM image (boot) and create the packages and do it's magic..

adding component winpe-mdac.png

and finally it's done !

mdt done.png

Step 4. Distribute your new MDT packages and boot image to your distribution points
Note: Perform the following on the ConfigMgr 2012 server as SMSadmin

At this point, i'm sure we are all aware how to distribute content in ConfigMgr, and now we have some new packages (MDT Files, MDT Settings) and a new MDT boot image to distribute to our dp's.

I'll show you how to distribute one of these, you can do the rest.

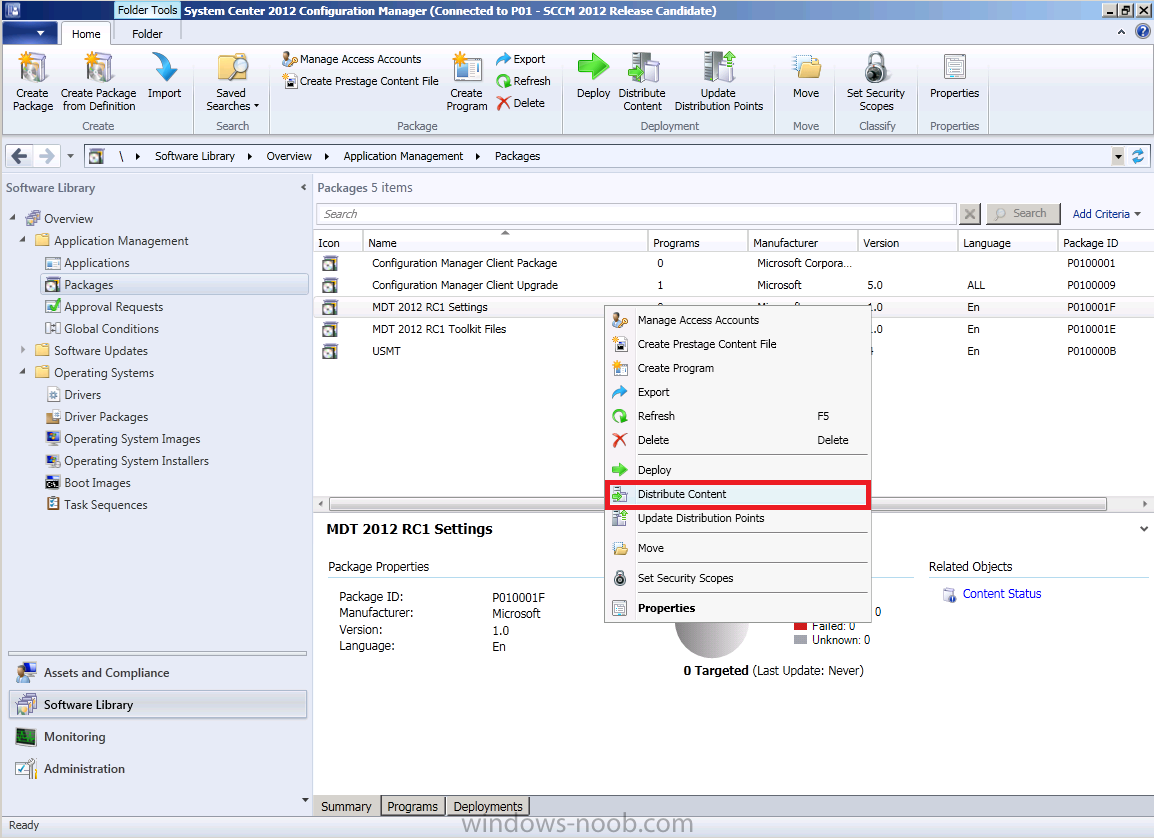

Select the MDT Settings package in Software Library, Packages, right click it and choose Distribute Content

distribute mdt files.png

select your distribution point(s)

select mdt dp.png

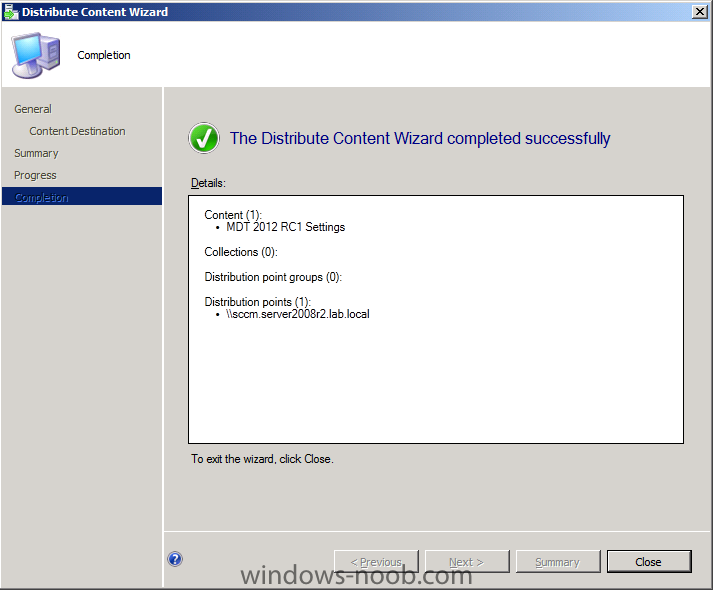

and continue through the wizard..

mdt settings dp.png


Note: Please don't forget to repeat the above process for the MDT Files, and the MDT boot image.

In the next part of this series we'll look at what we can do with MDT within ConfigMgr.

  • Like 3

Share this post


Link to post
Share on other sites


Hey Niall, this is an excellent series you've put together. I've loaded up MDT 2012 RC and CM12 RC2 in my lab however I'm having troubles getting the actual MDT Boot Wizard to launch. Any guidance on that?

Share this post


Link to post
Share on other sites

Hello i have a problem with MDT 2012 RC1 I don t watch the task sequence deploy to VHD and i must always press F12 when thé PC boot on PXE, the intregration works with Any error can you help me please ?

Share this post


Link to post
Share on other sites

Hey Niall, this is an excellent series you've put together. I've loaded up MDT 2012 RC and CM12 RC2 in my lab however I'm having troubles getting the actual MDT Boot Wizard to launch. Any guidance on that?



hi Dustin,

did you follow my steps exactly ?

please stay tuned for a coming post which will cover the next steps, but as a hint, you need to first of all make your MDT boot image PXE bootable.

Share this post


Link to post
Share on other sites

I'm getting an error at the end of the process :





Creating MDT files package.

Error while importing Microsoft Deployment Toolkit Task Sequence.



System.UnauthorizedAccessException: Access to the path is denied.

at System.IO.__Error.WinIOError(Int32 errorCode, String maybeFullPath)

at System.IO.__Error.WinIOError()

at System.IO.File.Move(String sourceFileName, String destFileName)

at Microsoft.BDD.Core.DirectoryUtility.CopyFile(DEInfo sourceFile, DEInfo destFile, String destFullName)

at Microsoft.BDD.Core.DirectoryUtility.CopyDirectory(String theSource, String theDest)

at Microsoft.BDD.Core.DirectoryUtility.CopyDirectory(String theSource, String theDest)

at Microsoft.BDD.Core.DirectoryUtility.BeginCopy()

at Microsoft.BDD.Wizards.SCCM_ImportTaskSequenceTask.DoWork(SmsPageData smspageData, Dictionary`2 data)



In which log should I watch to understand what's happening ?

Share this post


Link to post
Share on other sites

Hi, great series of blogs, really helped us get our POC lab setup. Having some trouble creating an MDT Client Task Sequence from this guide though - getting an error:



Started processing.

Creating boot image.

Copying WIM file.

Mounting WIM file.

Error while importing Microsoft Deployment Toolkit Task Sequence.



System.Exception: Failed to mount WIM file, return code -2147024894





Any ideas? Running RC2 (SCCM) which MDT 2012 RC1 on Windows Server 2008 SP2 (64Bit). Ran the MDT integration as Administrator as per the instructions...



Thanks,

Stuart

Share this post


Link to post
Share on other sites

If you're running this on a server you may be having an issue with the Autorun.inf file in;



C:\Program Files\Microsoft Deployment Toolkit\Templates\Distribution\Scripts, or wherever you installed MDT 2012.



Remove the file and try again.

Share this post


Link to post
Share on other sites

If a have a bare metal client, and I want to deploy an OS on it do I have to do these steps WITH a sysprep package?

Share this post


Link to post
Share on other sites

what os do you want to Deploy ?

Share this post


Link to post
Share on other sites

Terrific series!



Am I correct in assuming that Step 3 needs to be repeated to create an x64 boot image to be used with MDT 2012?



Thanks,

Paul

Share this post


Link to post
Share on other sites

Do you have to use the MDT boot wim with an MDT task sequence in SCCM or using the built in SCCM would work?



I'm wondering why on my SCCM, even though it's 2007, the rules are not being processed only the default section is.



I've ran the ztigather.wsf in the command prompt during OSD and see the system information but the rules never process the section I created for it.



I'm just wondering if the boot wim matters because I use SCCM boot since I just starting to use MDT integration.

Share this post


Link to post
Share on other sites

Hello Gentlemen;

I have a MDT related problem in my system. In order to install Win8 x64 , I've followed the steps explained above. My system is working prperly but...



My purpose is to skip some steps during deployment with the aim of "customsettings.ini". It's weird that my SC2012 or MDT doesn't read customsettins.ini file.

My settings package is valid and distributed to distribution points. My mdt task sequence is valid and can deploy Win8 without any errors.



Do u have any idea what I'm missing?



Thanks

Share this post


Link to post
Share on other sites

are you deploying using MDT or configuration manager with MDT integrated ?

Share this post


Link to post
Share on other sites

Anyweb,

You have covered all bases regarding deploying and using this product. I have successfully built a SCCM environment in our school system. Thanks so much. I am now trying to name computers according to their location/serial no./chassis type and then prompt for a room number. I have looked around the web and this site and I haven't found any information as to how to accomplish this in SCCM 2012. Most instructions involve MDT 2012 and modifying customsettings.ini. Firstly is this possible in SCCM and secondly can you point me to a step by step guide? Thank you in advance!

Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

Anyweb,

Thanks for your prompt reply! With all the help you've given me I feel I should call you Mr. Brady! All of your suggestions are very useful. However, I am trying to implement this as a ZTI solution. (Our techs here have VERY fat fingers). I've have come up with a script that works if I run it against a client manually,



[settings]
Priority=Init, ByLaptop, ByDesktop, ByTablet, DefaultGateway, Default
Properties=MyCustomProperty, ComputerLocationName, ComputerTypeName, ComputerSerialNumber

[init]
ComputerSerialNumber=#Left("%SerialNumber%",7)#

[byLaptop]
SubSection=Laptop-%IsLaptop%
ComputerTypeName=L

[by Desktop]
SubSection=Desktop-%IsDesktop%
ComputerTypeName=D

[byTablet]
SubSection=Tablet-%IsTablet%
ComputerTypeName=T

[DefaultGateway]
192.168.1.1=VIR
10.70.100.1=CRW
40.1.1.1=Wireless

[VIR]
ComputerLocationName=VIR
UserLocale=EN
UILanguage=EN
KeyboardLocale=414:00000414

[CRW]
ComputerLocationName=CRW
UserLocale=EN
UILanguage=EN
KeyboardLocale=414:00000414

[Wireless]
ComputerLocationName=WLS
UserLocale=EN
UILanguage=EN
KeyboardLocale=414:00000414

[Default]
OSInstall=Y
ComputerLocationName=UNK
ComputerTypeName=UNK
OSDComputerName=%ComputerLocationName%-%ComputerTypeName%-%ComputerSerialNumber%
SkipCapture=YES
SkipAdminPassword=YES
SkipProductKey=YES
SkipComputerBackup=Yes
SkipBitLocker=Yes



This script calls ZTIGather to query the hardware and plug in the appropriate variables. I just don't know how to get it into my task sequence. Can you help me once more?

Share this post


Link to post
Share on other sites

I must have answered my own question or did I ask one with an obvious answer? Please advise...
