How can I display custom messages in a task sequence using PowerShell in System Center Configuration Manager (Current Branch)

Recommended Posts


At the start of this series of step by step guides you installed System Center Configuration Manager (Current Branch), then you configured discovery methods. Next you configured boundaries to get an understanding of how automatic site assignment and content location works. After that you learned how to update ConfigMgr with new features and fixes using a new ability called Updates and Servicing and you learned how to configure ConfigMgr to use Updates and Servicing in one of these two modes:

To prepare your environment for Windows 10 servicing (this guide) you learned how to setup Software Updates using an automated method (via a PowerShell script) or manually using the ConfigMgr console. Next you used a PowerShell script to prepare some device collections, then you configured client settings for your enterprise and finally you'll deployed the ConfigMgr client agent using the software updates method which is the least intensive method of deploying the Configuration Manager client agent.


As System Center Configuration Manager (current branch) is being delivered as a service now, version 1602 was made available (March 11th, 2016) and you used Updates and Servicing to do an in-place upgrade to that version as explained here. Next you learned about how to use the Upgrade task sequence to upgrade your Windows 7, Windows 8 (and 8.1) and even your Windows 10 devices to a later build of Windows 10.


You then learned about the new Windows 10 servicing features which use Servicing Plans in ConfigMgr (Current Branch). Next you integrated MDT 2013 update 2. MDT integration with ConfigMgr is useful as it provides additional functionality for operating system deployment scenarios such as Offline Language Package installation or User Driven Integration (UDI).


Next you learned how to deploy Language Packs offline for Windows 10. To assist with Windows 10 servicing and for applying appropriate software updates to your Windows 10 devices, you used PowerShell to add queries to the various Windows 10 collections.


Next you took a deeper look at the Windows 10 Upgrade task sequence, and learned one way of dealing with potential upgrade issues. While that method will flag a problem, such as determining the system UI language doesn't match the provided media, it won't allow you to continue with the upgrade. Next you learned how to upgrade the operating system when a language pack was installed, provided that the system UI language is from a 'list' of approved languages that you intend to support.


This guide will show you how to display customized messages to a user during a task sequence, and how to set an exit code which could allow you to deliberately fail an action if necessary. All that's required is a few steps to set variables, a PowerShell script, and the serviceUI.exe executable from MDT 2013 Update 2.


Step 1. Create a package

On your ConfigMgr server, in the sources share, create a folder called Display Custom Message and place the DisplayCustomMessage.ps1 PowerShell script available in the downloads section of this guide, in the folder. Even though you might be deploying an X64 operating system, locate, select and copy the x86 architecture version of ServiceUI.exe from the Sources\OSD\MDT\MDT2013u2\Toolkit\Tools\x86 folder




into the Display Custom Message folder as shown below.


display custom message.png


In the ConfigMgr console, Software Library, select Packages and right click, choose Create Package. Fill in the following details,


create package.png


Choose Do not create a program and then continue through the wizard until completion.


package created.png


Once the package is created, right click the package and choose Distribute Content.


distribute content.png


Distribute the package to your distribution points.





Step 2. Create a custom task sequence

In the ConfigMgr console, in Software Library, select Operating Systems and right click on Task Sequences, choose Create Task Sequence.


Create Task Sequence.png


select Create a new custom task sequence


create a new custom task sequence.png


give the task sequence a suitable name such as Display Custom Messages with exit codes


create task sequence wizard.png


continue through that wizard until completion.


custom ts done.png


Step 3. Edit the task sequence

Right click on the newly created task sequence and choose edit


edit task sequence.png


It will appear blank, click on the Add Drop down and add a New Group called Display Custom Message


Create a new Set Task Sequence Variable step called Set Title with a Task Sequence Variable called Title, with a suitable value as follows:


set title.png


Create a new Set Task Sequence Variable step called Set Message with a Task Sequence Variable called Message, with a suitable value as follows:


set message.png


Create a new Set Task Sequence Variable step called Set ReturnCode with a Task Sequence Variable called ReturnCode, with a suitable positive value as follows:


set returncode.png


Click Add and choose Run Command Line, name the step Display Custom Message and paste in the following:

ServiceUI.exe -process:TSProgressUI.exe %windir%\sysnative\WindowsPowerShell\v1.0\powershell.exe -WindowStyle Hidden -NoProfile -ExecutionPolicy bypass -nologo -file DisplayCustomMessage.ps1

For Package, select the Display Custom Message package created above.


display custom message step.png

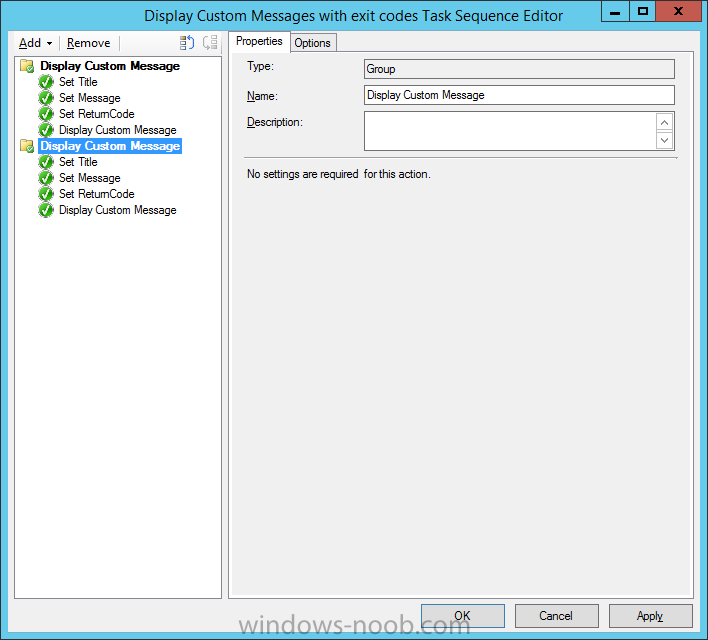

Copy the entire group and paste it below the first group


copy paste.png


Edit the Set Message step as below


set message to fail.png


Edit the Set ReturnCode step, and choose a value that the Options tab on the Display Custom Message step is not going to expect such as 1, this will cause the next step to fail when it returns the return code.


returncode 1.png


Apply your changes and exit the Task Sequence wizard.


ready to apply.png


Step 4. Deploy the task sequence

Right Click on the task sequence and choose Deploy


deploy task sequence.png


Choose a suitable collection and use a purpose of Available.




Step 5. Review the capabilities

On a client computer that is in the collection that the task sequence was deployed to, open Software Center and select the Display Custom Message with exit codes task sequence.


display custom message in software center.png


choose Install

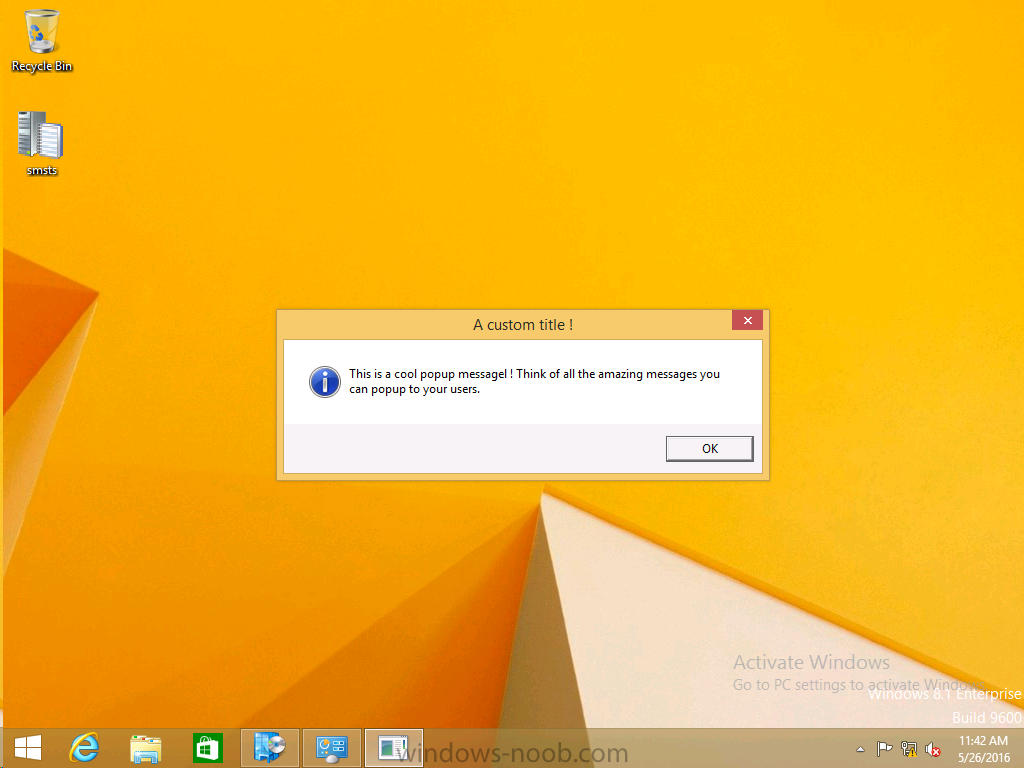

and after a few moments the first popup message appears !


custom message.png


As the ReturnCode for the first message was set to a value we expected (0 or 3010) it did not fail the task sequence. Click OK to continue...


the next message appears, note the different text, and it's hinting towards what will happen


custom message 2.png


Clicking OK will produce the failure


task sequence failed.png


Which is OK because we were expecting it, in fact, the ReturnCode we set (1) is listed in the failure message. In a real Production task sequence however, you'd take care of failures and deal with them in a professional way, I just want you to see that we can actually set the ReturnCode via the custom message.


To get more proof of that refer to the SMSTS.log file, and you can see that it's setting the ReturnCode to the value we chose


exit code 1.png


result !



Popping up messages to users during a task sequence is sometimes necessary, and when things go wrong, you sometimes need to fail the task sequence or set a ReturnCode to do a planned action. This guide helps you do both of those things dynamically.


Related Reading


You can download a Microsoft Word copy of this guide here dated 2016/05/26

How can I display custom messages to users during a task sequence in SCCM Current Branch.zip


You can download the PowerShell script used above here.



Share this post

Link to post
Share on other sites

i can test and come back to you !

Share this post

Link to post
Share on other sites

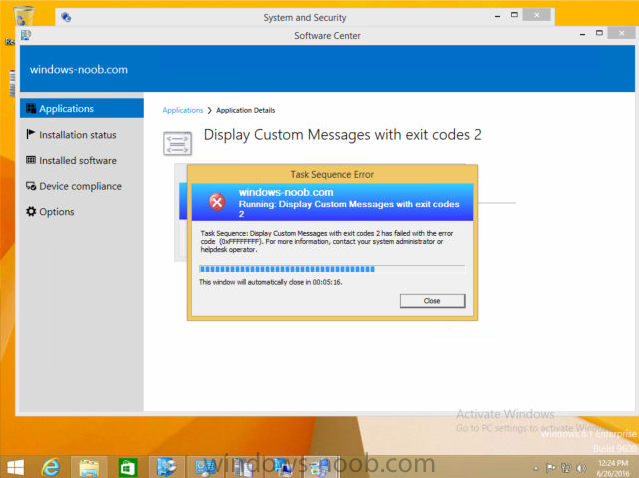

that error still shows up, i set the timeout for 1 minute and waited. Fyi.


timeout error.png



Share this post

Link to post
Share on other sites

very nice help.

at the moment I have the problem that I want to give the powershell script parameters.

Do you know the right way?


thats my test (tried with ' and "):

ServiceUI.exe -process:Explorer.exe %SYSTEMROOT%\System32\WindowsPowerShell\v1.0\powershell.exe -NoProfile -WindowStyle Hidden -ExecutionPolicy RemoteSigned -File ".\script.ps1" -Message 'Hello,' -Title 'Test'


When I run it on the local system in the powershell with this everything is nice:

.\powershell.exe -NoProfile -WindowStyle Hidden -ExecutionPolicy RemoteSigned -File ".\script.ps1" -Message 'Hello,' -Title 'Test'



When I write the parameters in the script itself everything is ok with this:

ServiceUI.exe -process:Explorer.exe %SYSTEMROOT%\System32\WindowsPowerShell\v1.0\powershell.exe -NoProfile -WindowStyle Hidden -ExecutionPolicy RemoteSigned -File ".\script.ps1"



So now I dont know how to write it correctly in the SCCM (maybe wrong use of " ' ) ...on the local computer everything works fine

Edited by windowsnap123

Share this post

Link to post
Share on other sites
7 hours ago, mlarkin said:

The download link for the powershell script doesn't work.

Can you post it again or somewhere else?

works fine for me, what happens when you click on it ?

Share this post

Link to post
Share on other sites
On 7/14/2017 at 11:29 AM, MichaelDK said:

Is it possible to show the message and continue the task sequence (no wait for click or timeout)

yes but you'd have to edit the powershell script and change the function that displays the message box, the link below has a function to generate what you want


Share this post

Link to post
Share on other sites

Thanks for this solution. Very nice. The best part is not having to change the script to create a different message! Has been great for win10 upgrades to notify users of low disk space and vpn connection.

Question - I'm trying to use this in Winpe 64bit v14393 for standalone media expired/outdated notification. It's giving me the error "This version of serviceui.exe is not compatible with the version of Windows you're running..". Have you tried to use this in winpe? Any suggestion on how to get passed this? I am not using the "disable 64bit file system redirection" option in the task.


Share this post

Link to post
Share on other sites

Thanks for this solution. Very nice. The best part is not having to change the script to create a different message! Has been great for win10 upgrades to notify users of low disk space and vpn connection.


thanks !

you don't need serviceUI.exe to display messages in WinPE, it's only needed while you are in Full Windows, so when you are in WinPE, simply remove the serviceUI.exe references in your task sequence step

Share this post

Link to post
Share on other sites

Need help, I´ve followed your manual and I got error 0xffffffff on run command step. I don´t have timeout selected. Is there anything else what  I can check? Thank you.

@already solved by adding proper path to powershell.exe file in Win10. Thx


Edited by Dwarf

Share this post

Link to post
Share on other sites

happy to have helped ;-)

Share this post

Link to post
Share on other sites

Hi, I can't thank you enough for this.

Since I am fairly new to SCCM, a hiccup I encountered was to make sure when I do this in WinPE it must be after Format and Partition Disk. Else I will be receiving the "failed to resolve the source for sms pkgid hr=0x800700a1"
